on Truck Loading Gantry ISO9001 LPG Top and Bottom Loading Arm

1 / 5

on Truck Loading Gantry ISO9001 LPG Top and Bottom Loading Arm

Customization:	Available
Condition:	New
Customized:	Customized

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

AL2503

Certification

ISO9001

Tank Material

Metal Tank

Type

Middle Pressure Storage & Transportation

Storage Objects

Solid, Liquid, Gas

Color

Light Grey or Customized

Seals

PTFE

Quality Guarantee

1 Year

Application

Truck Tanker, Rail Car, Marine

Accessory One

Quick Coupling

Accessory Two

Break Away Coupling, Liquid Level Alarm

Transport Package

Wooden Case or Plywood Case

Specification

DN50, DN80, DN100, DN150

Trademark

LOADARM

Origin

China

HS Code

8428909090

Production Capacity

5000 Sets / Year

⚙️ Product Description

The structure of AL2503 land loading arm:

Our loading arm in the workshop:

📘 General Introduction

Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions.

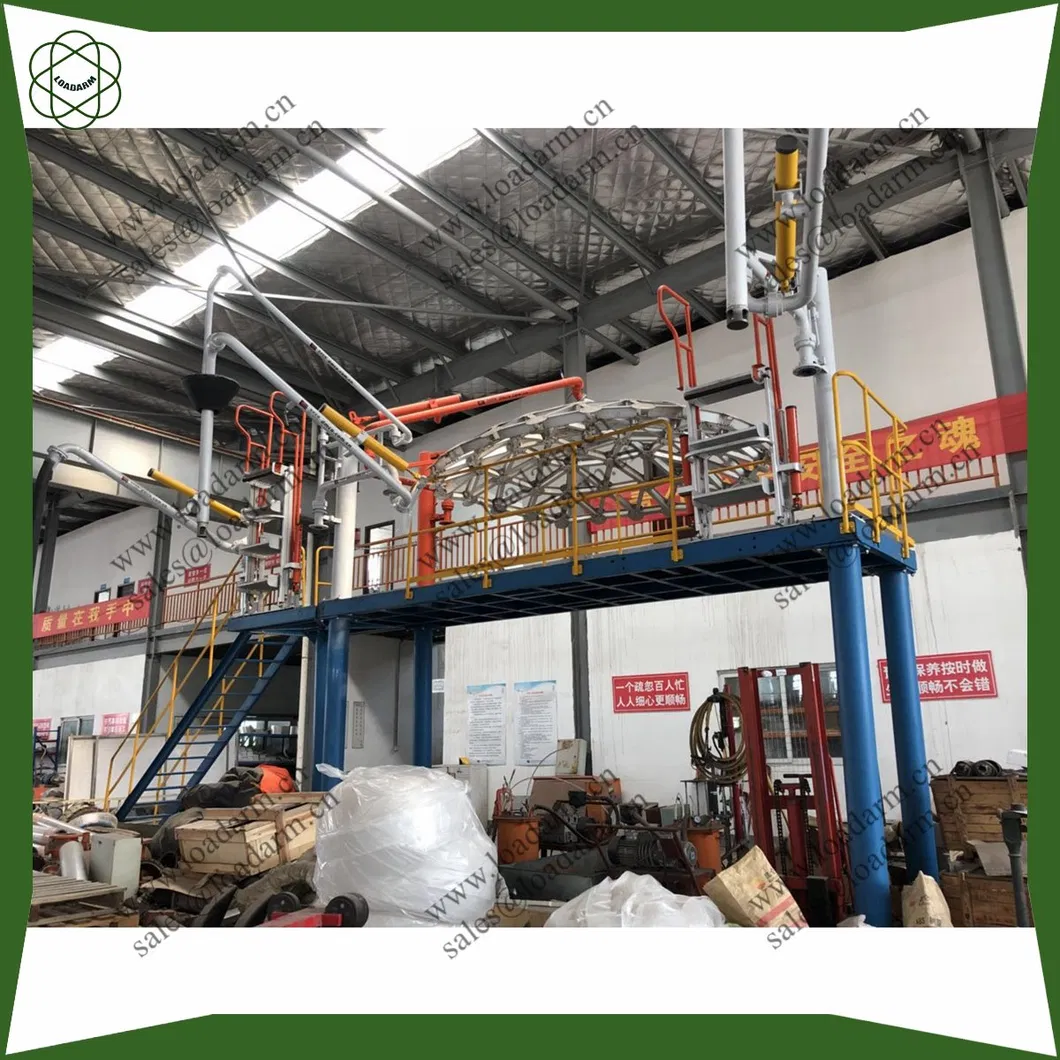

Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system. By level location or quantitative monitoring, while fluid level exceed the present value, provide the sound and visual alarm or the remote signal.

According to the products, models and requirements of customers, the operating modes could be manual, pneumatic or hydraulic etc.

The basic technical data for AL2503 land loading arm:

AL2503 is a typical of bottom loading arms. The type of loading arm usually connects to the tanker by flanges or quick coupling. It has good sealing performance.
Places Applied	Bottom closed loading or unloading
Applications	Product oil, chemicals, etc.
Nominal Diameter	DN50~DN100
Working Temperature	-196~250ºC
Working Pressure	PN1.0~PN4.0
Material of pipeline	Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc.

Overseas project cases:

❓ Frequently Asked Questions

1. What are the primary applications for the AL2503 loading arm?

The AL2503 is primarily used for bottom closed loading or unloading of product oils, chemicals, and other fluids in truck tankers, rail cars, and marine applications.

2. What materials are available for the pipeline construction?

Pipelines can be constructed from carbon steel, stainless steel, aluminum, low-temperature steel, or can be PTFE lined to suit different chemical compatibility requirements.

3. Can the operating mode be customized?

Yes, depending on customer requirements and site conditions, the operating modes can be configured for manual, pneumatic, or hydraulic operation.

4. What is the working temperature range for this equipment?

The AL2503 loading arm is designed to operate in extreme conditions, with a working temperature range from -196ºC up to 250ºC.

5. Does the system include safety features?

Yes, it can be equipped with liquid level alarms that provide sound and visual alerts or remote signals when fluid levels exceed set values, along with safety cages and break-away couplings.

6. What certifications and quality guarantees are provided?

The product is ISO9001 certified and comes with a 1-year quality guarantee, ensuring reliable performance and manufacturing standards.
