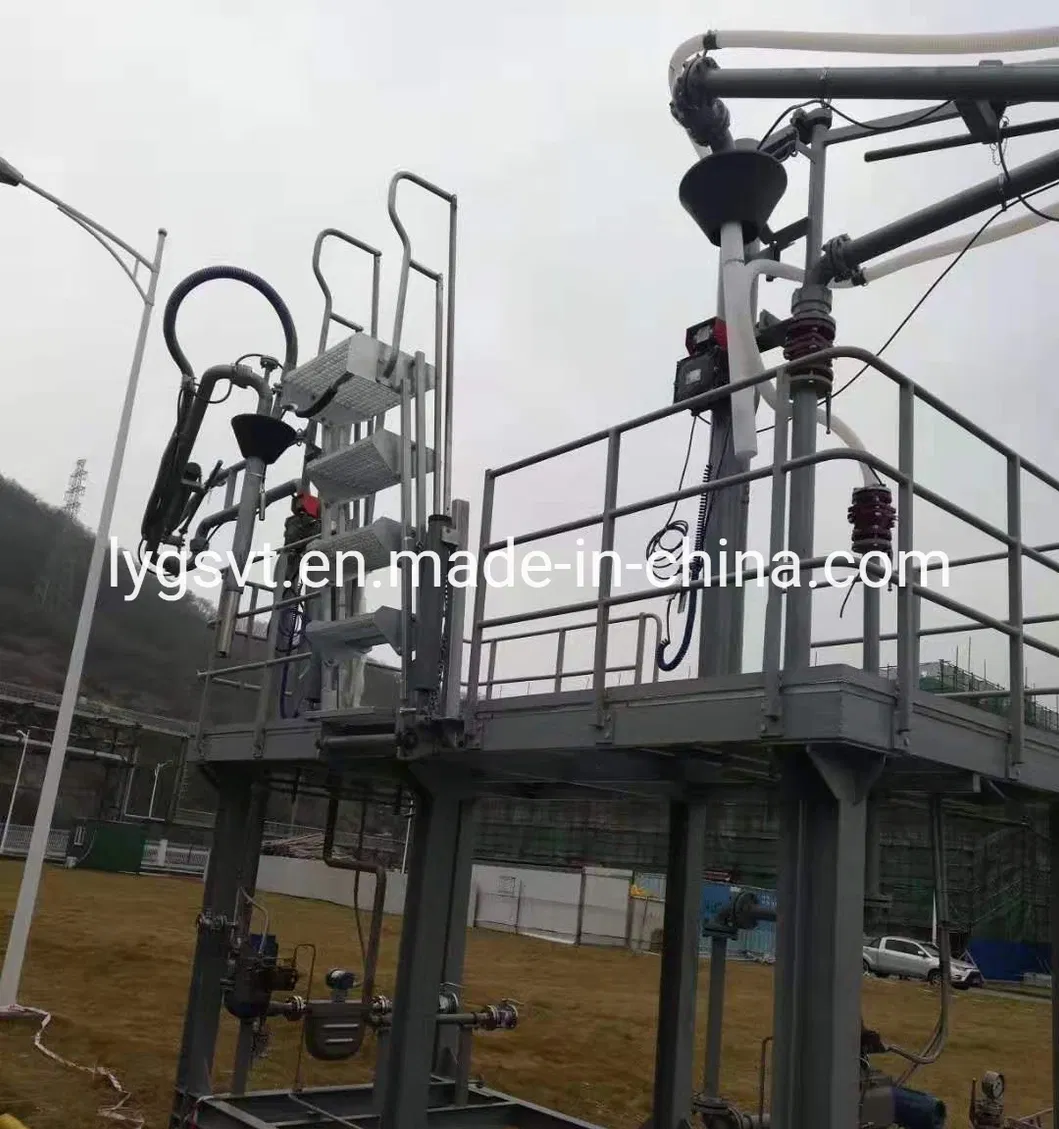

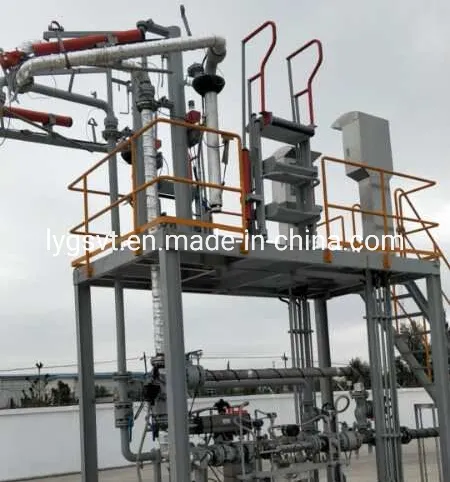

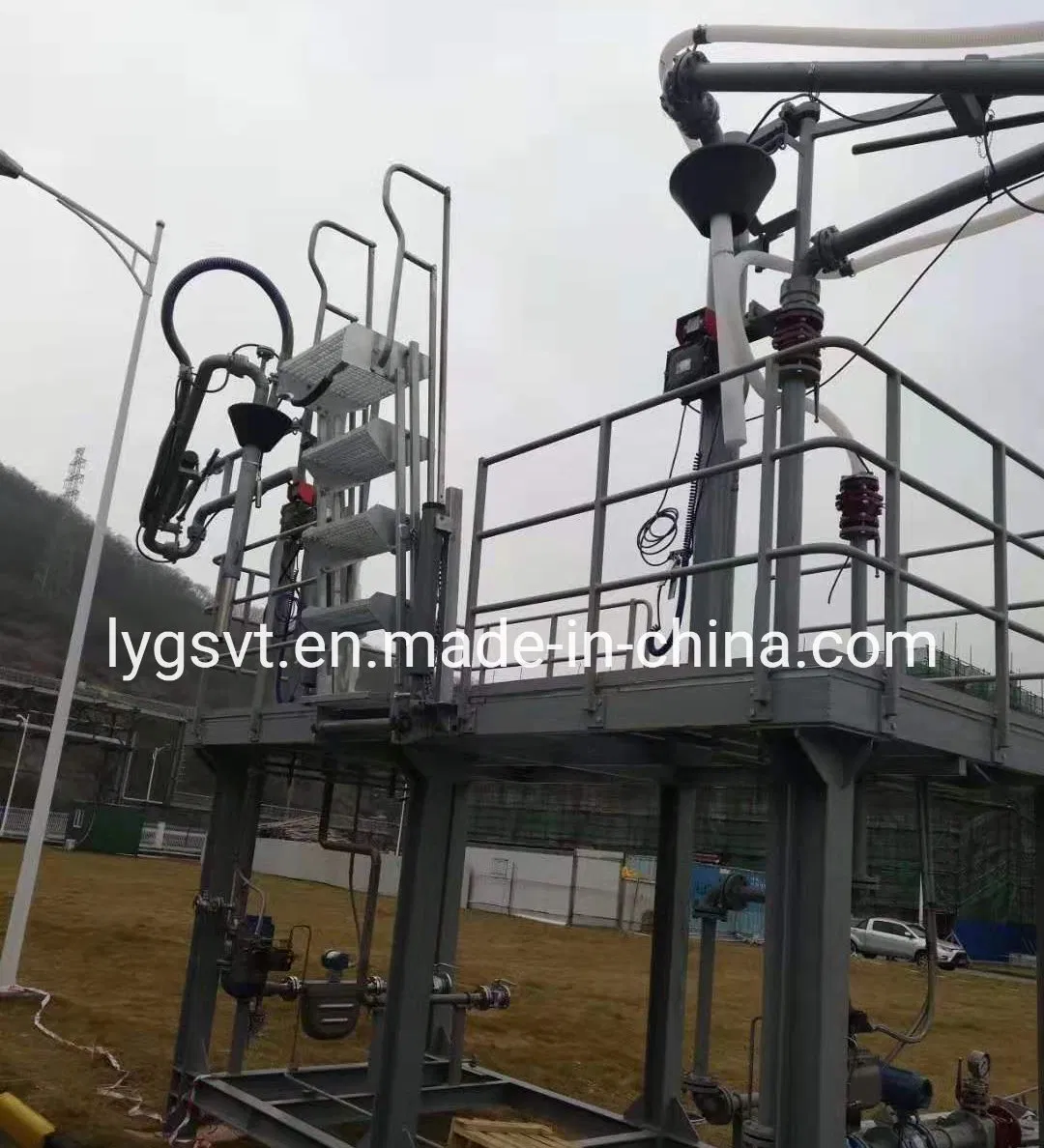

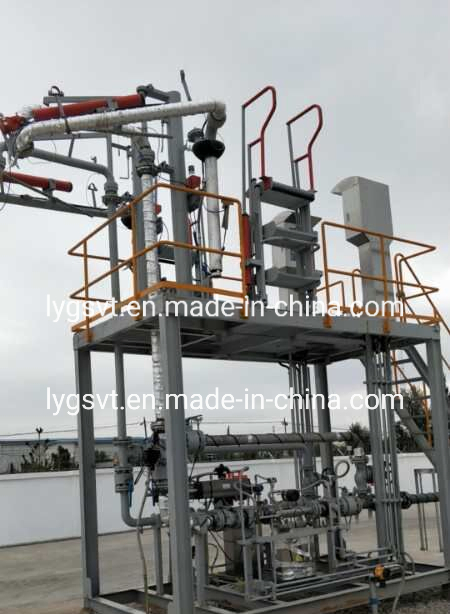

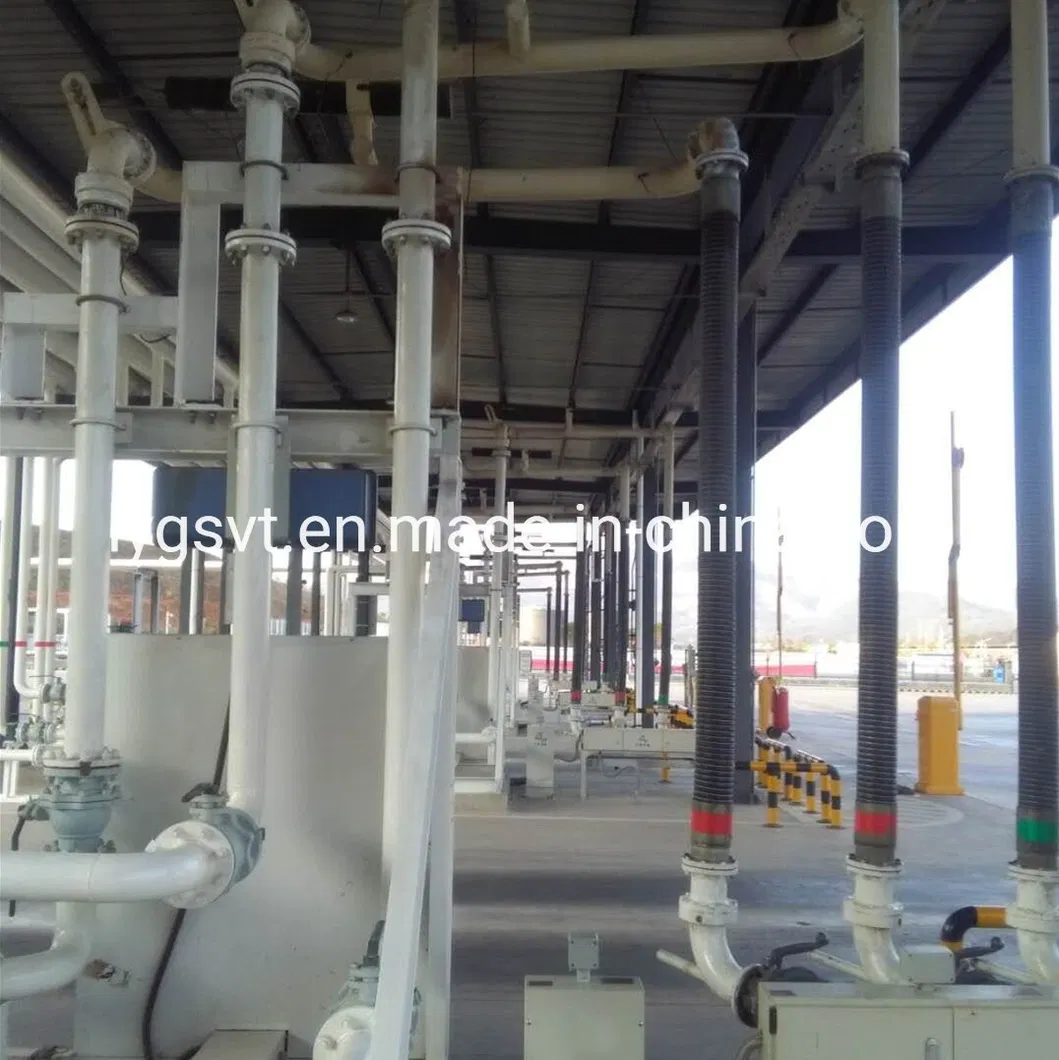

Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions. Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system.

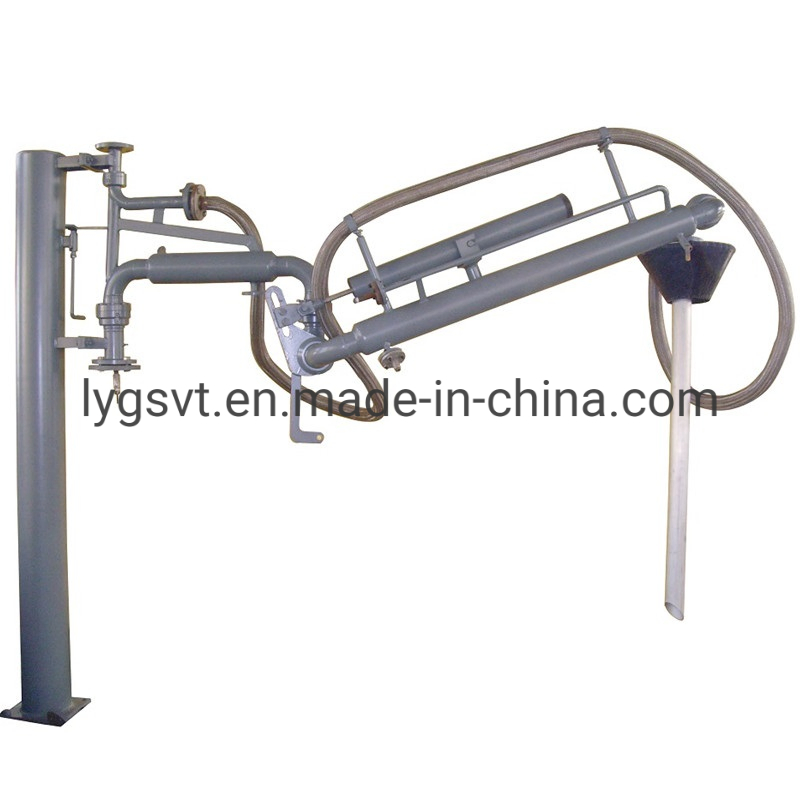

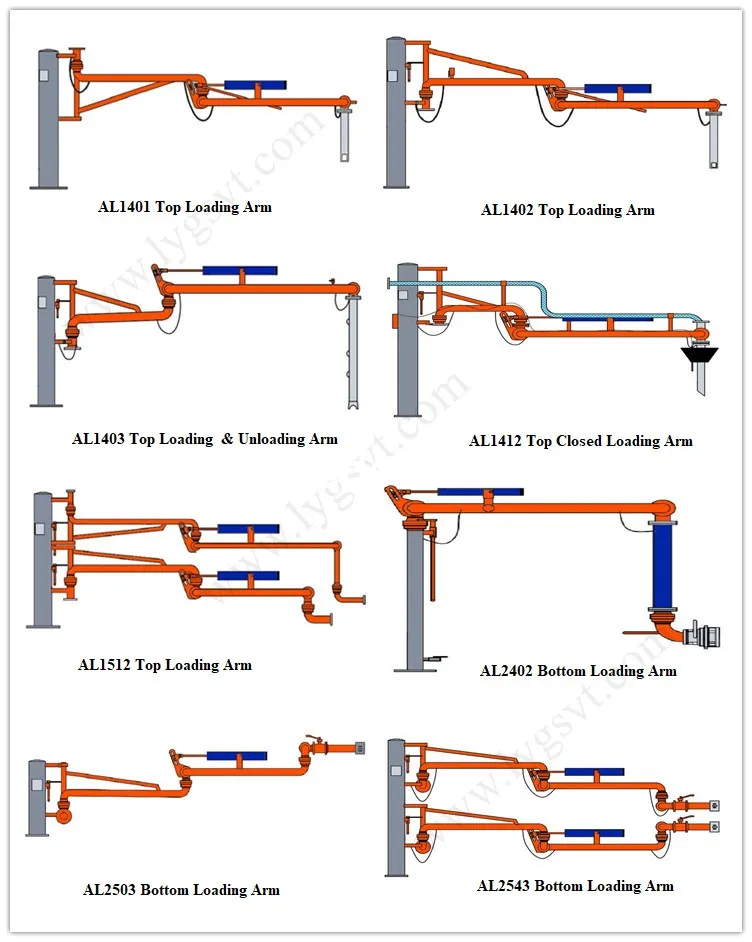

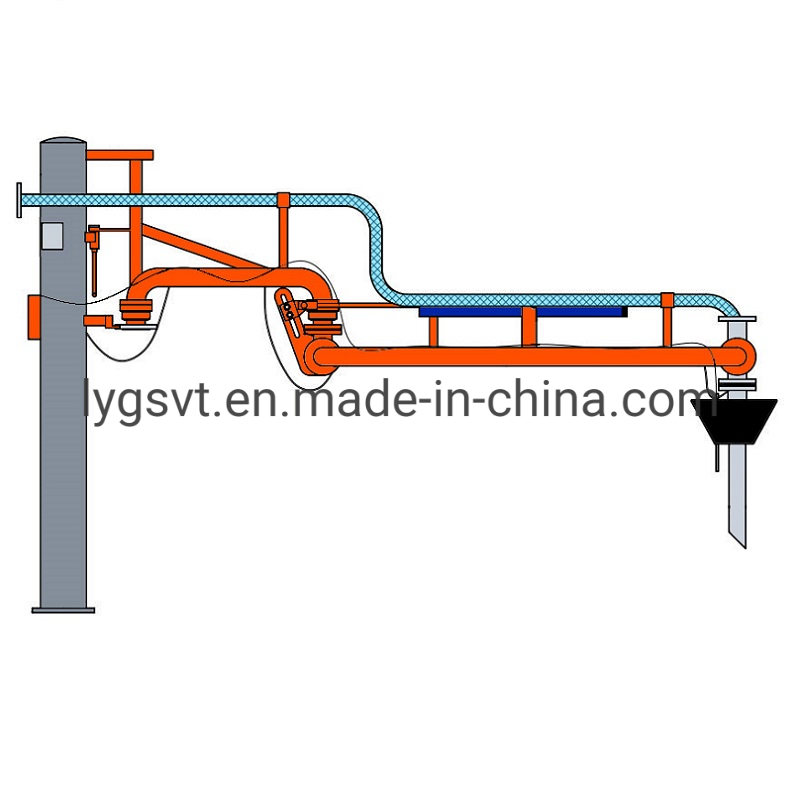

Top Loading Arm is mainly composed of the Riser, Inboard arm, Outboard arm, Spring Cylinder Balance System, Locking System, Sealing Cone (if required), Vapor Return Pipeline (if required), Drop Pipe. It can also be equipped with liquid level alarm system, which will give out sound and visual alarm or the remote signal when the set liquid level is reached.
Key Features:
• Simple structure, widely used, and easy operation.

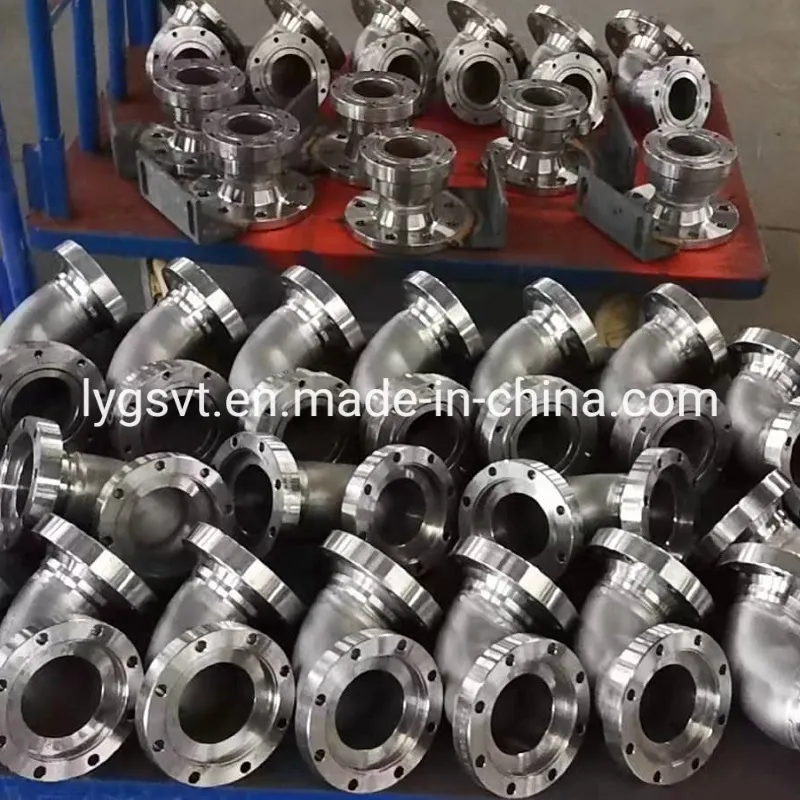

• Advanced design of Swivel Joint makes easier replacement of sealing ring and great performance to prevent leaking.
• Spring cylinder makes the loading arm's movement smoothly and easier to adjust.
• Available accessories: Ball Valve, Breakaway Coupling, Purge Line / Drain Line, Position Indicators, Overfill Probe, and Pressure Gauge.
| Product Name | Petroleum & Chemicals Top Loading Arm |
| Service Product | Chemicals, Oil and other products |
| Nominal Diameter | DN50~ DN150 (2" to 6") |
| Vapor Return Line Diameter | DN50, DN80 (2", 3") |
| Design Pressure | -0.08 Mpa ~ +2.5 MPa |
| Design Temperature | -196°C~ +110°C |
| Pipe material | Carbon steel, stainless steel, low-temperature steel, line with PTFE |
| Balancing | Spring Cylinder Balancing |

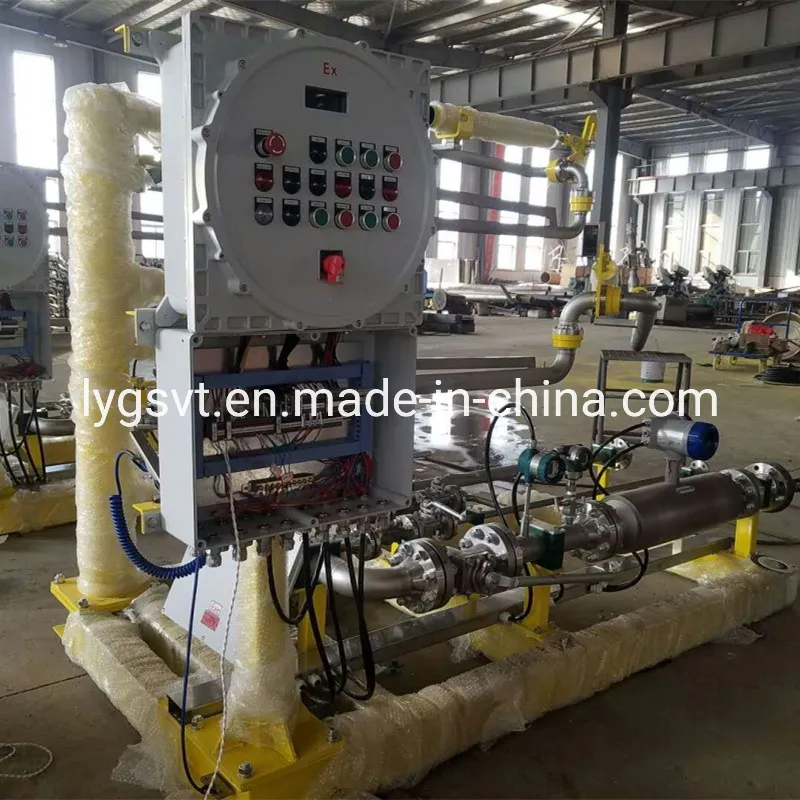

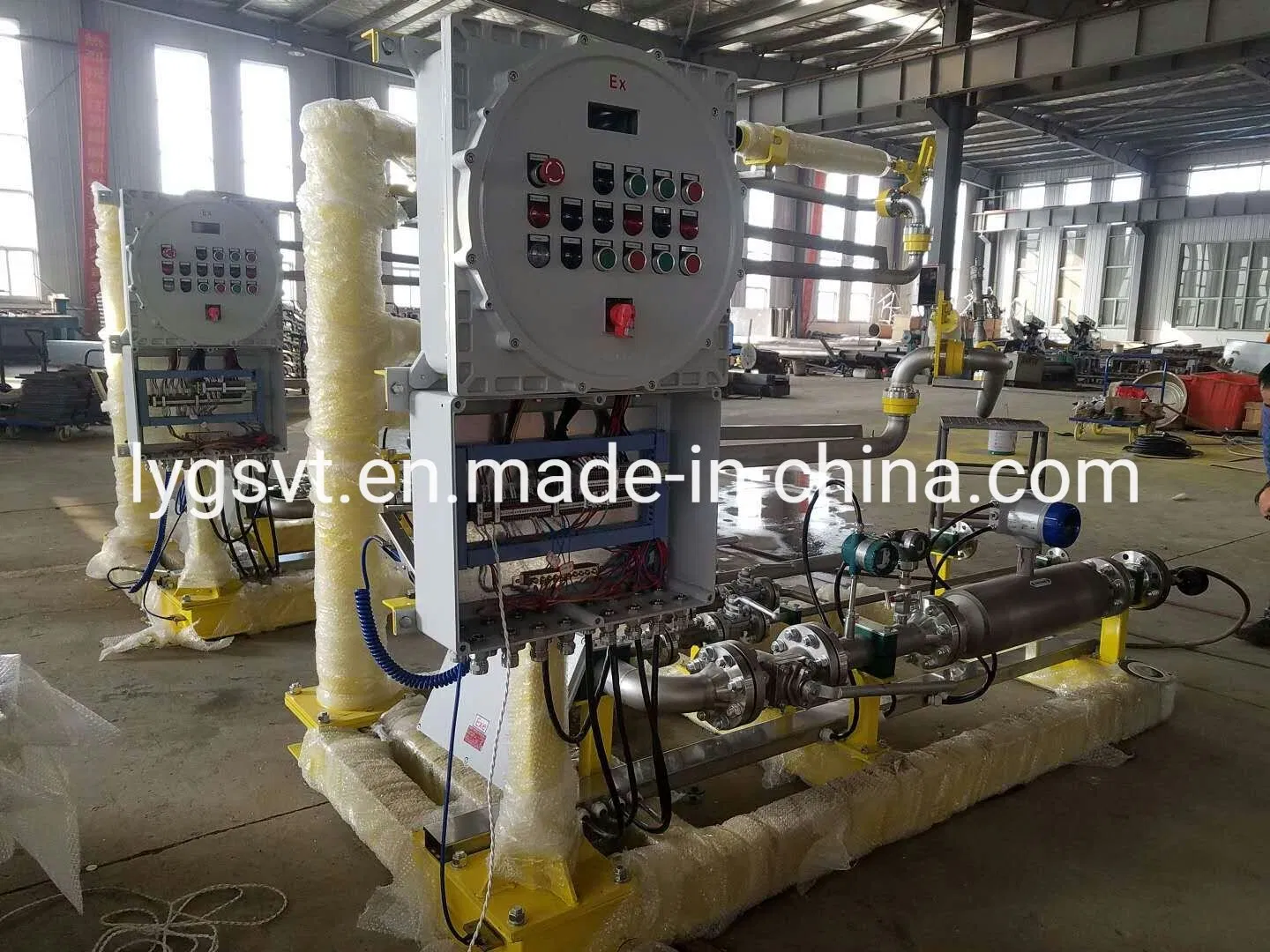

Specializing in the design, manufacture, sale and installation of Land Loading Arm, Marine Loading Arm, Internal Floating Roof, Floating Suction Unit, Folding Stairs and Platform, Gangway Tower, and Automatic Quantitative Loading Systems.
With professional technical personnel engaged in mechanical design and engineering construction, we maintain a perfect quality assurance system. We strictly perform ISO9001 Quality Management Systems across design, procurement, production, and sales. Equipped with advanced processing, welding, and testing equipment, we ensure worry-free technical support and service.
