Product Description

Basic Specifications

Model NO.
WS-GT69
Power Supply
Pneumatic
Warranty
1 Year
Drive Power Range
Compressed Air of 3-8 Bar
Net Weight
150 Kgs
Driven Piston
250mm
Material
Stainless Steel and Alluminum Alloy
Usage
Water
Output Pressure
Adjustable base on air driven pressure
Product Name
High Flow Pneumatic Driven Chemical Injection Pump
Package
Wooden Box Packing
Specification
120× 77× 93CM
HS Code
8463900090
Capacity
10 PCS Per Month

Product Description

Model: WS-GT69 250mm Driven High Flow 300-500 Bar Complete Stainless Steel Frame Air Driven Hydraulic Pressure Testing Pump Skid with Gauges and Valves

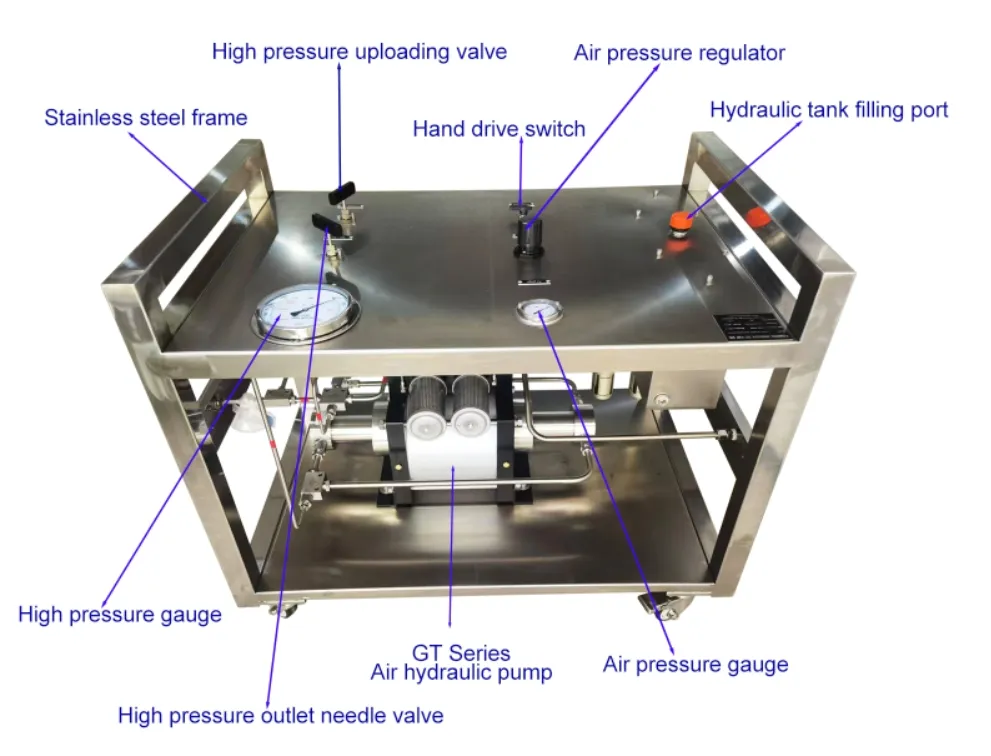

High Flow Hydraulic Pump
✓Reliable, Easy to Maintain, compact and robust
✓No heat, flame or spark risk
✓Infinitely variable cycling speed and output
✓No electrical connection required; easy automatic controls
✓No limit to continuous stop/start applications
✓Seals designed for long life, no airline lubrication required

Technical Insights

The GT 250 series pumps are very high flow pumps. Using a 250mm double acting air drive with a liquid end connected to each end, these pumps deliver high pressure liquid outlet on both strokes. This makes the GT series almost twice as efficient as standard series pumps. Ideal for methanol injection and LPG transfer applications.

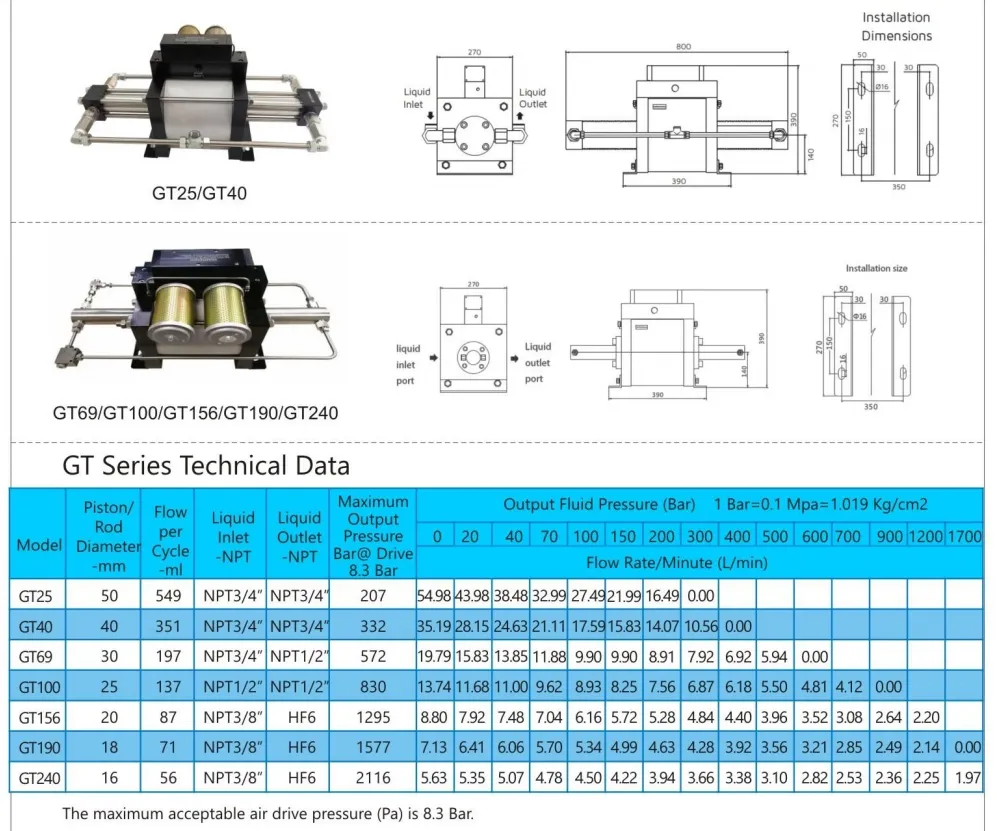

Main Technical Parameter

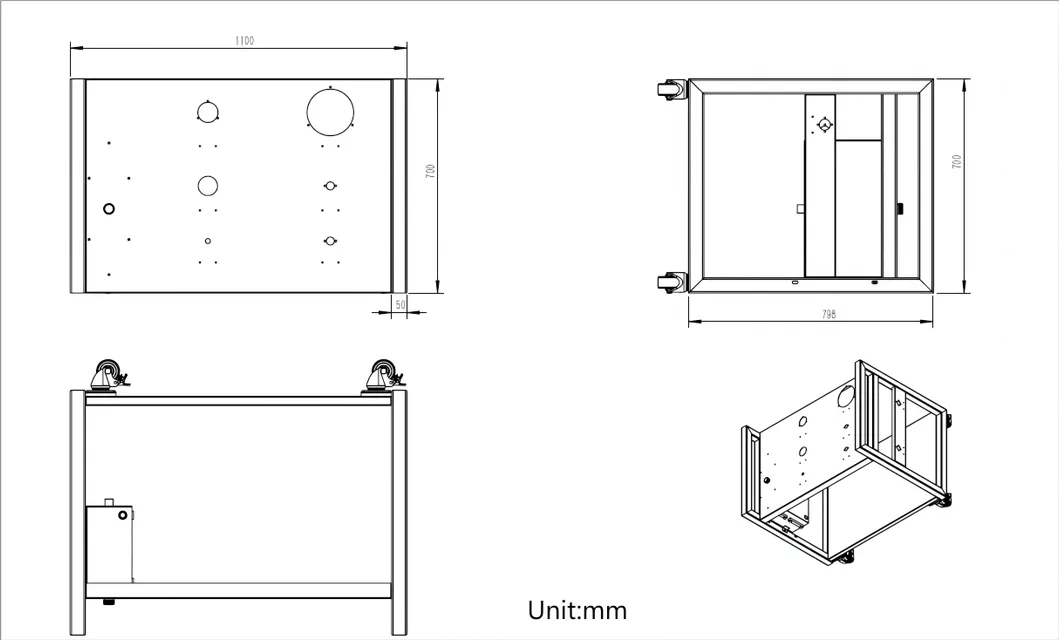

Product Overview Drawing

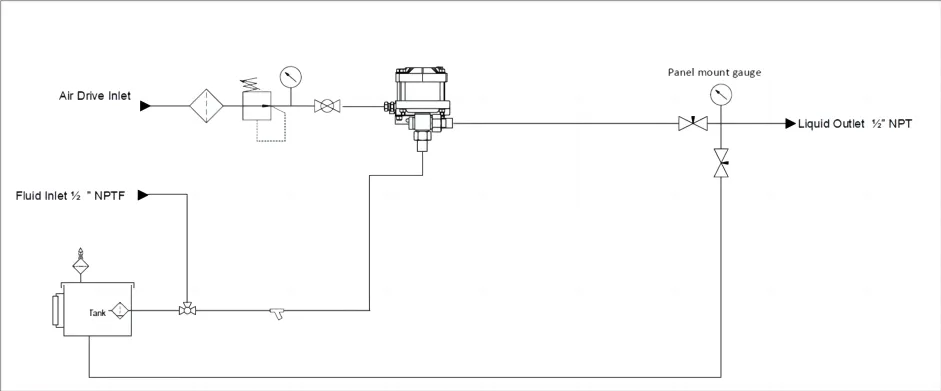

Product Diagram

Packaging & Shipping

Wooden Box Packaging
Shipping Method Description
By Sea Cheapest but longest option (18~30 days) for mass shipment.
By Air Faster than sea, cheaper than express (5~7 days) to airport.
By Express Door to door service, the fastest (3~5 days) via DHL/Fedex/UPS/TNT.

Frequently Asked Questions

Q1: What is the main power source for the WS-GT69 pump? The pump is pneumatically driven, requiring compressed air between 3-8 Bar. No electrical connection is needed.
Q2: Can the output pressure be adjusted? Yes, the maximum output pressure is fully adjustable based on the air driven pressure provided to the system.
Q3: Is this pump suitable for hazardous environments? Absolutely. Since it is air-driven, there is no risk of heat, flames, or sparks, making it safe for sensitive areas.
Q4: What materials are used in the construction of the pump skid? The pump features a complete stainless steel frame and liquid ends made of Stainless Steel and Aluminum Alloy for high durability.
Q5: What is the efficiency of the GT series compared to other models? The GT series utilizes a double-acting air drive, delivering liquid on both strokes, making it nearly twice as efficient as single-acting series like the GH.
Q6: Does the airline require lubrication? No, the sealing system is specifically designed for a long working life without the need for airline lubrication.
