Product Description

i

Product Overview

Model NO. WTL-A700
Display 8 Inch LCD
Certification RoHS, CE, ISO9001
Operating Temperature -20'C to 70'C
Signal Input/Output <=6 Channels
Power Supply AC220V / DC24V
IP Grade IP65
?

Why Winch Load Tension Meter System?

Monitoring tension, speed, and payout with alarms for maximum limits is critical for maritime safety. This system prevents catastrophic cable breakages caused by excessive tension during anchor operations or uncertain load conditions, significantly reducing economic losses and equipment damage.

System Definition: A winch load tension meter system measures the force on a winch cable or rope to ensure loads remain within safe working limits. It typically integrates a load cell, digital display, and data logging software.
Improved Safety Prevents overloading, equipment failure, and potential injury to personnel during lifting operations.
Increased Efficiency Provides real-time data allowing operators to optimize lifting and payout processes.
Cost Savings Reduces maintenance and repair costs by preventing stress-related damage to cargo and machinery.
Regulatory Compliance Meets requirements from regulatory bodies for mandatory load monitoring on vessels.

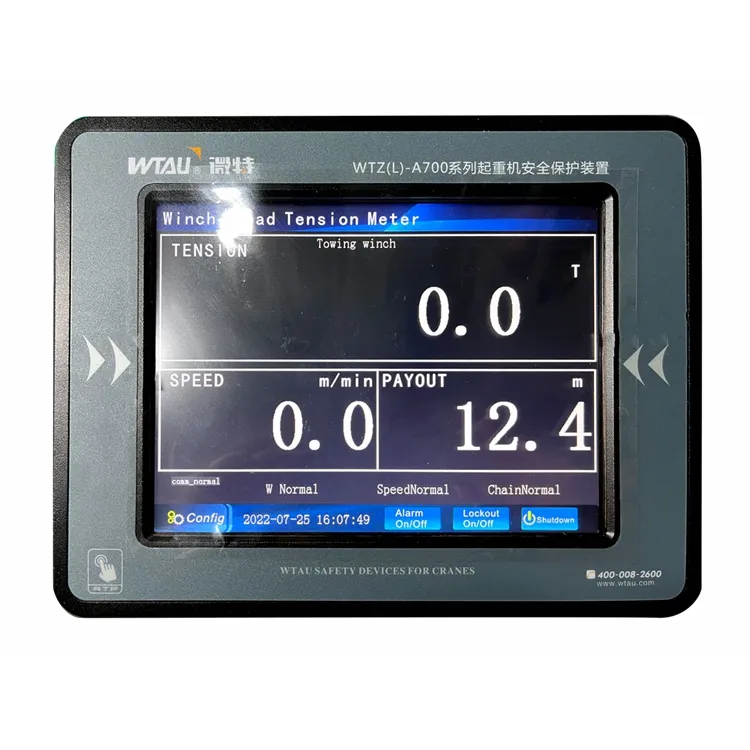

Winch Loading System Measurement
Winch Safety Device
⚙

Technical Parameters

System Composition Error <=5%(F.S)
Power Consumption <30W
Alarm Volume >60db
Operating Humidity 95%(25'C)
Package Size 65.00cm * 65.00cm * 65.00cm
Gross Weight 65.000kg
✓

Installation & Applications

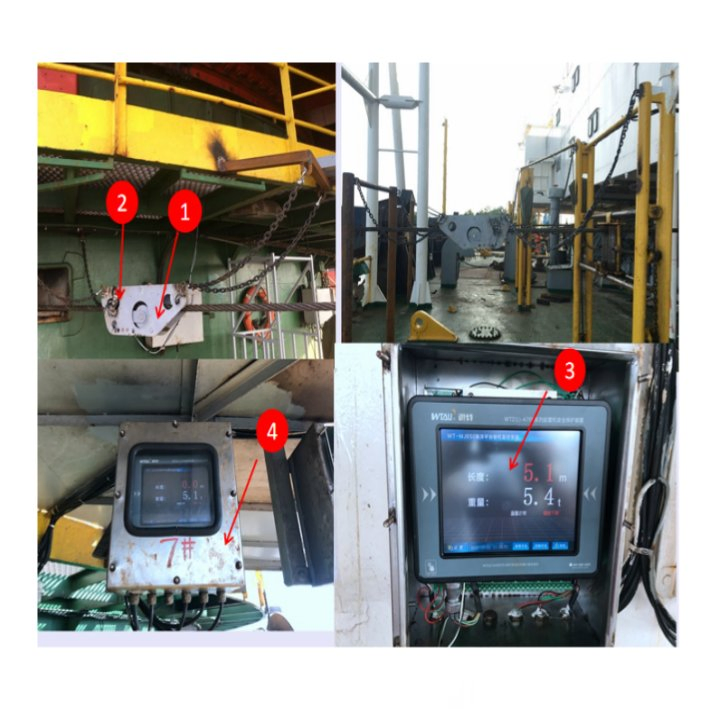

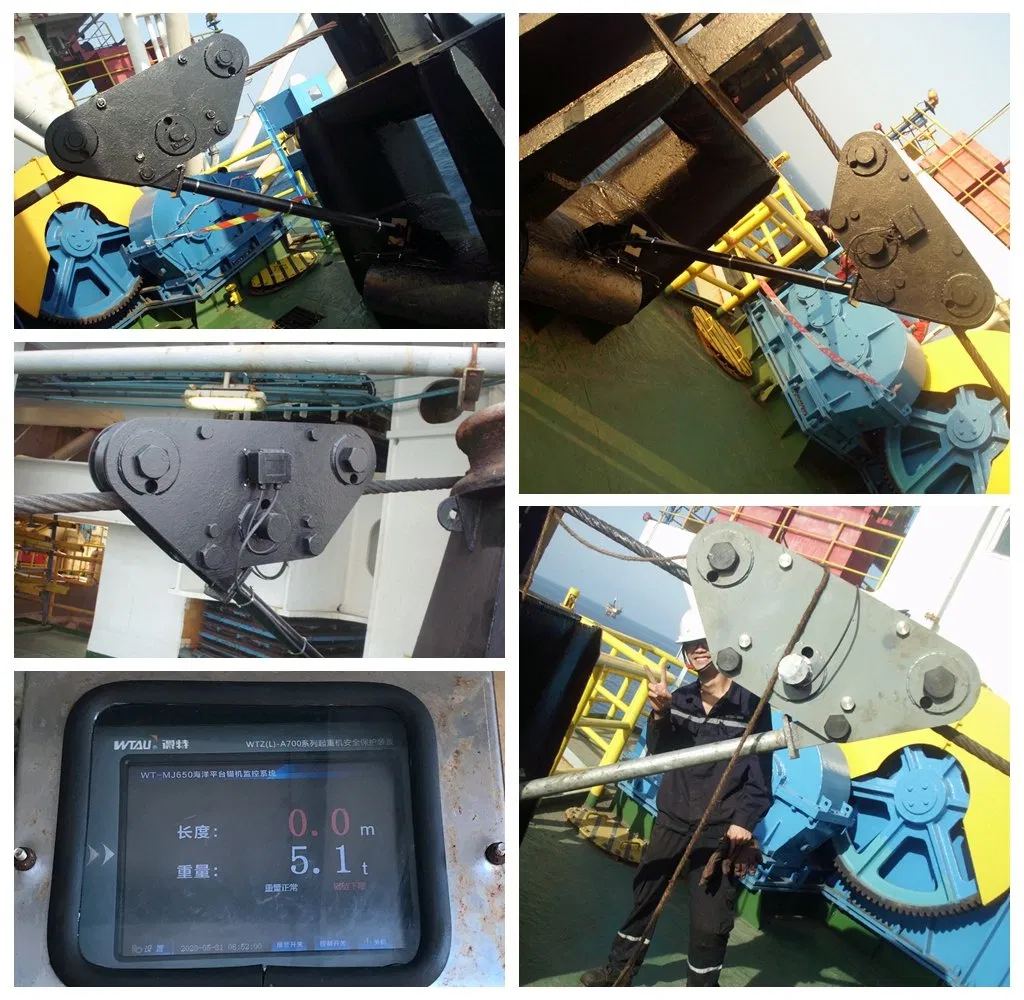

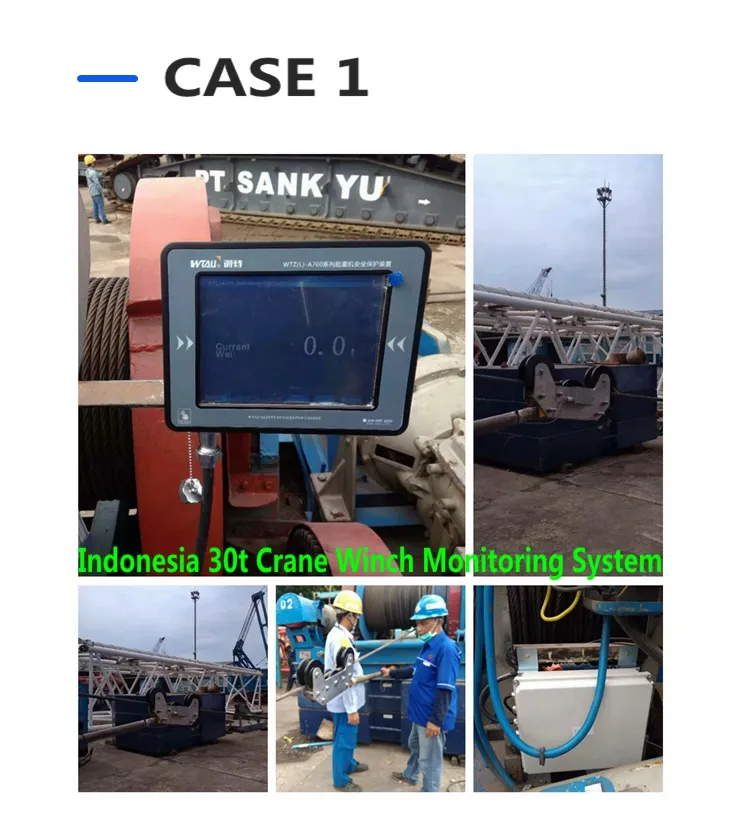

Installation Case
Application Scenario

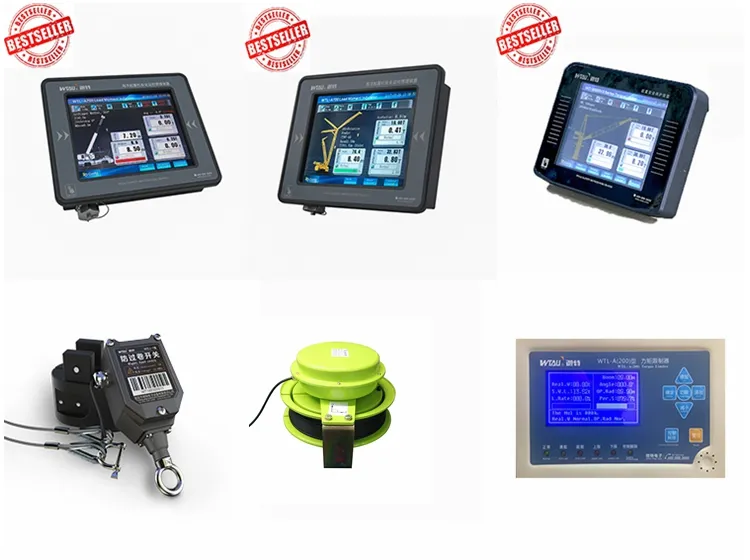

Related Components

Our safety management solutions are widely used in marine, electrical, chemical, steel, metallurgy, and port industries across over 70 countries. We provide customized monitoring for crawler, mobile, tower, gantry, and offshore cranes.

?

Frequently Asked Questions

What are the primary functions of the Winch Load Tension Meter?
The system assists crane owners and operators in maintaining safe working conditions by monitoring load moment, tension, speed, and payout to prevent accidents.

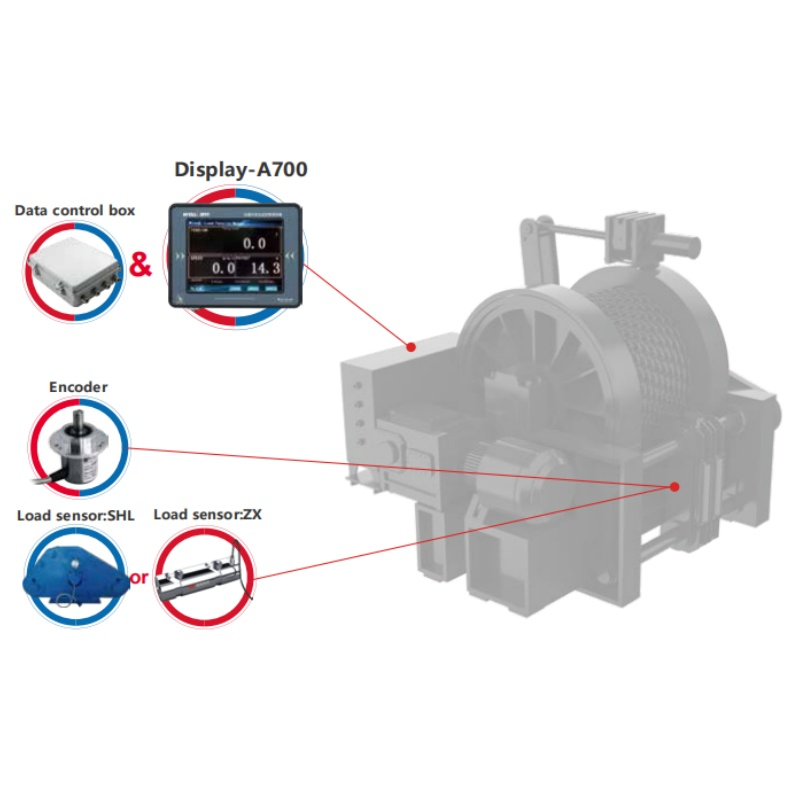

What components are included in a standard LMI system?
A standard system typically includes a display, control box, load sensor (load cell or load pin), angle sensor, 3-color alarm light, A2B limit switch, and an anemometer.
Can this system be installed on older crane models?
Yes, the system can replace outdated or non-functional displays, bringing older cranes back to normal and safe working conditions.
What is the warranty period for the equipment?
The product comes with a 12-month total warranty. Any issues encountered after installation are covered, including free replacement of parts if necessary.
How is the installation process handled?
We provide a comprehensive English User Manual covering all installation details. Additionally, remote technical assistance is available from our engineers to guide you through the process.
What information is needed for a system quote?
Please provide the crane model, hook number, specific working conditions (e.g., pilling or tower work), and the load chart for an accurate assessment.
