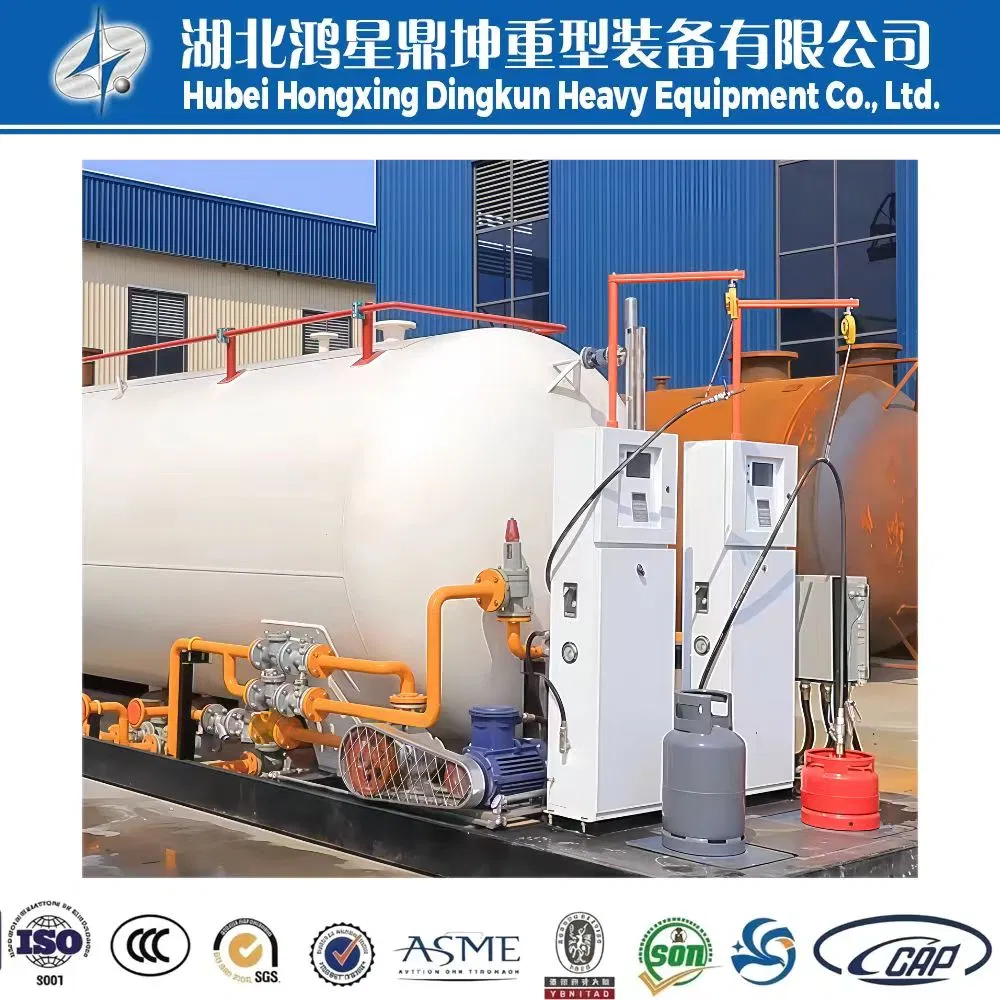

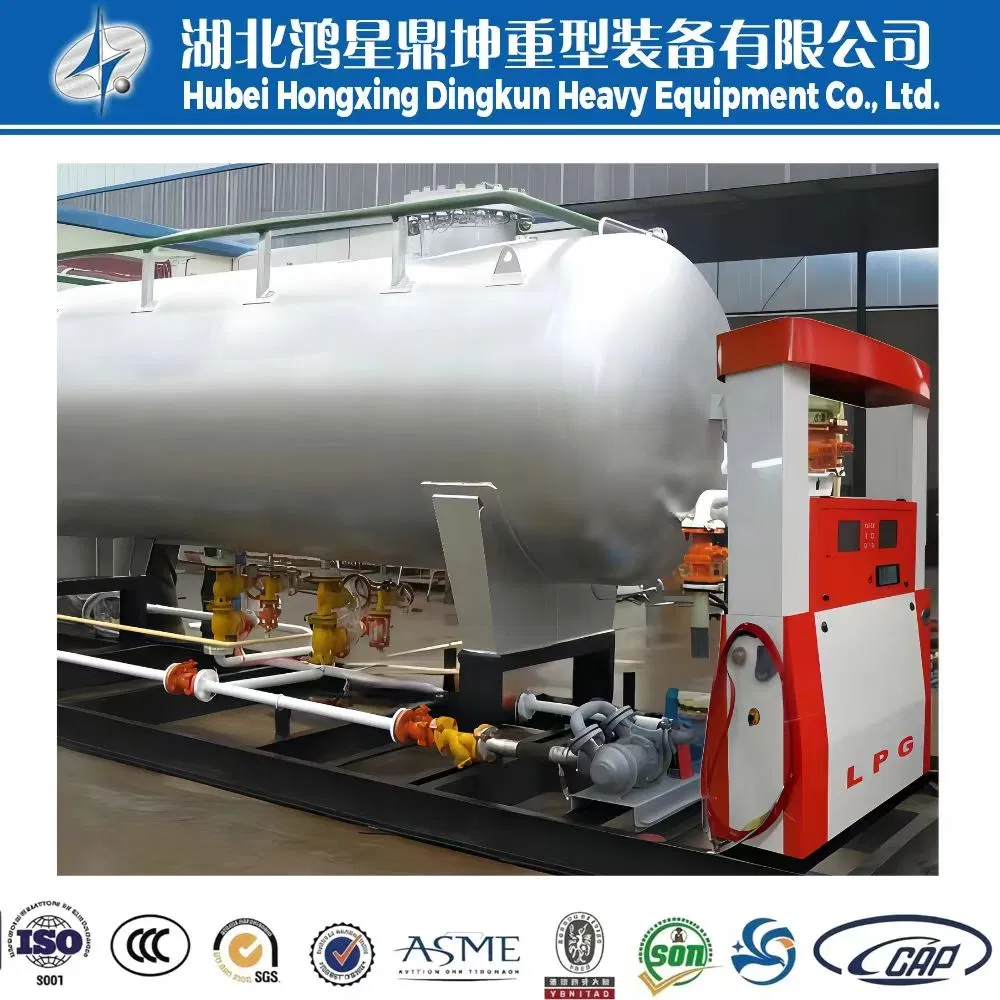

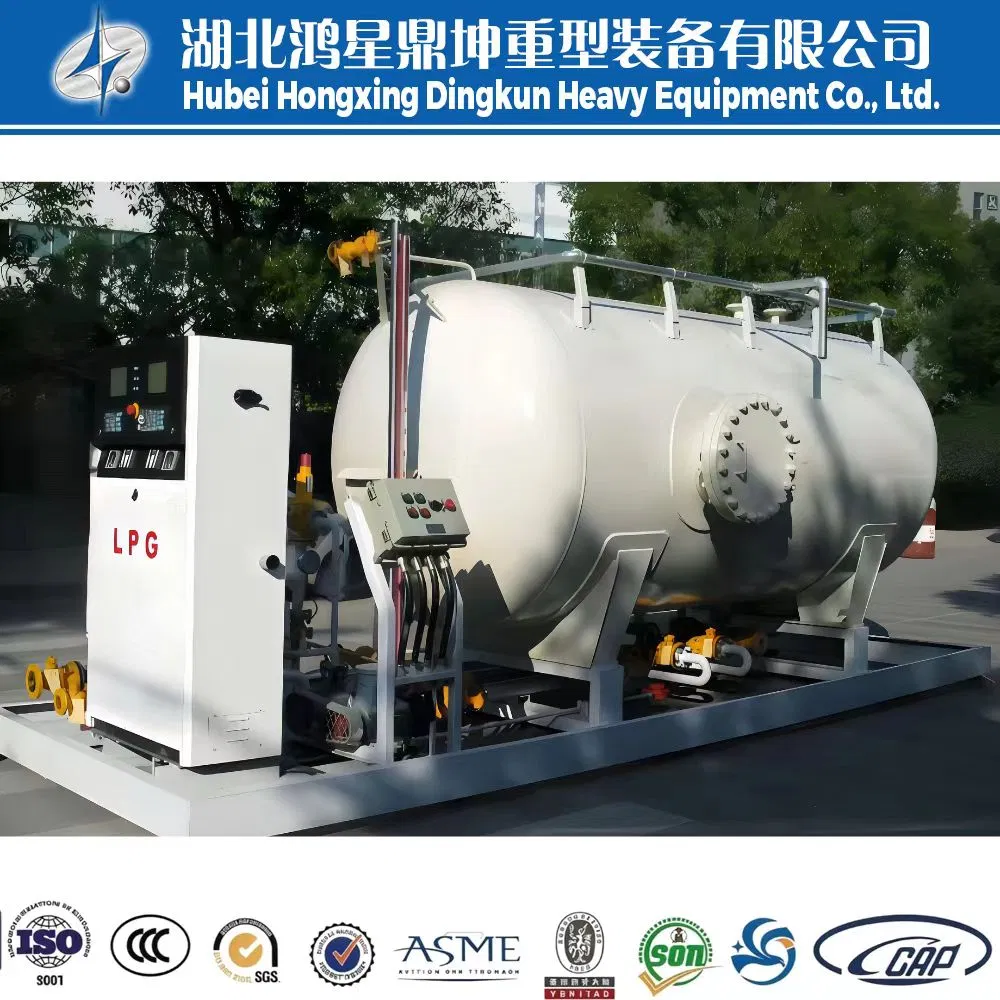

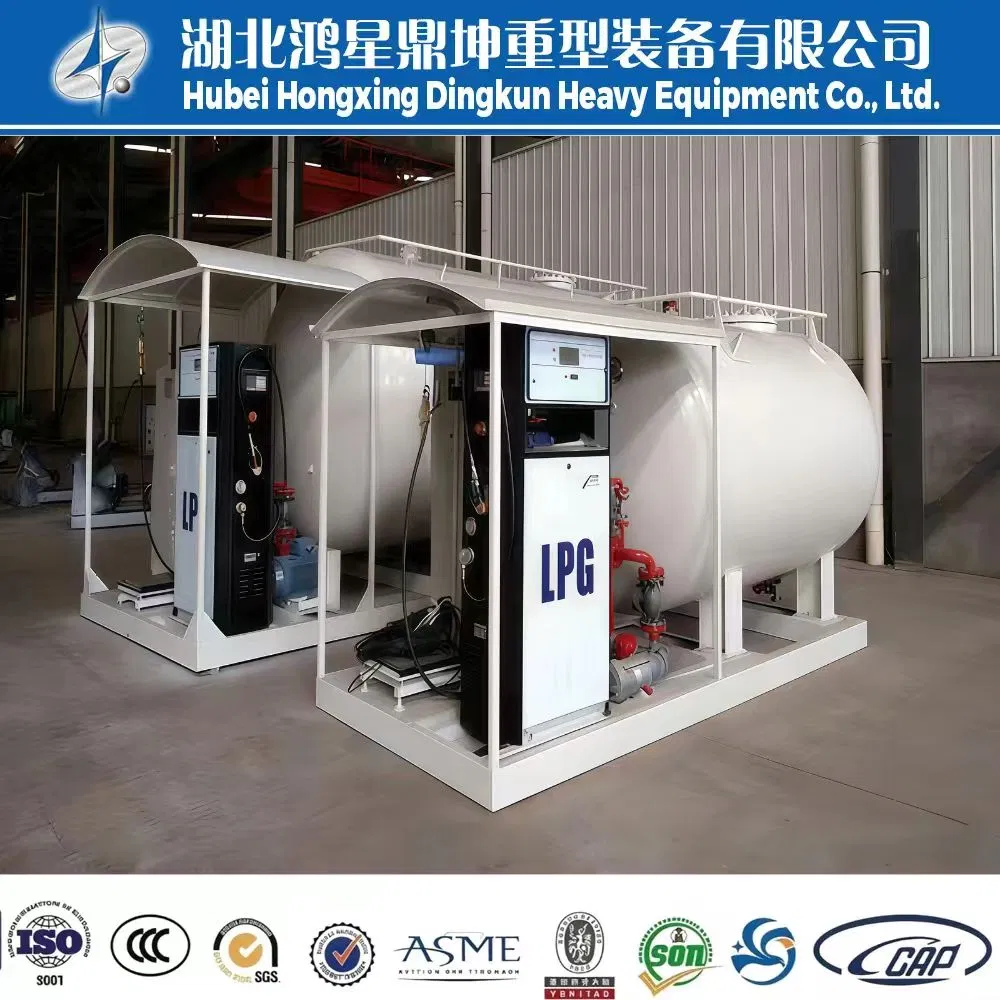

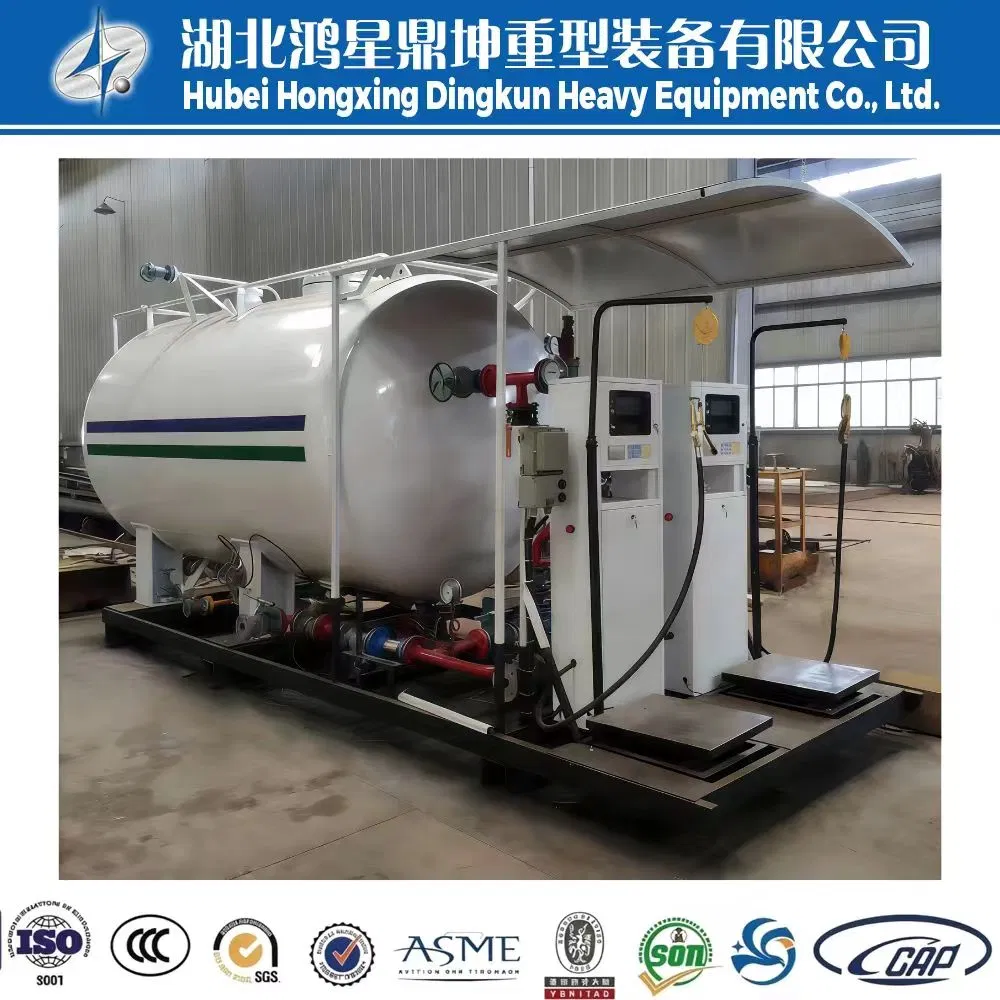

ASME Certified Skid-Mounted LPG Station Portable Fuel Dispenser with Tank
ASME Certified Skid-Mounted LPG Station Portable Fuel Dispenser with Tank
ASME Certified Skid-Mounted LPG Station Portable Fuel Dispenser with Tank
ASME Certified Skid-Mounted LPG Station Portable Fuel Dispenser with Tank
ASME Certified Skid-Mounted LPG Station Portable Fuel Dispenser with Tank
1 / 5
ASME Certified Skid-Mounted LPG Station Portable Fuel Dispenser with Tank
ASME Certified Skid-Mounted LPG Station Portable Fuel Dispenser with Tank
ASME Certified Skid-Mounted LPG Station Portable Fuel Dispenser with Tank
ASME Certified Skid-Mounted LPG Station Portable Fuel Dispenser with Tank
ASME Certified Skid-Mounted LPG Station Portable Fuel Dispenser with Tank

ASME Certified Skid-Mounted LPG Station Portable Fuel Dispenser with Tank

Customization: Available
After-sales Service: 24 Hours Online Service
Warranty: One Year
Send Inquiry

Product Description

📋 Basic Information
Model NO.
Skid-Mounted LPG Station
Function
Storage/Separation/Heat/Reaction Pressure Vessel
Application
Liquefied Gas
Material
SA-516, SA-517, SA-612, P460, Q420r, Q370r, etc.
Pressure
0.1MPa≤p<1.6MPa
Storage Medium
Flammable/Toxic
Product Name
LPG Trailer
Nominal Pressure
2.5 MPa
Max Payload
30 tons
Origin
China
🚀 Product Overview
LPG Station 1
LPG Station 2
The specialized design and manufacturing process covers various types of chemical storage tanks, pressure vessels, tank containers, LPG refueling vehicles, and LPG skid-mounted stations. These products have obtained ASME, CCS, RS, CE, ISO9001, GB/T50430, and ISO3834 quality management system certifications.

The engineering adheres to high-quality policies including lean management and innovation, ensuring reliable solutions for global chemical and trading requirements. The equipment is designed for durability and safety in handling liquefied petroleum gas (LPG) across diverse environmental conditions.
LPG Station 3
LPG Station 4
LPG Station 5
⚙️ Technical Specifications
Design Code: ASME BPVC VIII-1/VIII-2, EN 12493, GB/T 19905, JB4732
Volume Range: 30m³ ~ 200m³
Materials: SA-516, SA-517, SA-612, P460, Q420R, Q370R
Tank Type: Cylindrical tank, Eccentric cone tank
Safety Accessories: Built-in Full-Lift Spring Safety Valve, Pressure Meter, Cut-off Valve

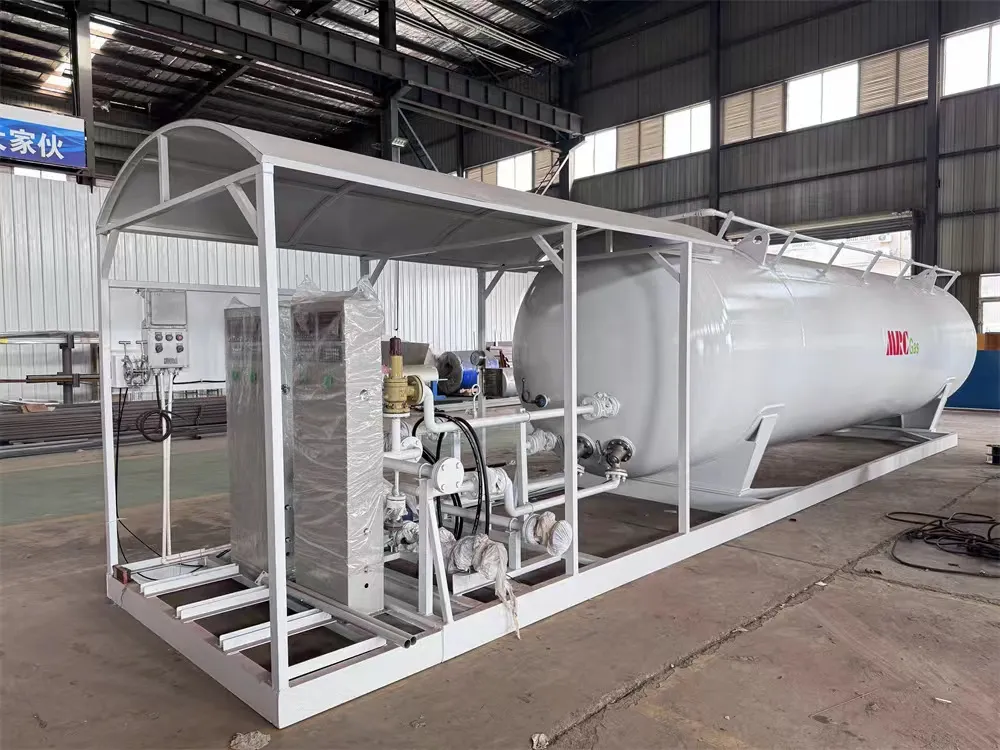

Detail 1

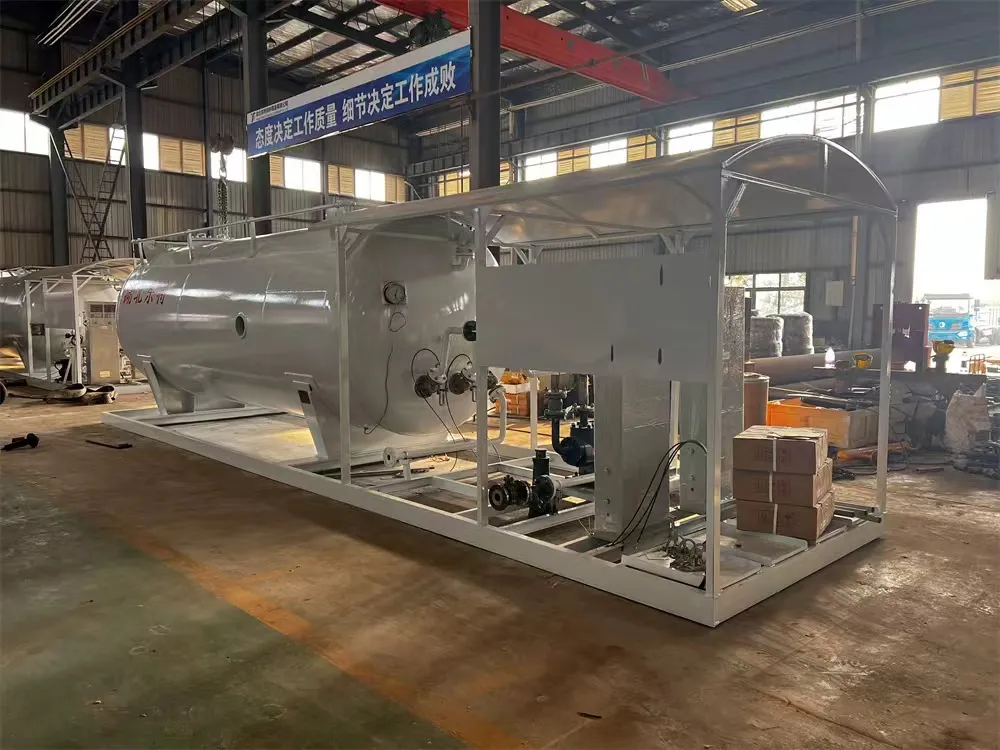

Detail 2
📊 ASME Standard Parameters
Capacity Dimensions (DxHxL) Tank Weight Payload Thickness (Shell/Head)
10m³φ1600×2440×5308mm3850kg4630kg11.09mm / 11.02mm
20m³φ2200×3050×5690mm6920kg9260kg14.86mm / 14.78mm
50m³φ2470×3320×10911mm15420kg25470kg16.56mm / 16.47mm
100m³φ3100×3960×13858mm27430kg46320kg20.53mm / 20.41mm
150m³φ3300×4210×18158mm39930kg69480kg21.79mm / 21.66mm

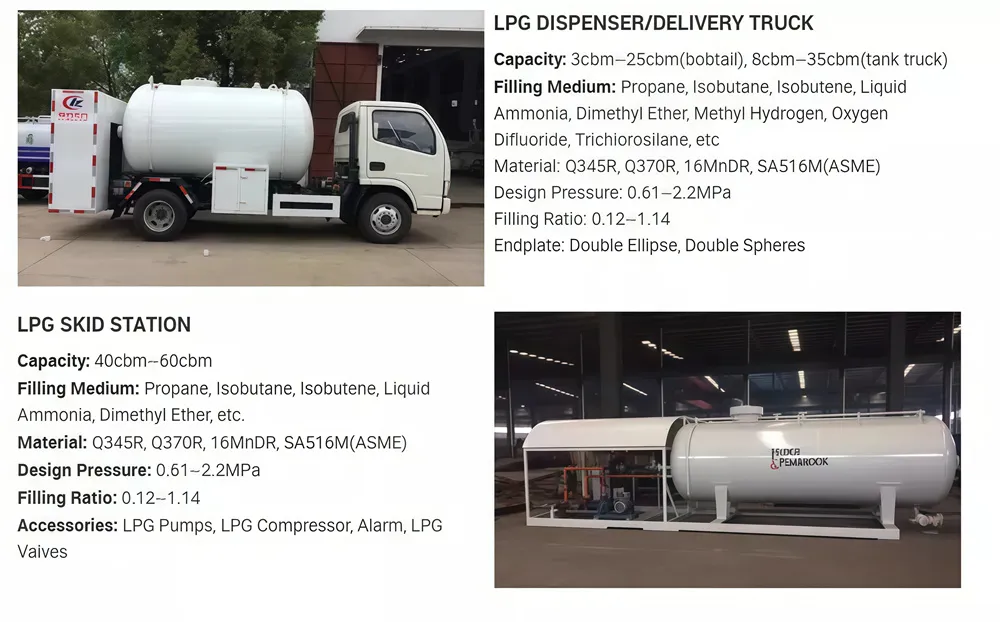

LPG Solution 1

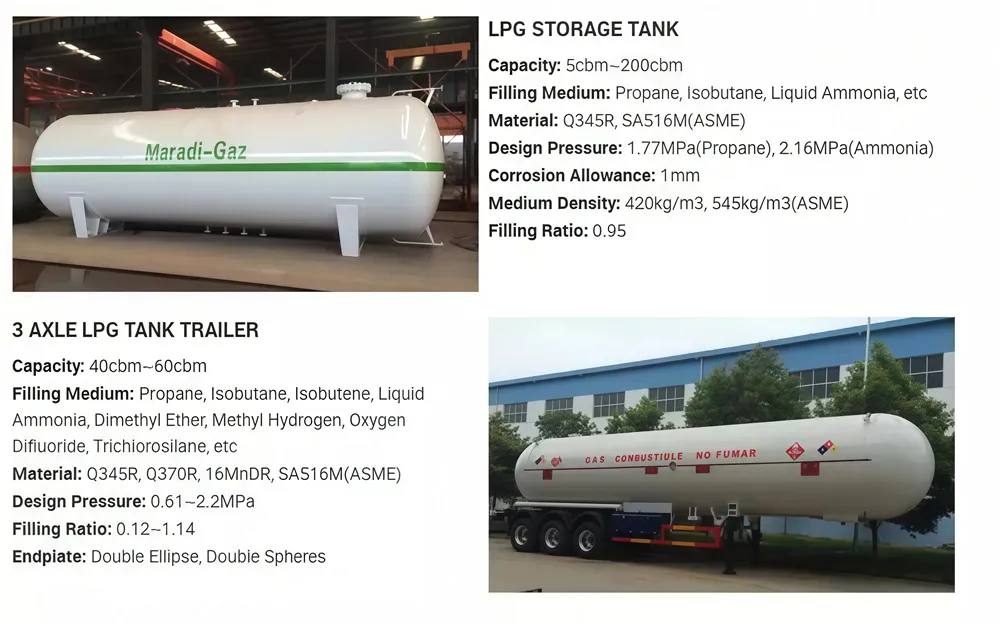

LPG Solution 2

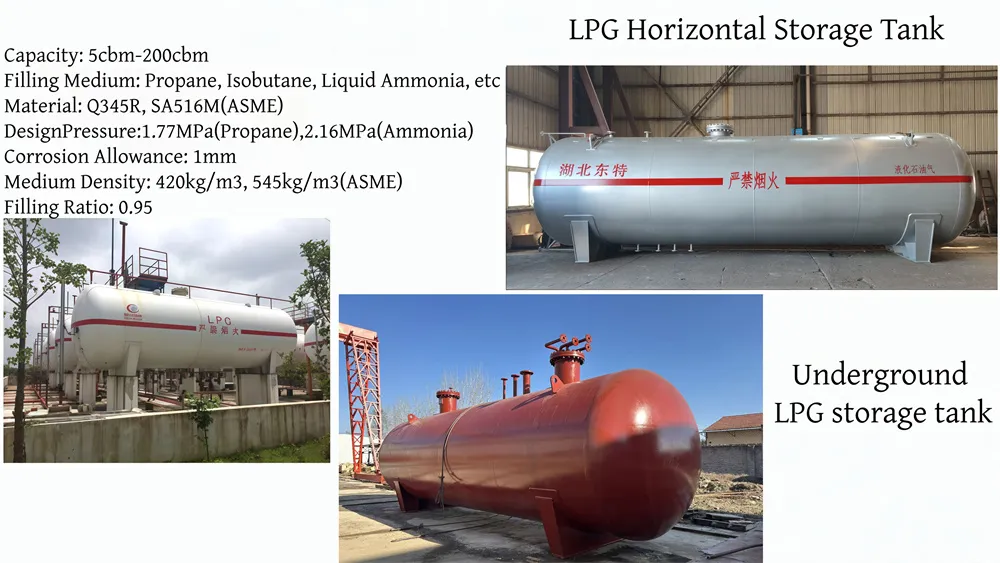

LPG Solution 3
📦 Packaging & Shipping
Package Size
1020.00cm * 255.00cm * 340.00cm
Gross Weight
8000.00kg
Transport Type
Bare Bag / Sea Freight

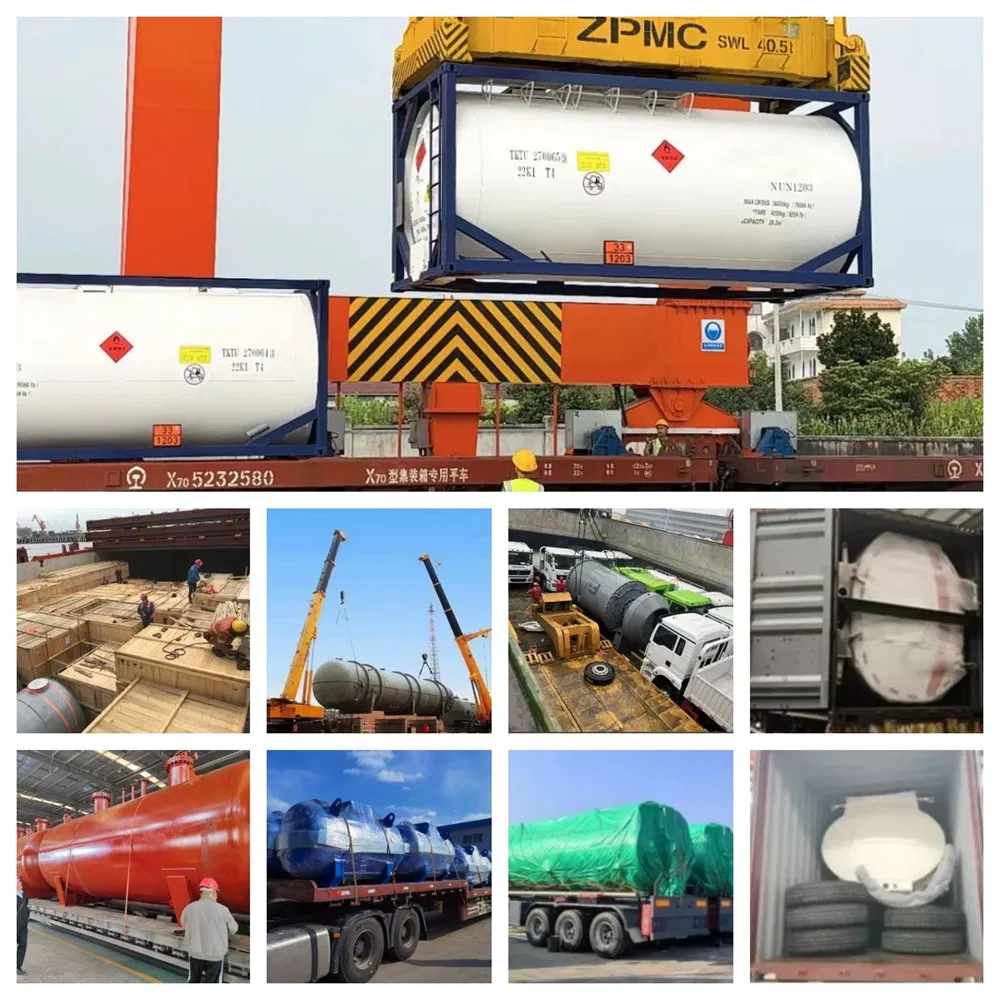

Shipping
❓ Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a Group Corporation manufacturer specializing in pressure vessels and LPG equipment.
Can I get a sample to test the quality?
Yes, you can purchase a unit to test the quality. Our Minimum Order Quantity (MOQ) is 1 unit.
What is the typical delivery time?
Delivery usually takes between 30 to 120 workdays after receiving the prepayment, depending on the order size and customization.
Do you provide quick-wear parts?
Yes, we can supply parts such as manhole covers, discharge tubes, hoses, valves, gaskets, and bolts upon request.
What are your payment terms?
Our standard terms are 30% TT as a deposit, with the balance due before shipment via TT or at sight.
How do you ensure product quality?
We utilize trade assurance and strict quality control systems. Our products are certified by international bodies like ASME, CE, and ISO.
