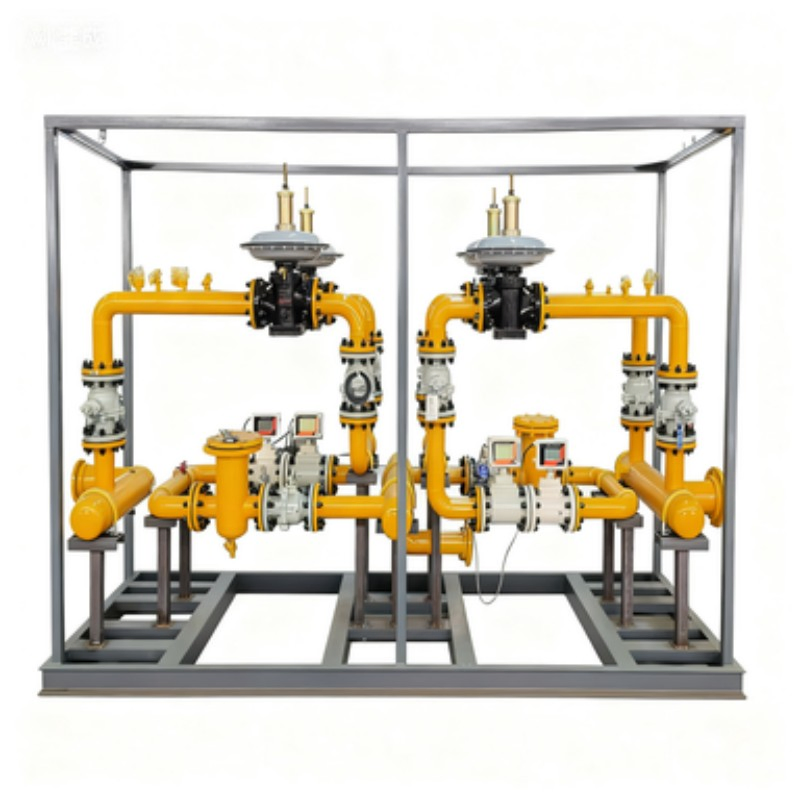

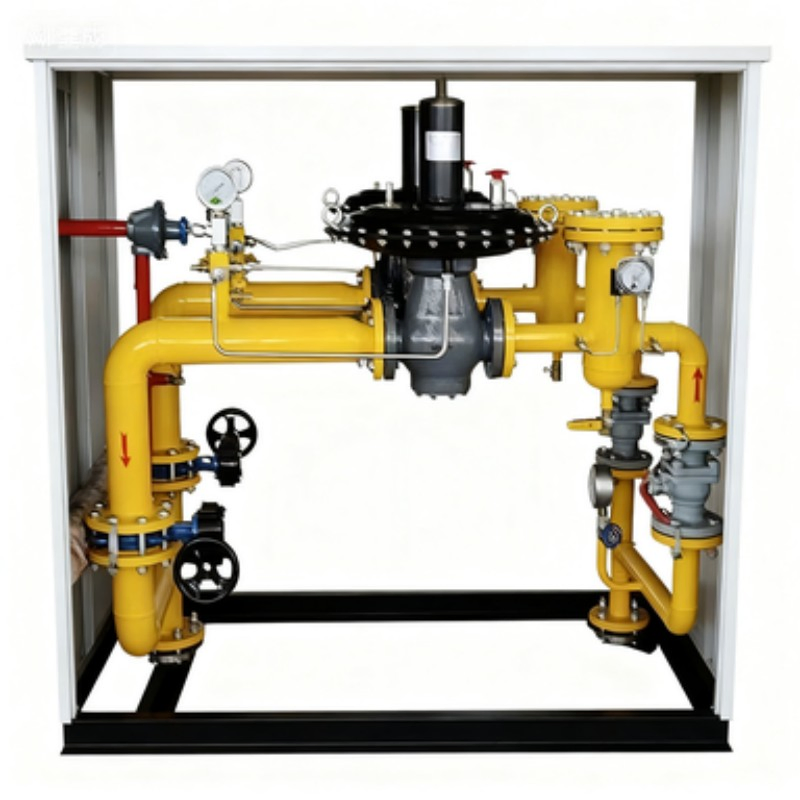

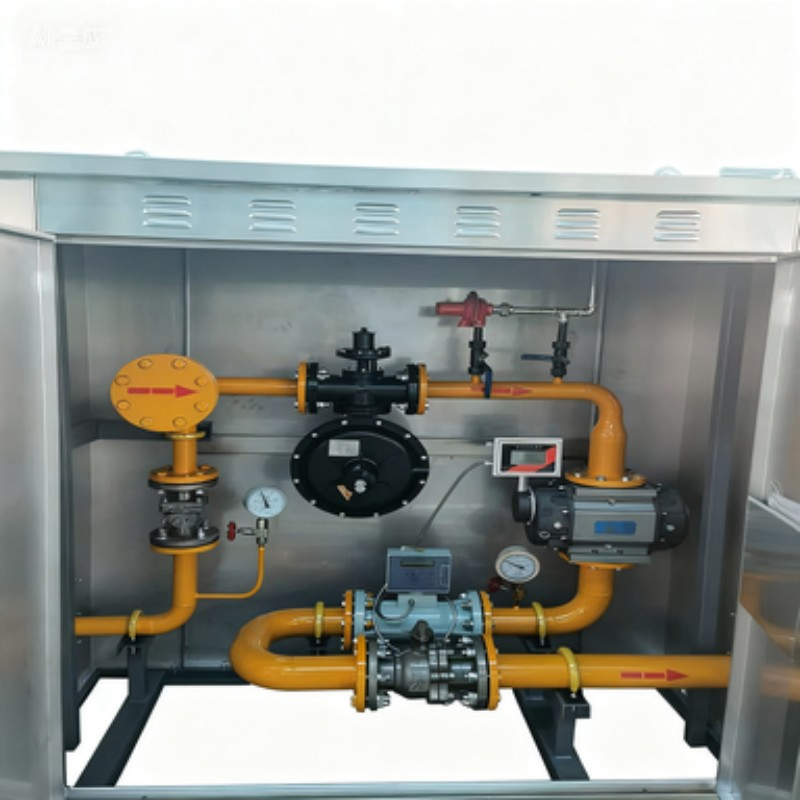

High Flow CNG Pressure Reduction and Metering Skid for Ceramic Glass Plants

Customization: Available
After-sales Service: Yes
Warranty: 1 Year

Product Description

ℹ️
Basic Information
Model NO.100Nm3- 200Nm3
DisplayNeedle
PortablePortable
CertificationCE
TypePressure Regulators
Accuracy ClassLock-up Pressure AC15 Sg20 Rating
Operating Voltage380V±15% 50Hz±1Hz
Flow Range30-10000 Nm3/H
Rated Power8-75kw
Production Capacity5000 Sets / Month
🎥
Video Description

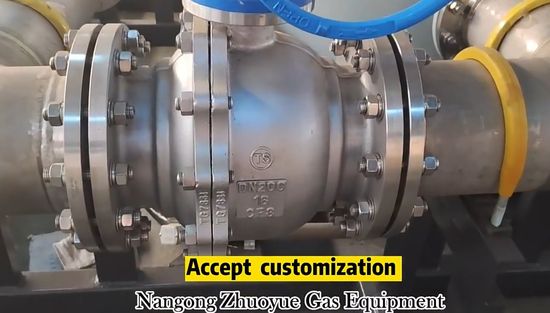

Video Cover
📋
Specifications
Temperature Range-20℃±60℃
Inlet Pressure0.6-1.6MPA
Outlet Pressure10kpa-0.4MPA
Flow Range30-10000 Nm3/h
Rated Power8-75KW
Accuracy ClassAC15
Lockup Pressure LevelSG20
Operating Voltage380V±15% 50HZ±1HZ
🛠️
Product Description

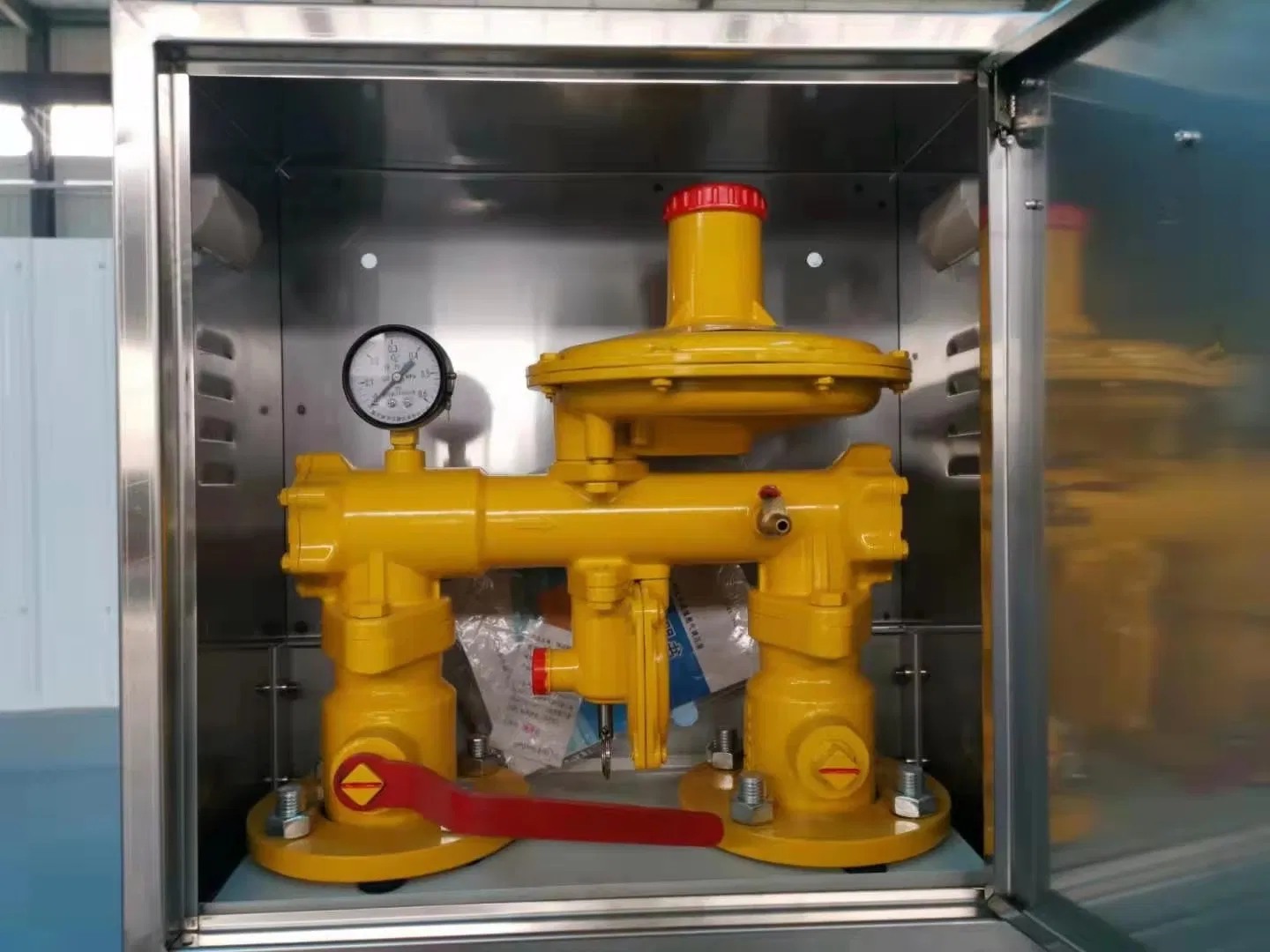

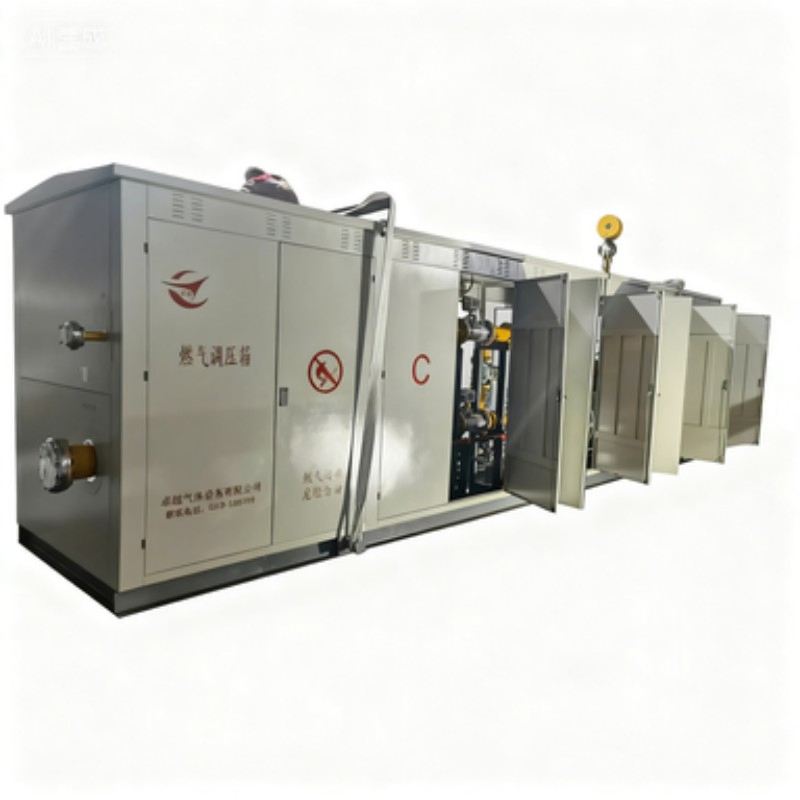

This series of surge tanks are mainly used in medium and low pressure gas transmission and distribution systems. It is composed of filter, pressure regulator (self-break, release function), ball valve, pressure gauge and box body; compact structure, convenient maintenance and safe use. It is suitable for small and medium-sized user places such as civil buildings, apartments, hotels and restaurants; it can also be used for low-pressure gas boilers and small direct-fired steam turbines. The box body is made of stainless steel, cold-rolled steel sprayed with plastic, and glass fiber reinforced plastic.

✔ Modular structure design for high efficiency
✔ Lightweight & corrosion-resistant aluminum alloy shell
✔ Sensitive, accurate and reliable tripping mechanism
✔ Precise outlet pressure regulation
✔ Integrated filtration system
✔ Automatic overpressure cut off with manual reset
✔ Simple installation and convenient online maintenance
Frequently Asked Questions
❓ What is the flow range of this pressure reduction skid?
The system supports a wide flow range from 30 up to 10000 Nm3/h, making it suitable for various industrial applications.
❓ What safety features are integrated into the system?
It includes an overpressure automatic cut-off with manual reset, overpressure safety release (for applicable gases), and high-precision monitoring gauges.
❓ What materials are used for the enclosure?
The box body options include stainless steel, cold-rolled steel with plastic spraying, or glass fiber reinforced plastic, ensuring durability in different environments.
❓ Is this equipment suitable for outdoor installation?
Yes, the modular design and corrosion-resistant aluminum alloy components are designed for reliability across a temperature range of -20℃ to +60℃.
❓ What are the typical applications for this unit?
It is ideal for civil buildings, hotels, restaurants, ceramic glass plants, and low-pressure gas boilers or small direct-fired steam turbines.
❓ Does the unit come with a filter?
Yes, the system is equipped with an integrated filter to ensure the gas is cleaned before regulation, protecting the internal components.
