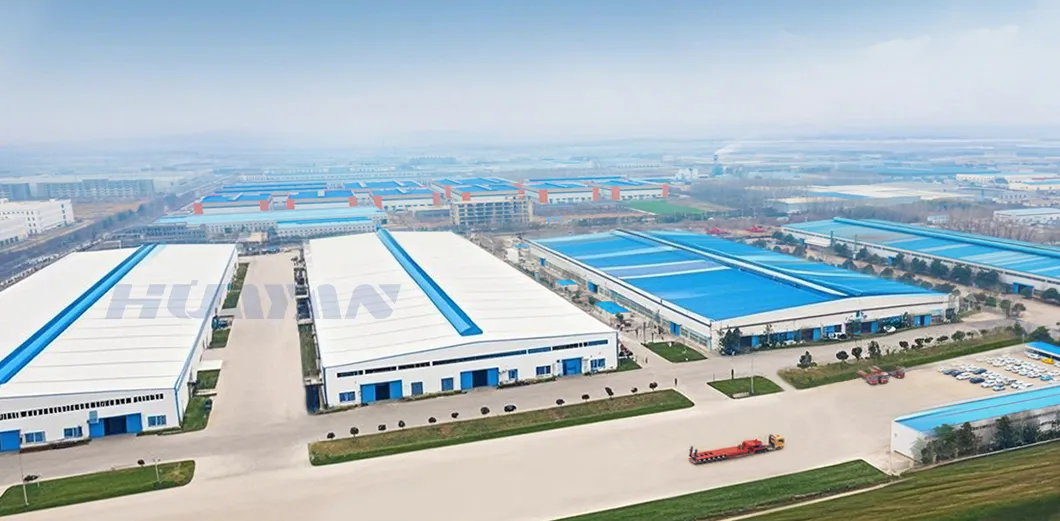

Established in 2005, we are a leading integrated transportation solution provider integrating R&D, production, and trade. Covering an area of 222,000 square meters, we utilize advanced automation equipment and a professional R&D team to provide high-quality special transportation equipment.

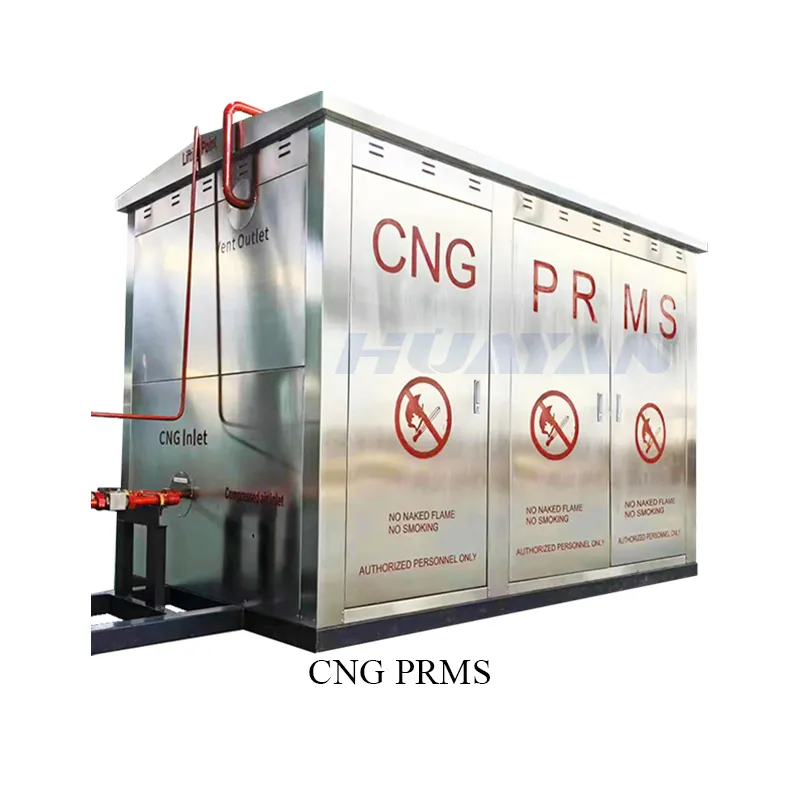

Our core focus includes gas equipment (pressure reduction skids, cryogenic storage tanks, gasifiers), hydraulic modular trailers, gas pipeline slide container trailers, and a full range of semi-trailers for energy and hazardous chemical logistics. We ensure compliance with global technical standards including ISO9001, ASME, and ADR certification.

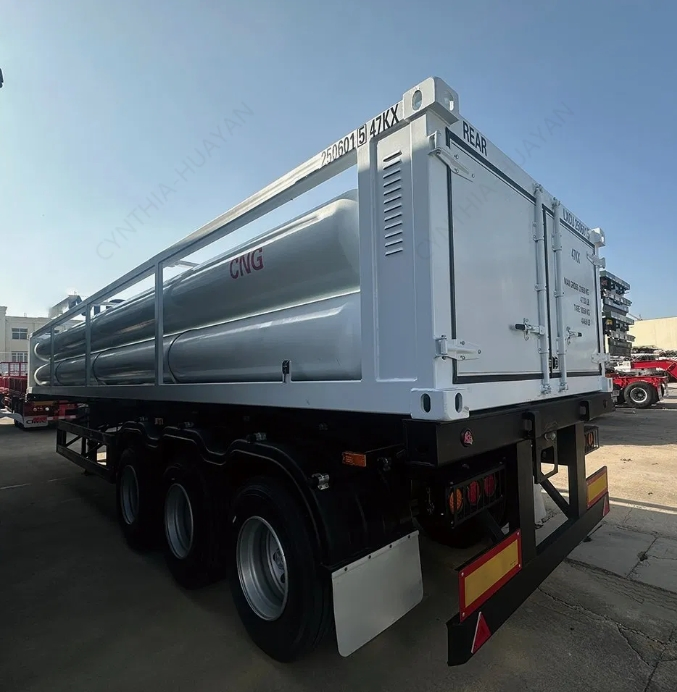

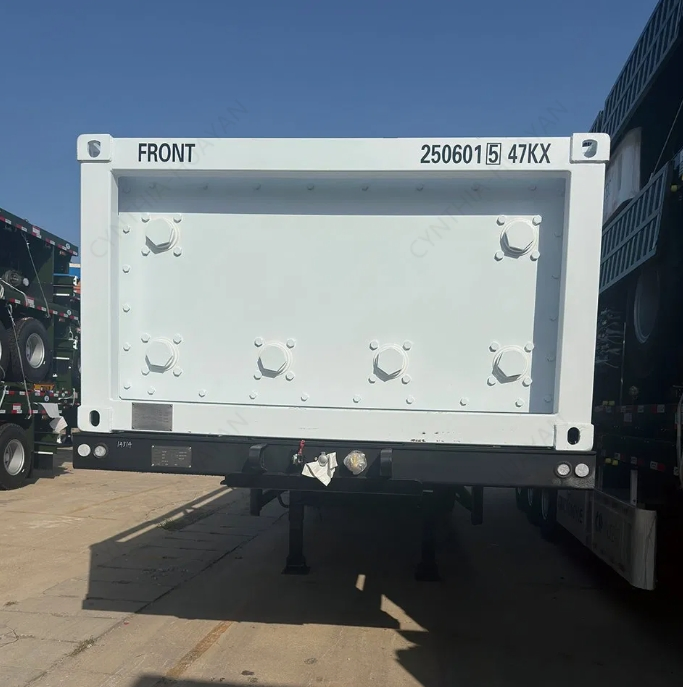

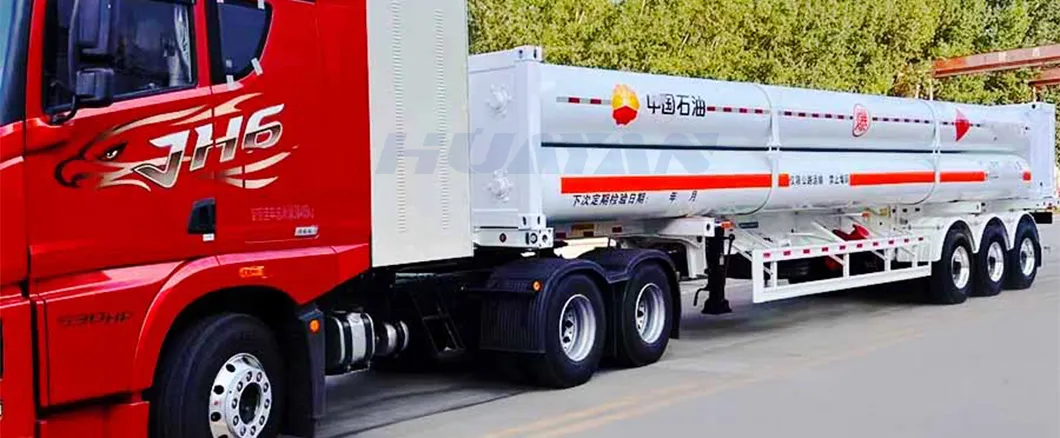

The tube bundle vehicle consists of a high-strength steel frame, a tube bundle unit, and safety accessories. The 30MPa hydrogen transport tube bundle vehicle adopts a modular design, improving pressure-bearing capacity with high-strength alloy materials. Hydrogen transport capacity can reach 650 kg, doubling the efficiency of traditional models.
| 10-Tube Bundle Container (ISO11120 / ISO 668) | |||
|---|---|---|---|
| Type | GSJ10-2450-CNG-25 | Working Pressure | 25 MPa |
| Container Weight | 29600Kg | Total Volume | 29.4M3 |
| Filling Weight | 5512Kg | Material | 30CrMoLX |
| Cylinder Qty | 10 | Dimension (mm) | 12192x2438x1890 |

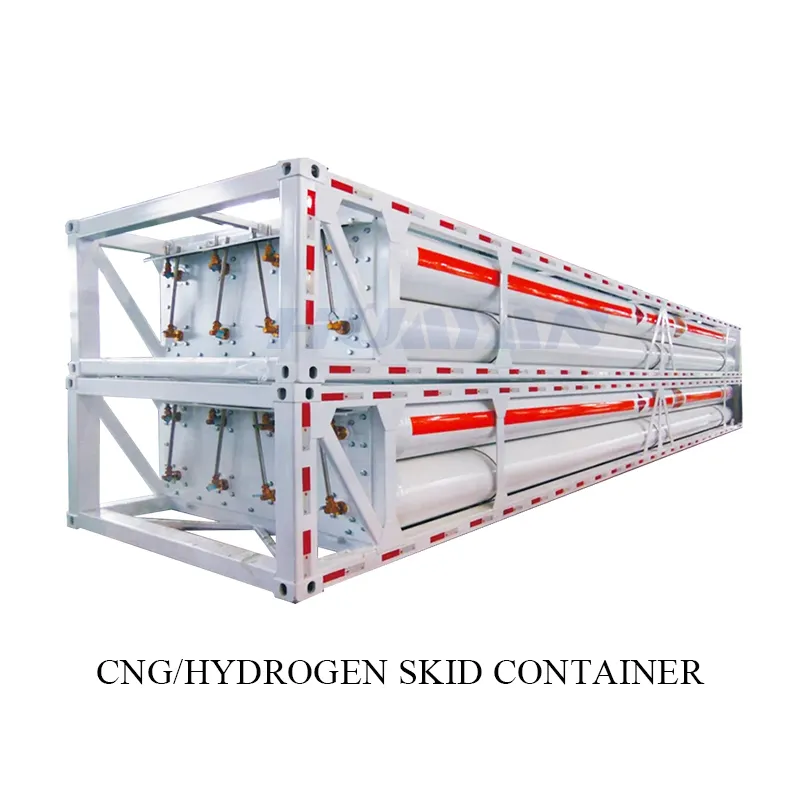

| 16-Tube Skid Container (ISO11120 / ISO 668) | |||
|---|---|---|---|
| Type | GSJ16-2450-CNG-25 | Working Pressure | 25 MPa |
| Filling Weight | 8816Kg | Total Volume | 39.2M3 |
| Rated Weight | 54096Kg | Dimension (mm) | 12192x2438x2591 |
| Design Life | 15 Years | Working Temp | -50~65ºC |
We prepare detailed delivery schedules for every project, utilizing robust logistics capabilities to provide efficient domestic and international delivery solutions.
