| Model NO. | WTL-A700 | Type | Telescopic Mobile Crane |
| Application | Hoisting Machinery | Certification | CE |
| Condition | New | Delivery Time | Within 7 Days |
| MOQ | 1 Set | Display | 8 Inch LCD |
| Production Capacity | 50000 Per Year | Origin | China |

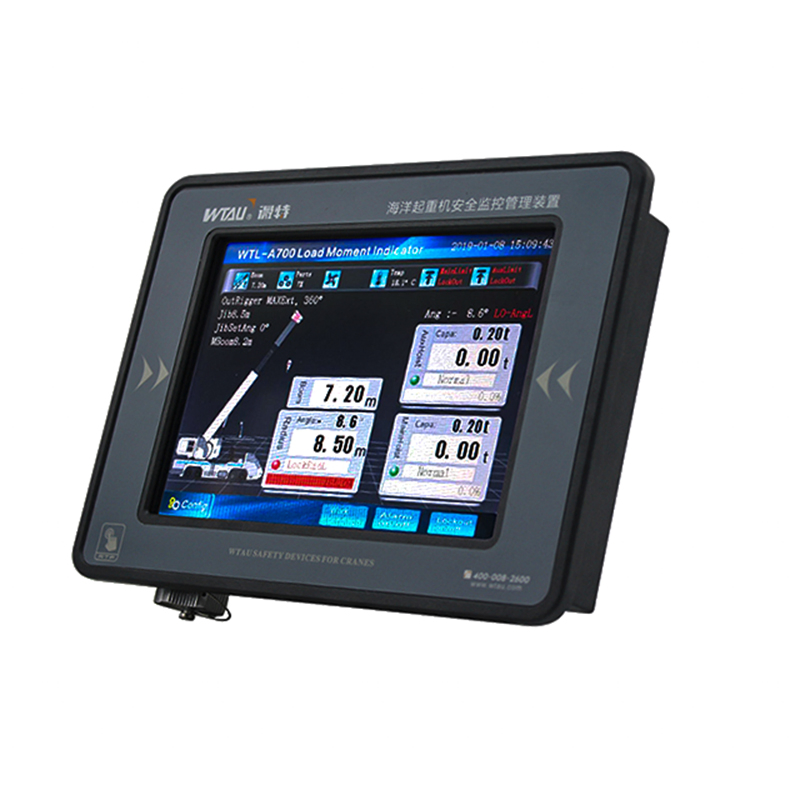

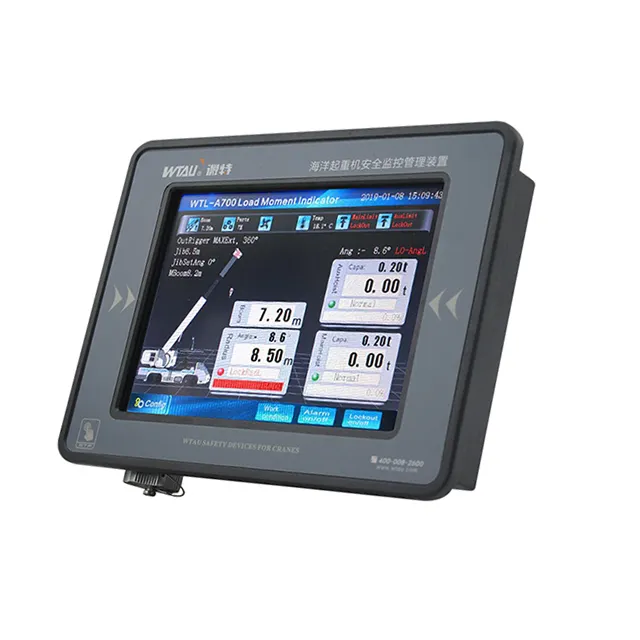

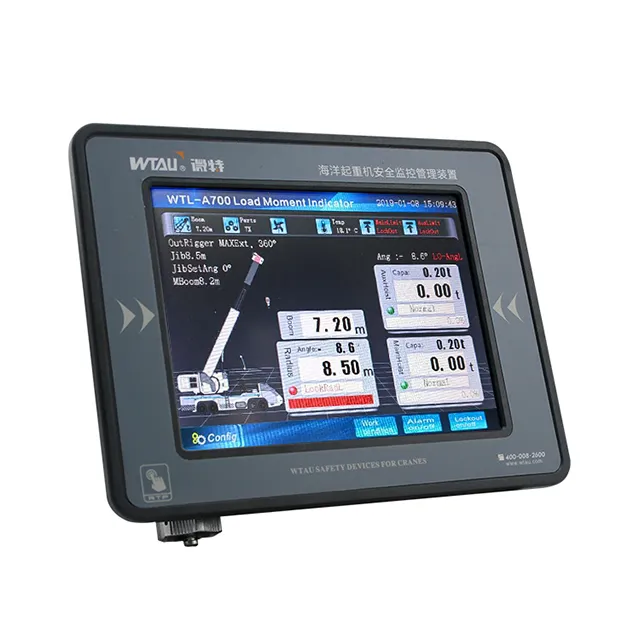

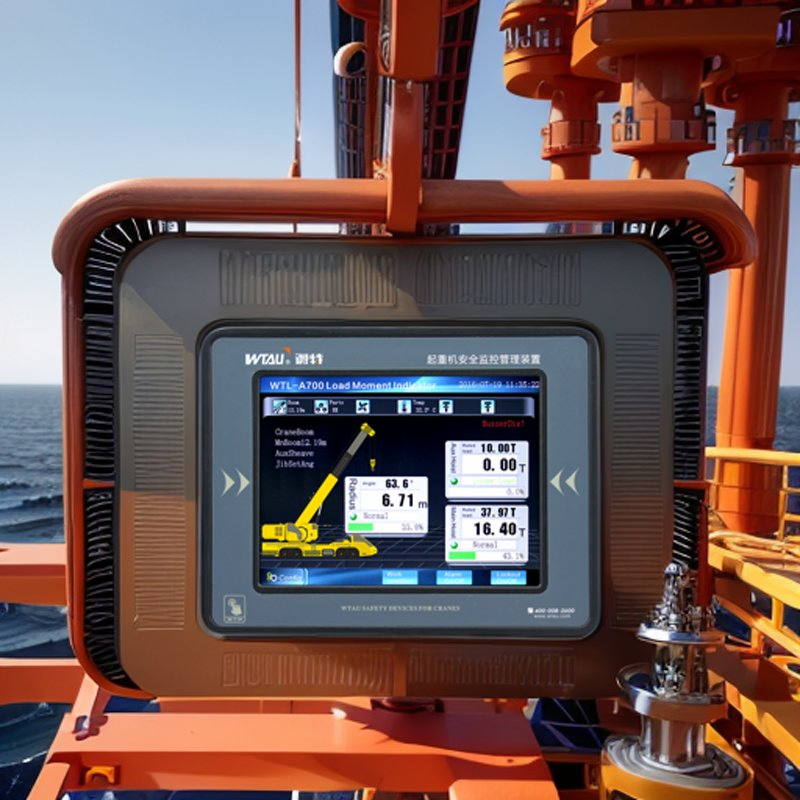

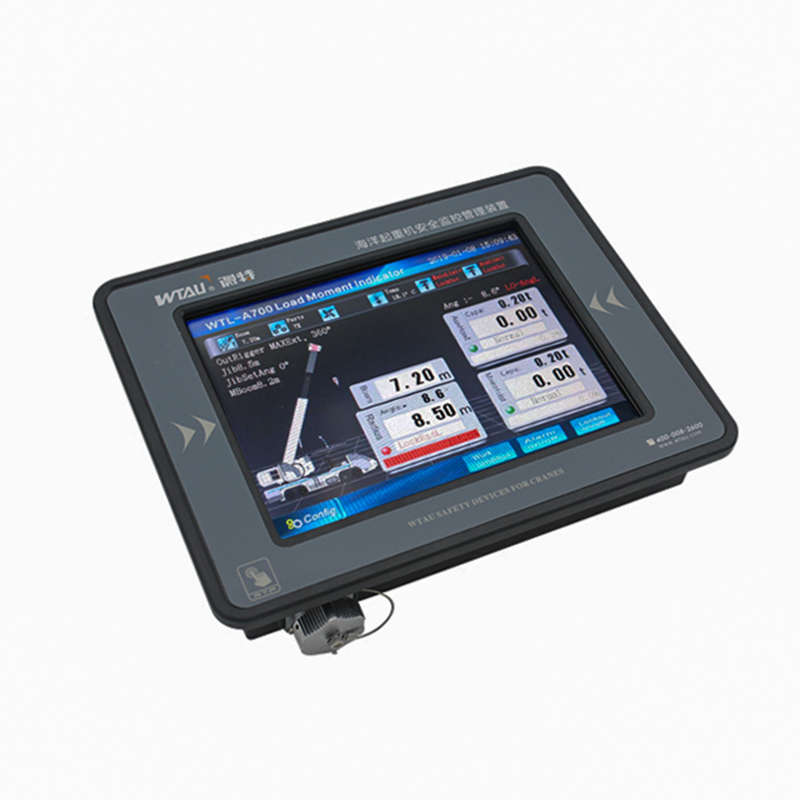

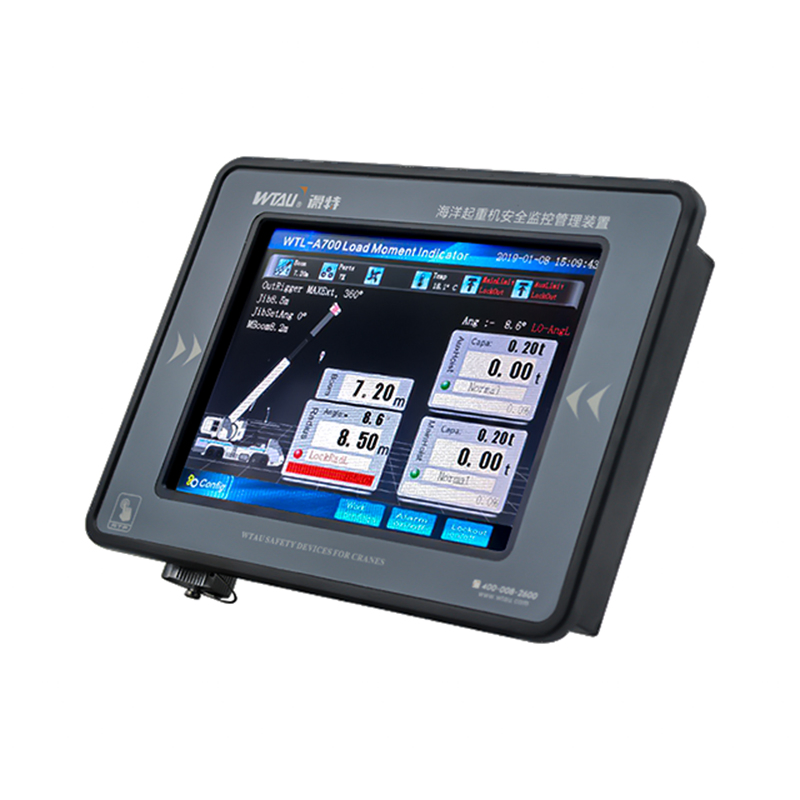

The Load Moment Indicator (safe load indicator or Crane computer) is a critical safety device installed on various cranes including mobile, crawler, tower, gantry, portal, marine, and offshore cranes. It alerts the operator if the lift exceeds the safe operating range. In specific scenarios, the system can physically lock out machinery to prevent unsafe operations.
It ensures lifting equipment functions according to the manufacturer's suggested safe load charts. Key parameters such as load weight, working radius, control limit, angle, and boom extension are displayed in real-time within the operator's cabin.

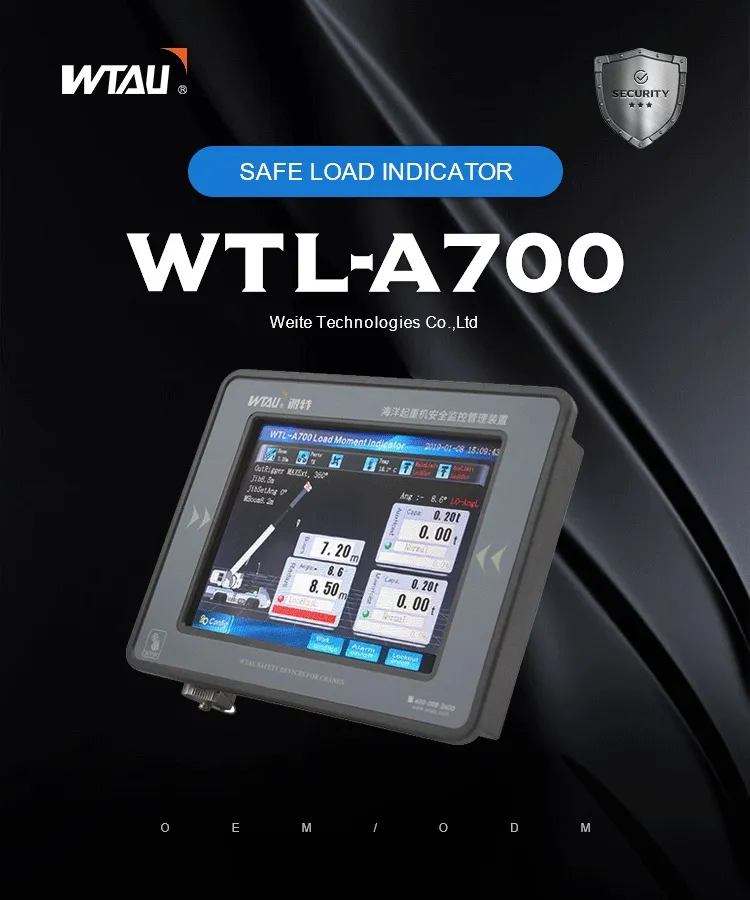

| Model | WTL-A700 | Control Output | <= 6 Channels |
| Display | 8 inch LCD | System Error | ±5%(F.S.) |
| Working Temperature | -20ºC ~ 70ºC | Power Consumption | <30W |
| Operating Humidity | 95%RH (25ºC) | Alarm Volume | >60db |
| Measurement Range | 0T ~ 999.9T | IP Grade | IP 65 |
| Resolving Ability | 0.1T | Power Supply | AC220V / DC24V |

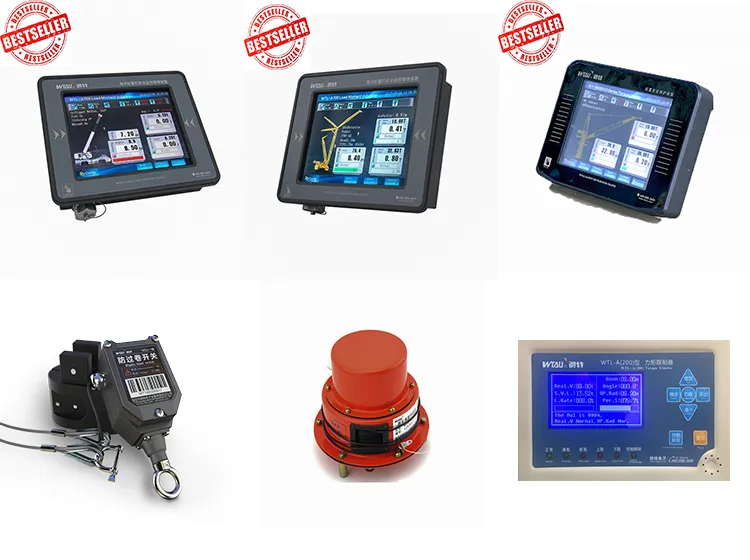

Founded in 2002, our enterprise has been focusing on R&D and manufacturing of lifting safety protection devices such as Load Moment Indicators, safe monitoring systems, overload limiters, load cells, and anemometers.
We continuously concentrate on ensuring lifting equipment runs safely as our long-term goal. Our products are widely used in marine, electrical, chemical, steel, metallurgy, construction, port, and other industries, spanning over 70 countries and regions globally.
