Desktop Small 4 Axis Scara robot Industrial Robot Arm Handling Automation CE Rohs 3c

Customization:	Available
Control Mode:	Continuous Path Control
Drive Mode:	Electric

Send Inquiry

Product Description

Basic Specifications

Max. Payload

6kg

Arm Reach

600mm

Repeatability

+/-0.015mm

I/O Interface

24 Input / 24 Output

IP Class

IP20

Weight

20kg

Application

Loading / Pick & Place

Certification

Warranty

1 Year

Origin

China

Product Description

AIR6SC600 4-Axis SCARA Robot

The AIR6SC600 is a compact industrial robot with a 6kg payload capacity, designed for high-precision tasks. As a versatile member of the industrial robot family, it features high-quality components including Japan Nabtesco RV gearbox reducers and premium harmonic gearbox reducers.

High-speed communication via EtherCAT bus for each joint.
Compact design ideal for small workspace automation.
Exceptional precision with +/-0.015mm repeatability.
Optimized for 3C industry handling and assembly.

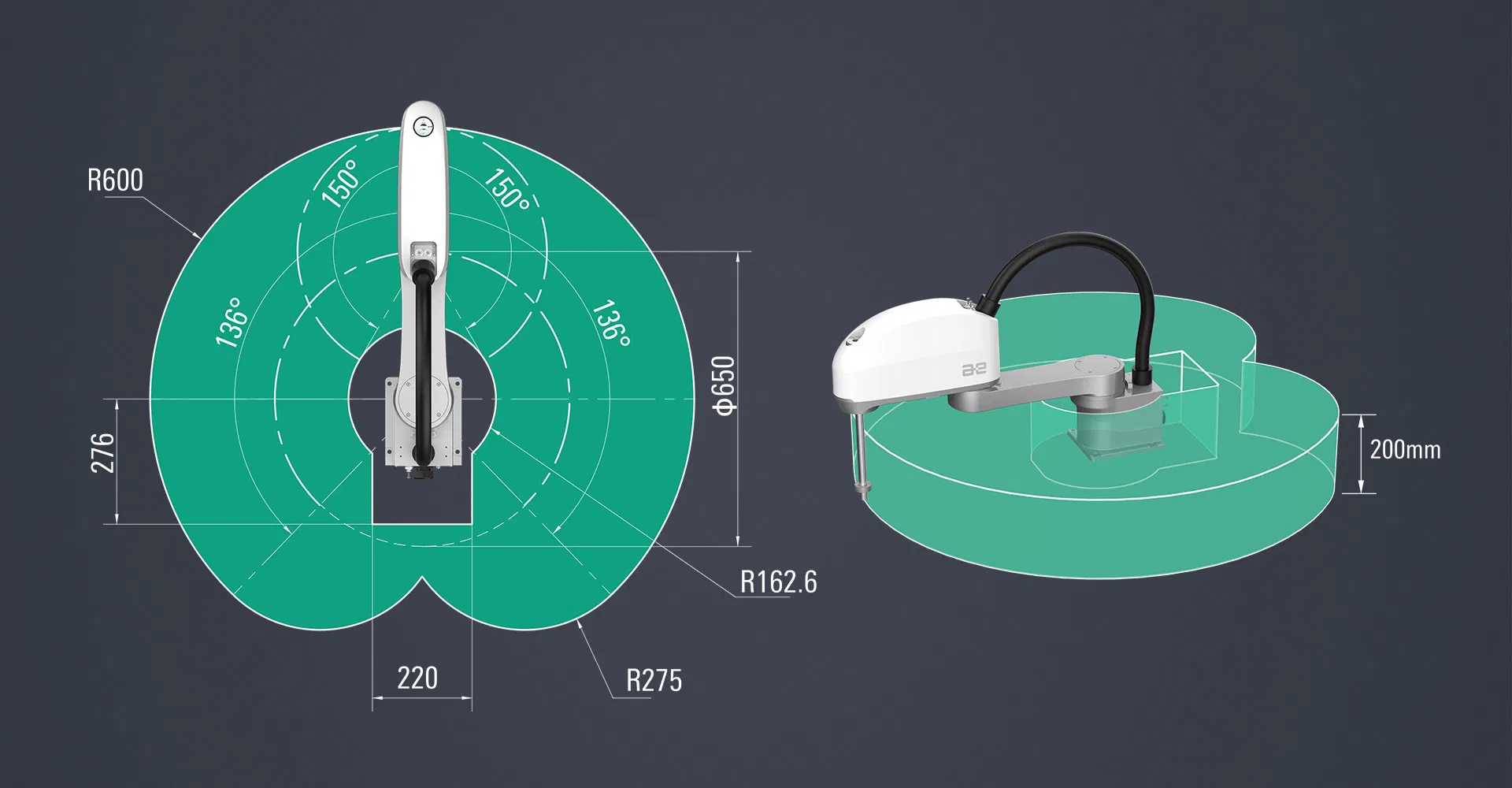

Mechanical Parameters

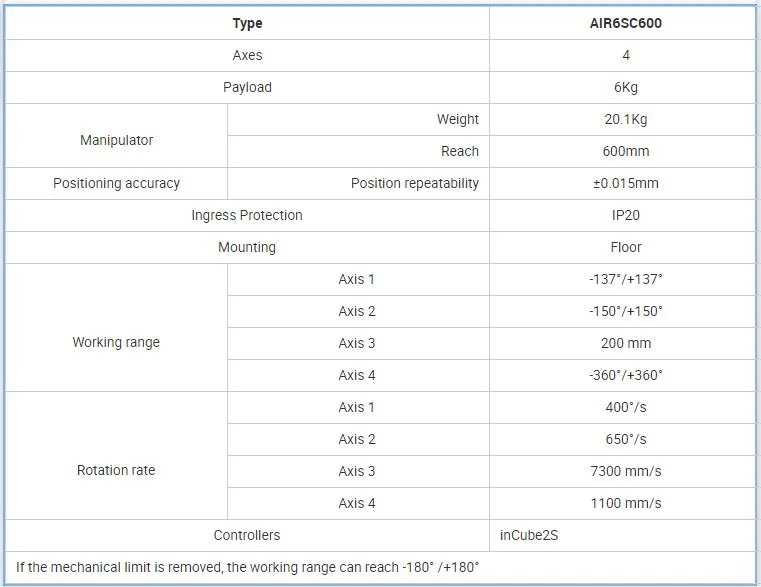

Technical Data Sheet

Packaging & Shipping

Professional Integration Capabilities

We focus on discrete industrial automation and process industrial automation. Our expertise includes the design, development, installation, testing, and debugging of industrial robots, units, and related accessories such as fixtures, transmission devices, positioning devices, and control systems. We provide comprehensive solutions including cobots, industrial robots, robot parts, CNC controllers, and full robot integration services to ensure the best return on investment.

Customer Feedback

Frequently Asked Questions

Q1: What is the maximum payload and reach of the AIR6SC600? A: The robot has a maximum payload capacity of 6kg and a maximum arm reach of 600mm.

Q2: What kind of precision can I expect from this SCARA robot? A: It offers extremely high precision with a repeatability of +/-0.015mm for J1+J2 axes.

Q3: What communication protocol does the system use? A: The robot joints communicate via a high-speed EtherCAT bus for real-time control and efficiency.

Q4: What components are used in the robot's construction? A: The robot utilizes high-quality Japan Nabtesco RV gearbox reducers and industry-leading harmonic gearbox reducers.

Q5: What is the standard warranty and after-sales support? A: The product comes with a 1-year warranty and 1 year of professional after-sales service support.

Q6: Is the robot certified for international markets? A: Yes, the robot is CE certified, meeting the necessary safety and quality standards for global industrial use.
