Ecotec 2.5 Inch Electronic Skid Discharging Meter Set for Gas Station

Customization: Available
After-sales Service: 1year
Warranty: 1year

Product Description

Basic Information

Model NO.
Electronic Skid
Condition
New
Type
Electronic Skid
Certificates
ISO9001
Meter
1 X LC Meter
Voltage
220V/380V
Max Pressure
1.6MPa
Standard
Atex, OIML
Capacity
1000 Pieces Per Month
HS Code
8413110000

Product Description

Quality Certificates: ISO - SIRA - CE

The Electronic Skid contains the following high-performance equipment:

  • Blackmer Model Pumping Unit (2.5") with Strainer
  • L.C Model Flow Meter (2")
  • EX- Electric Motor (7.5HP ; 3Ph) with belt & reels system
  • EX-Electric Box with an ON/OFF Switch & Necessary Protections
  • Electronic Counter (WA112) RS485
  • Blue LCD Screen (886)
  • Horizontal Keyboard (S.S)
  • S.S Solenoid Valve (2") Two Stages (DF-50)
  • Integrated Printer and Movable Base
  • Transparent Spring Hose with fast couplings for suction (2.5") for Inlet
  • Petroleum Hose with fast couplings for discharge (1.5") for Outlet
  • Automatic Nozzle for discharge (1.5") for Outlet

Detailed Photos

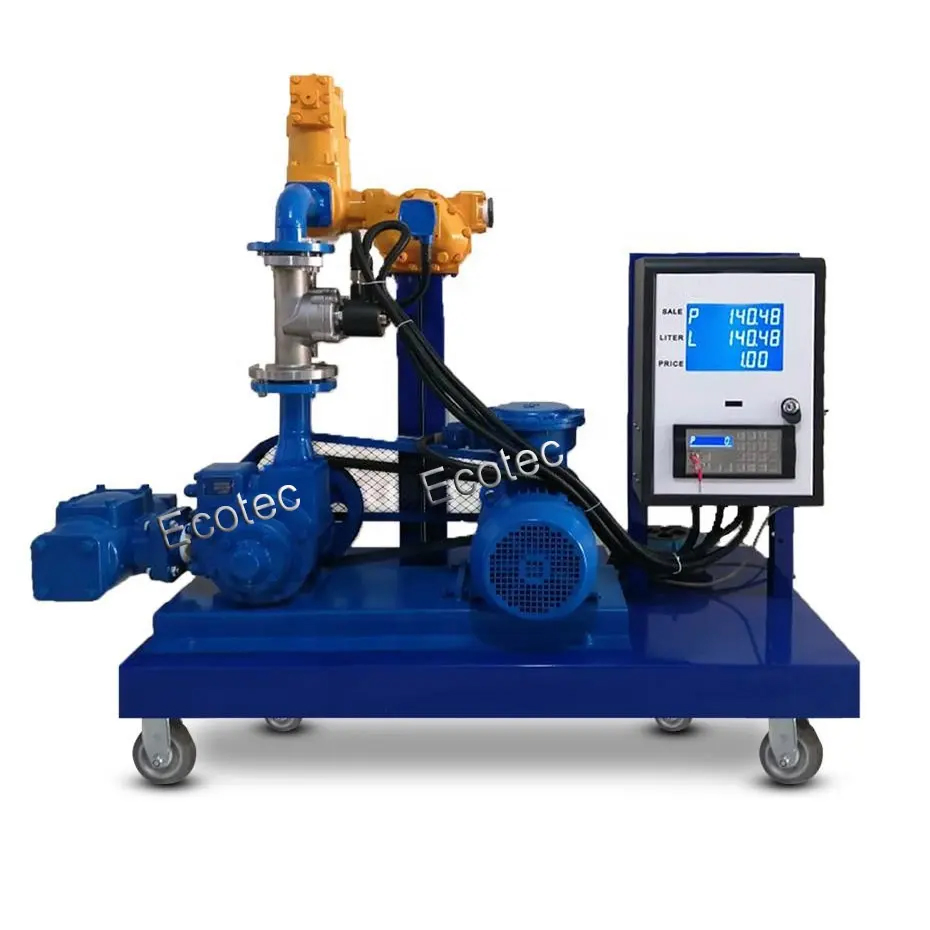

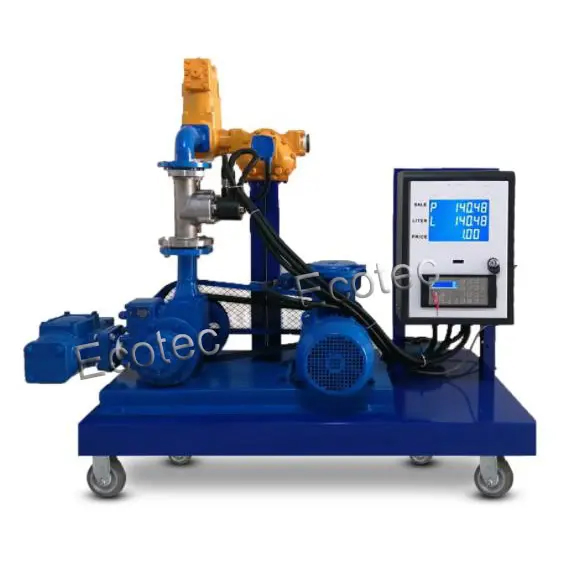

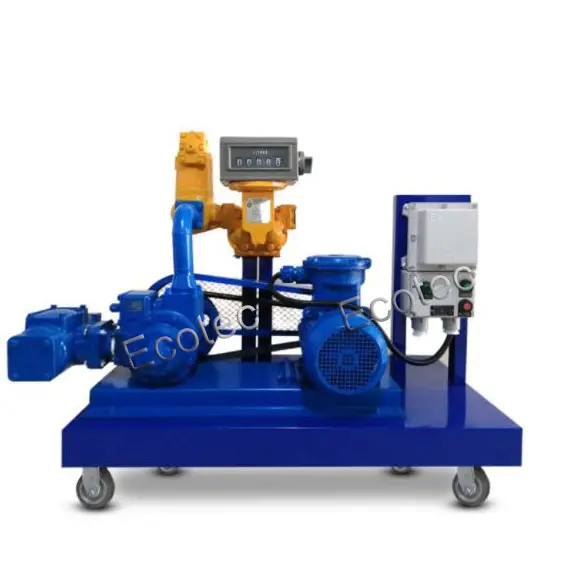

Electronic Skid Discharging Meter Set

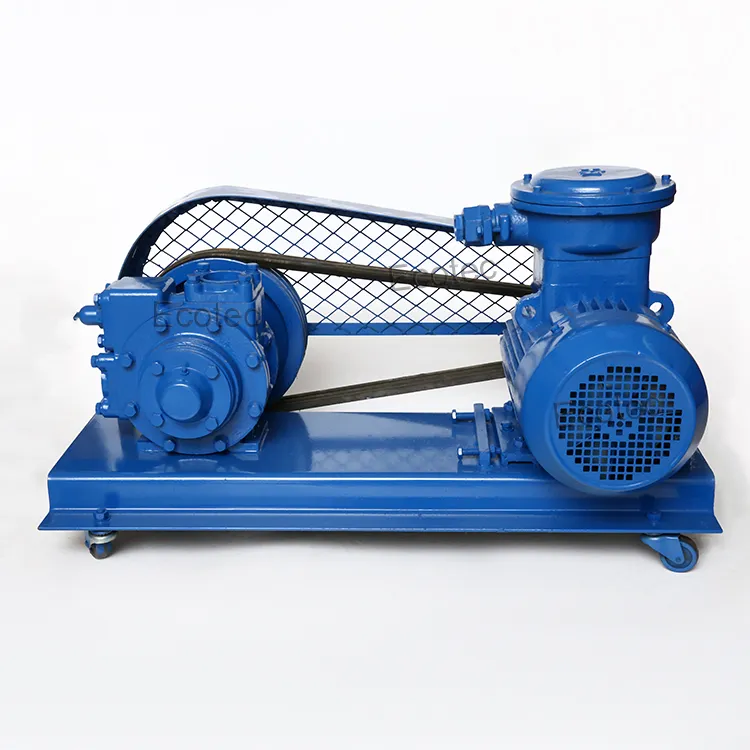

Electronic Skid Detail View

Product Parameters

Model NO.Electronic Skid 2.5 INCH
Max Pressure1.6MPa
Humidity≤95%
Warrantee1 Years for Main Parts
Meter1 X LC Meter
Hose2X Rubber Hose Reinbrassed
Display1 X Blue Display
Ex Box1 X Ex Electric Box
StandardAtex, OIML
Specification1050x450x2250mm
Production Capacity5000

Our Advantages

Our advanced fuel dispenser is a reliable and efficient solution for refueling vehicles and equipment. We offer a range of models, from single-pump to dual-pump dispensers, which can handle a variety of fuel types, including gasoline, diesel, and biofuel. Our fuel dispensers are designed to meet international and local standards, including OIML, NTEP, ATEX, and UL.

We produce all parts and components in-house, ensuring consistent quality and timely delivery. Our design team has created a unique appearance covered by several design patents. We also offer customized services including branding, software adjustment, and technical support.

Additionally, we have independently developed a mobile phone software application. Through this APP, users can easily control the refueling equipment via mobile phone, making it convenient and easy to operate.

Frequently Asked Questions

What is the maximum pressure the Electronic Skid can handle?
The system is designed to operate with a maximum pressure of 1.6MPa.
Which international standards does this equipment comply with?
Our Electronic Skid meets Atex, OIML, and ISO9001 standards, ensuring safety and accuracy.
What type of flow meter is included in the set?
The set includes a high-precision 2-inch L.C Model Flow Meter.
Does the system support remote control or monitoring?
Yes, we have developed a dedicated mobile application that allows users to control and monitor the refueling equipment easily.
What are the power requirements for the electric motor?
The unit features an EX-Electric Motor (7.5HP; 3Ph) compatible with 220V/380V voltage settings.
Is the equipment suitable for outdoor use in humid environments?
Yes, it is designed to operate efficiently in humidity levels up to 95%.
