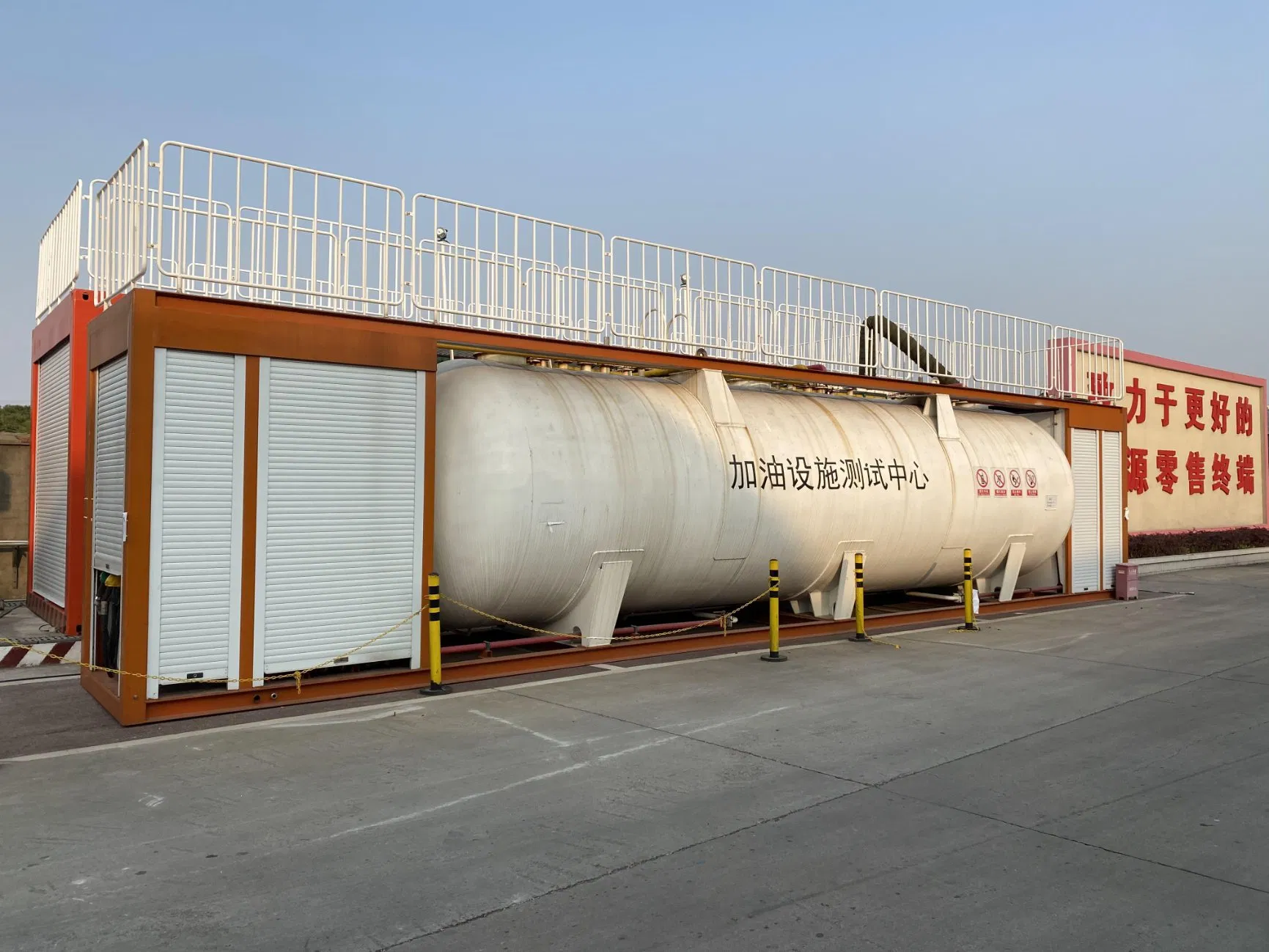

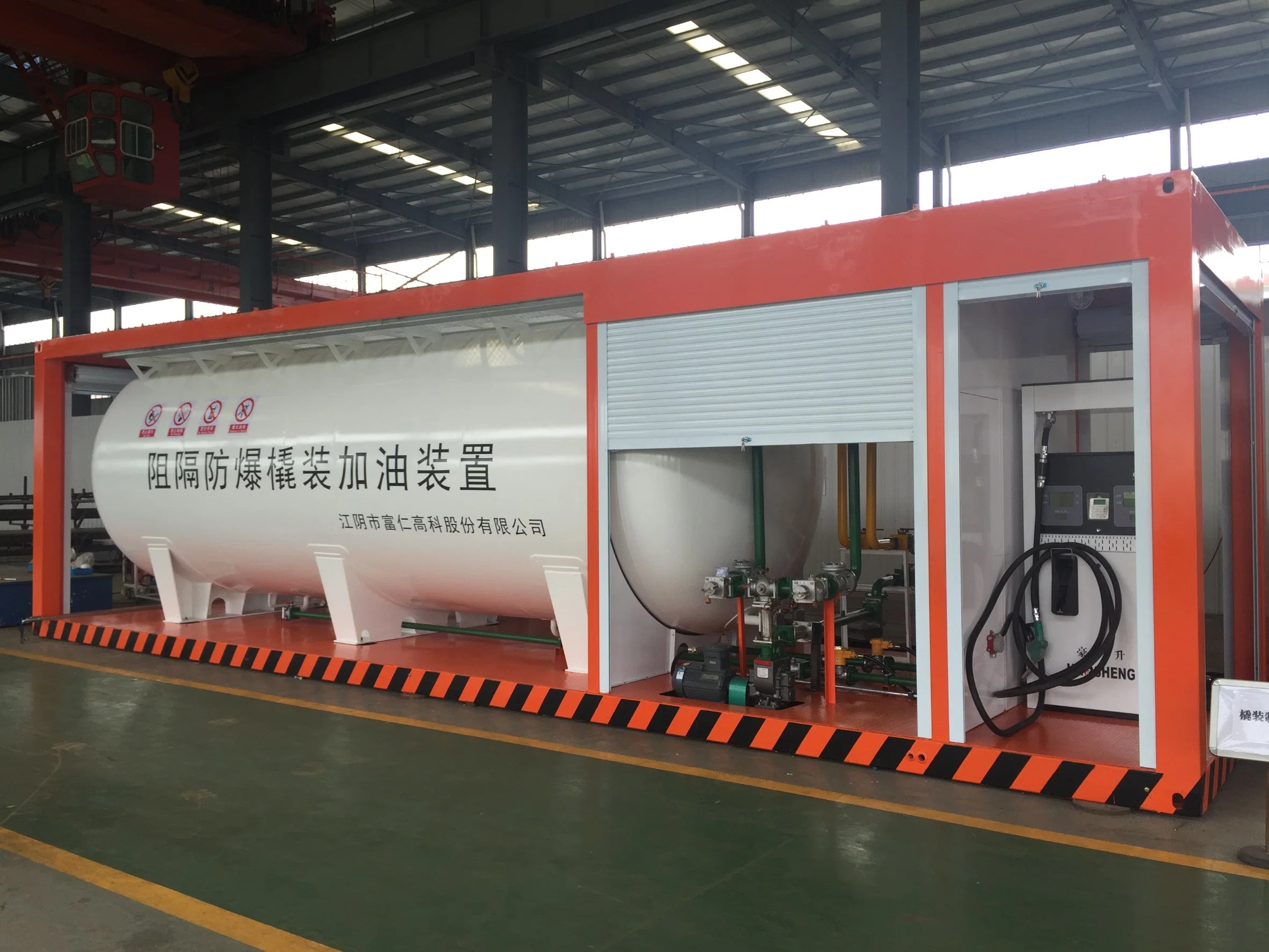

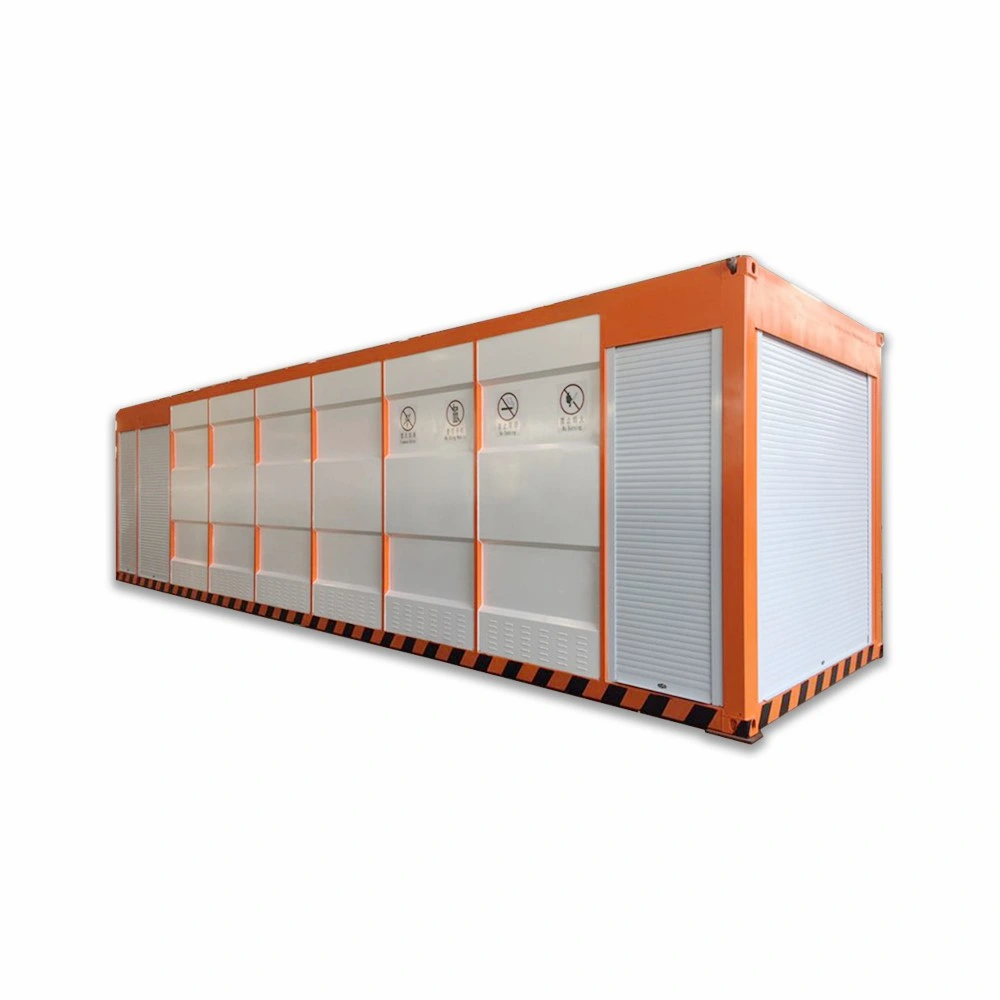

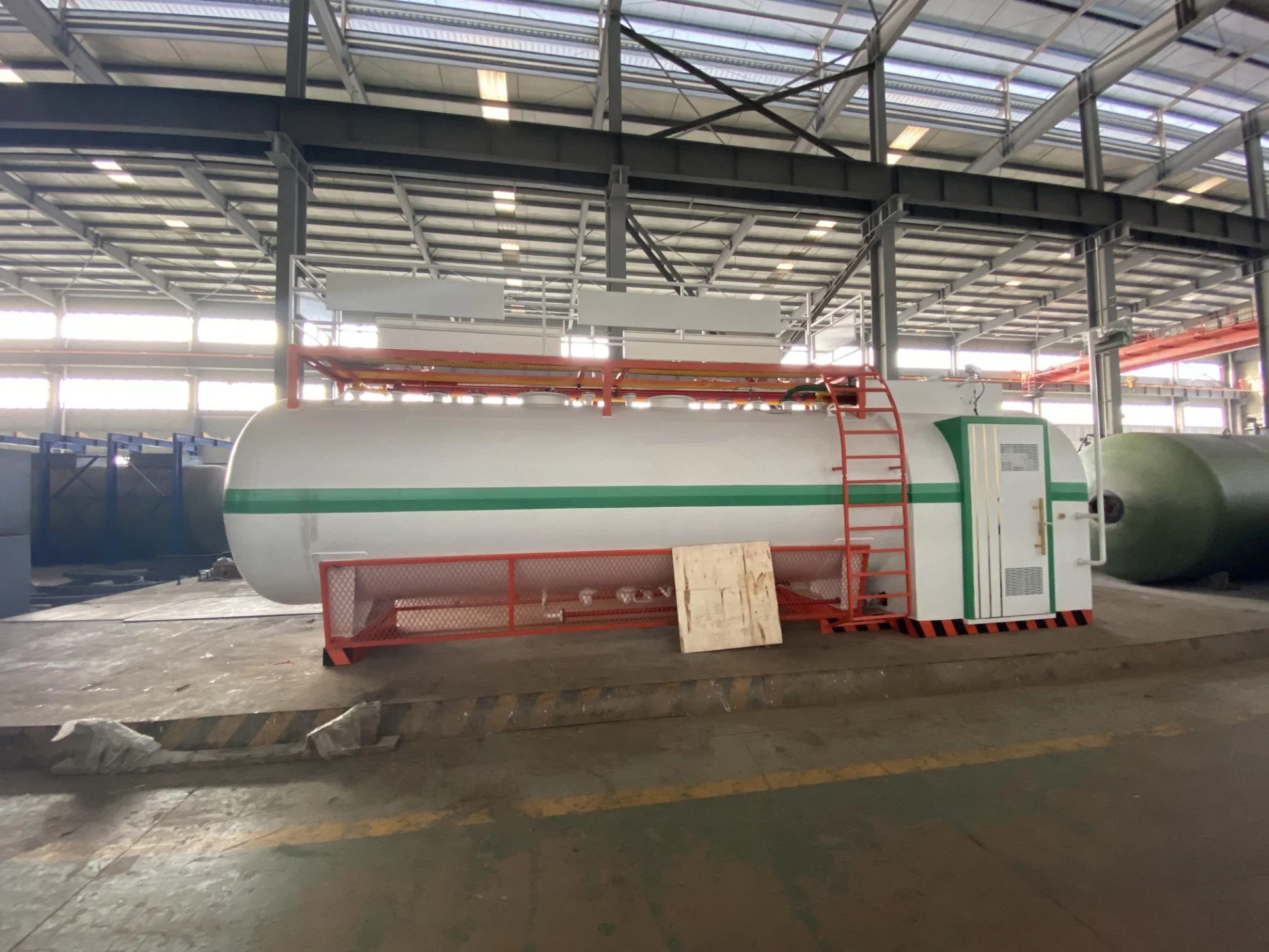

Furen Haosheng 20kl Semi Enclosed Structure Skid-Mounted

1 / 5

Furen Haosheng 20kl Semi Enclosed Structure Skid-Mounted

Customization:	Available
Condition:	New
Type:	Skid-Mounted

Send Inquiry

Product Description

Basic Specifications

Model NO.

20kl Semi Enclosed Skid-Mounted

Partners

Sinopec, Petrochina, Cnooc, Shell

Service

OEM, ODM

Certification

ISO 9001; UL; Atex, Pcec, ISO10012 etc.

Rated Volume

10kl~50kl

Fuel Dispensers

1~2 Units

Net Weight

11500~22000kg

Temperature

-20℃~40℃

Manhole Diameter

500mm

Explosion-Proof

IV Type Material

Power Supply

Three-Phase Five Wires AC380V

Production Capacity

800 sets/Year

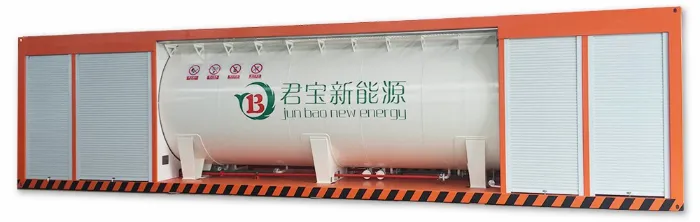

Product Overview

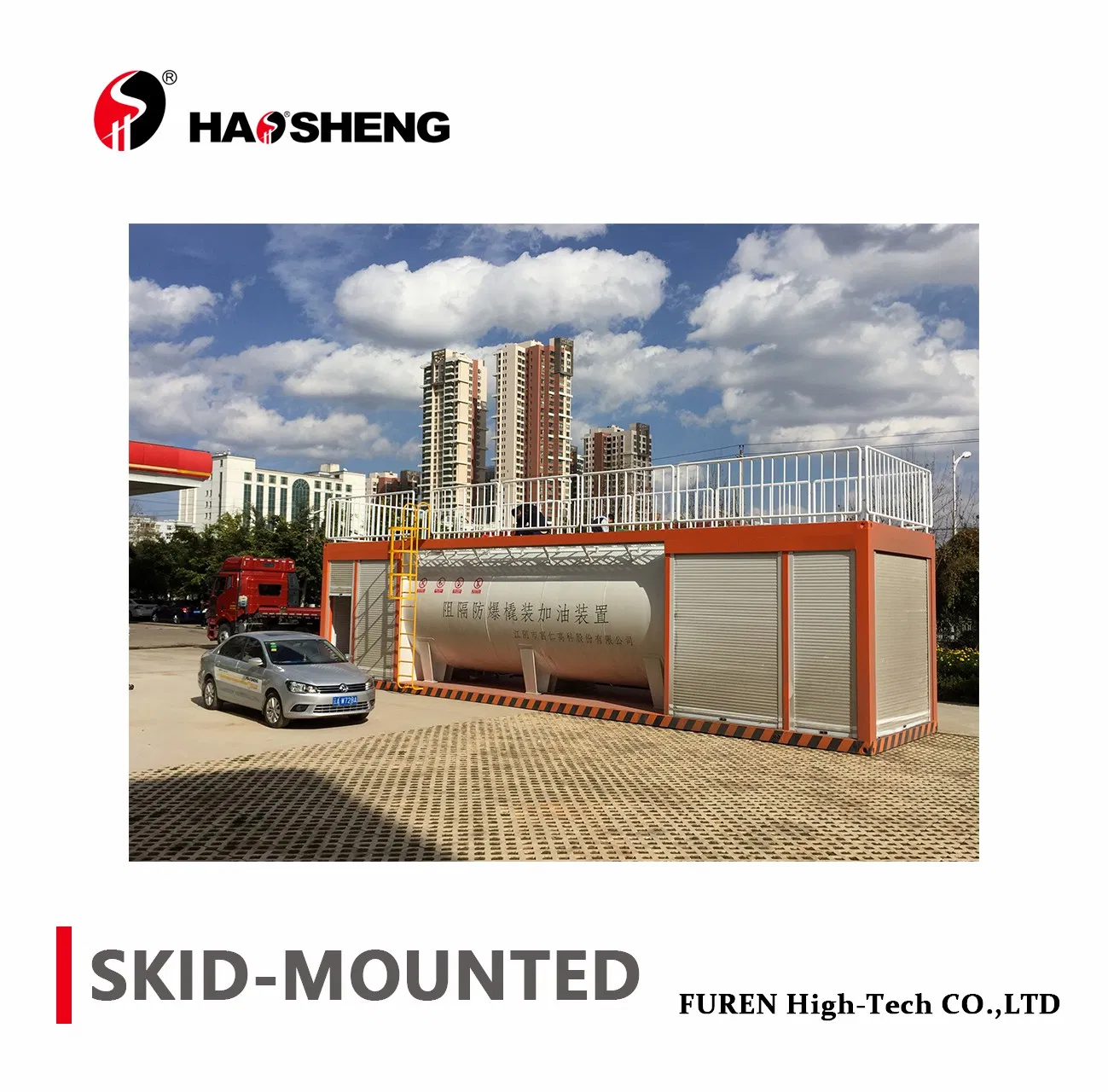

The 20kl Semi Enclosed Structure Skid Mounted Refueling Device is a ground-based fuel filling system integrating fire-proof oil storage tanks, fuel dispensers, and automatic fire extinguishers. It utilizes advanced separate and explosion-proof technology, making it ideal for the storage and transportation of inflammable and explosive chemicals.

This skid-mounted device is economical, practical, and environmentally friendly. It integrates load-bearing skids, explosion-proof storage tanks, electrical control systems, oil & gas recovery systems, and monitoring controls. It offers all the operational functions of a general fuel station in a mobile, energy-saving package.

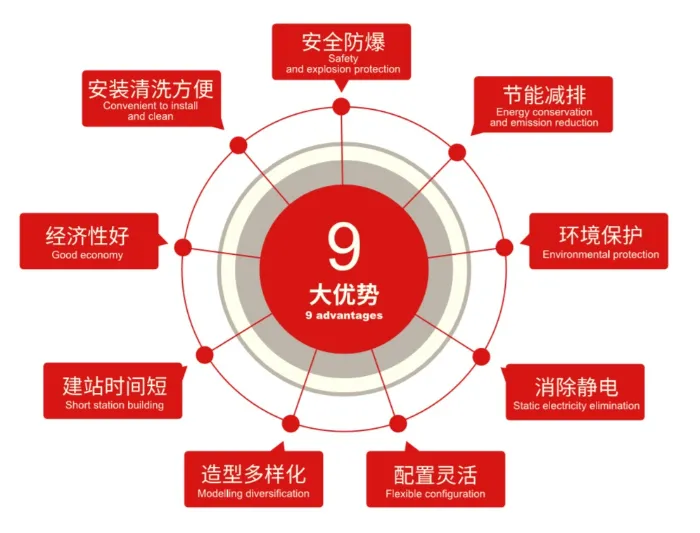

Product Highlights

1 People Oriented Design
2 Secure and Reliable
3 Environmental Protection
4 Convenient Maintenance

Technical Parameters

Parameter Item		Specification Details
Outline Size	Length	6000~14500mm
	Width	2000~3200mm
	Height	2200~3600mm
Rated Volume		10kl~50kl
Breather Valve		Negative -1.5Kpa~2 Kpa, Positive 2~3 Kpa
Emergency Relief Valve		21 Kpa-32 Kpa
Paint System		Epoxy zinc-rich primer + Polyurethane acrylic top coat
Power		8~18kw

Main Components

No.	Part Name	Quantity
1	Frame assembly	1
2	SS double-layer oil storage tank	1
3	Explosion suppression materials	20
4	Double pump double gun fuel dispenser	2
5	Unloading pipeline assembly	2
9	Explosion-proof control box	1
10	Explosion-proof liquid level probe	2
15	Automatic fire extinguisher	1
18	Roller shutter door assembly	7

Certifications & Quality

Frequently Asked Questions

? What is a skid-mounted refueling device?

It is a portable, ground-level fueling station that integrates storage tanks, dispensers, and safety systems into a single "skid" for easy transport and rapid deployment.

? How does the explosion-proof technology work?

The tank is filled with specialized separate and explosion-proof materials (IV Type) that prevent the spread of flames and suppress pressure build-up in the event of an ignition source.

? What certifications does this system hold?

The device is fully certified under international standards including ISO 9001, UL, ATEX, and OHSAS18001, ensuring global compliance and safety.

? Can the device handle extreme temperatures?

Yes, the system is designed to operate reliably in environmental temperatures ranging from -20ºC to 40ºC.

? Are OEM and ODM services available?

Yes, we provide full OEM and ODM services, allowing for customization of logos, packaging, and specific technical configurations to meet customer needs.

? What safety monitoring systems are included?

The unit includes liquid level alarms, oil leakage monitoring, electrostatic grounding alarms, flammable gas detection, and automatic fire extinguishing systems.
