| Type | Semi-Trailer | Load Capacity | 25T |
| Certification | CE, ISO/TS16949 | Wheel Base | 9000-10000mm |
| Tread | 2240mm | Grade | Heavy Duty |
| Suspension | Tube Bundle Container | Shape | Flatbed |
| Axle Number | 2-3 | Tire Number | 8-12 |
| Material | Steel | Condition | New |
| Storage Medium | CNG, Compressed Hydrogen, Nitrogen, Helium | Pressure Level | Ultra High Pressure (P>100.0MPa) |
| Working Pressure | 25MPa | Main Material | 30crmolx |
| Working Temp | -50~65 | HS Code | 8716319000 |

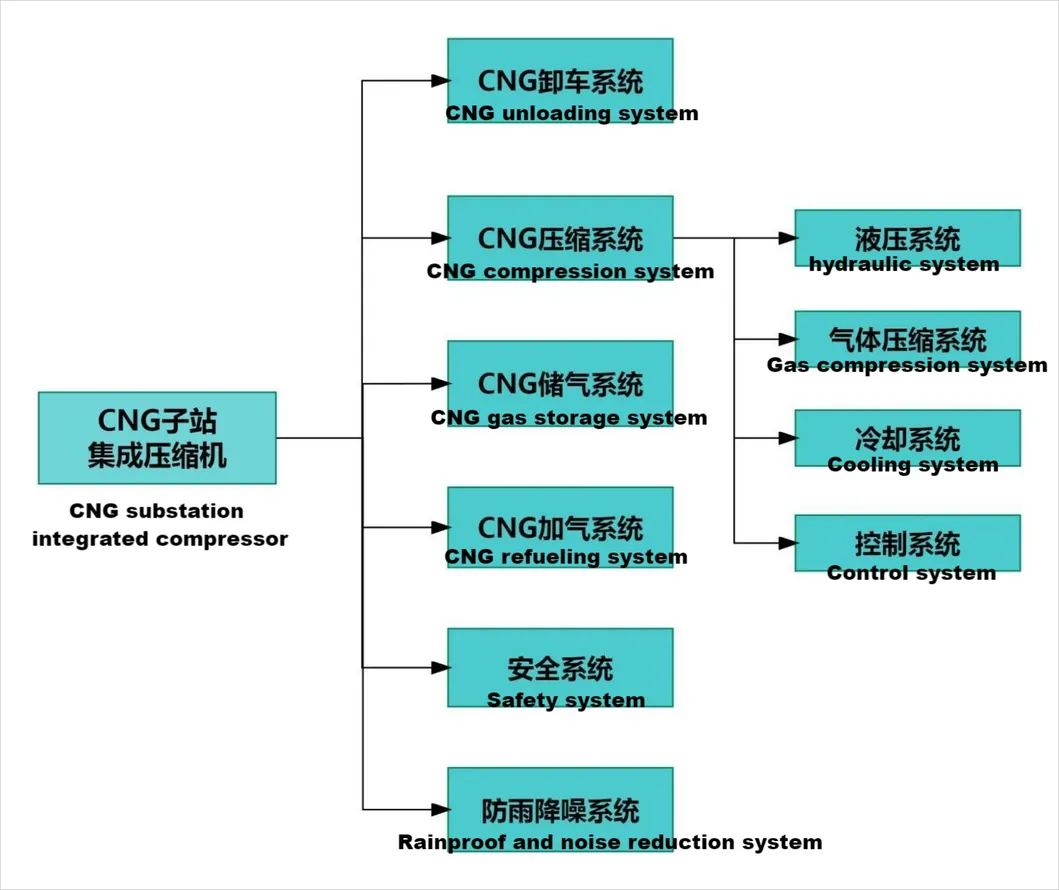

The CNG substation integrated compressor consists of the main units such as the gas unloading column, gas filter, compressor, oil and gas cooling system, gas cylinder group, and gas dispenser, which are integrated into a rainproof and noise-reducing box through valve pipes. The compressor adopts a hydraulic reciprocating double-acting force structure design and is equipped with a piston position sensing system. The motor drives the hydraulic oil pump to supply oil, and the integrated reversing system allows the hydraulic oil to continuously push the piston to reciprocate to compress the natural gas. The compressor adopts a two-stage compression form, and the unit is cooled by water circulation and air cooling. The compressor uses a PLC control cabinet to fully automatically control the unit, which has the advantages of high automation, simple operation, safe and reliable operation, and convenient maintenance. The unit is skid-mounted and has achieved a completely unattended mode.

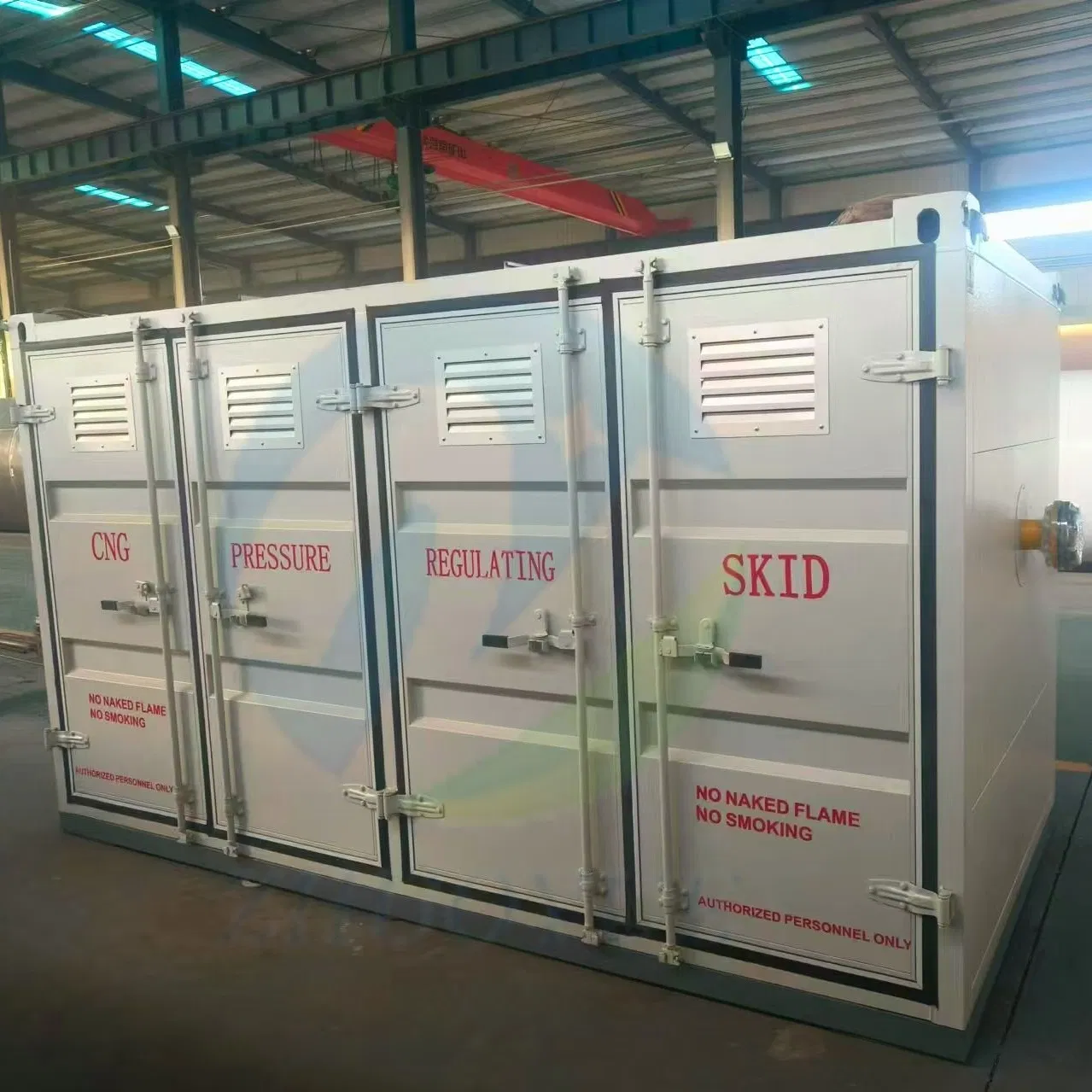

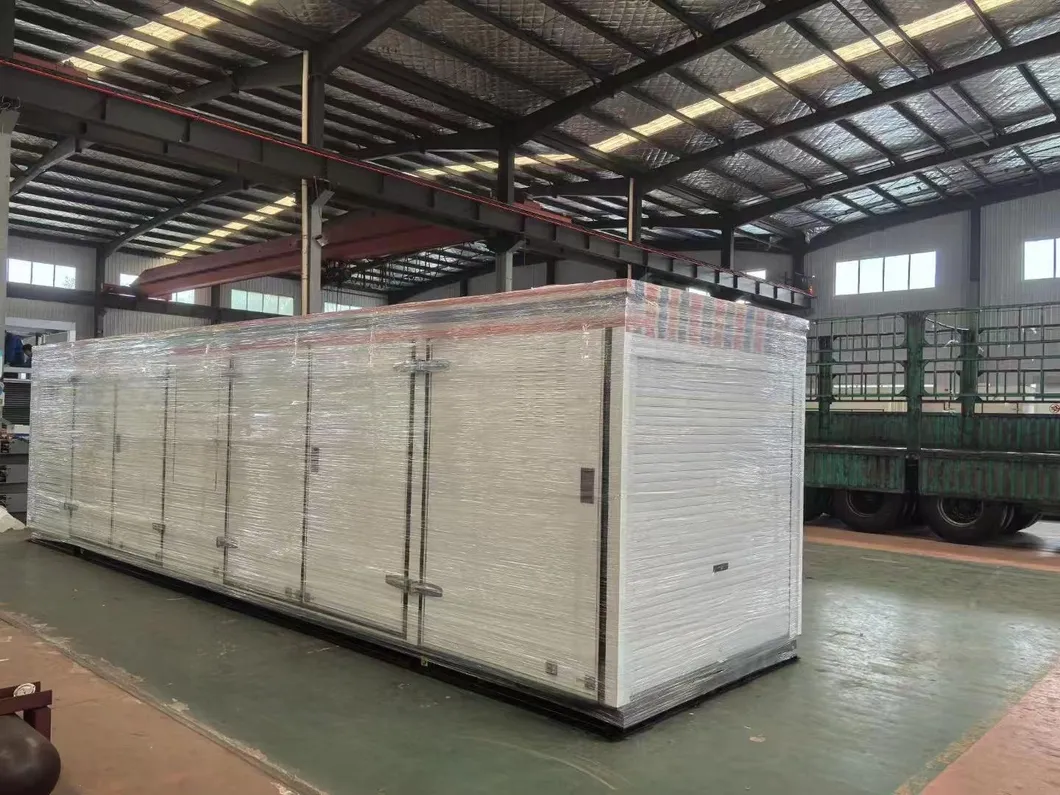

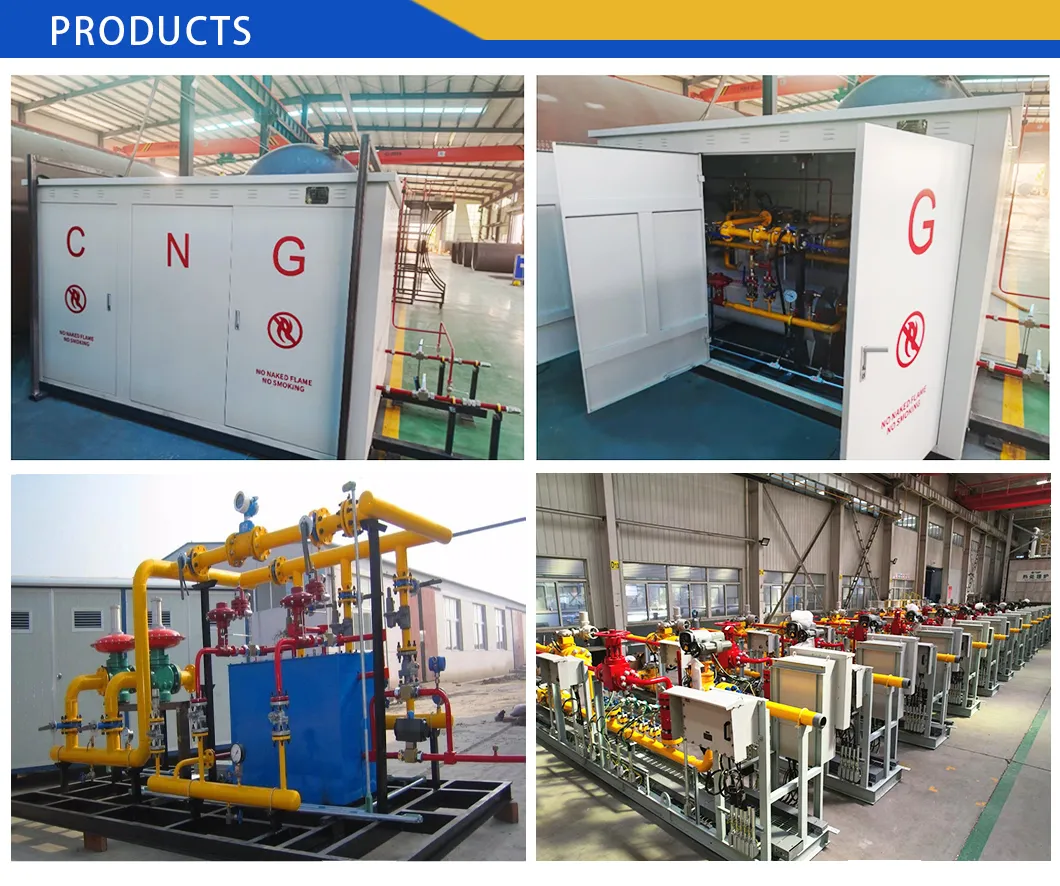

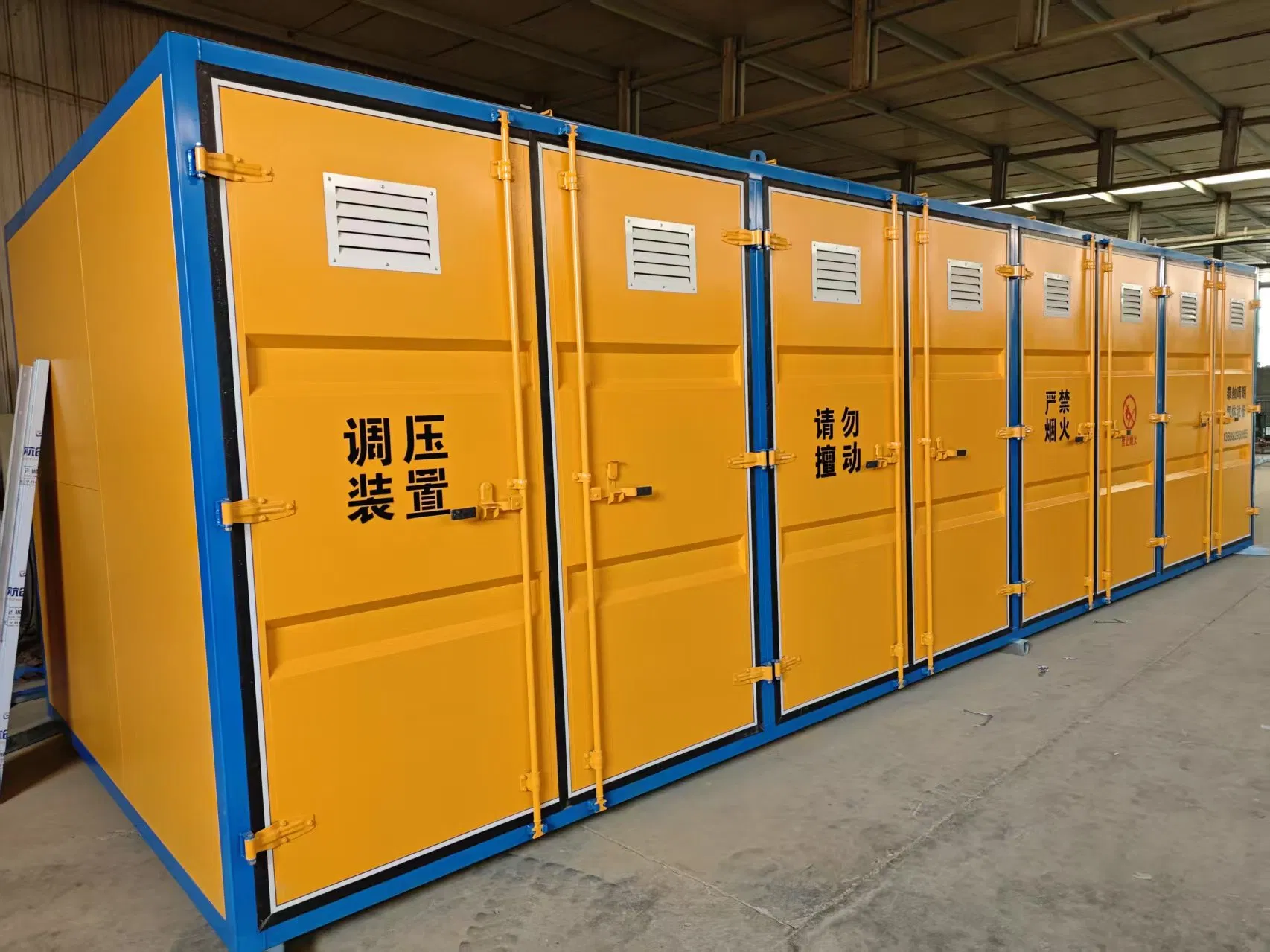

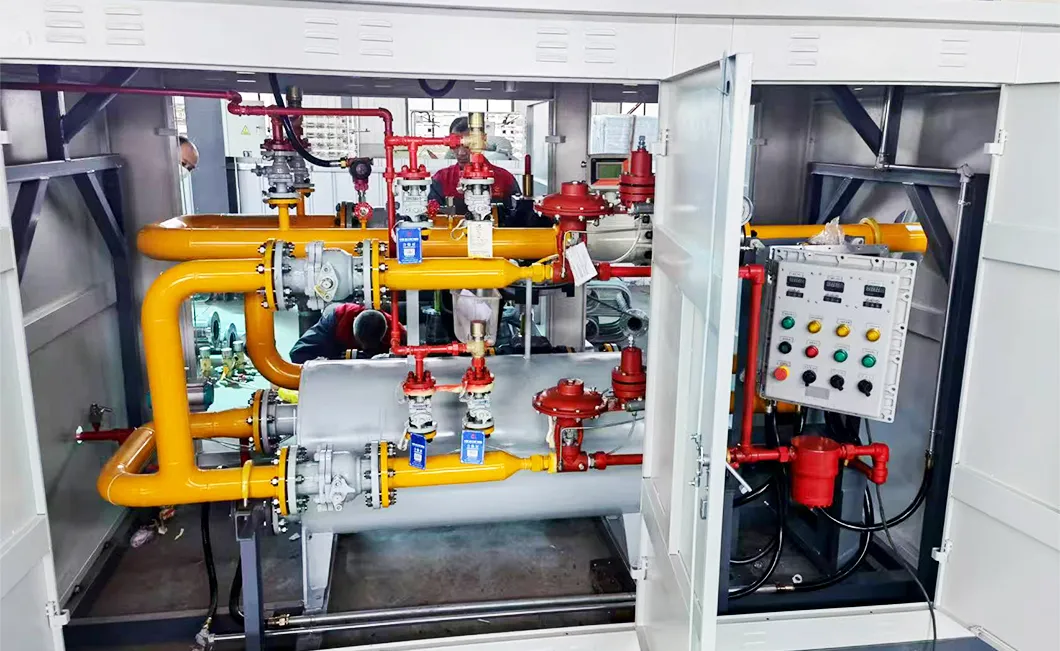

This series of pressure-regulating boxes is primarily designed for medium and low-pressure gas transmission and distribution systems. Each unit includes a filter, pressure regulator (with self-shutoff and release functions), ball valve, pressure gauge, and enclosure. The box features a compact structure, easy maintenance, and reliable safety performance. It is suitable for use in civil buildings and at small to medium-sized sites, such as apartment complexes, hotels, and restaurants.

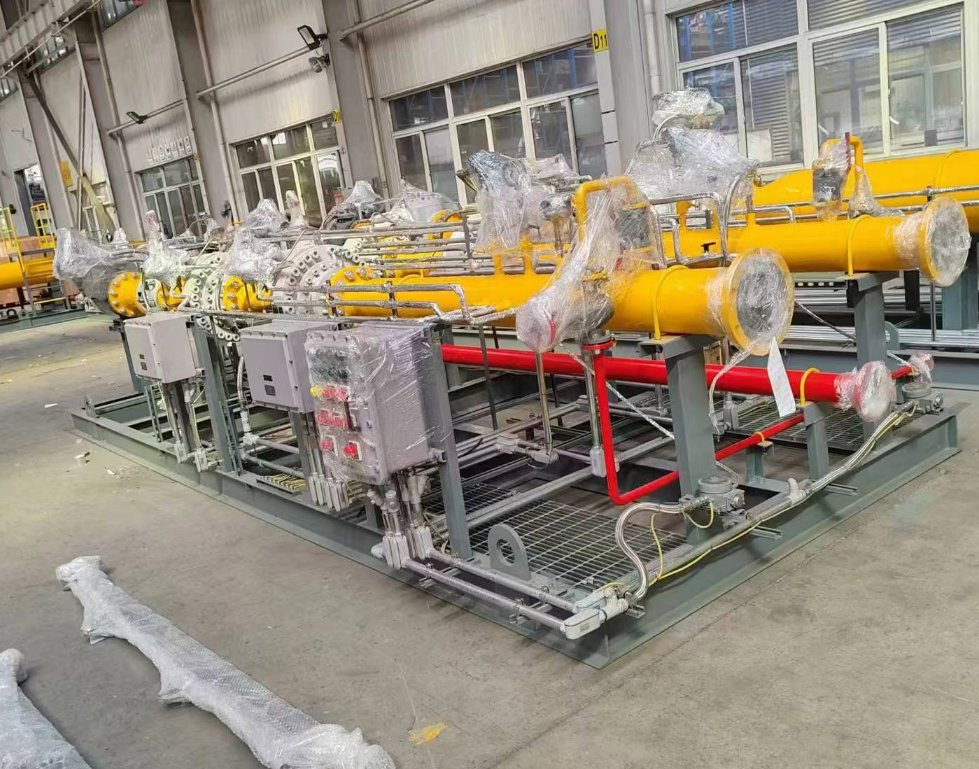

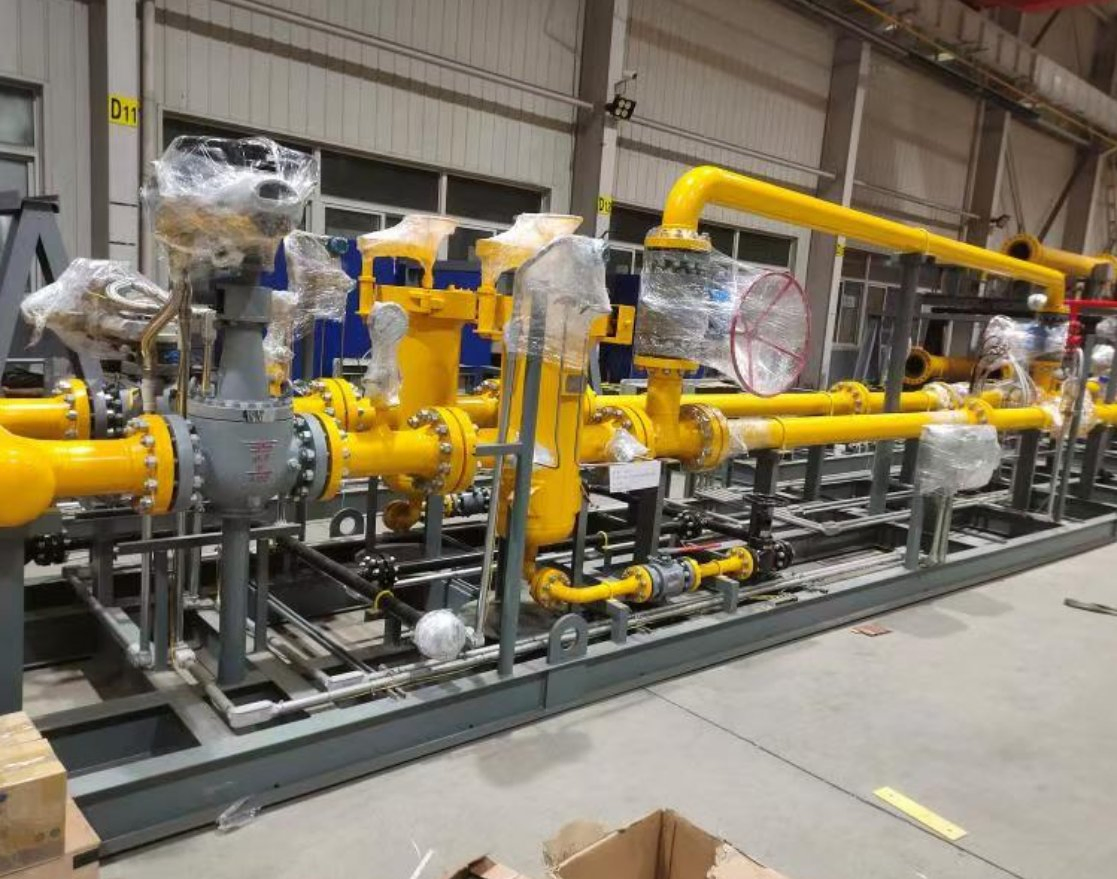

| Structural mode | two-stage pressure regulation, overall skid-mounted |
| Rated gas supply | 1000m³/h |
| Inlet pressure | 25MPa |
| Outlet pressure | 0.2-0.4MPa |
| Pressure reduction level | 2 levels |
| Heat exchange level | 2 levels |
| Heat exchange temperature | 60-75ºC |
| Outlet temperature | ≥-5ºC |
| Shut-off valve power | 0.2-0.6Mpa (compressed air) |
| Alarm mode | sound and light dual alarm |
| Medium | compressed natural gas |

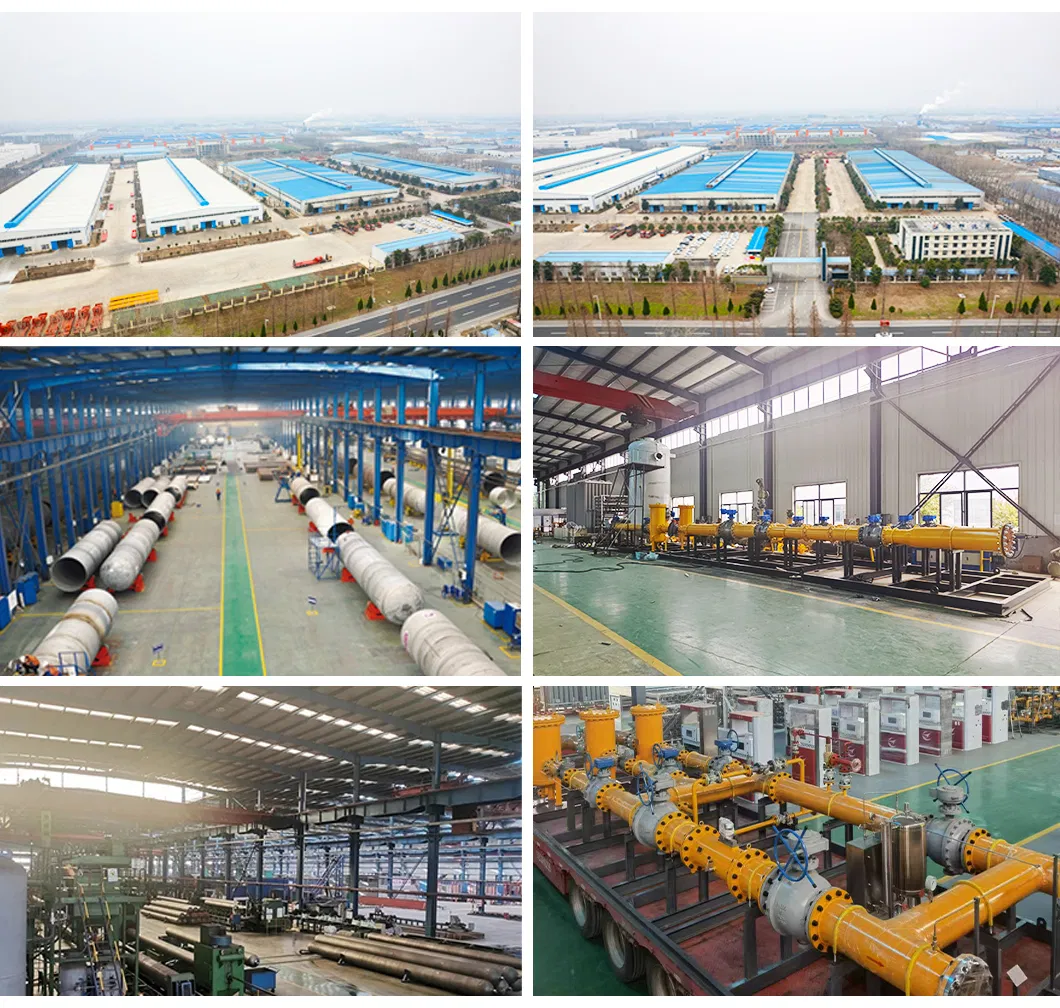

We are a professional gas equipment manufacturer committed to improving quality and adhering to the principles of innovation, quality, and professionalism. With strong technical force and exquisite manufacturing technology, our professional production team provides solid quality assurance for innovative product development. We have more than 20 years of export experience, ensuring our products meet the highest quality standards by supervising every detail.
Our products have passed ISO9001, 14001, and CE certificates. We can also provide relevant certificates that meet specific national requirements.
