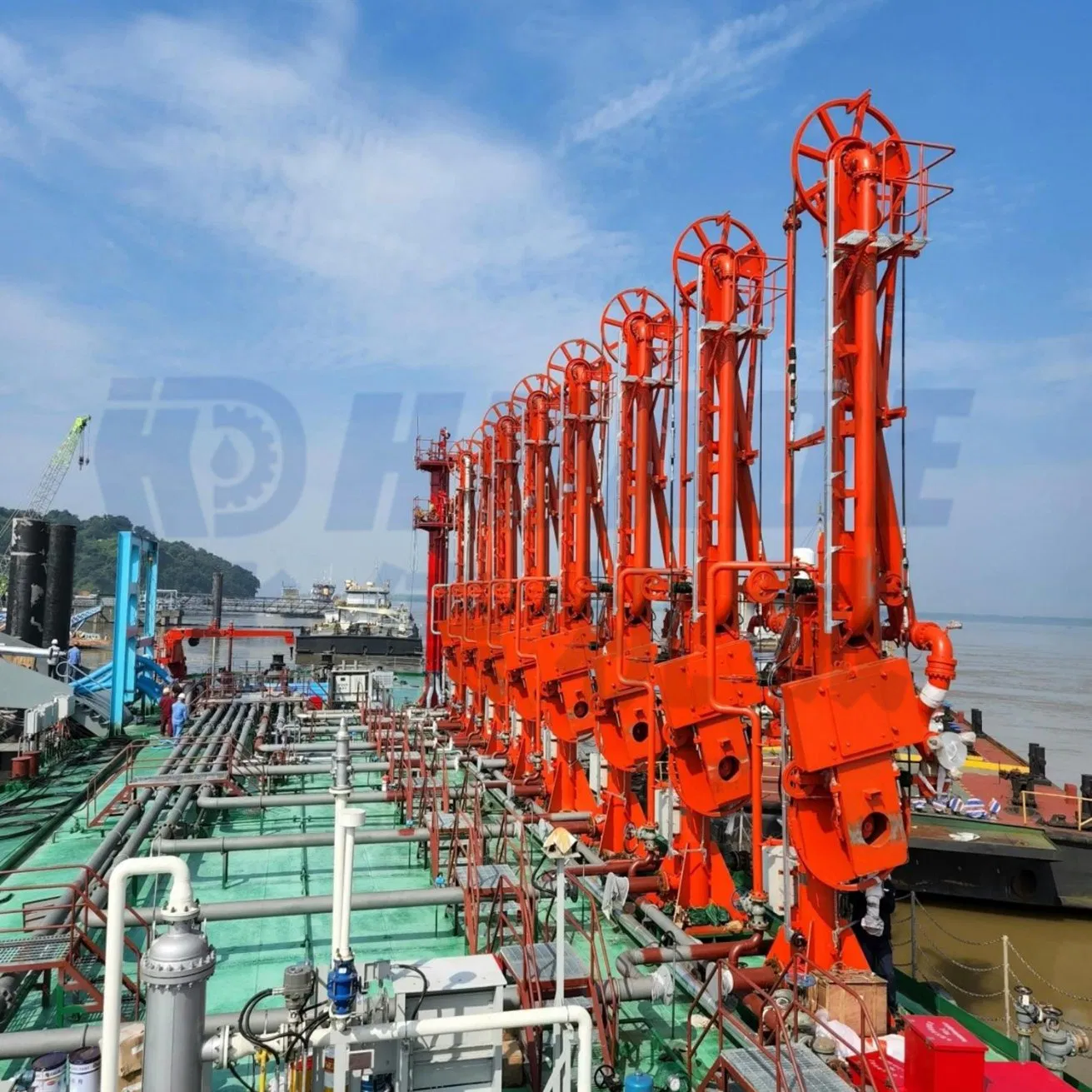

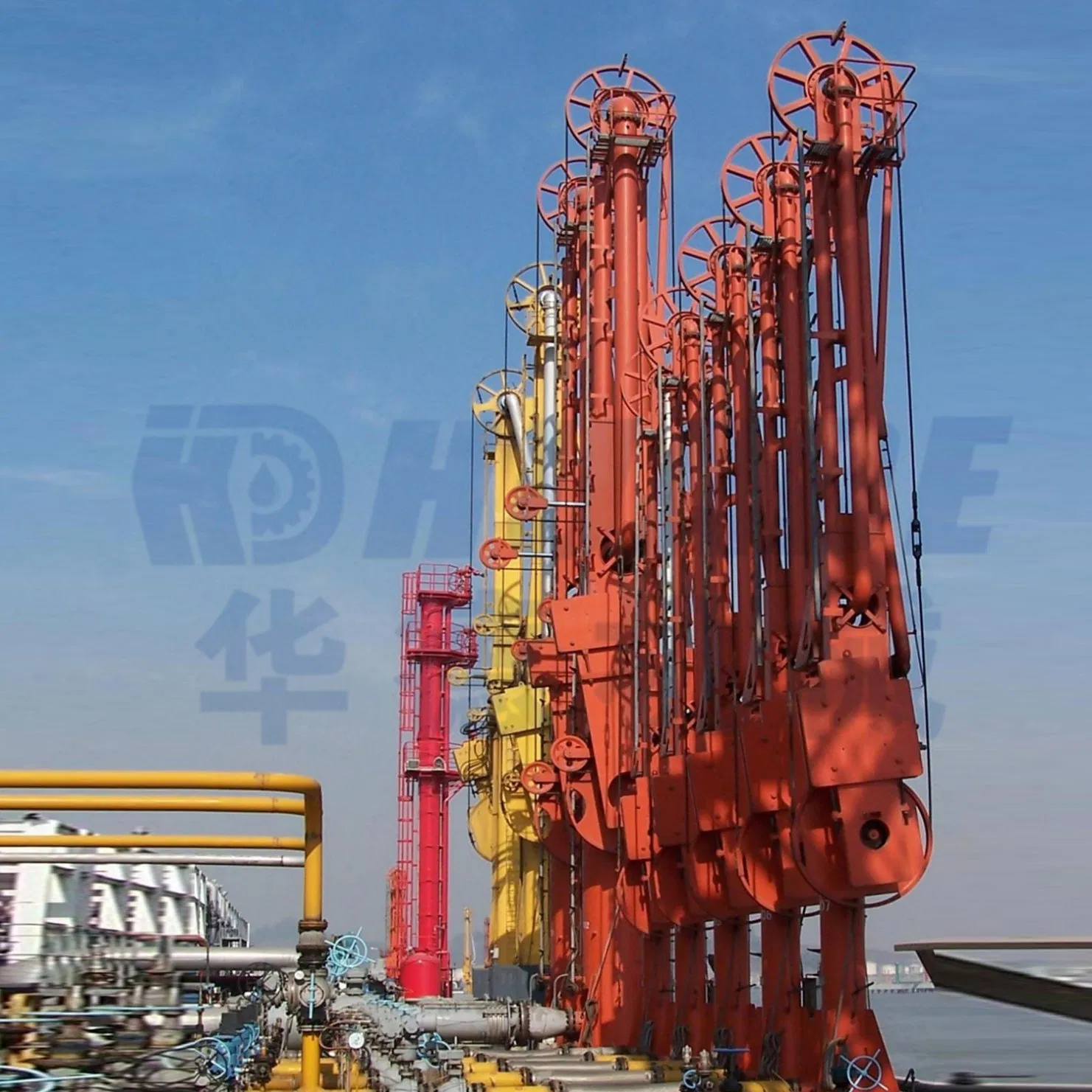

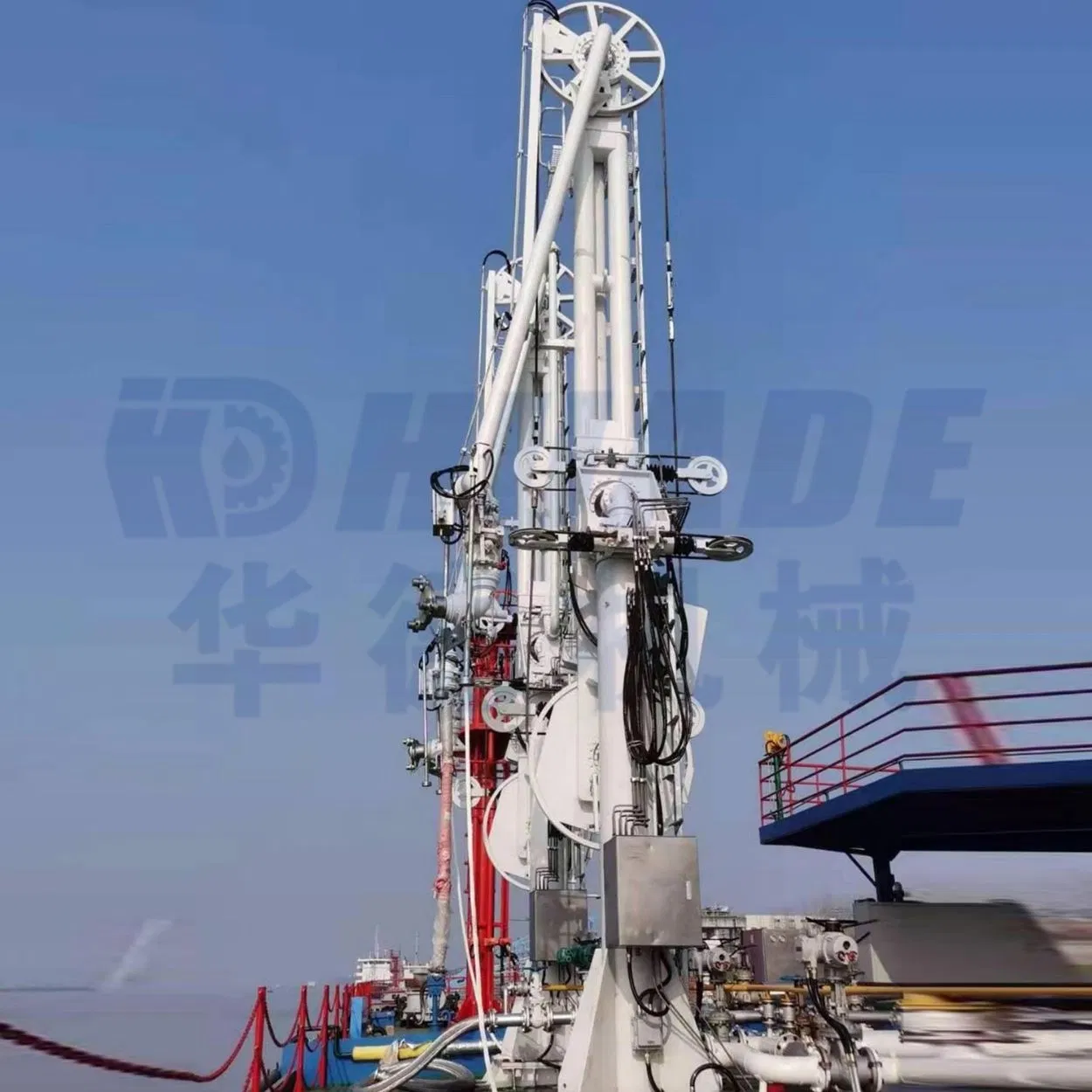

Marine Loading Arms (MLAs) are essential for transferring various fluids such as oil, chemicals, LPG, and LNG between ships and storage facilities. Our systems are engineered for high-performance marine environments.

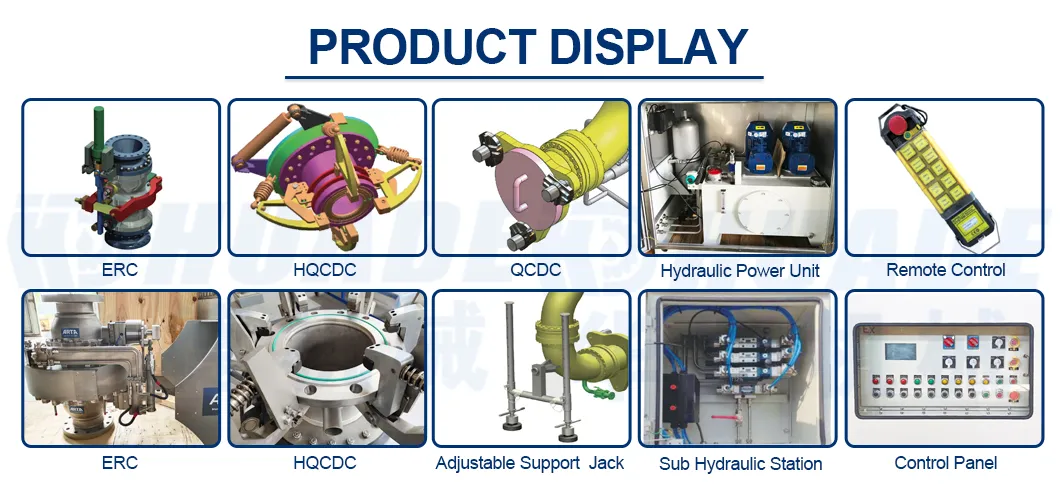

Emergency Release Coupler (ERC): Installed at the vertical part of the triple swivel assembly to safely separate the MLA from the tanker in emergencies such as fire, typhoons, or ship drift, preventing pollution and equipment damage.
Quick Connect/Disconnect Coupler (QCDC): Allows for fast connection to tanker manifolds without bolts or gaskets, saving significant manpower and time.

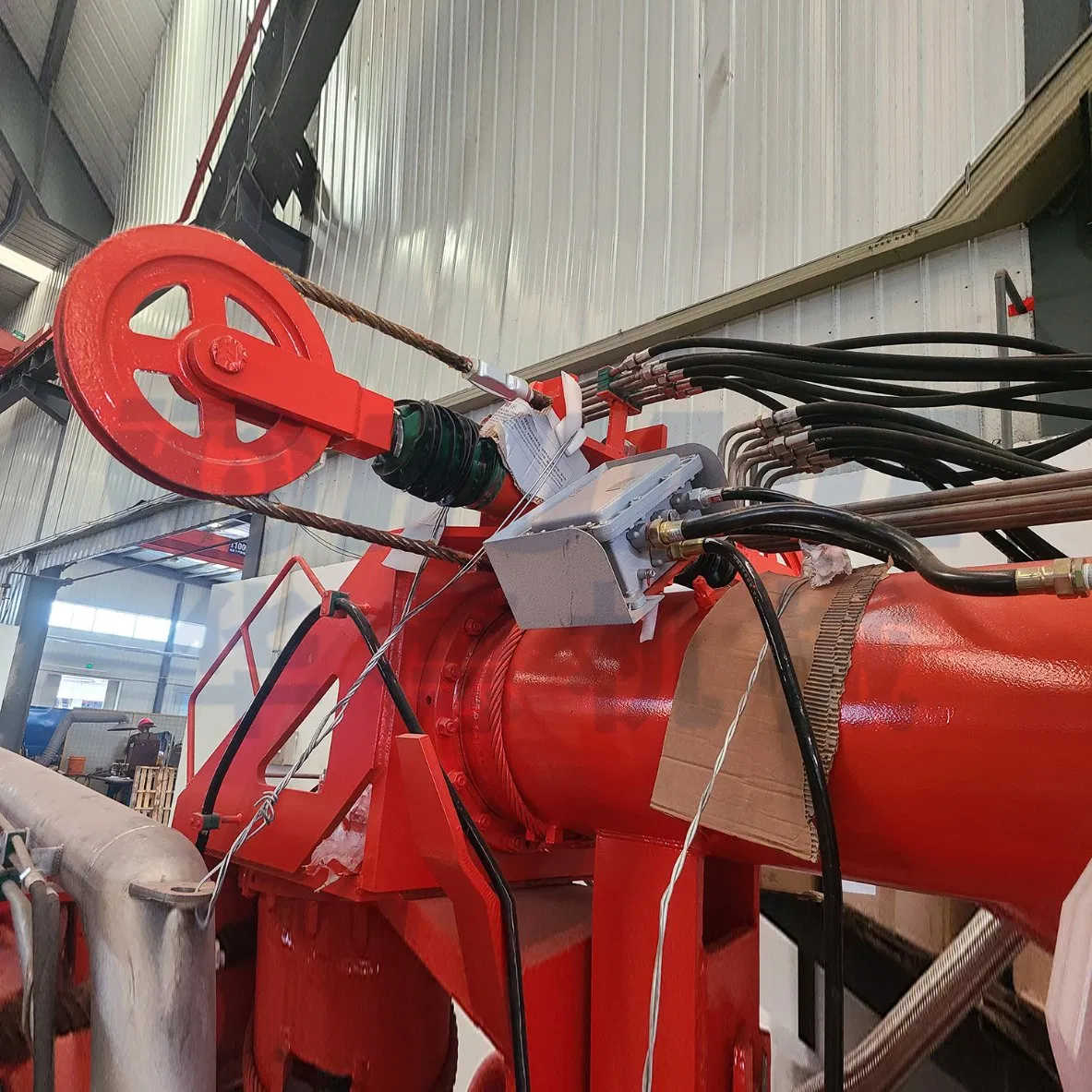

Electro-hydraulic Control System: Includes Local Control Panels (LCP), wireless pendants, and PLC integration for precise monitoring and operation of multiple arms.
| Item | Technical Data |
|---|---|
| Nominal Diameter | DN80~DN400 (3''~16'') |
| Design Pressure | -0.06~10MPa |
| Design Temp. | -196~250ºC |
| Pipeline Material | Carbon Steel, Stainless Steel, Low-Temperature Steel, Lined with PTFE |
| Product Service | Petroleum Product, Gasoline, Diesel, and Chemical |
| Operating Mode | Manual / Electro-hydraulic |
· AM61M: Manual operation, double counterweight. Ideal for inland river jetties and small vessels (up to 8").
· AM63M: Manual operation with separate-support design for easier seal changes. Applicable for small jetties (up to 10").
· AM63H: Electro-hydraulic operation. Supports ERC and QCDC. Maximum size 16", suitable for sea jetties.
· AM64H: Electro-hydraulic operation with liquid and vapor lines (up to 16" liquid / 8" vapor).

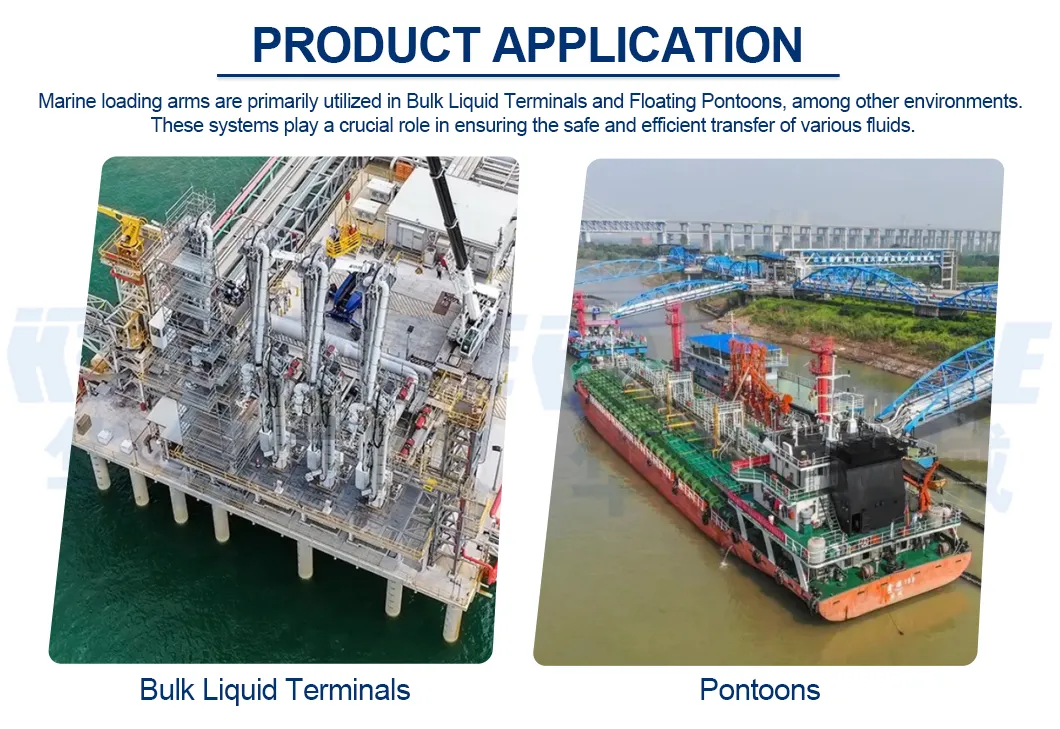

Bulk Liquid Terminals: Essential for loading/unloading crude oil, refined products, and chemicals at specialized storage facilities.
Pontoons & Floating Docks: High flexibility arms designed to accommodate vessel movements in harbors and offshore locations.

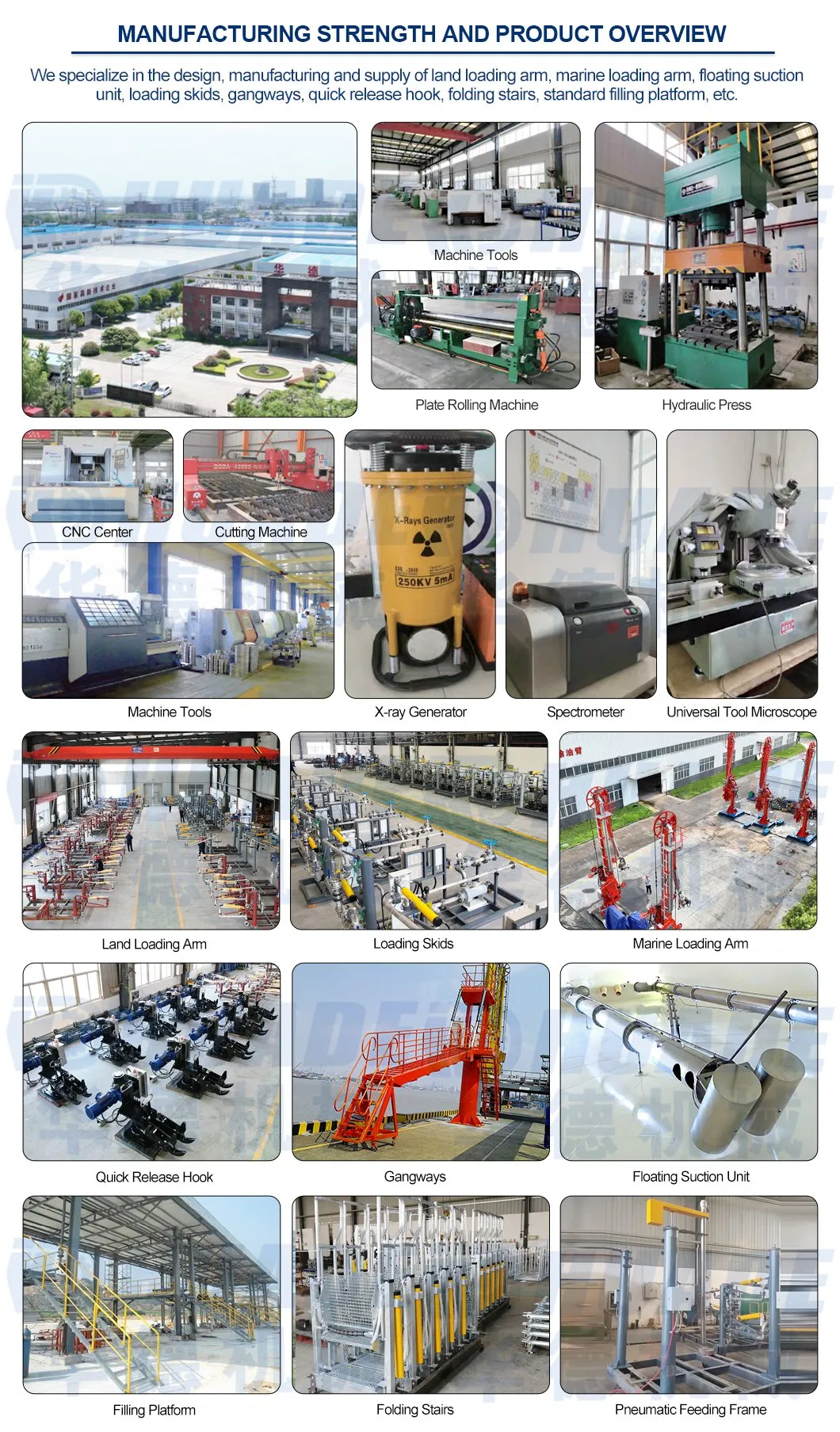

We are a leading manufacturer specializing in the design and supply of land loading arms, marine loading arms, floating suction units, and jetty equipment. Our facilities include a factory area of more than 12 acres with 20,000 m² of workshop space.
Equipped with over 120 sets of advanced manufacturing and testing equipment, we hold numerous patents and certifications including ISO9001, ISO14001, and ISO45001. We provide cost-effective systematic solutions through continuous R&D and technological innovation.
