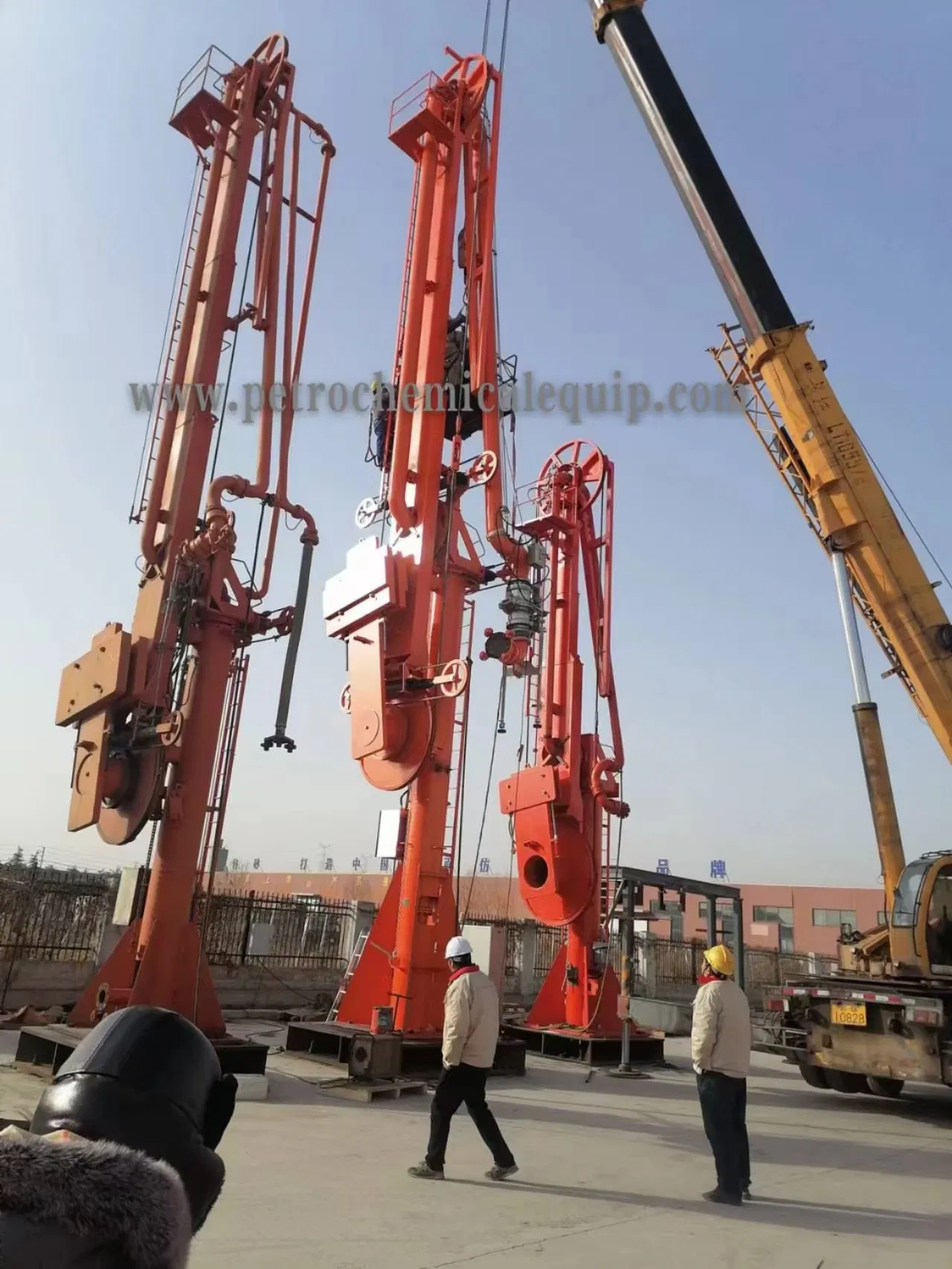

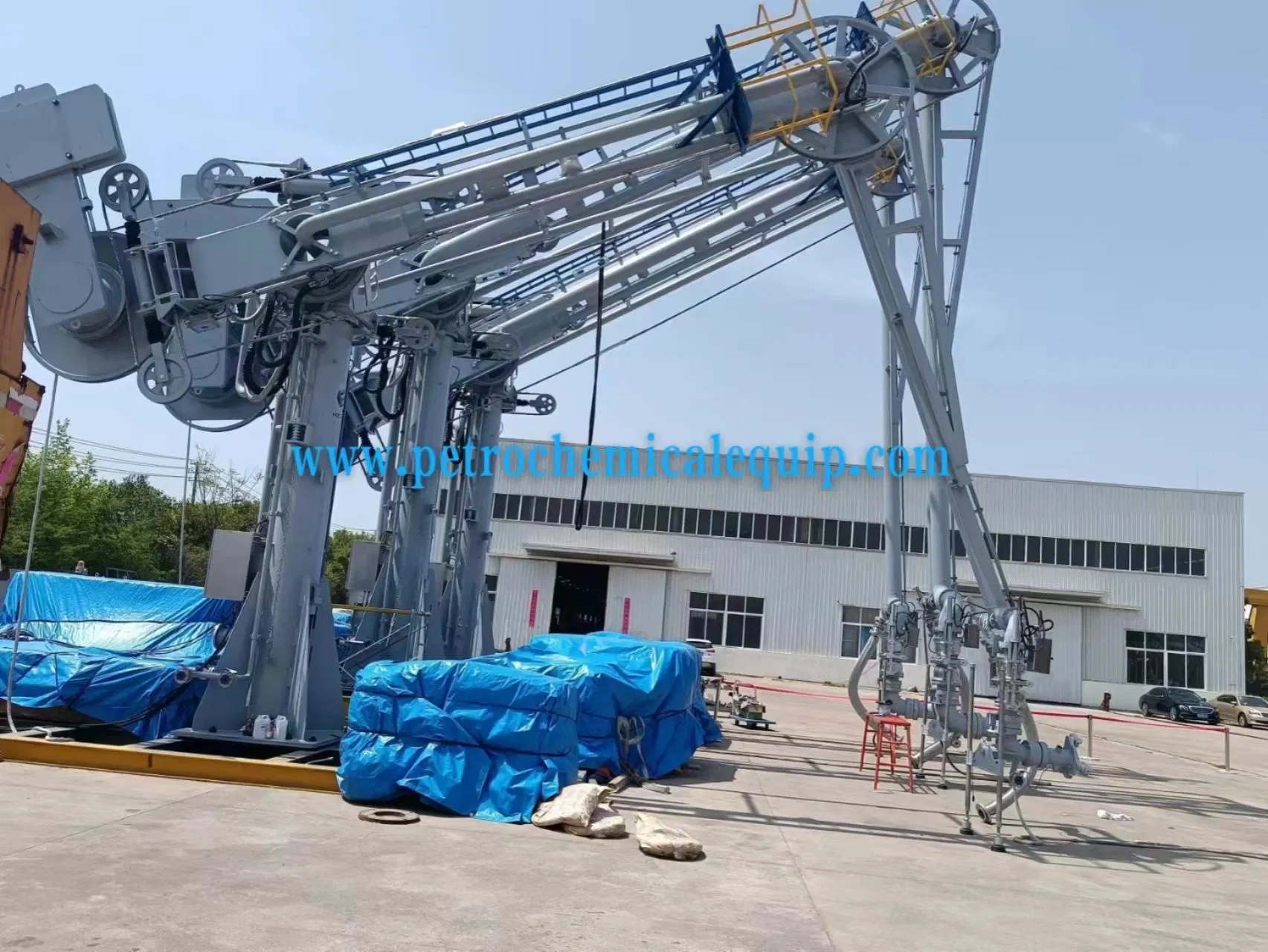

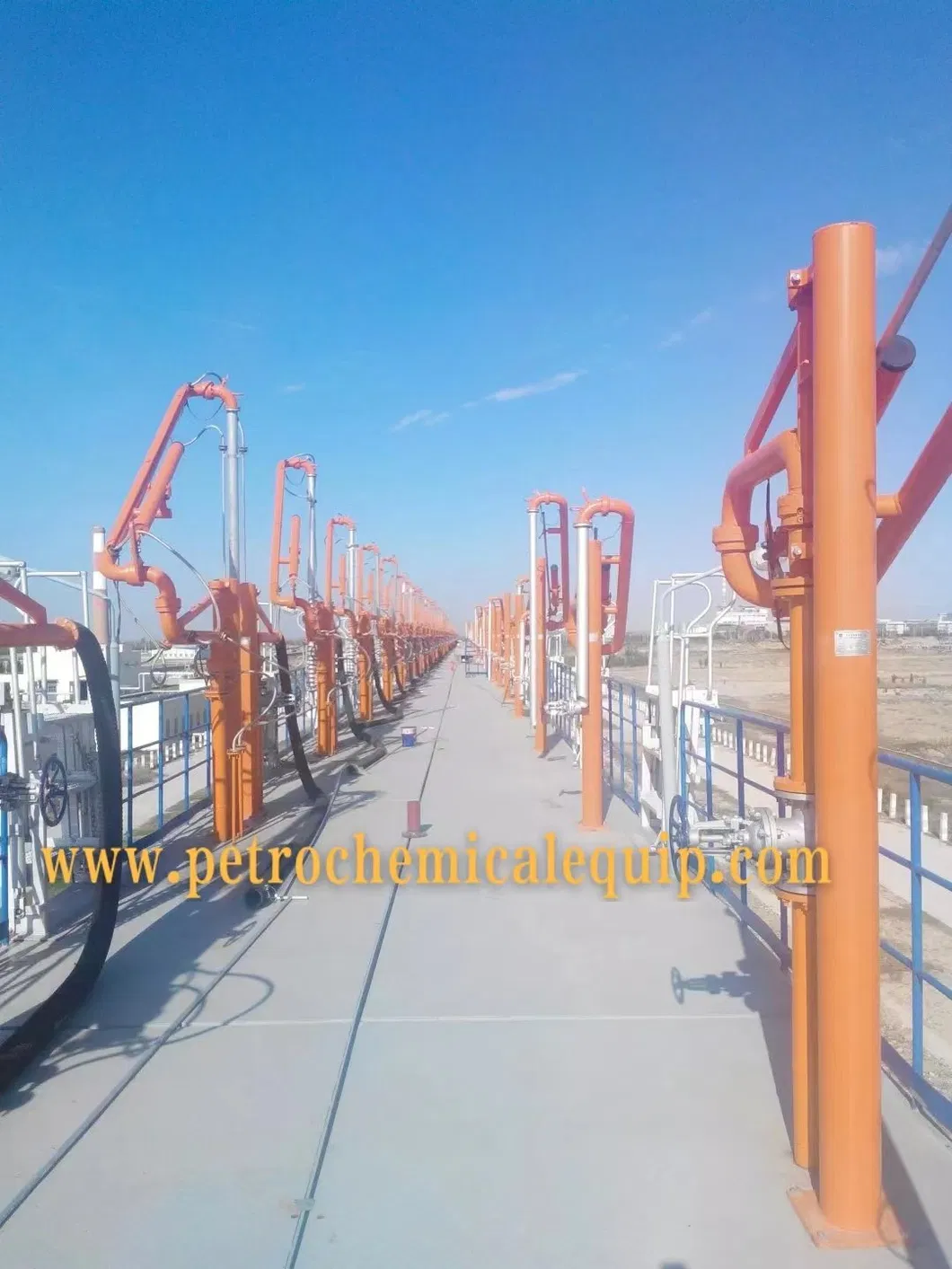

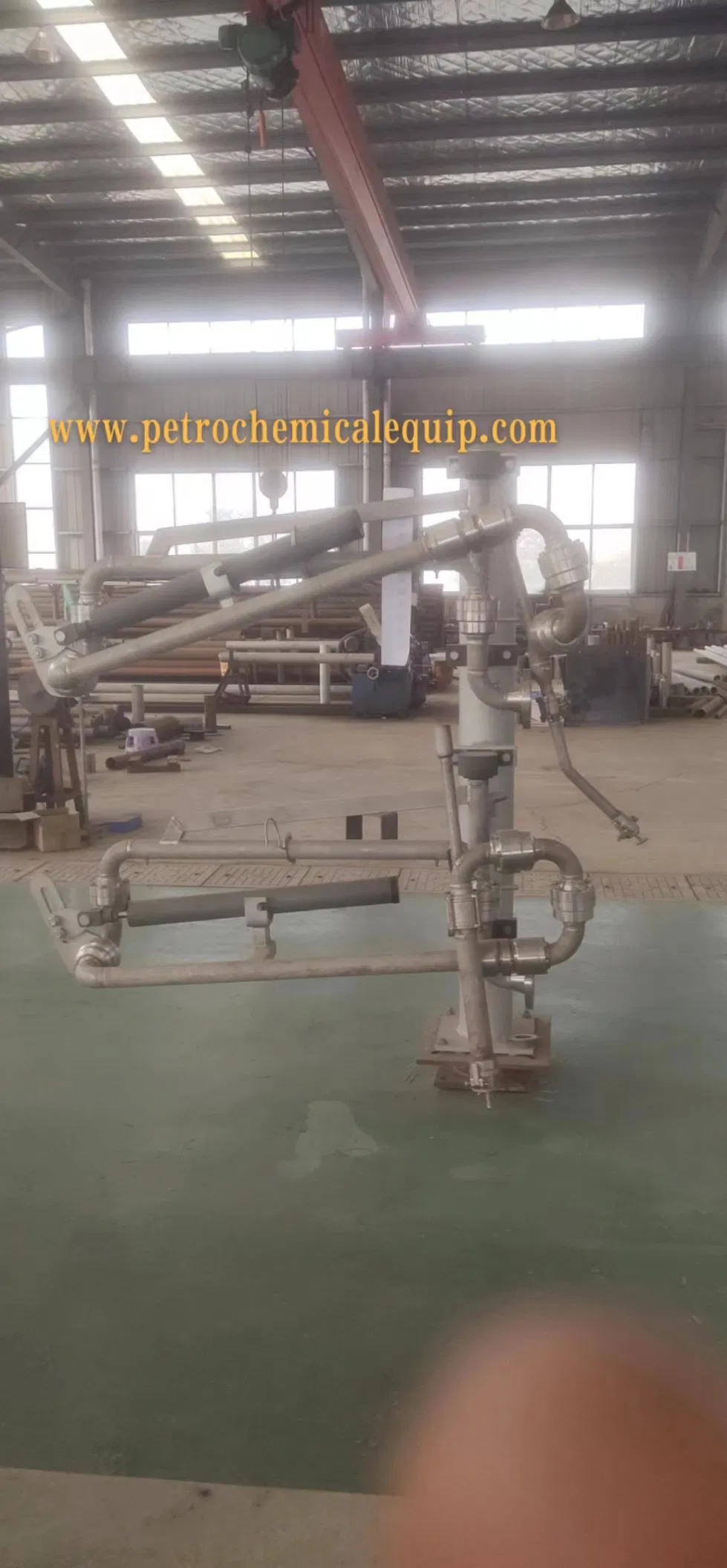

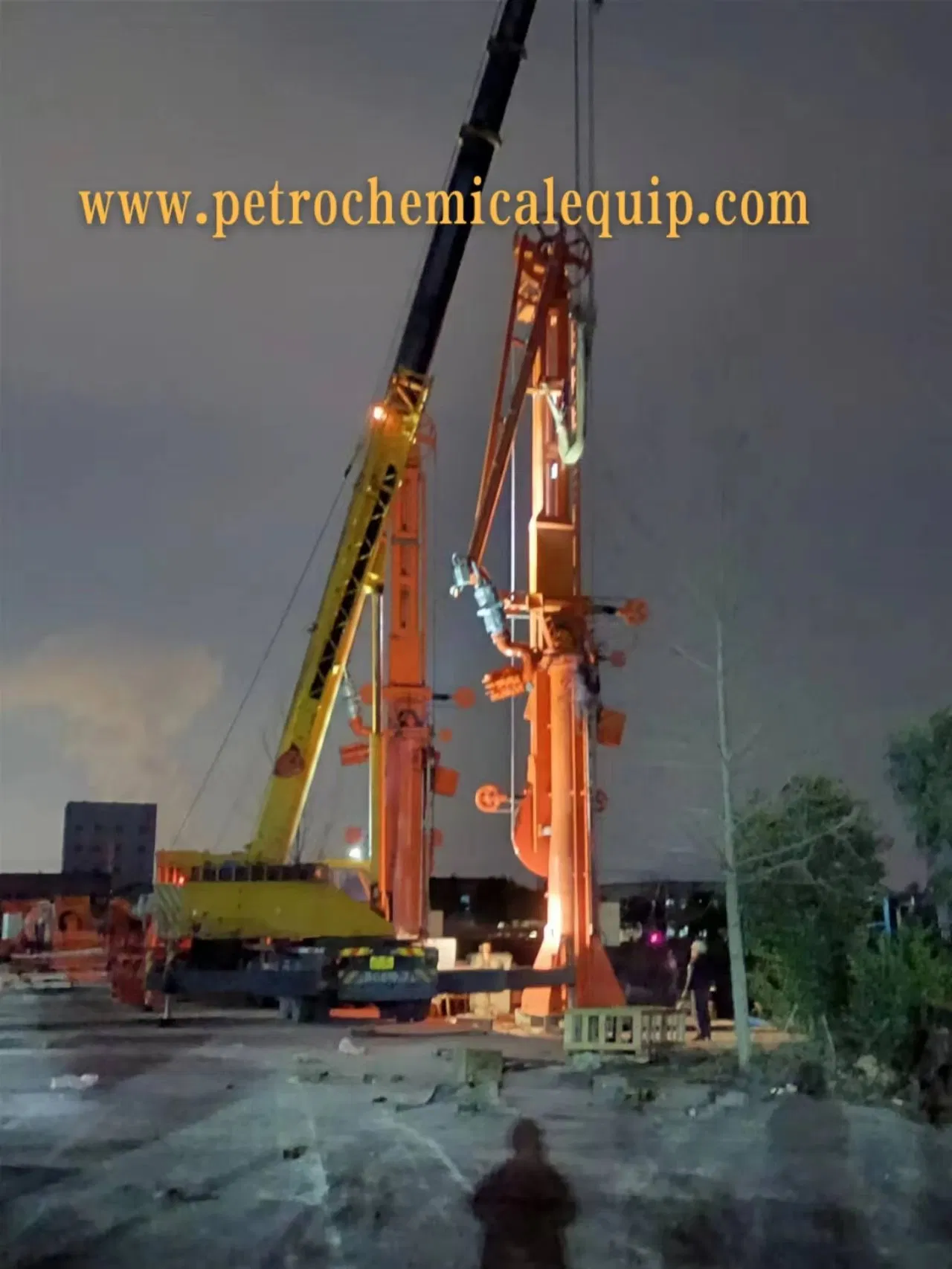

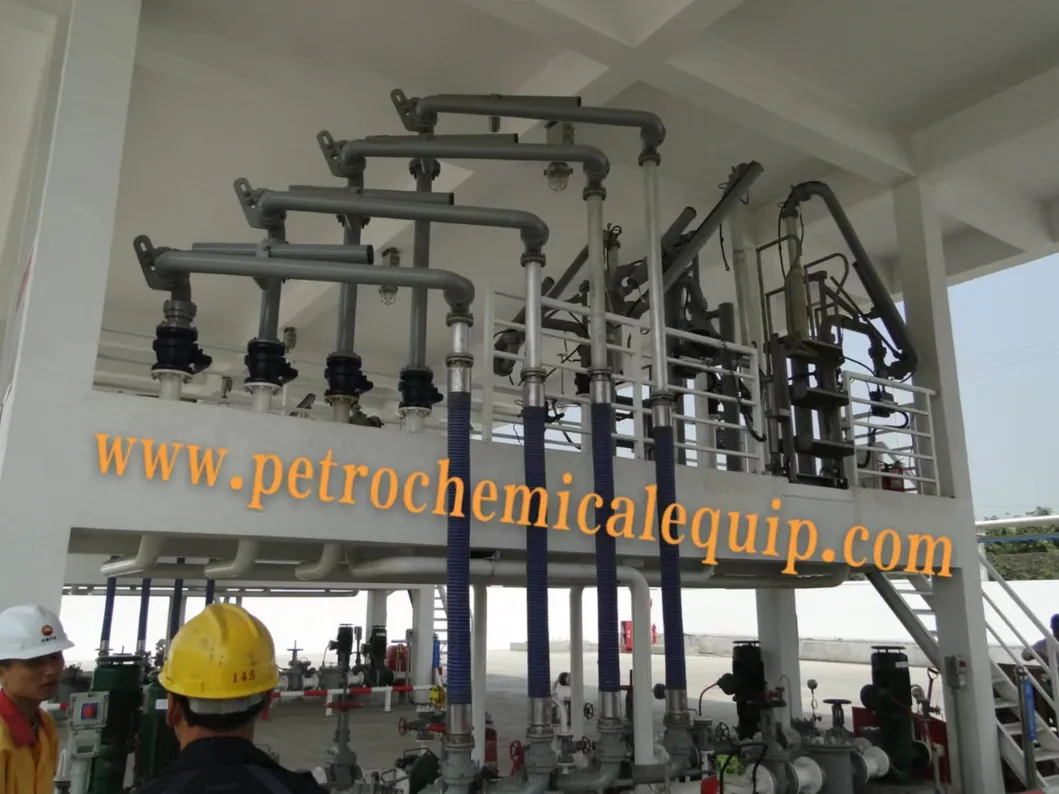

The general description for marine loading arm:
Marine loading arm is the special equipment for loading/unloading fluid materials crossing over the jetty and tanker, with swivel joints connecting pipelines, assist by a supporting structure, including other accessories such as control systems required by customers.
At present, the marine loading/unloading arms has many structural forms in such series as AM61, AM62, AM63 and AM64.
According to the difference in physical and chemical features and temperature of the transmission medium, the arms can be designed in many pipe forms such as carbon steel, stainless steel and heat tracing, with temperature range being -196~250ºC, the maximum design pressure 10Mpa and nominal pipe size DN80~DN600 (3"~24"). The operating mode can be designed as manual or electro-hydraulic control type in accordance with dimension, model and load requirements. During the fluid transmission process, the arm can move with the tanker within the normal drift range. It can also be set with a visual sound alarm device through a travel monitoring system.
| Working Pressure | 0.6~4.0MPa |
| Working Temperature | -196~250 Degree Centigrade |
| Color | Light Grey or Customized |
| Seal Material | Viton or PTFE |
We maintain a standardized machining plant covering more than 10,000 square meters. Our team possesses 20 years of design and production experience utilizing more than 30 sets of high-tech special equipment. We specialize in aluminum domes, steel domes, space triangular mesh shells, fully connected liquid floating roofs, loading arms, and other petrochemical equipment. Our products are utilized globally for chemical and environmental protection projects, providing professional technical support and troubleshooting solutions.
