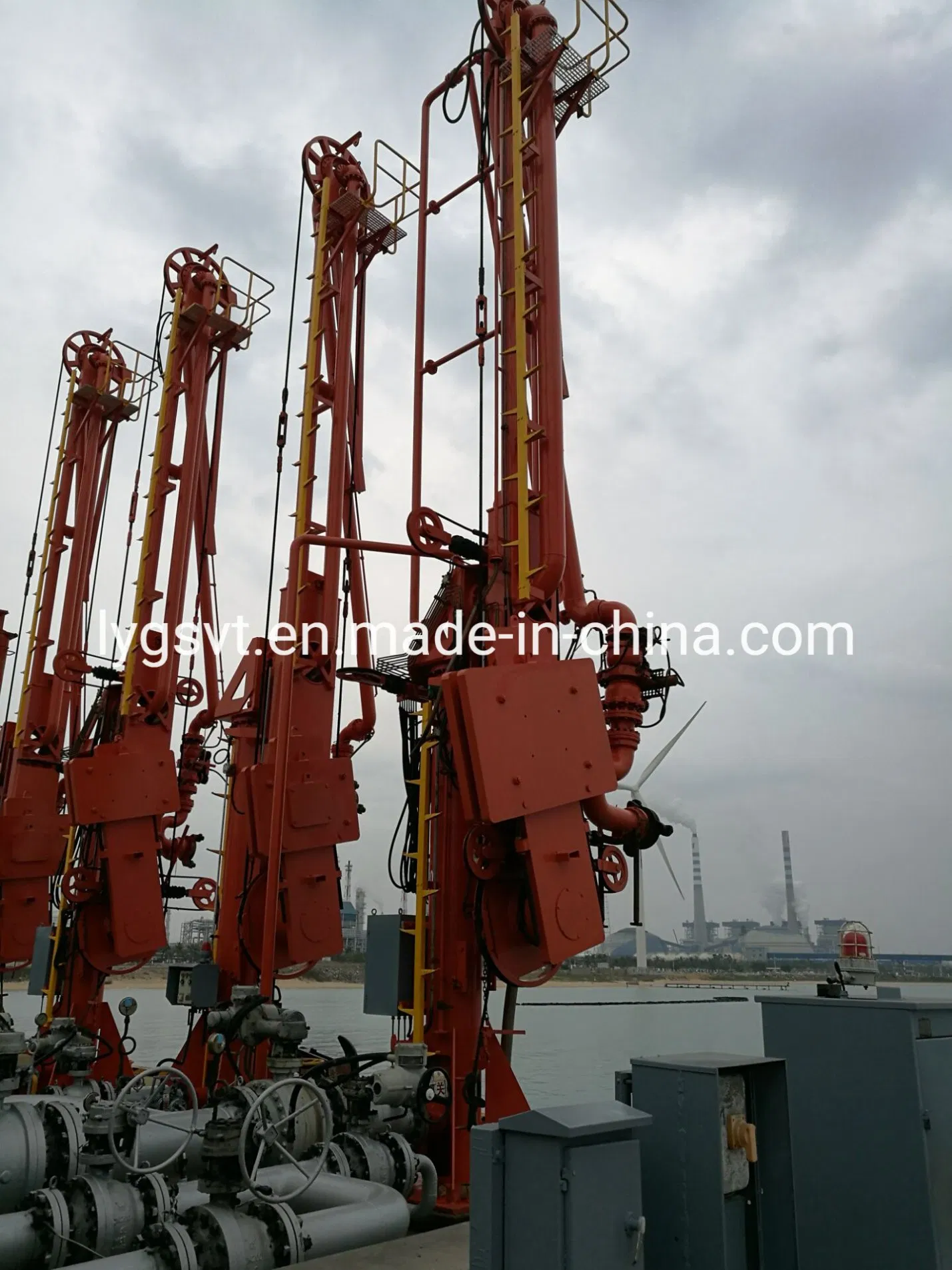

Hydraulic LPG Marine Loading Arm with Vapor Return Line
Hydraulic LPG Marine Loading Arm with Vapor Return Line
Hydraulic LPG Marine Loading Arm with Vapor Return Line
Hydraulic LPG Marine Loading Arm with Vapor Return Line
Hydraulic LPG Marine Loading Arm with Vapor Return Line
1 / 5
Hydraulic LPG Marine Loading Arm with Vapor Return Line
Hydraulic LPG Marine Loading Arm with Vapor Return Line
Hydraulic LPG Marine Loading Arm with Vapor Return Line
Hydraulic LPG Marine Loading Arm with Vapor Return Line
Hydraulic LPG Marine Loading Arm with Vapor Return Line

Hydraulic LPG Marine Loading Arm with Vapor Return Line

Customization: Available
After-sales Service: Technical Support, Installation Guide, Spare Parts
Warranty: 1.5 Years
Send Inquiry

Product Description

Basic Specifications
Model NO.
AM64
Condition
New
Certification
ISO9001
Storage Objects
Liquid
Nominal Diameter
Liquid DN200~DN600
Pipelines Material
Carbon Steel, Stainless Steel
Application
Oil, Gasoline, Diesel, LPG, Liquids
Operation Method
Hydraulic Operated
Specification
8" to 24"
Production Capacity
200 Sets/Year
Product Description
⚓ Marine Loading Arm Overview
A Marine Loading Arm is an articulated pipe system designed for the safe and efficient transfer of liquids or gases. This system can be operated manually or hydraulically depending on the specific requirements of the terminal.
Core Components:

The system comprises several essential components: base riser, inboard arm, outboard arm, balancing assembly, supporting structure, and a sophisticated operating system. The articulation is ensured by high-performance swivel arrangements that allow for complete movement in all planes.

We offer a wide range of Marine Loading Arms tailored to load and unload almost any liquid and compressed gas product from river barges, ships, and ocean-going super tankers.

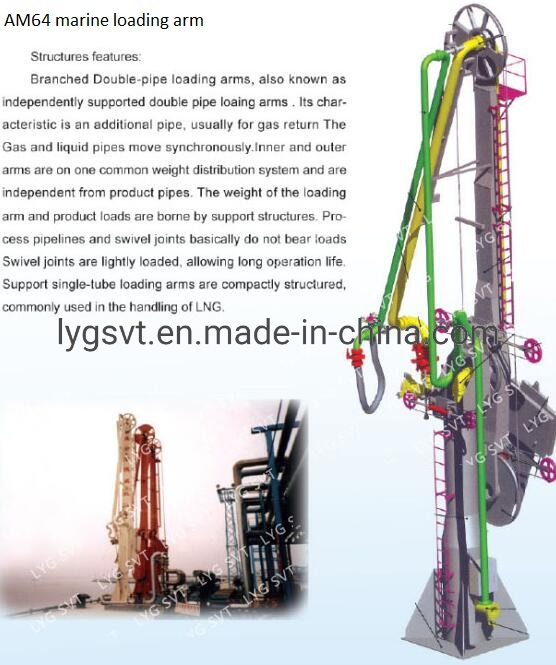

⚙️ AM64 Double Pipe Marine Loading Arm

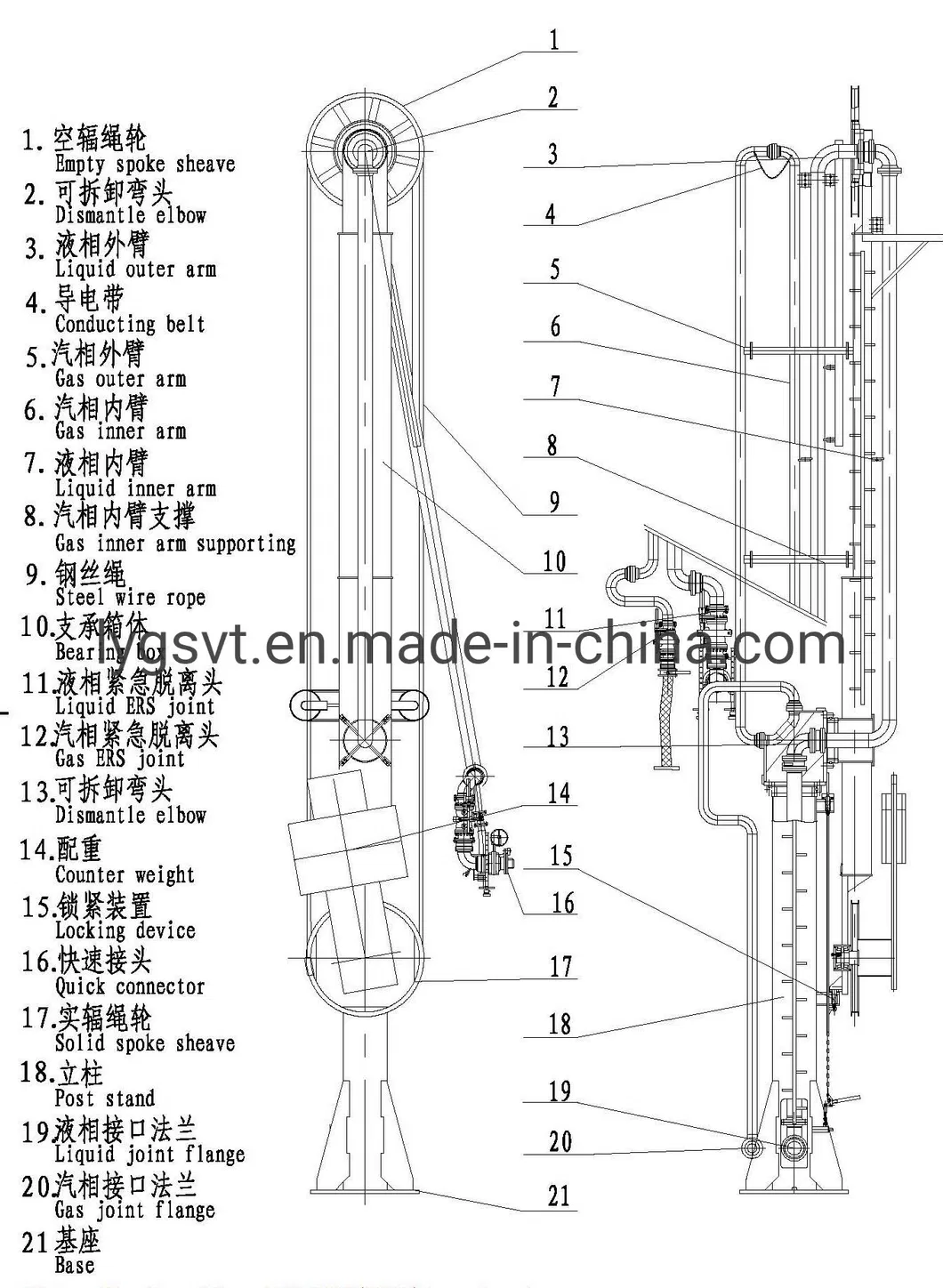

Marine Loading Arm with Separate Support Structure
Product Parameters
Parameter Specification Details
Service ProductOil, Gasoline, Diesel, LPG, and all kinds of liquid
Nominal DiameterDN200 ~ DN600 (8" to 24")
Design Pressure-0.08 Mpa ~ +2.5 MPa
Design Temperature-196°C~ +250°C
Pipe MaterialCarbon steel, stainless steel, low-temp steel, PTFE lining
Operation MethodManual operated, hydraulic operated
Optional EquipmentPMS, HPU, QC/DC, PLC Control Panel, ERS, etc.
📐 Design Considerations
Designs are customized based on client requirements and environmental factors. Key design parameters include:
  • Design wind speed (stowed): ≤55M/S
  • Design wind speed (operating): ≤ 16 M/S
  • Earthquake resistance coefficient: 0.3 G
  • Total length capability: Up to 30 M
  • Vessel Tonnage: 50,000 tons
Detailed Photos

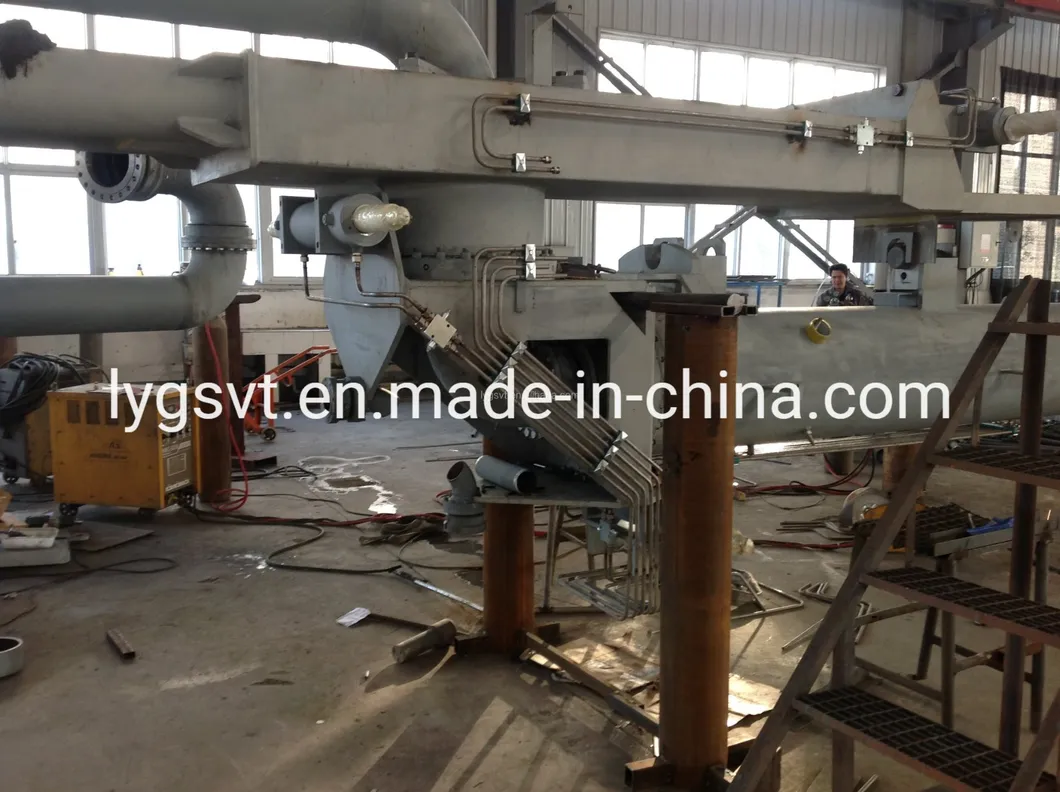

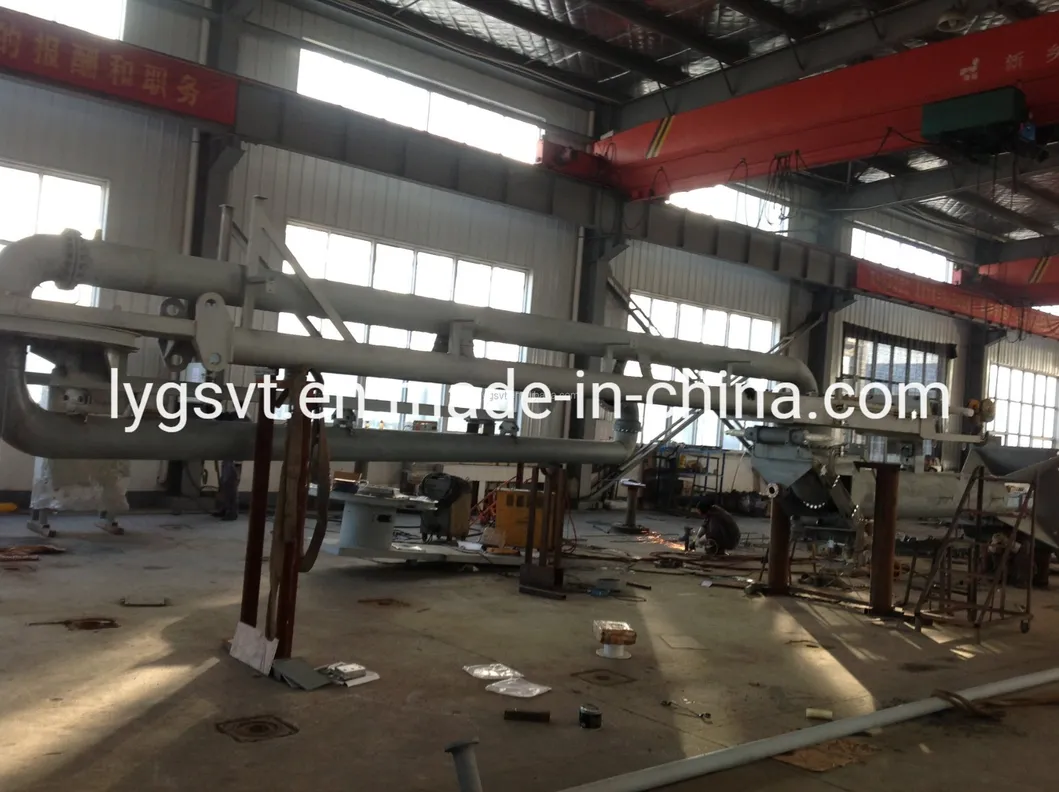

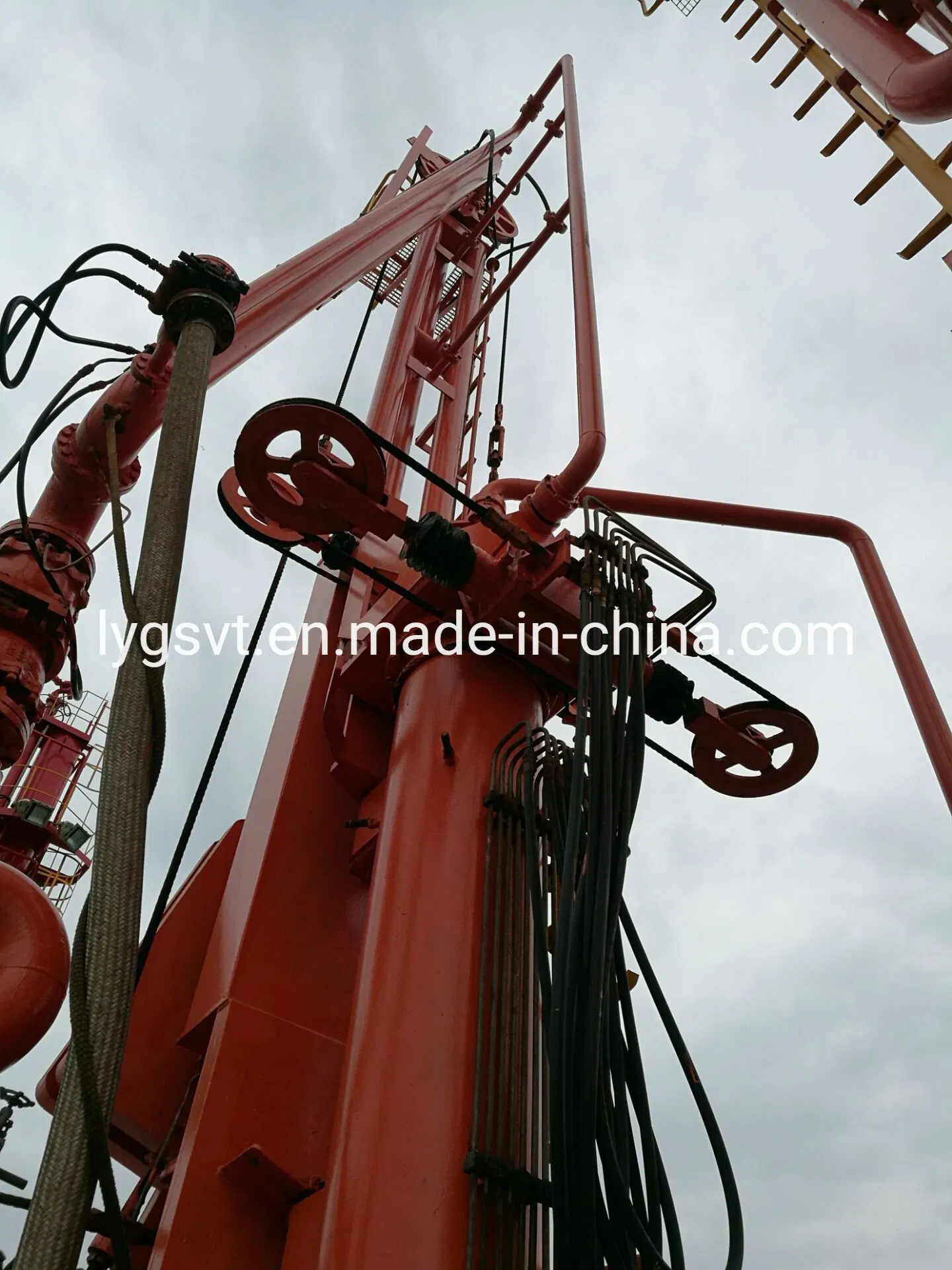

Hydraulic LPG Marine Loading Arm Detail 1

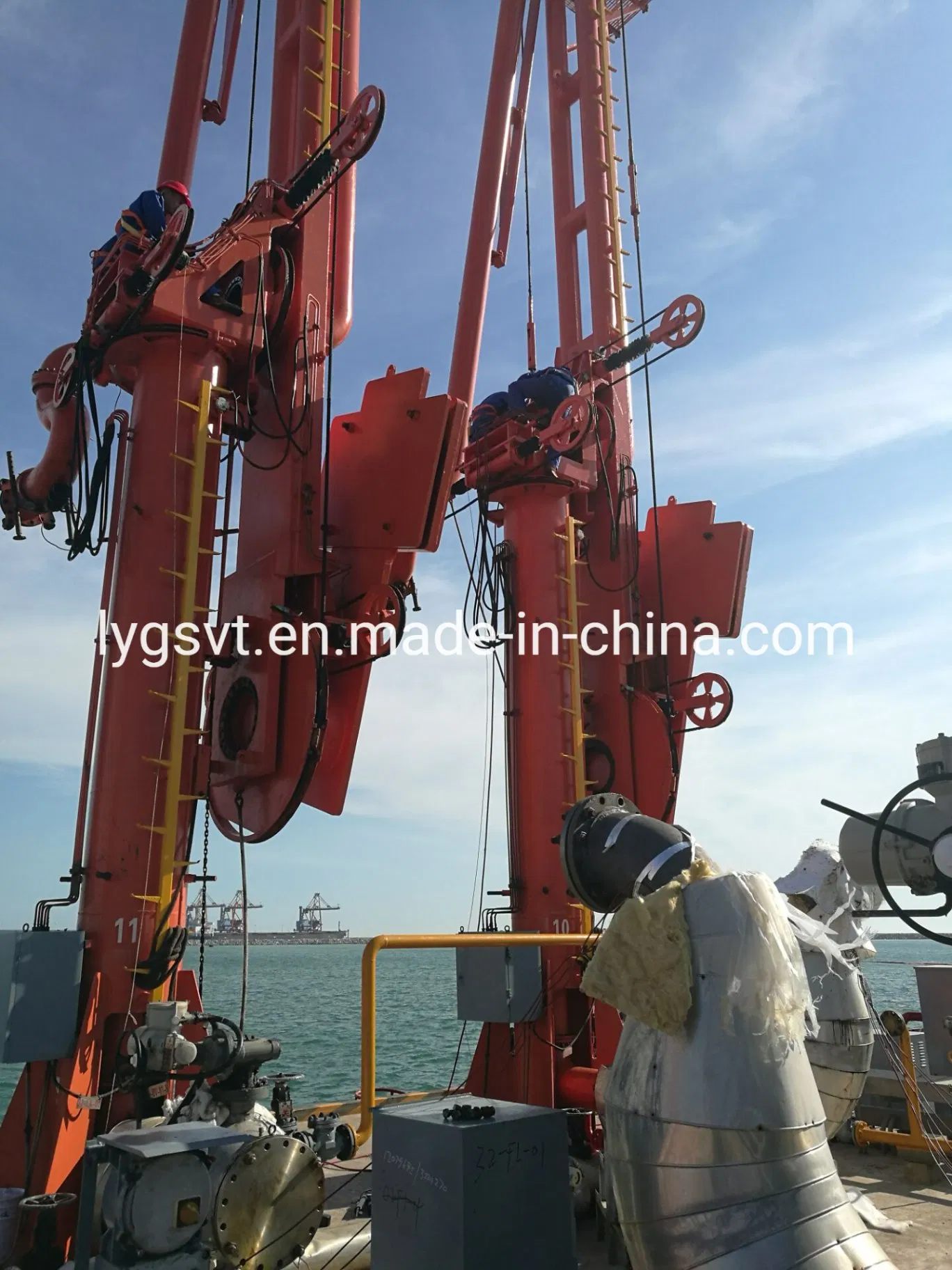

Hydraulic LPG Marine Loading Arm Detail 2

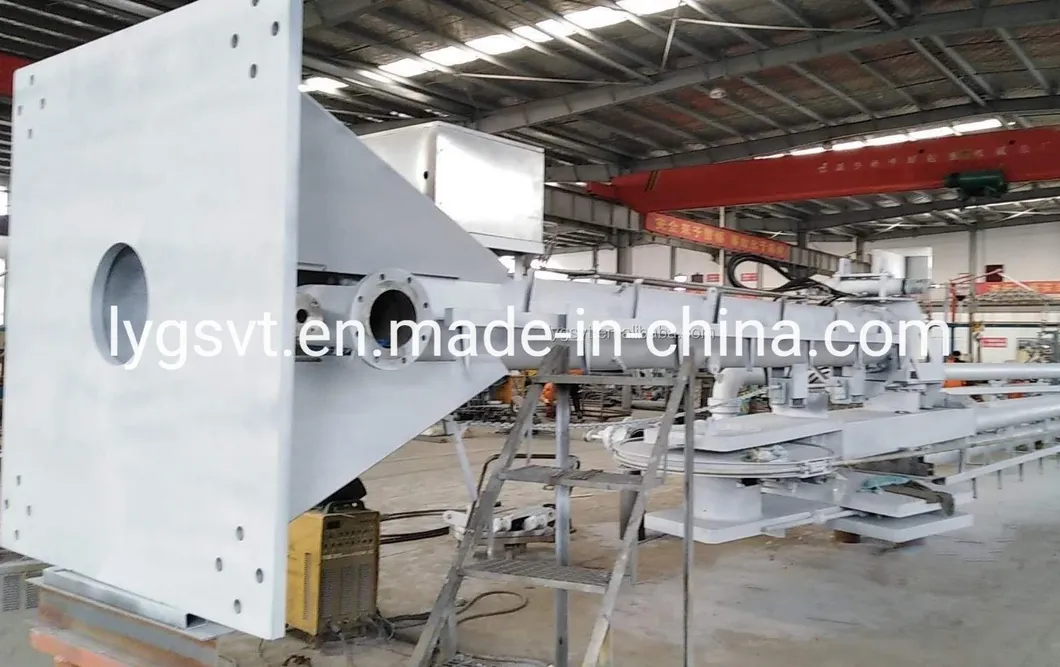

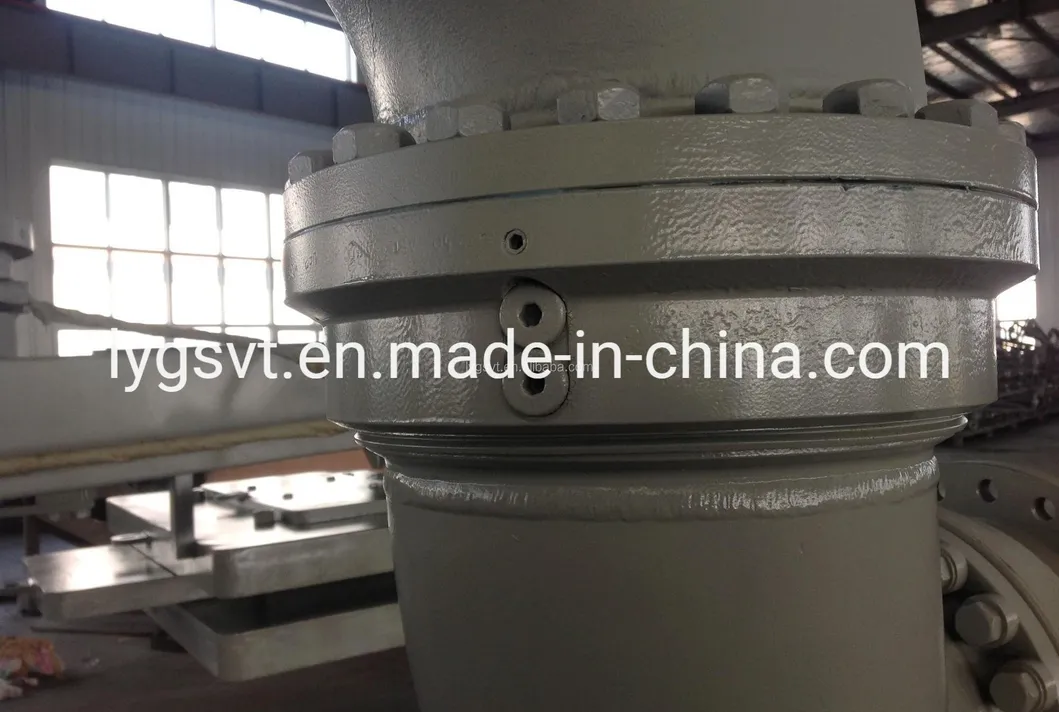

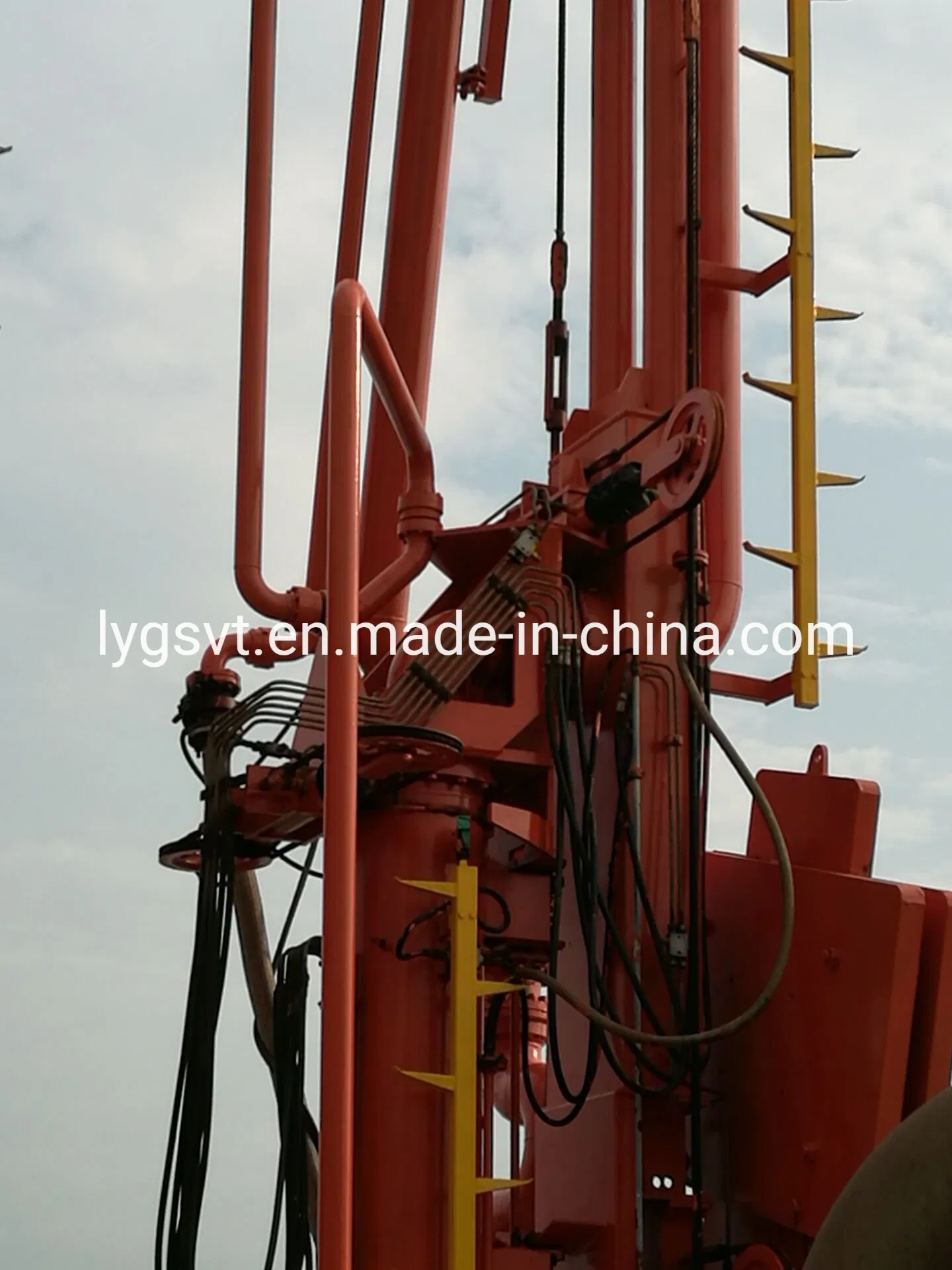

Marine Loading Arm Structure 1
Marine Loading Arm Structure 2
Packaging & Shipping

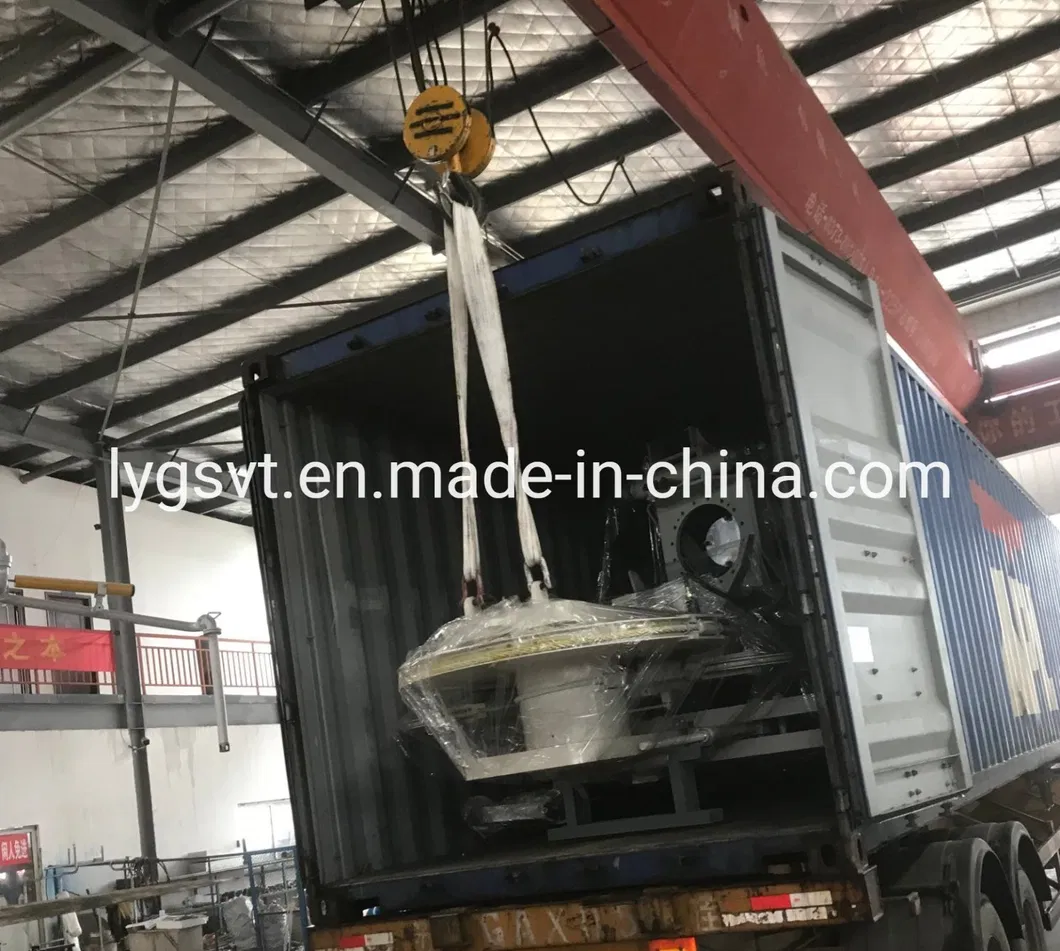

Packaging Detail 1

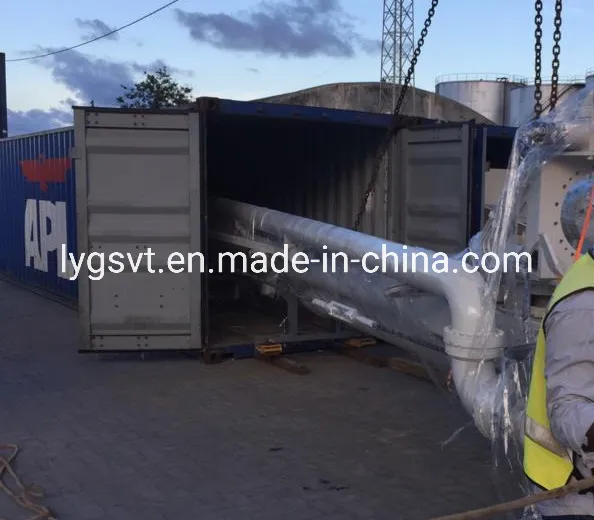

Packaging Detail 2

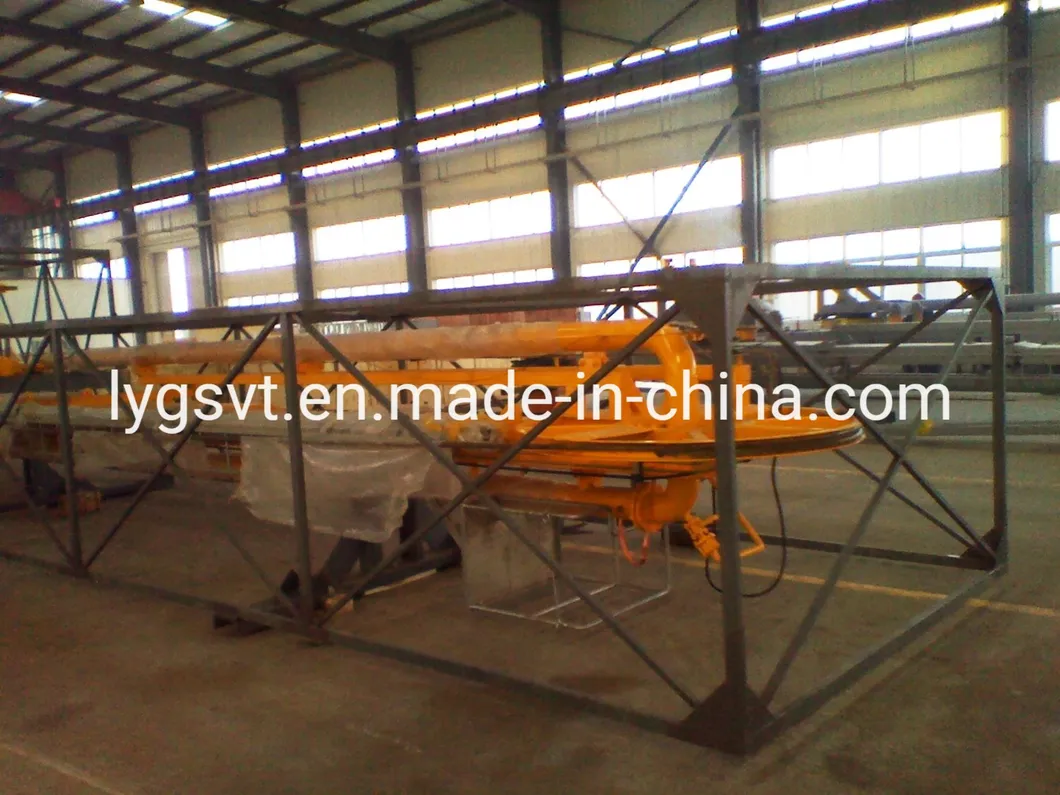

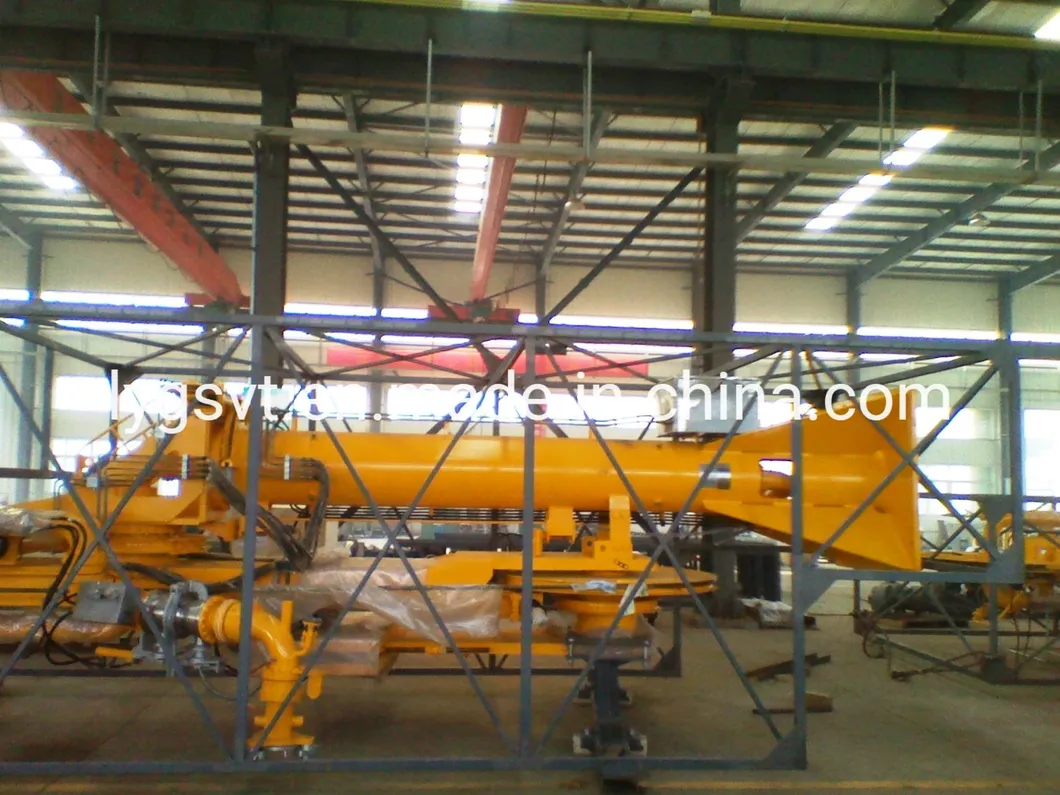

Shipping Preparation 1
Shipping Preparation 2

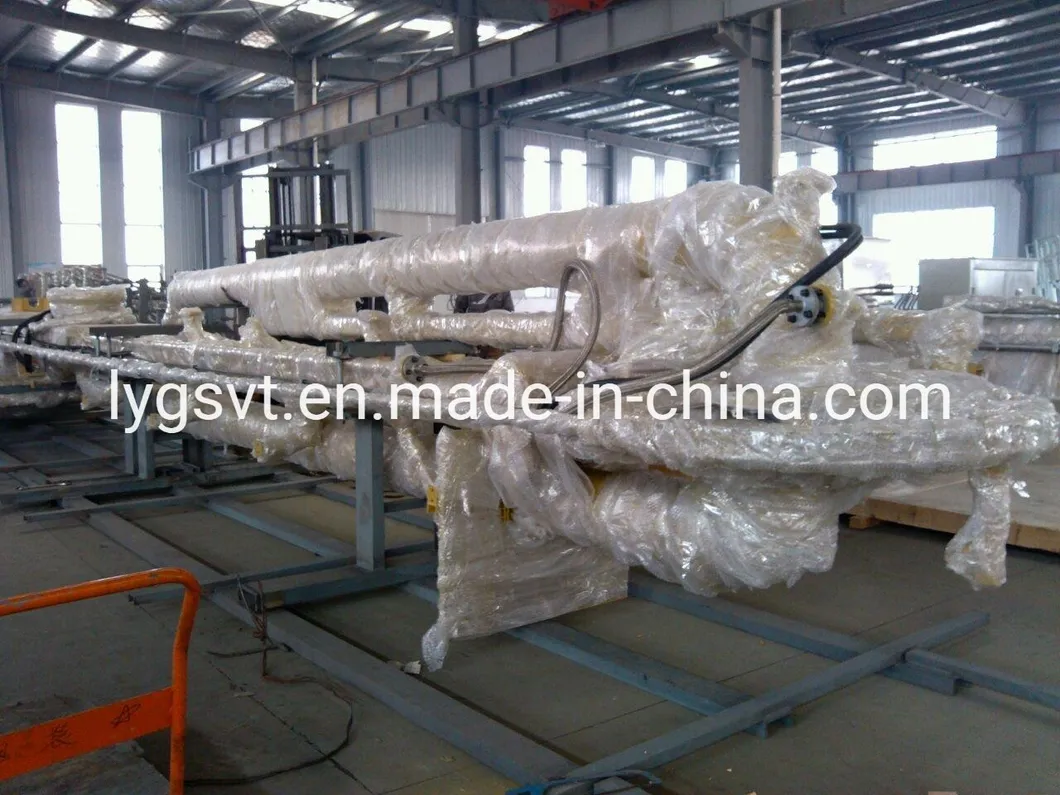

Shipping Container 1
Shipping Container 2

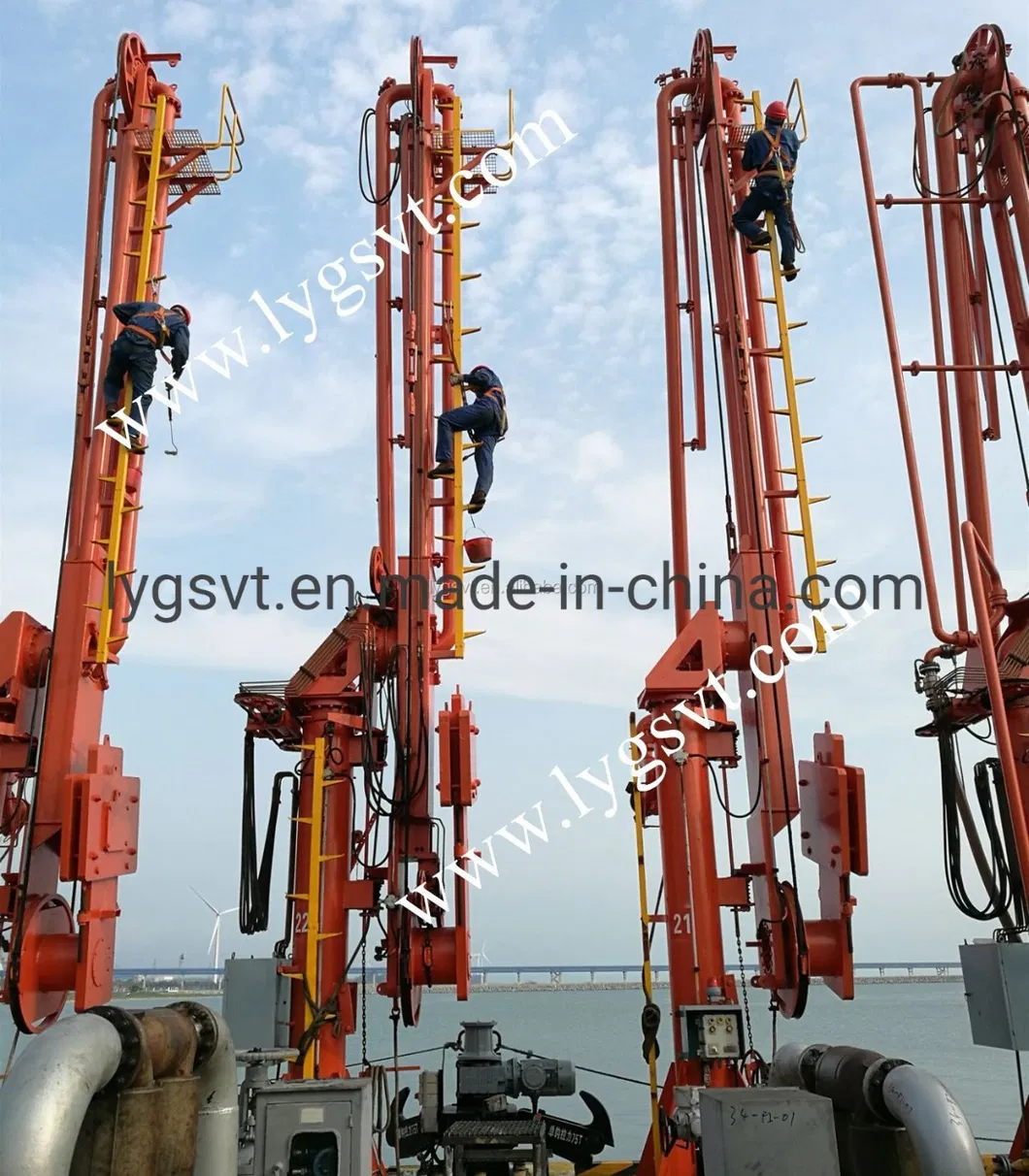

After Sales Service
Comprehensive on-site and after-sales services are provided, including installation, commissioning, maintenance, and automatic system upgrading.
Warranty Policy:

The warranty period is 12 months from the date of startup or 18 months after delivery, whichever comes first.

Service and Support
Manufacturing Excellence
Specializing in the design, manufacture, and installation of Land Loading Arms, Marine Loading Arms, Internal Floating Roofs, and specialized fluid equipment. The production process adheres strictly to ISO9001 Quality Management Systems.
Equipped with advanced processing, welding, and testing equipment, our technical personnel ensure precision in mechanical design and engineering construction, providing worry-free technical support.
Frequently Asked Questions (FAQ)
What types of fluids can the Marine Loading Arm handle?
Our loading arms are designed to handle a wide range of products including Oil, Gasoline, Diesel, LPG, and various other chemical liquids.
What are the available operation methods?
The Marine Loading Arms can be operated either manually or via a sophisticated electro-hydraulic system for improved safety and control.
Is the equipment customizable for specific environmental conditions?
Yes, we design based on tidal range, ship tonnage, wind load, temperature, and earthquake resistance requirements of the specific terminal location.
What is the typical warranty period for your products?
We provide a 12-month warranty from the date of startup or 18 months from the date of delivery.
Can you provide on-site installation support?
Yes, we offer professional on-site installation, commissioning, and technical training services for all our loading systems.
What materials are used in the construction of the loading arms?
Common materials include Carbon Steel, Stainless Steel, and Low-Temperature Steel, with optional PTFE lining for corrosive products.
