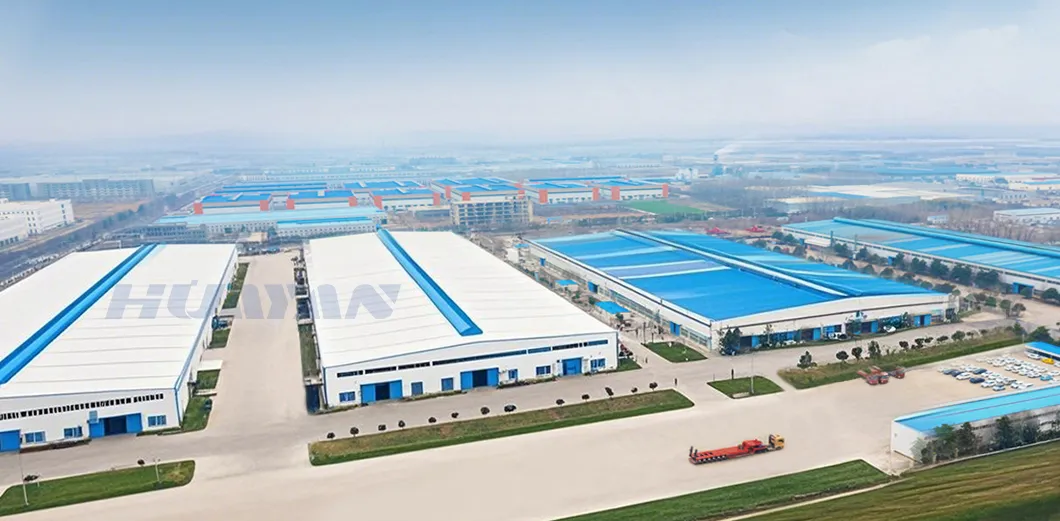

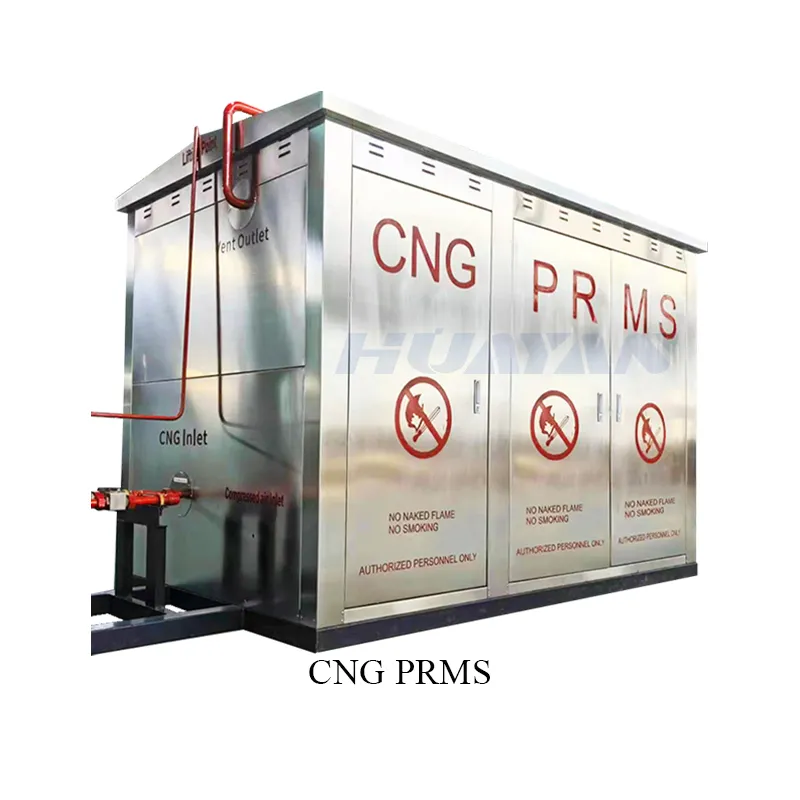

Established in 2005, we are a leading integrated transportation solution provider integrating R&D, production, and trade. Covering an area of 222,000 square meters, the facility uses advanced automation equipment and a professional R&D team to provide high-quality special transportation equipment. Our core products include gas equipment (pressure reduction skids, cryogenic storage tanks, gasifiers), hydraulic modular trailers, gas pipeline slide container trailers, powder/liquid tankers, and a full range of semi-trailers (heavy-duty low-bed, flat container, skeleton, side curtain, self-unloading) for energy and engineering logistics.

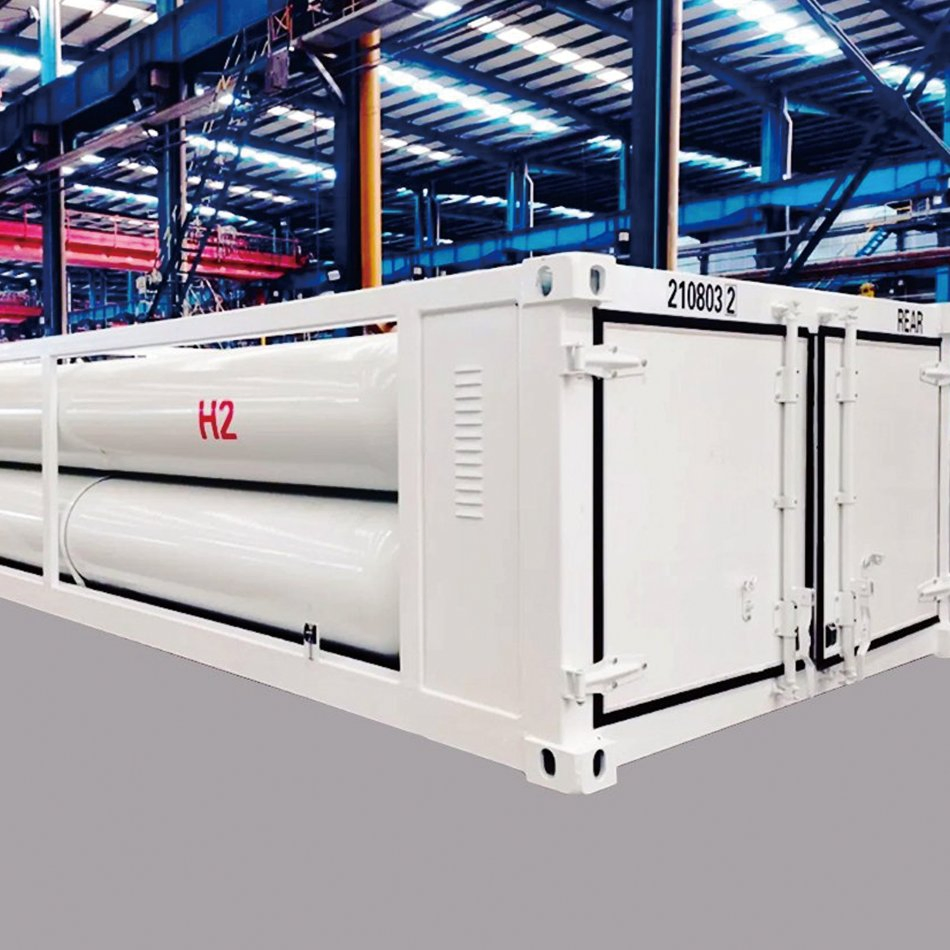

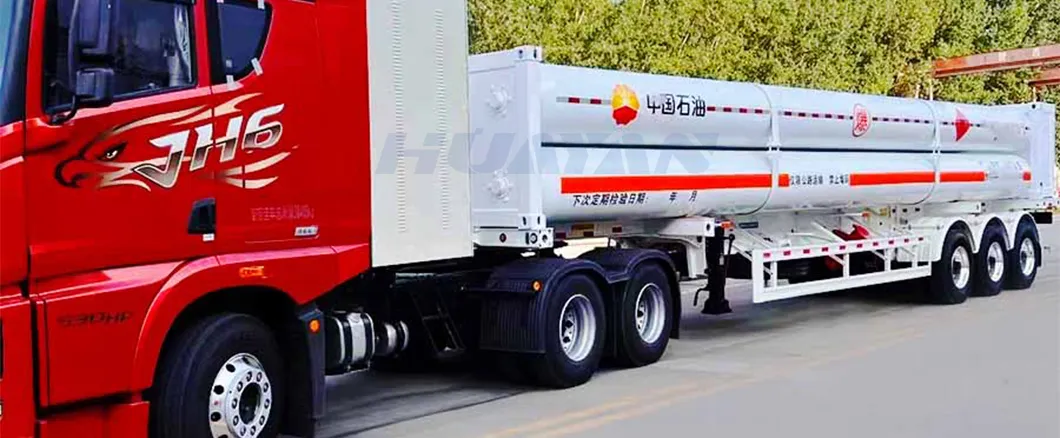

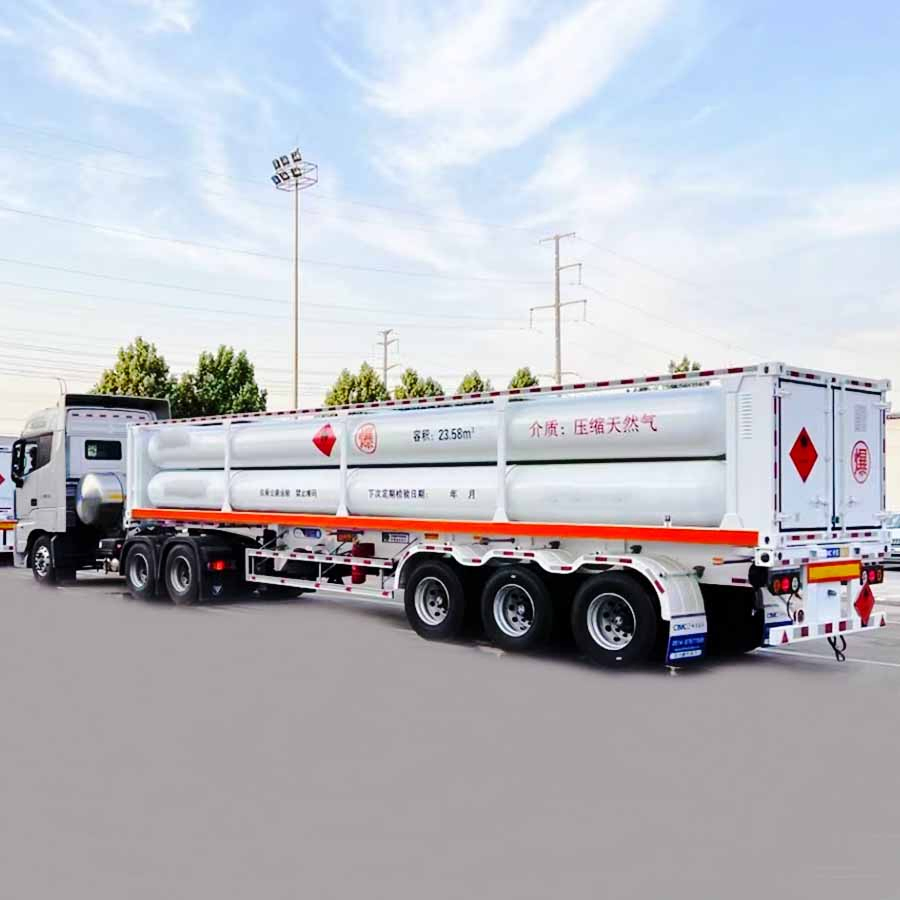

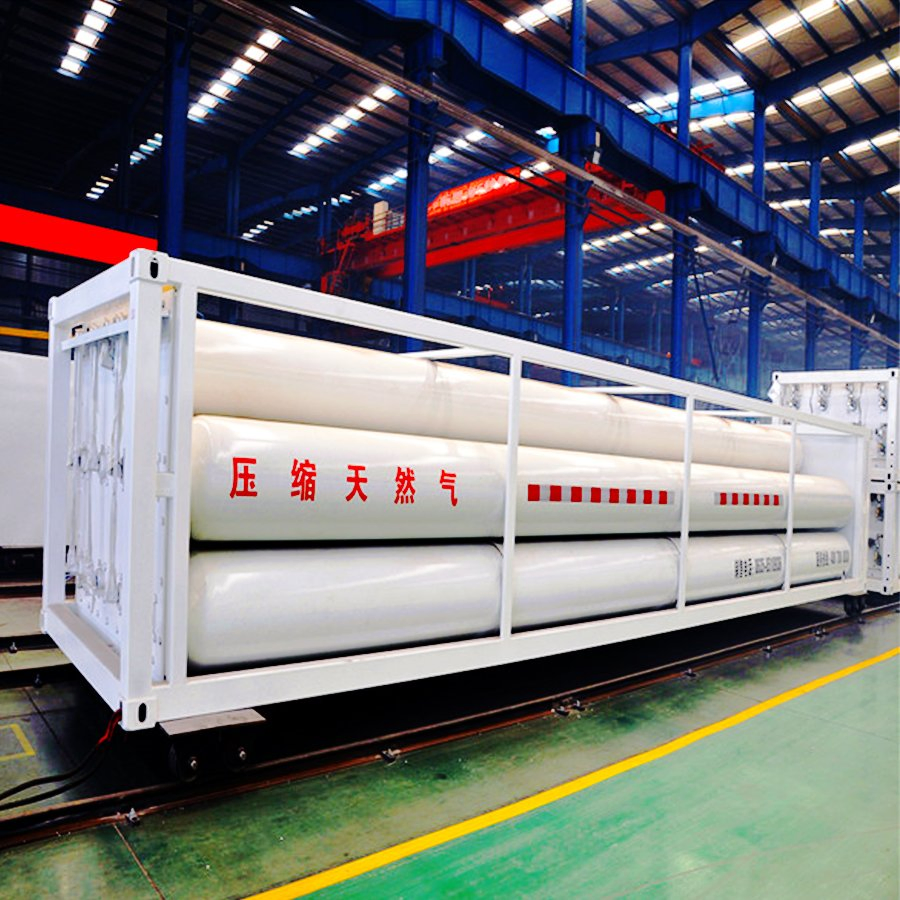

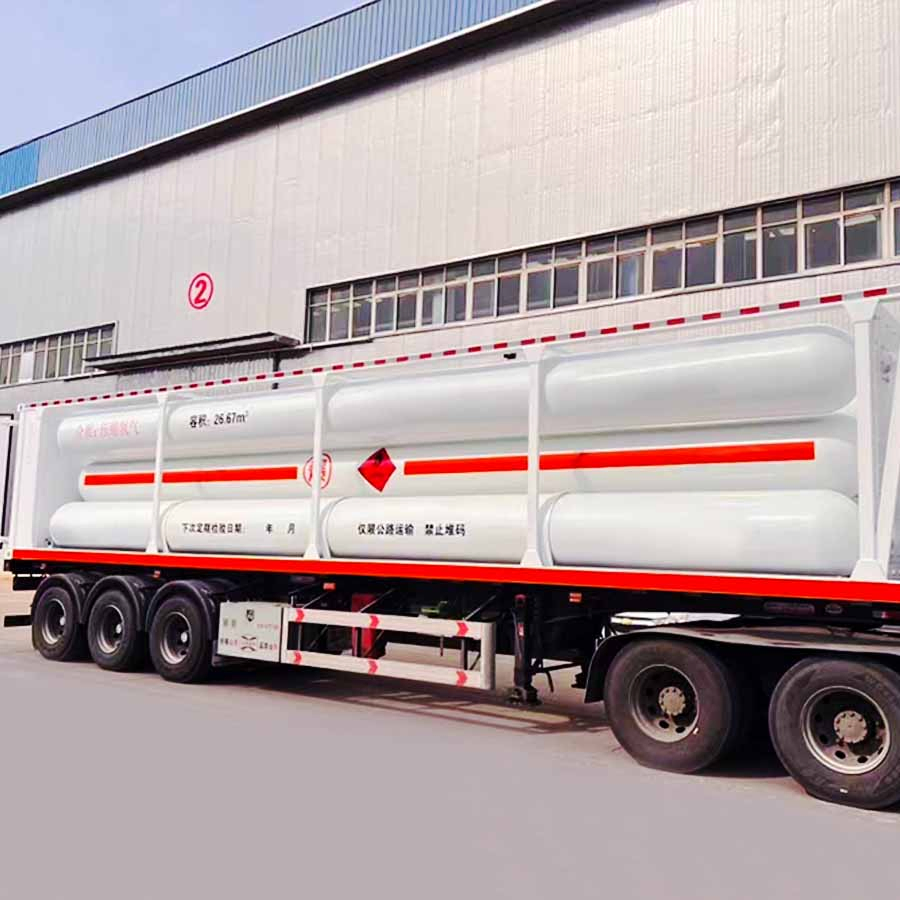

The tube bundle vehicle consists of a high-strength frame, a tube bundle unit, and safety accessories. The frame is crafted from high-strength steel to ensure a balance between load capacity and weight efficiency. The unit integrates multiple high-pressure gas cylinders. For example, the 30MPa hydrogen transport tube bundle vehicle adopts a modular design, doubling efficiency compared to traditional models.
| 10-Tube Bundle Container Specifications (ISO11120 / ISO 668) | |||
|---|---|---|---|
| Type | GSJ10-2450-CNG-25 | Working Pressure | 25 MPa |
| Container Weight | 29600 Kg | Total Volume | 29.4 M3 |
| Filling Medium | CNG | Cylinder Material | 30CrMoLX |
| Cylinder Qty | 10 | Design Service Life | 15 Years |

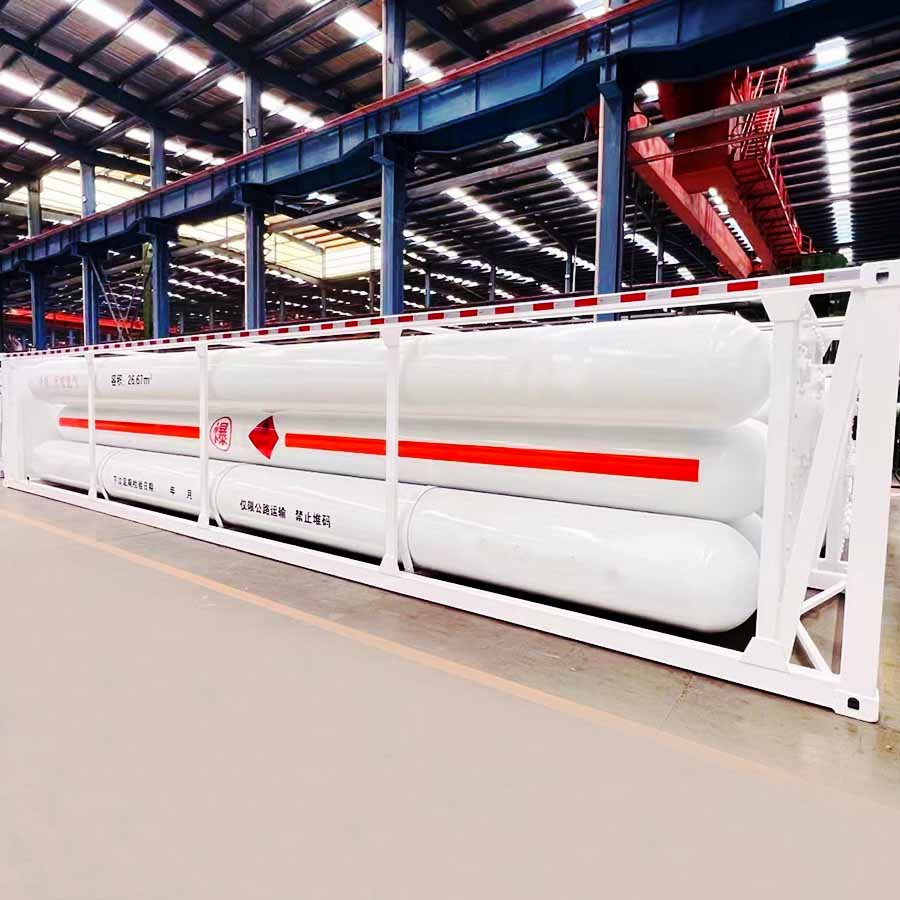

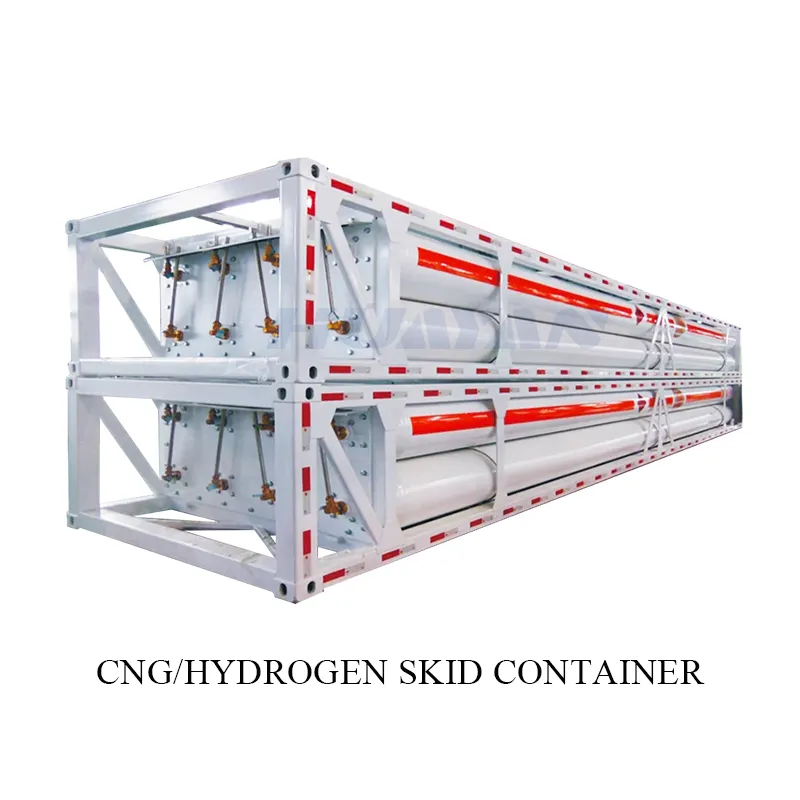

| 16-Tube Skid Container Specifications | |||
|---|---|---|---|
| Type | GSJ16-2450-CNG-25 | Working Pressure | 25 MPa |
| Container Weight | 45280 Kg | Total Volume | 39.2 M3 |
| Filling Amount | 12250 Nm3 | Dimensions | 12192x2438x2591 mm |
