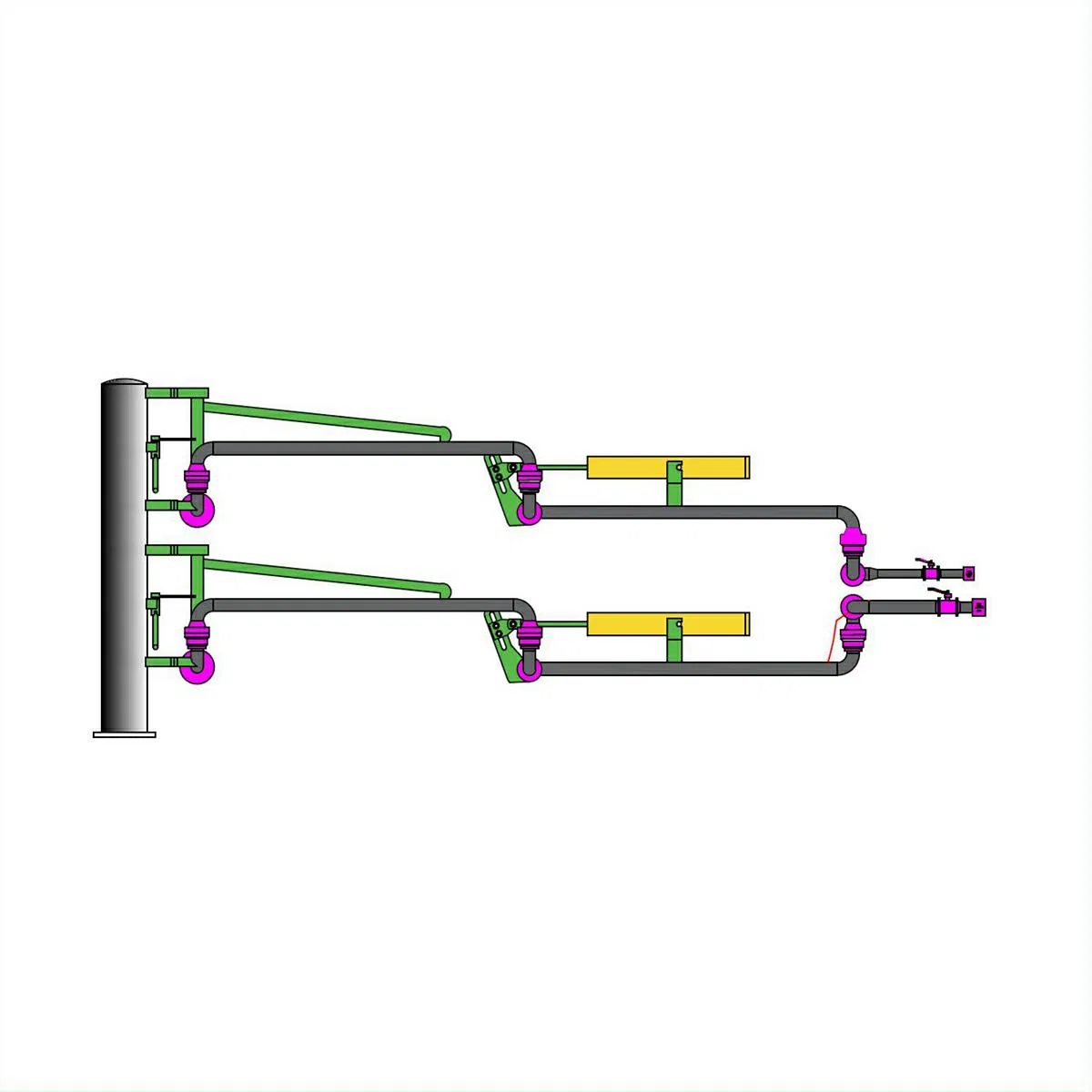

The structure for AL2554 land loading arm:
The AL2554 loading arm is designed for liquid loading and unloading, suitable for various chemicals and petroleum products. Made of high-quality 304 stainless steel, it has strong pressure resistance. Its swivel joint is flexible and durable with excellent sealing performance. The working pressure can reach 1.6MPa, and the working temperature ranges from -40ºC to 100ºC, ensuring efficient, safe and reliable loading and unloading.
General Introduction:
Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions. Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system. By level location or quantitative monitoring, while fluid level exceed the present value, provide the sound and visual alarm or the remote signal.
| AL2554 typical bottom loading arm for LPG, liquid ammonia, liquid chlorine, etc. Connects by flanges or quick coupling with superior sealing. | |
| Places Applied | Bottom closed loading or unloading |
| Applications | Products which are easy to gasify at normal temperature and pressure. |
| Nominal Diameter | DN50~DN80 (liquid), DN25~DN50 (vapour) |
| Working Temperature | -196~250ºC |
| Working Pressure | PN1.0~PN4.0 |
| Material of pipeline | Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc. |

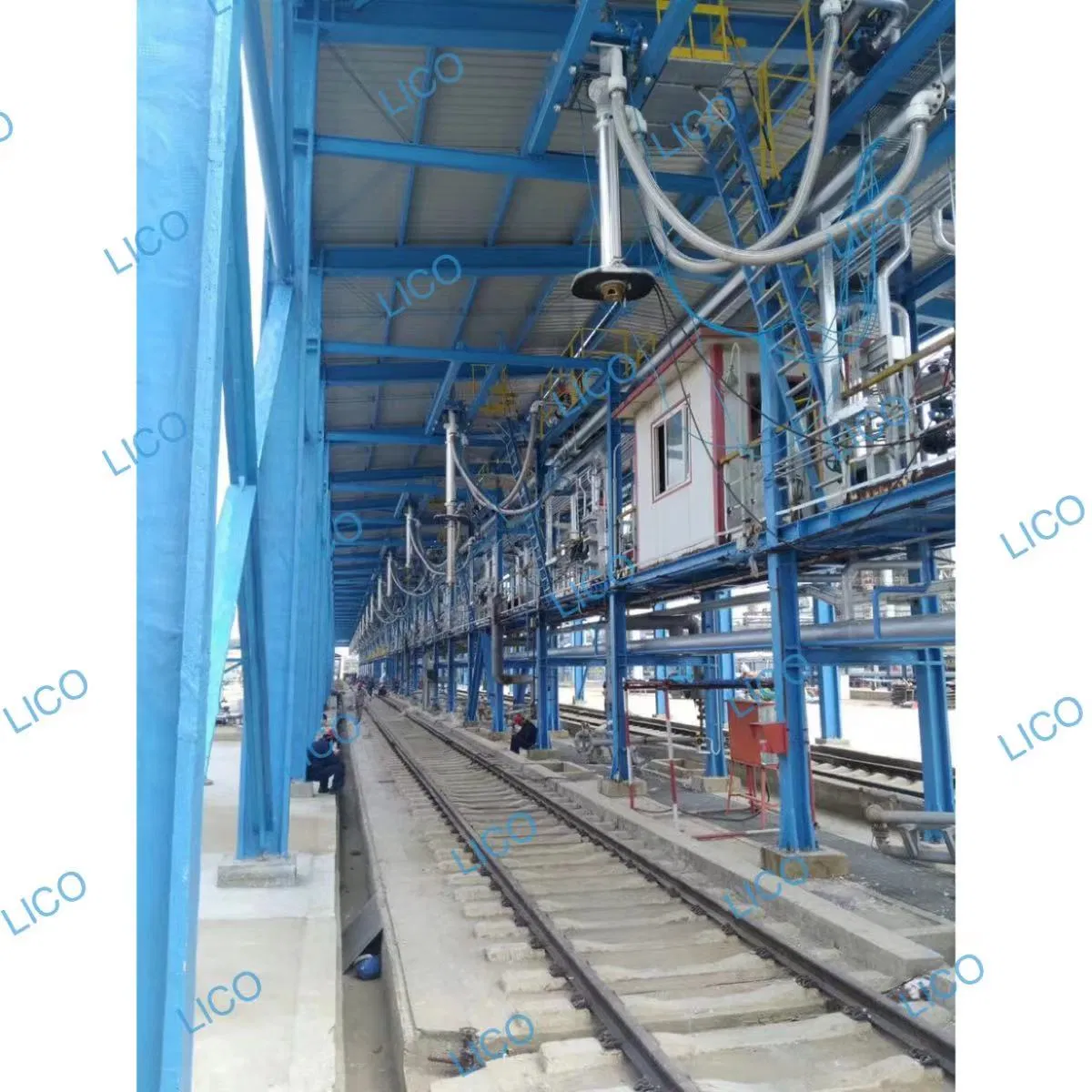

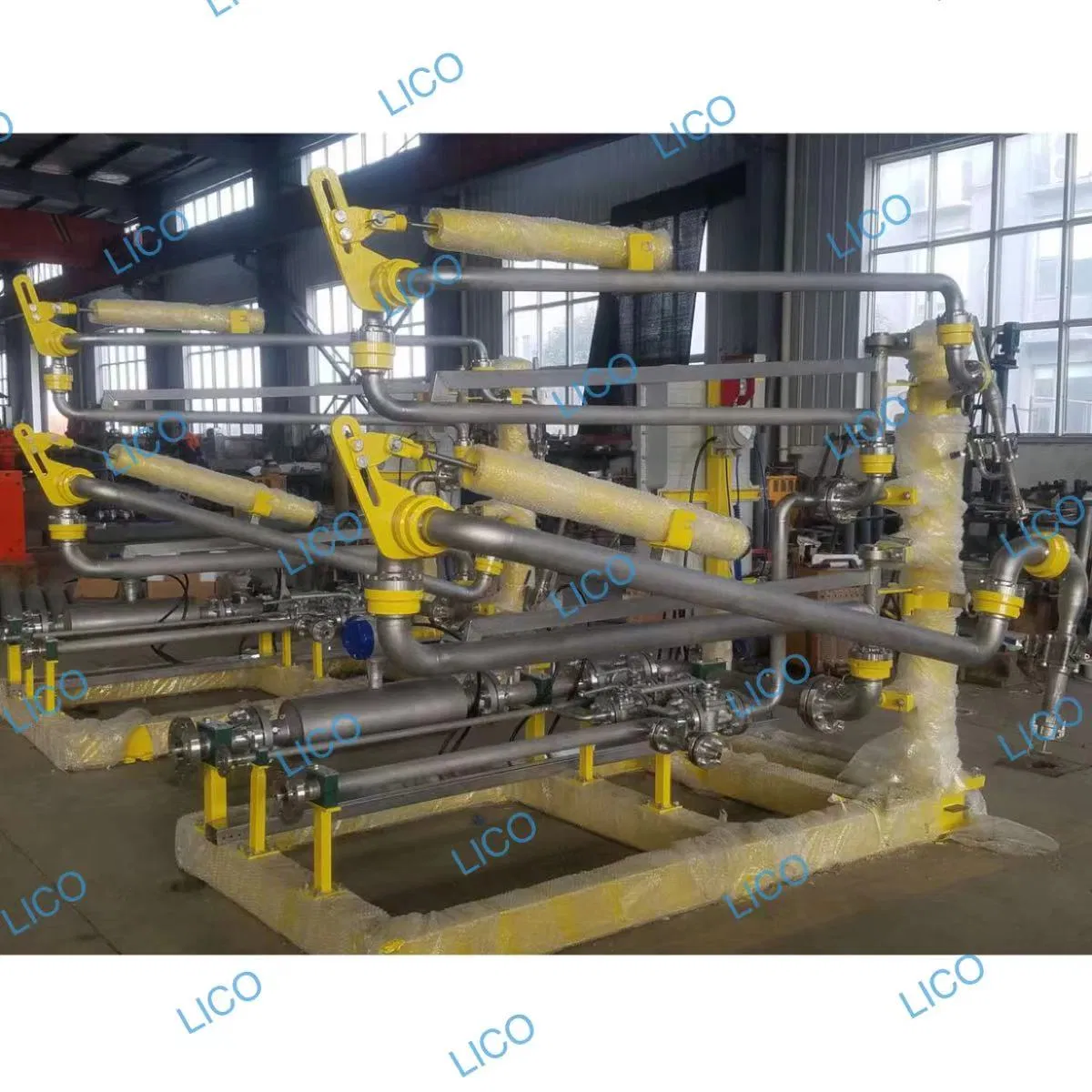

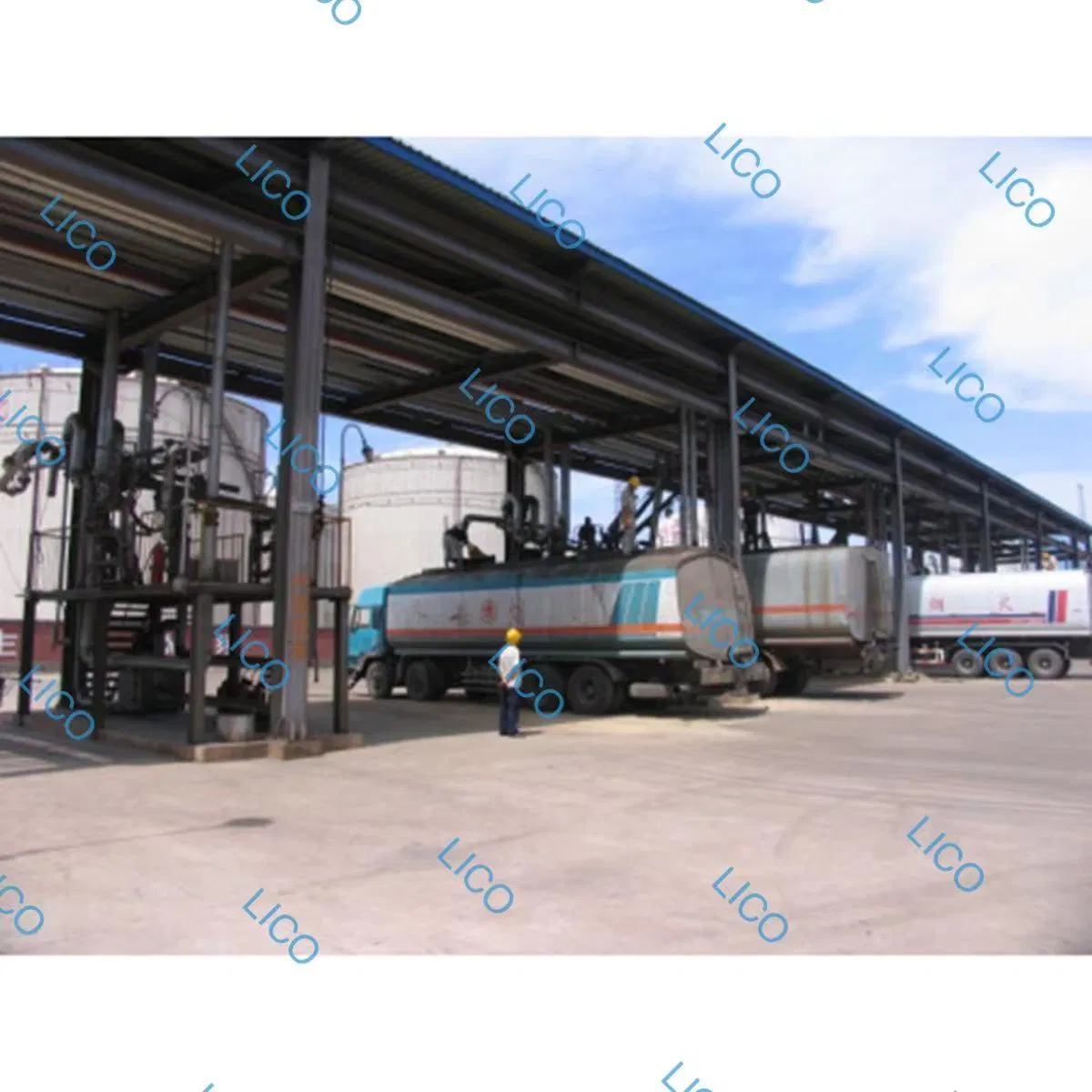

Loading arm in the workshop & on site:
Overseas project cases:
The company is mainly engaged in the R&D, design, manufacturing, sales and maintenance of petrochemical storage and transportation equipment and accessories, as well as petrochemical storage and transportation automation control systems. Products include loading arms, floating roofs, marine arms, network shells, movable ladders, loading control systems, skid-mounted equipment, etc. As a high-tech enterprise, the company benefits from favorable geographical advantages for development.
As a professional manufacturer, our products are widely used in large and medium-sized petrochemical enterprises. Equipment such as loading arms, jibs, floating roofs, and movable ladders are exported to Vietnam, Indonesia, France, Nigeria, South Africa, Italy, Saudi Arabia, etc. We strictly control product quality, regarding "quality" as the cornerstone of development and adhering to technological innovation to provide high-quality, energy-saving, and environmentally friendly solutions.
