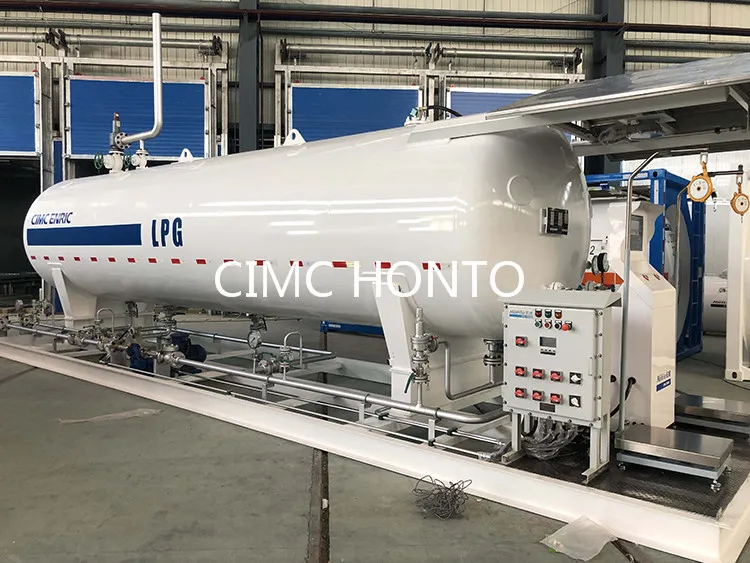

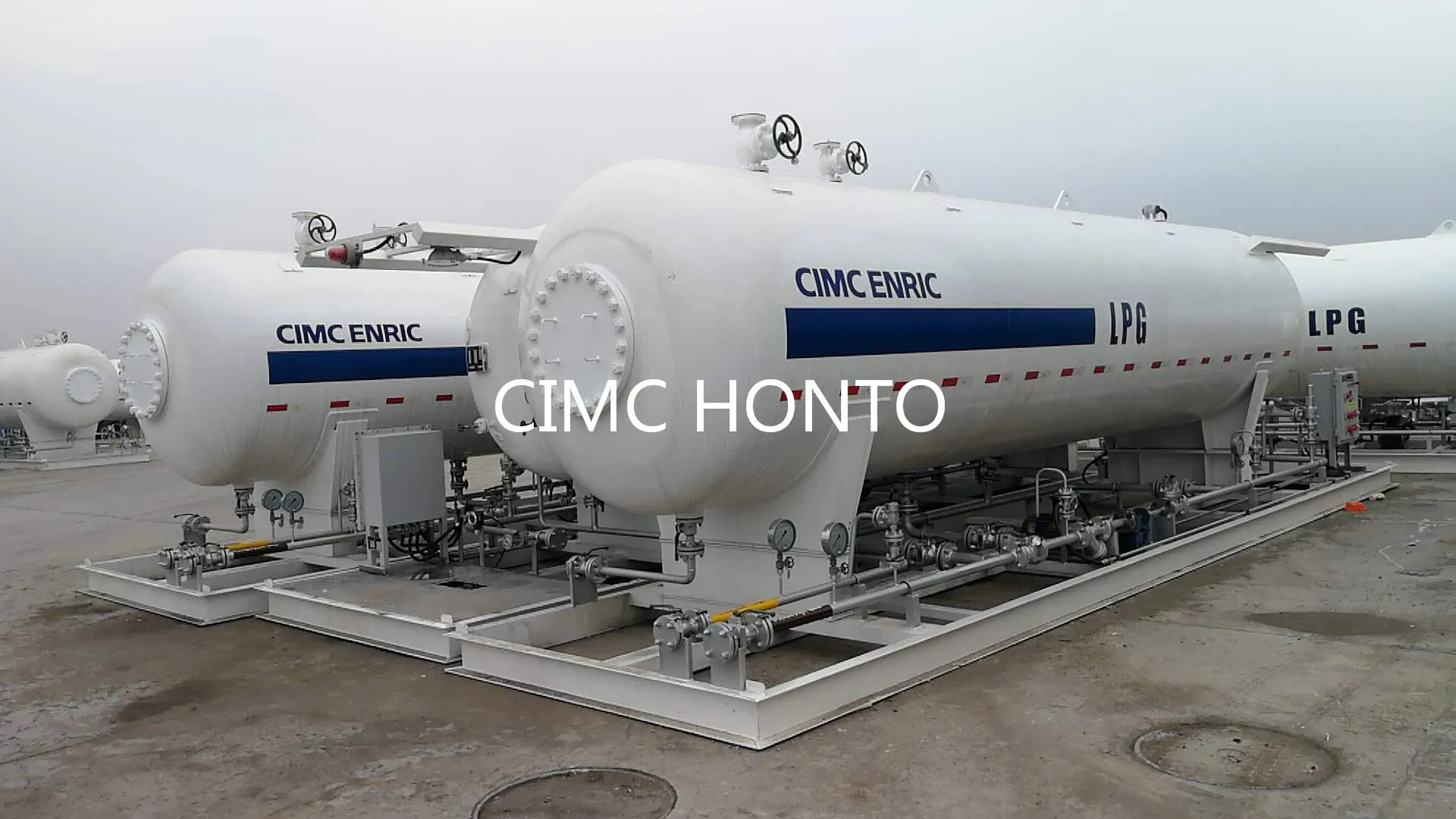

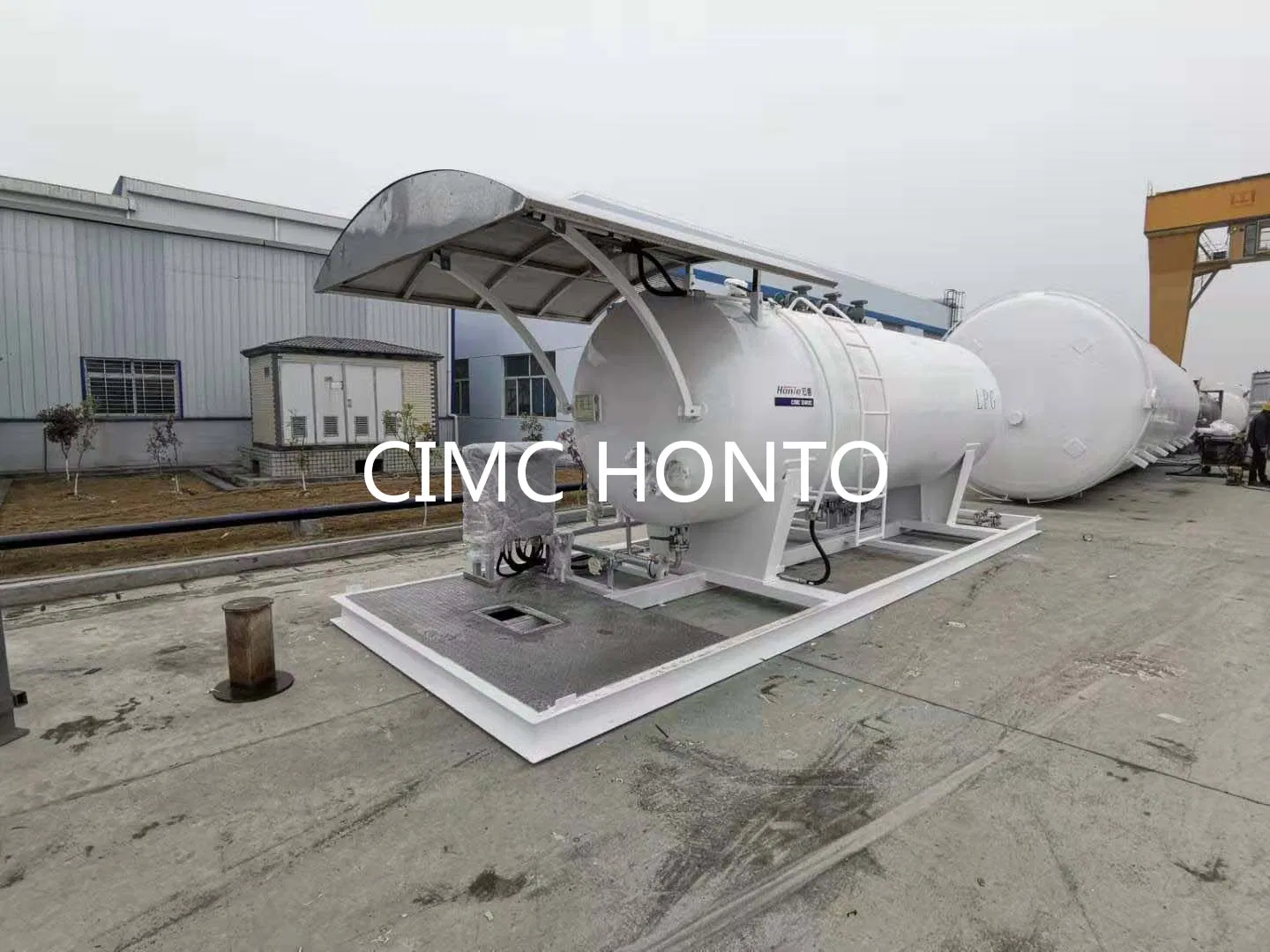

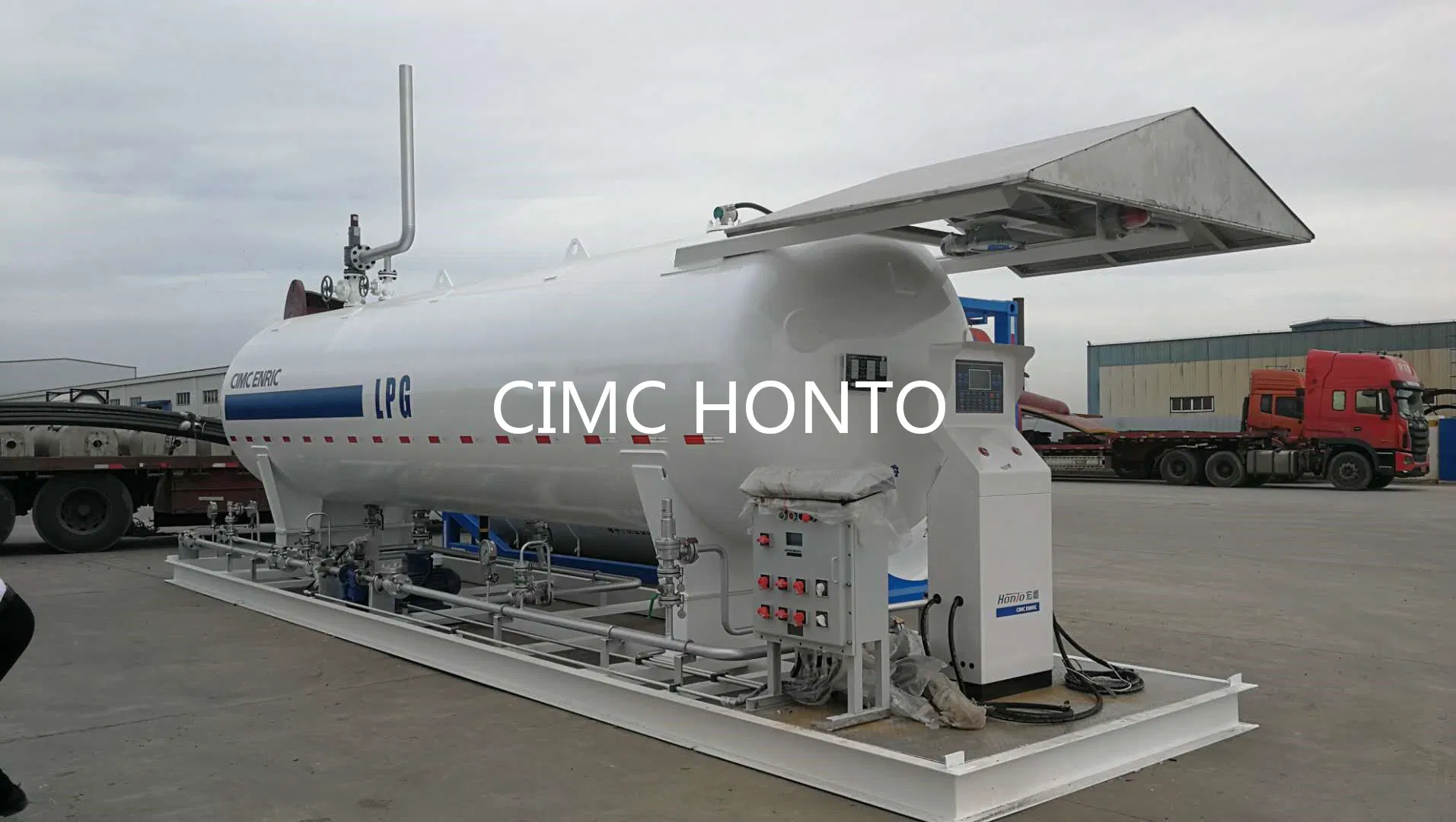

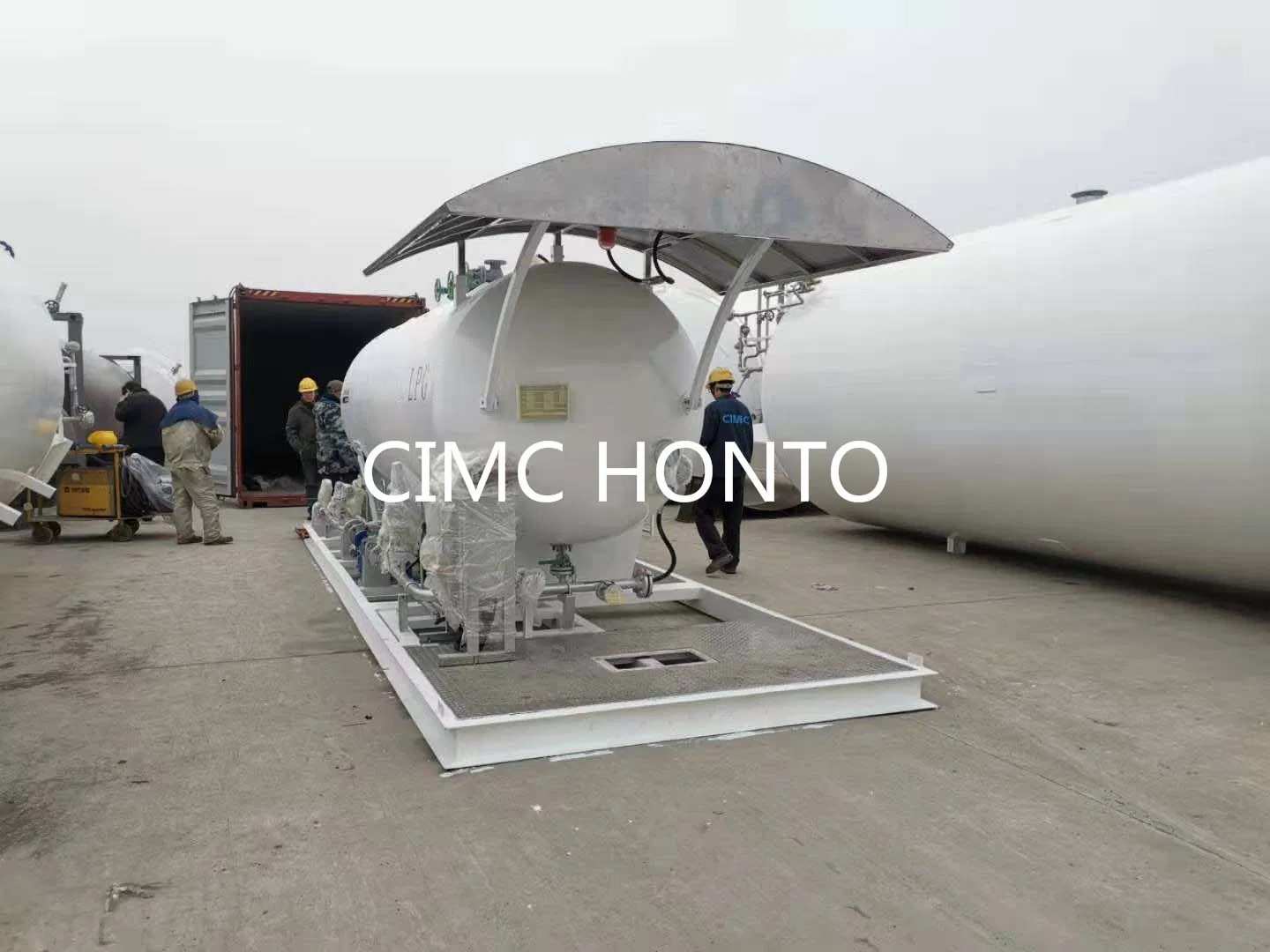

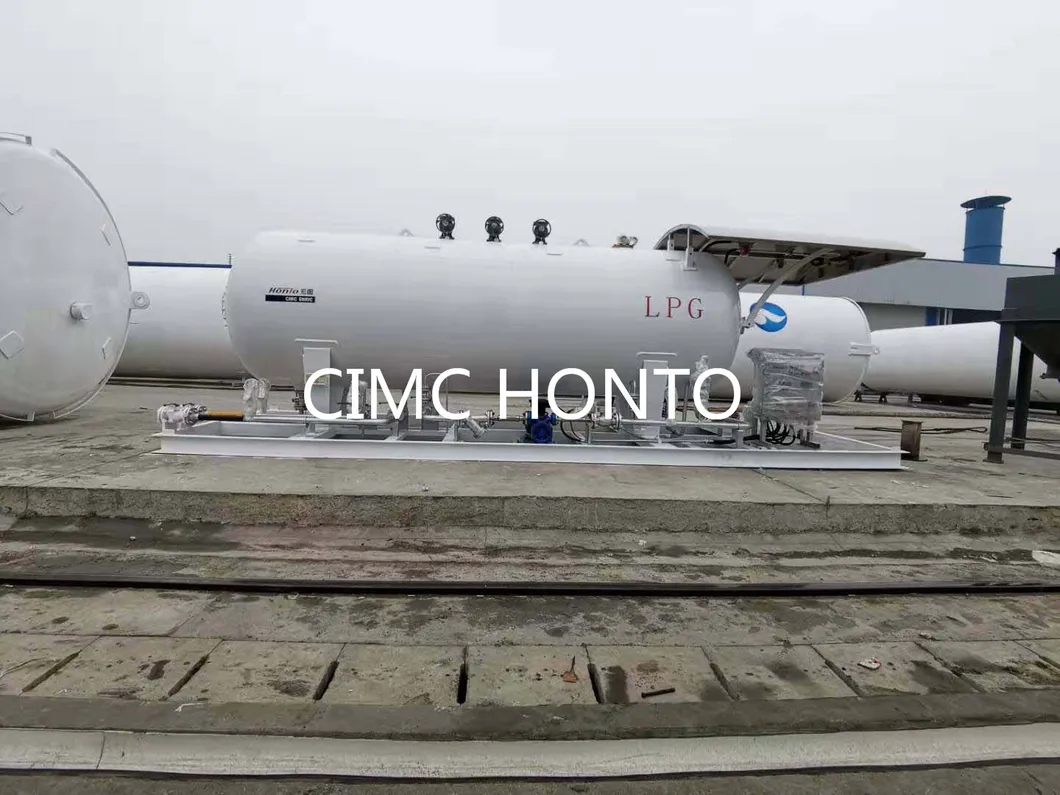

This product is an integrated equipment for metering civil LPG storage tanks. The main equipment adopts an integrated skid design, including the LPG storage tank, process piping, hydrocarbon pump, LPG filling scale, and control cabinet. It features unloading functions for tankers, filling functions for cylinders, and safe reflux protection.
| Technical Specification for LPG Filling Skid | ||
|---|---|---|
| Tank Volume (m³) | 10m³ | 20m³ |
| Filling Weight (kg) | 4035 | 8070 |
| Design Pressure (Mpa) | 1.61 | |
| Shell / Head Thickness | 10mm/10mm | 12mm/13mm |
| Design Temperature | -20ºC ~ 50ºC | |
| Accessories | Pressure gauge, thermometer, float level gauge, safety valves, gas leakage detection system, explosion-proof cabinet. | |

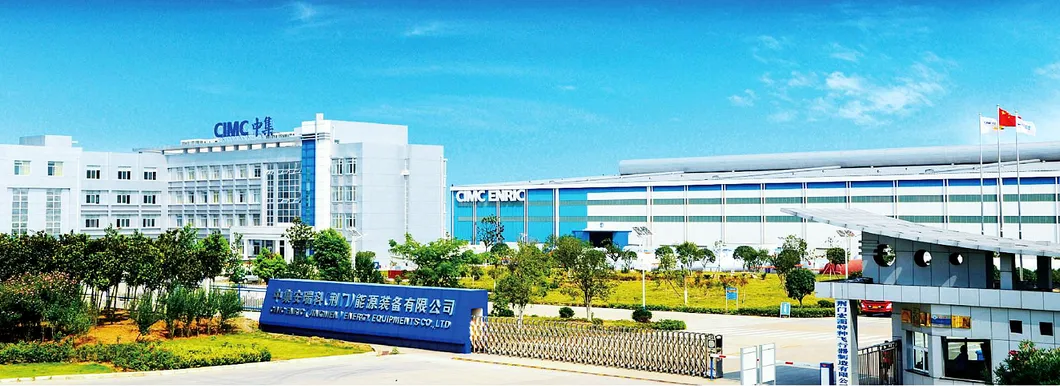

Established in 1971, the manufacturer has made prominent contributions to the development of the aviation and pressure vessel industry. As a key enterprise, it is engaged in the R&D of normal temperature storage, cryogenic equipment, EPC services, and chemical storage transportation equipment. With over 1,300 employees and 130,000 m² of workshop area, the facility leads the industry in LPG tanker production and sales.
The company holds ASME "U" and "U2" Stamps and all national permits for design and manufacture of pressure vessels, spherical tanks, and marine fuel tanks. Products are distributed to more than 40 countries across North America, South America, Southeast Asia, and Africa.
Rated as a provincial technical center for pressure vessels, we have acquired more than 120 patents through frequent technical cooperation with top universities and international standardization committees.
Our team includes over 330 professional technical staff and 30 senior engineers. We participate in compiling national standards for road tankers and transportable pressure vessels.
Equipped with over 2000 sets of equipment including plasma cutting machines, welding robots, heat treatment furnaces, and 2000-ton spherical shell press machines.
Products pass 111 quality control points and 243 procedures. Each weld quality is tracked with records kept for over 20 years, ensuring comprehensive safety management.
