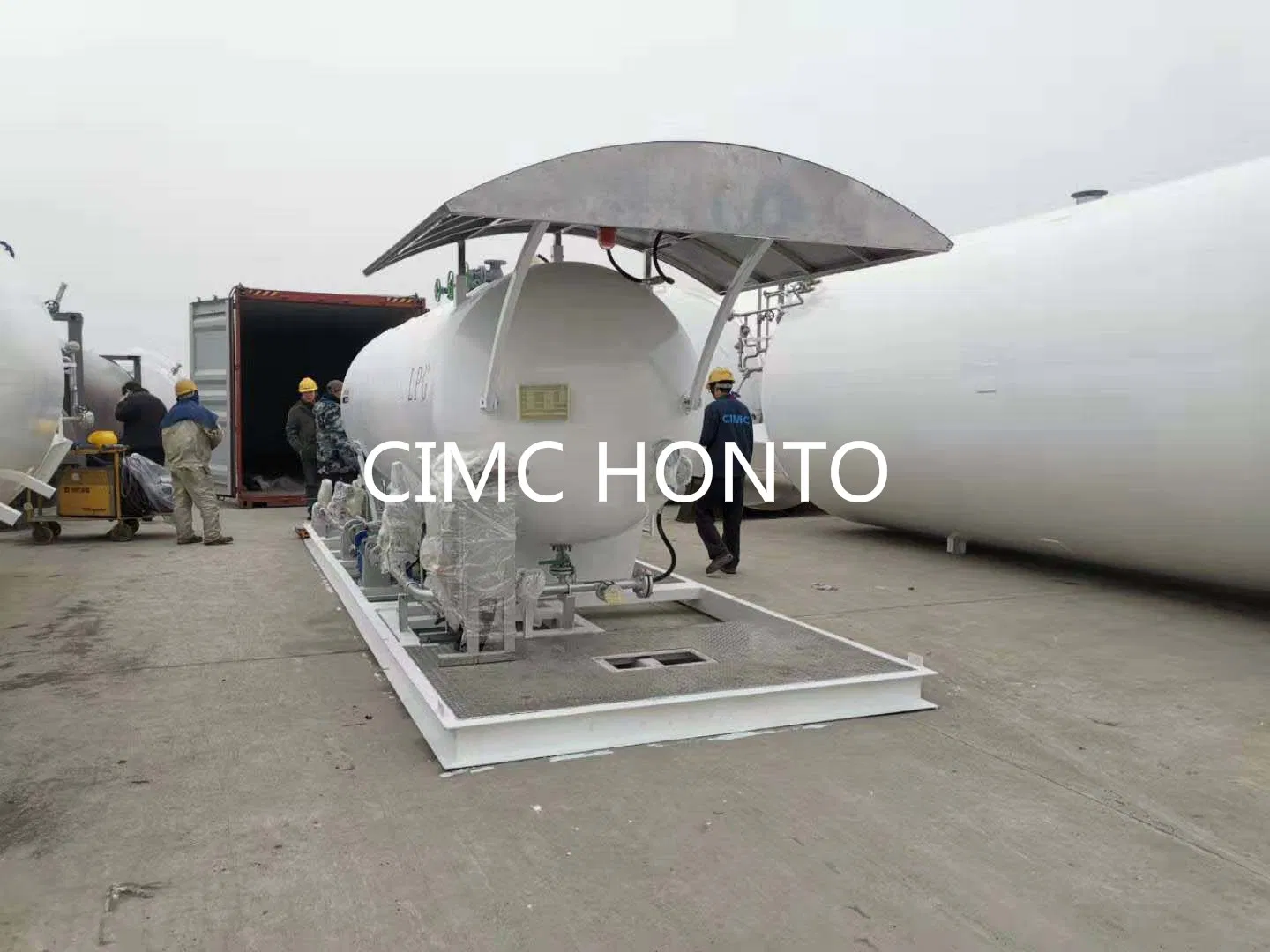

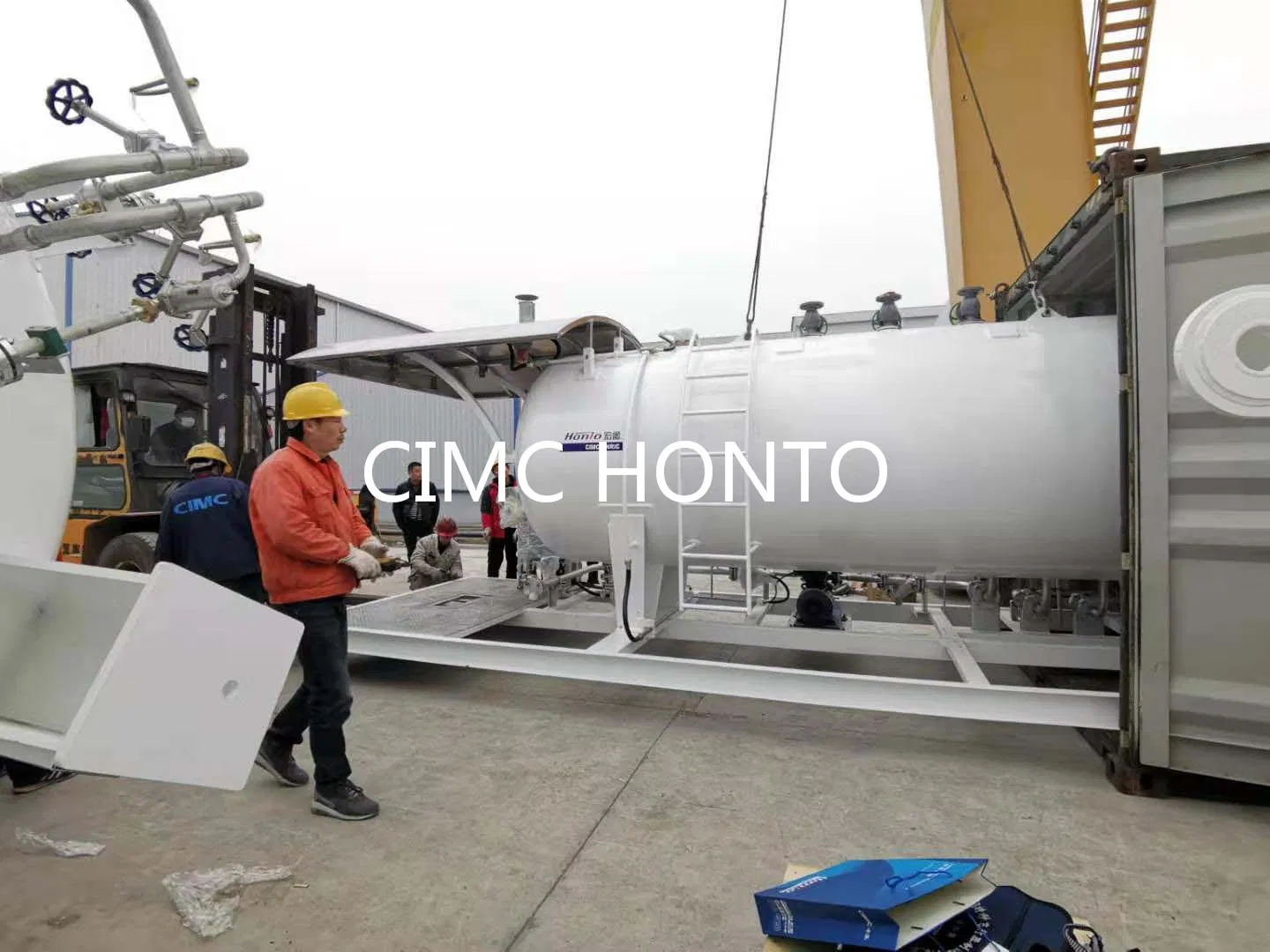

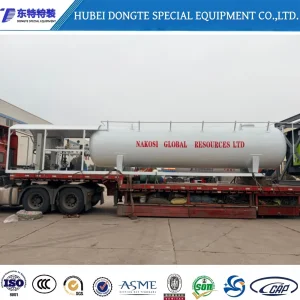

LPG Mobile Filling Station Skid

Customization:	Available
After-sales Service:	Provided
Warranty:	5 Years

Send Inquiry

Product Description

1 Basic Information

Model NO.

GYQ-LFT

Function

Storage Pressure Vessel

Application

Liquefied Gas

Material

Carbon Steel

Pressure

0.1MPa≤p<1.6MPa

Storage Medium

Flammable/Toxic

Pressure Level

Low Pressure

Condition

New

Design Pressure

1.61 or Customized

Filling Weight

5 Tons/10 Tons

Pipe Material

20#

Origin

China

Production Capacity

2000 Sets/Year

2 Product Performance

Performance Advantages:

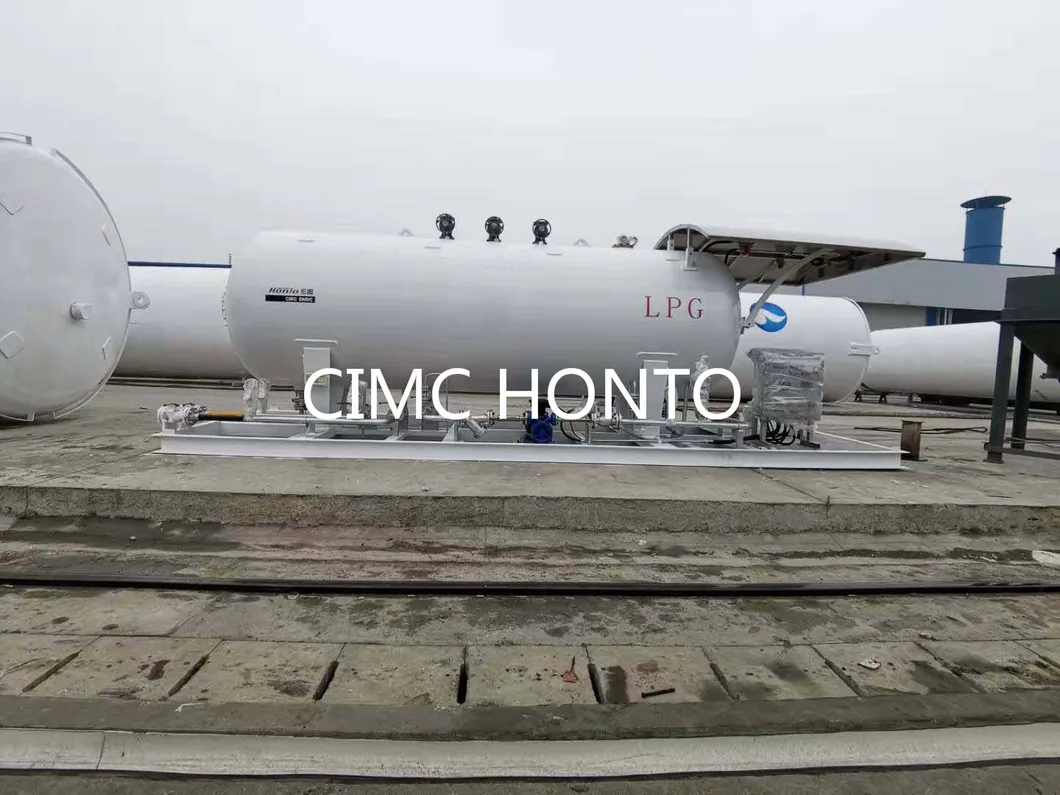

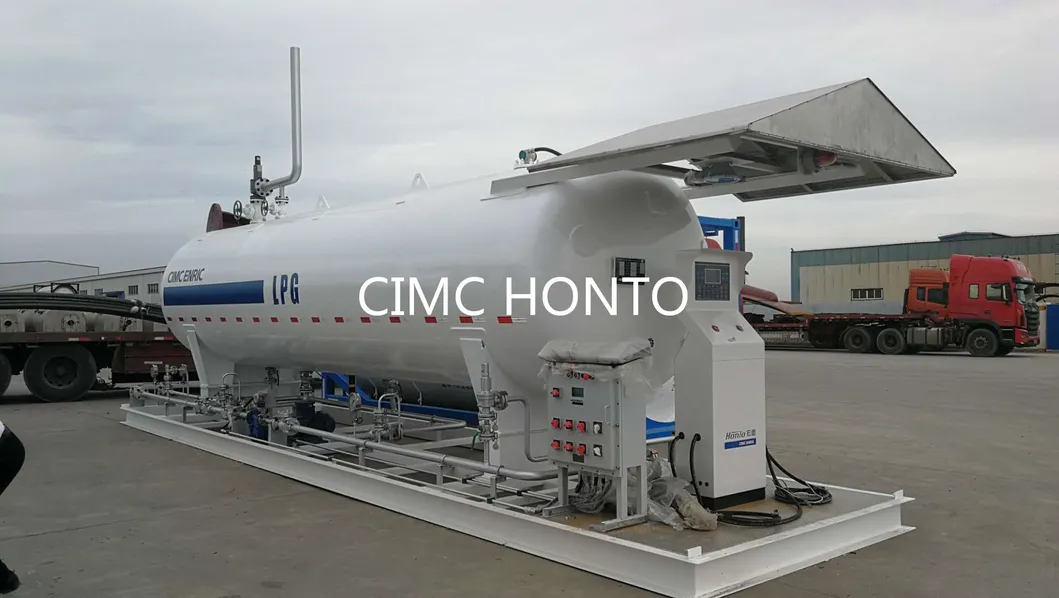

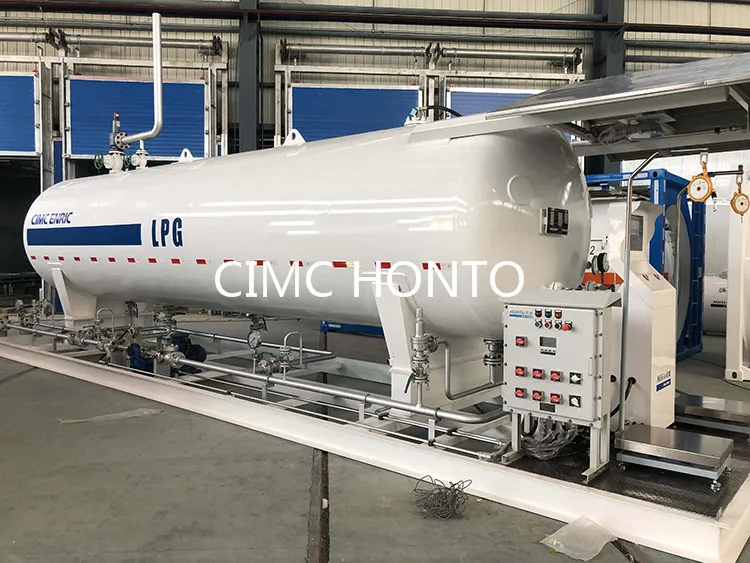

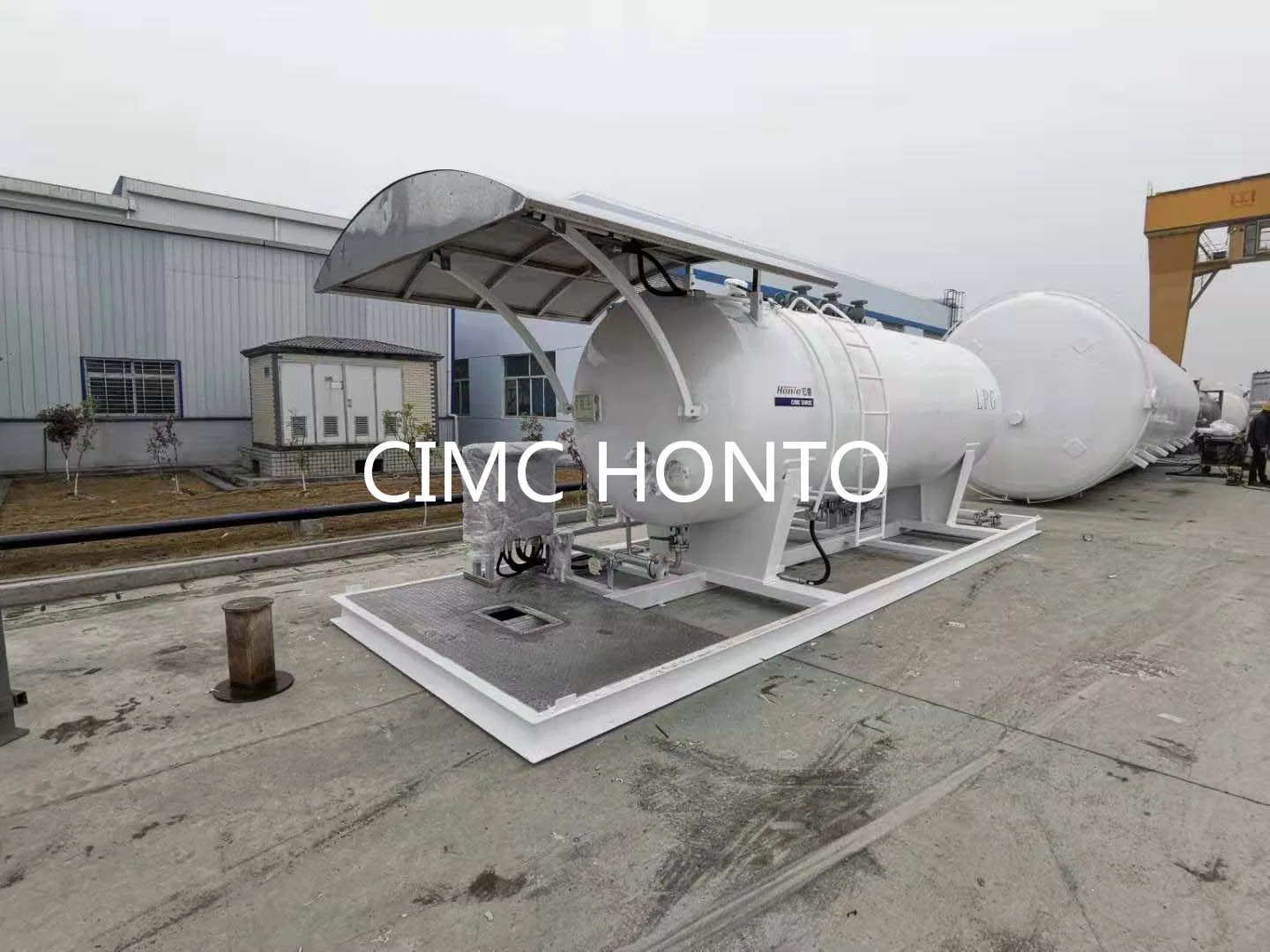

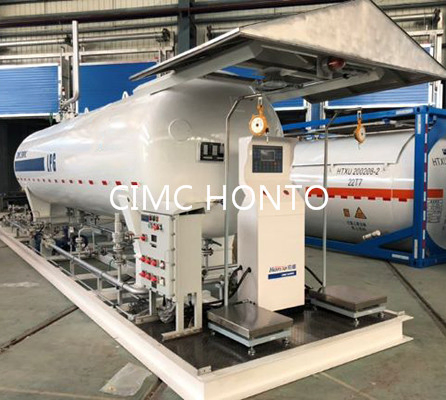

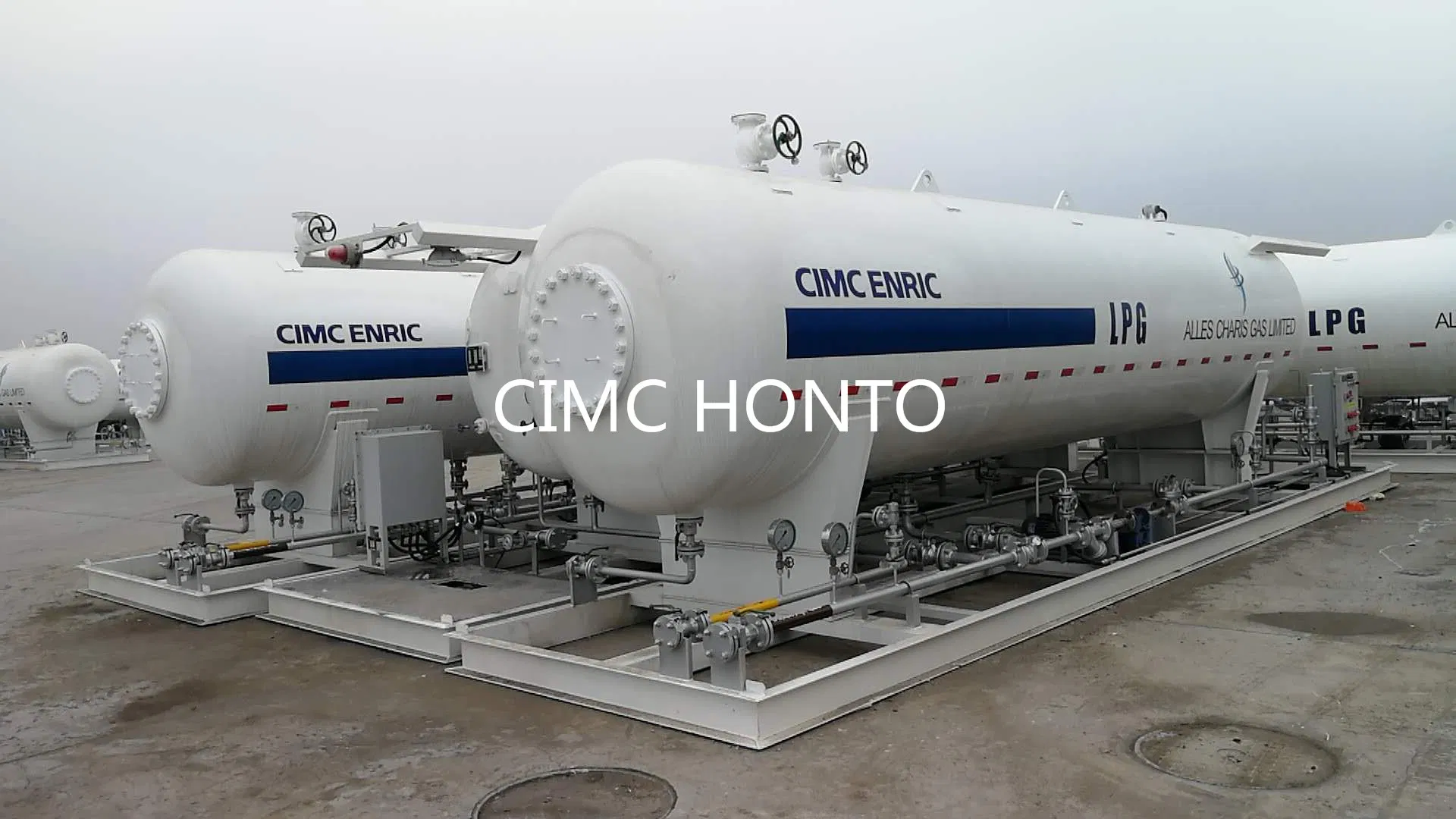

This product is an integrated equipment for metering civil LPG storage tank (household gas tank). The main equipment adopts integrated skid design, including LPG storage tank, process piping, hydrocarbon pump, LPG filling scale and control cabinet. It features unloading for LPG tankers, bottling functions for civil cylinders, refueling for cars, and safety reflux systems.

3 Technical Specifications

Parameter	10m³ Specification	20m³ Specification
Tank Volume (m³)	10m³	20m³
Filling Weight (kg)	4035	8070
Design Pressure (Mpa)	1.61
MAWP (Mpa)	1.77
Design Temperature	-20ºC~50ºC
Shell/Head Thickness	10mm/10mm	12mm/13mm
Tank Material	Q345R
Application	1. Bottling cylinders; 2. Fueling cars; 3. LPG pumps for trucks

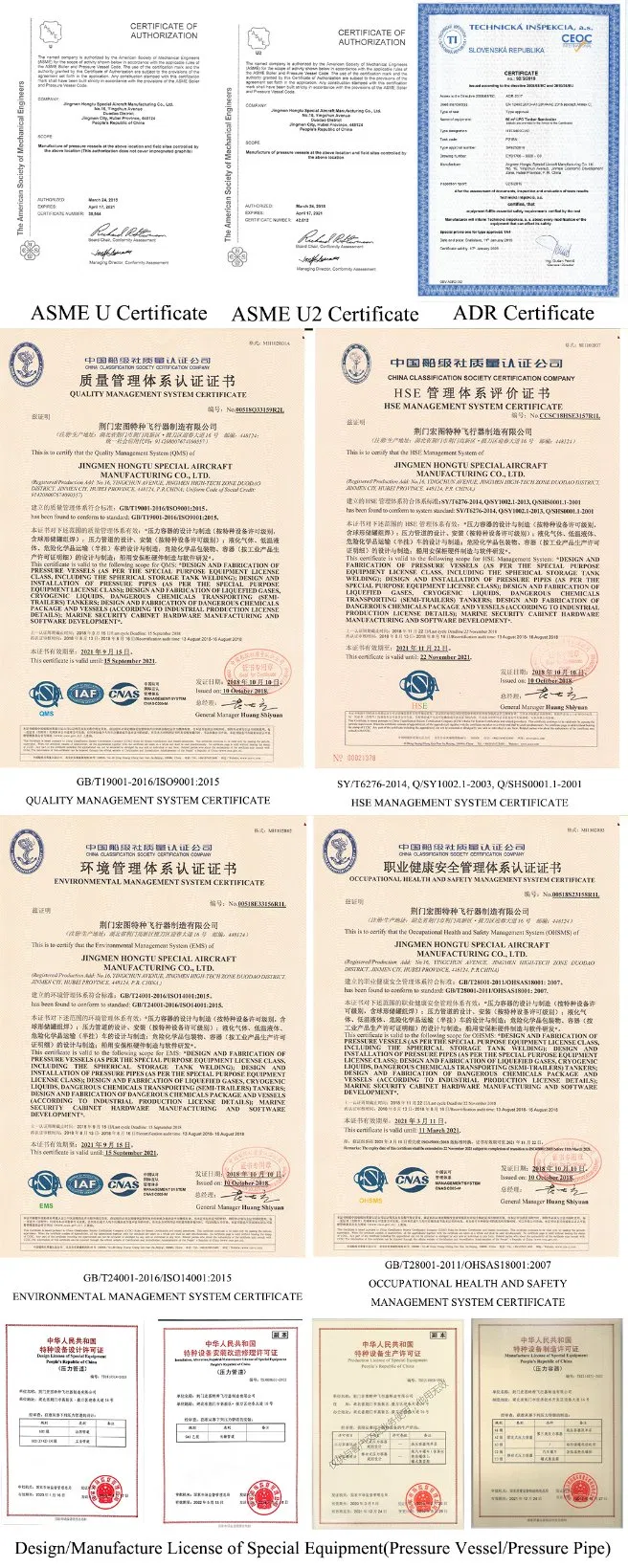

4 Certifications

5 Profile

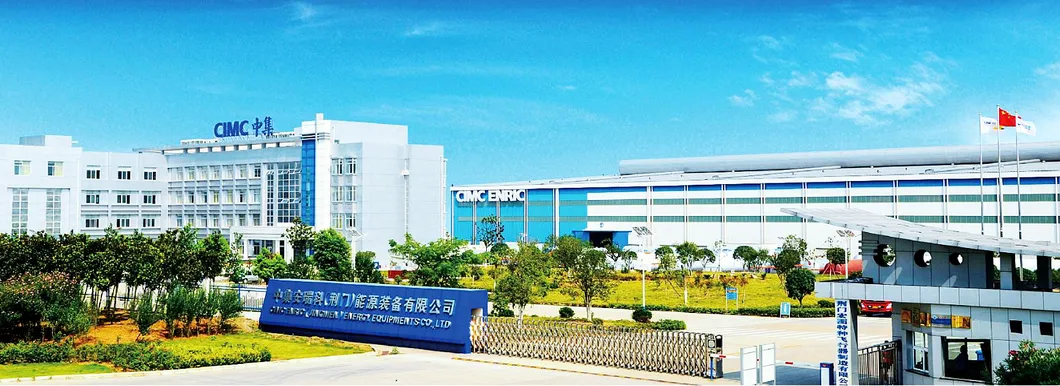

The Company has made prominent contributions to the development of the aviation and energy industries since 1971. As a key enterprise, it is engaged in R&D of normal temperature storage & transportation equipment, cryogenic equipment, EPC services, and chemical equipment. With over 1,300 employees and 130,000 m2 of workshop area, the Company leads the industry in LPG tanker production and sales.

Holding ASME "U" and "U2" Stamps, we provide global customers with safe, efficient, and value-added equipment across North America, South America, Southeast Asia, and the Middle East.

6 Our Advantages

01 Powerful R&D Ability

Rated as a Provincial Technical Center for Pressure Vessels with over 120 patents. We cooperate with top universities and international organizations for technical excellence.

02 Top Expert Team

Over 330 professional technical staff and 30 senior engineers. We participate in drafting national safety standards for transportable pressure vessels.

03 Strong Production Capacity

Facilitated with over 2000 sets of equipment including plasma cutting machines, welding robots, and 2000-ton press machines.

04 Comprehensive Industrial Chain

The only manufacturer providing a whole industry chain from oil refining devices and spherical tanks to lightweight tankers and end-application engineering.

05 Strict QA & QC System

111 quality control points and 243 procedures ensure each product is traceable for over 20 years. Certified under HSE systems.

Frequently Asked Questions

Q1: What are the main applications of the LPG Filling Skid? A: It is used for bottling civil gas cylinders, refueling cars with LPG dispensers, and loading/unloading LPG tankers using integrated pumps or compressors.

Q2: What materials are used for the storage tanks? A: The tanks are primarily constructed from Q345R Carbon Steel, ensuring high durability and safety for pressurized storage.

Q3: Does the equipment meet international standards? A: Yes, the manufacturer holds ASME "U" and "U2" stamps and follows strict quality control procedures compliant with global safety regulations.

Q4: Can the capacity of the LPG station be customized? A: Yes, standard volumes include 10m³ and 20m³, but we offer customized design pressures and capacities based on specific project requirements.

Q5: How is the equipment shipped internationally? A: Units with volumes below 20m³ are typically shipped via container vessels, while larger units above 20m³ are shipped via bulk vessels.

Q6: What safety features are included in the skid? A: It includes safety valves, safety return valves, gas leakage detection systems, explosion-proof lighting, and emergency alarm systems.
