LPG Plant with Filling Scale for Cylinder LPG Skid

Customization:	Available
After-sales Service:	Provided
Warranty:	5 Years

Send Inquiry

Product Description

Basic Specifications

Model NO.

GYQ-LFT

Function

Storage Pressure Vessel

Application

Liquefied Gas

Material

Carbon Steel

Pressure

0.1MPa≤p<1.6MPa

Storage Medium

Flammable/Toxic

Design Standard

Chinese GB Standard

Filling Weight

8070kg

Design Pressure

1.61MPa

Production Capacity

2000 Sets/Year

Product Overview

⚙️

Performance Advantages:

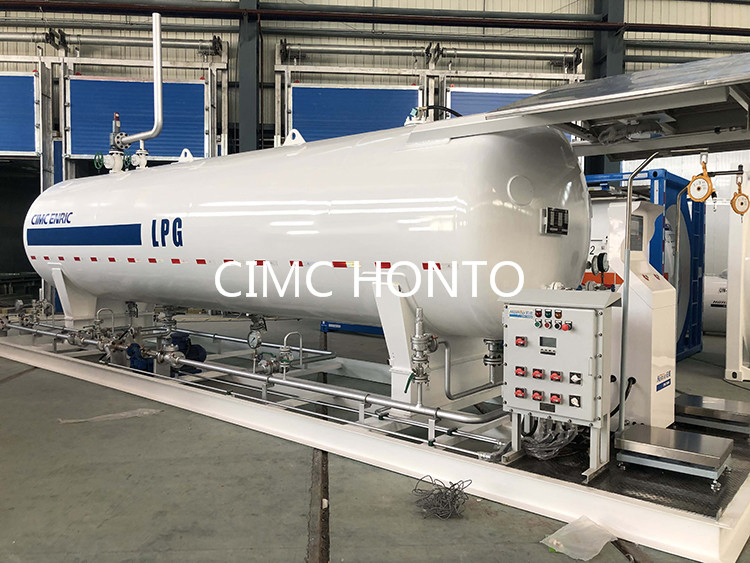

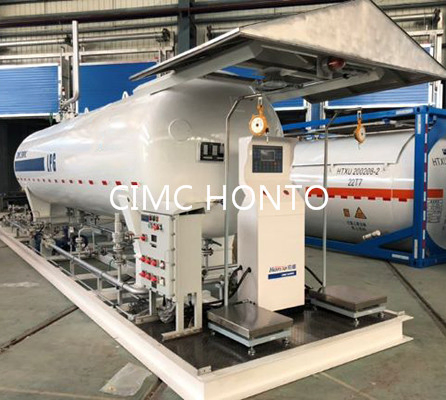

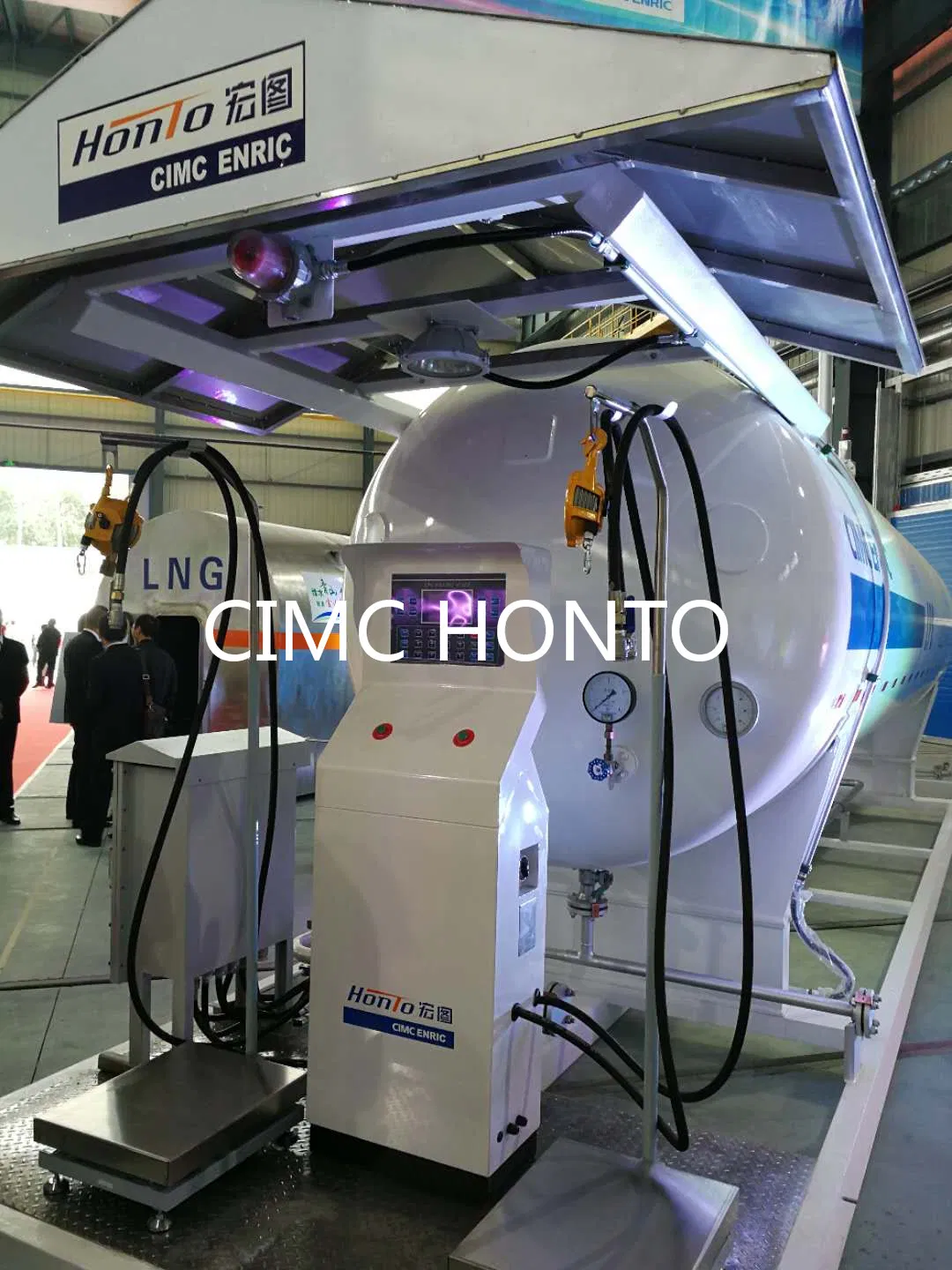

This product is an integrated equipment for metering civil LPG storage tank. The main equipment adopts an integrated skid design, including the storage tank, process piping, hydrocarbon pump, filling scale, and control cabinet. It supports unloading for tankers, filling for cylinders, and safe reflux functions.

Technical Specifications

Feature	10m³ Specification	20m³ Specification
Filling Weight (kg)	4035	8070
Design Pressure (Mpa)	1.61
MAWP (Mpa)	1.77
Design Temperature	-20ºC~50ºC
Shell/Head Thickness	10mm/10mm	12mm/13mm
Tank Material	Q345R
Processing Pipe Material	20#

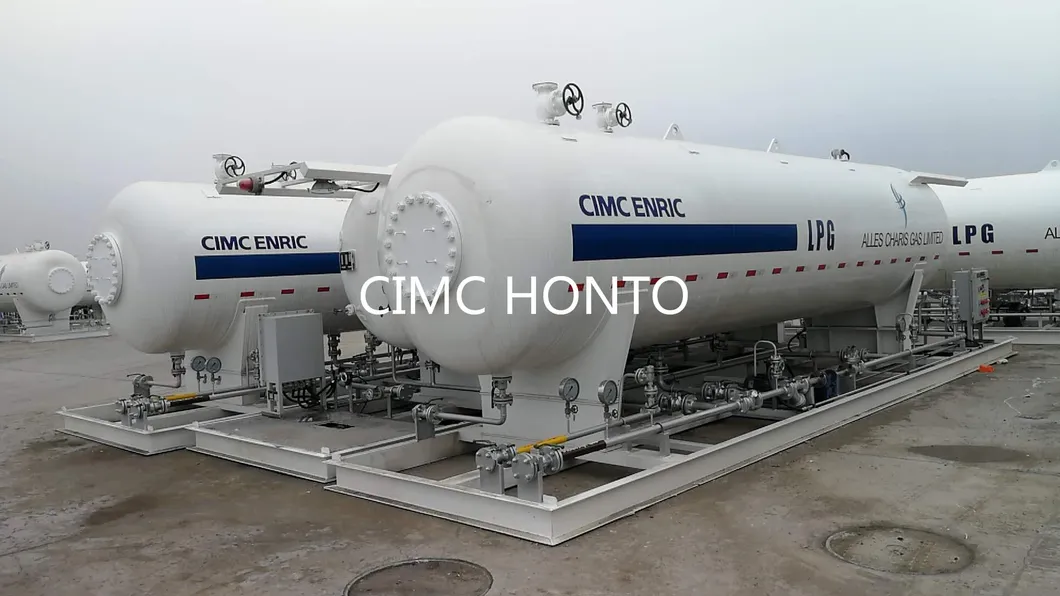

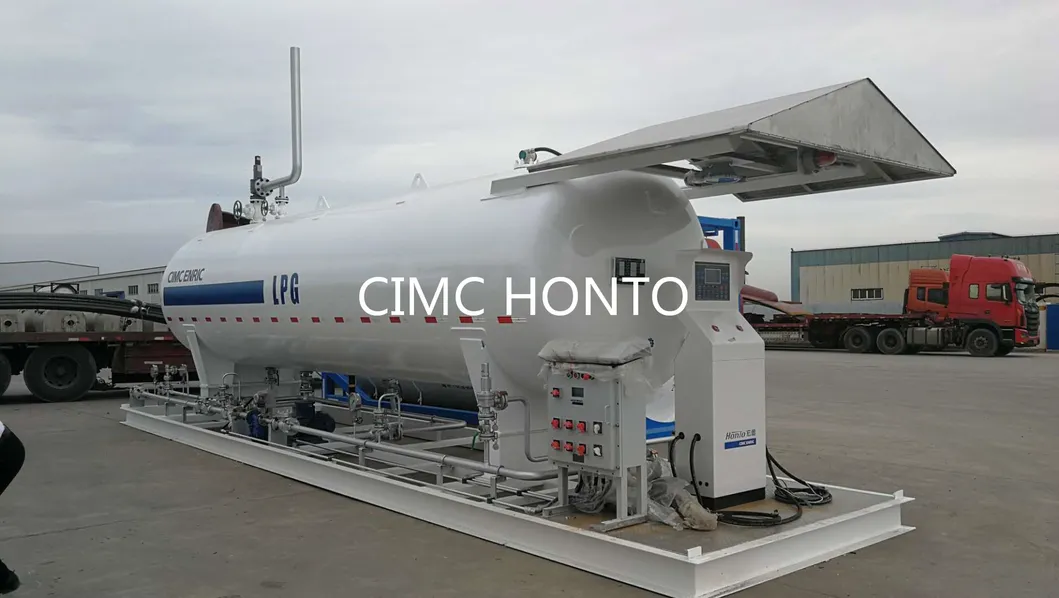

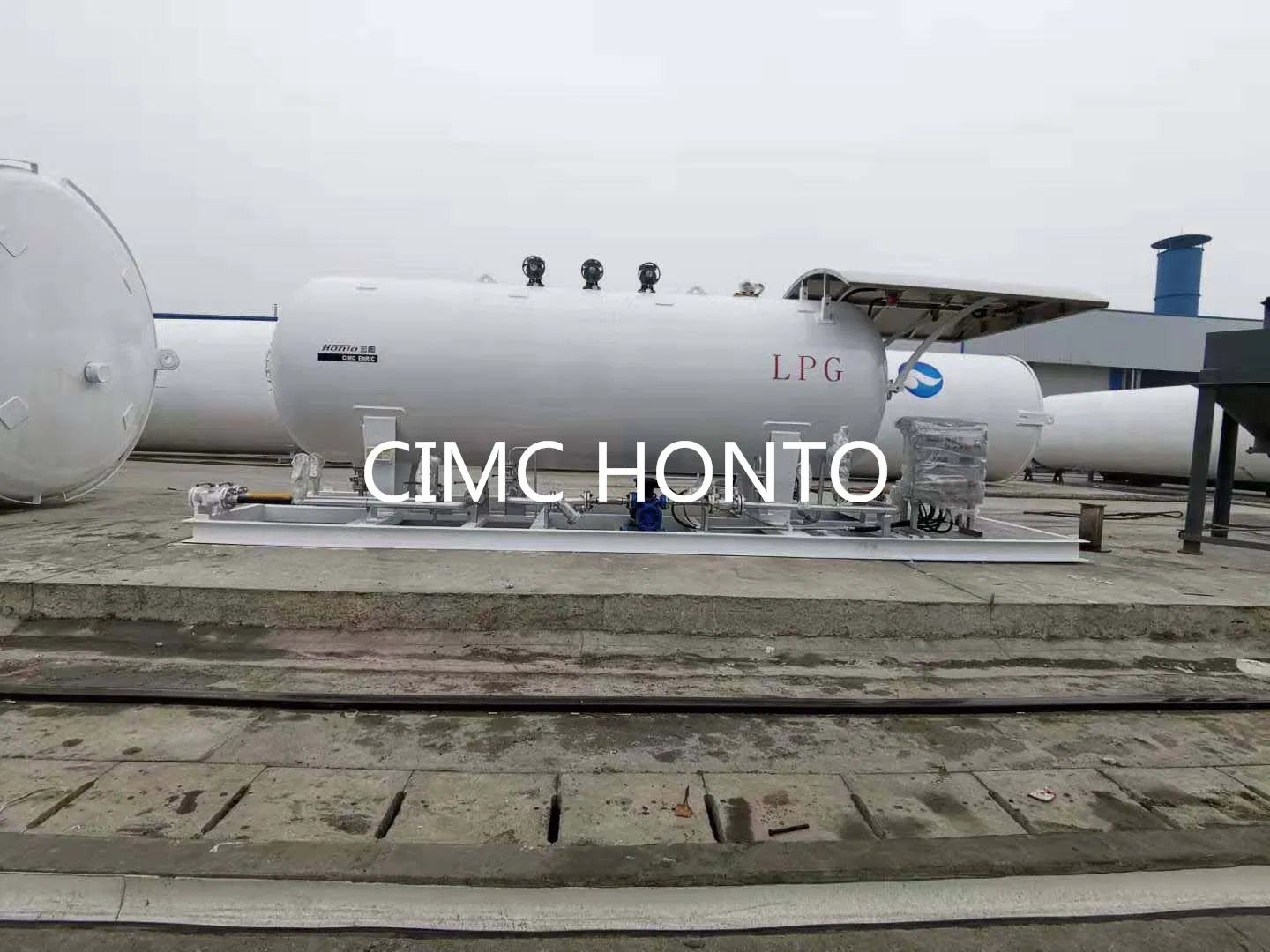

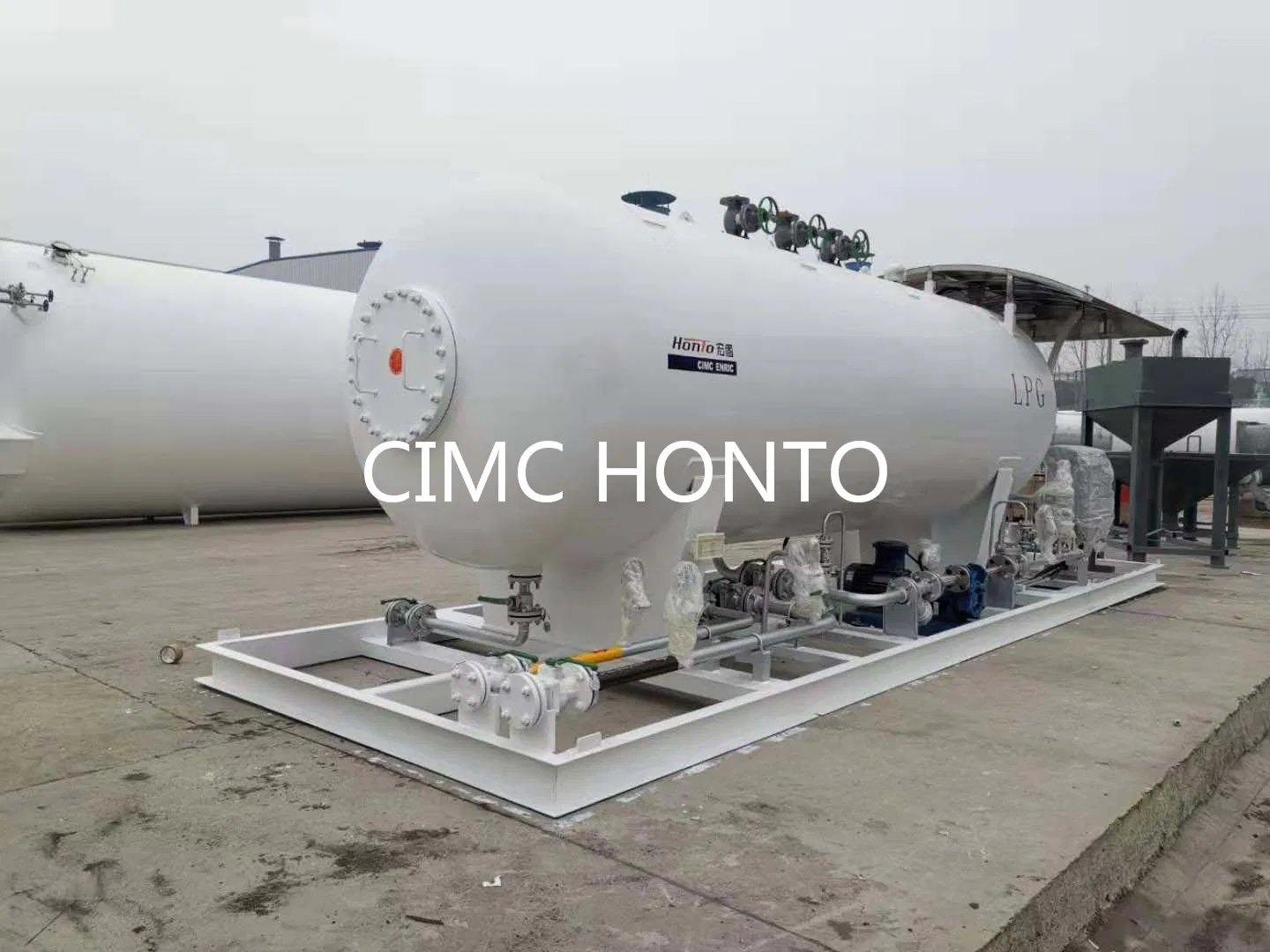

Product Display

Quality Certifications

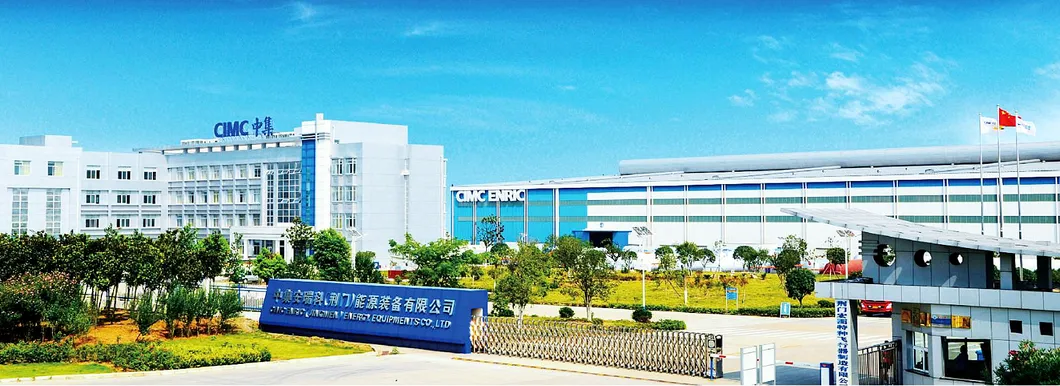

Manufacturing Excellence

🛡️

Powerful R&D and Expert Team:

Equipped with a provincial technical center for pressure vessels and over 120 patents. The team includes more than 330 professional technical staff and senior engineers who participate in drafting national safety standards for transportable pressure vessels.

🏗️

Strong Production Capacity:

Utilizing over 2000 sets of advanced equipment including plasma cutting machines, welding robots, and 2000-ton spherical shell press machines. The facility ensures high-volume, high-quality manufacturing.

🔍

Rigorous QA & QC System:

Products undergo 111 quality control points and 243 control procedures. Each weld is tracked with radiographic inspection, and quality files are maintained for over 20 years for full traceability.

Frequently Asked Questions

What are the primary applications for this LPG skid?

The skid is designed for bottling cylinders, fueling cars via LPG dispensers, and loading/unloading LPG tankers using integrated pumps or compressors.

What design standards do these pressure vessels follow?

The equipment is manufactured according to the Chinese GB Standard and the company holds ASME "U" and "U2" stamps qualification.

What materials are used in the construction of the tank?

The tanks are primarily constructed using high-quality Carbon Steel (Q345R) with processing pipes made of 20# steel.

What safety accessories are included with the skid?

It includes pressure gauges, thermometers, float level gauges, safety valves, check valves, explosion-proof lighting, and a gas leakage detection system.

How is the equipment shipped internationally?

Volumes above 20m³ are typically shipped by bulk vessel, while units below 20m³ are shipped via standard container vessels.

What is the annual production capacity for these units?

The facility has a production capacity of approximately 2000 sets per year.
