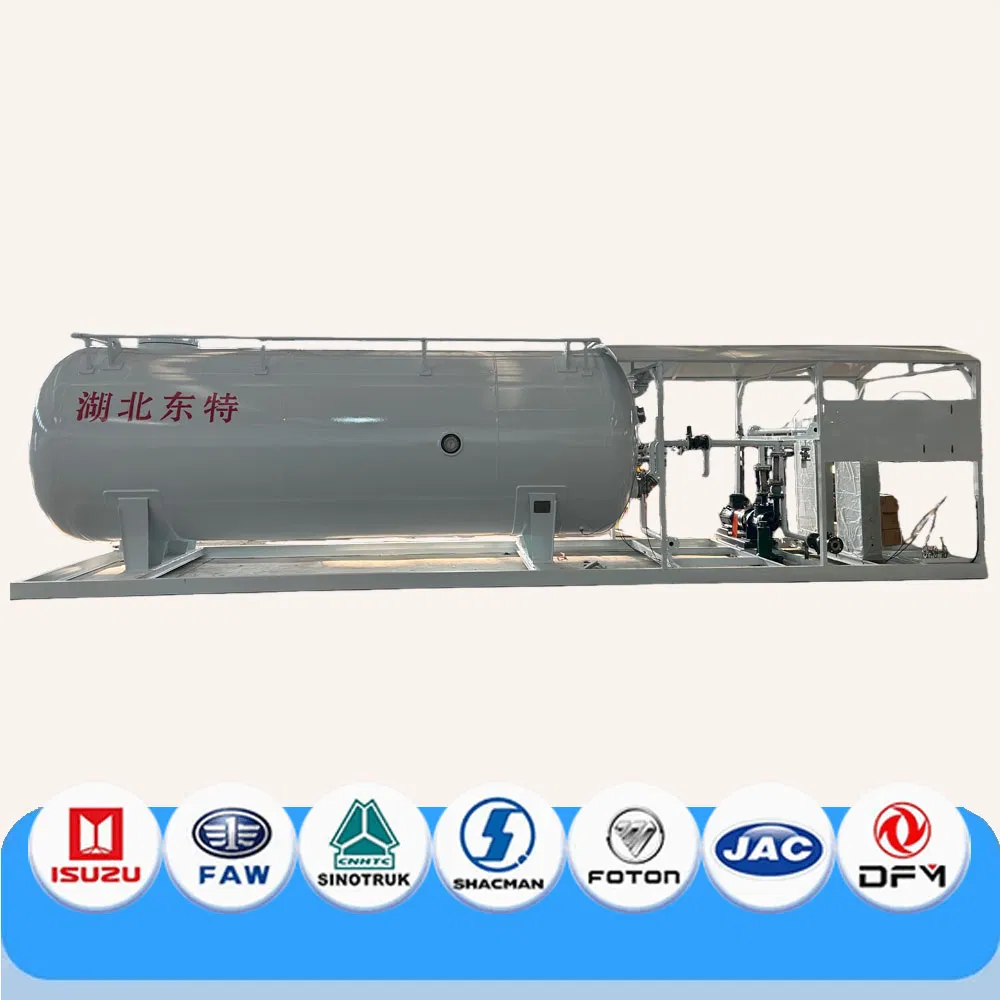

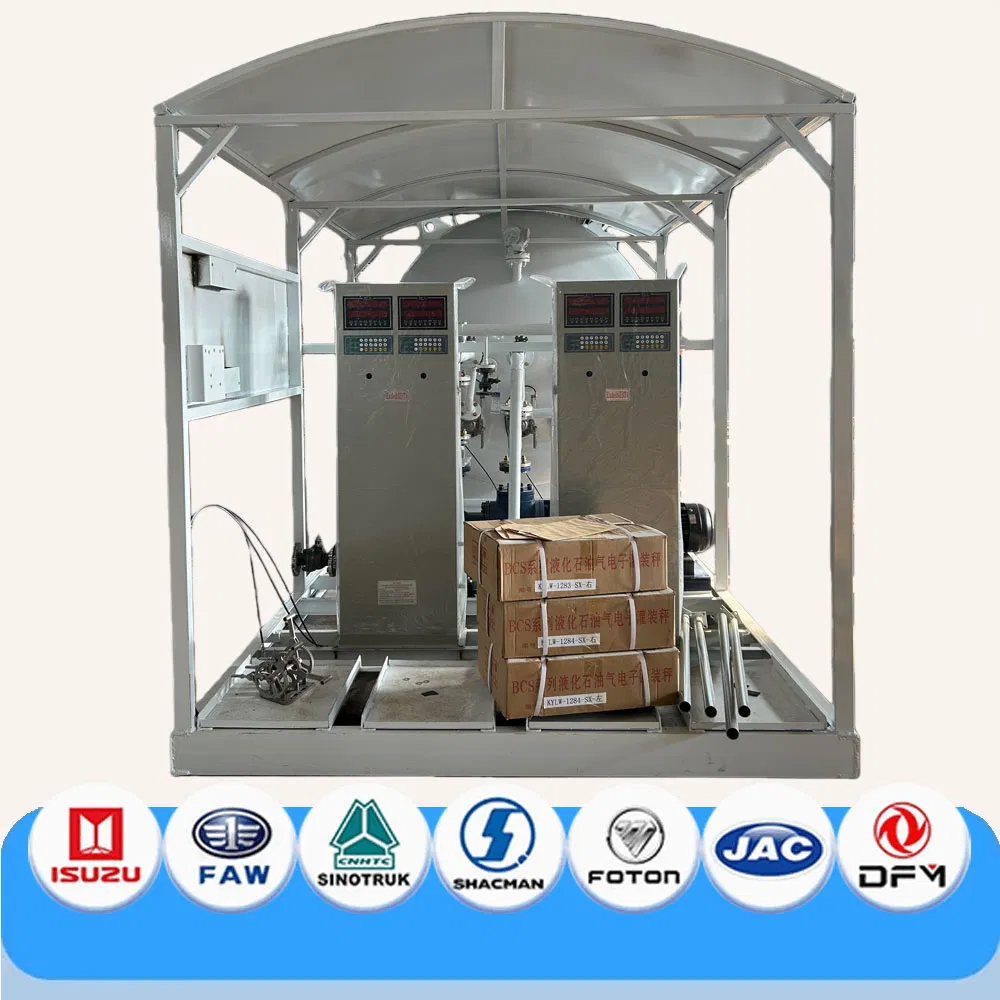

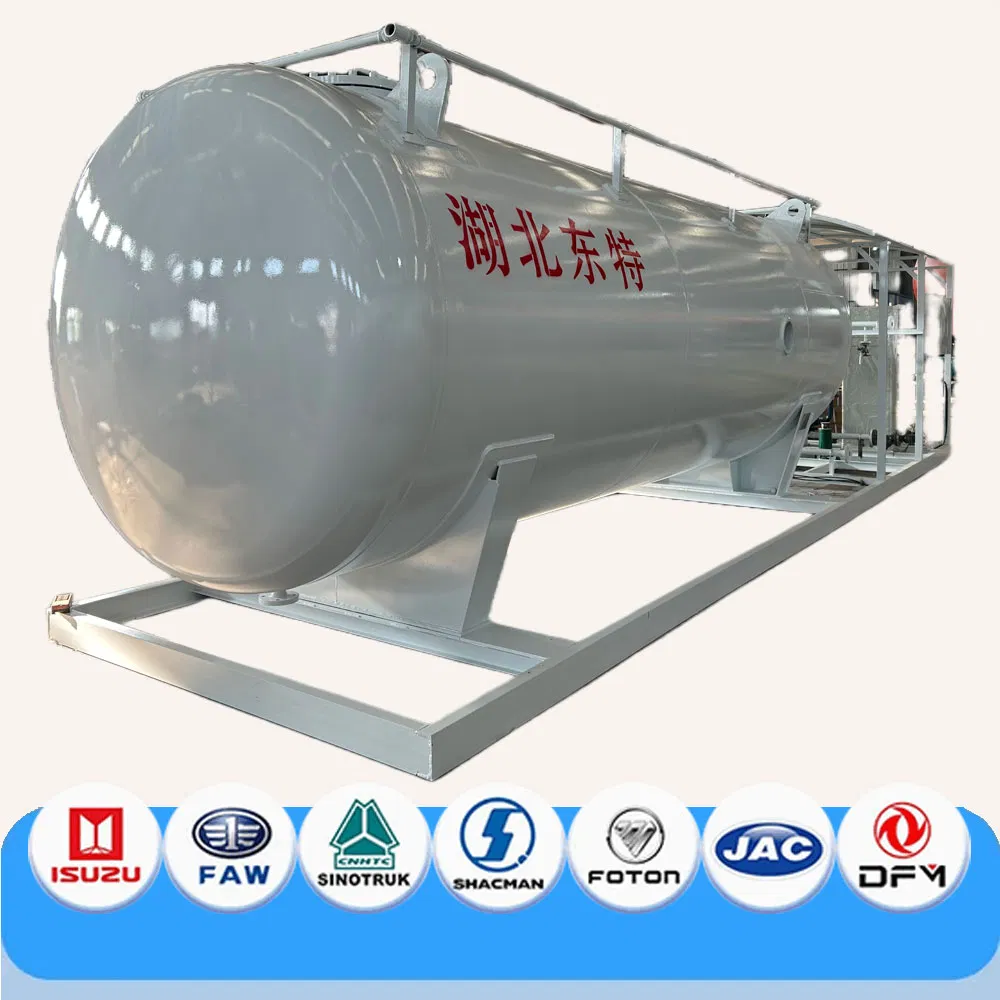

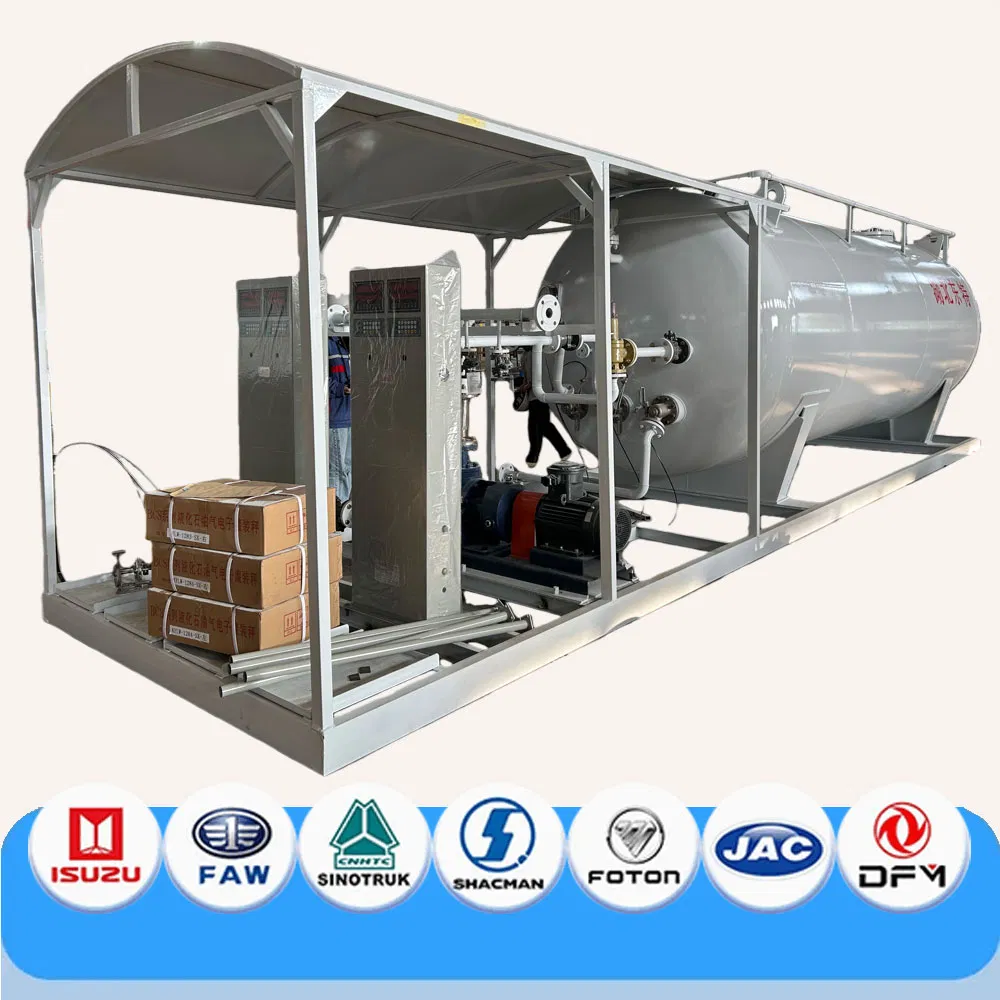

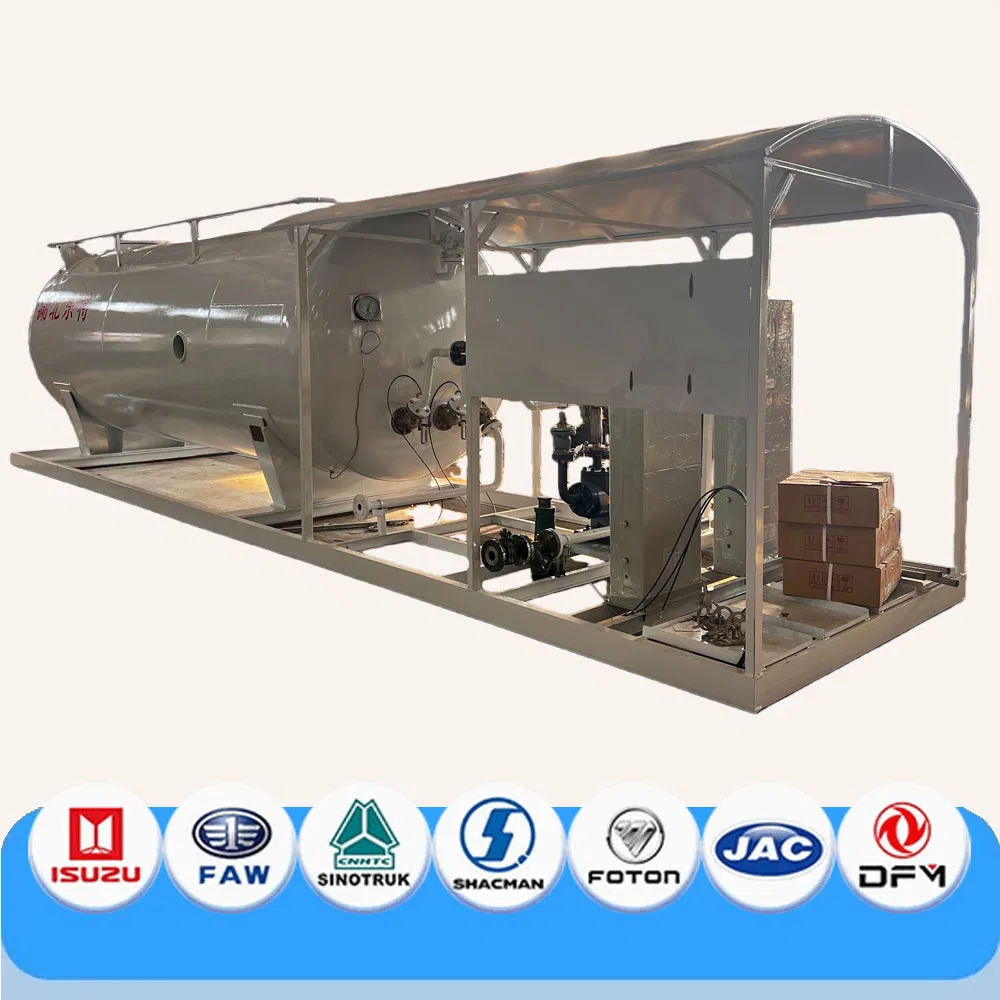

10 Tons Mobile LPG Tank Auto Filling Skid Station Plant

Customization:	Available
After-sales Service:	24 Hours Online Service
Warranty:	1 Year

📋 Basic Product Information

Model NO.

CLW5580gpsd6

Function

Storage/Separation/Heat/Reaction Pressure Vessel

Material

Q345R / SA516

Pressure Range

0.1MPa ≤ p < 10.0MPa

Storage Medium

Flammable / Toxic (LPG)

Capacity

0.5~1000 M3 (Customized)

Payload

0.25~500 Tons

Design Temp

-20°C ~ 50°C

Thickness

Body 10mm / Head 12mm

Delivery Time

Within One Month

✨ Core Features

★ 10 Tons Mobile LPG Tank Auto Filling Skid Station Plant

✔ ASME standard available for international requirements.

✔ 100% New condition direct from manufacturer.

✔ 100% Quality guarantee and rigorous testing.

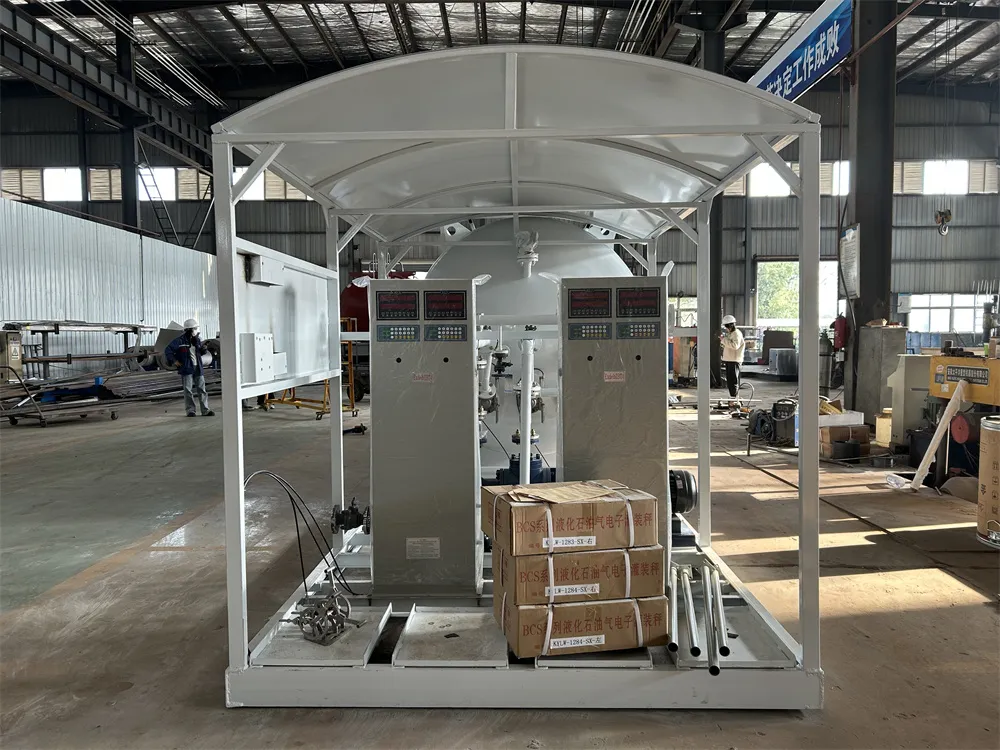

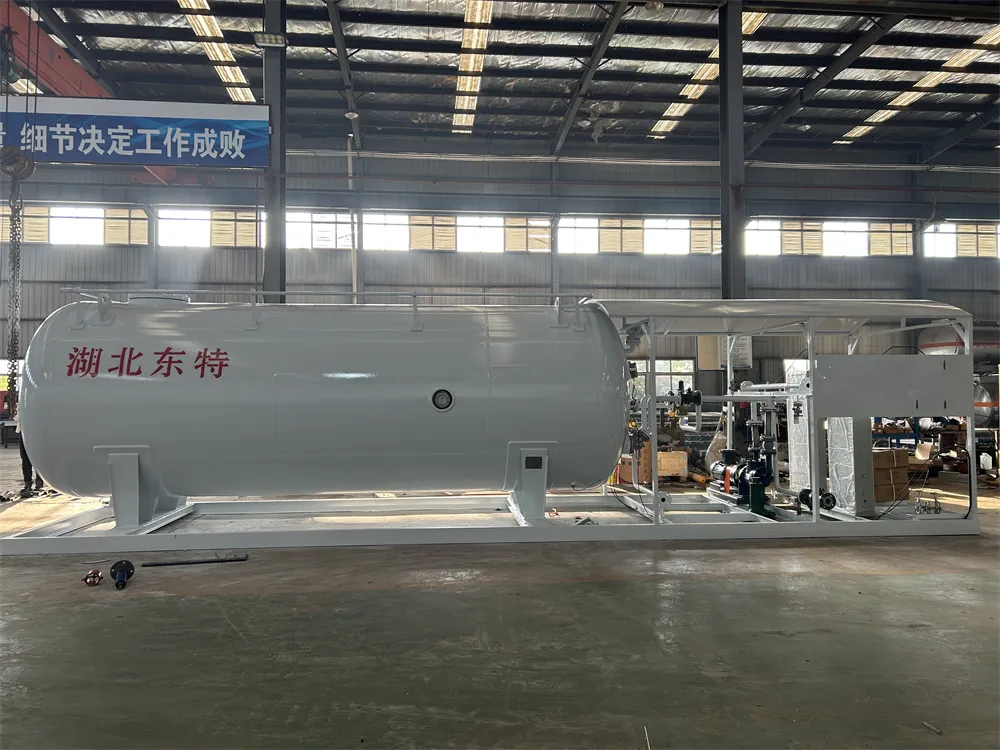

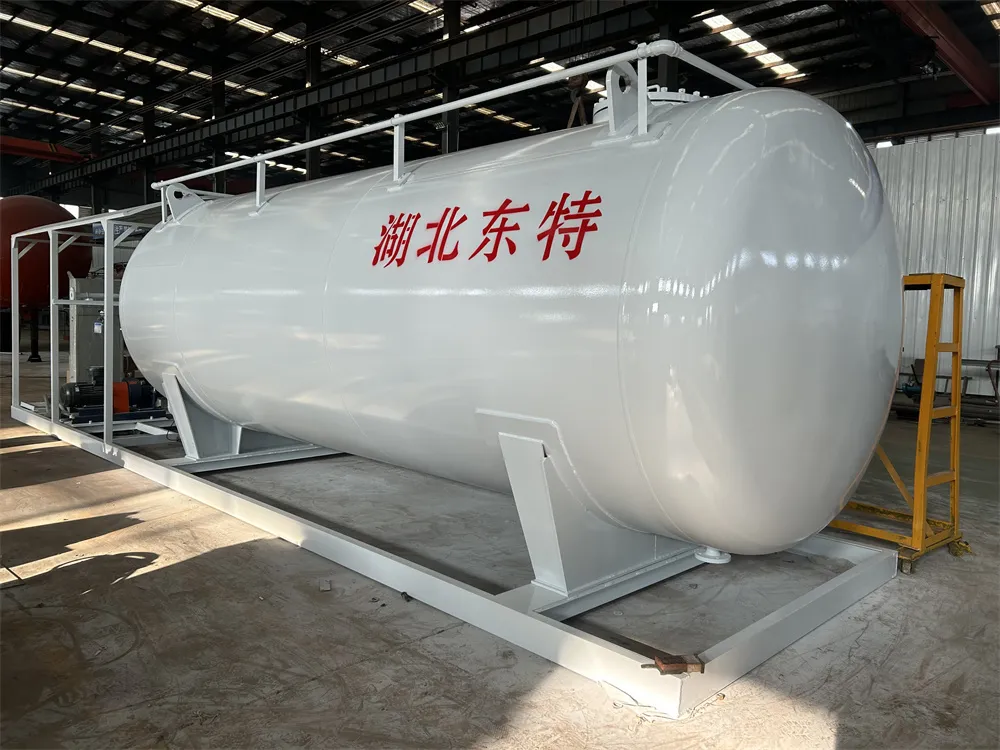

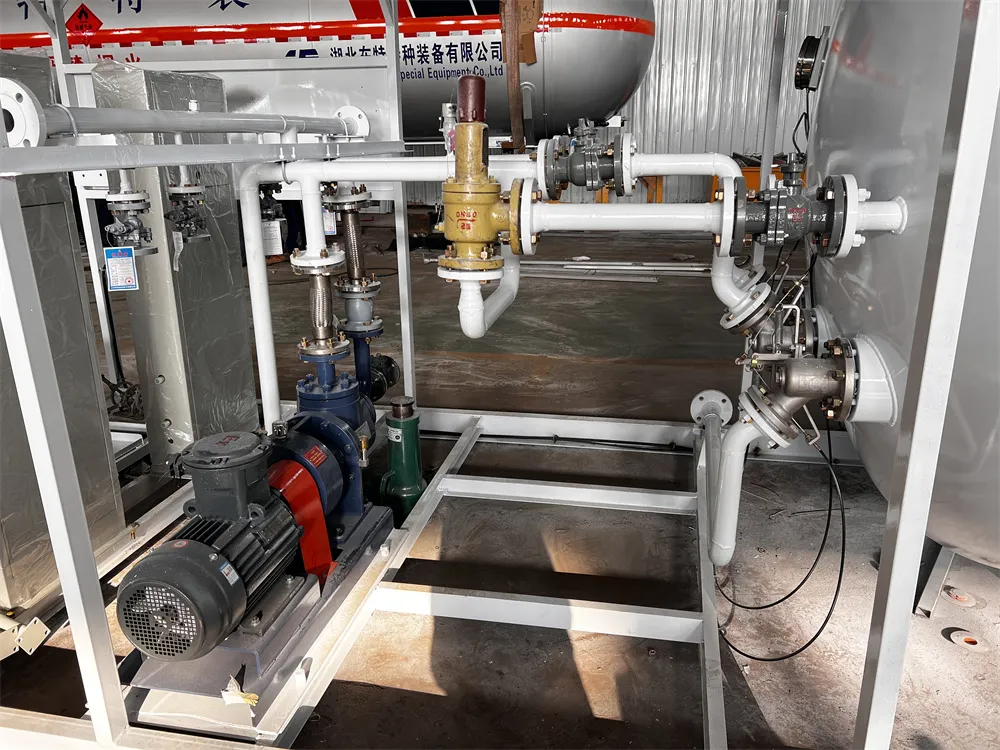

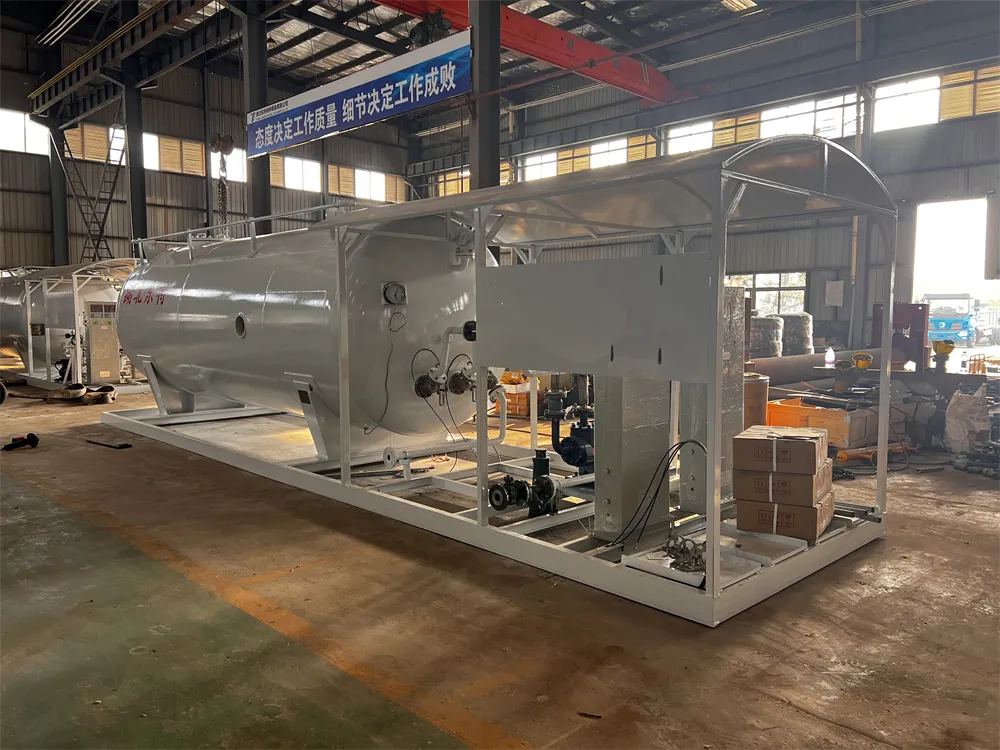

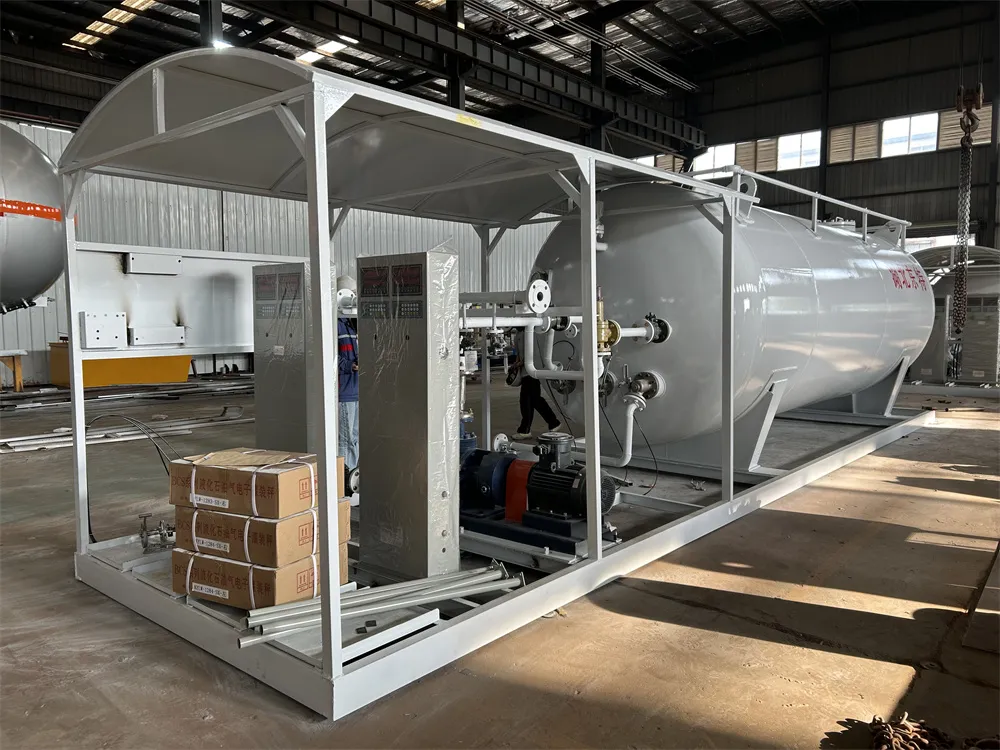

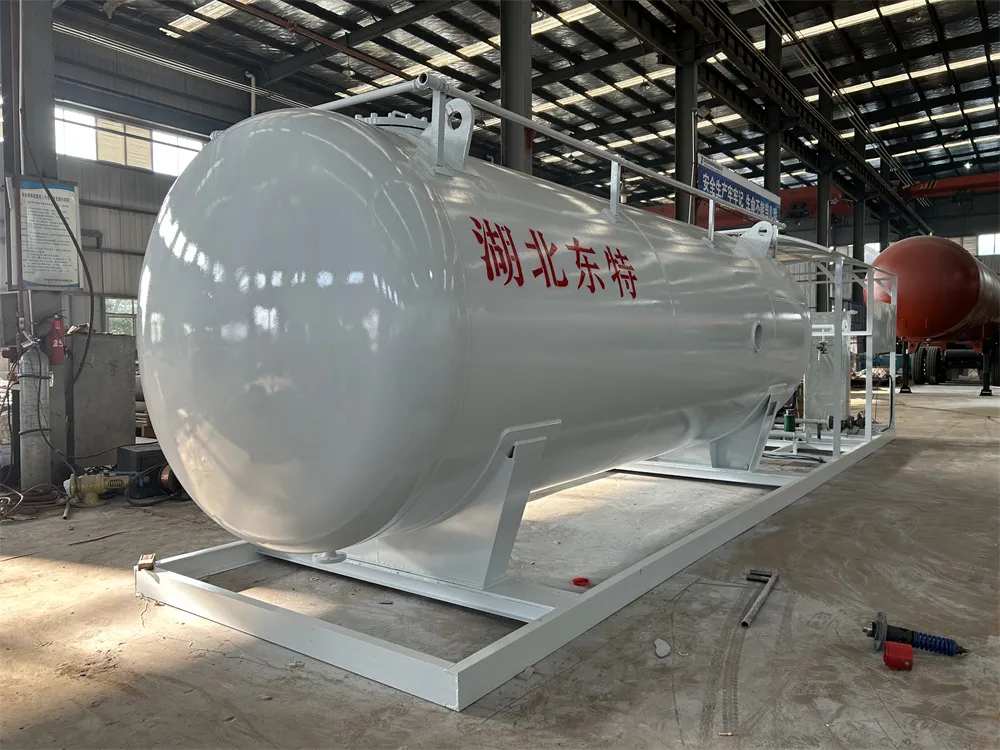

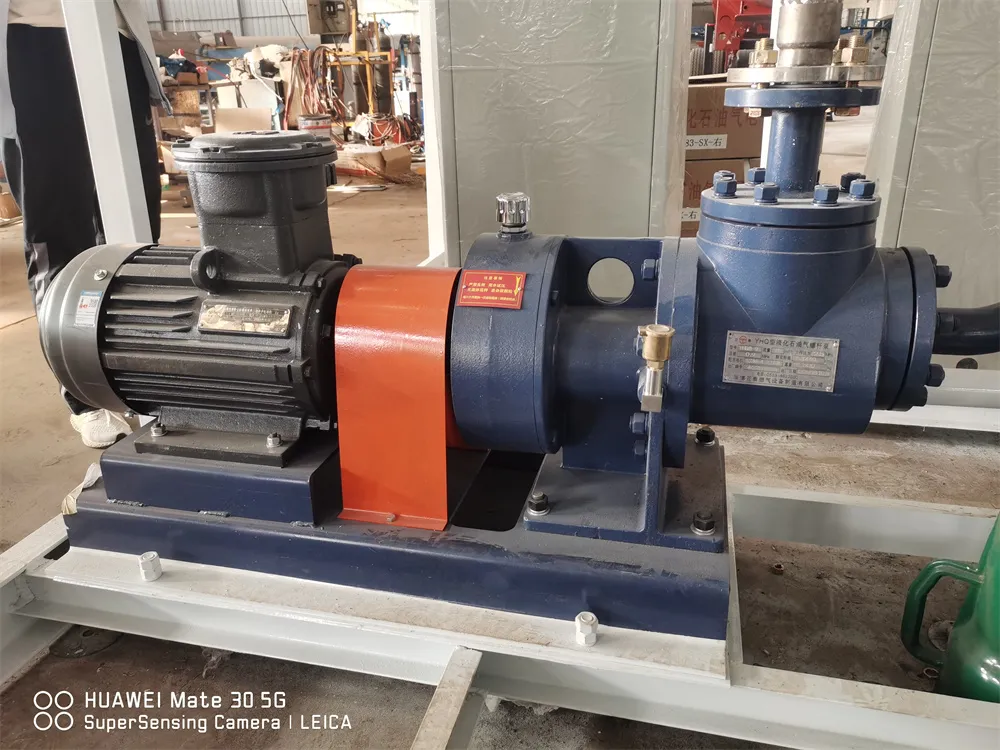

📷 Detailed Product Gallery

⚙️ Technical Specifications

I. National Standard Parameters

Capacity	Diameter x Height x Length	Tank Weight	Payload	Thickness (Shell/Head)
10m³	φ1600×2370×5300mm	3400kg	4035kg	8.53mm / 8.51mm
20m³	φ2200×2970×5680mm	5150kg	8070kg	11.35mm / 11.33mm
50m³	φ2470×3240×10903mm	10420kg	20180kg	12.62mm / 12.59mm
100m³	φ3100×3800×13850mm	20000kg	40350kg	15.58mm / 15.87mm

II. ASME Standard Parameters

Capacity	Weight	Material	Design Pressure	Thickness
10m³	3850kg	SA-516 Gr.70	1.724 Mpa	11.09mm / 11.02mm
50m³	15420kg	SA-516 Gr.70	1.724 Mpa	16.56mm / 16.47mm
100m³	27430kg	SA-516 Gr.70	1.724 Mpa	20.53mm / 20.41mm

📦 Packaging & Shipping

Protection Treatment: Industrial-grade paraffin coating (thickness ≥ 0.3mm) is used to isolate moisture and corrosive media.

Protection Period: Anti-rust effect lasts up to 12 months in regular storage environments.

🏆 Our Advantages

01 Powerful R&D Ability

Technical center for pressure vessels with over 120 patents. Partnerships with leading universities and international classification societies.

02 Top Expert Team

Over 330 professional technical staff and 30 senior engineers. Active contributors to national standards for transportable pressure vessels.

03 Advanced Production Capacity

Equipped with 2000+ sets of machinery, including plasma cutters, welding robots, and 2000-ton press machines.

04 Scientific QA/QC System

Sound quality assurance with 111 control points and 243 procedures. Each product file is kept for over 20 years for weld traceability.

❓ Frequently Asked Questions

Q: What design standards do your LPG skid stations follow?

A: We provide units manufactured to both Chinese National Standards (GB) and International ASME Standards (SA-516) to meet global safety requirements.

Q: What is the typical lifespan of an LPG tank?

A: Our tanks are designed for a 20-year service life under normal operating conditions with proper maintenance.

Q: What safety equipment is included in the skid station?

A: Standard accessories include pressure gauges, thermometers, safety valves, gas leakage detection systems, and explosion-proof lighting and cabinets.

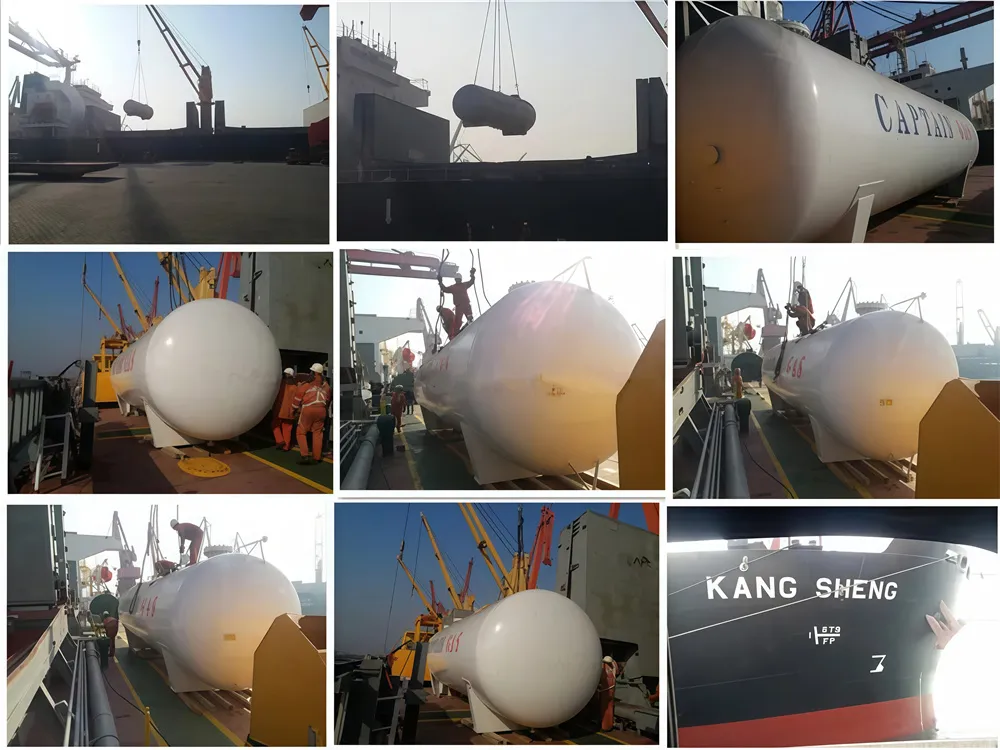

Q: How do you protect the tanks during sea transport?

A: We apply a 0.3mm industrial paraffin coating as an anti-rust treatment, which provides effective protection for up to 12 months.

Q: What materials are used for the tank construction?

A: We primarily use Q345R or Q370R carbon steel for national standards and ASME SA516/SA612 for international orders to ensure high pressure resistance.

Q: What is the delivery time for a standard 10-ton skid station?

A: Standard models can typically be delivered within one month from the time of order confirmation.
