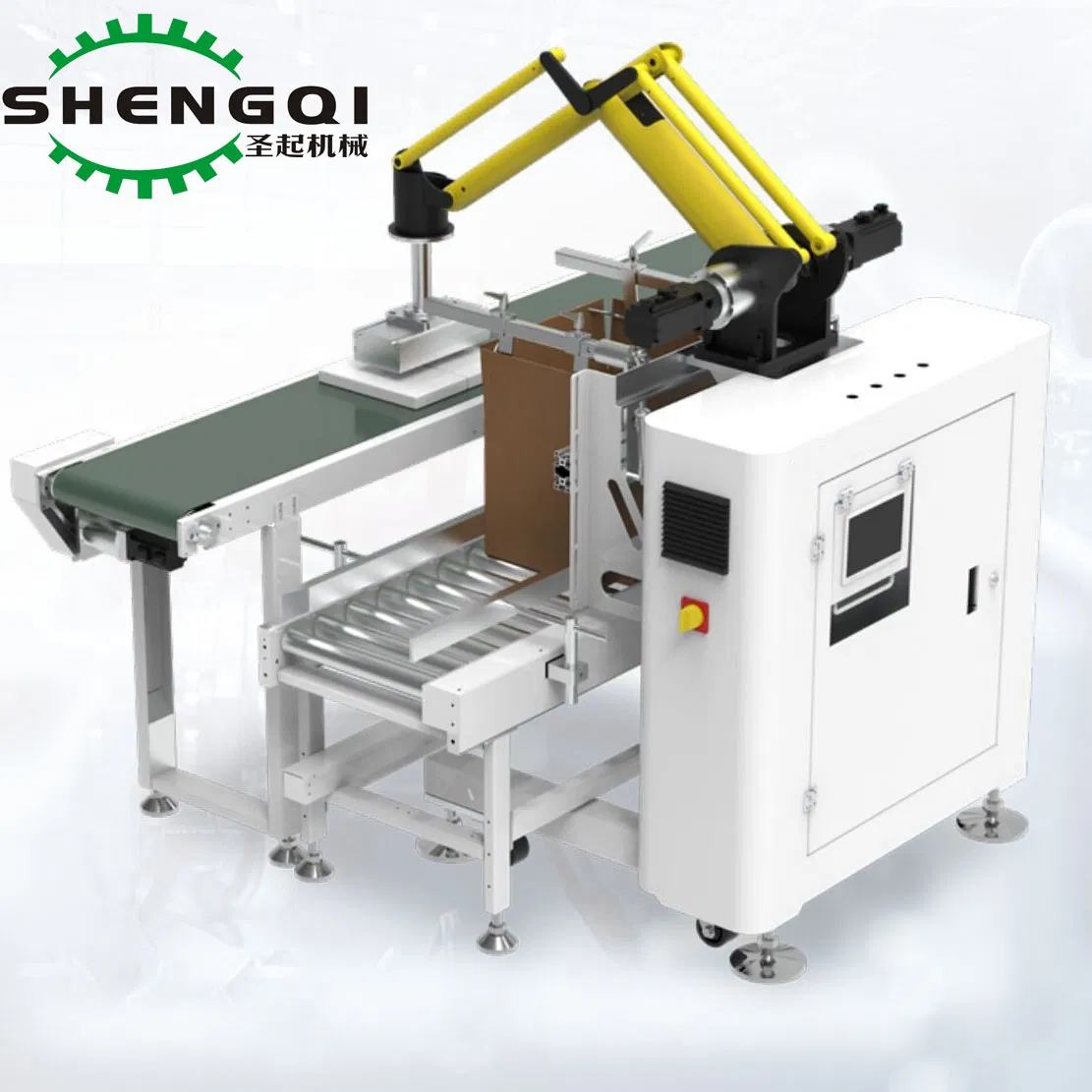

Small Plant Quick Operations Mobile Palletizing Work Station Robot Arm Technology
Small Plant Quick Operations Mobile Palletizing Work Station Robot Arm Technology
Small Plant Quick Operations Mobile Palletizing Work Station Robot Arm Technology
Small Plant Quick Operations Mobile Palletizing Work Station Robot Arm Technology
Small Plant Quick Operations Mobile Palletizing Work Station Robot Arm Technology
1 / 5
Small Plant Quick Operations Mobile Palletizing Work Station Robot Arm Technology
Small Plant Quick Operations Mobile Palletizing Work Station Robot Arm Technology
Small Plant Quick Operations Mobile Palletizing Work Station Robot Arm Technology
Small Plant Quick Operations Mobile Palletizing Work Station Robot Arm Technology
Small Plant Quick Operations Mobile Palletizing Work Station Robot Arm Technology

Small Plant Quick Operations Mobile Palletizing Work Station Robot Arm Technology

Customization: Available
Application: Palletizing
Control Mode: Point to Point Control
Send Inquiry

Product Description

i

Basic Information

Model NO.
SQP-20
Drive Mode
Electric
Axes
4
Accuracy
+/-0.08mm
Arm Length
3100mm
Condition
New
Certification
ISO, CE, RoHS
Safety Features
Collision Detection, Emergency Stop, Light Curtain, Safety Mat
Warranty
One Year
Transport Package
Wooden Case
P

Packaging & Delivery

Package Size
250.00cm * 150.00cm * 180.00cm
Package Gross Weight
500.000kg
D

Product Description

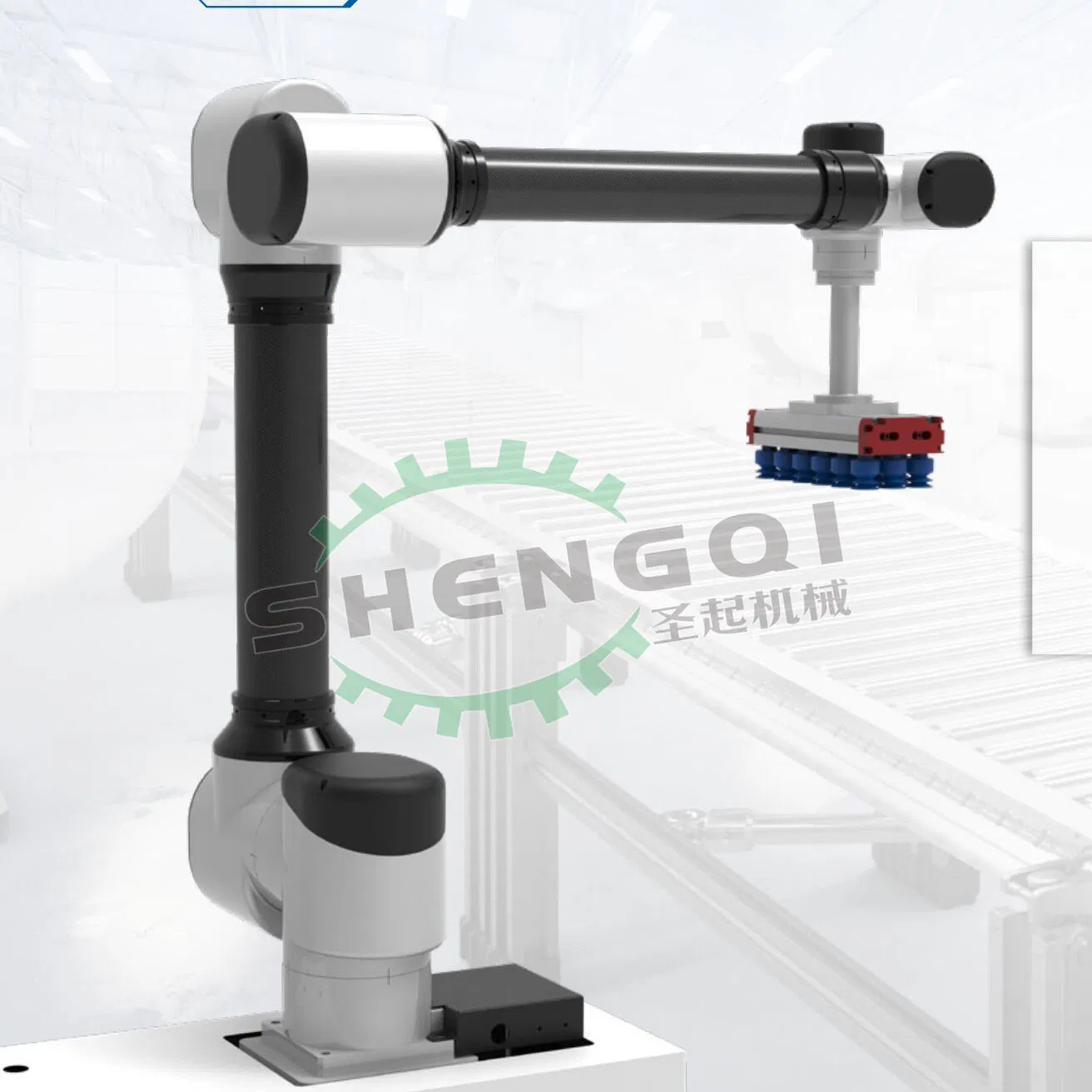

Small Plant Quick Operations Mobile Palletizing Work Station Robot Arm Technology

SQP-20 palletizing robot - man-machine collaboration features:

  • Simple operation: Supports various palletizing formulas, easy to learn and understand.
  • Efficiency: Low energy consumption and low operating cost.
  • Flexibility: Small footprint, can be moved at will.
  • Safety: Safe and convenient design, usable without guardrails.
T

Product Parameters

  • Equipment model: SQP-20
  • Design palletizing speed: 8-10 times/minute (depending on product)
  • Tray size: L1200mm-W1200mm-H150mm
  • Tray placement form: Manual, one left and one right
  • Robot load-bearing: Maximum 30kg with suction
  • Palletizing height: Maximum 2000mm, lifting column 600mm
  • External host size: Approx. 3410mm * 1700mm * 3100mm
  • Required workshop height: 2500mm + lifting height
  • Total palletizing power: 3KW
  • Power supply: 380V±10%, 50Hz±5% (DC 24V control)
  • Air source: 0.5 ~ 0.7Mpa, 200L/min
  • Weight: Approx. 600kg
  • Noise: <80 dB
  • Host color: Silver gray
V

Detailed Photos

Robot Arm Details
Work Station View
Mobile Palletizing Station
S

Technical Specification

Feature Details
ApplicationHandling, Stacking, Loading and unloading
Axes4
Payload12Kg
InstallationGround
Working Range1500mm
Positioning Repeatability±0.08mmm
Security LevelIP54
Weight165Kg
Capacitance1.6KVA

Motion Range & Speed

Axis Motion Range Max Speed
1-170°/+170°130°/S
2-125/+10°130°/S
3-95°/+10°150°/S
4-360°/+360°150°/S

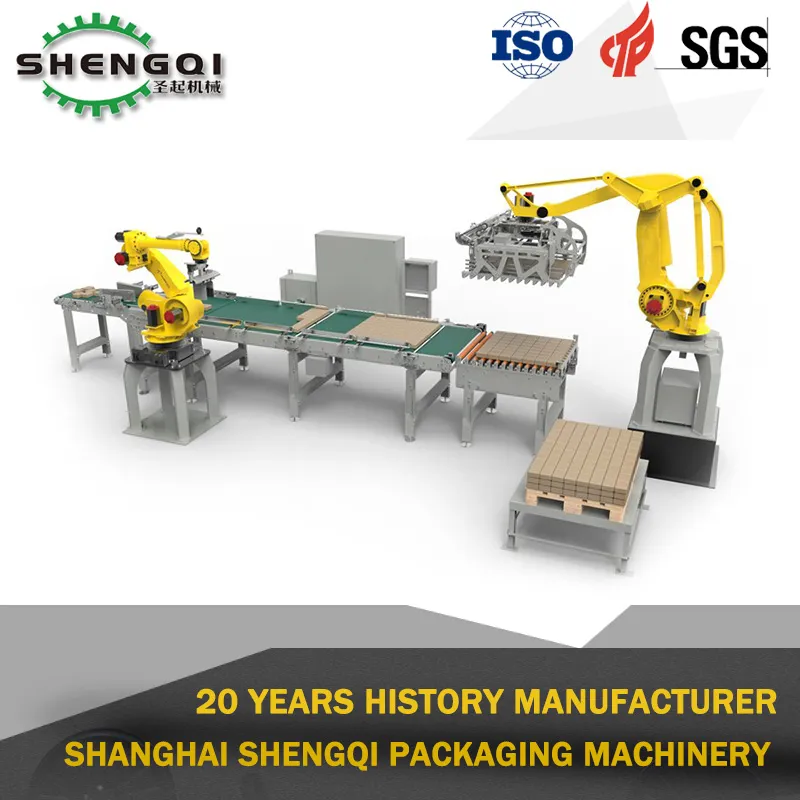

Robot Perspective

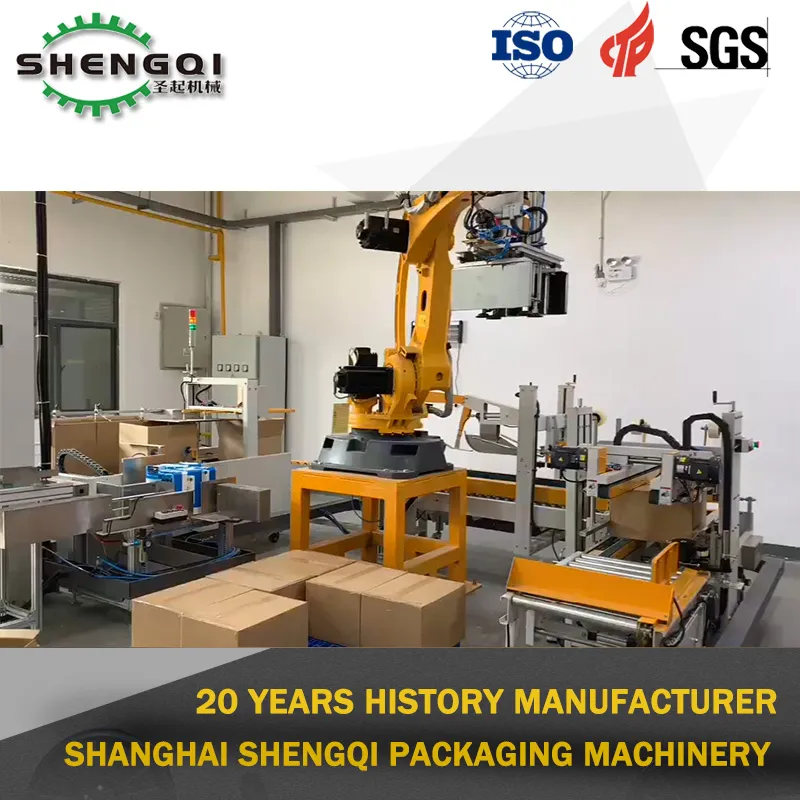

Work Process

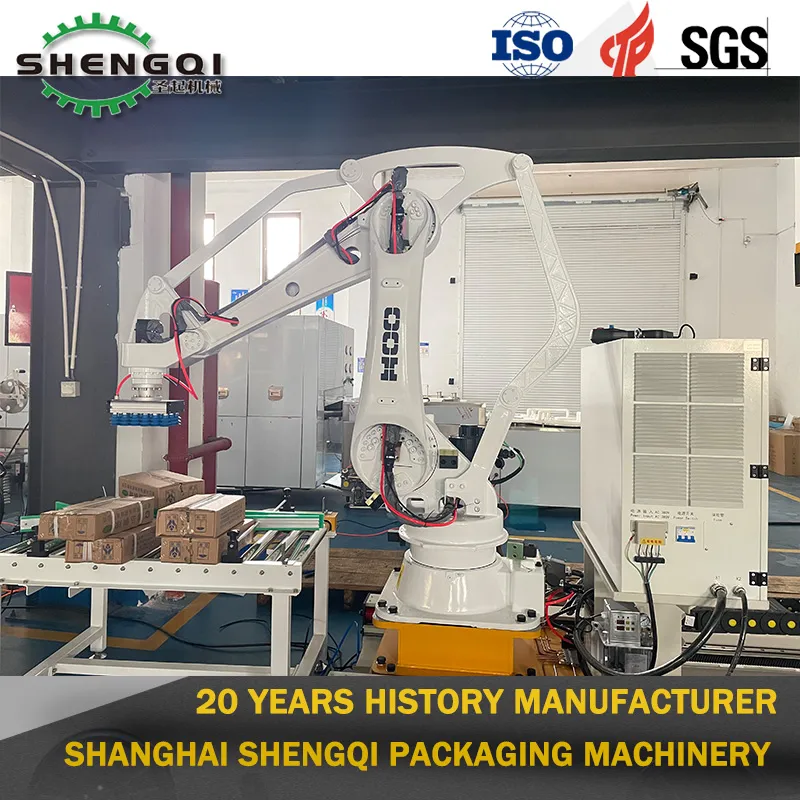

Control System
Application Scenario

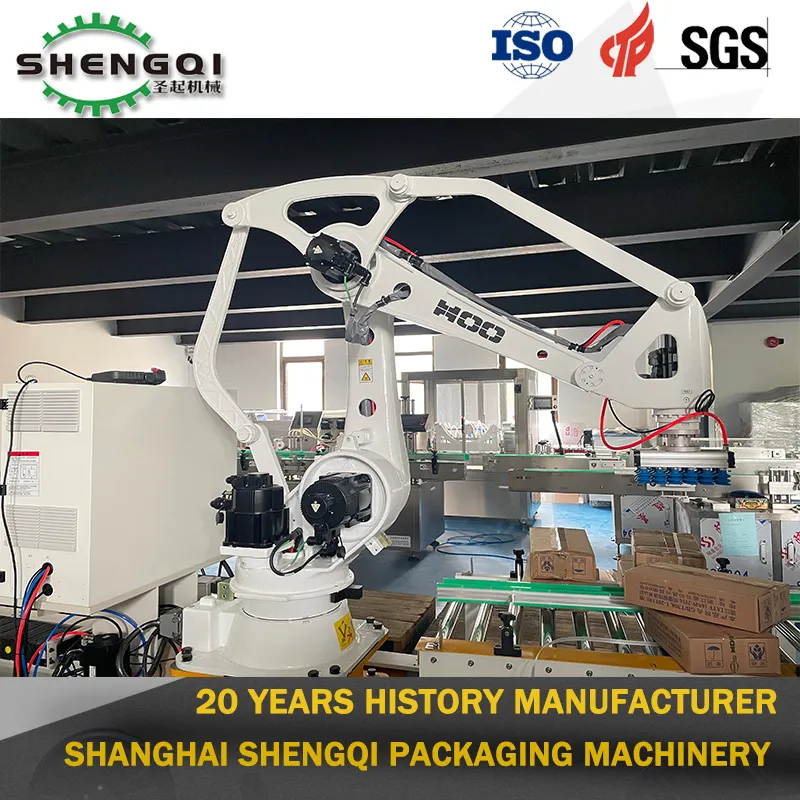

Operation Flow
Dimensional Drawing 1 Dimensional Drawing 2 Dimensional Drawing 3 Dimensional Drawing 4 Dimensional Drawing 5 Dimensional Drawing 6
?

Frequently Asked Questions

What is the maximum payload for the SQP-20 robot arm?
The SQP-20 palletizing robot can handle a maximum load of 30kg when using a suction gripper.
Does this robot station require safety guardrails?
No, the station is designed for man-machine collaboration and includes safety features like collision detection, safety light curtains, and safety mats, allowing it to operate without traditional guardrails.
What is the palletizing speed of the system?
The design palletizing speed is approximately 8-10 times per minute, depending on the specific product and configuration.
Is the SQP-20 portable or fixed?
The SQP-20 is a mobile palletizing work station with a small footprint, allowing it to be moved easily within a plant for flexible operation.
What is the positioning repeatability of the robot arm?
The robot arm features a high positioning repeatability of +/- 0.08mm, ensuring precise stacking and handling.
What kind of power supply is required?
The system requires a 380V±10% power supply at 50Hz±5%, with a total power consumption of approximately 3KW.
