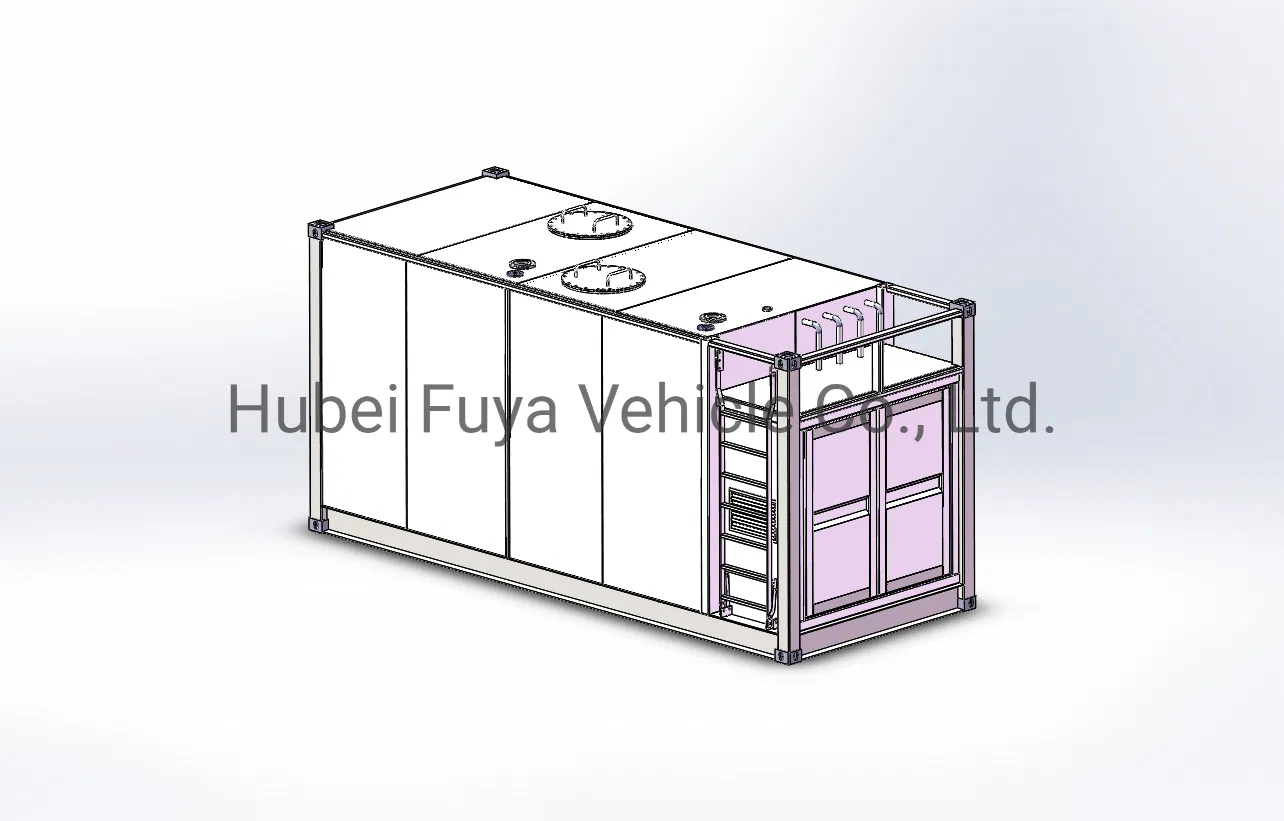

20 M3 30 M3 40 M3 Mobile Vehicle Oil Fuel Diesel Gasoline Refilling Skid Station
20 M3 30 M3 40 M3 Mobile Vehicle Oil Fuel Diesel Gasoline Refilling Skid Station
20 M3 30 M3 40 M3 Mobile Vehicle Oil Fuel Diesel Gasoline Refilling Skid Station
20 M3 30 M3 40 M3 Mobile Vehicle Oil Fuel Diesel Gasoline Refilling Skid Station
20 M3 30 M3 40 M3 Mobile Vehicle Oil Fuel Diesel Gasoline Refilling Skid Station
1 / 5
20 M3 30 M3 40 M3 Mobile Vehicle Oil Fuel Diesel Gasoline Refilling Skid Station
20 M3 30 M3 40 M3 Mobile Vehicle Oil Fuel Diesel Gasoline Refilling Skid Station
20 M3 30 M3 40 M3 Mobile Vehicle Oil Fuel Diesel Gasoline Refilling Skid Station
20 M3 30 M3 40 M3 Mobile Vehicle Oil Fuel Diesel Gasoline Refilling Skid Station
20 M3 30 M3 40 M3 Mobile Vehicle Oil Fuel Diesel Gasoline Refilling Skid Station

20 M3 30 M3 40 M3 Mobile Vehicle Oil Fuel Diesel Gasoline Refilling Skid Station

Customization: Available
After-sales Service: 7X24 Hours in Line
Warranty: 12 Months From The Delivery Date
Send Inquiry

Product Description

i

Basic Specifications

Function:Separation/Heat/Reaction Pressure Vessel, Fuel Filling
Application:Diesel/Petrol/Gasoline
Material:Carbon Steel
Pressure:0.1MPa≤p<1.6MPa (Low Pressure)
Storage Medium:Flammable/Toxic
Condition:New
Tank Capacity:5 to 20 Tons
Level Gauge:Auto Monitoring, Rochester Brand
★

Product Description

40FT/20FT FUEL filling skid plant with oil pump and Ex-motor, compressor, flow meter, load cell with digital display, remote monitoring device.

A containerized fuel station is a complete mini fuel refilling plant composed of an oil tank, pump, motor, filling machine, valves, and pipeline. It is ideal for limited land space and provides mobile vehicle refueling services.

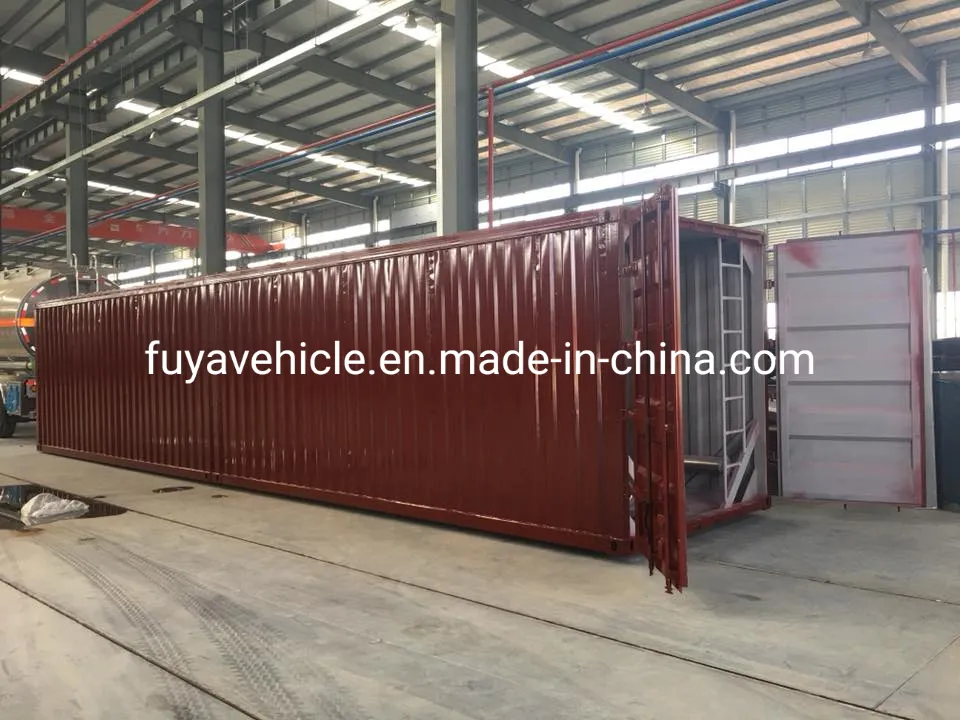

Fuel Refilling Skid Station

Key Features

  • Compatible with diesel and gasoline refilling for various vehicles/trucks.
  • Dual function: Truck discharging and cylinder refilling with one pump.
  • Digital filling dispenser with Auto Filling Cut-off and data record keeping.
  • High-quality motors: Static-free, 3-Phase (5.5KW to 10KW).
  • Explosion-proof central control panel and leakage detectors.
  • Steel pipeline with safety return valves and strainers.
📋

Technical Data

Item Description Specifications
Filling MediumPetrol/DieselInner: Carbon steel / Outer: FRP
Tank Volume20,000LDiameter: 2.2m | Length: 5.89m
Tank Weight2680kgDouble Wall Construction
Wall ThicknessInner: 6mm / Outer: 4mmCorrosion allowance: 1.0mm
Manhole1 * DN550Material: FRP/Composite
Component Specification Qty
Fuel Dispenser Two nozzles, Flow rate: 0-60L/min, 220V 2
Leak Detector Accuracy <3mm, Respond Time <2s, ExiaIIBT4 Ga 1
Level Gauge Measuring range: 200mm-7000mm, Accuracy: ±0.5mm 2
Tank Valves Inlet, Outlet, Filter, Return, Vent, Level gauge valves 2 sets
🖼

Product Gallery

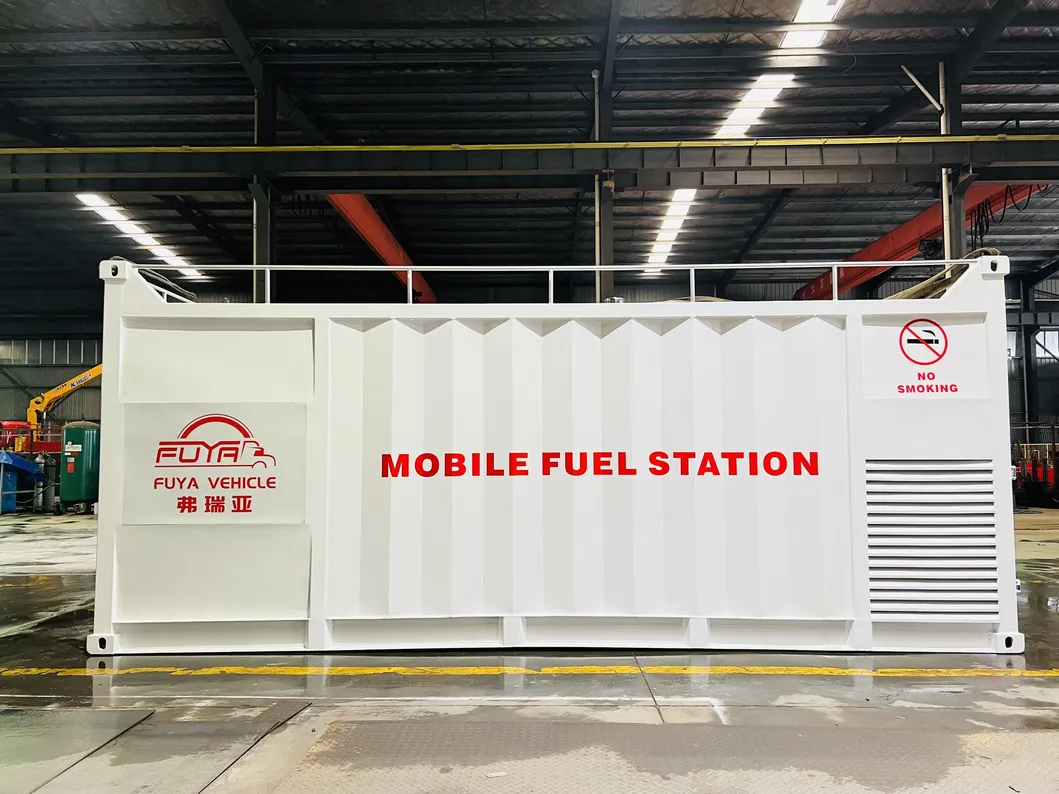

Mobile Station View 1

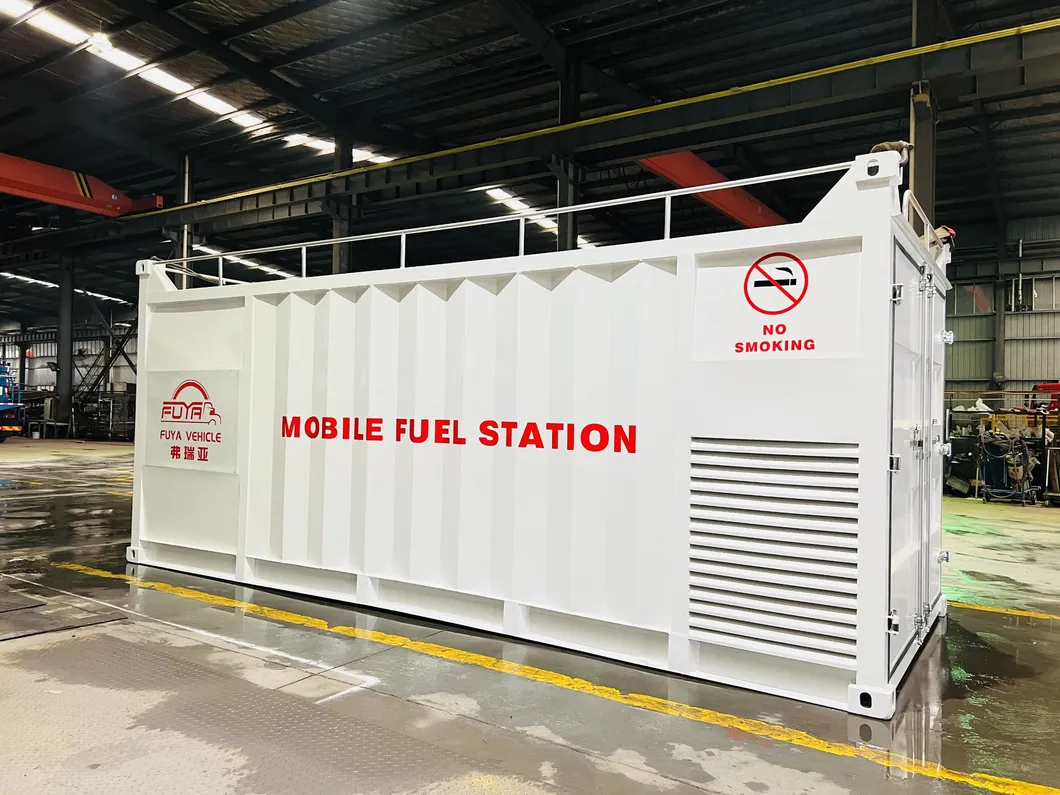

Mobile Station View 2

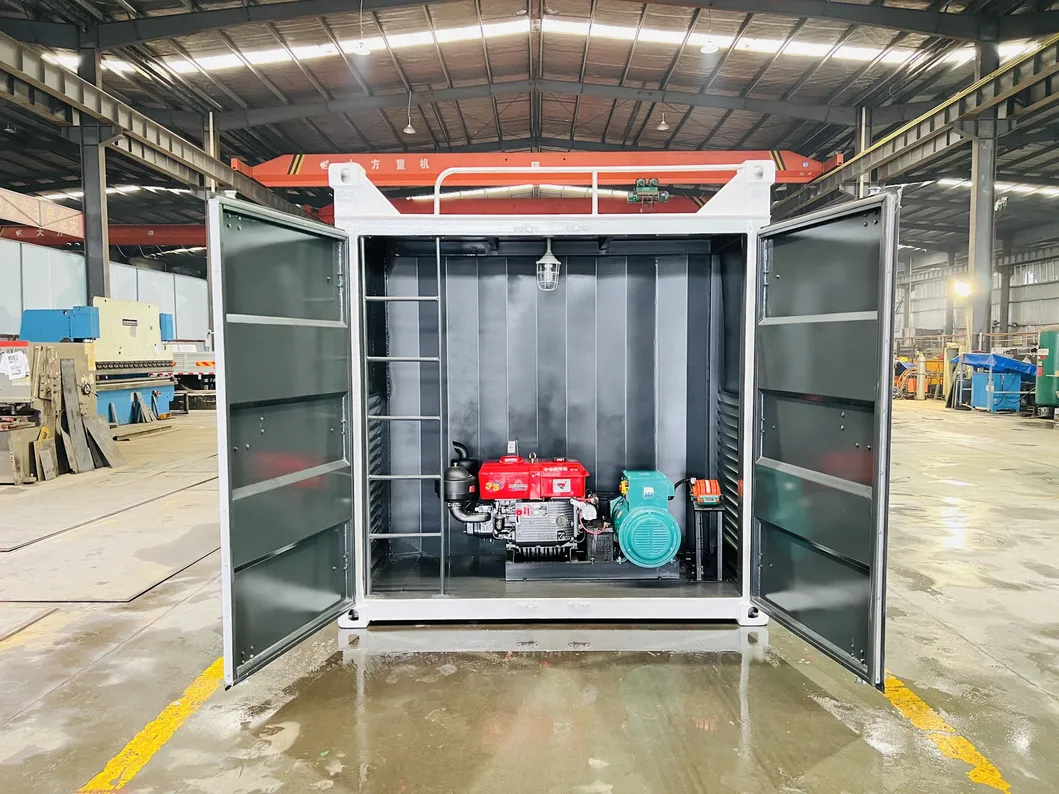

Mobile Station View 3

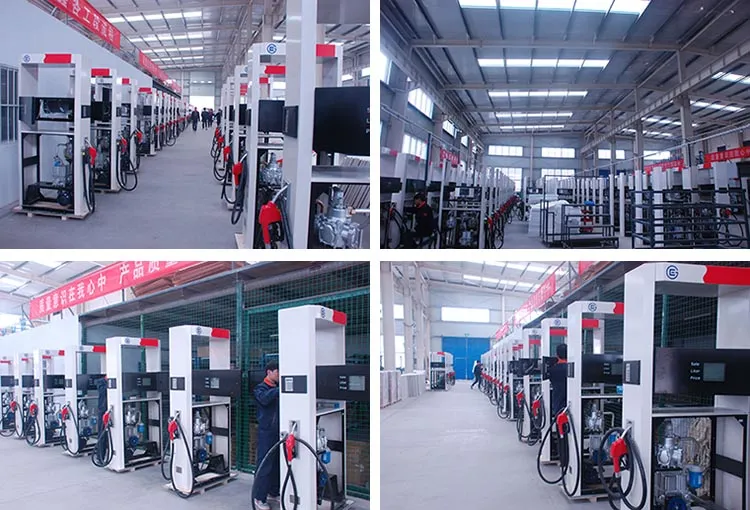

Component Detail 1

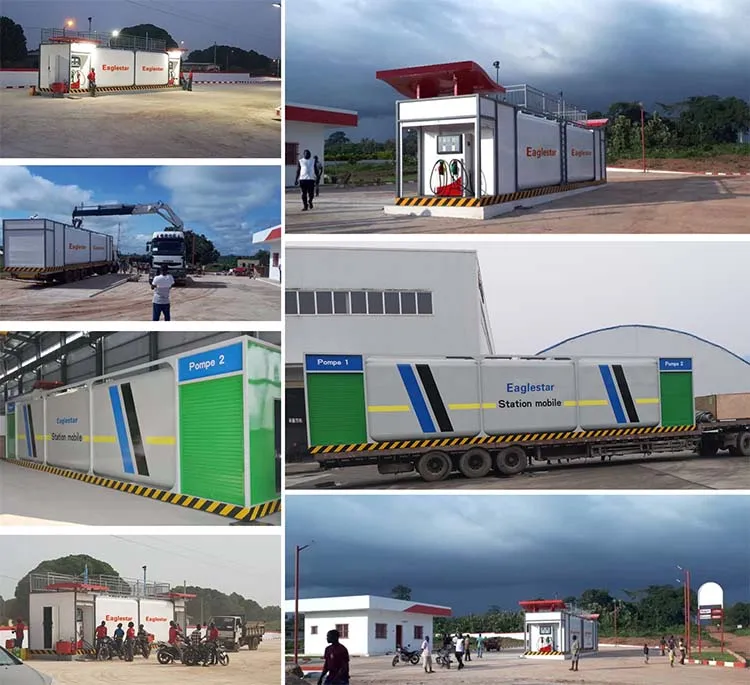

Component Detail 2
✔

Our Advantages

  • Competitive Price with Top Quality Materials.
  • Over 10 years of manufacturing and export experience.
  • Full certification including CCC, ISO, and BV.
  • Customized product solutions tailored to specific needs.
  • Exporting to over 50 countries and regions worldwide.
  • Professional engineering support and reliable after-sales service.
📦

Packaging & Shipping

  • Protection: Naked or waxed before boarding.
  • Transport: Shipped via RORO or Bulk ship.
  • Timeline: Delivery within 30-70 working days based on order specifics.
Shipping and Warranty
?

Frequently Asked Questions

1. What fuel types can the refilling skid station handle?
The station is specifically designed to handle Diesel, Petrol, and Gasoline for various vehicles and machinery.
2. What is the material construction of the storage tank?
The unit features a double-wall design: the inner tank is made of high-grade carbon steel, and the outer layer is FRP (Fiber Reinforced Plastic) for enhanced durability and safety.
3. Does the system include explosion-proof features?
Yes, the station is equipped with an explosion-proof central control panel, Ex-motors, and static-free components to ensure safe operation in flammable environments.
4. What is the standard warranty period for this equipment?
We provide a one-year quality guarantee covering three key components: the axles, engine, and transmission system.
5. What are the capacity options available for the skid station?
We offer multiple loading capacities including 5 tons, 7.5 tons, 10 tons, 15 tons, and 20 tons to meet different operational requirements.
6. How is the product delivered and what is the lead time?
The units are shipped via RORO or Bulk shipment. The typical delivery time is between 35 to 70 working days after payment confirmation.
