Customization: Available
After-sales Service: 7X24 Hours in Line
Warranty: 12 Months From The Delivery Date
Send Inquiry

Product Description

Basic Specifications

Model NO.
20/40ft container station
Function
Separation/Heat/Reaction Pressure Vessel, Fuel Station Filling
Application
Diesel/Petrol/Gasoline
Material
Carbon Steel
Pressure
0.1MPa≤p<1.6MPa
Storage Medium
Flammable/Toxic
Pressure Level
Low Pressure (0.1MPa≤p<1.6MPa)
Condition
New
Option
Fuel Dispenser, Flow Meter
Optional Machine
Compressor, Corken Pump, Blackmer
Filling Model
Diesel/Gasoline Truck/Car
Type
Fuel Refilling Skid Station
Tank Capacity
5 to 20 Tons
Level Gauge
Rochester Brand, Auto Monitoring, Roto Type

Product Overview

40FT 20FT FUEL filling skid plant equipped with oil pump, Ex-motor, compressor, flow meter, load cell with digital display, and remote monitoring device. These units range from 15,000 to 20,000 Liters (7.5 - 10 Tons) providing a complete mini fuel station solution.

Fuel Refilling Skid Station

📌 Key Features

✓
Multi-Functional: Designed for diesel and gasoline refilling for cars, trucks, and industrial machinery.
✓
Dual Functionality: Supports both truck discharging and cylinder refilling with a single high-efficiency pump.
✓
Digital Precision: Features digital filling dispenser with auto cut-off and comprehensive record keeping.
✓
Premium Motors: Equipped with ABB or SIEMENS static-free motors (380V, 3 Phase, 5.5KW to 10KW).
✓
Safety First: Includes explosive-proof central control panels, leakage detectors, and safety return valves.

Technical Parameters

Item Description Details
ModelJSMS2020,000L Volume
MediumPetrol / DieselFlammable storage compatible
MaterialCarbon Steel (Inner)FRP (Outer) - Double Wall
DimensionsDiameter * Length2.2m * 5.89m
WeightTank Weight2680kg
ThicknessBody ThicknessInner: 6mm / Outer: 4mm
CorrosionAllowance1.0mm
ManholeStandard1 * DN550 manhole

Component Specifications

Component Specification Details Qty
Fuel Dispenser 2 nozzles, 1 pump, flow rate 0-60L/min, 220V, 4m Hose 2
Leak Detector Accuracy <3mm, Response <2s, ExiaIIBT4 Ga Certified 1
Level Gauge Digital display, accuracy ±0.5mm, measuring range up to 7000mm 2
Tank Valves Inlet, Outlet, Filter, Return, Vent, and Level Gauge valves 2 Sets

Core Advantages

★
Competitive Pricing with premium quality manufacturing.
★
Over 10 years of professional manufacturing experience.
★
CCC, ISO, and BV certified production standards.
★
Customized product solutions tailored to specific project needs.
★
Robust export experience to over 50 countries worldwide.

Packaging & Logistics

Units are typically shipped Naked or Waxed before boarding to prevent corrosion. Delivery is executed via RORO or Bulk shipment methods. Standard delivery time is approximately 30-35 working days post-deposit.

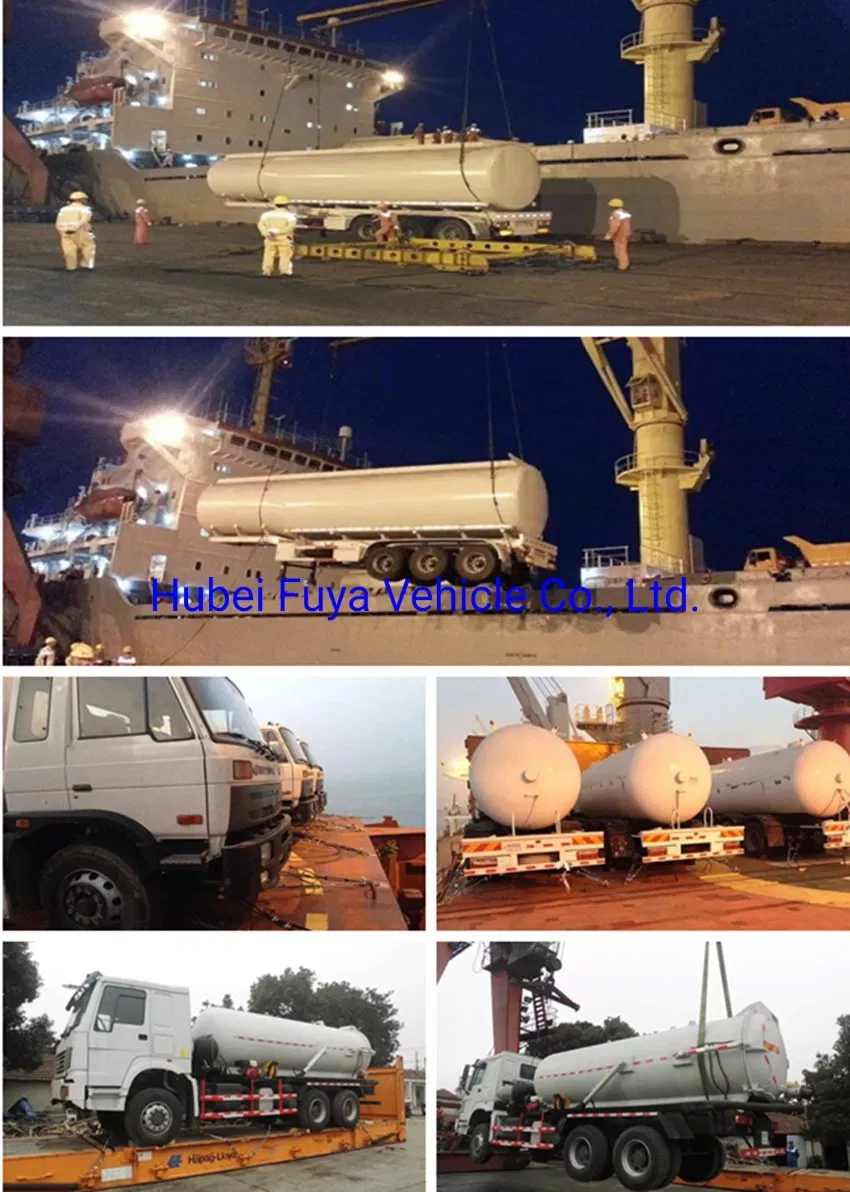

Shipping and Packaging

Frequently Asked Questions

What is the quality guarantee for these fuel stations?
We offer a one-year quality guarantee for key components including axles, engine, and transmission, with a total expected service life of 10-20 years.
Can you provide ISO9001 and other export certifications?
Yes, we provide full qualification for exporting including ISO9001 and other required certificates for markets in Africa, Russia, and South America.
What are the available payment terms?
Typically, we require a 30%-50% deposit after order confirmation, with the balance paid via T/T or L/C before delivery.
What is the standard delivery timeframe?
Standard production and delivery take between 35 to 70 working days depending on the customization requirements.
Do you provide technical support for international clients?
Yes, we provide email and telephone assistance. For large orders, we can dispatch engineers for on-site technical assistance.
Can the tank size be customized?
Yes, we offer various loading capacities including 5 tons, 7.5 tons, 10 tons, 15 tons, and 20 tons to meet your specific needs.
