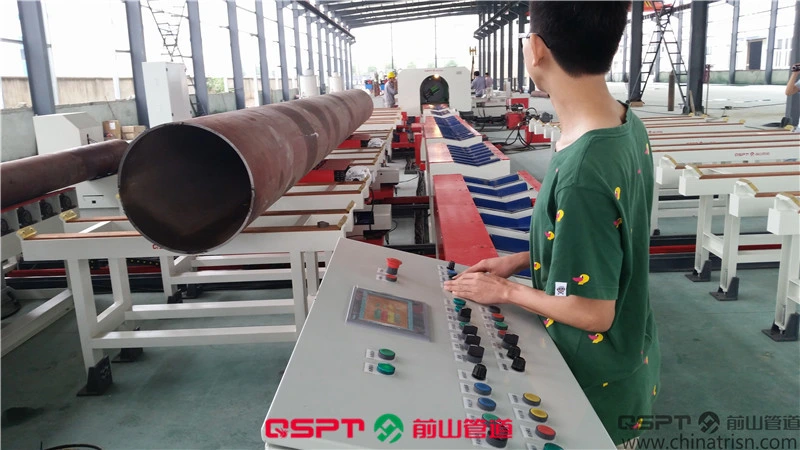

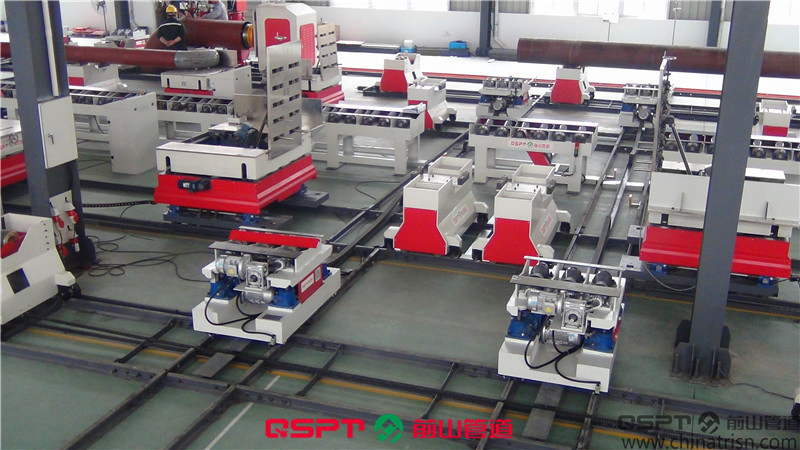

Pipe Prefabrication Heavy Rail Conveying System
Pipe Prefabrication Heavy Rail Conveying System
Pipe Prefabrication Heavy Rail Conveying System
Pipe Prefabrication Heavy Rail Conveying System
Pipe Prefabrication Heavy Rail Conveying System
1 / 5
Pipe Prefabrication Heavy Rail Conveying System
Pipe Prefabrication Heavy Rail Conveying System
Pipe Prefabrication Heavy Rail Conveying System
Pipe Prefabrication Heavy Rail Conveying System
Pipe Prefabrication Heavy Rail Conveying System

Pipe Prefabrication Heavy Rail Conveying System

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

📊 Basic Information
Model NO.
PPHTS-10T2
Structure
Roller Conveyor
Material
Alloy/Carbon Steel
Material Feature
Fire Resistant
Application
Mining Transport
Condition
New
Structure (Chain)
Roller Chain
Usage
Transportation Chain
Color
Solid Color
Production Capacity
30 Sets
⚙️ Product Description

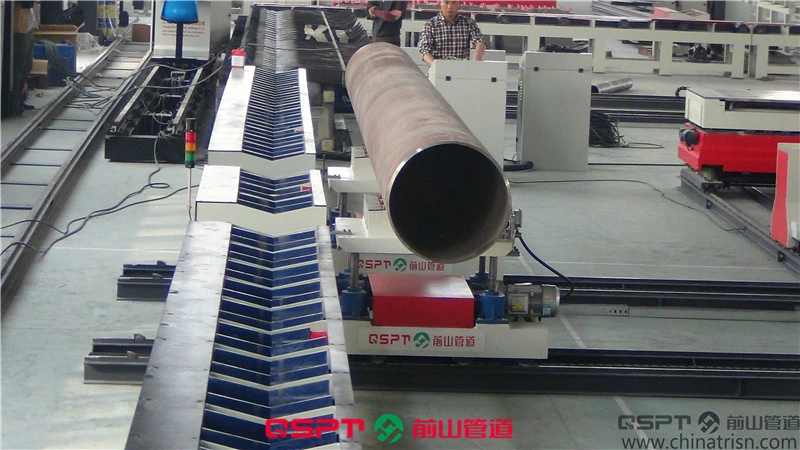

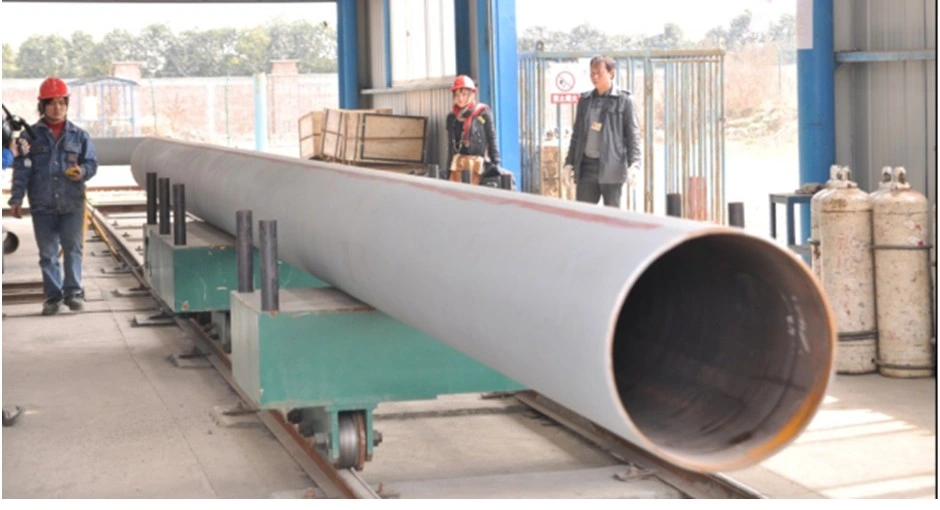

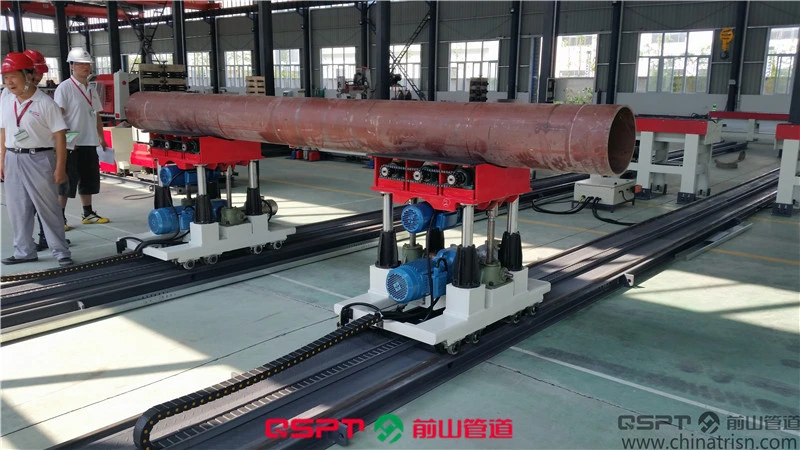

Pipe Prefabrication Heavy Rail Conveying System
Models: PPHTS-10T2; PPHTS-10T1

Performance Features:

  • Automated conveying of pipes or spool pieces between workstages and workstations.
  • Integrated turning mechanism for easy pipe removal when necessary.
  • Significantly increases automation levels in pipe fabricating plants.
  • Decreases operational hazards associated with manual hoisting.

Technical Parameters:

Description Details
Pipe diameter applicable DN50~600 (φ 60~610)
Conveying length ≤ 12000MM (Customizable)
Line length 50M (Customizable)
Line height 800MM
Conveying speed 2~20M/Min
Conveying way Carriage movement along rail (Automatic)
Driven system Storage battery AC motor
Control system Wire control / Wireless remote control
Loading weight 10 Tons
🖼️ Product Display
Pipe Prefabrication Heavy Rail Conveying System 1
Pipe Prefabrication Heavy Rail Conveying System 2
Pipe Prefabrication Heavy Rail Conveying System 3
Pipe Prefabrication Heavy Rail Conveying System 4
Pipe Prefabrication Heavy Rail Conveying System 5
🏢 Profile & Service

We are a professional manufacturing company specializing in pipe fabrication machinery, including pipe beveling/chamfering machines, welding equipment, fitting-up systems, and intelligent pipe warehouses. Our solutions are widely utilized in oil & gas, petrochemical, marine engineering, nuclear energy, and shipbuilding industries globally.

After-Sales Commitment:

  • Aim: Standing in the customers' shoes to provide optimal solutions.
  • Standard: Client satisfaction is our baseline for success.
  • Service: Professional, comprehensive, and detailed site support.
  • Promise: Quick and efficient resolution of all technical issues.
❓ Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a factory-based trading company, ensuring direct manufacturing quality control and professional export services.
What is the typical delivery time for the conveying system?
Generally, it is 30-40 days if the goods are in stock. For custom or non-stock items, it typically takes 60-80 days depending on the quantity and specifications.
What are your standard payment terms?
For orders over 1000USD, we require 40% T/T in advance, with the balance paid before shipment.
What pipe diameters can this system handle?
The system is designed for pipe diameters ranging from DN50 to DN600 (φ 60~610mm).
What is the maximum loading capacity of the heavy rail system?
The system is engineered to handle a loading weight of up to 10 Tons.
How is the conveying system controlled?
The system supports both wire control and wireless remote control for flexible and safe operation.
