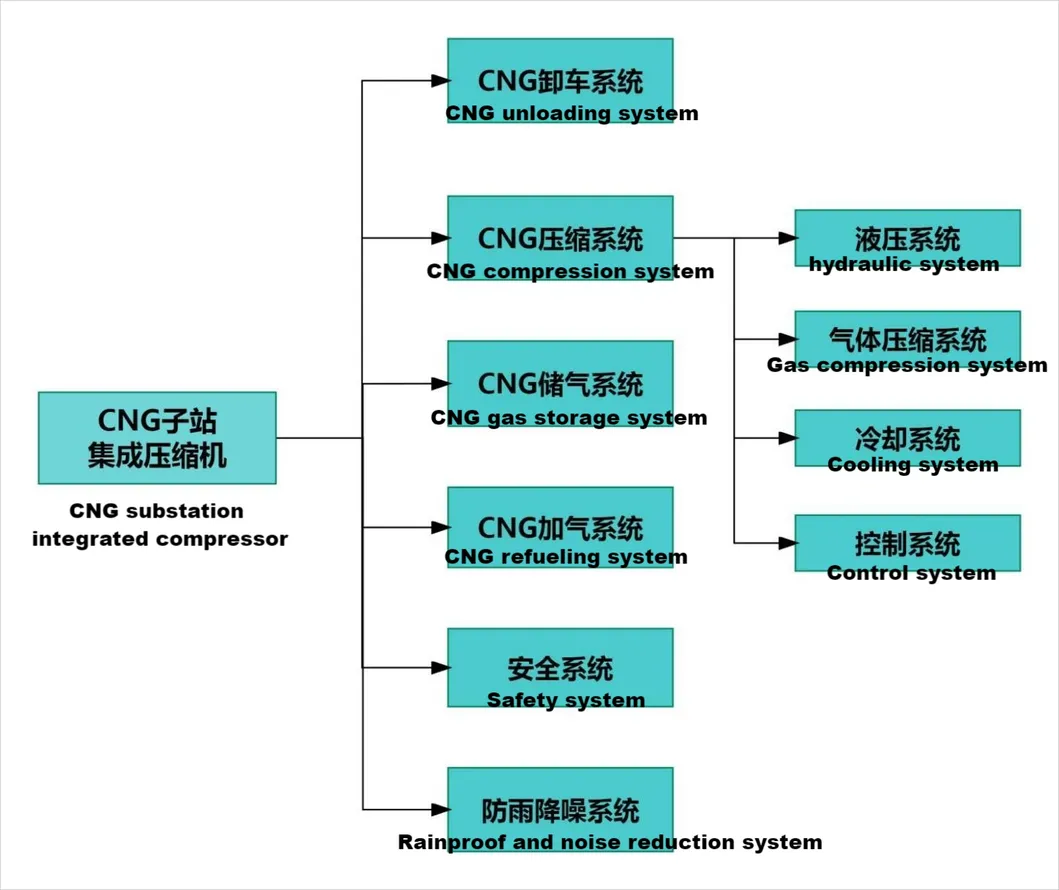

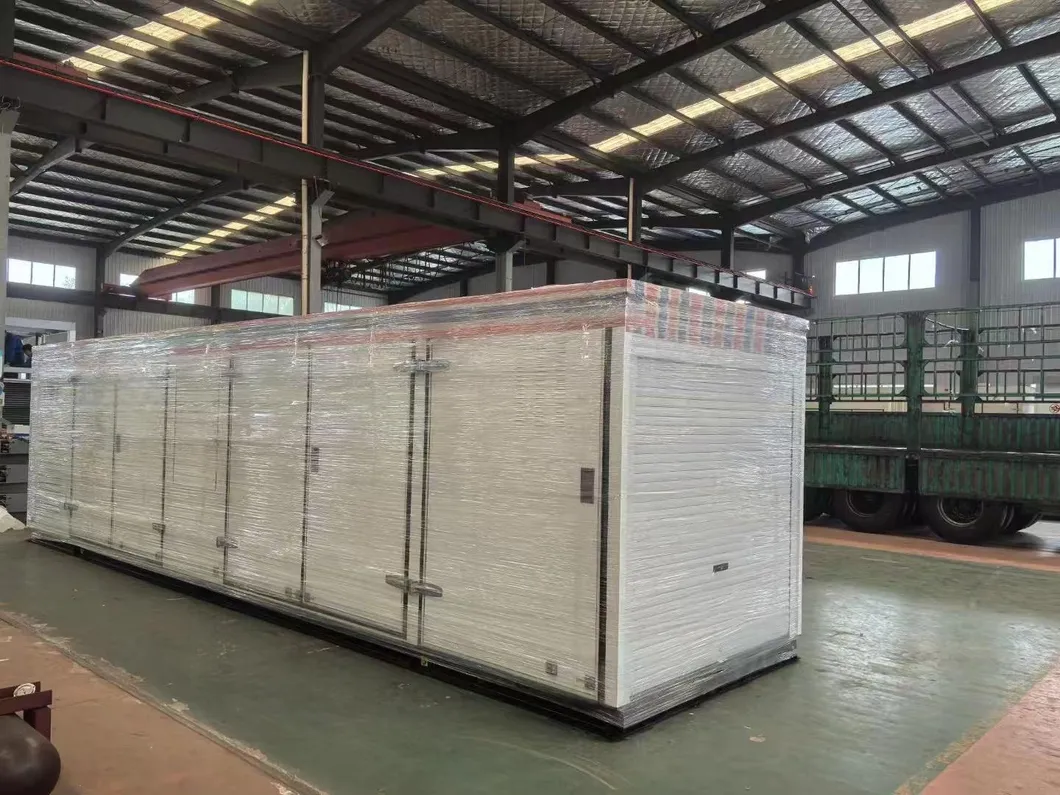

The CNG substation integrated compressor consists of main units such as the gas unloading column, gas filter, compressor, oil and gas cooling system, gas cylinder group, and gas dispenser. These are integrated into a rainproof and noise-reducing box through valve pipes. The compressor adopts a hydraulic reciprocating double-acting force structure design and is equipped with a piston position sensing system.
The motor drives the hydraulic oil pump to supply oil, and the integrated reversing system allows the hydraulic oil to continuously push the piston to reciprocate to compress the natural gas. The compressor adopts a two-stage compression form, cooled by water circulation and air cooling. It uses a PLC control cabinet for fully automatic control, offering high automation, simple operation, safe operation, and convenient maintenance. The unit is skid-mounted and supports a completely unattended mode.

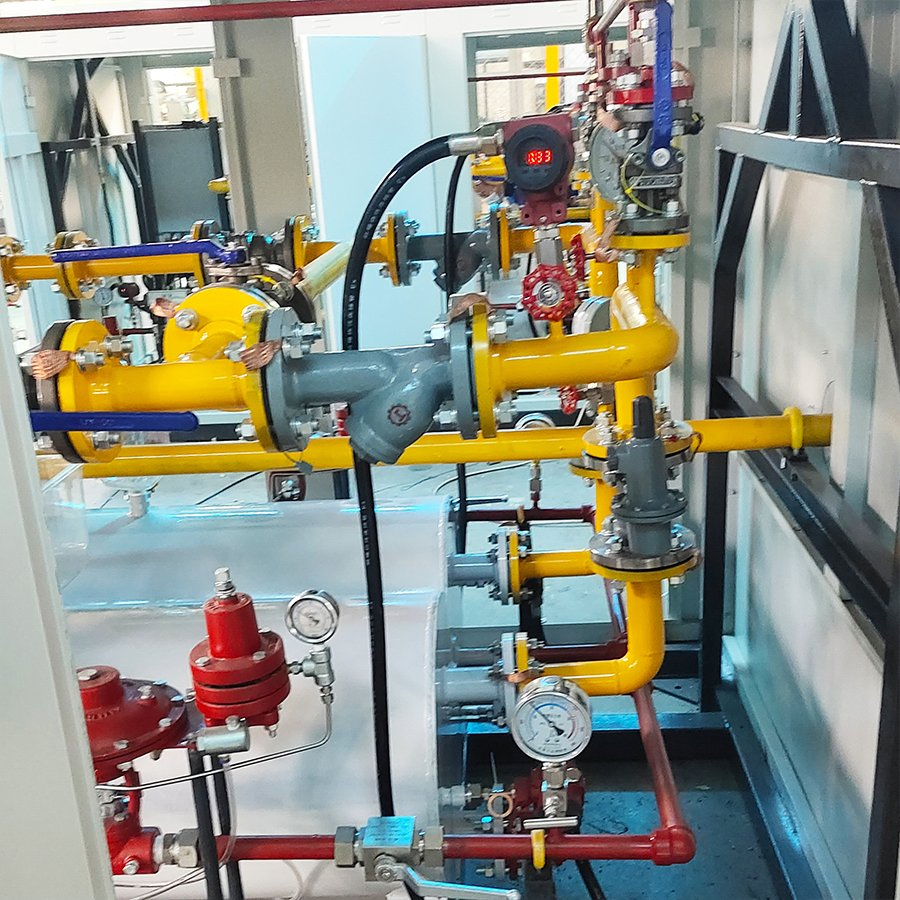

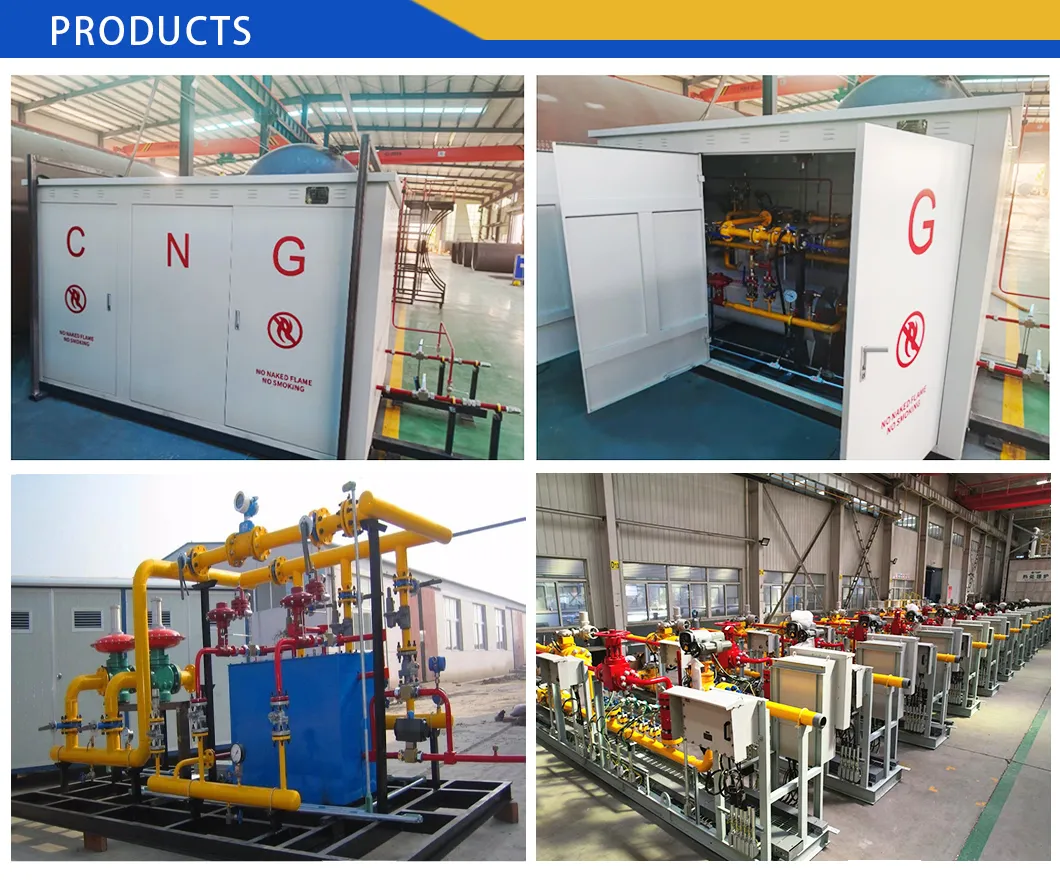

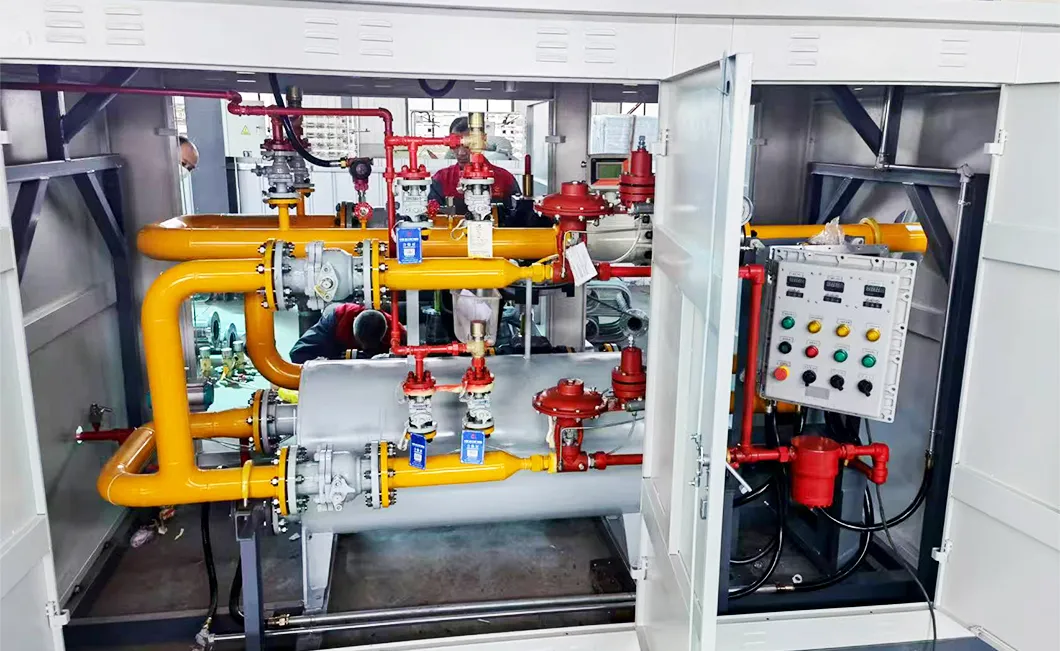

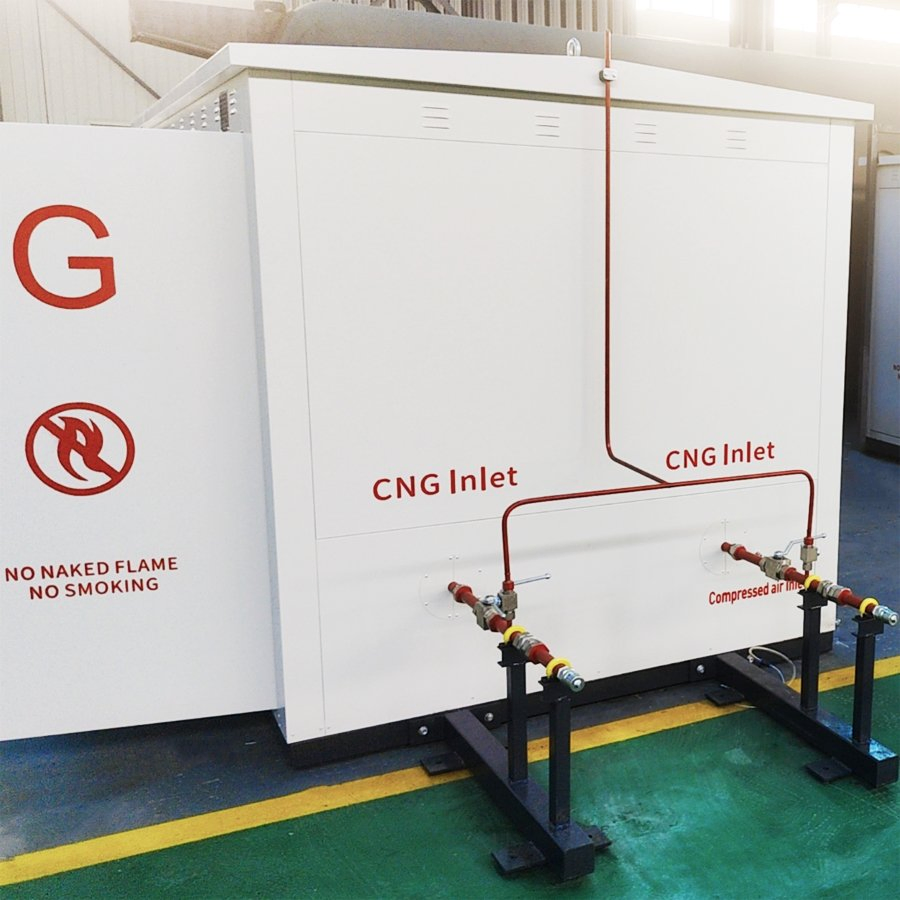

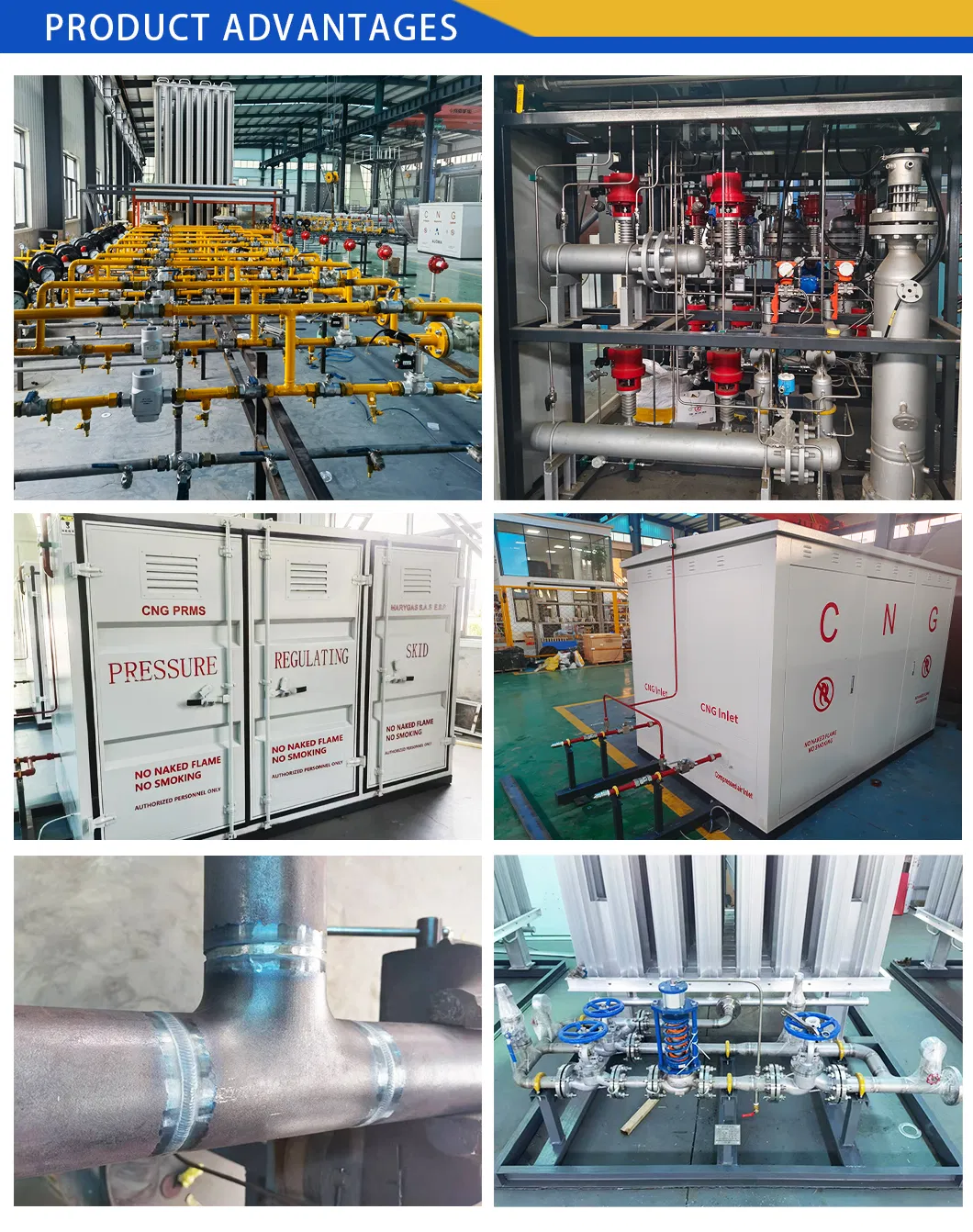

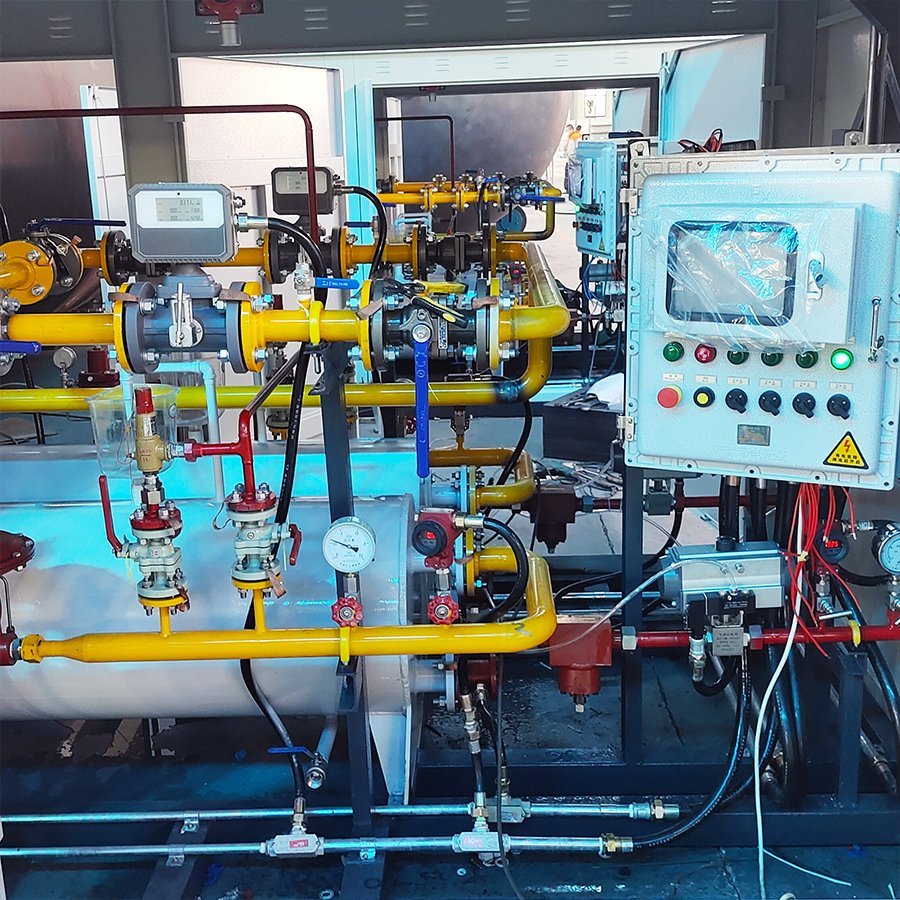

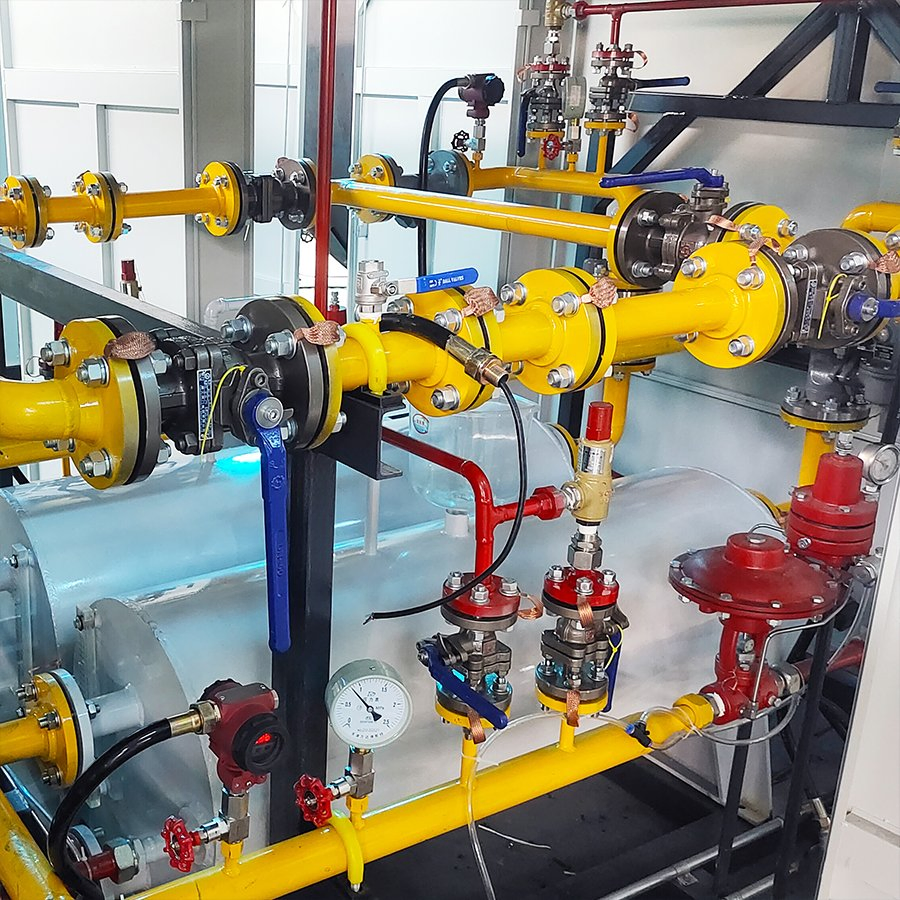

This series of pressure-regulating boxes is primarily designed for medium and low-pressure gas transmission and distribution systems. Each unit includes a filter, pressure regulator (with self-shutoff and release functions), ball valve, pressure gauge, and enclosure. The box features a compact structure, easy maintenance, and reliable safety performance. It is suitable for civil buildings, apartment complexes, hotels, and restaurants. The enclosure is manufactured from stainless steel, spray-coated cold-rolled steel, or fiberglass.
| Structural mode | Two-stage pressure regulation, overall skid-mounted |
| Rated gas supply | 1000m³/h |
| Inlet pressure | 25MPa |
| Outlet pressure | 0.2-0.4MPa |
| Heat exchange temperature | 60-75ºC |
| Outlet temperature | ≥-5ºC |
| Alarm mode | Sound and light dual alarm |
| Medium | Compressed natural gas |

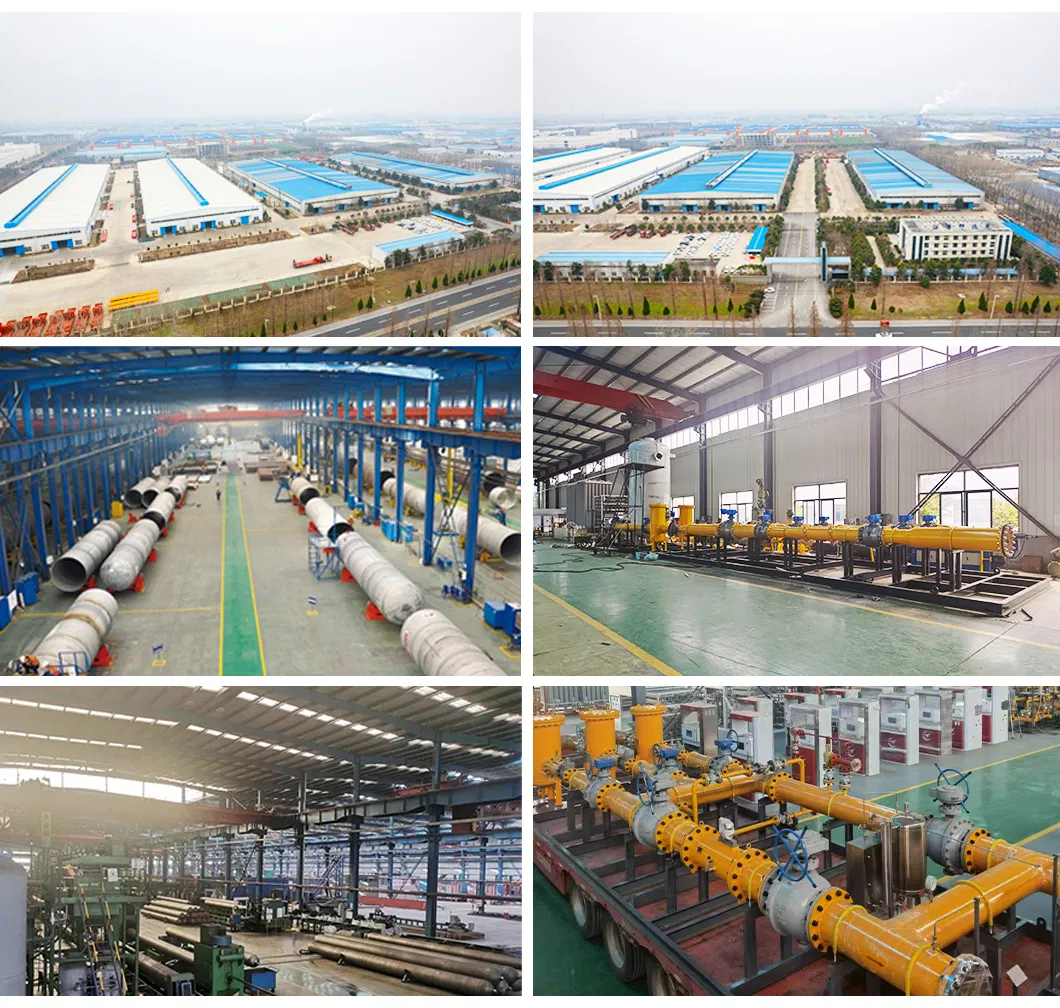

As a professional gas equipment manufacturer, we are committed to innovation and quality standards. With over 20 years of export experience, we ensure products meet international requirements through strict supervision of every detail. Our technical force and advanced manufacturing technology provide a solid quality assurance for all products.
Our products have passed ISO9001, 14001, and CE certificates. We also provide relevant certifications that meet specific national requirements.
