| Certification | ISO, CE |
|---|---|
| Temperature | Ordinary Temperature (-20℃±60℃) |
| Connection | Flange |
| Structure | Container / Skid-Mounted |
| Material | Stainless Steel |
| Product Type | RMS / Gas Pressure Reducing Skid |
| Storage Medium | CNG, LNG, Natural Gas |
| Flowrate | 120-15000nm³/h |
| Inlet Pressure | ≥250 Barg |
| Main Components | Filter, Regulator, Heater, Meter, Valves |
| Specs | DN50, DN80, DN100, DN150 |

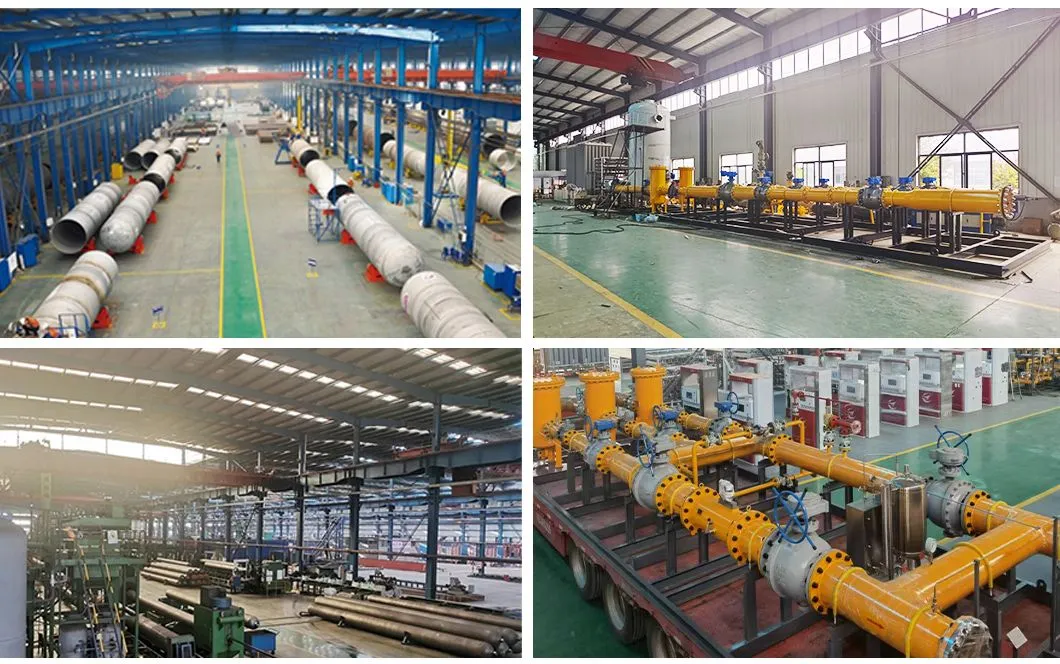

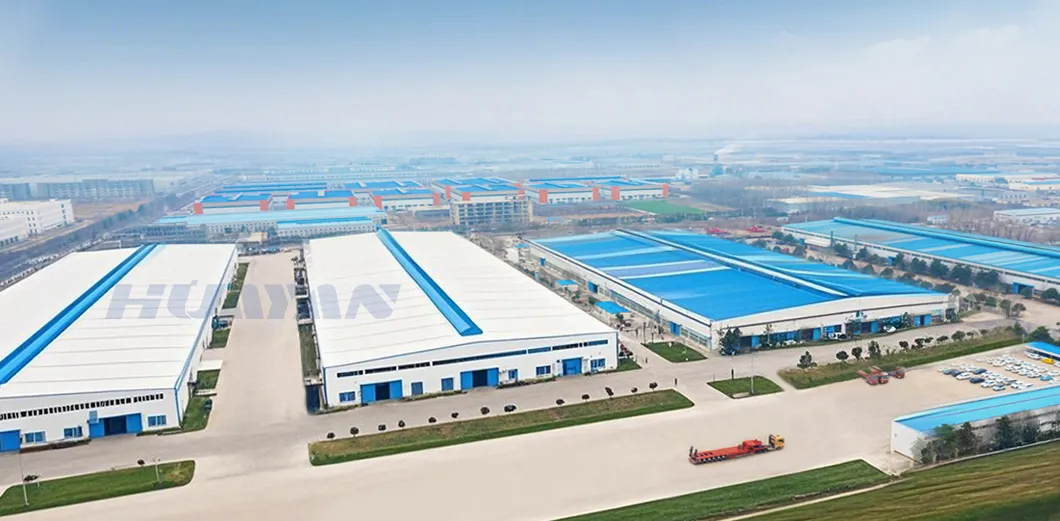

Established in 2005, our company is a leading integrated transportation solution provider integrating R&D, production, and trade. Covering an area of 222,000 square meters, we utilize advanced automation equipment, a professional R&D team, and cutting-edge manufacturing technology to provide high-quality special transportation equipment.

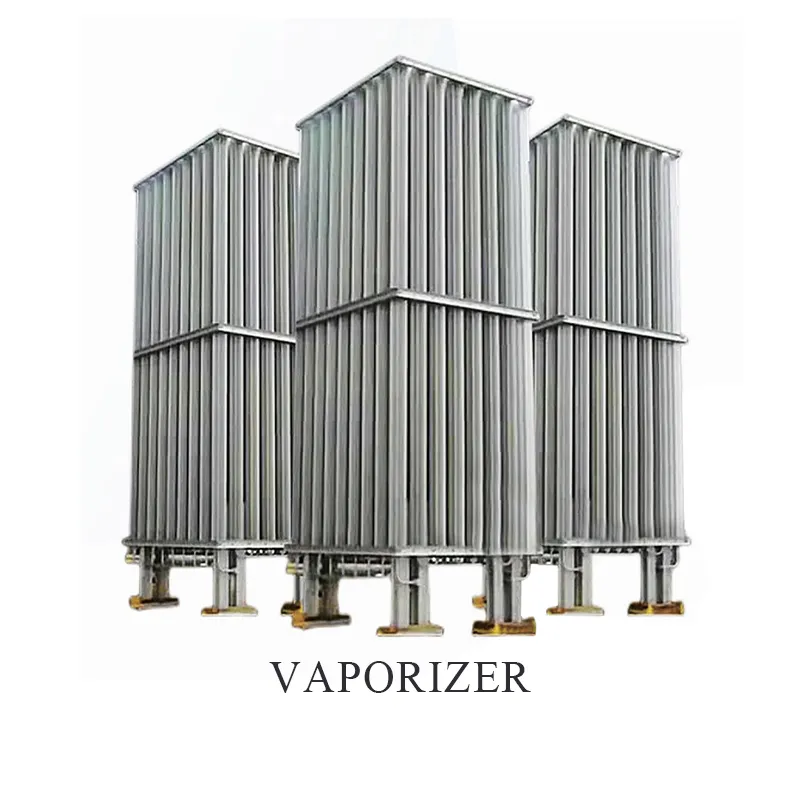

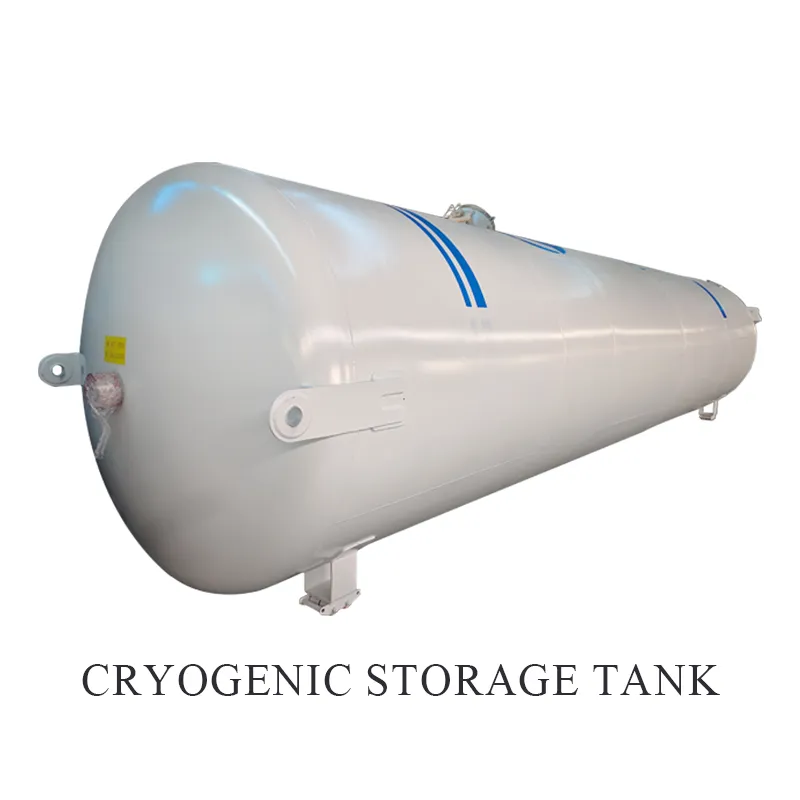

Our core offerings include gas equipment (pressure reduction skids, cryogenic storage tanks, gasifiers), hydraulic modular trailers, gas pipeline slide container trailers, and a full range of semi-trailers for energy and hazardous chemical transportation. With more than 20 years of export experience serving over 30 countries, we ensure compliance with global technical standards including ISO9001, ASME, and ADR certifications.

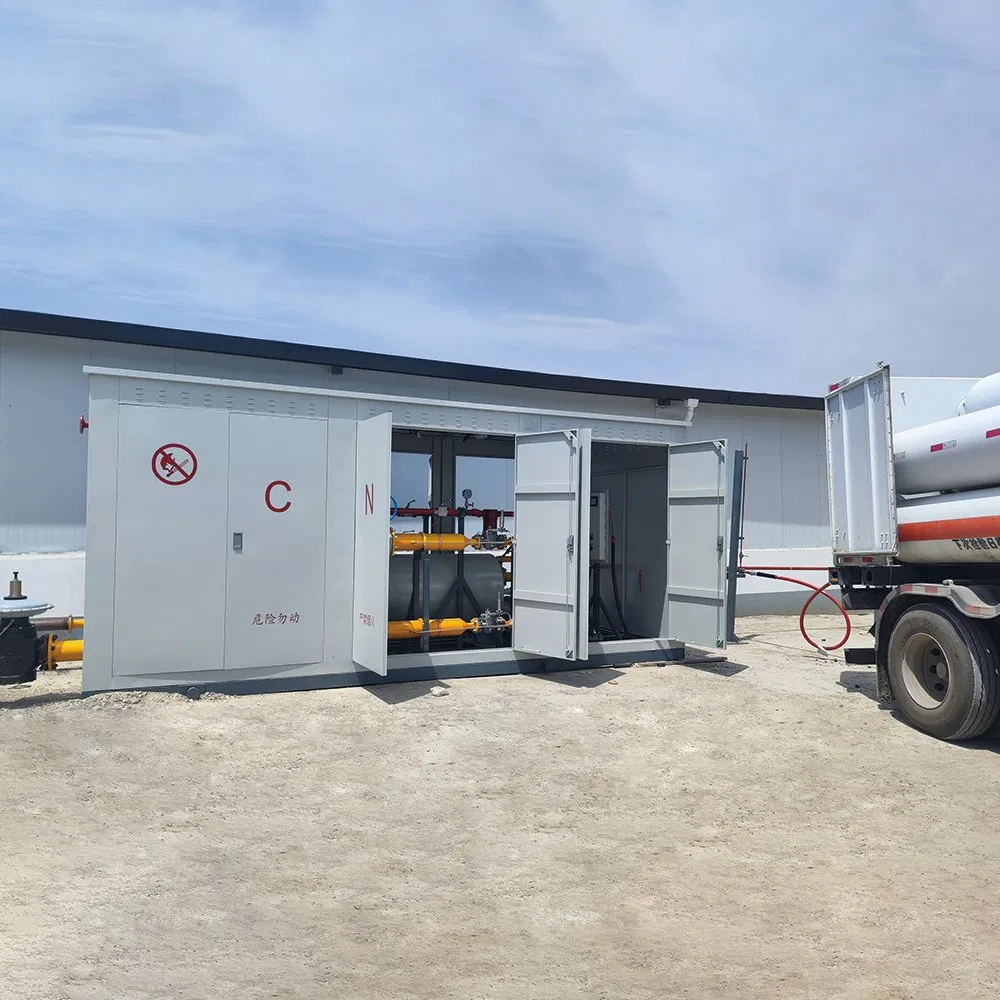

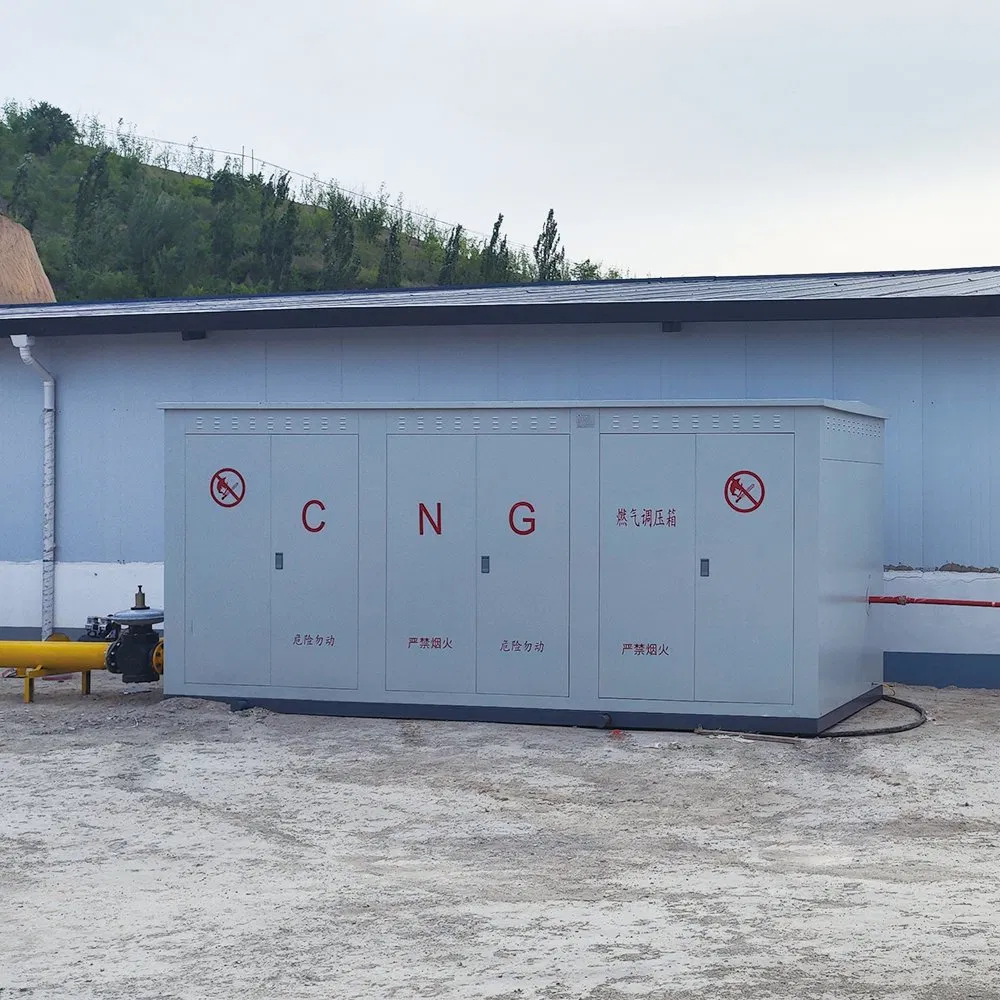

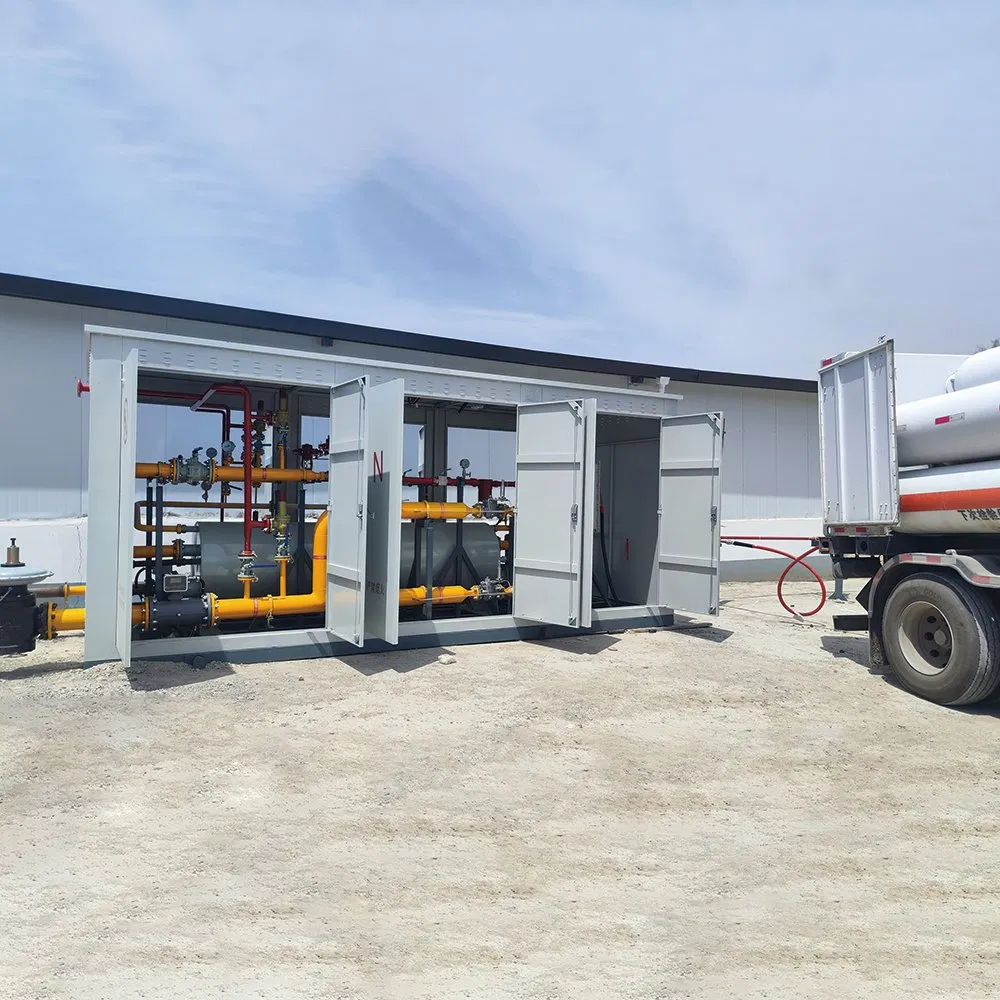

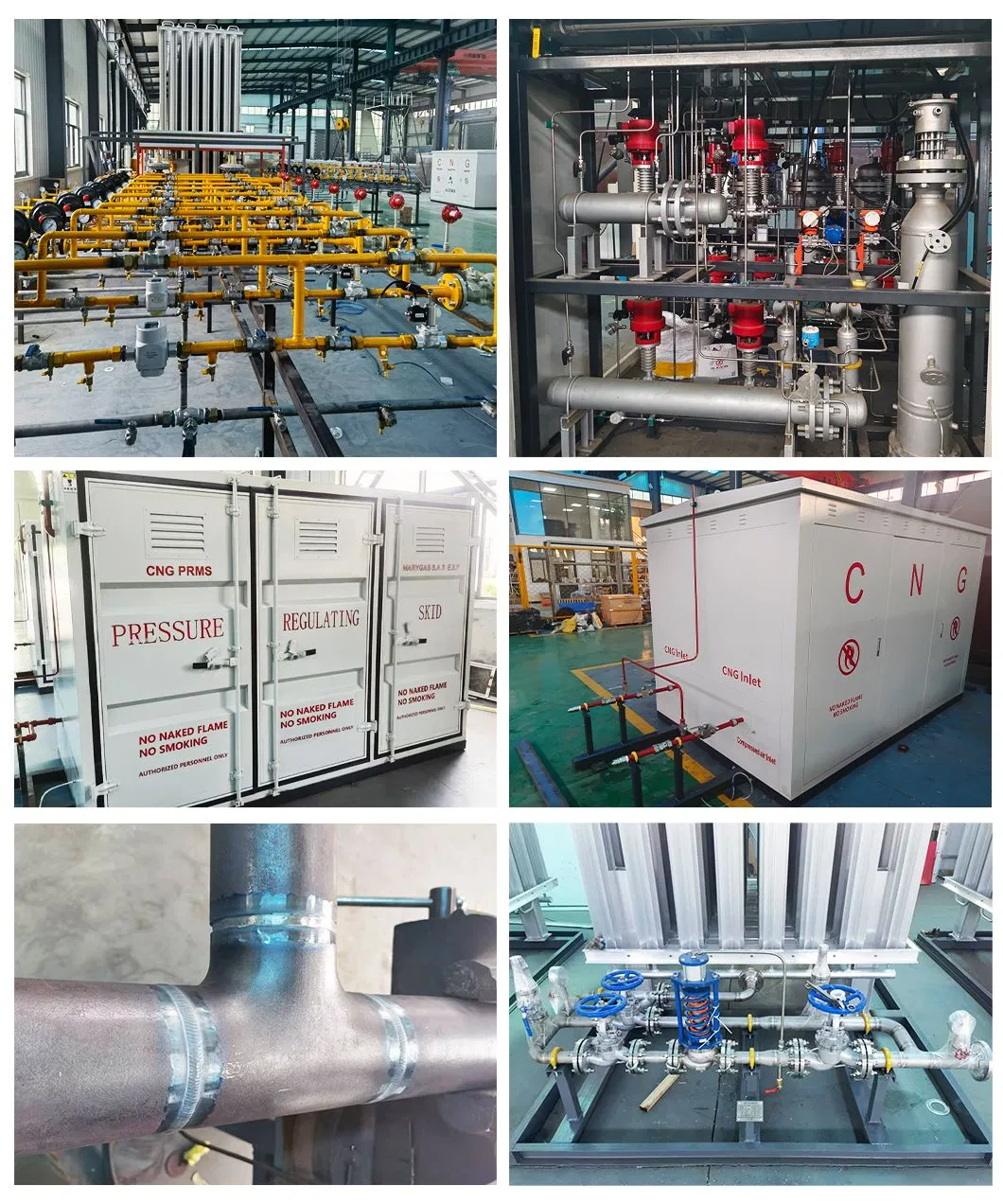

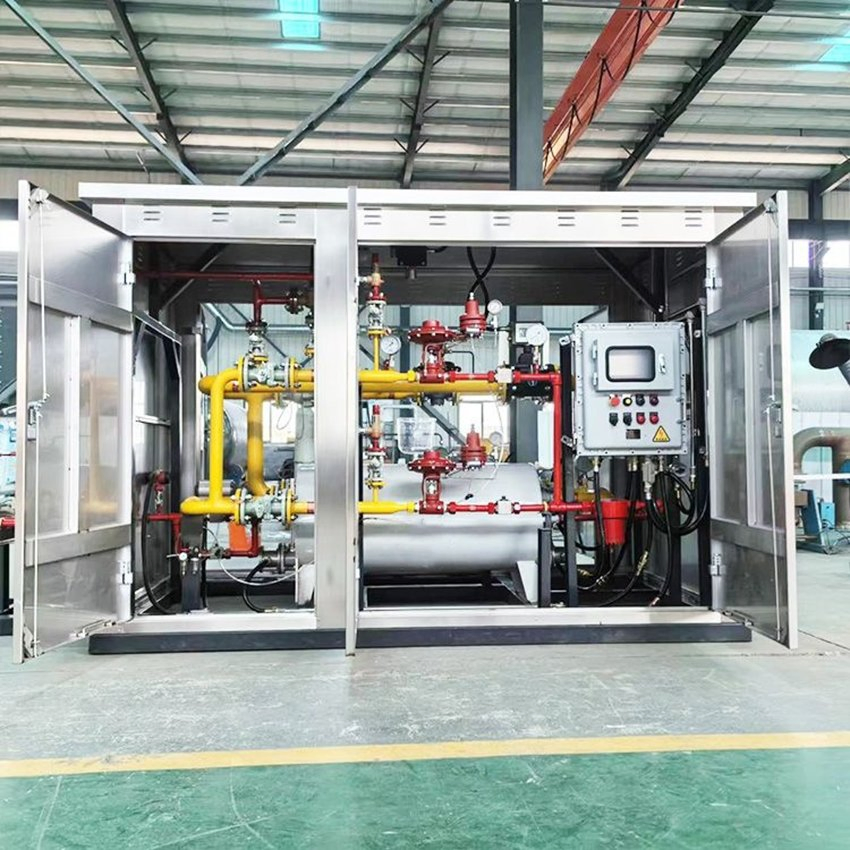

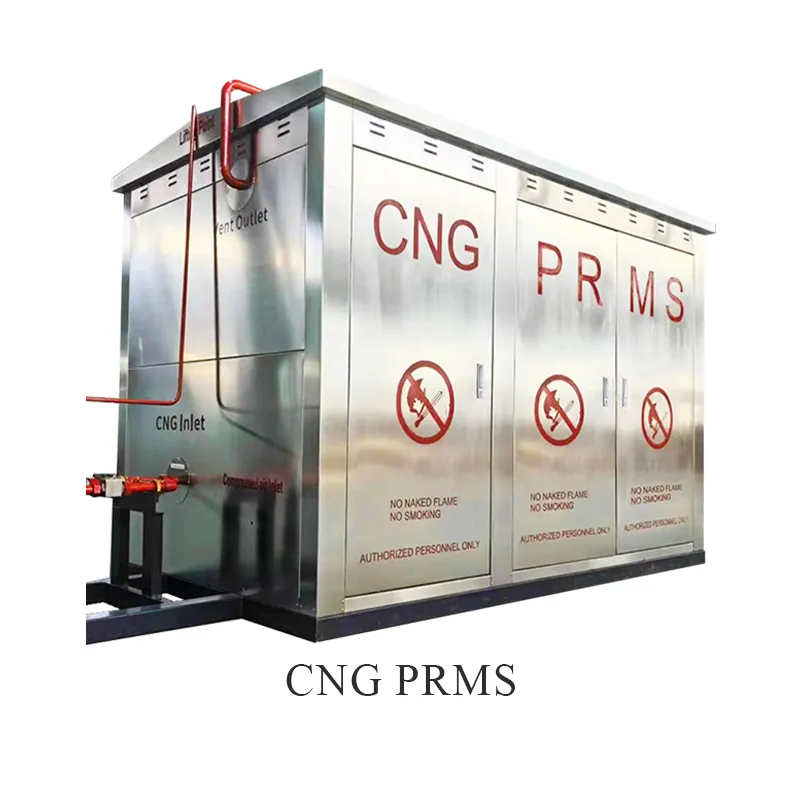

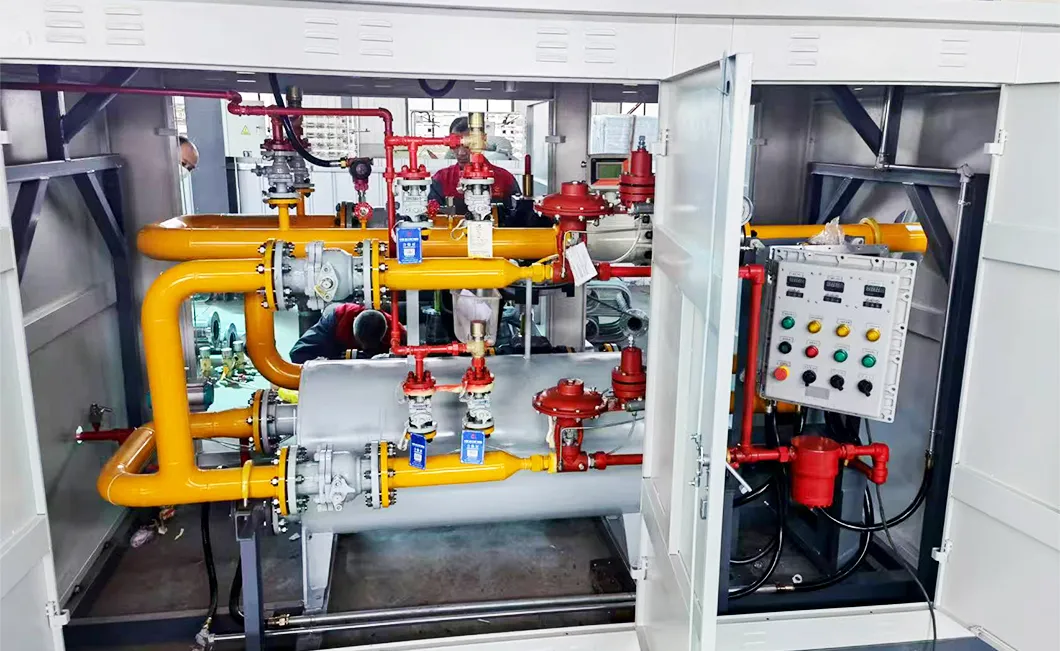

This series of pressure-regulating boxes is primarily designed for medium and low-pressure gas transmission and distribution systems. Each unit includes a filter, pressure regulator (with self-shutoff and release functions), ball valve, pressure gauge, and enclosure. The box features a compact structure, easy maintenance, and reliable safety performance.
Suitable for civil buildings, apartment complexes, hotels, and restaurants, it can also be used with low-pressure gas boilers and small direct-fired turbines. The enclosure is manufactured from stainless steel, spray-coated cold-rolled steel, or fiberglass.
| Structural Mode | Two-stage pressure regulation, overall skid-mounted |
|---|---|
| Rated Gas Supply | 1000m³/h |
| Inlet Pressure | 25MPa |
| Outlet Pressure | 0.2-0.4MPa |
| Pressure Reduction Level | 2 levels |
| Heat Exchange Level | 2 levels |
| Heat Exchange Temp | 60-75ºC |
| Outlet Temperature | ≥-5ºC |
| Alarm Mode | Sound and light dual alarm |
| Medium | Compressed Natural Gas (CNG) |
Our products have passed ISO9001, 14001, and CE certifications. We provide relevant documentation to meet specific national requirements.

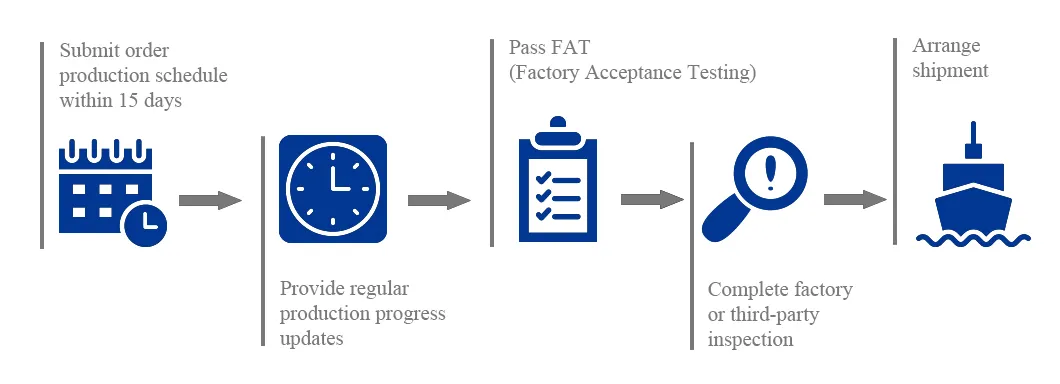

We prepare detailed delivery schedules and possess robust logistics capabilities for both domestic and international shipping.
