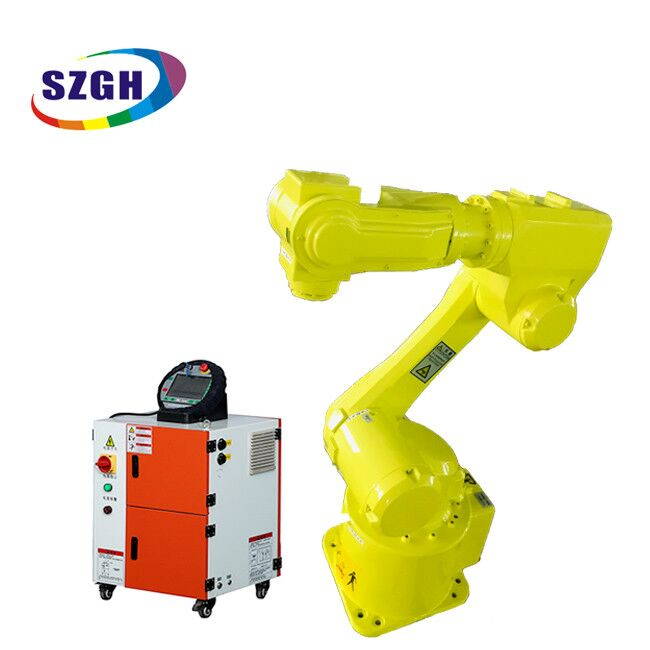

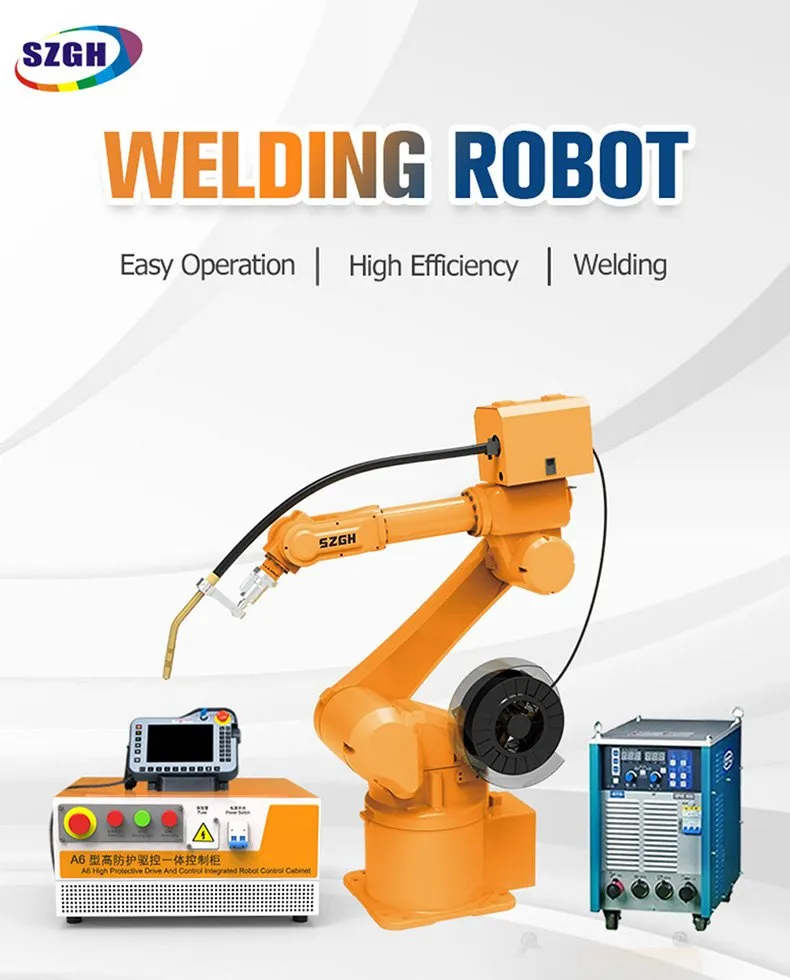

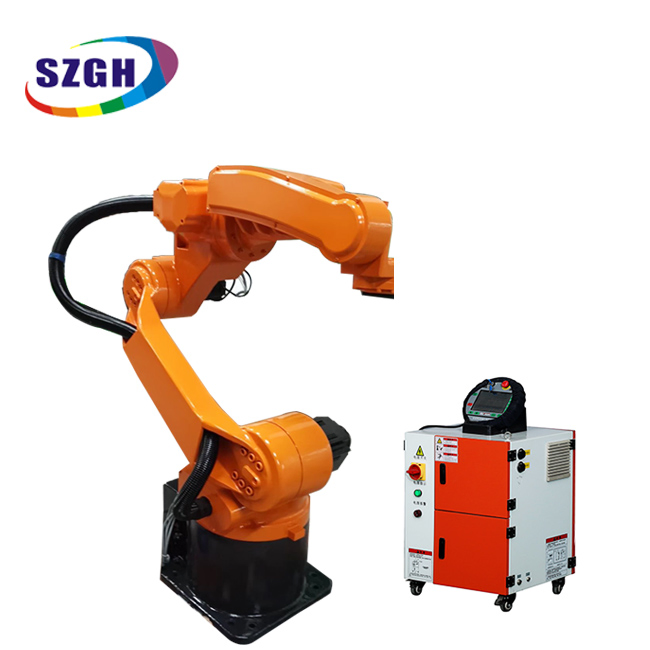

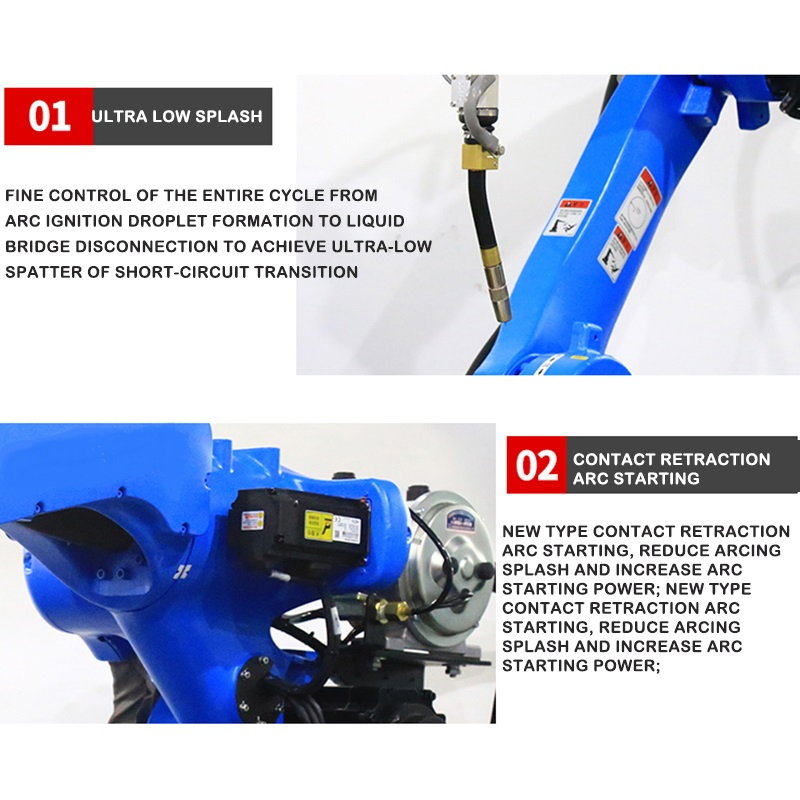

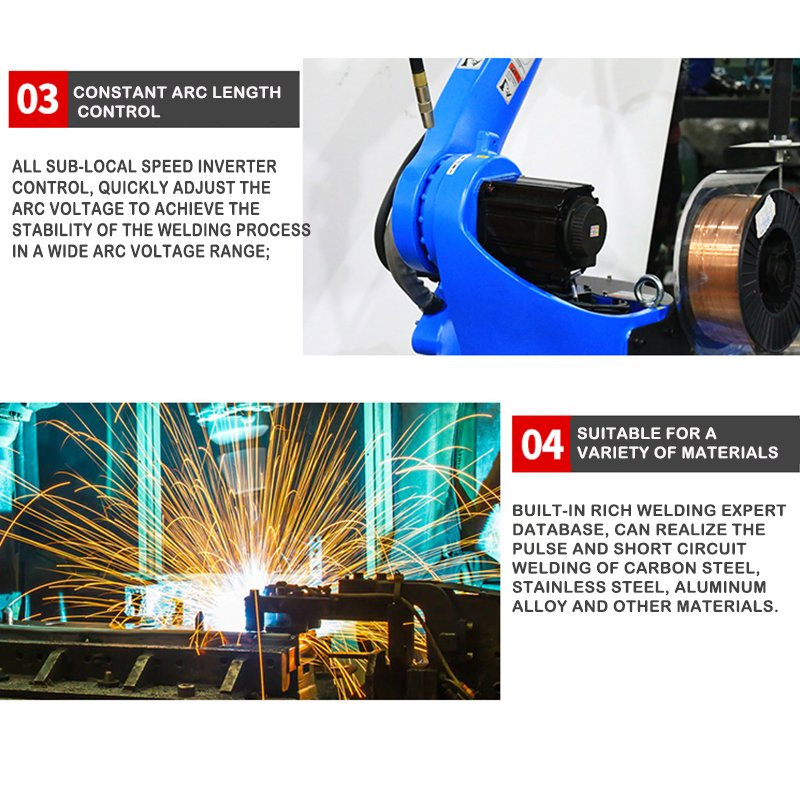

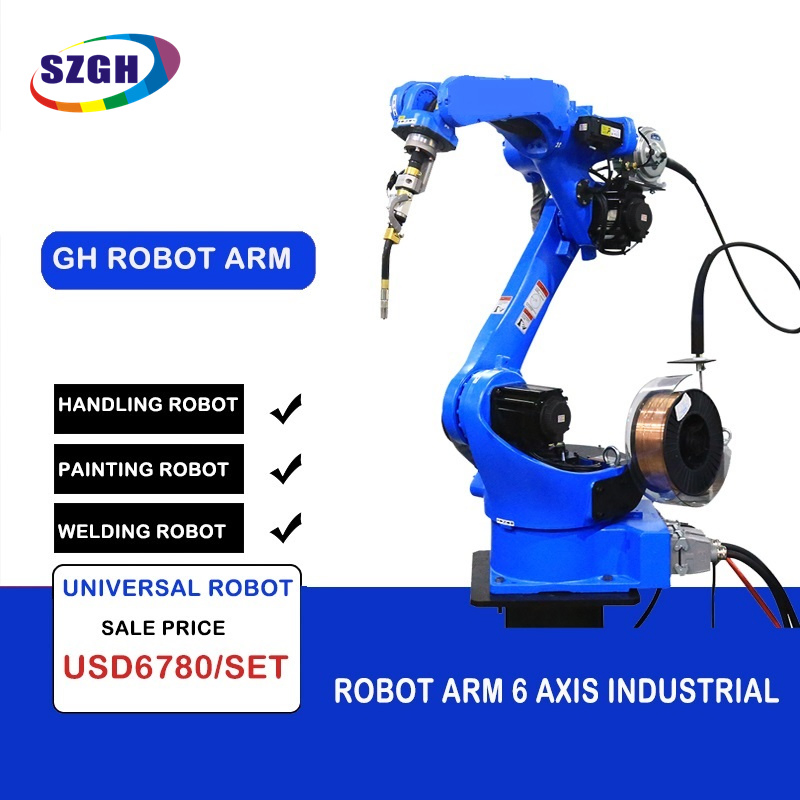

This 6 Axes Robot is dedicated to welding applications, offering easy operation, high efficiency, and enhanced safety. We provide 25 models of robot arms in mass production, including general-purpose, welding, spraying, palletizing, grinding, and handling types. All models are equipped with an intelligent robot control system. Non-standard robotic solutions can be customized according to specific requirements. Currently, 9-axis linkage robots are also mass-produced and available.
| Feature | Details |
|---|---|
| Model | H1500-B-6 |
| Payload | 6kg |
| Reach | 1500mm |
| Axes | 6-11 axes |
| Application | Welding |
| Warranty | 12 Months |
| Support | Video technical support, Online support |
| Item | Quantity / Specification |
|---|---|
| Robot Body | 1 Set |

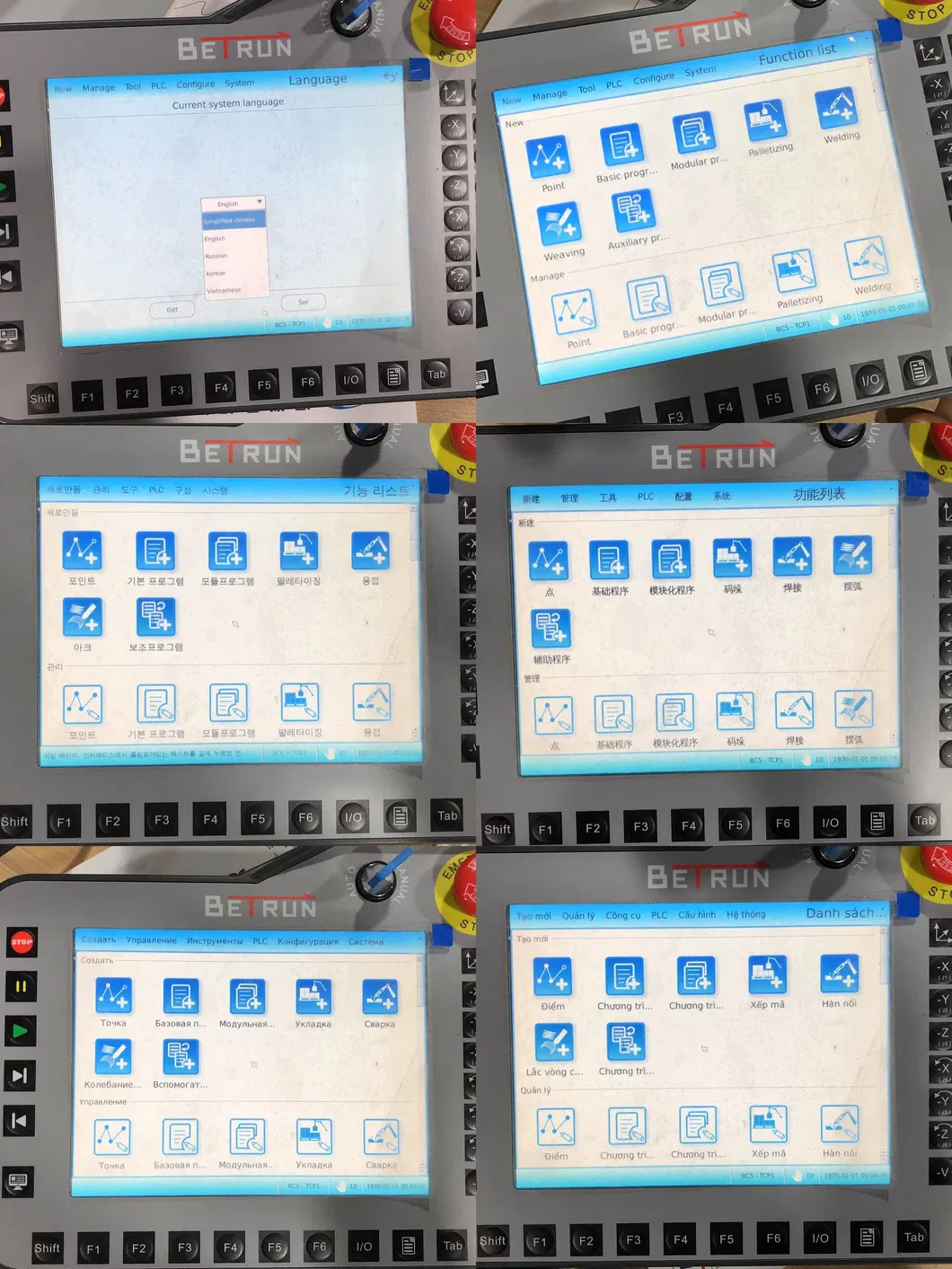

| Robot Teach Pendant | 1 Set |
| Servo Motor & Driver | 6 Pcs Each |
| Gear Box (RV or Harmonic) | 6 Pcs |
| Electrical Cabinet | 1 Pcs |
| Welding Machine & Torch Gun | 1 Set |
| Power/Encoder/Supply Lines | 5M Length |

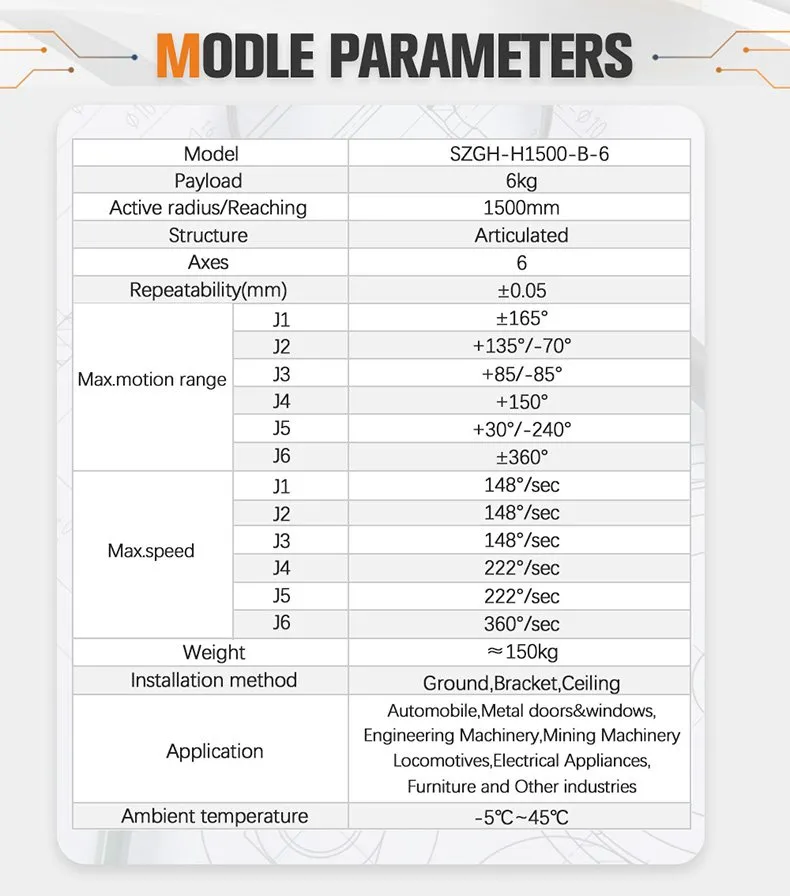

| Model | Payload | Reach | Repeatability | Weight |
|---|---|---|---|---|
| H1500-B-6 | 6kg | 1500mm | ±0.05mm | 150kg |
| H1850-B-6 | 6kg | 1850mm | ±0.05mm | 170kg |
| H2100-B-6 | 6kg | 2100mm | ±0.05mm | 235kg |
If you require special customization, our engineers provide simulation solutions based on your object size, material, and drawings. For example, a welding robot arm kit paired with a rotary table can significantly optimize work efficiency.
Our quality control measures guarantee high standards and reliability. Advanced machinery is utilized to test every product, with 100% inspection performed before packaging and shipment. Professional technicians provide consultancy for the most suitable application solutions.
