Tadano Mobile Crane Auto Moment Limiter System with Crane Sensor

Customization:	Available
After-sales Service:	Spare Parts
Warranty:	1 Year

i

Basic Info.

Model NO.

wtl a700

Type

Cranes

Application

Hoisting Machinery

Certification

CE, ISO9001: 2000

Condition

New

Delivery Time

Within 7 Days

Task

Adjust

Material

Stainless Steel

IP Grade

IP 65

Production Capacity

50000 Per Year

★

Product Description

Load Moment Indicator (safe load indicator or Crane computer) is a device which is installed on various sorts of cranes like mobile, crawler, tower, gantry, portal, marine and offshore crane. It alerts the operator if the lift is exceeding the safe operating range. In some cases, the device will physically lock out the machinery in circumstances it determines to be unsafe.

It controls the lifting equipment to function as per the manufacturer's suggested safe load charts. Each of the measured parameters like load weight, working radius, control limit, angle and extension of the crane boom, etc. will then further be displayed in the operator's cabin.

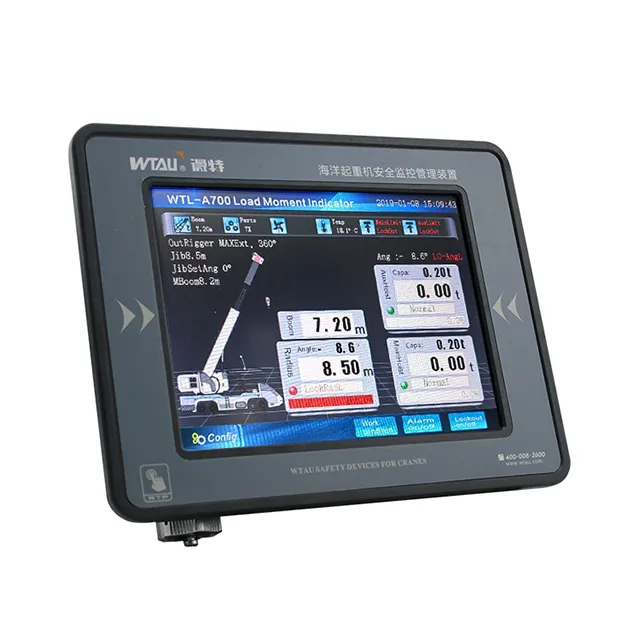

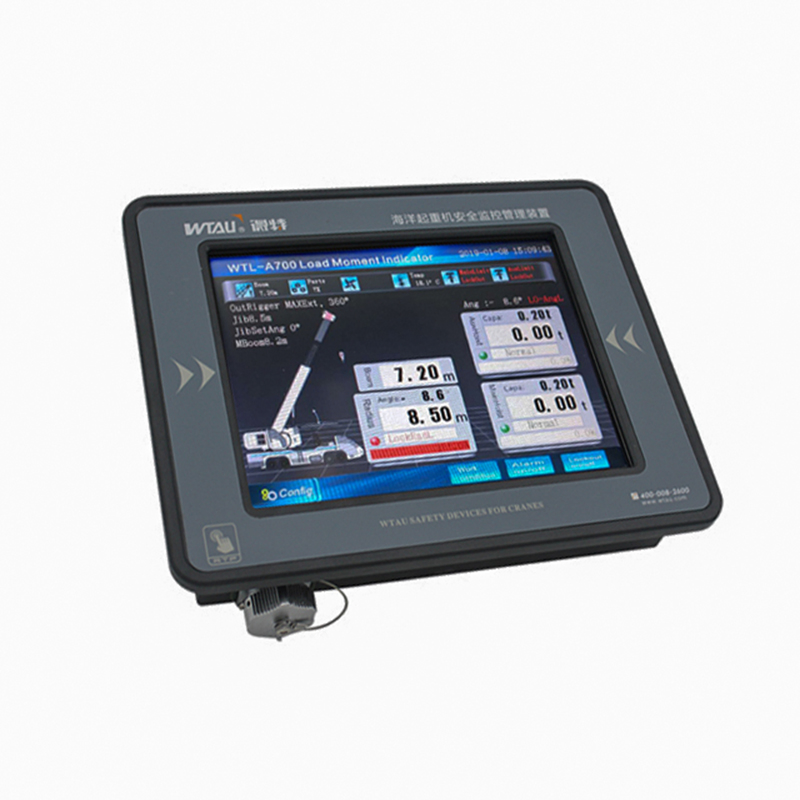

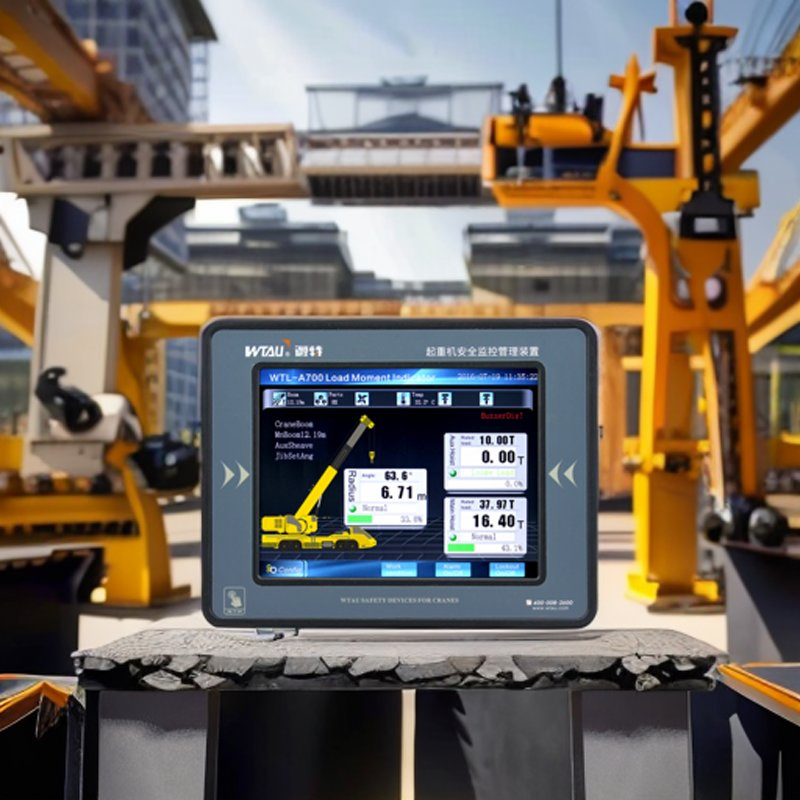

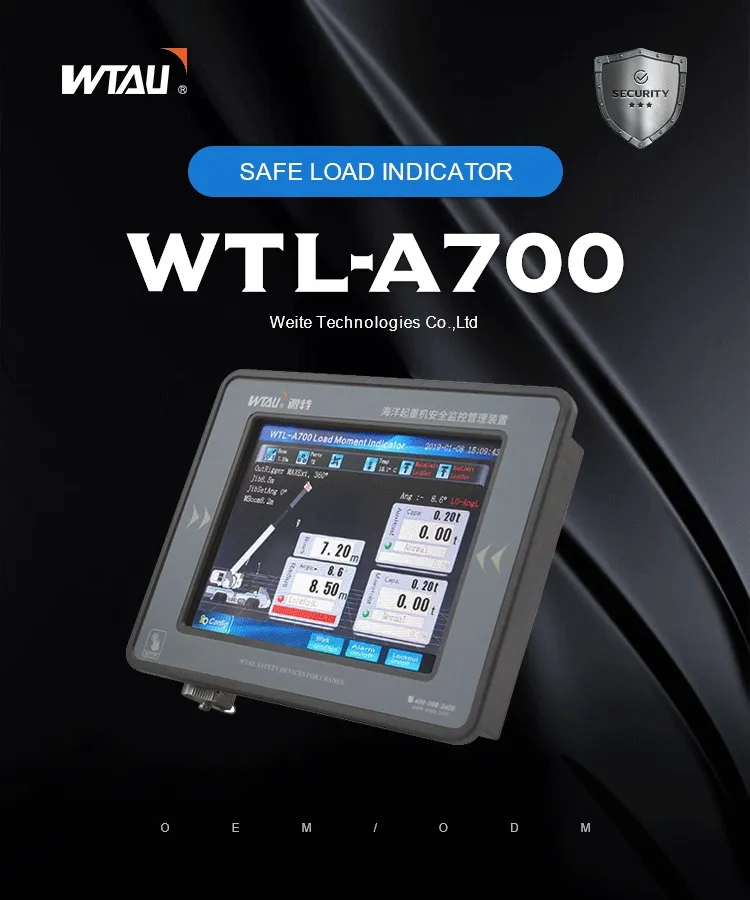

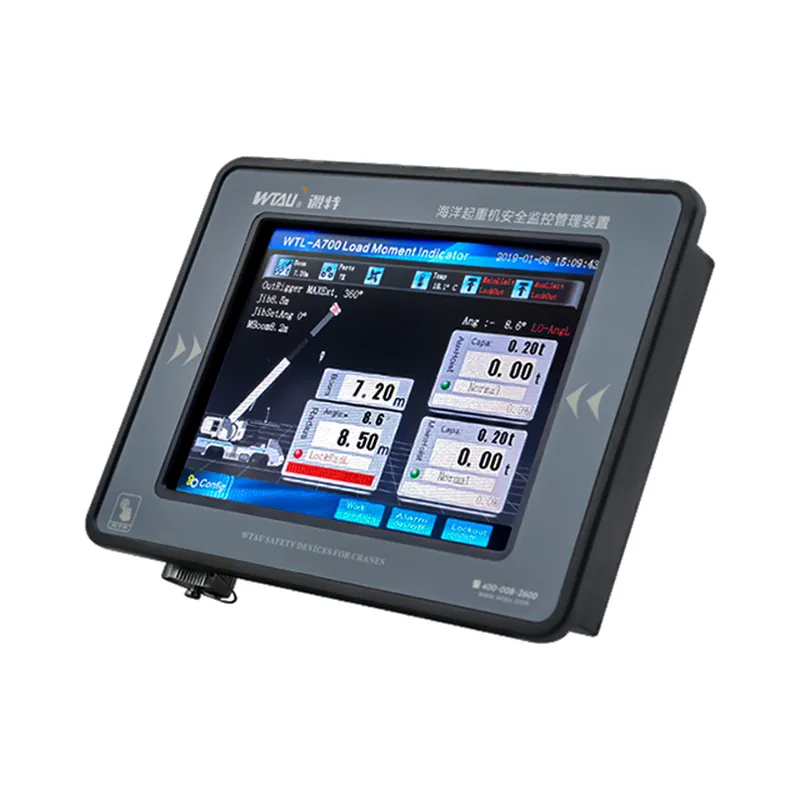

WTL-A700 Mobile Crane Load Moment Indicator System

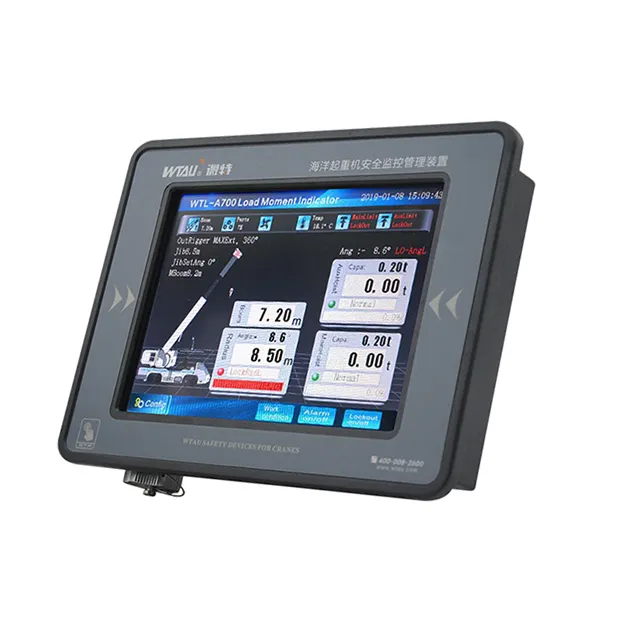

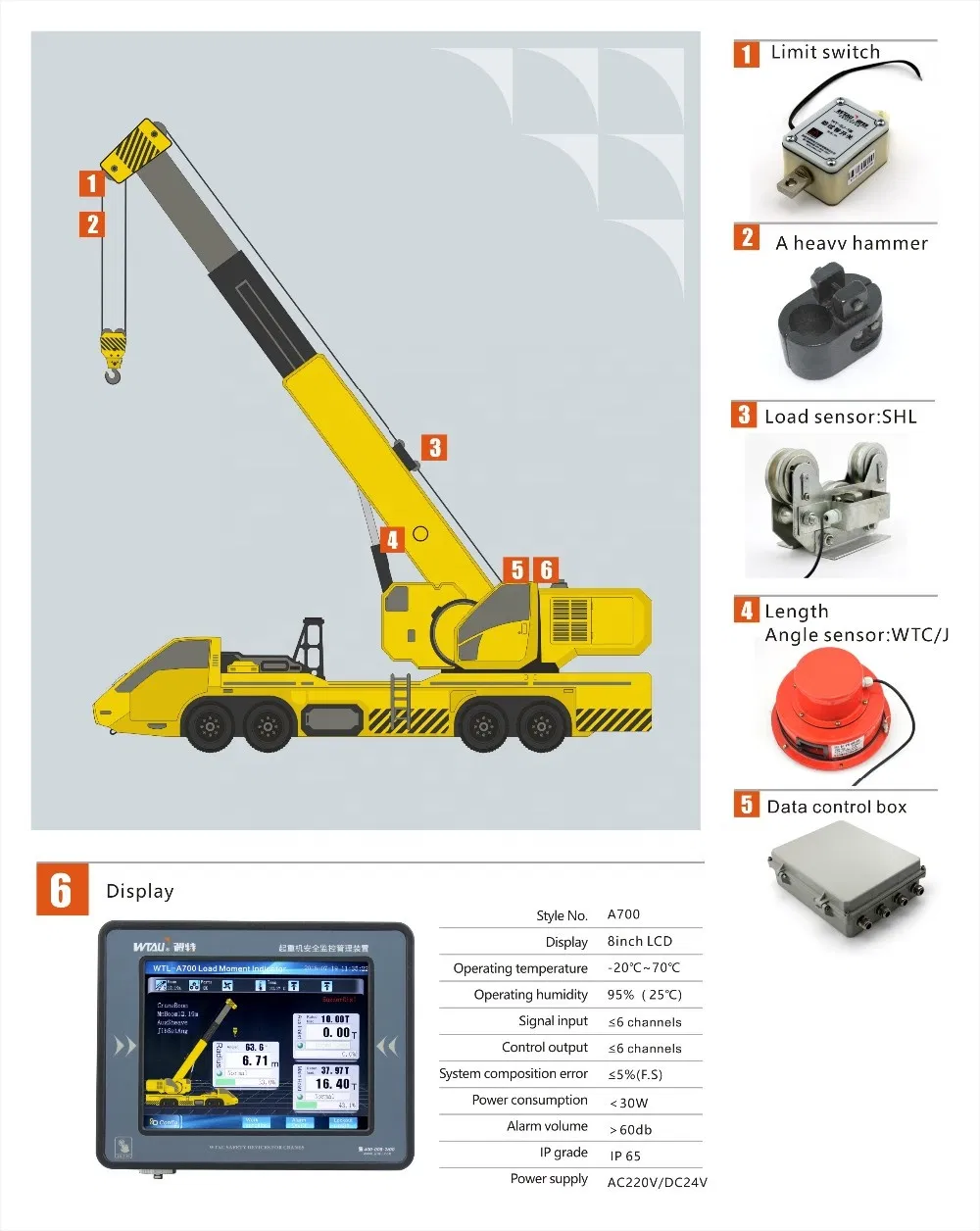

System Computer Components

📋

Product Parameters

Model: WTL-A700	Control Output: <= 6 Channels
Display: 8 inch LCD	System Composition Error: ±5%(F.S.)
Working Temperature: -20ºC~70ºC	Power Consumption: <30W
Operating Humidity: 95%RH(25ºC)	Alarm Volume: >60db
Weight Measurement Range: 0T~999.9T	IP Grade: IP 65
Resolving Ability: 0.1T	Power Supply: AC220V/DC24V

🛠

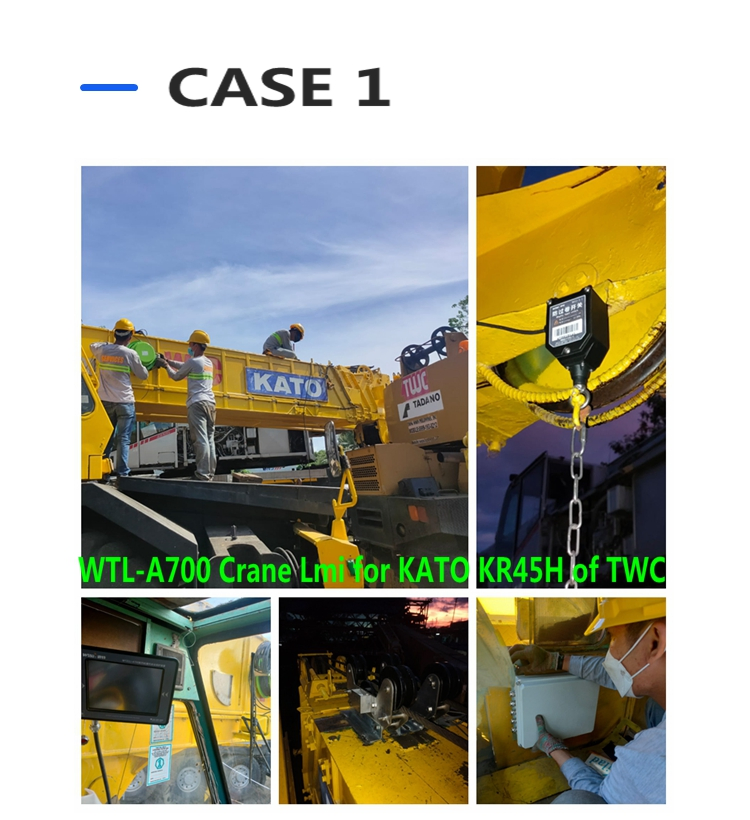

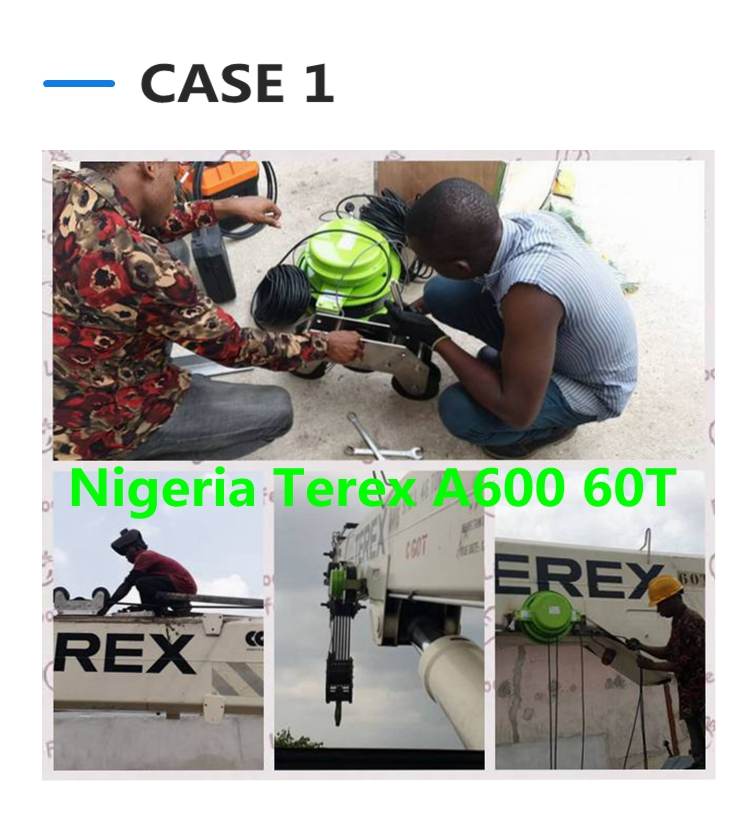

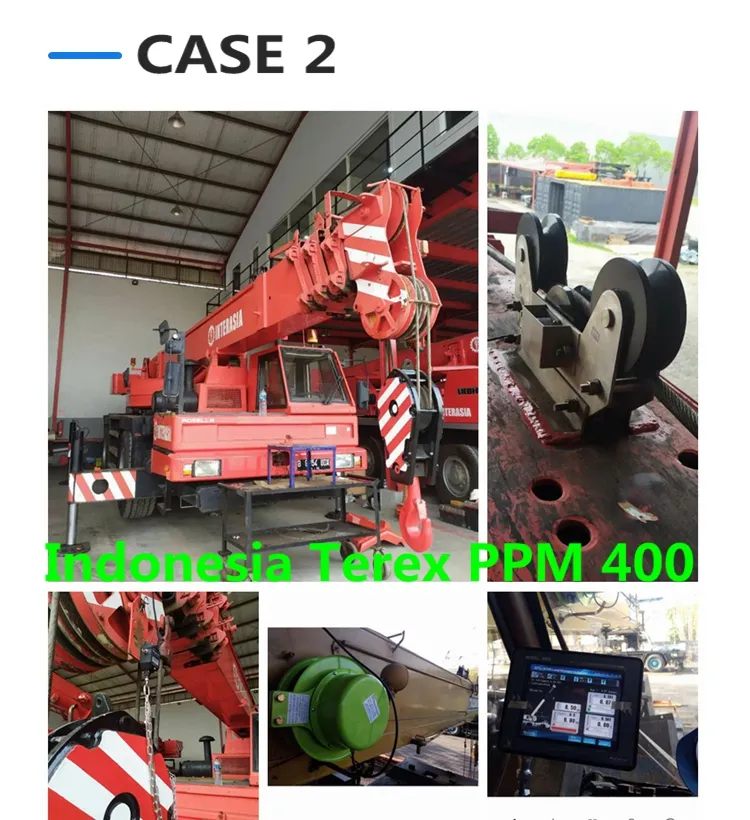

Installation Instructions

✔

Certifications & Cooperation

?

Frequently Asked Questions

How does the LMI system ensure crane safety?

The Load Moment Indicator monitors weight, radius, angle, and boom extension. It alerts operators when safety limits are approached and can automatically lock out machinery in unsafe conditions to prevent accidents.

What is the warranty period for this system?

We provide a 12-month warranty for the entire system. If any quality issues occur after installation, we offer free replacements for the affected components.

How is the installation handled?

Each system comes with a detailed English User Manual covering installation and troubleshooting. Additionally, our engineers provide free remote technical assistance to guide you through the process.

What information is needed to get an accurate quote?

Please provide your specific crane model, number of hooks, and typical working conditions (such as luffing tower or piling) to receive a customized price for your LMI system.

What are the available payment methods?

We accept several convenient payment options, including T/T (Bank Transfer), PayPal, and Western Union, following the confirmation of the Proforma Invoice.

Can the system be used in extreme environments?

Yes, the system is designed with an IP 65 protection grade and is built to operate reliably in temperatures ranging from -20ºC to 70ºC.

🔗
