Loading Arm System

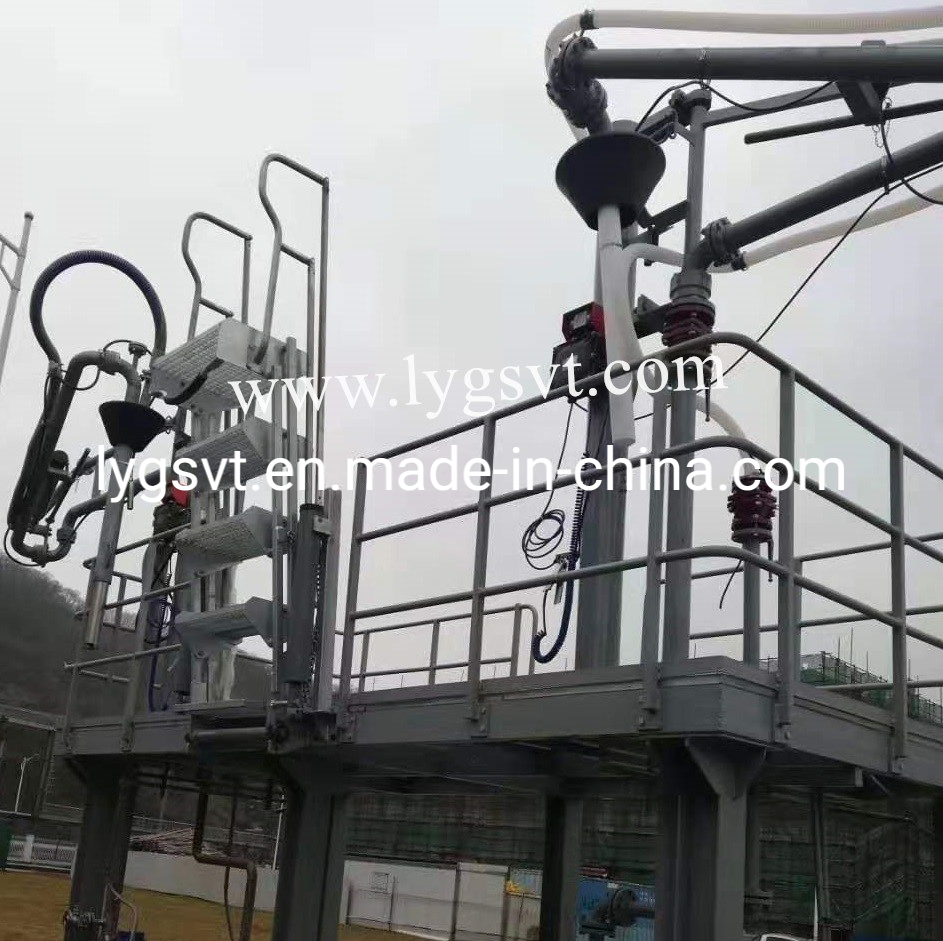

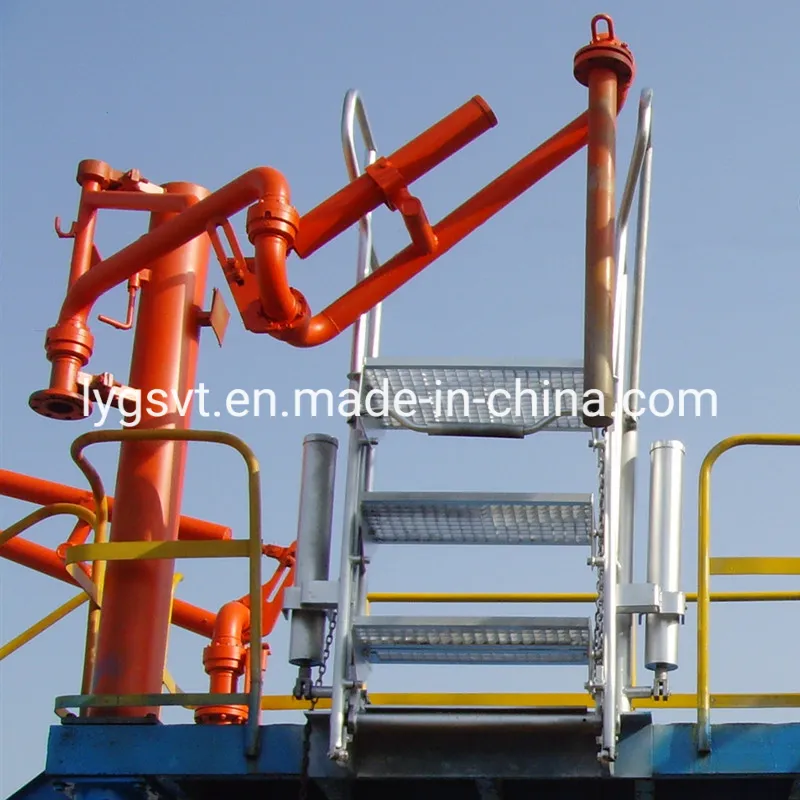

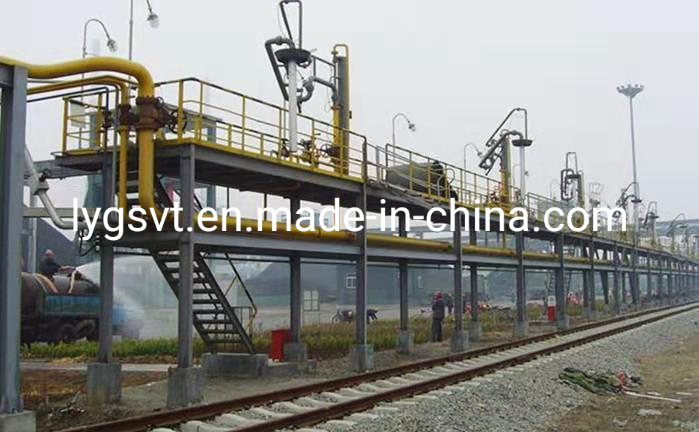

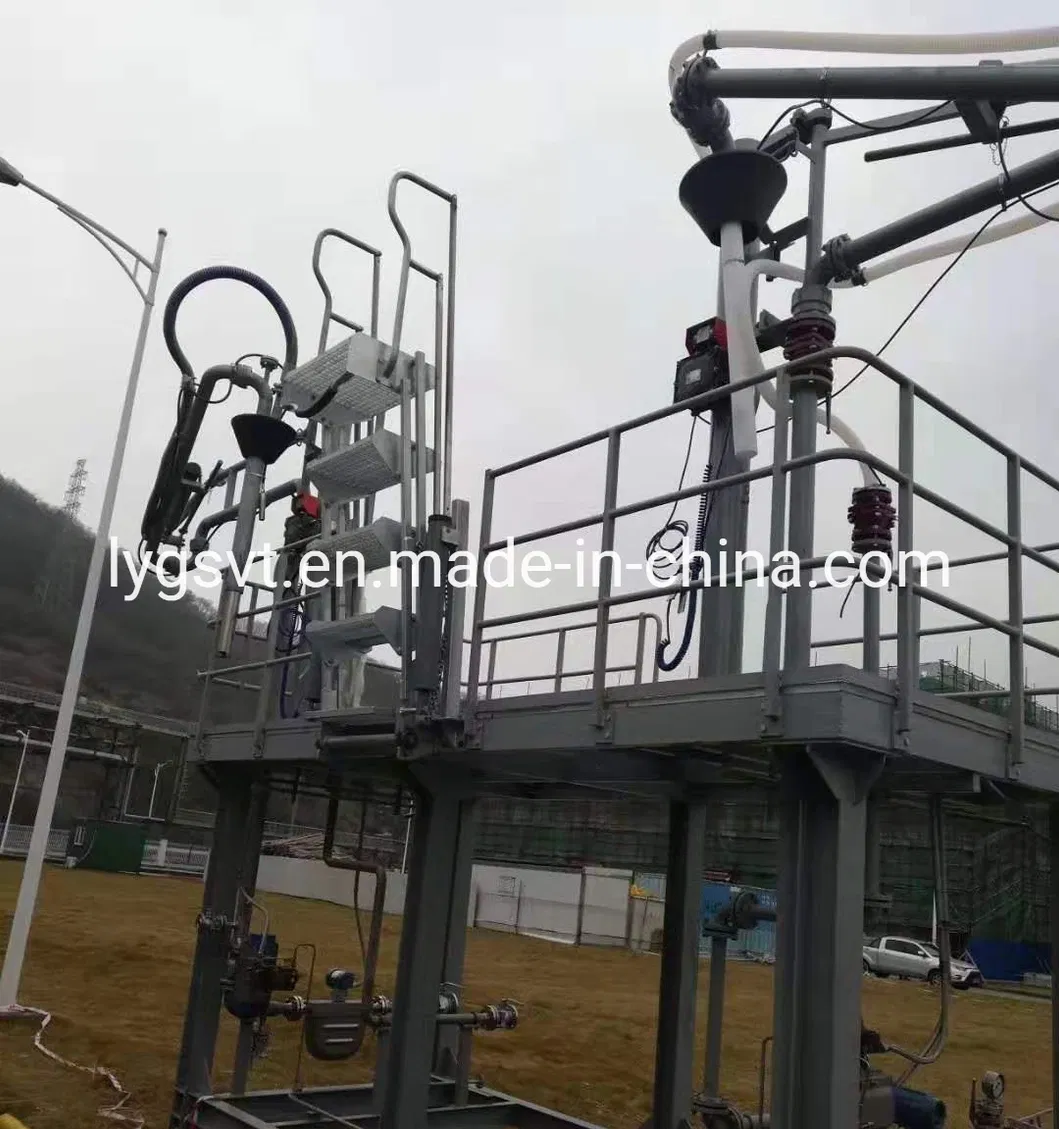

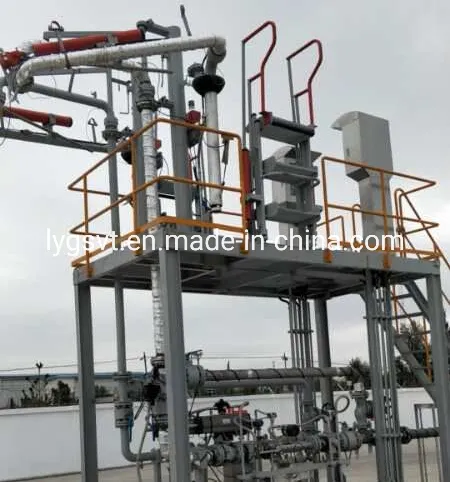

Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions. Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system.

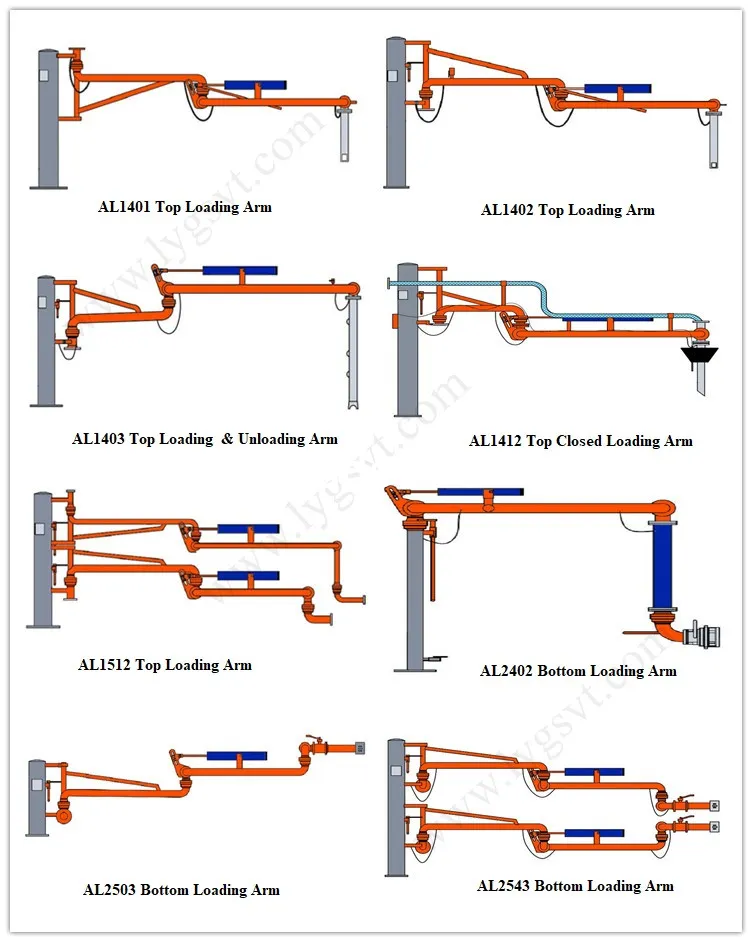

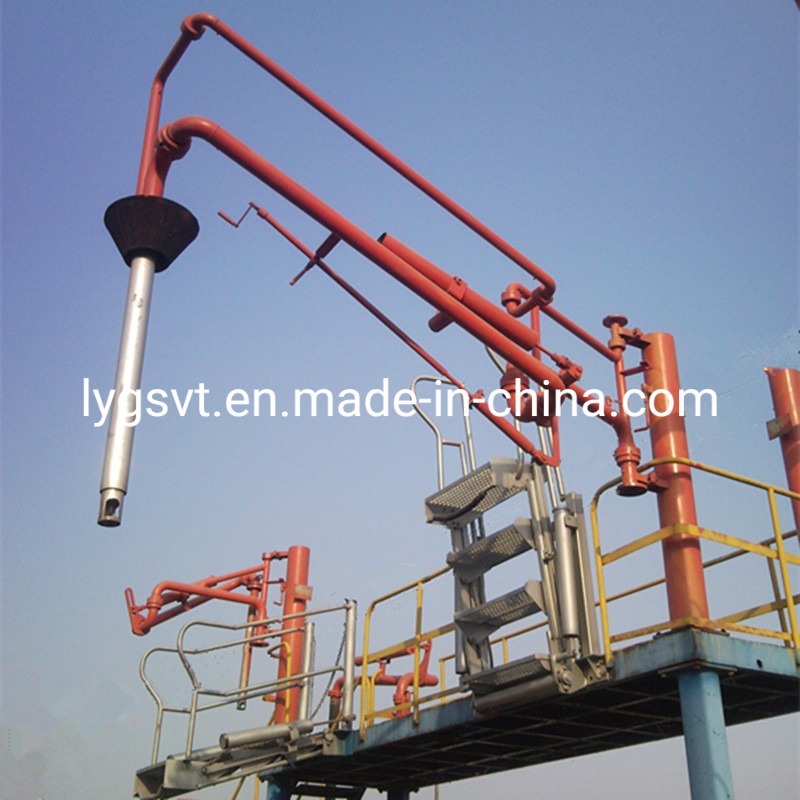

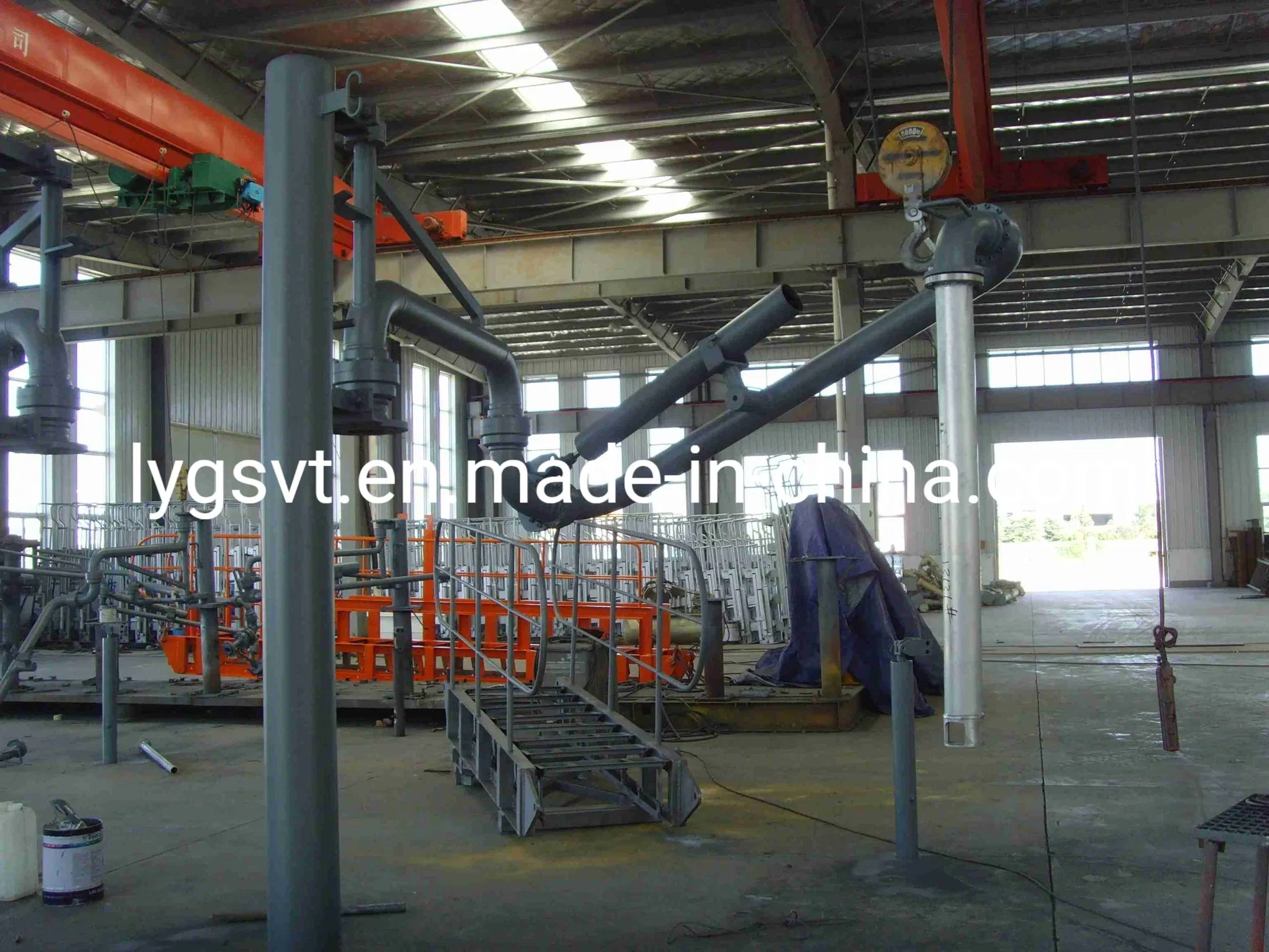

Top Loading Arm is mainly composed of the Riser, Inboard arm, Outboard arm, Spring Cylinder Balance System, Locking System, Sealing Cone (if required), Vapor Return Pipeline (if required), Drop Pipe. It can also be equipped with liquid level alarm system, which will give out sound and visual alarm or the remote signal when the set liquid level is reached.
Key Features
| Product Name | Petroleum & Chemicals Top Loading Arm |
| Service Product | Chemicals, Oil and other products |
| Nominal Diameter | DN50~ DN150 (2" to 6") |
| Vapor Return Line | DN50, DN80 (2", 3") |
| Design Pressure | -0.08 Mpa ~ +2.5 MPa |
| Design Temperature | -196°C~ +110°C |
| Pipe Material | Carbon steel, stainless steel, low-temperature steel, line with PTFE |
| Balancing | Spring Cylinder Balancing |

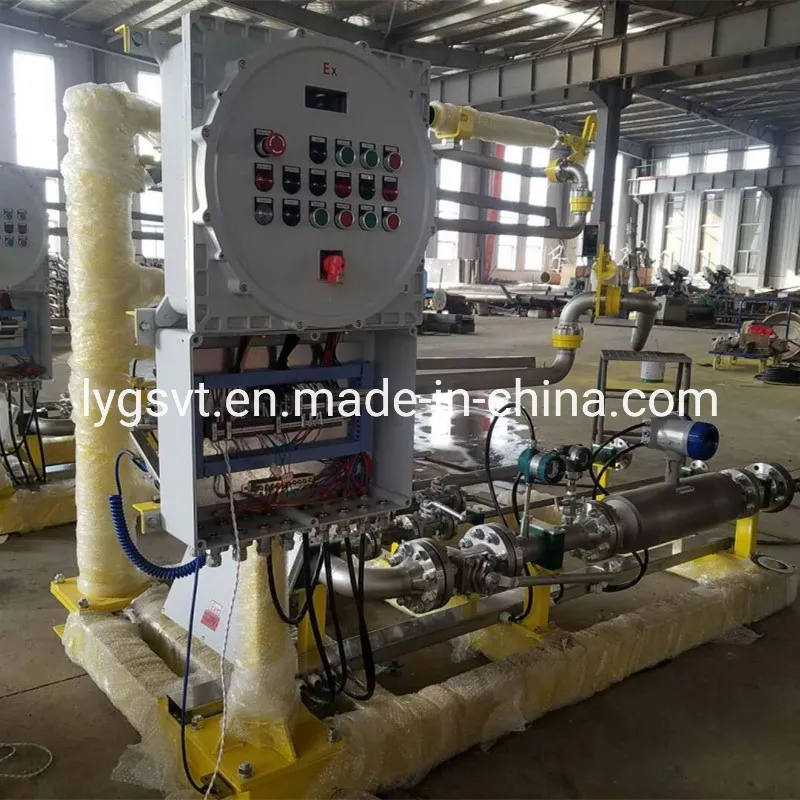

Our facility specializes in the design, manufacture, sale and installation of Land Loading Arm, Marine Loading Arm, Internal Floating Roof, Floating Suction Unit, Folding Stairs and Platform, Gangway Tower, Automatic Quantitative Loading System, Shell, etc.
Our Services & Strength: We have professional technical personnel engaged in mechanical design and engineering construction for many years, and has perfect quality assurance system. We strictly perform the ISO9001 Quality Management Systems, from design, procurement, production, sales and after-sale service. Our facility is fully equipped with various types of processing, welding, testing equipment and special processing equipment, providing customers with worry-free technical support and after-sales service.
