Liftora Arm
1 / 5

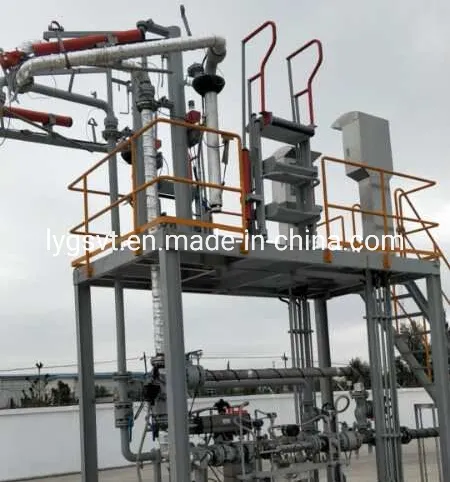

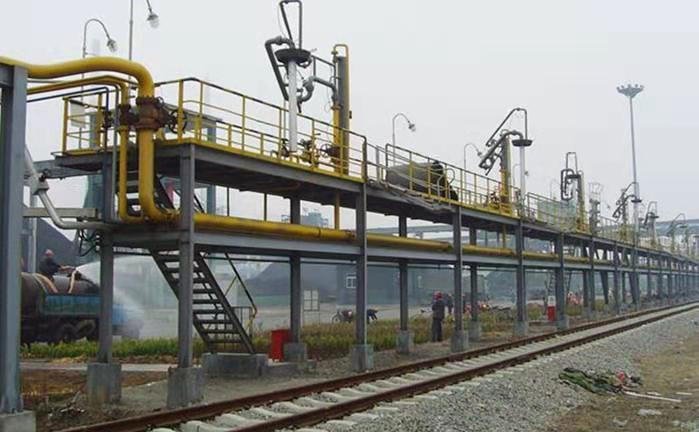

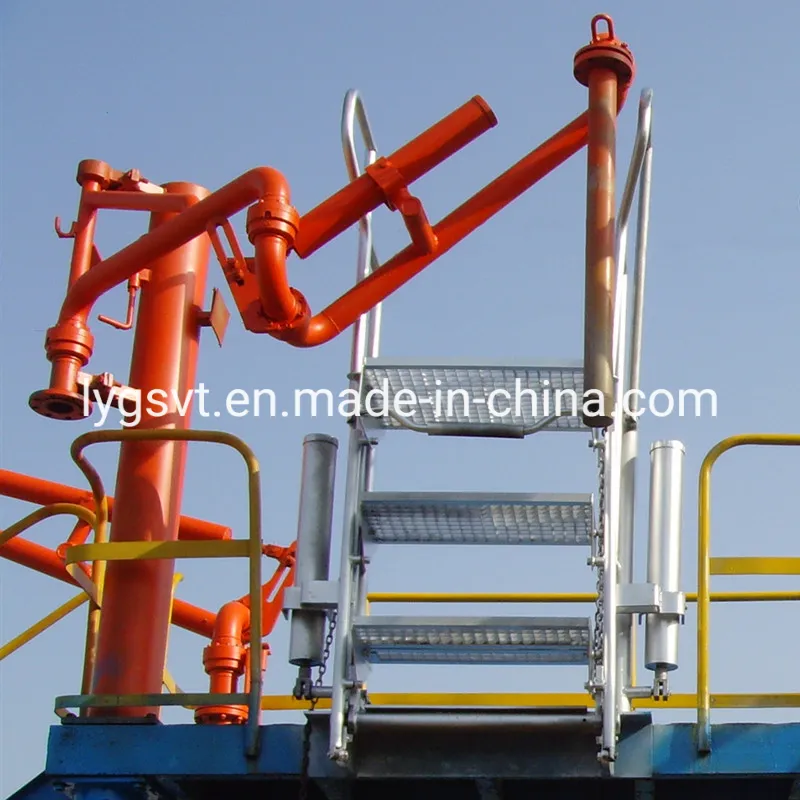

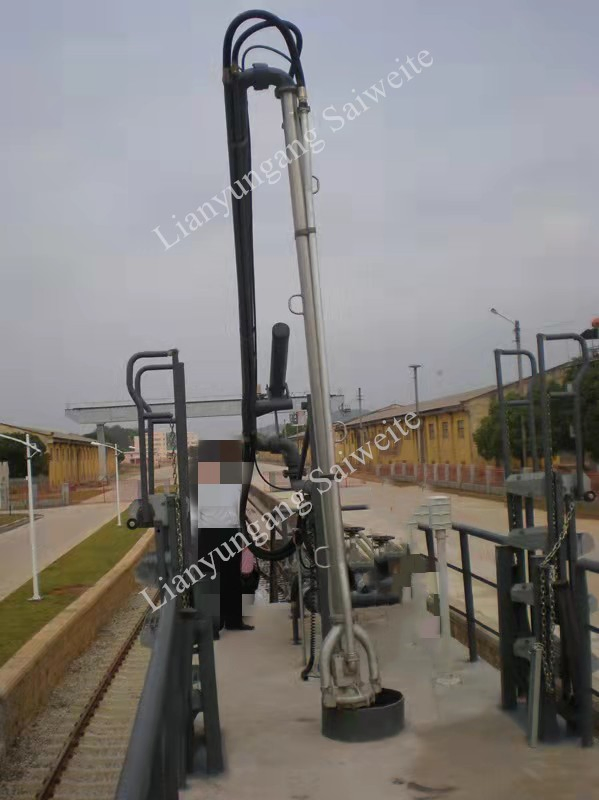

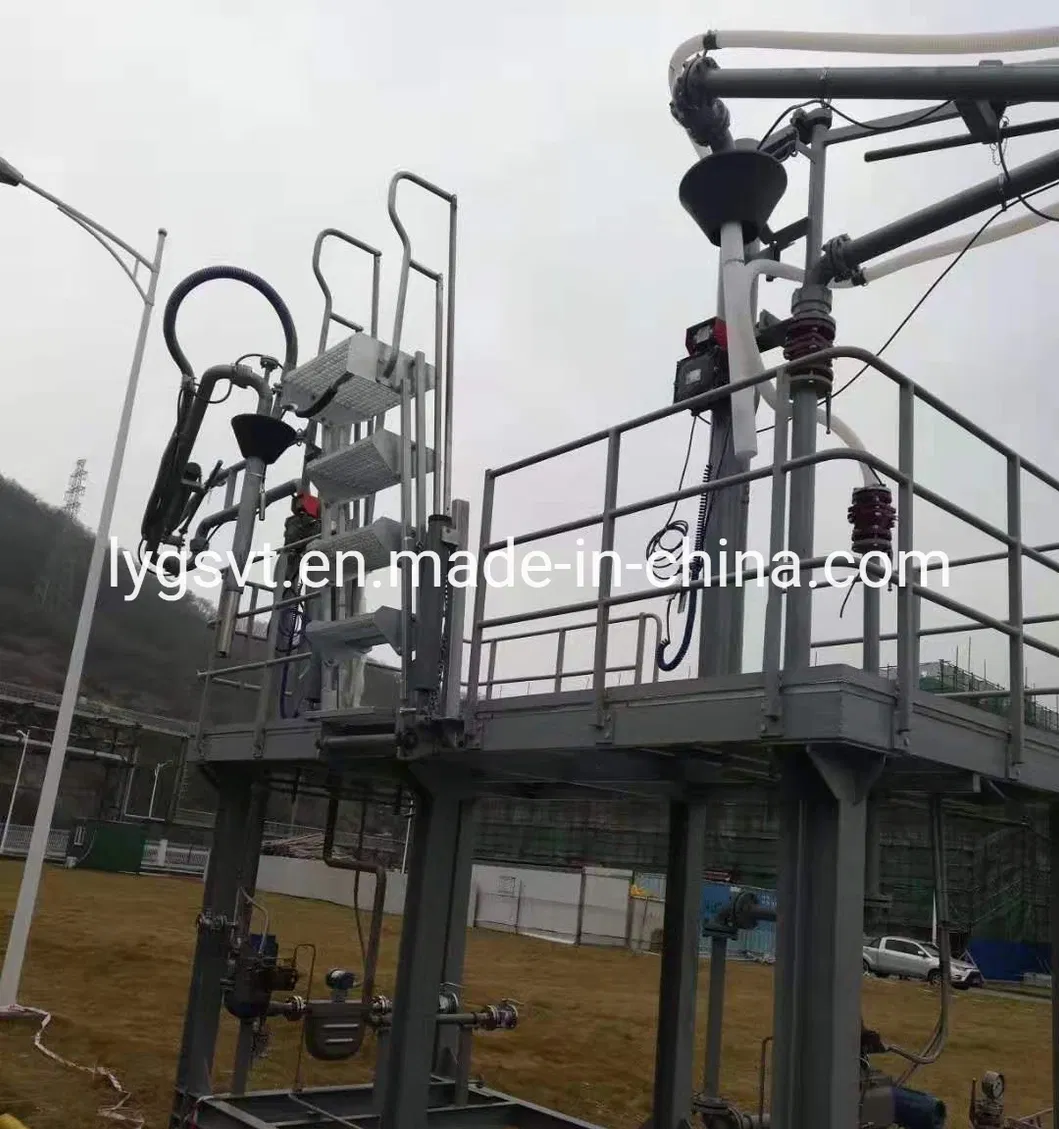

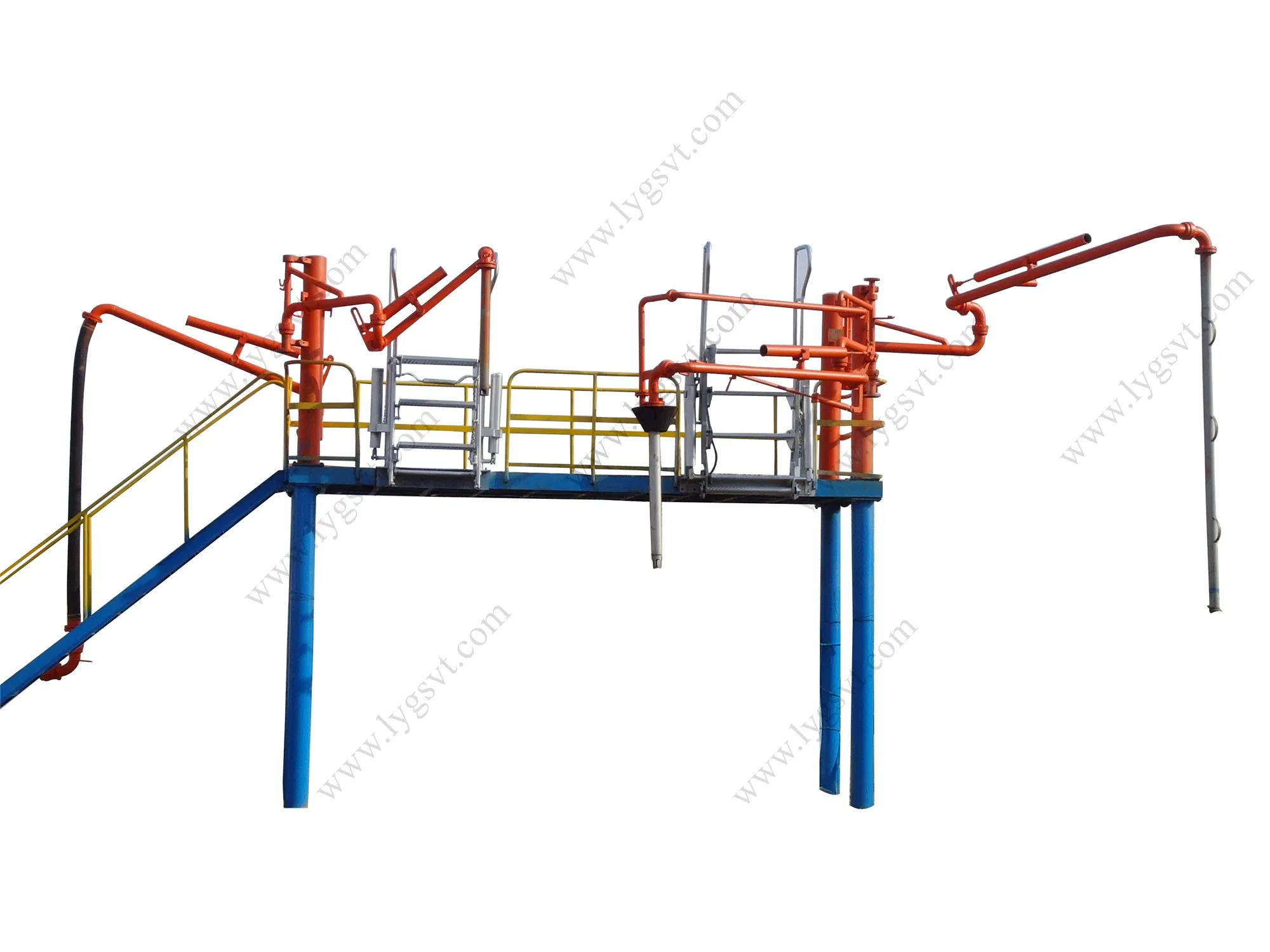

Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions. Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system.

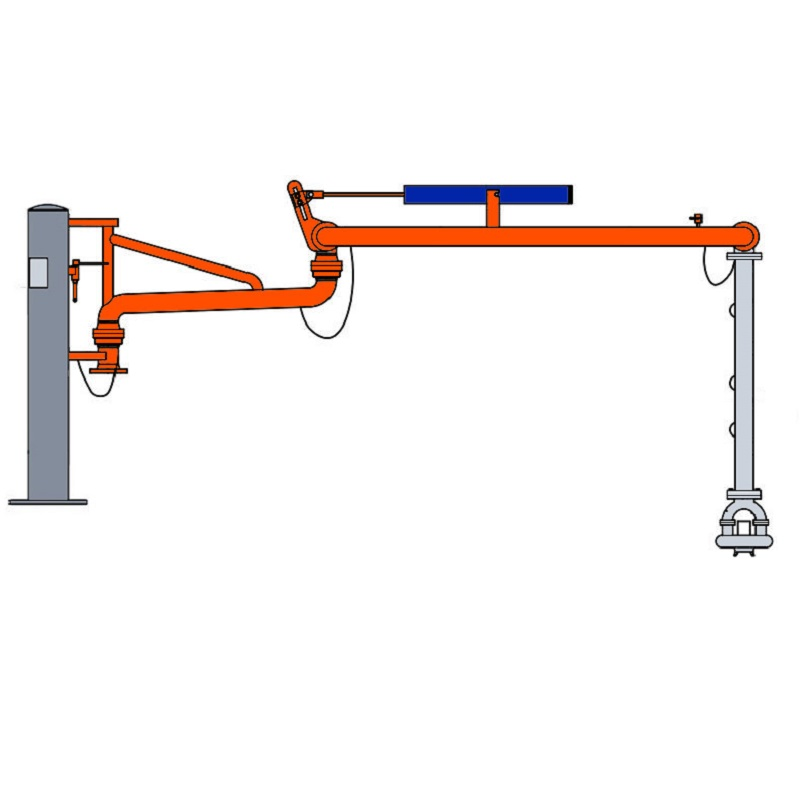

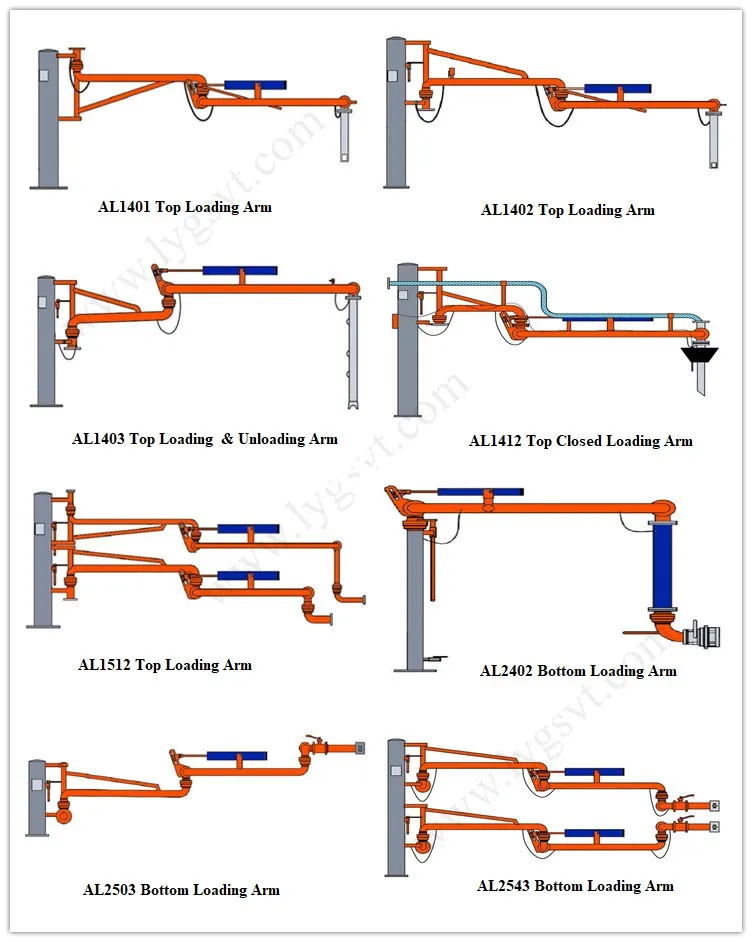

Top Loading Arm is mainly composed of the Riser, Inboard arm, Outboard arm, Spring Cylinder Balance System, Locking System, Sealing Cone (if required), Vapor Return Pipeline (if required), Drop Pipe. It can also be equipped with liquid level alarm system, which will give out sound and visual alarm or the remote signal when the set liquid level is reached.
| Product Name | Petroleum & Chemicals Top Loading Arm |
| Service Product | Chemicals, Oil and other products |
| Nominal Diameter | DN50~ DN150 (2" to 6") |
| Vapor Return Line | DN50, DN80 (2", 3") |
| Design Pressure | -0.08 Mpa ~ +2.5 MPa |
| Design Temperature | -196°C~ +110°C |
| Pipe Material | Carbon steel, stainless steel, low-temperature steel, line with PTFE |
| Balancing | Spring Cylinder Balancing |
Specializing in the design, manufacture, sale, and installation of Land Loading Arms, Marine Loading Arms, Internal Floating Roofs, Floating Suction Units, Folding Stairs and Platforms, Gangway Towers, and Automatic Quantitative Loading Systems.
With professional technical personnel engaged in mechanical design and engineering construction for many years, we maintain a perfect quality assurance system. We strictly perform ISO9001 Quality Management Systems across design, procurement, production, and sales. Equipped with advanced processing, welding, and testing equipment, we provide customers with professional technical support and after-sales service.
