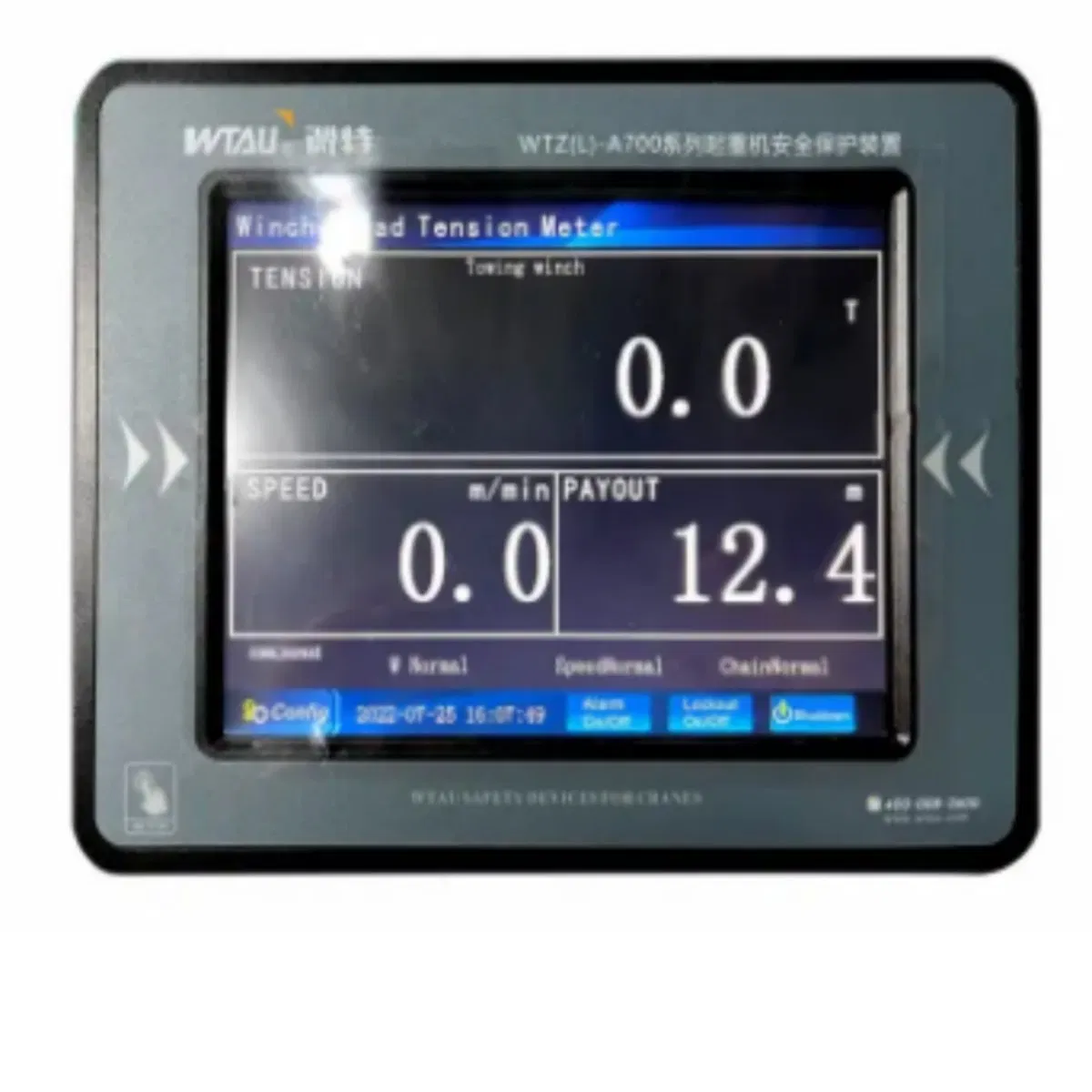

Wire Rope or Chain Winch Tension Monitoring Anchor Line Monitoring System
Wire Rope or Chain Winch Tension Monitoring Anchor Line Monitoring System
Wire Rope or Chain Winch Tension Monitoring Anchor Line Monitoring System
Wire Rope or Chain Winch Tension Monitoring Anchor Line Monitoring System
Wire Rope or Chain Winch Tension Monitoring Anchor Line Monitoring System
1 / 5
Wire Rope or Chain Winch Tension Monitoring Anchor Line Monitoring System
Wire Rope or Chain Winch Tension Monitoring Anchor Line Monitoring System
Wire Rope or Chain Winch Tension Monitoring Anchor Line Monitoring System
Wire Rope or Chain Winch Tension Monitoring Anchor Line Monitoring System
Wire Rope or Chain Winch Tension Monitoring Anchor Line Monitoring System

Wire Rope or Chain Winch Tension Monitoring Anchor Line Monitoring System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊Basic Information
Model NO.
WTL-A700
Warranty
1 Year
Certification
RoHS, CE, ISO9001
Display
8 Inch LCD
Operating Temperature
-20'c--70'c
Operating Humidity
95%(25'c)
Signal Input
<=6 Channels
Control Output
<=6 Channels
Power Supply
AC220V/DC24V
HS Code
8531809090
💡Why you need Winch load tension meter system?
This system provides monitoring for maximum load, maximum payout, and speed with integrated alarms and relay actions. It is essential for preventing cable breakage due to excessive tension during windlass operations, thereby avoiding economic losses and safety hazards such as lost anchor heads.

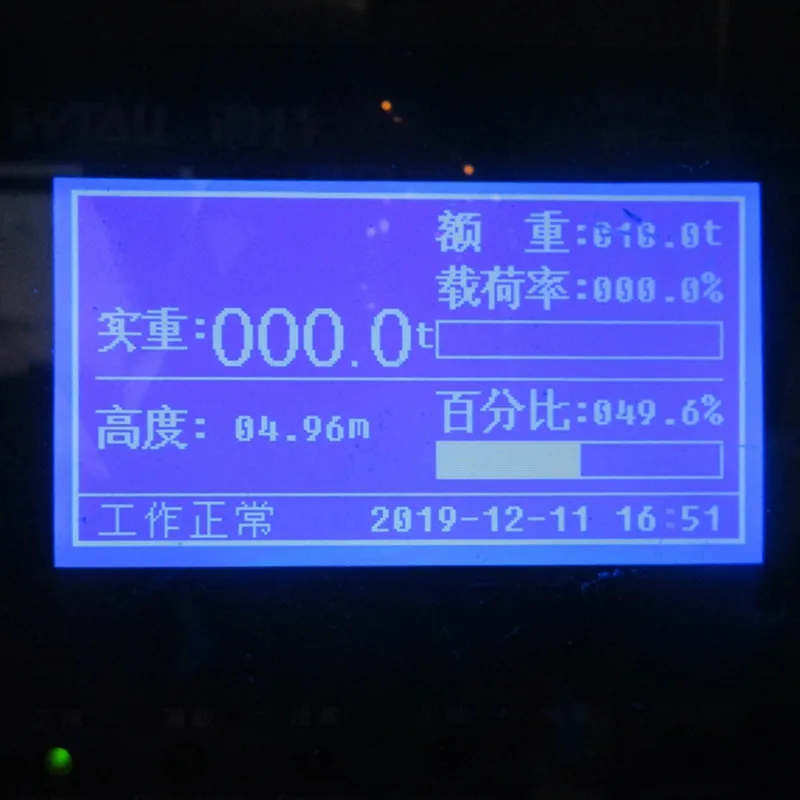

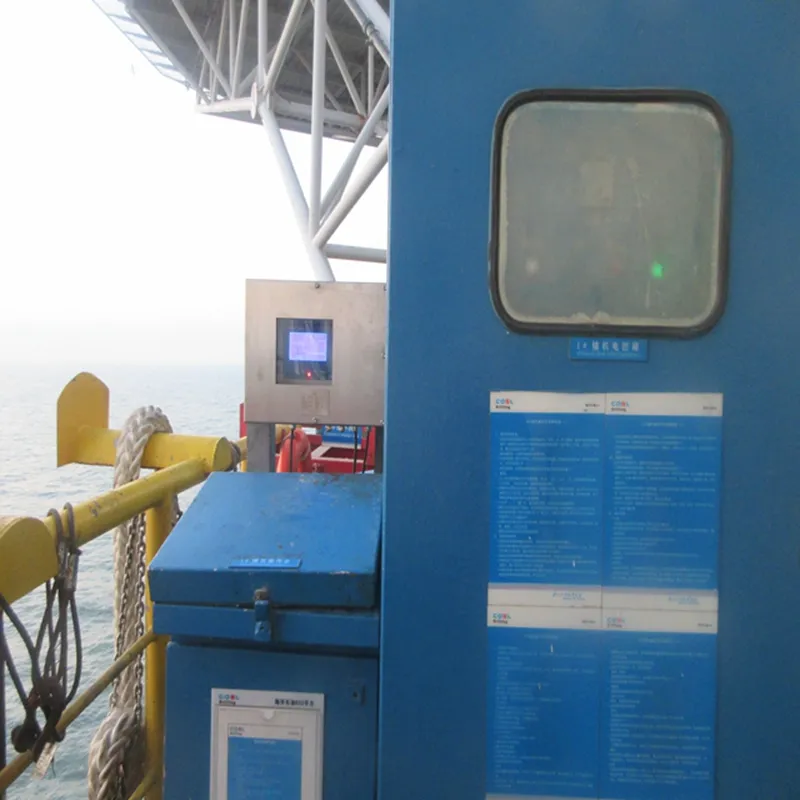

Winch Tension Monitoring 1 Winch Tension Monitoring 2
⚙️Technical Parameters
Parameter Item Specification Details
Style No.WTL-A700
Display8 inch LCD
Operating Temperature-20'C to 70'C
Operating Humidity95% (25'C)
Signal Input<= 6 Channels
Control Output<= 6 Channels
System Composition Error<= 5% (F.S)
Power Consumption< 30W
Alarm Volume> 60db
IP GradeIP65
Power SupplyAC220V / DC24V

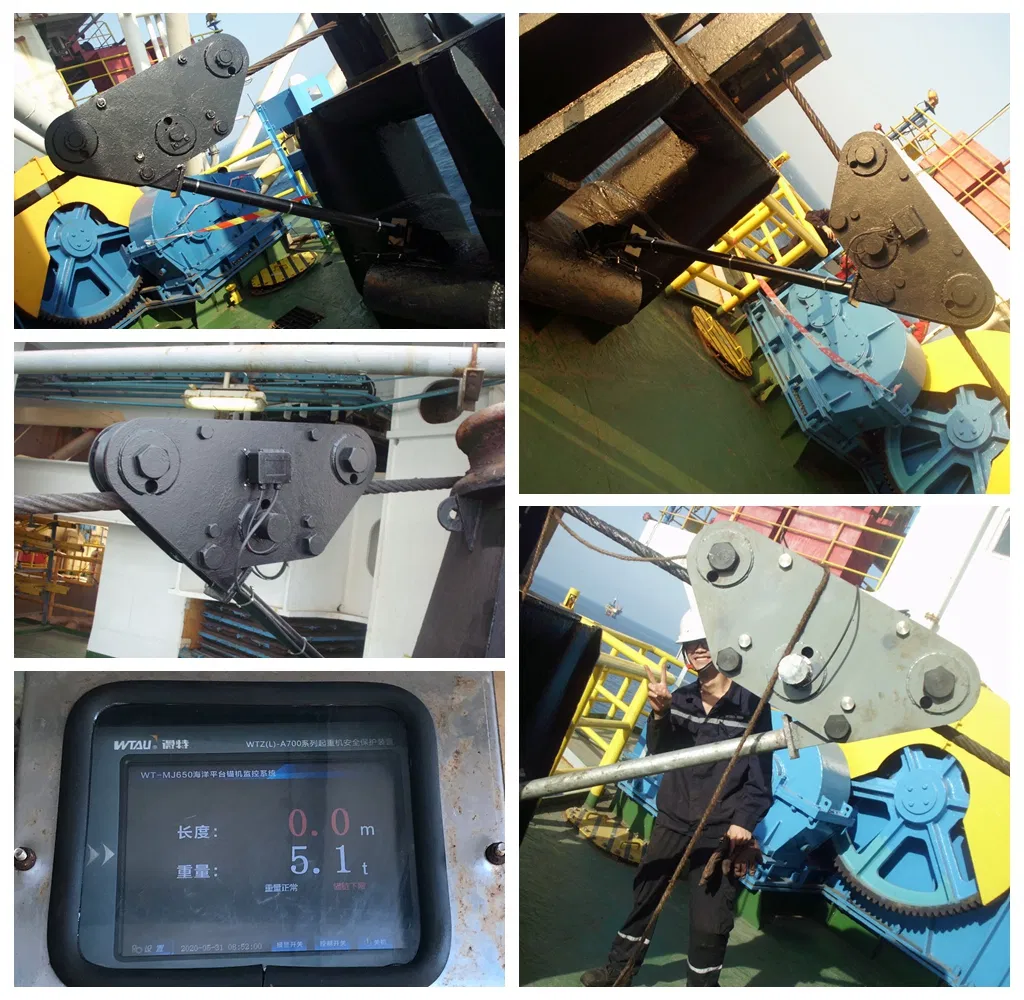

🏗️Installation Cases
Installation Case
🏢About Our Safety Solutions
Safety Management

Specializing in crane lifting equipment safety management since 2002, our solutions protect cranes and lifting equipment under safety working conditions. We provide customized Load Moment Indicator (LMI) systems, Crane Management Systems, Anti-Collision Systems, and Remote Monitoring Platforms.

Our products are widely utilized in marine, electrical, chemical, steel, metallurgy, construction, and port industries across over 70 countries and regions globally.

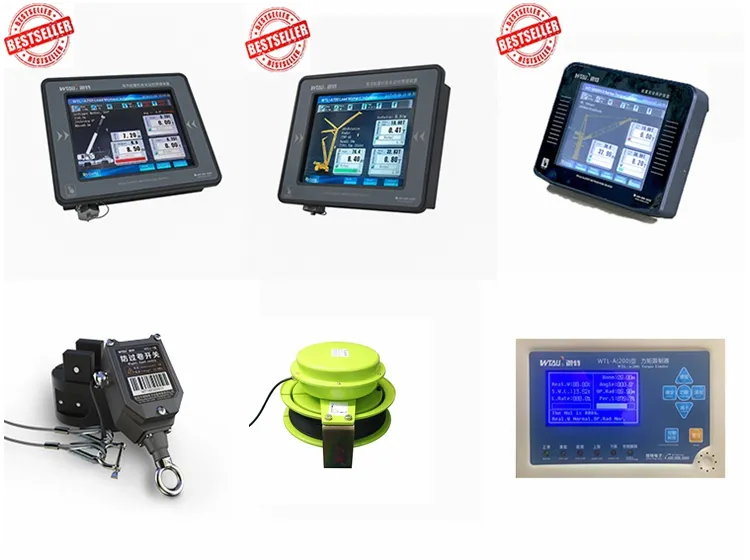

🔗Related Products
Related Safety Products
❓Frequently Asked Questions
Q1: What are the primary products you offer?
A1: We provide Safe Load Indicators (LMI), Crane Monitoring Systems, CCTV/Camera Systems, Load cells, Load pins, Length Angle sensors, Anemometers, and A2B limit Switches.
Q2: Can you assist if my existing crane display is no longer working?
A2: Yes, we can replace your old system with a new LMI system, restoring your crane to normal and safe working conditions.
Q3: What are the main components of the LMI system?
A3: A standard system typically includes a display, control box, load sensor, angle sensor, 3-color alarm light, and A2B limit switch.
Q4: How do you ensure product quality?
A4: We offer a 12-month warranty on all items. If any issues occur after installation, we provide support and replacements to ensure reliability.
Q5: How is the system installed?
A5: We provide a detailed English User Manual covering installation and troubleshooting. Additionally, free remote technical assistance from our engineers is available.
Q6: What information is needed for a quotation?
A6: Please provide the crane model, hook number, specific working conditions, and the load chart for an accurate system configuration and price.
