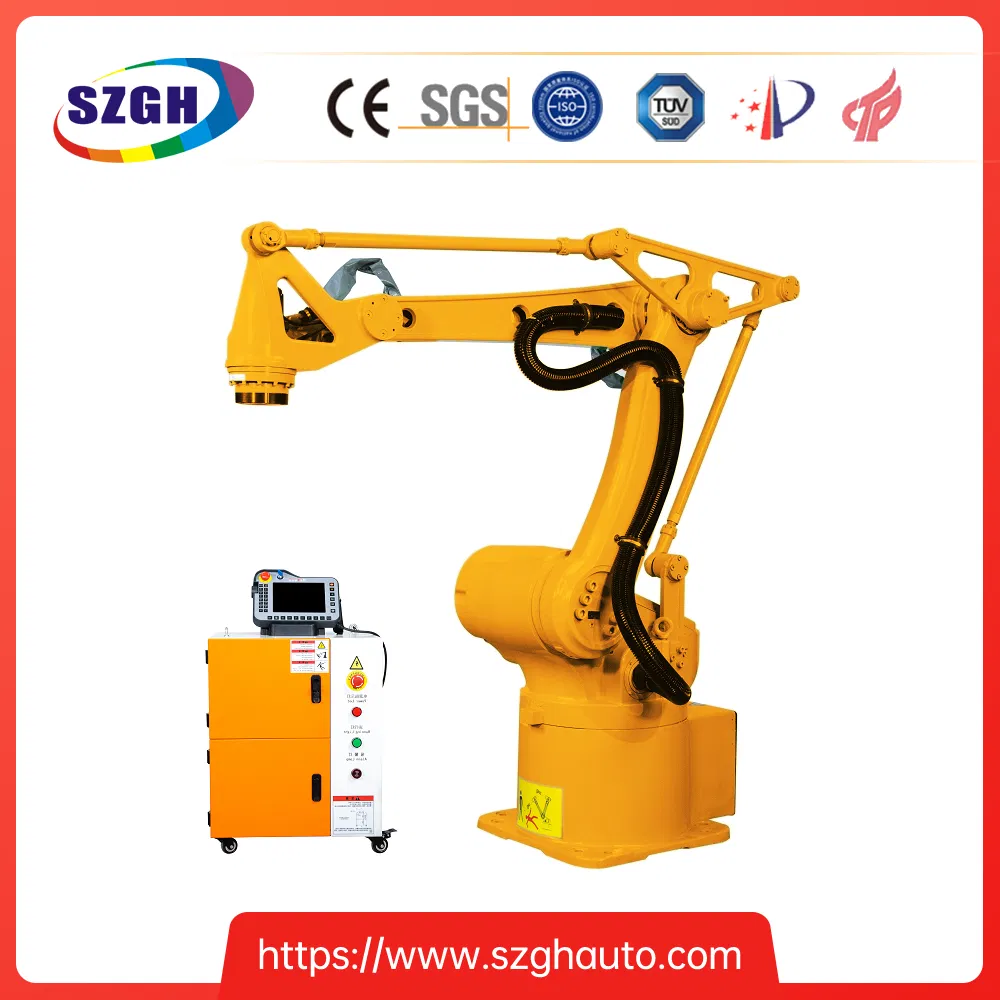

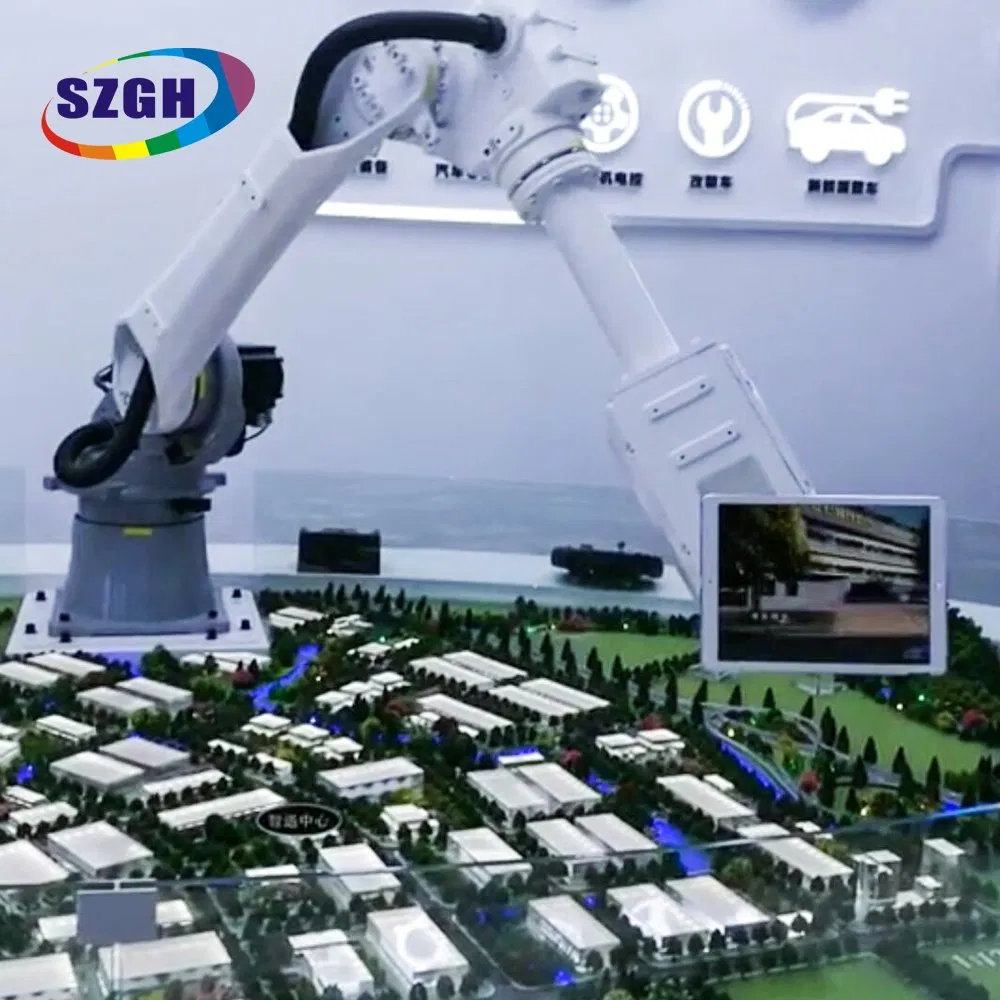

The G1500-C-4 robot is a dedicated solution for handling operations, designed for easy operation, high efficiency, and maximum safety. With a diverse range of 25 mass-produced models including general-purpose, welding, spraying, palletizing, and grinding types, these systems are equipped with an independently developed intelligent control system. Our solutions also support 9-axis linkage linkage and customized robotic configurations to meet specific industrial needs.

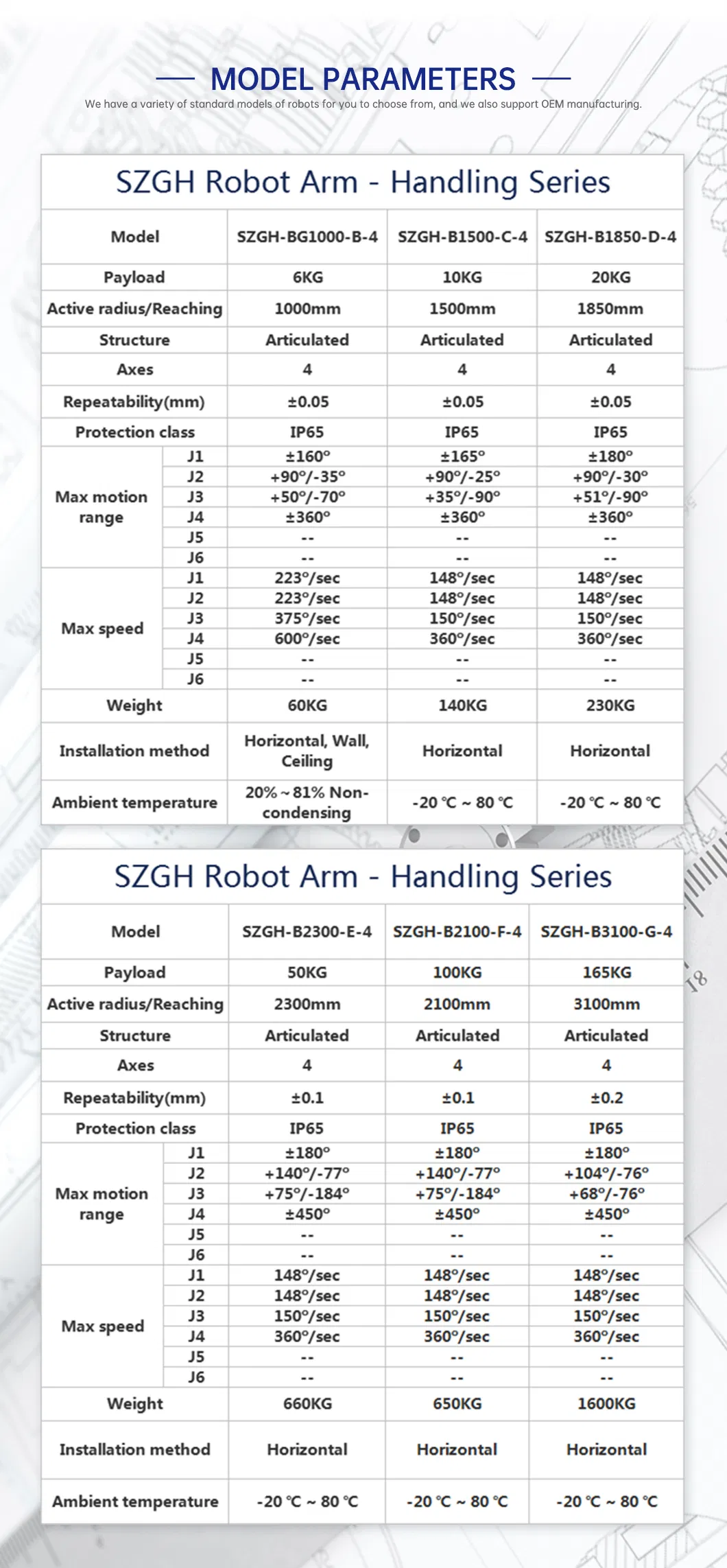

| Model | SZGH-B1500-C-4 |
|---|---|
| Payload | 10kg |
| Reach | 1500mm |
| Axes | 4 Axes |
| Drive Mode | Electric |
| Structure | Articulated |
| Repeatability | 0.02mm |
| Weight | 660kg |
| Mounting Type | Ground, Bracket, Ceiling |
| Special Service | Color customization and logo integration available |
| Warranty | 12 Months with video and online technical support |
| Storage | 2 GB |
|---|---|

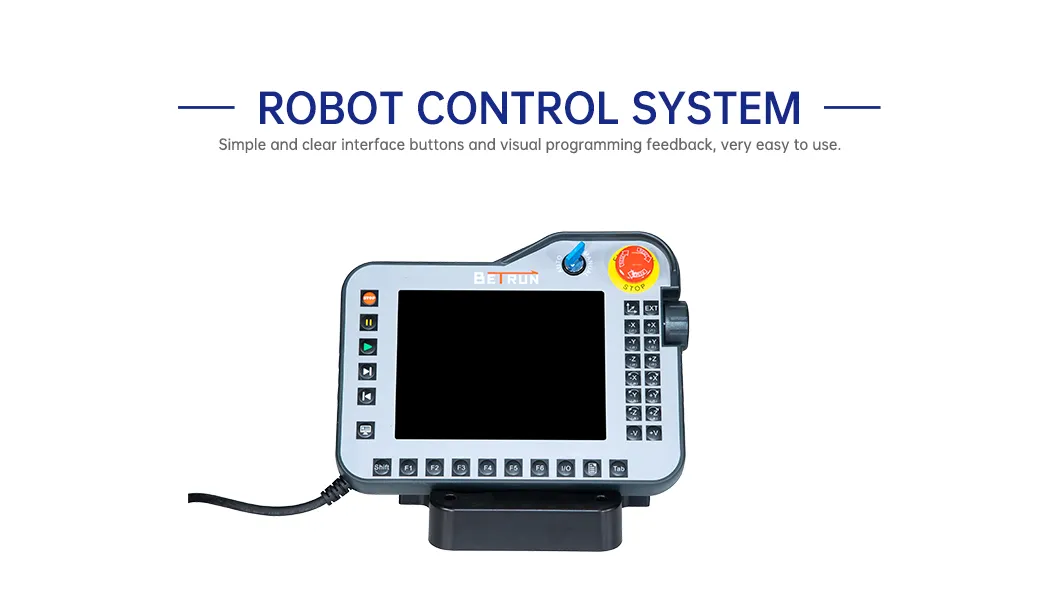

| Teaching Box | Full keyboard + touch screen, mode select switch, safety & emergency switches |
| Interface | Multiple encoder interfaces, Ethernet, Serial communication |
| Safety Module | Rapid stop linkage for emergency and robot anomalies |
| Operation Mode | Teaching, representation, remote control |
| Motion Functions | Point-to-point, linear, circular |
| Anomaly Detection | Collision detection, servo anomaly, safety maintenance, arc & coordinate anomalies |
| Package Size | 120.00cm * 120.00cm * 148.00cm |
|---|---|
| Gross Weight | 330.000kg |
| Transport Package | Wooden Box |
| Capacity | 1000 Sets / Month |
