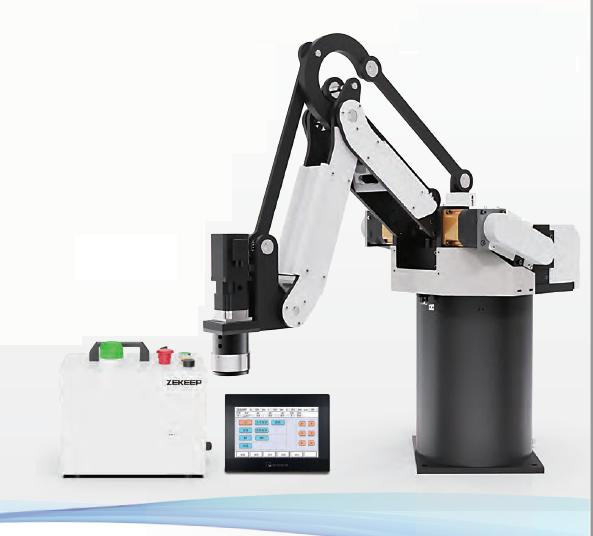

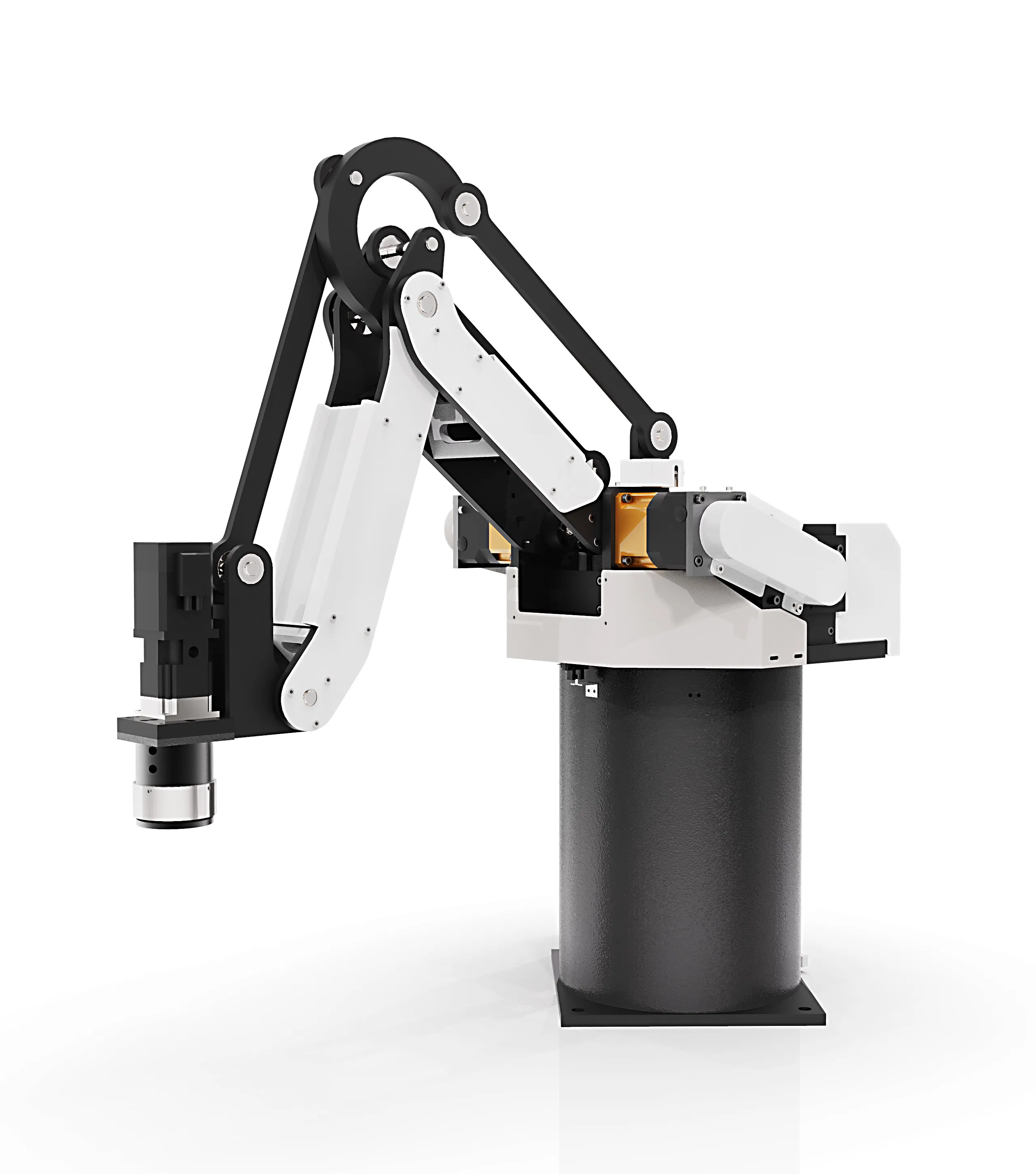

INDUSTRY DESKTOP ROBOTIC ARM
HYBRID SERVO MOTOR 4 AXIS INDUSTRY ROBOT ARM - API SUPPORT SECOND TWIC DEVELOPMENT
At present, the main production focuses on robotic arms loaded below 5KGS with 3-axis and 4-axis configurations. These are widely used in metal processing, industrial handling of small parts, spraying, medical industry, food and beverage industry, and consumer electronic products.

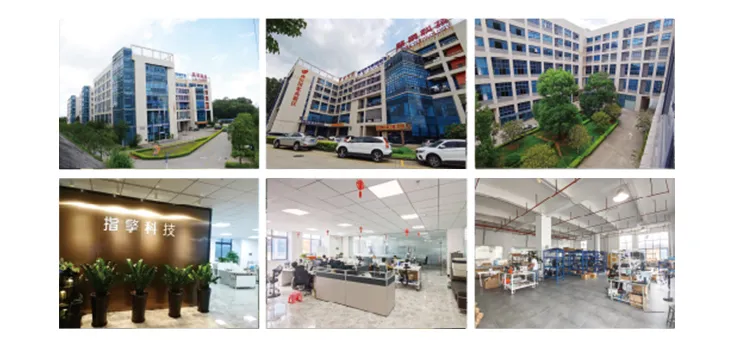

Economic smart small industry robot arm and education robot arm research and development began in 2015, continuously developing extensive applications in the industrial arena.
| Model: ZKBOT-4086 | DOF: 4 Axis |
| Payload: 3KGS | Repeat Position Accuracy: ±0.1MM |
| Max Reach: 710MM | Working Temperature: -10°~50° |
| Supply voltage: AC220V/110V | Power: Max 150W |
| Movement locus: Point-to-Point/Line/Arc | Coordinate system: Joint / World Coordinate |
| I/O: Input 10 / Output 8 | Control: APP / Remote / Control Box |
| Axis | Max Speed | Max Operating Range |
| J1 | 140°/s | -162° to 162° |
| J2 | 120°/s | -115° to 0° |
| J3 | 100°/s | -115° to 0° |
| J4 | 160°/s | -162° to 162° |
FUNCTION APPLICATION

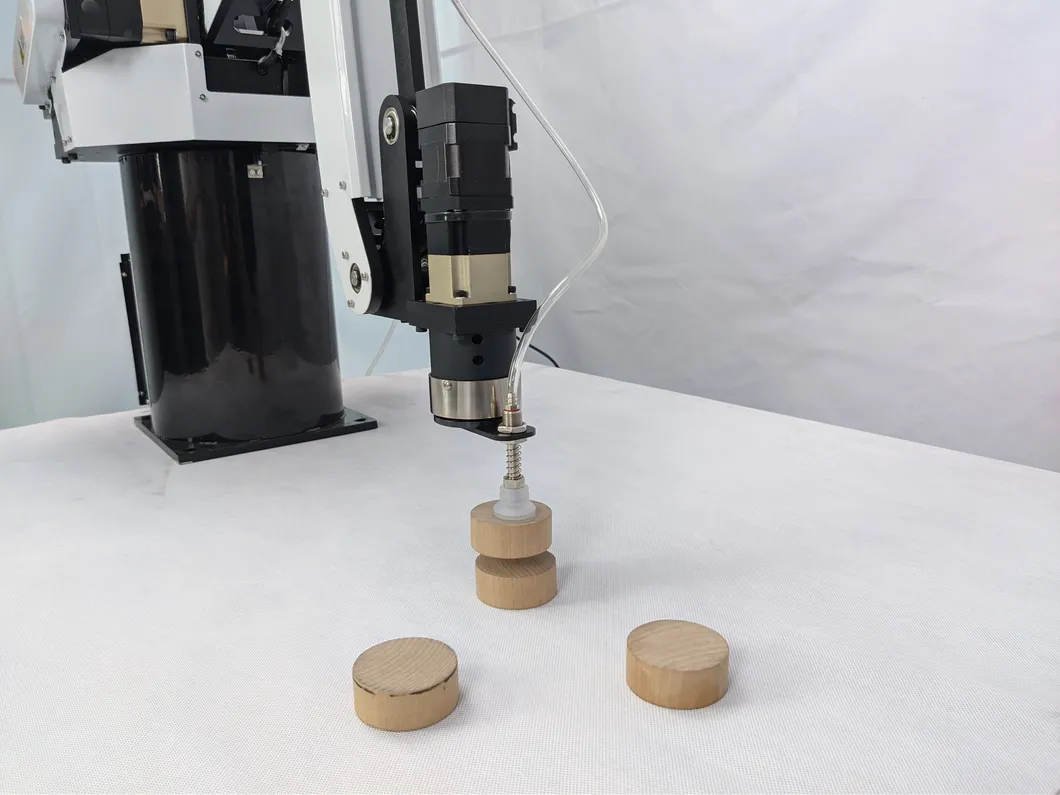

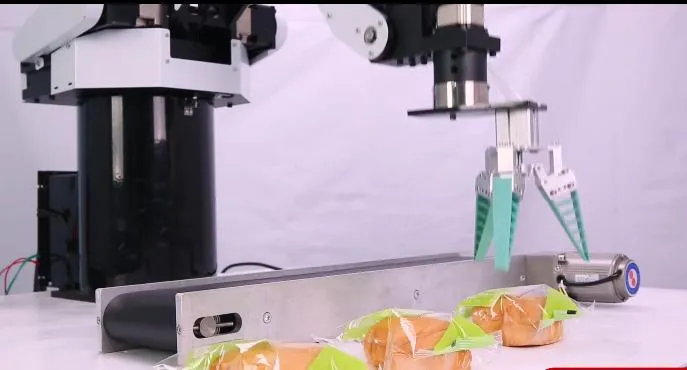

Used for 3kgs spraying, sorting, loading and unloading, handling, stamping, assembly, press tending, tracing, palletizing, and machine vision sorting systems. The robot has an open API interface for secondary development.

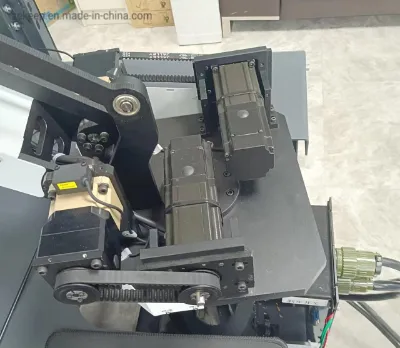

| Robot Base & Motor | |
| Material | Aluminum alloy |
| Base Size | 180mm * 180mm |
| Net Weight | 37 Kgs |
| Stepper Torque | 0.4 N*M |
| Reduction Ratio | 1:10 |

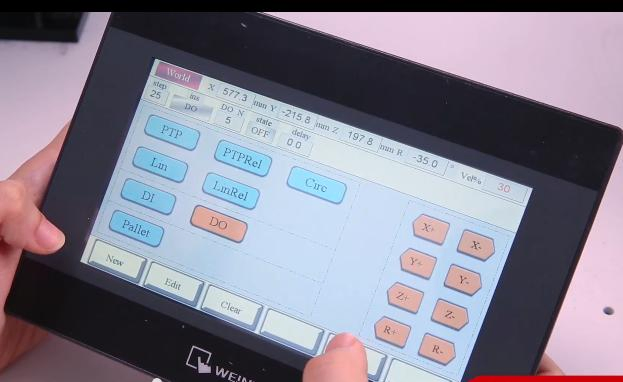

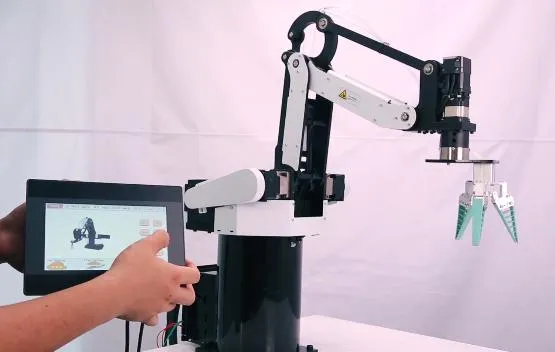

| Touch Screen (7 inch TFT) | |
| Resolution | 480 * 272 |
| CPU | A8 800MHz |
| Communication | RS232 / 422 / 485 |
