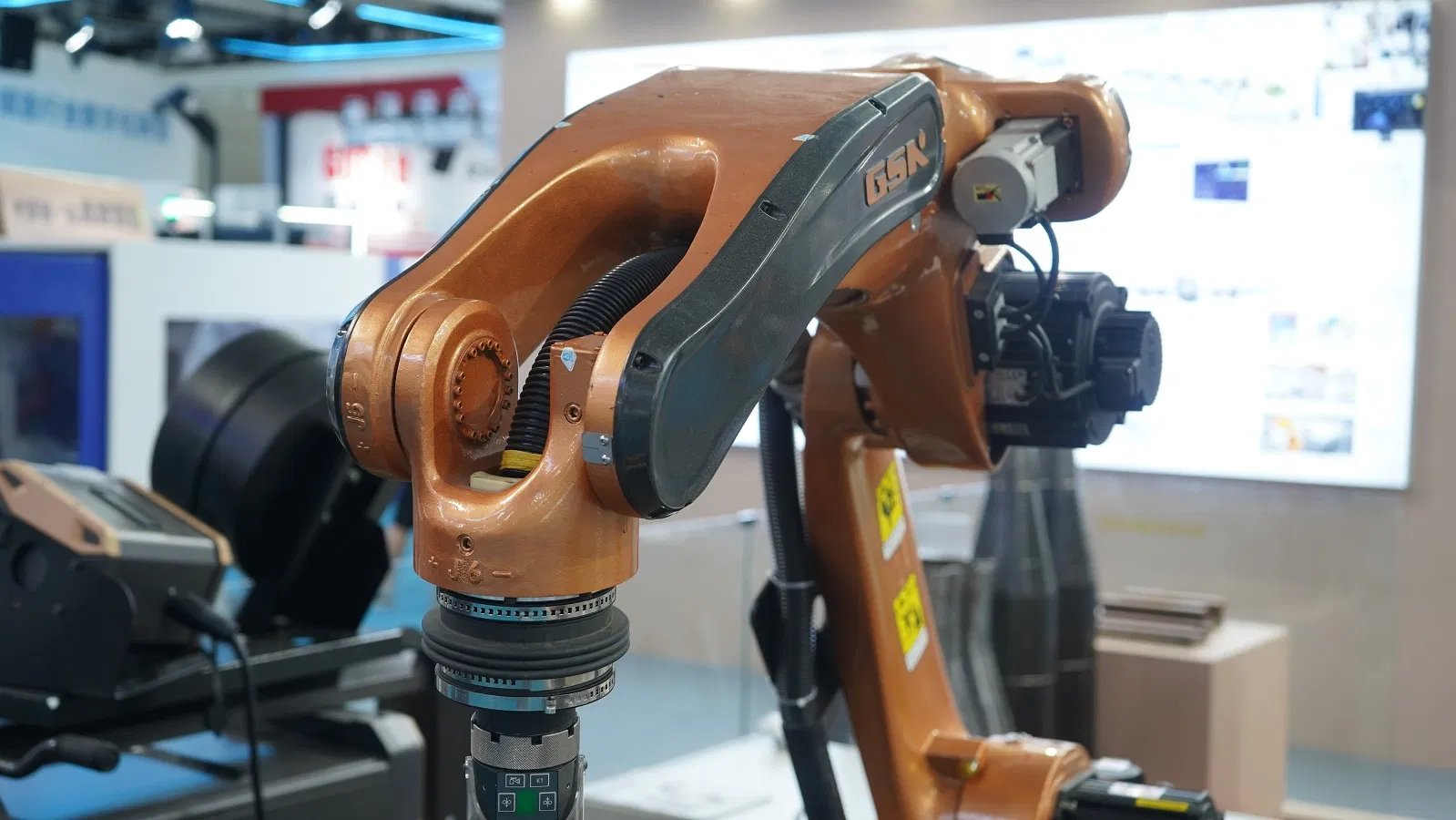

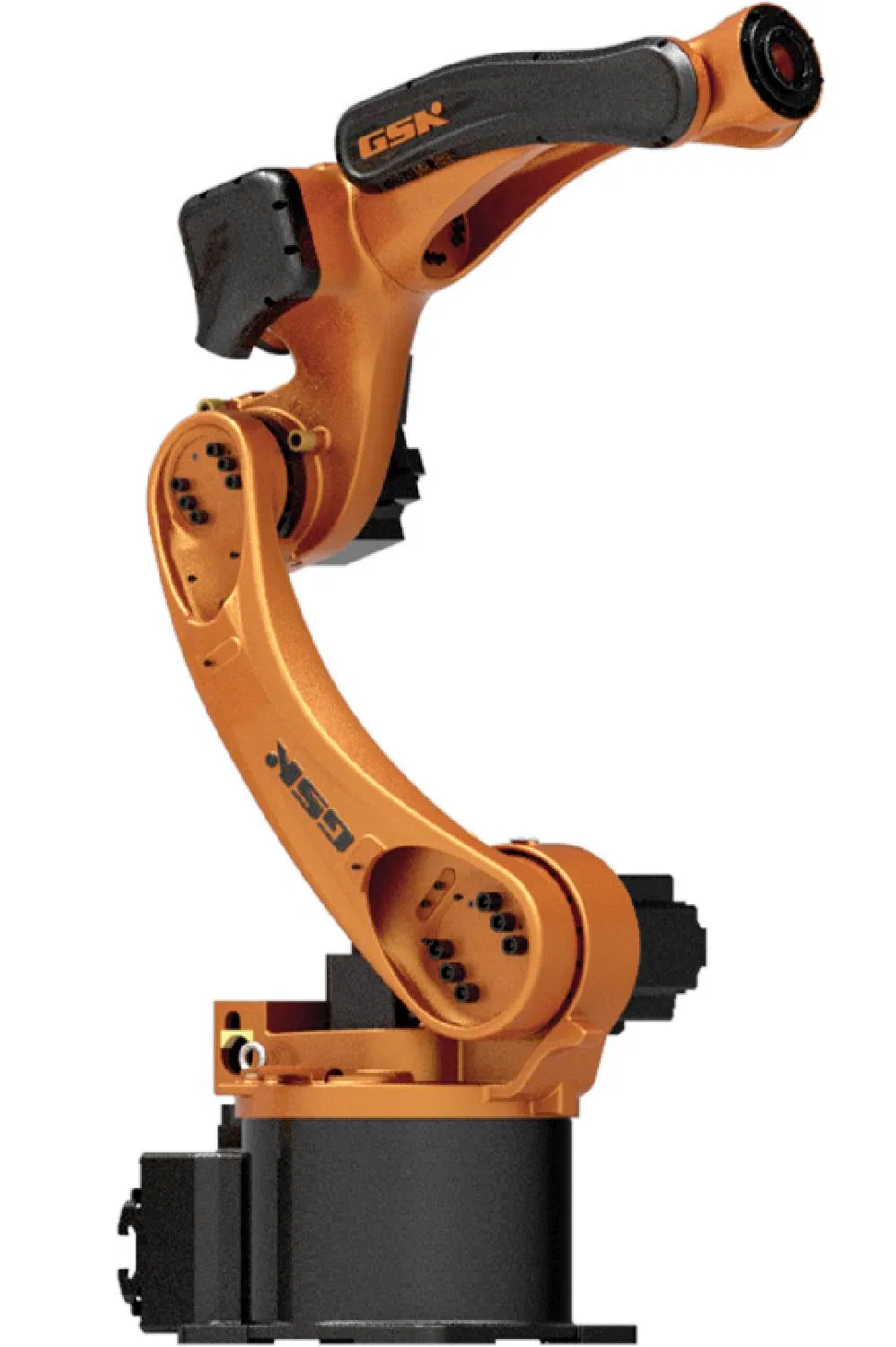

Liftora Arm
1 / 5

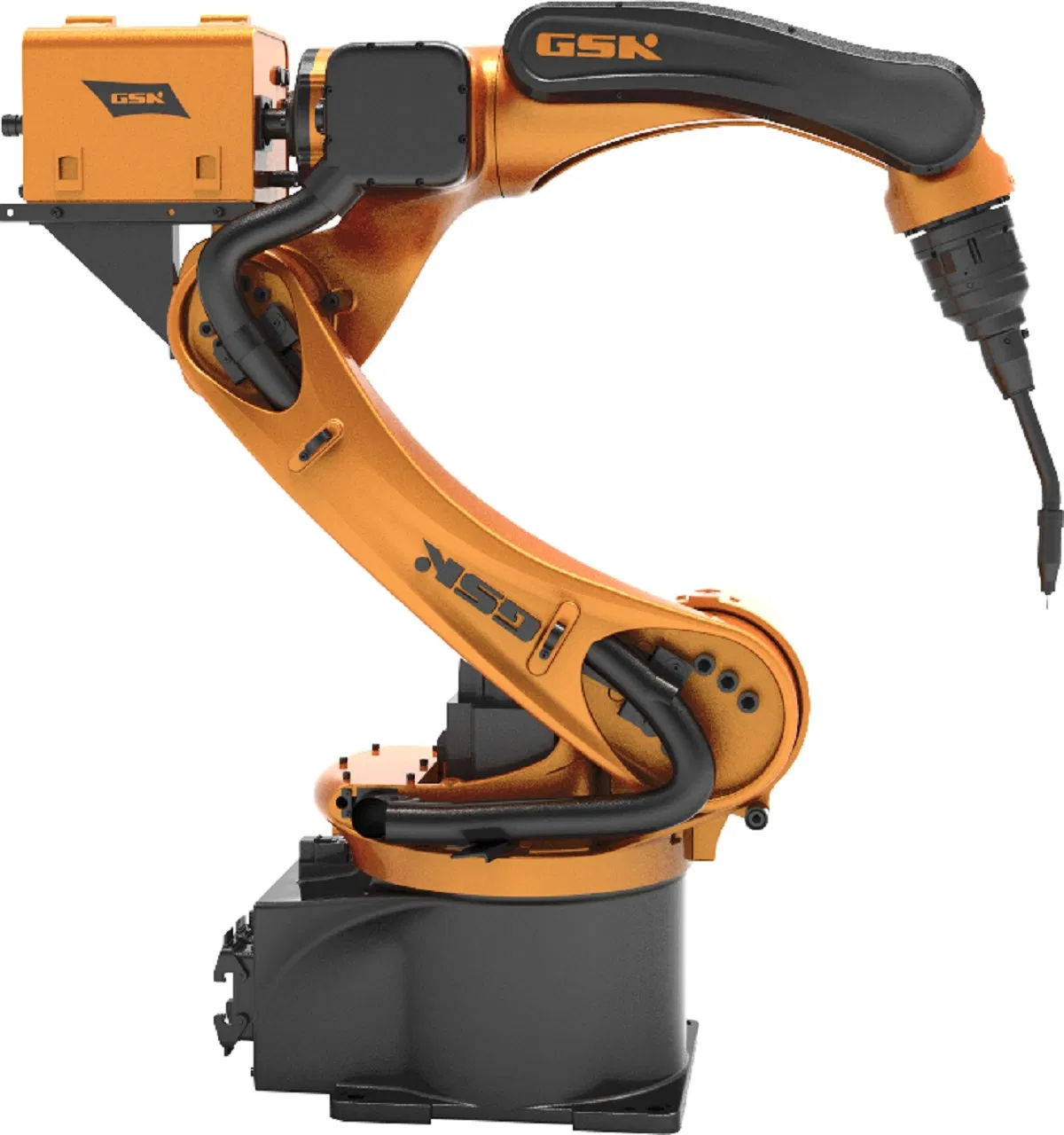

Application field: It is widely used in automobiles and their accessories, motorcycles and their accessories, agricultural machines, engineering machines, and other hardware welding fields.
| Type | Dof | Payload (kg) | Repeatability (mm) | Motion Range (°) | Motion Radius (mm) | Weight (kg) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| J1 | J2 | J3 | J4 | J5 | J6 | ||||||

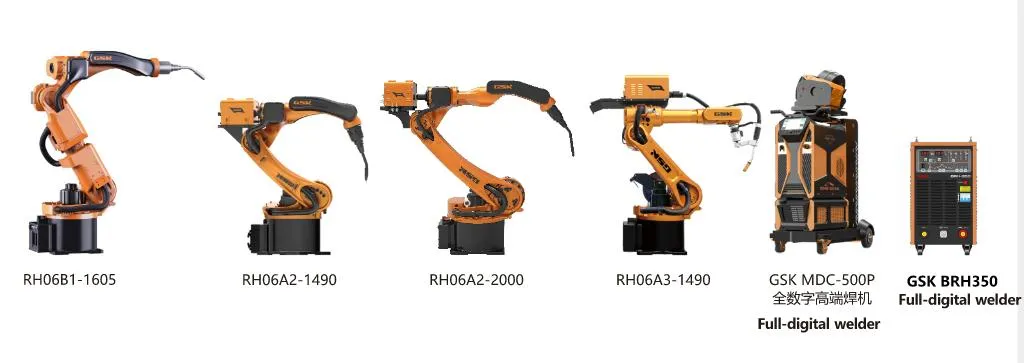

| RH06A2-1490 | 6 | 6 | ±0.05 | ±170 | +115~-80 | +80~-150 | ±180 | ±135 | ±360 | 1490 | 190 |
| RH06A3-1490 | 6 | 6 | ±0.05 | ±170 | +120~-85 | +83~-150 | ±180 | ±135 | ±360 | 1490 | 185 |
| RH06B1-1605 | 7 | 6 | ±0.05 | ±170 | +110~-70 | +80~-150 | ±180 | ±135 | ±360 | 1605 | 215 |
| RH06A3-2060 | 6 | 6 | ±0.05 | ±170 | +145~-100 | +75~-165 | ±180 | ±135 | ±360 | 2060 | 285 |
Note: Avoid contact with flammable, explosive, and corrosive gas or liquid. Keep away from electrical noise sources.

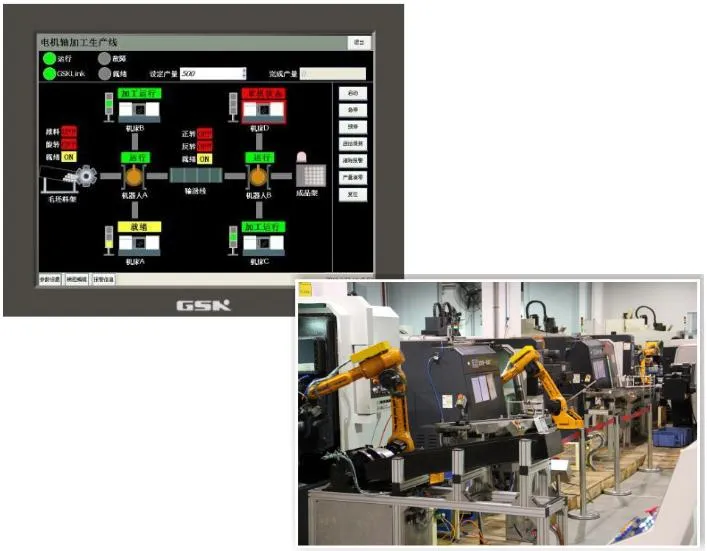

✓Monitor management system for machining lines and production equipment.
✓High-speed connection between CNC machines, industrial robots, and auxiliary devices.
✓Supports on-line and off-line programming.
✓Improves production efficiency and stability while reducing labor costs.

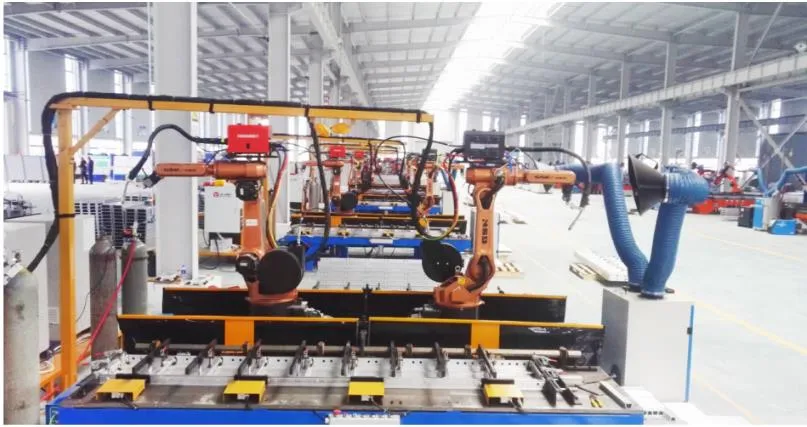

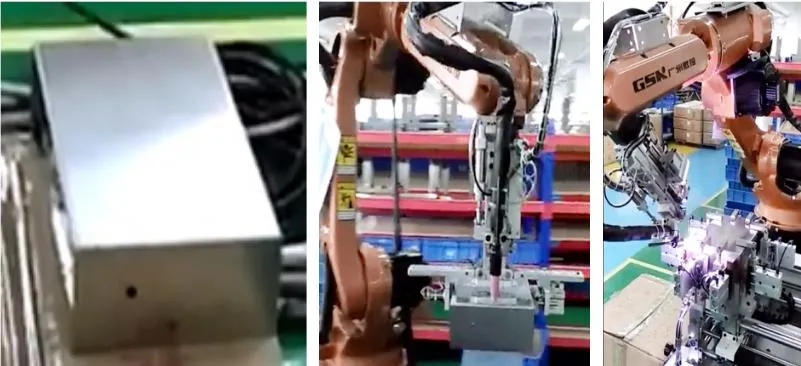

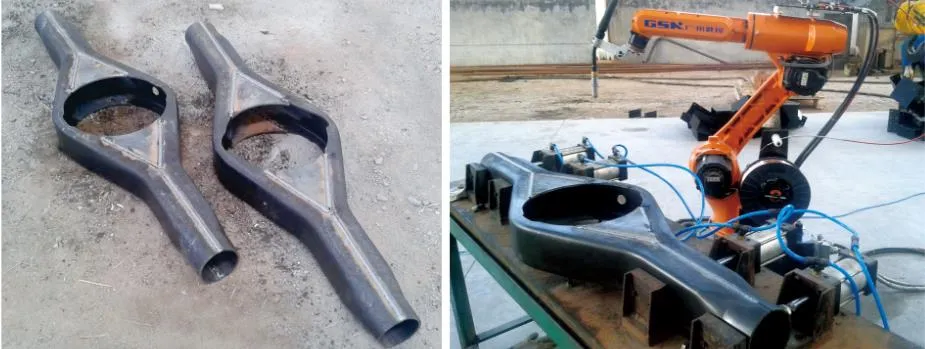

Robot replaces manual work with double-position alternative welding. Effectively guarantees production continuity and avoids high-risk environments for workers.

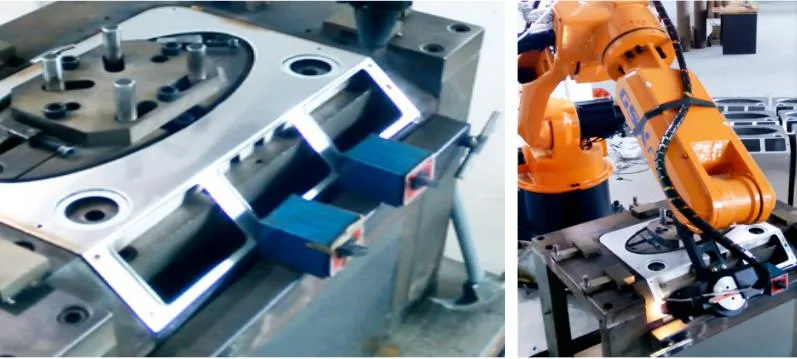

Welding of 0.6mm stainless steel sheets with no obvious deformation. High-speed continuous welding with optical fiber transmission.

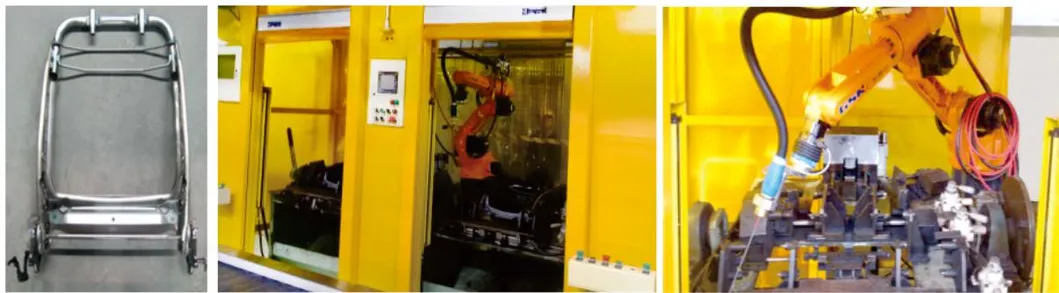

Automatic clamping and orientation. Achieves full-automatic welding without the need for manual labor.
Full-length welding without distortion. Features arc light protection and safety light curtains for independent station operation.

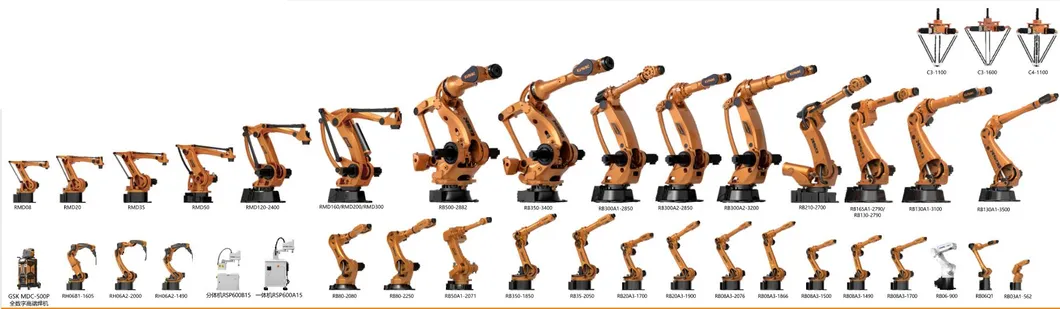

Our industrial robots cover transportation, welding, polishing, painting, stacking, and paralleling, with up to 30 kinds of products. We provide superior performance robots, fixtures, and conveyors for automation solutions.
