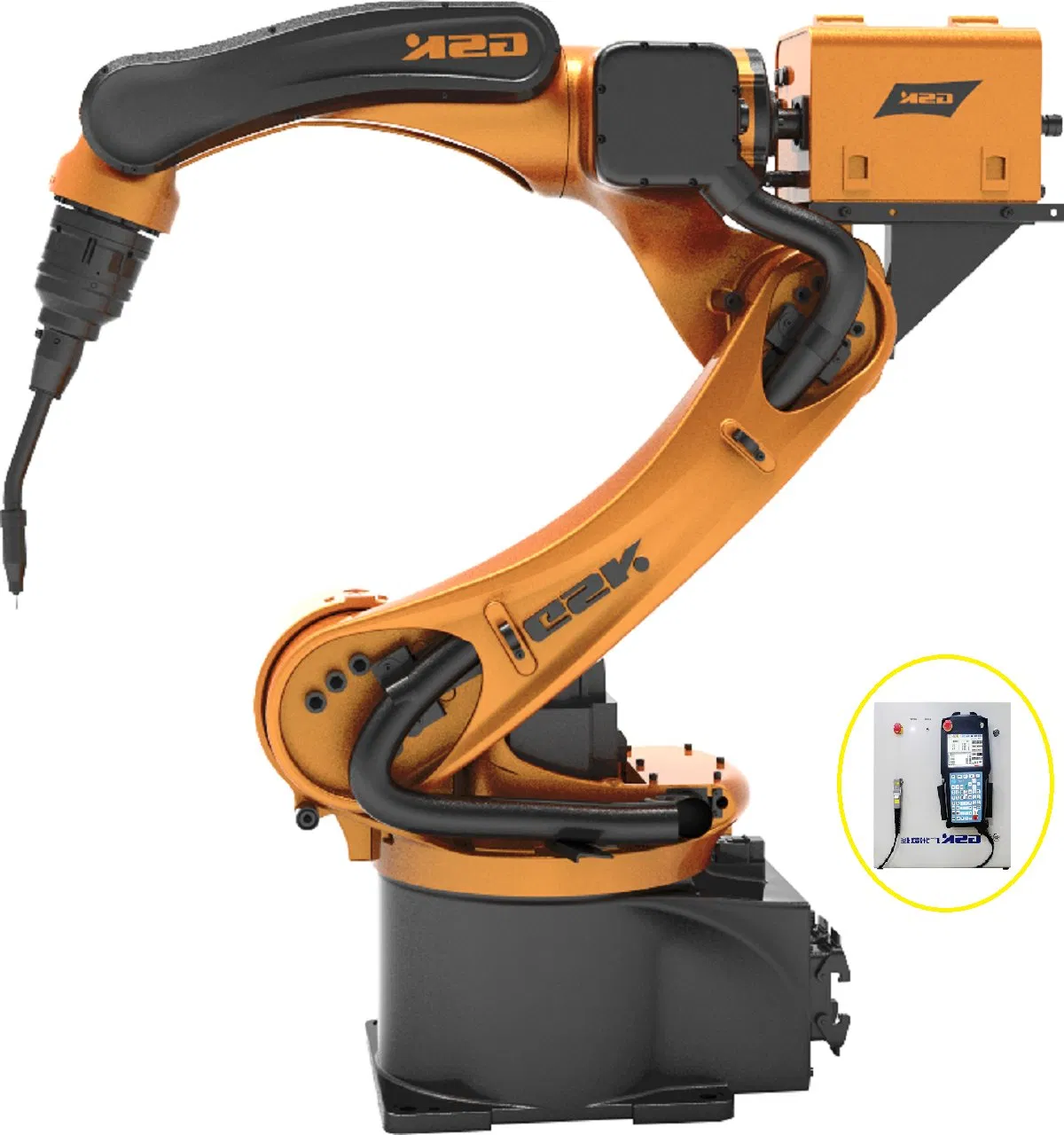

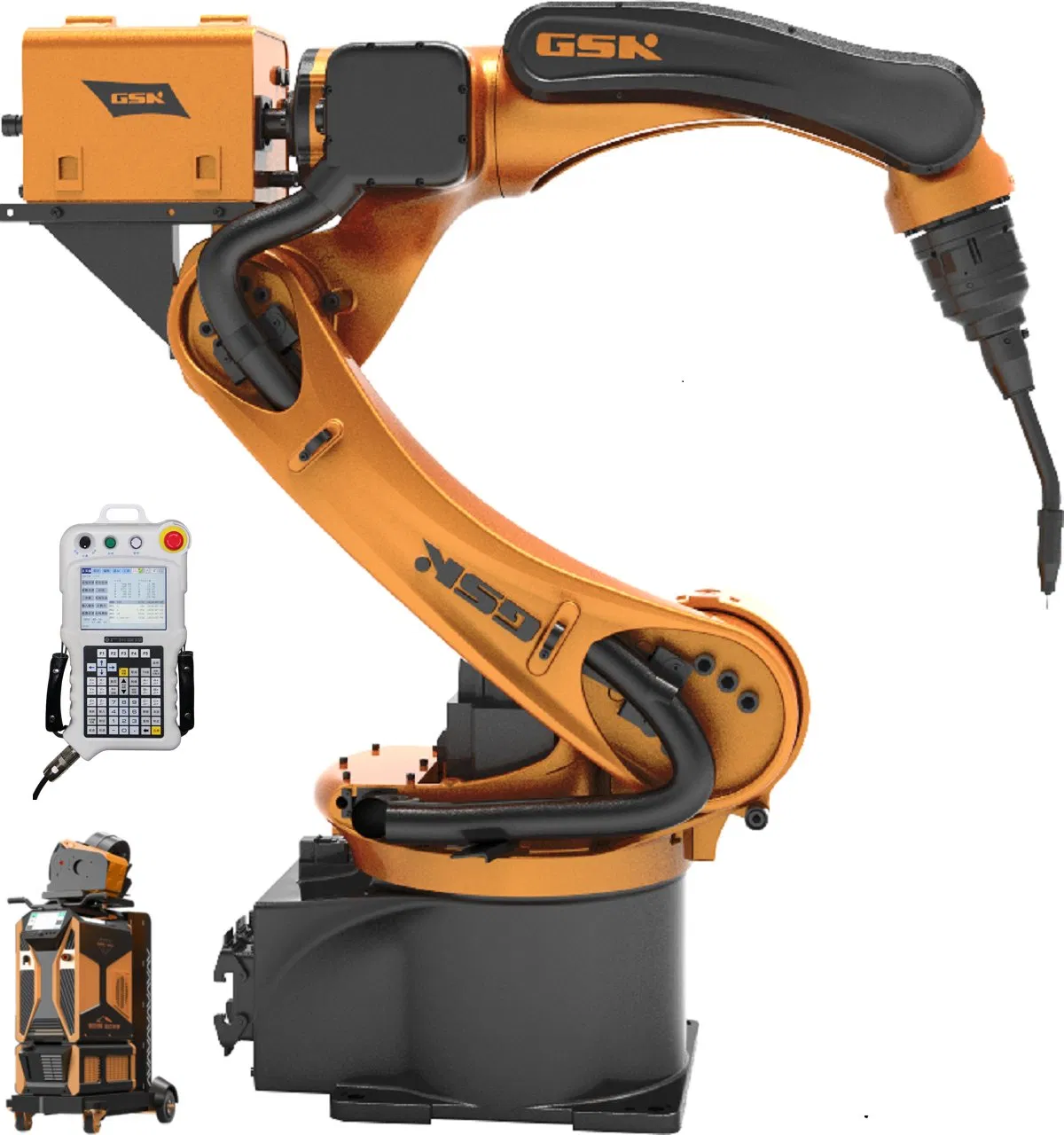

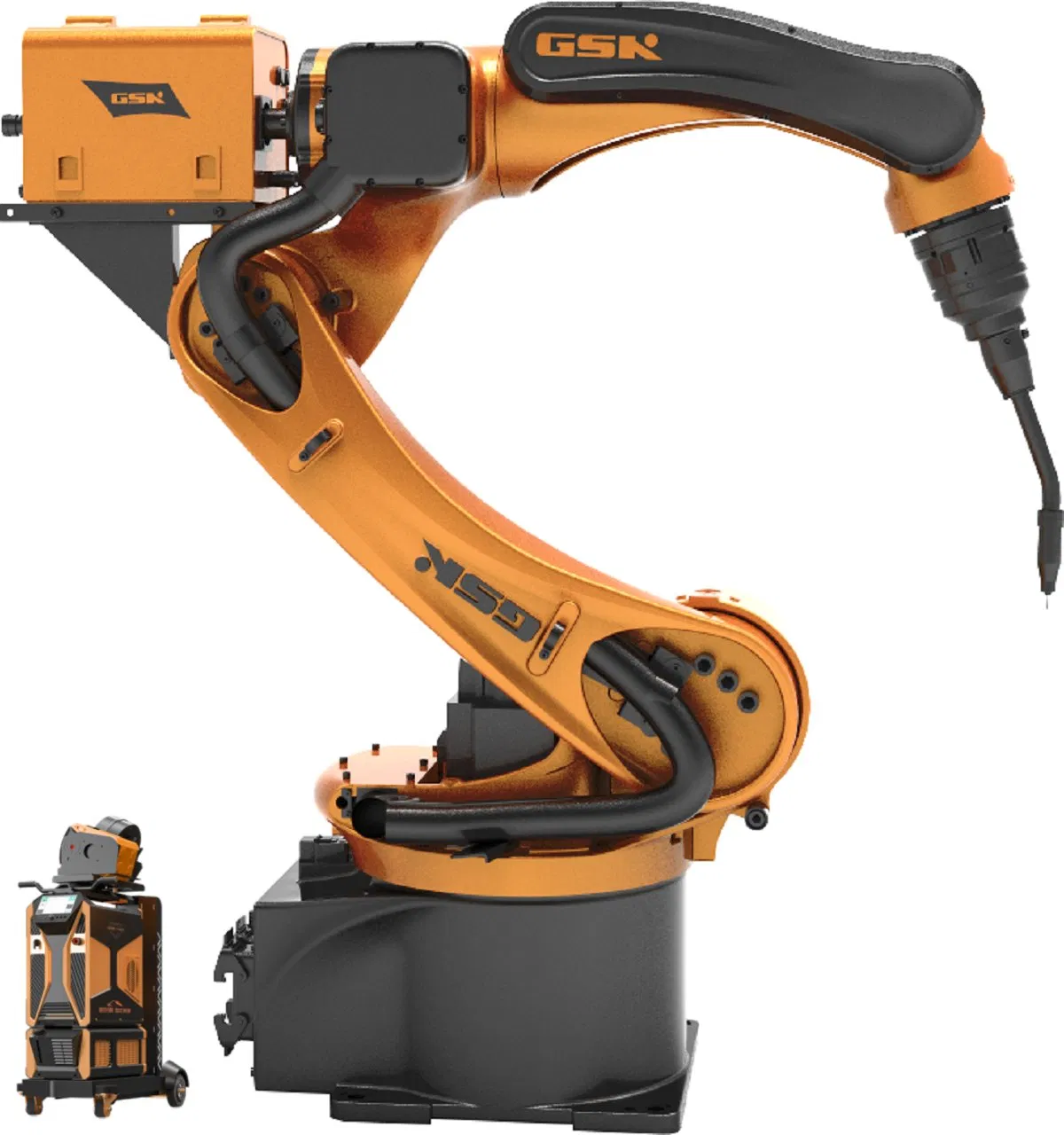

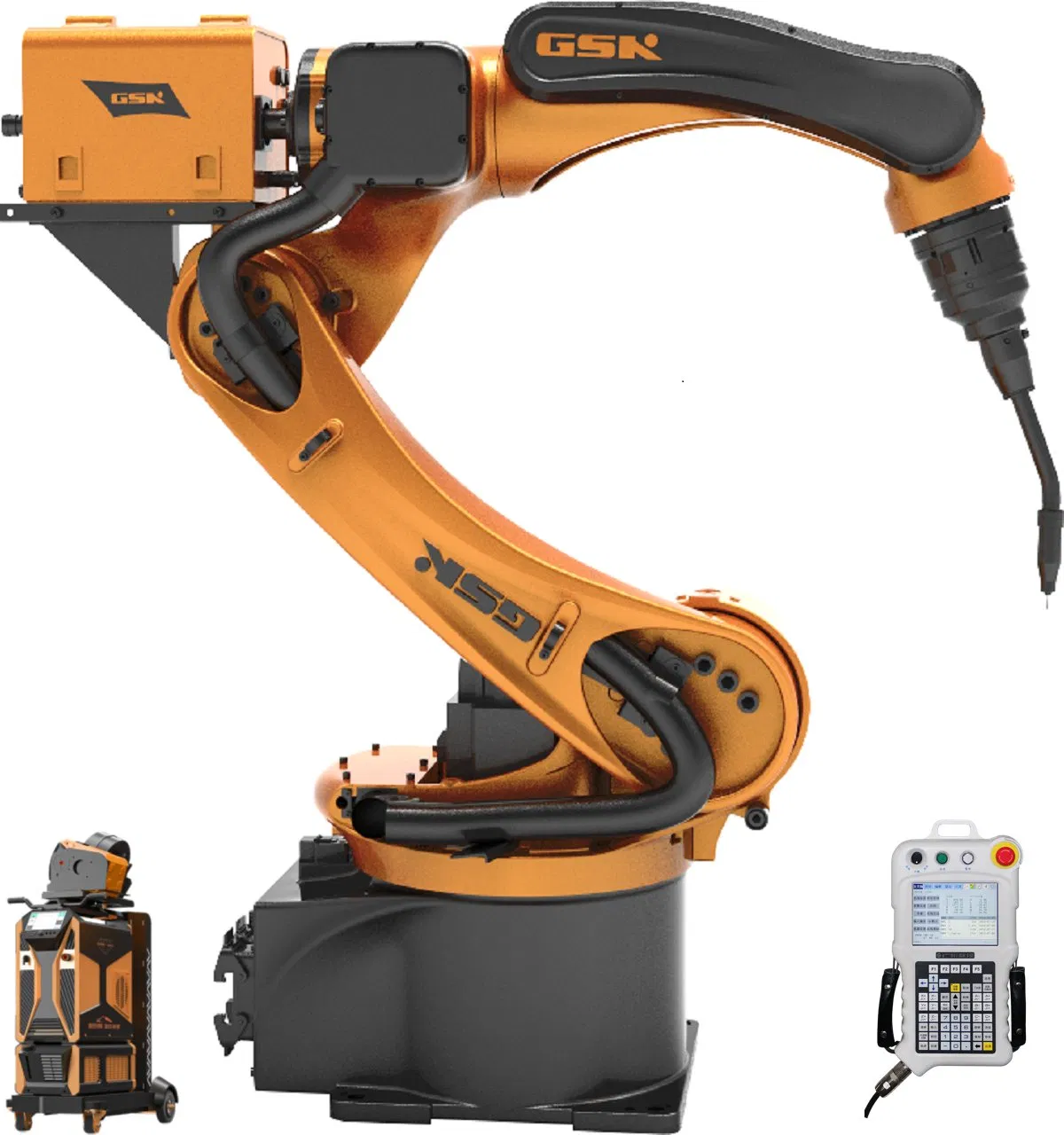

Automatic Robotic Low Splash Laser TIG/MIG Industrial Collaborative Welding Robot Arm

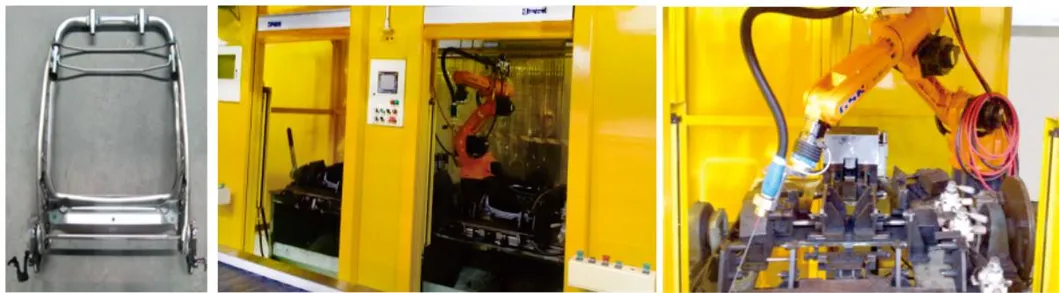

This advanced robotic system is widely utilized in automotive components, motorcycle manufacturing, agricultural machinery, and various hardware welding industries.

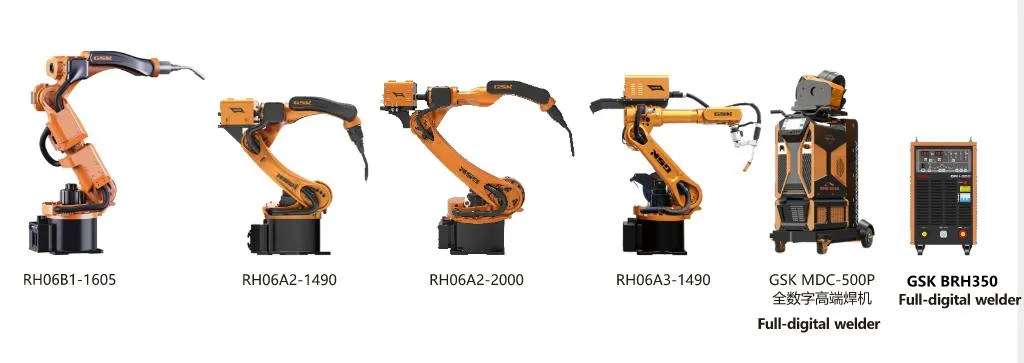

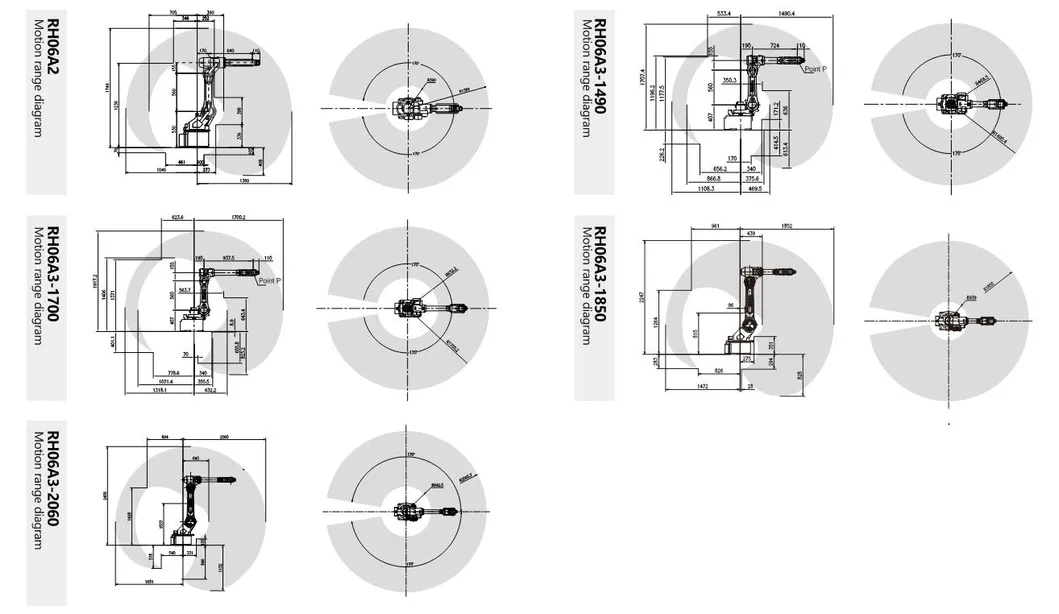

| Type | DOF | Payload (kg) | Repeatability (mm) | Motion Range (°) J1/J2/J3 | Top Velocity (°/s) J1/J2/J3 | Radius (mm) | Weight (kg) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| RH06A2 | 6 | 6 | ±0.05 | ±170 / +115~-80 / +80~-150 | 200 / 200 / 200 | 1490 | 185 | ||||
| RH06A3-1490 | 6 | 6 | ±0.05 | ±170 / +120~-85 / +83~-150 | 200 / 200 / 200 | 1490 | 185 | ||||
| RH06A3-1700 | 6 | 6 | ±0.05 | ±170 / +120~-85 / +83~-150 | 180 / 180 / 180 | 1700 | 187 | ||||
Note: Avoid contact with flammable, explosive, or corrosive substances. Keep away from water and high electrical noise sources.

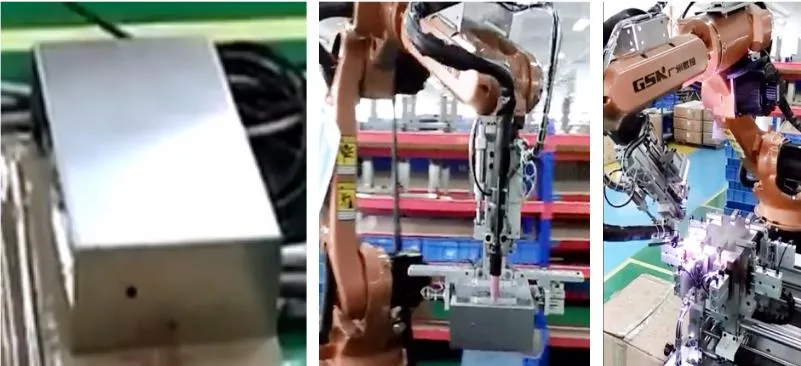

Equipped with automatic torch cutting mechanism to guarantee continuity. Replaces manual high-risk labor, ensuring product stability and worker safety.

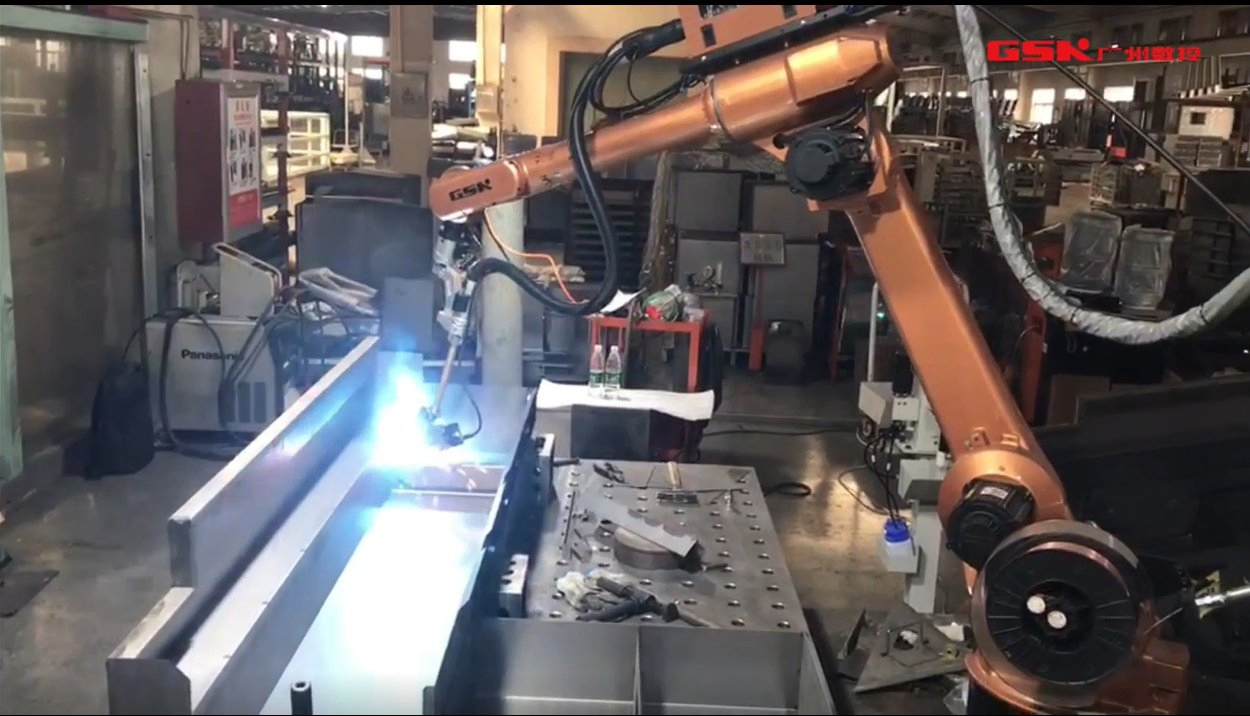

High-speed continuous welding for 0.6mm stainless steel sheets with no obvious deformation. Replaces traditional argon arc welding with higher consistency and lower costs.

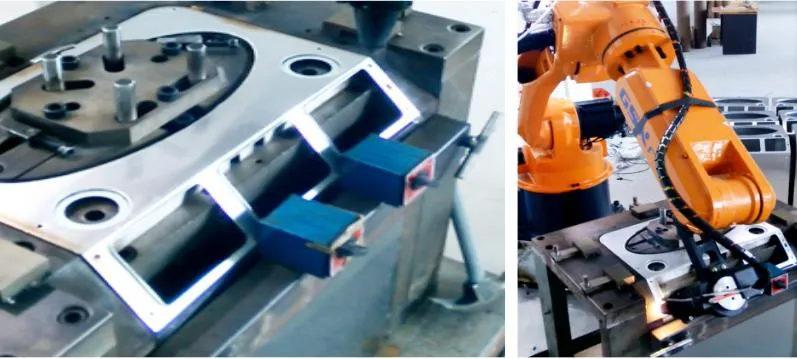

Full-automatic TIG welding for stainless steel products. Features flexible tooling where length and width can be adjusted automatically based on procedures.

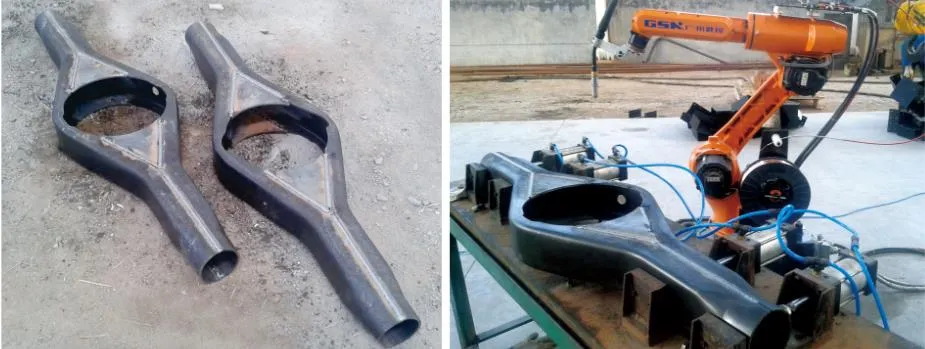

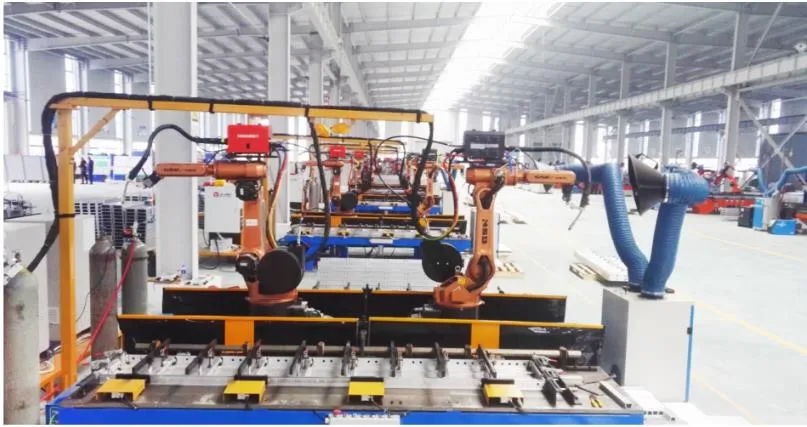

Complex spot welding and full-length welding without distortion. Workstations include arc light protection and safety light curtains for safe human-robot collaboration.

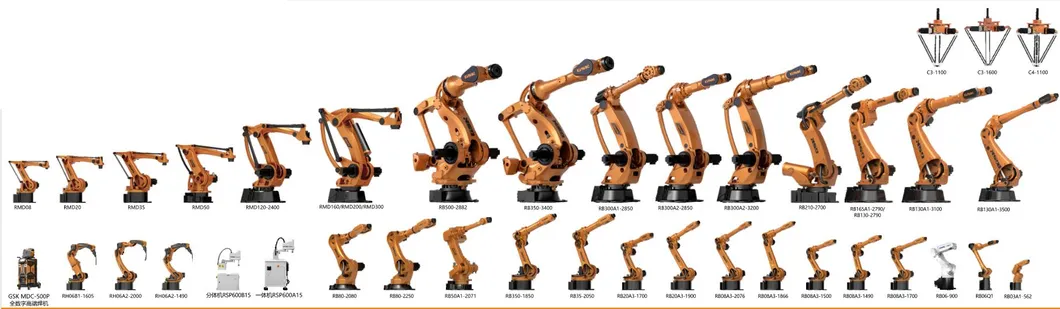

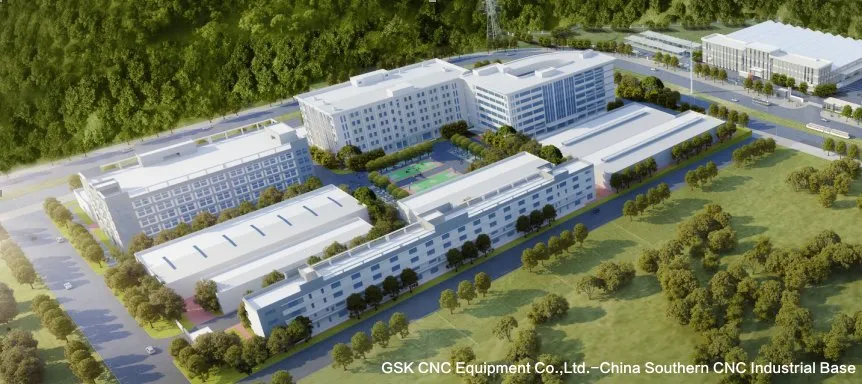

With over 30 years of R&D experience, our industrial robots cover transportation, welding, polishing, painting, stacking, and paralleling, totaling up to 30 kinds of products.

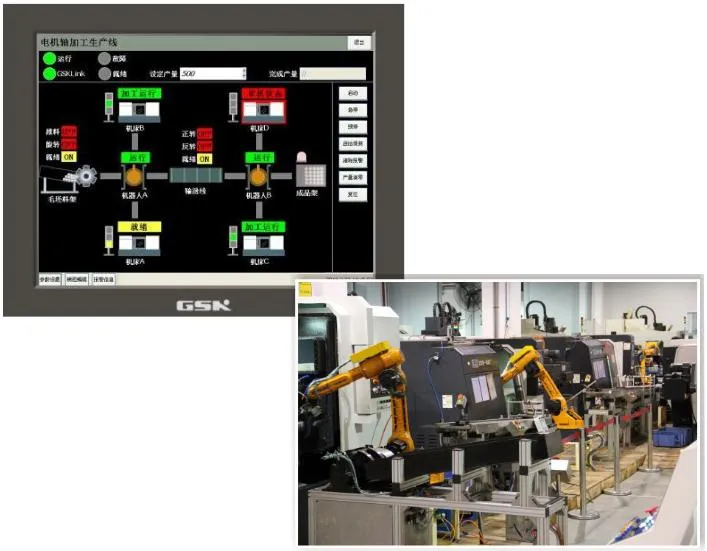

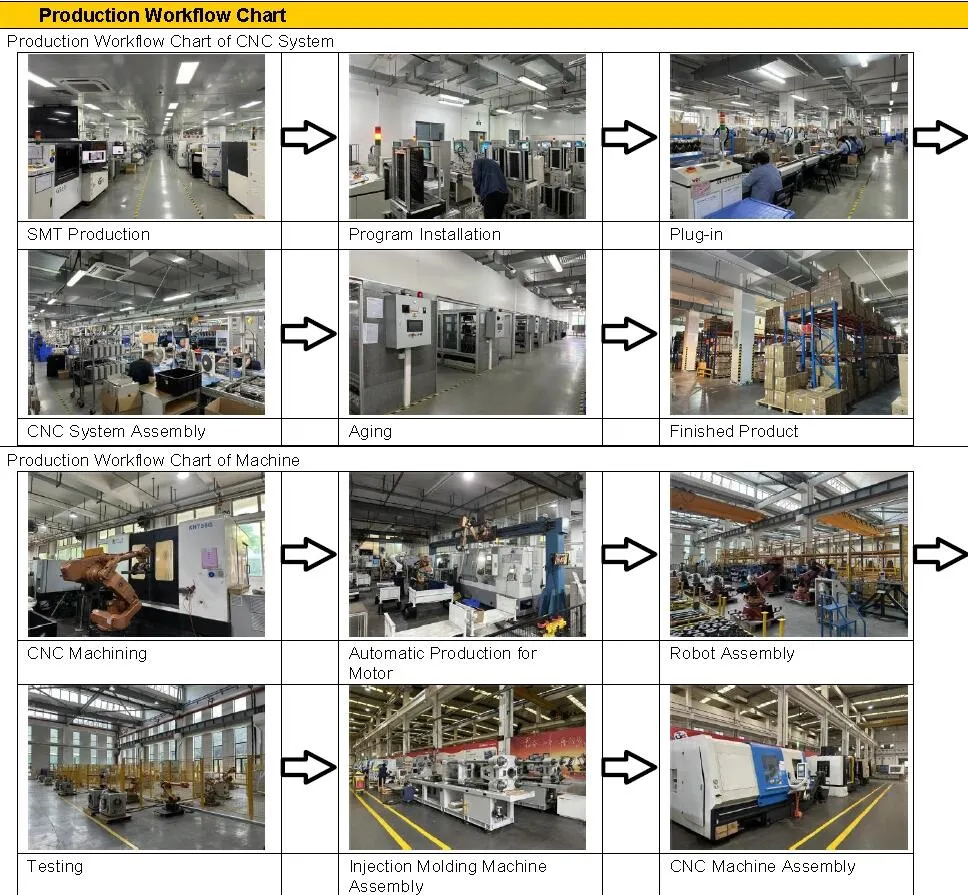

The company integrates science, education, and industry, focusing on packaged solutions for CNC systems, servo drives, and industrial robots. We are committed to technological innovation to enhance product value and industry technological levels.
