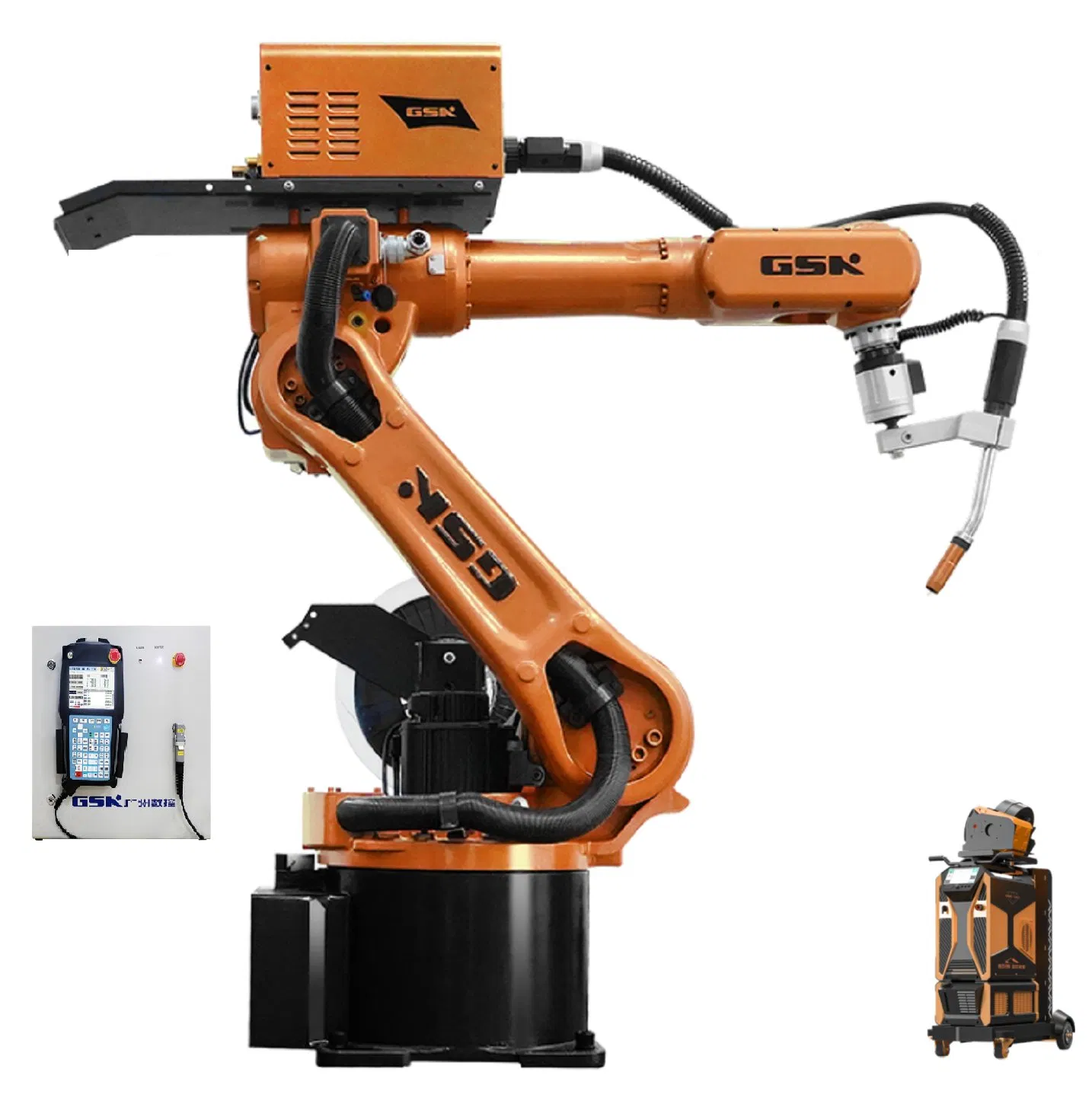

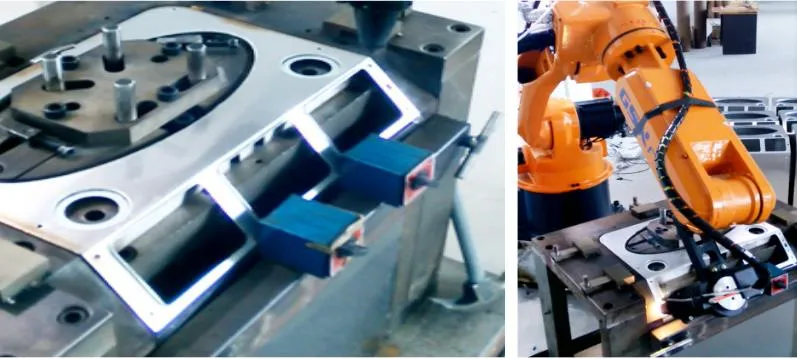

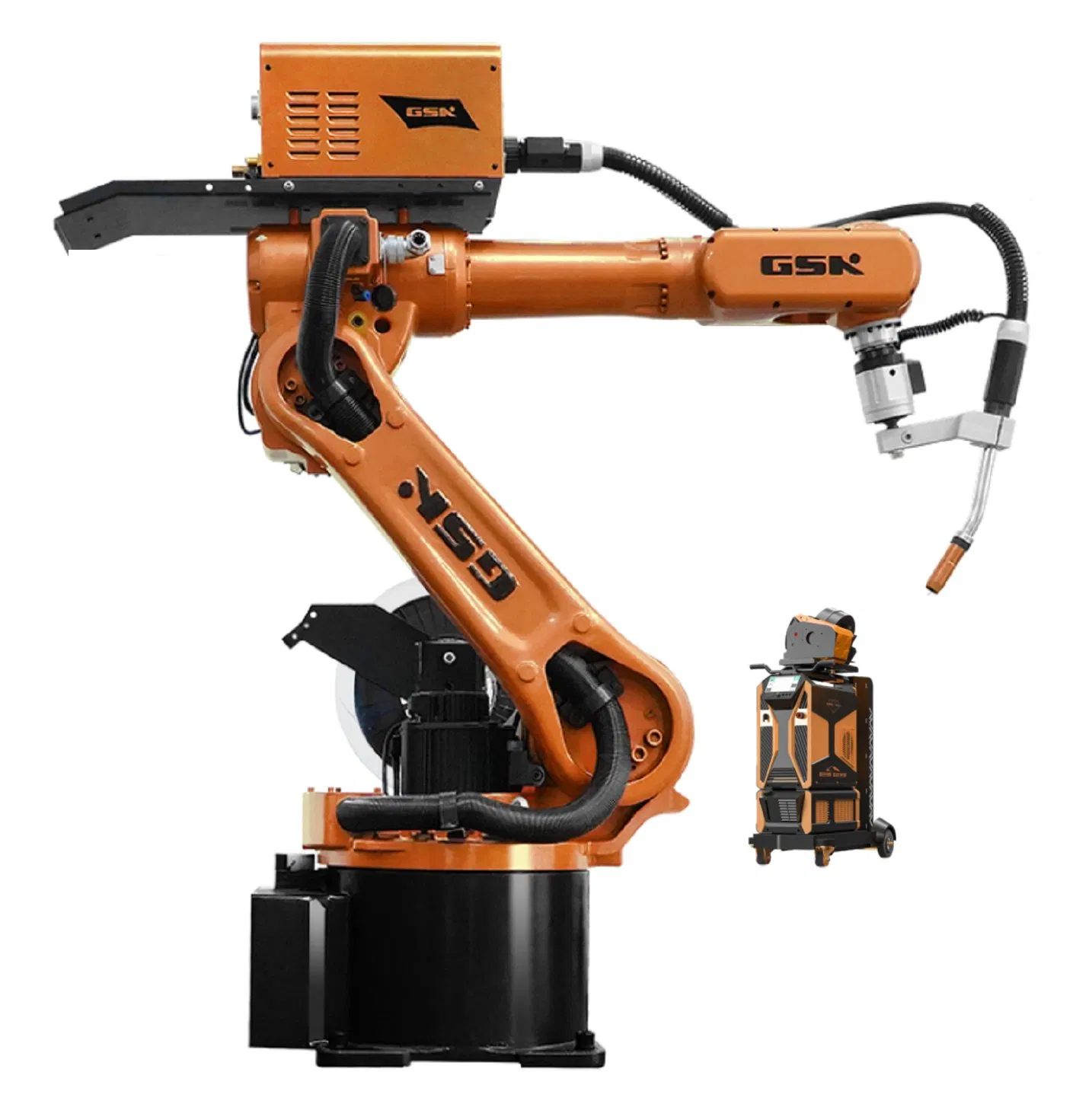

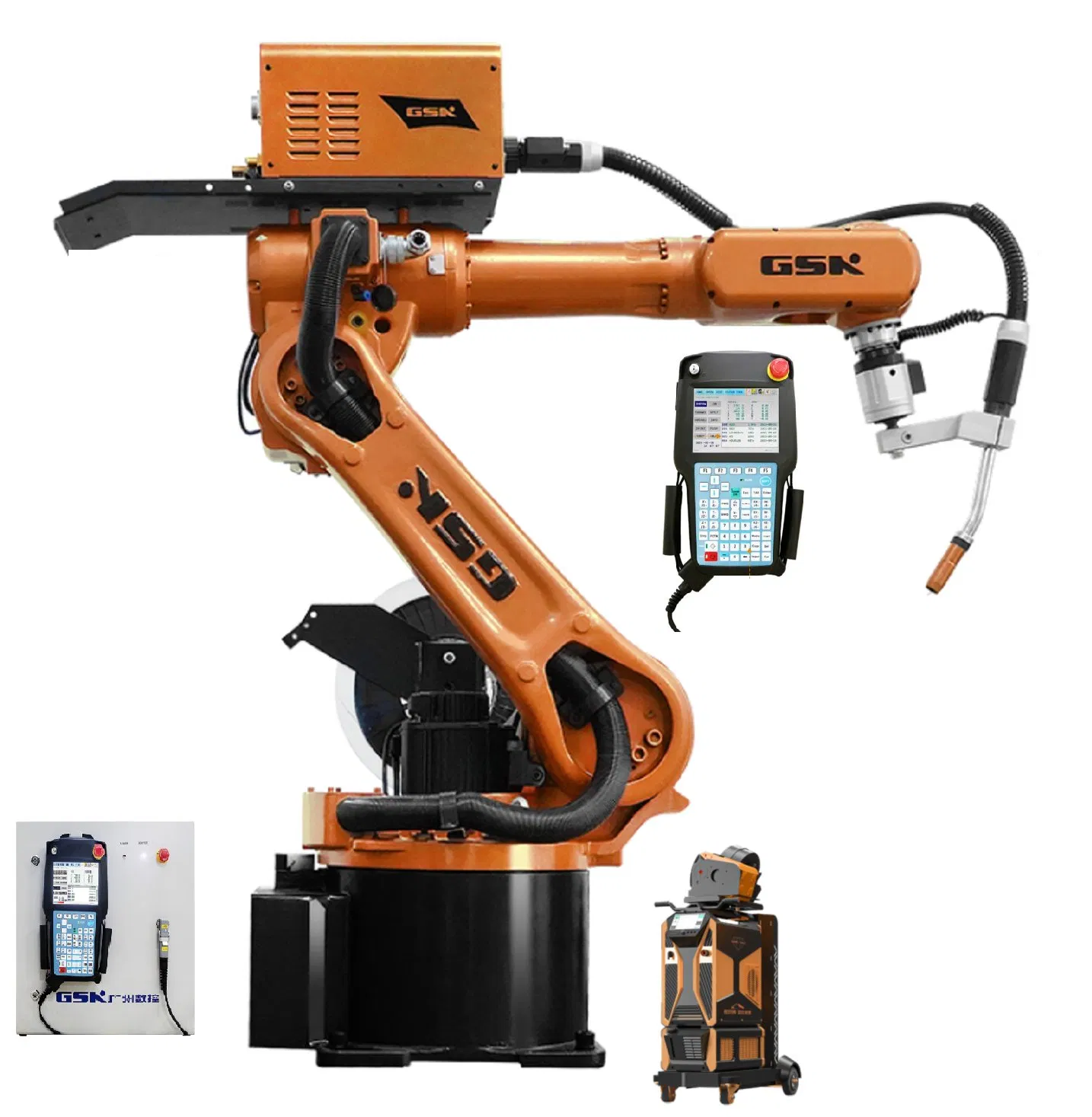

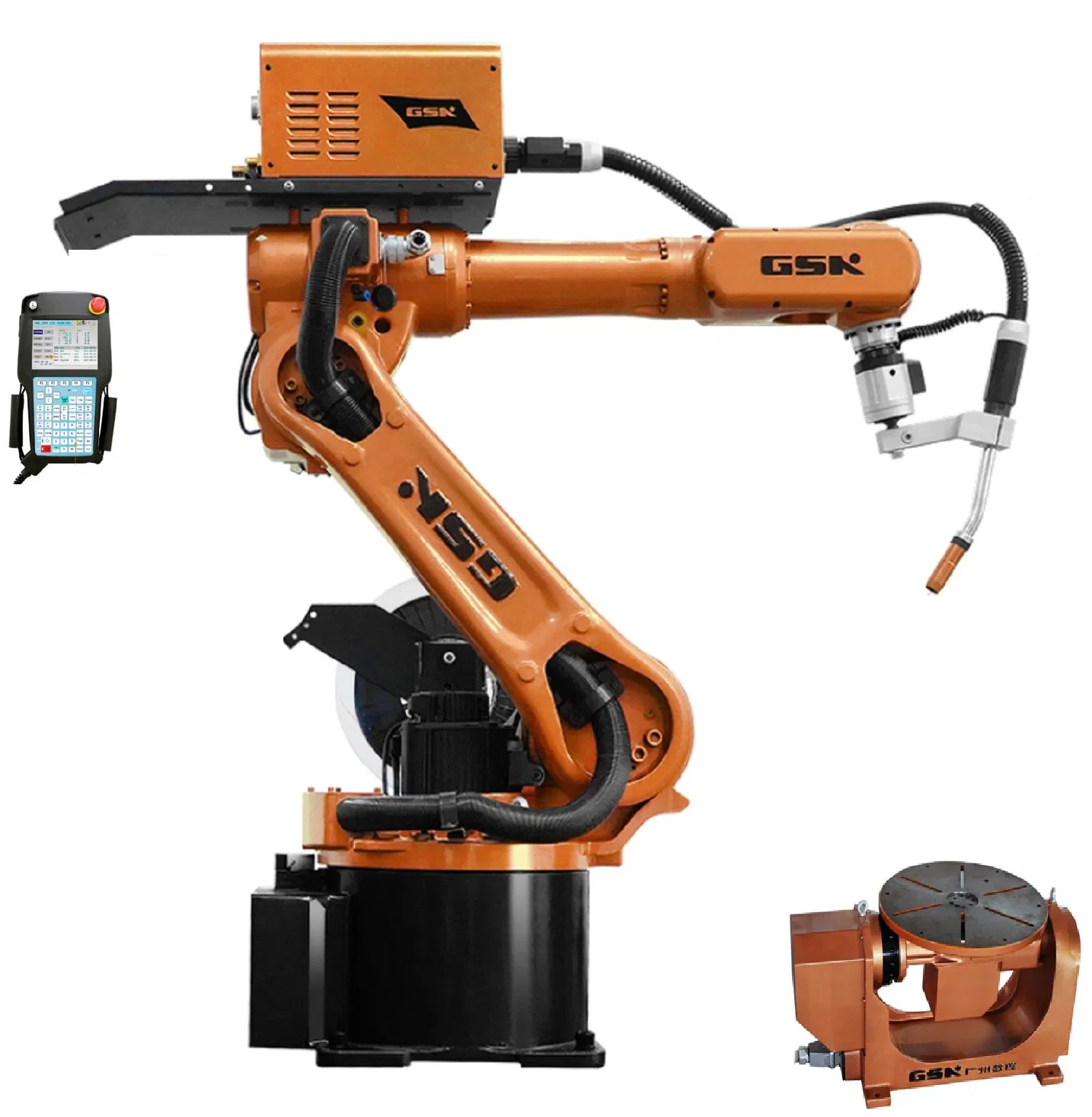

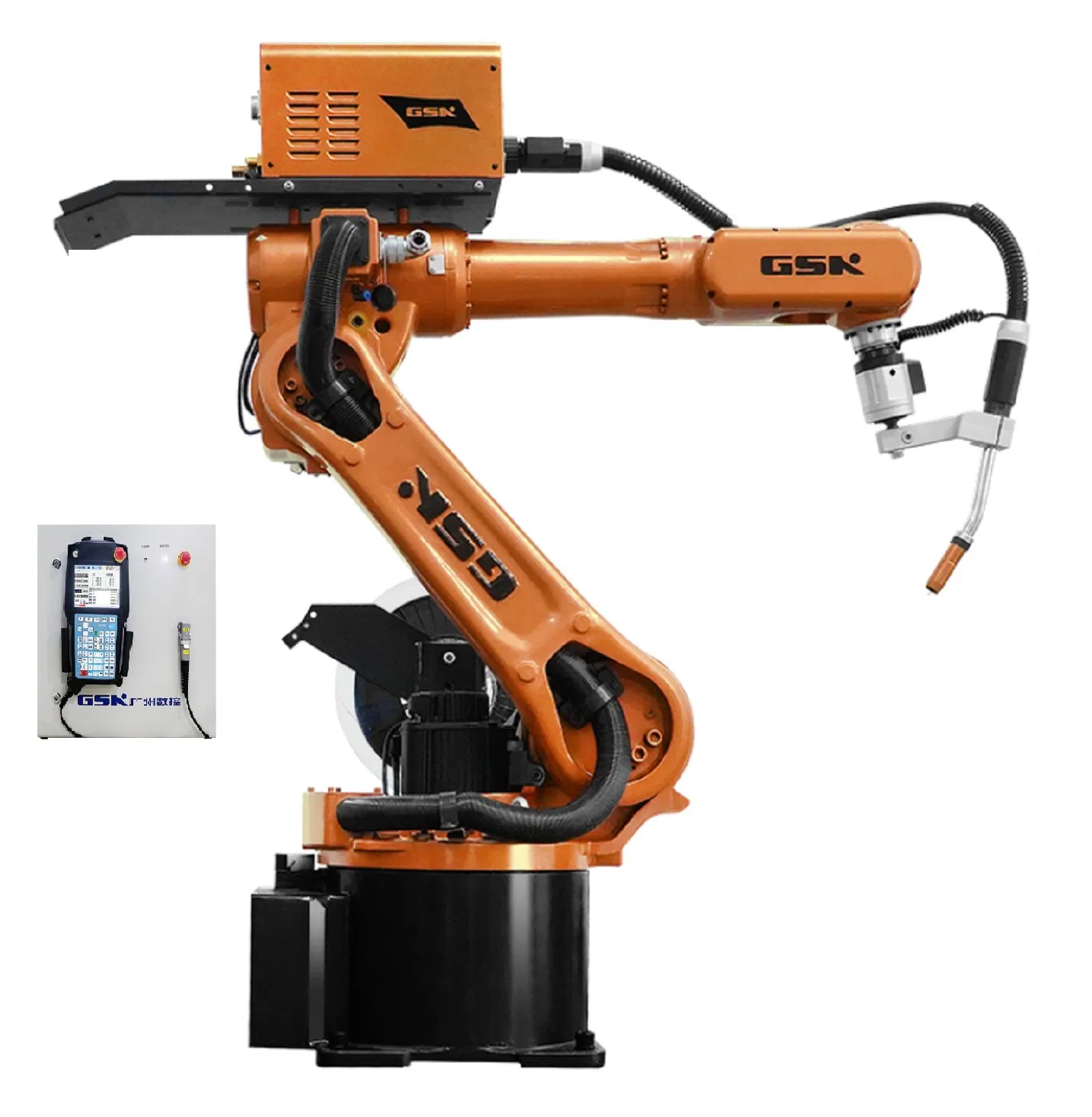

Introducing the RH06A3-1490, a high-performance 6 Axis CNC Industrial Automatic Welding Robot designed to revolutionize your welding processes with unmatched precision and efficiency. This advanced welding robot finds its versatility in a multitude of domains, including the automotive industry, motorcycle manufacturing, agricultural machinery, engineering machinery, and various hardware welding sectors.

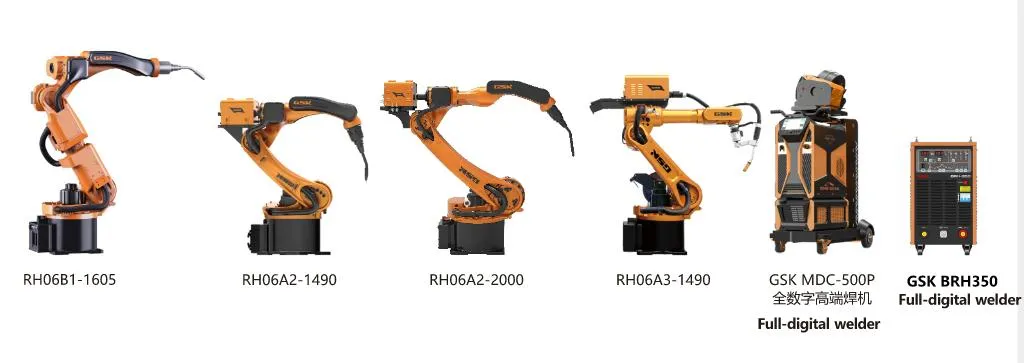

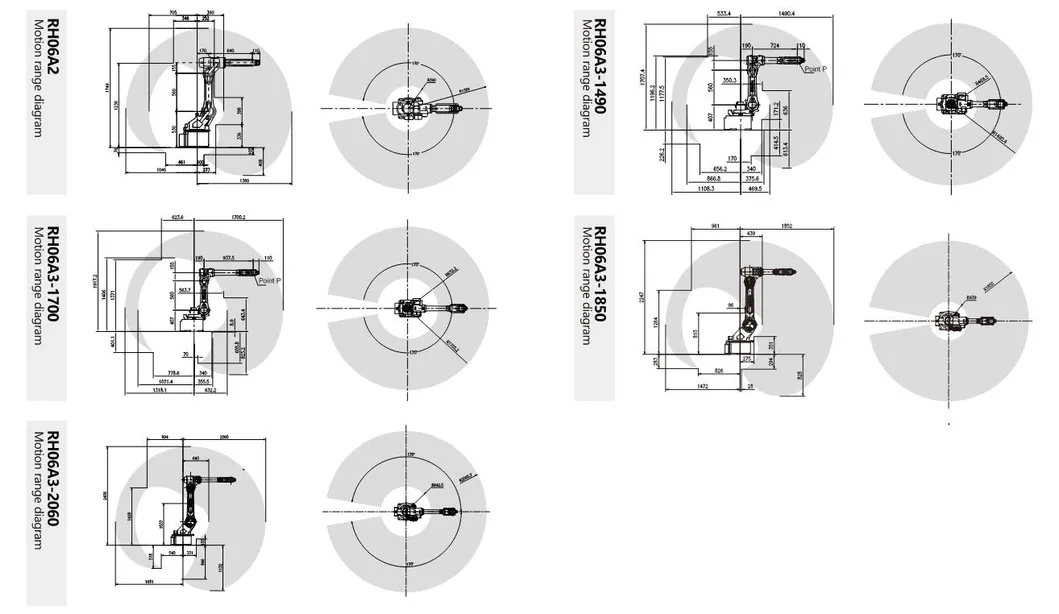

| Type | DOF | Payload (kg) | Repeatability (mm) | J1 Range | J2 Range | J3 Range | Motion Radius (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| RH06A2-1490 | 6 | 6 | ±0.05 | ±170° | +115~-80° | +80~-150° | 1490 | 190 |
| RH06A2-2000 | 6 | 6 | ±0.05 | ±170° | +140~-70° | +75~-140° | 2000 | 265 |
| RH06A3-1490 | 6 | 6 | ±0.05 | ±170° | +120~-85° | +83~-150° | 1490 | 185 |

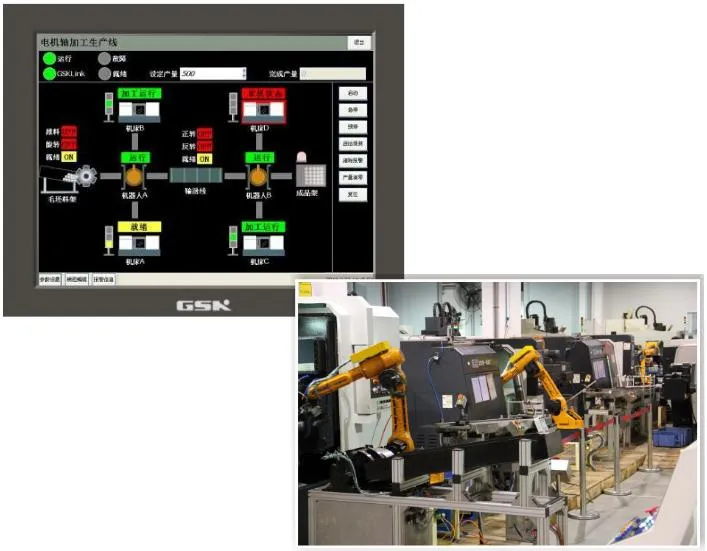

Ideal for machining field's monitoring and management, this system orchestrates assembly lines and handles diverse part machining requirements. Features include high-speed bus technology for connectivity between CNC machines and industrial robots, supporting both online and offline programming.
Purpose-built for 'Digitalized Factories' and 'Intelligent Workshops'. It streamlines CAM and CAPP applications, optimizes production schedules, regulates production capacity, and provides detailed statistics on equipment utilization.

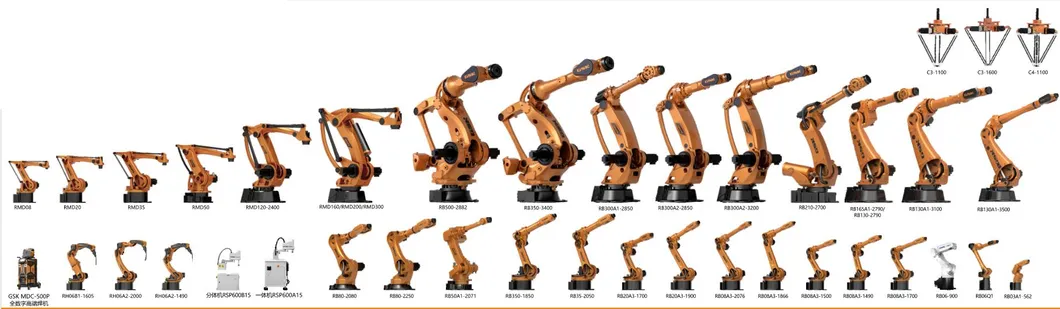

With over 30 years of expertise in control technology, our industrial robots cover 6 distinct series and up to 30 products for transportation, welding, polishing, painting, and stacking. We independently develop controllers, servo motors, and drivers to ensure seamless integration and superior performance.
