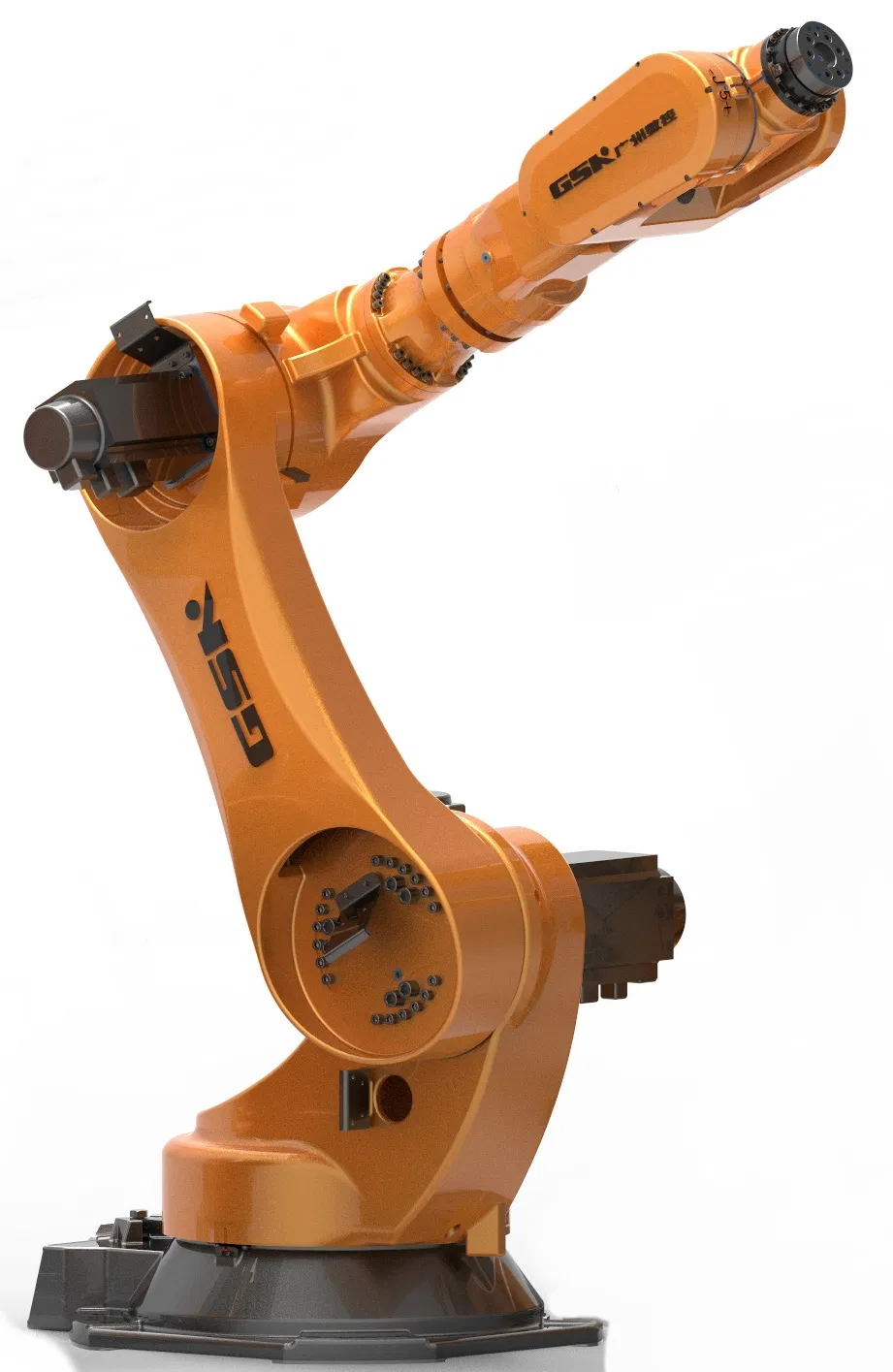

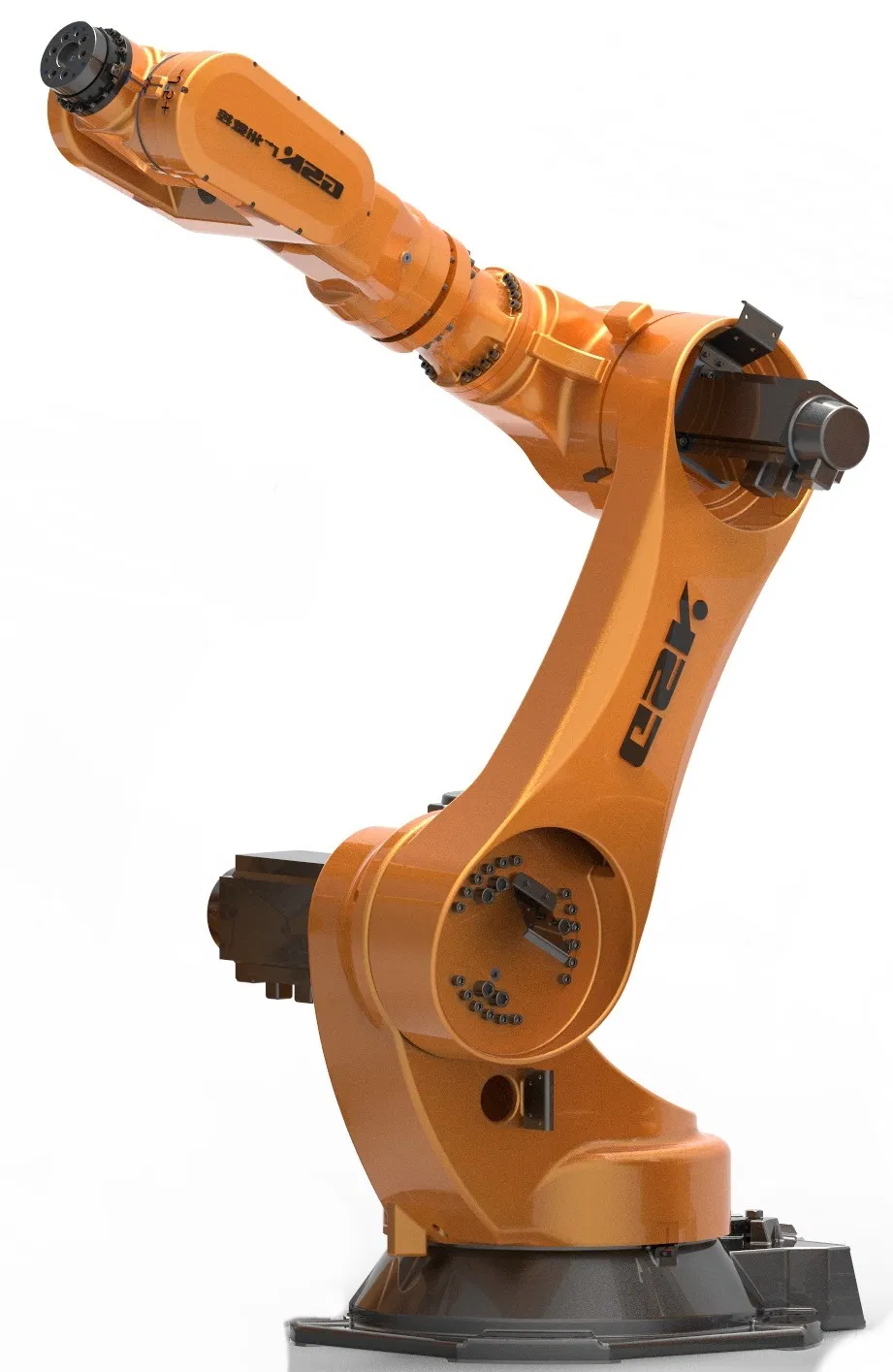

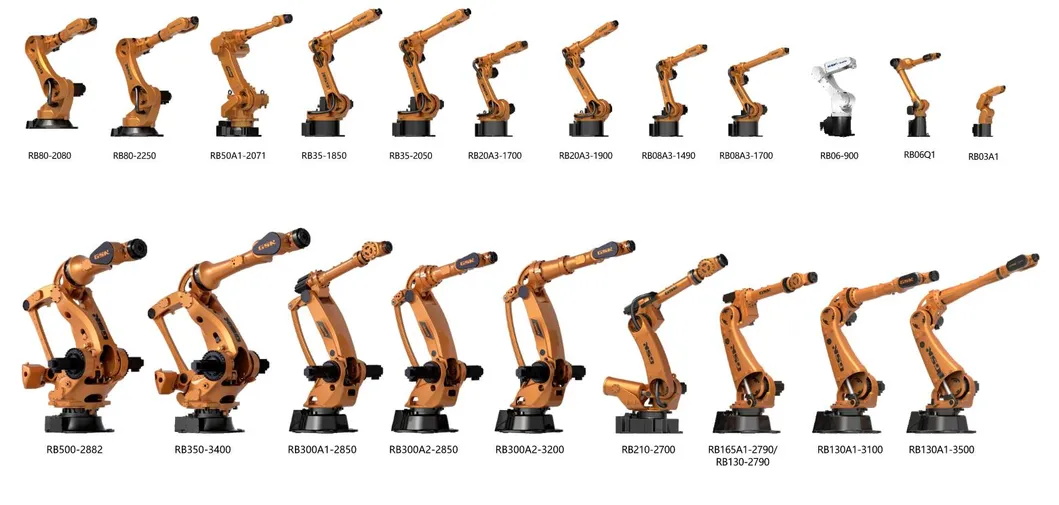

RB series Industrial Robots
Application field: It is widely used in burnishing, polishing, machine loading/unloading and automatic transport on punching automation production lines.

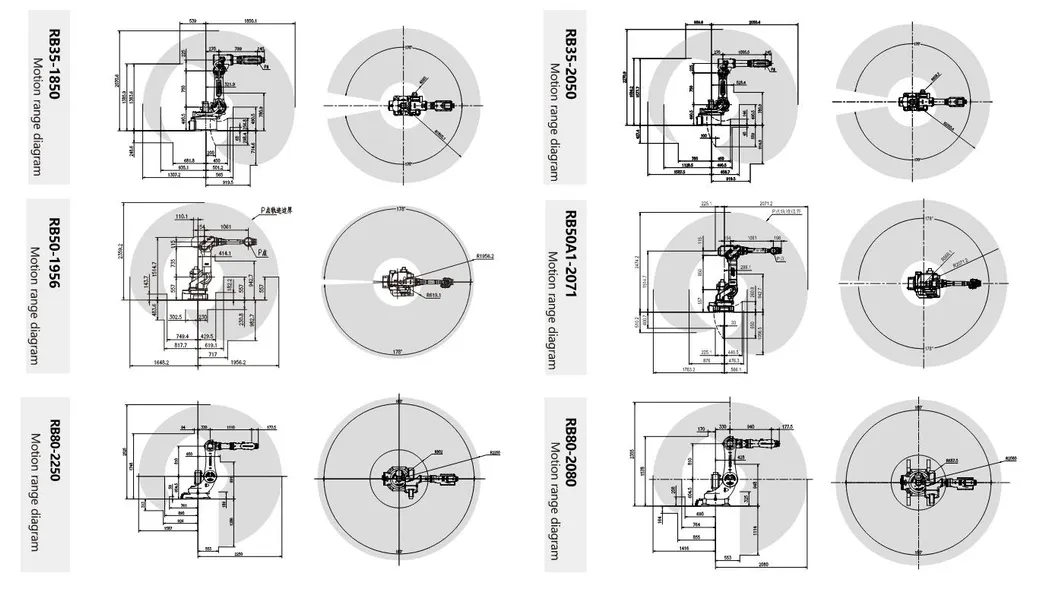

| Type | Dof | Payload (kg) | Repeatability (mm) | Motion Radius (mm) | Machine Weight (kg) |
|---|---|---|---|---|---|

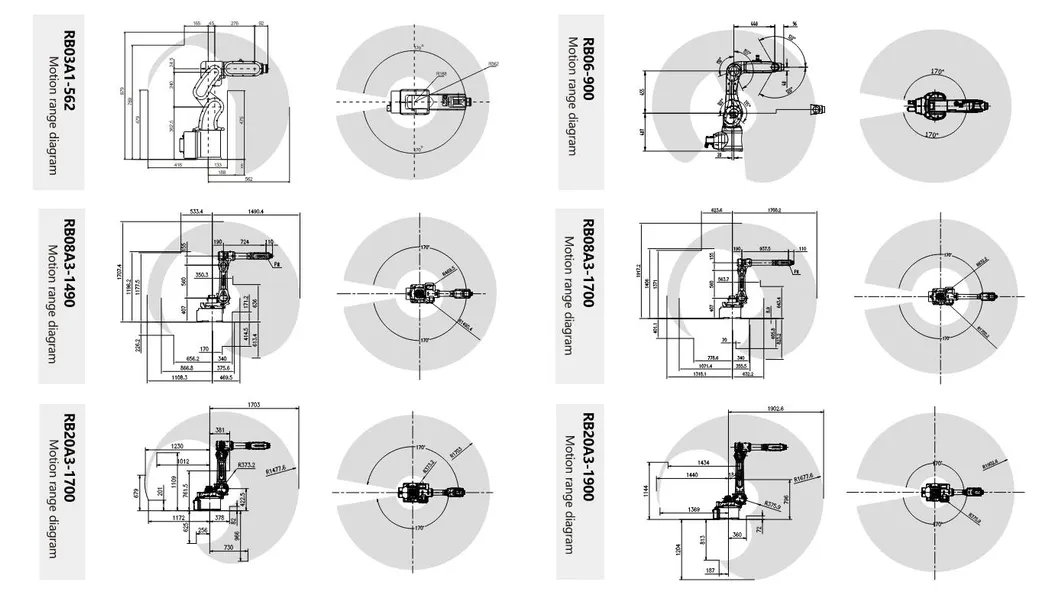

| RB03A1-562 | 6 | 3 | ±0.02 | 562 | 36 |
| RB06-900 | 6 | 6 | ±0.03 | 900 | 60 |
| RB08A3-1490 | 6 | 8 | ±0.04 | 1490 | 185 |
| RB12-1500 | 6 | 6 | ±0.04 | 1500 | 186 |
| RB20A3-1700 | 6 | 20 | ±0.04 | 1700 | 265 |
| RB35-1850 | 6 | 35 | ±0.04 | 1850 | 369 |
| RB50-1956 | 6 | 50 | ±0.05 | 1956 | 650 |
| RB80-2250 | 6 | 80 | ±0.06 | 2250 | 680 |

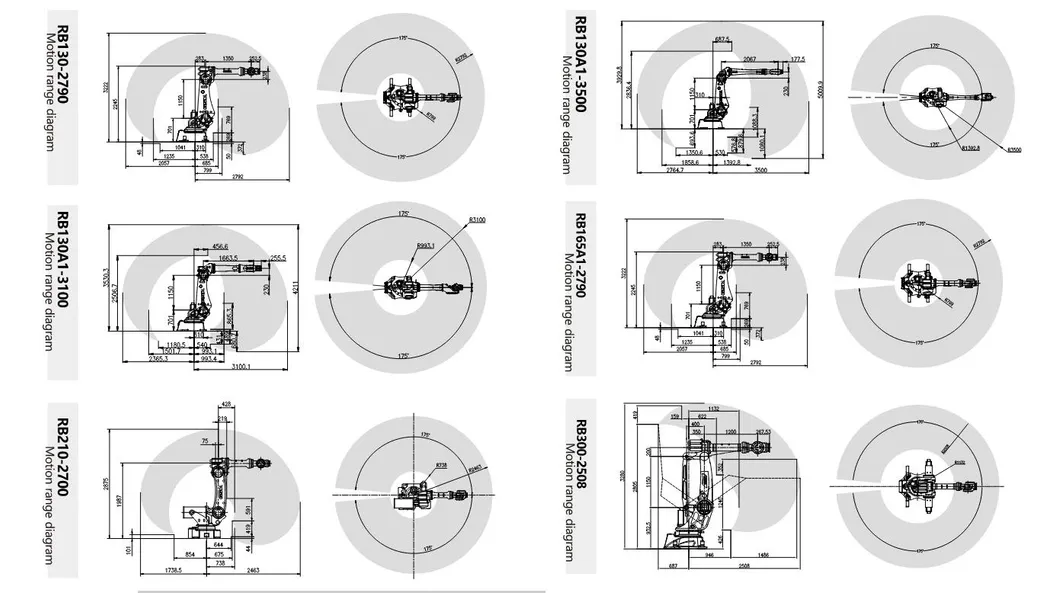

| RB130-2790 | 6 | 165 | ±0.08 | 2790 | 1350 |
| RB210-2700 | 6 | 210 | ±0.08 | 2700 | 1430 |
| RB300-2508 | 6 | 300 | ±0.1 | 2508 | 1800 |
| RB500-2882 | 6 | 500 | ±0.1 | 2882 | 3300 |

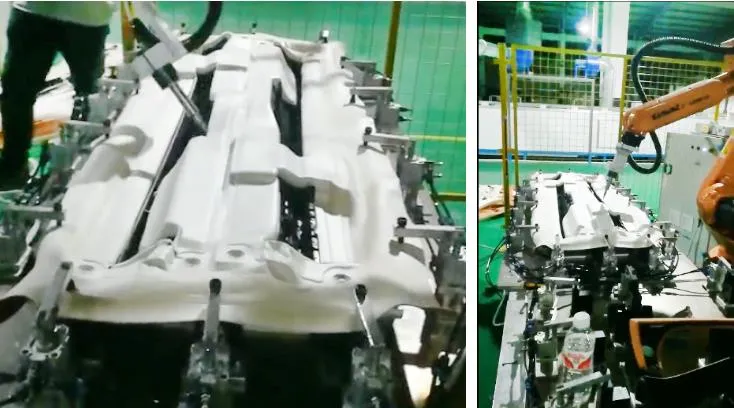

1. Auto interior injection part trimming application
Robot replacing manual labor to achieve automatic cutting of the injection molding flash. Effectively reduces cutting problems and ensures product consistency.

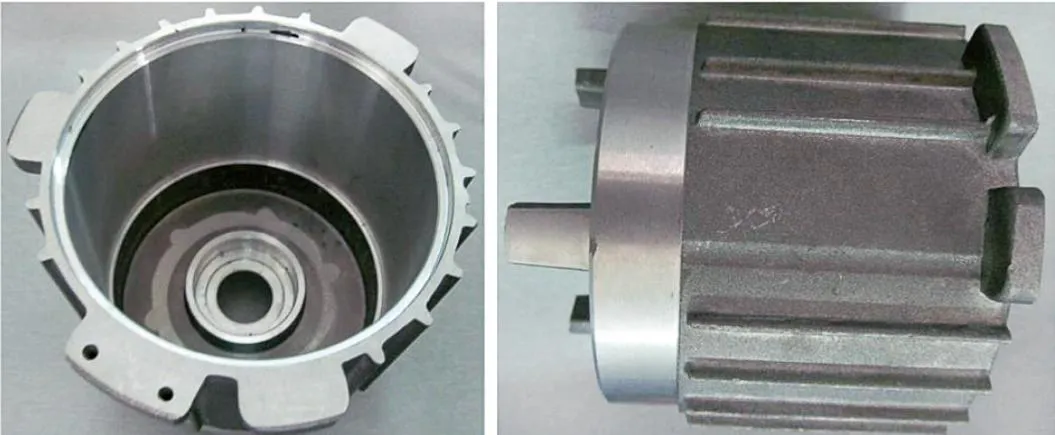

2. Load/Unload for Turning Machines
Integration of workblank loading and finished product unloading, shortening running time and ensuring continuity in automatic production.

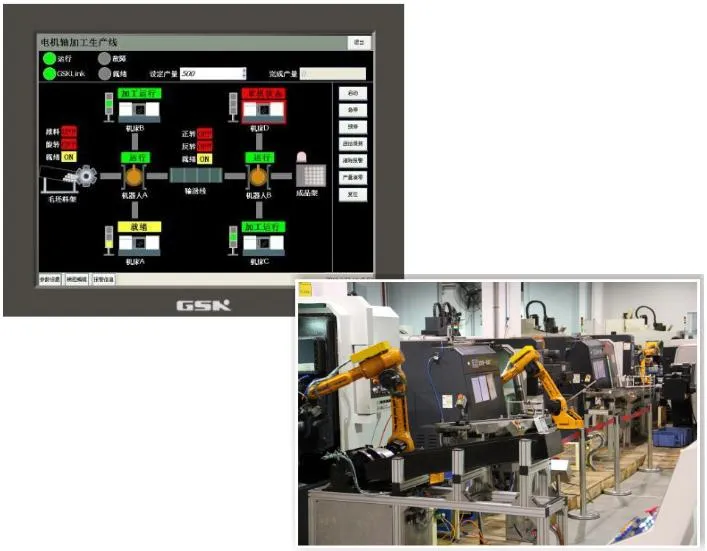

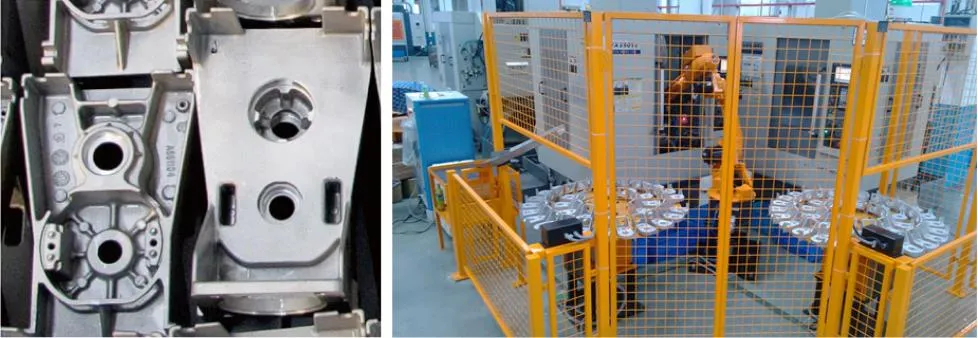

3. Load/Unload for Machining Centers
One robot serving two CNC machines. High efficiency ensures 100% machining time utilization throughout the process.
4. 3D Vision-Guided Transfer
Guided by 3D vision, the robot identifies and transports irregular workpieces with a 10-second production beat, operating 24 hours stably.
Industrial robots are divided into 6 series covering transportation, welding, polishing, painting, stacking and paralleling, with up to 30 kinds of products. These systems carry high quality and high technology CNC components.
