High Safety Industrial Machinery Top Land Suspended Articulated Loading and Unloading Equipment Robot Suspension Arm with Single Arms
High Safety Industrial Machinery Top Land Suspended Articulated Loading and Unloading Equipment Robot Suspension Arm with Single Arms
High Safety Industrial Machinery Top Land Suspended Articulated Loading and Unloading Equipment Robot Suspension Arm with Single Arms
High Safety Industrial Machinery Top Land Suspended Articulated Loading and Unloading Equipment Robot Suspension Arm with Single Arms
High Safety Industrial Machinery Top Land Suspended Articulated Loading and Unloading Equipment Robot Suspension Arm with Single Arms
1 / 5
High Safety Industrial Machinery Top Land Suspended Articulated Loading and Unloading Equipment Robot Suspension Arm with Single Arms
High Safety Industrial Machinery Top Land Suspended Articulated Loading and Unloading Equipment Robot Suspension Arm with Single Arms
High Safety Industrial Machinery Top Land Suspended Articulated Loading and Unloading Equipment Robot Suspension Arm with Single Arms
High Safety Industrial Machinery Top Land Suspended Articulated Loading and Unloading Equipment Robot Suspension Arm with Single Arms
High Safety Industrial Machinery Top Land Suspended Articulated Loading and Unloading Equipment Robot Suspension Arm with Single Arms

High Safety Industrial Machinery Top Land Suspended Articulated Loading and Unloading Equipment Robot Suspension Arm with Single Arms

Customization: Available
After-sales Service: Lifetime Maintenance Services
Warranty: 12 Months (or as Per Customer Requirements)
Send Inquiry

Product Description

Basic Info.
ConditionNew
CustomizedCustomized
CertificationISO9001, QS, TUV
TypeSingle-Arm, Double-Arm
Storage ObjectsSolid, Liquid, Gas
Pipeline MaterialCS, Ss, Aluminum Alloy, Steel Lined with PTFE, etc
Applicable TankApplicable for Top Tankers.
Balance ModeSpring Cylinder or Counterweight
Design Temp.- 196 ~ + 250°c
Nominal DiameterDN25~DN200
Design Pressure-0.06~5.0MPa
Production Capacity4000 Sets/Year
Packaging & Delivery
Package Size260.00cm * 70.00cm * 240.00cm
Package Gross Weight300.000kg
Product Description

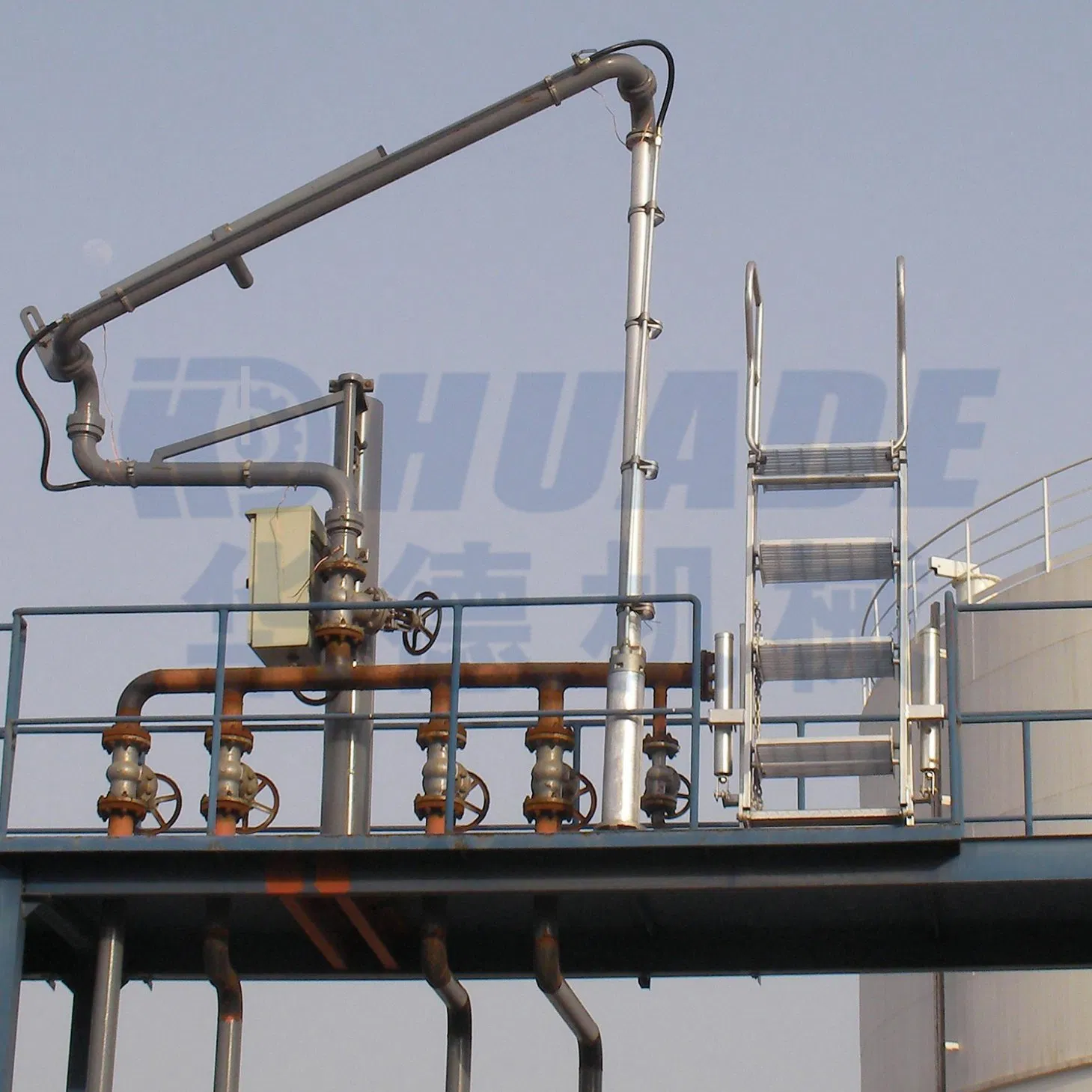

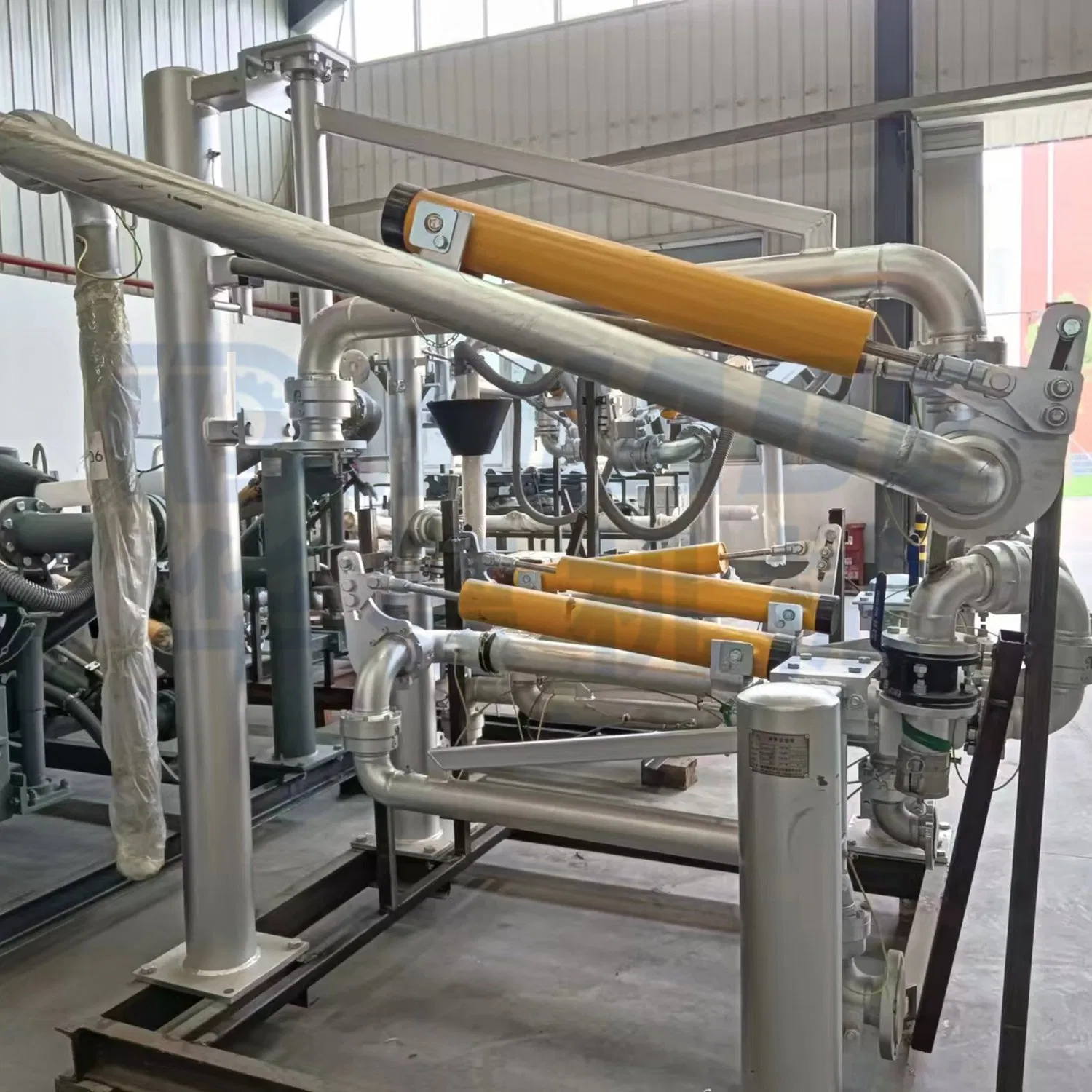

Top Loading Arm
The Top Loading Arm with Two Arms is a specialized device designed for efficient and safe liquid transfer from the top of road or rail tankers.

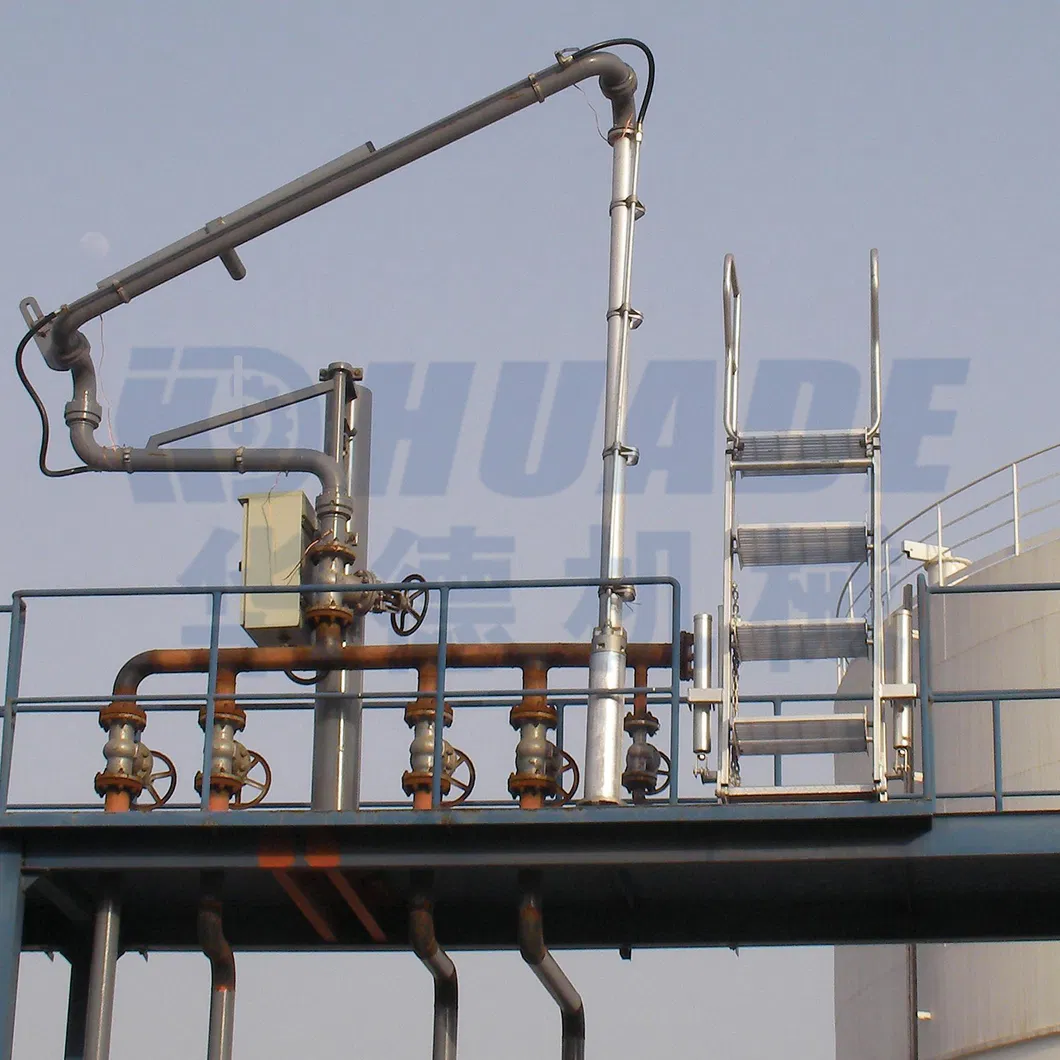

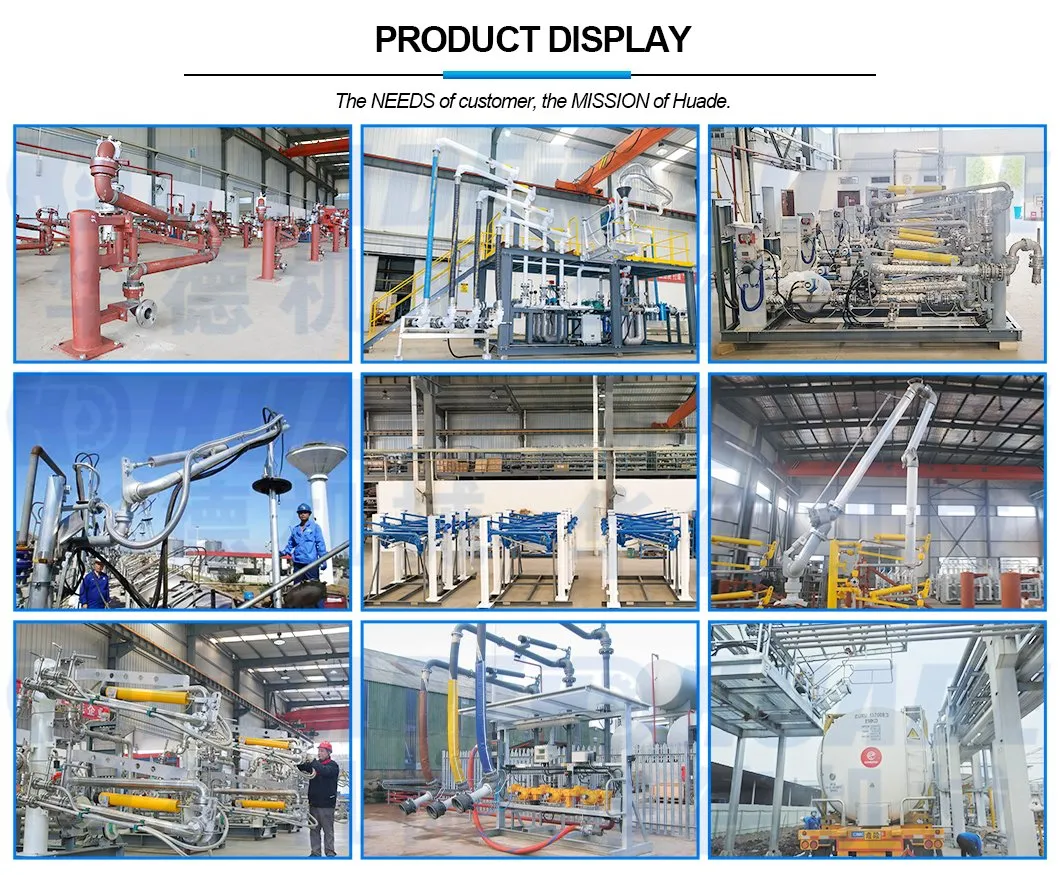

Loading Arm Detail 1 Loading Arm Detail 2
Flexibility and Maneuverability The two-arms top loading arm is equipped with multiple swivel joints, allowing it to reach different loading positions flexibly. Specific lengths can be custom-designed to meet user site requirements.
Safety Features Equipped with optional emergency shut-off systems, overfill protection, and vapor recovery to minimize leaks and harmful emissions.
High Flow Design Engineered for high flow rates, ensuring rapid and efficient liquid loading essential for quick turnaround times.
Multiple Balance Systems Advanced spring or counterweight mechanisms maintain stability and ensure smooth, precise movements during operation.
Antistatic Device Integrated systems effectively eliminate static electricity generated by liquid movement, enhancing operational safety.
Product Parameters
ITEM SPECIFICATION
Nominal DiameterDN25 ~ DN200 (1"-8")
Design Pressure-0.06MPa ~ 5.0MPa
Design Temp.-196ºC ~ 250ºC
Pipeline MaterialCS, SS, Aluminum Alloy, Steel lined with PTFE, etc.
Operating MethodManual, Pneumatic or Hydraulic
Balance ModeSpring cylinder or counterweight

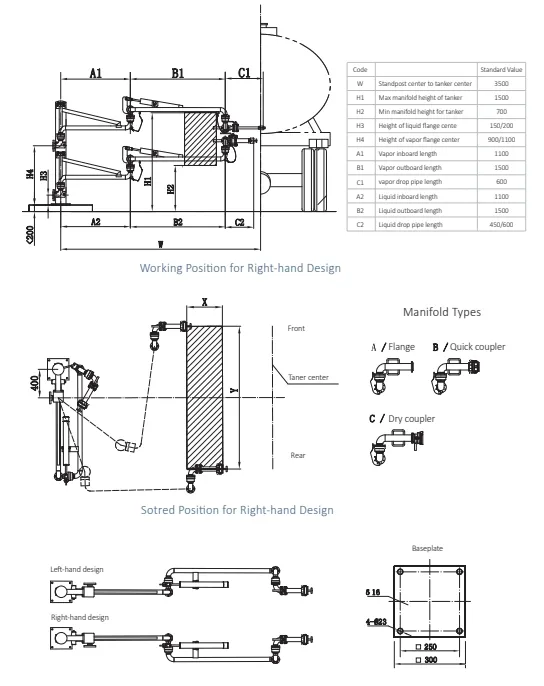

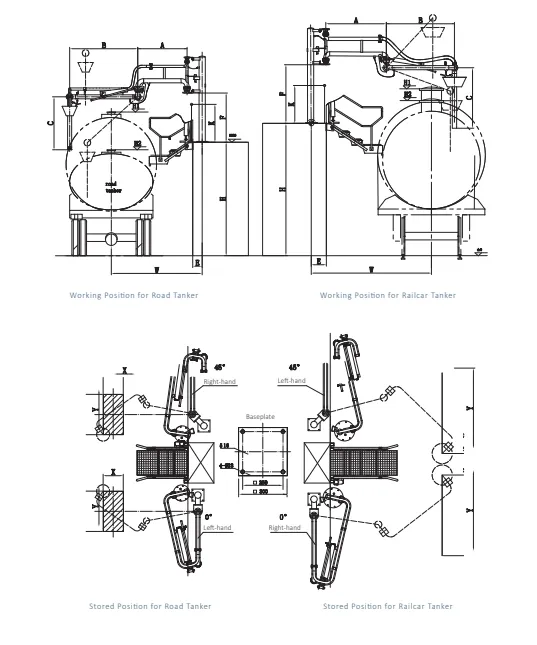

Top Loading Arm Envelope Bottom Loading Arm Envelope
Application Areas
Applications
Oil and Gas IndustryTransfer of crude oil, refined petroleum products, and LNG at refineries and storage terminals.
Chemical IndustryHandling corrosive, hazardous, or high-viscosity chemicals with compatible materials and seals.
Food and Beverage IndustryHygienic transfer of milk, edible oils, syrups, and juices.
Pharmaceutical IndustrySafe handling of pharmaceutical-grade liquids and solvents ensuring contamination-free transfer.
Environmental ProtectionSystems for the recovery of volatile organic compounds (VOCs) and waste liquids.
Our Customized Services
Customized Services
Company Profile

We are a leading manufacturer for loading arms, jetty, and petrochemical equipment. We specialize in the design, manufacturing, and supply of land loading arms, marine loading arms, floating suction units, loading skids, gangways, quick release hooks, folding stairs, and standard filing platforms.

With a factory area of more than 12 acres and workshop area of 20,000m², we utilize more than 120 sets of advanced manufacturing and testing equipment. Our systems are authorized under ISO9001/ISO14001/ISO4500 and we hold numerous invention patents. We remain customer-oriented, supplying cost-effective systematic solutions through continuous R&D and innovation.

Factory Capability
Detailed Photos
Detailed Photo 1 Detailed Photo 2
Certifications
Certificates
FAQ
1. What is your production lead time? It depends on the specific product, but generally, delivery can be made within 30-60 days.
2. What payment terms do you offer? We typically offer payment terms of 30% deposit and 70% before shipment, but this can be negotiated based on the order details.
3. Can you apply the customer's brand to the product? Certainly, we can provide OEM services and apply customer branding.
4. How do you ensure the quality of your products? We have a strict quality control process in place, including inspections at every stage of production to ensure the highest quality standards.
5. Can you provide documentation and certifications? Yes, we provide all necessary documentation including material certificates, inspection reports, and compliance standards.
6. How long is your warranty? The warranty is 12 months from commissioning or 18 months from delivery, whichever comes first.
