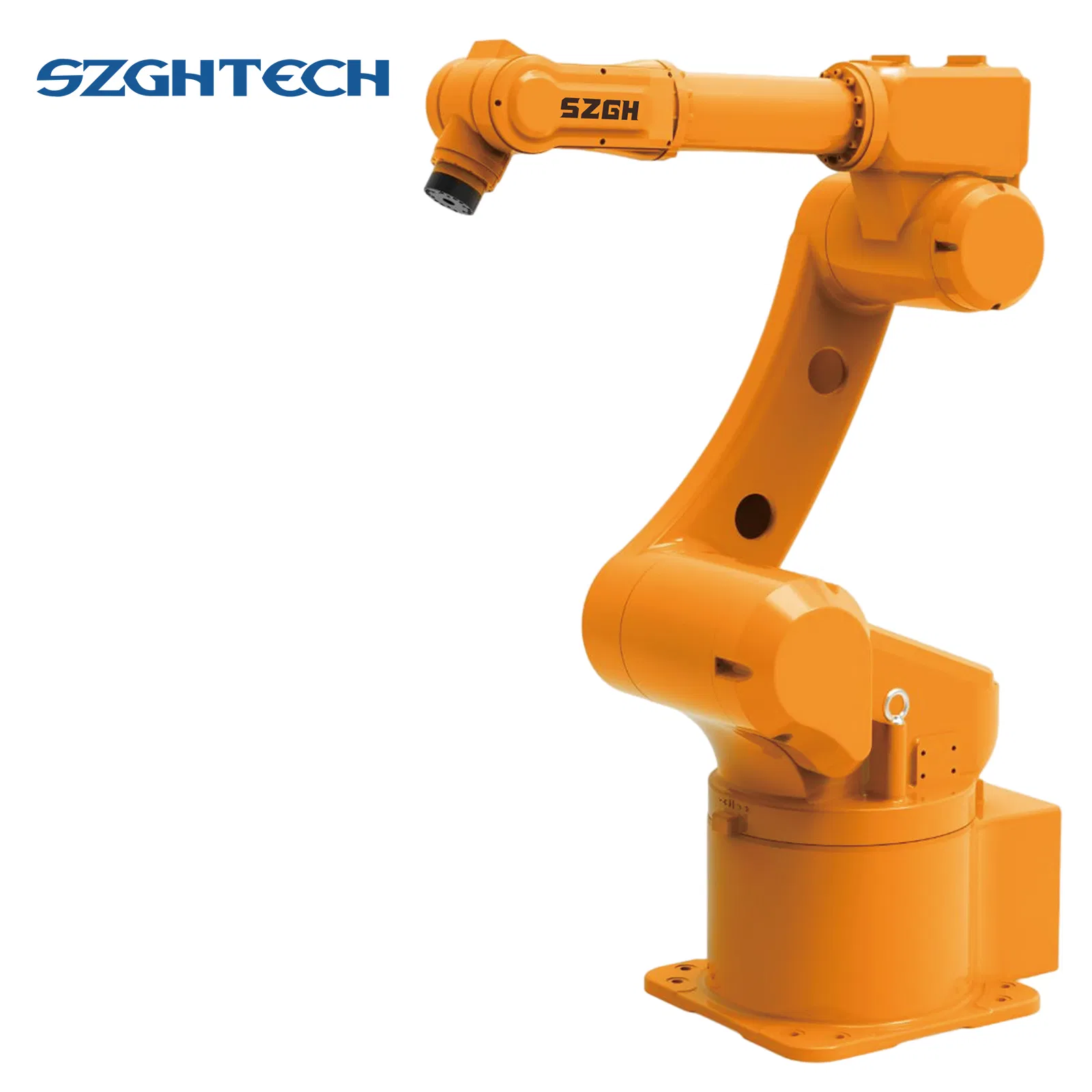

Loading and Unloading 6 Axis Robotic Arm Industrial Small Manipulator Industrial Machine CNC
Loading and Unloading 6 Axis Robotic Arm Industrial Small Manipulator Industrial Machine CNC
Loading and Unloading 6 Axis Robotic Arm Industrial Small Manipulator Industrial Machine CNC
Loading and Unloading 6 Axis Robotic Arm Industrial Small Manipulator Industrial Machine CNC
Loading and Unloading 6 Axis Robotic Arm Industrial Small Manipulator Industrial Machine CNC
1 / 5
Loading and Unloading 6 Axis Robotic Arm Industrial Small Manipulator Industrial Machine CNC
Loading and Unloading 6 Axis Robotic Arm Industrial Small Manipulator Industrial Machine CNC
Loading and Unloading 6 Axis Robotic Arm Industrial Small Manipulator Industrial Machine CNC
Loading and Unloading 6 Axis Robotic Arm Industrial Small Manipulator Industrial Machine CNC
Loading and Unloading 6 Axis Robotic Arm Industrial Small Manipulator Industrial Machine CNC

Loading and Unloading 6 Axis Robotic Arm Industrial Small Manipulator Industrial Machine CNC

Customization: Available
Application: Automotive, Loading
Control Mode: Point to Point Control
Send Inquiry

Product Description

🔹 Basic Information
Model NO.
T1500-C-4
Degrees of Freedom
6-axis
Drive Mode
Electric
Payload Capacity
6kg / 10kg
Reaching
1500mm
Repeatability
0.05mm
Structure
Articulated
Mounting Type
Ground, Bracket, Ceiling
Certification
ISO, CE, RoHS
Weight
150 Kg
📦 Packaging & Delivery
Package Size
120.00cm * 120.00cm * 148.00cm
Gross Weight
334.000kg
Transport Package
Wood Box
🚀 Product Description

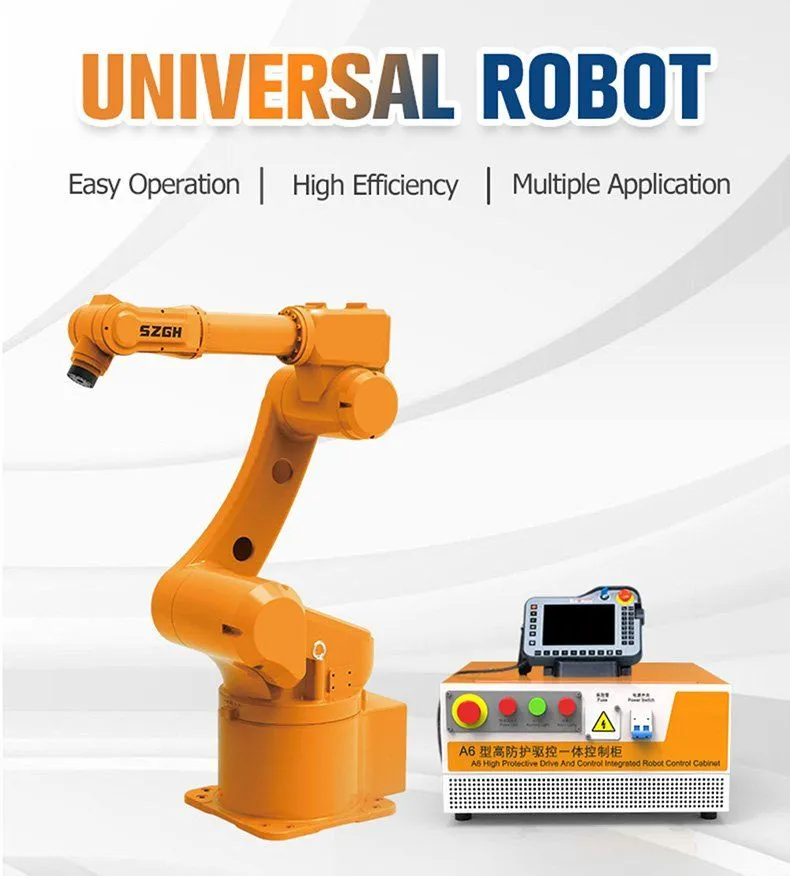

6 Axis Robotic Arm
Industrial Small Manipulator
CNC Machine Robot
🌐
Supports Chinese, English, Russian, Korean, and Vietnamese display and programming, with continuous development for more languages.
🕹️
Support up to 12 axis control, realizes the control of external axes (traveling axes and positioner).
⚙️
Structural optimization algorithm suitable for the body control of various types of structure.
🛠️
Open structure for synchronization of international technology and extension of functions. Industrial standards & reliable stability.
💻
Software PLC functions facilitate logic control. Process functions make programming easy.
🛡️
Modular setting of functions suitable for diverse applications. Safety module ensures safe production.

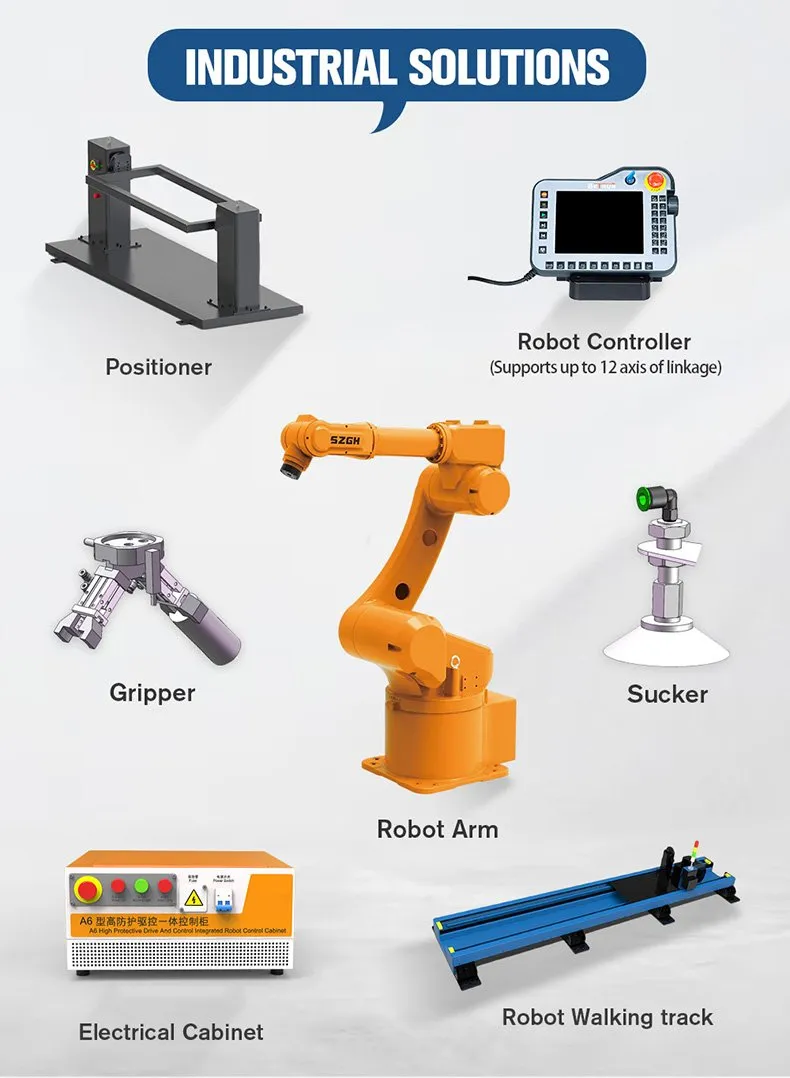

Robot Detail

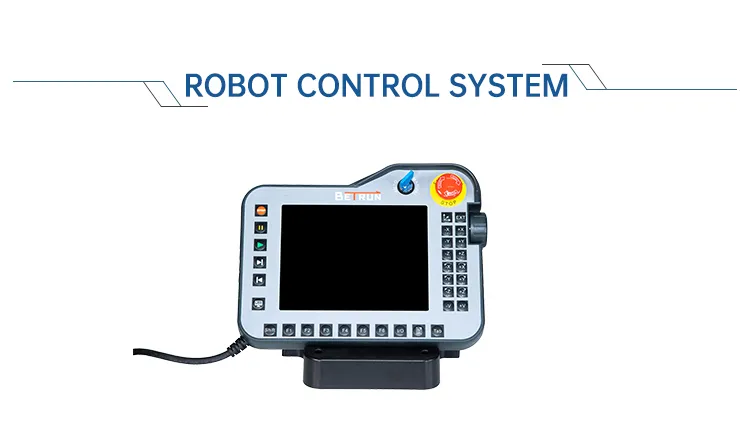

Robot Arm Interface

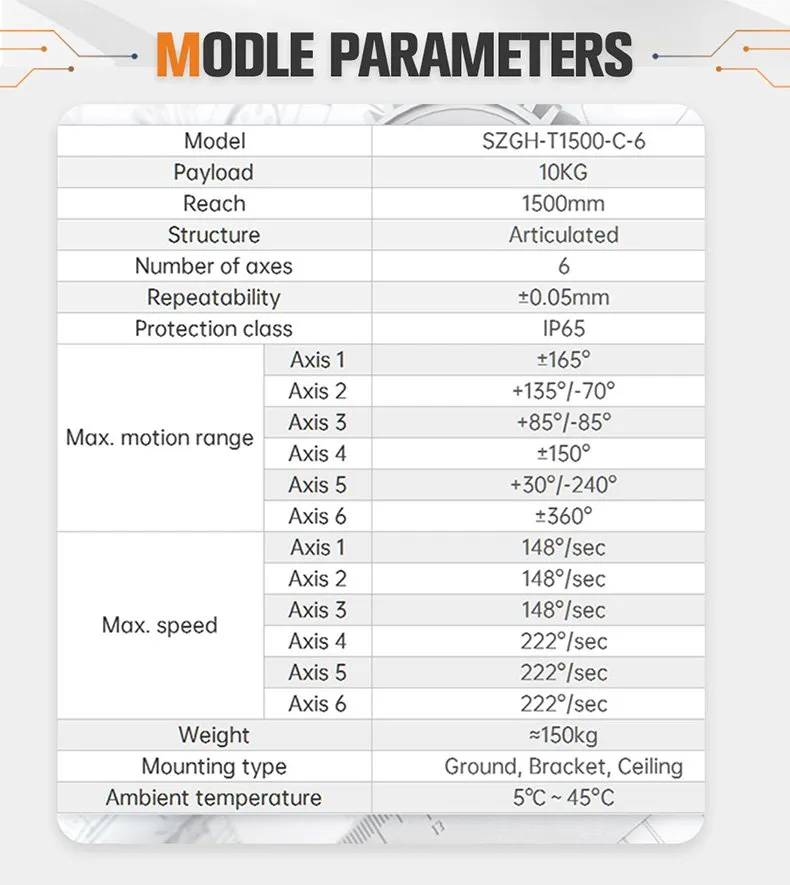

📊 Technical Specifications
Storage2 GB
Teaching boxFull keyboard + touch screen, mode select switch, safety switch, emergency switch
Controlled axes6 basic axes + 6 external axes (Total 12)
InterfaceMultiple encoder signal interfaces, dedicated terminal, Ethernet, serial communication
Safety moduleEmergency and anomaly signal linkage for rapid stop protection
Mode of operationTeaching, representation, remote control
ProgrammingOnline teaching, process programming, teaching by dragging
Motion functionPoint-to-point, linear, circular
Anomaly detectionAnti-collision, servo anomaly, arcing anomaly, safety maintenance
Robot Structure

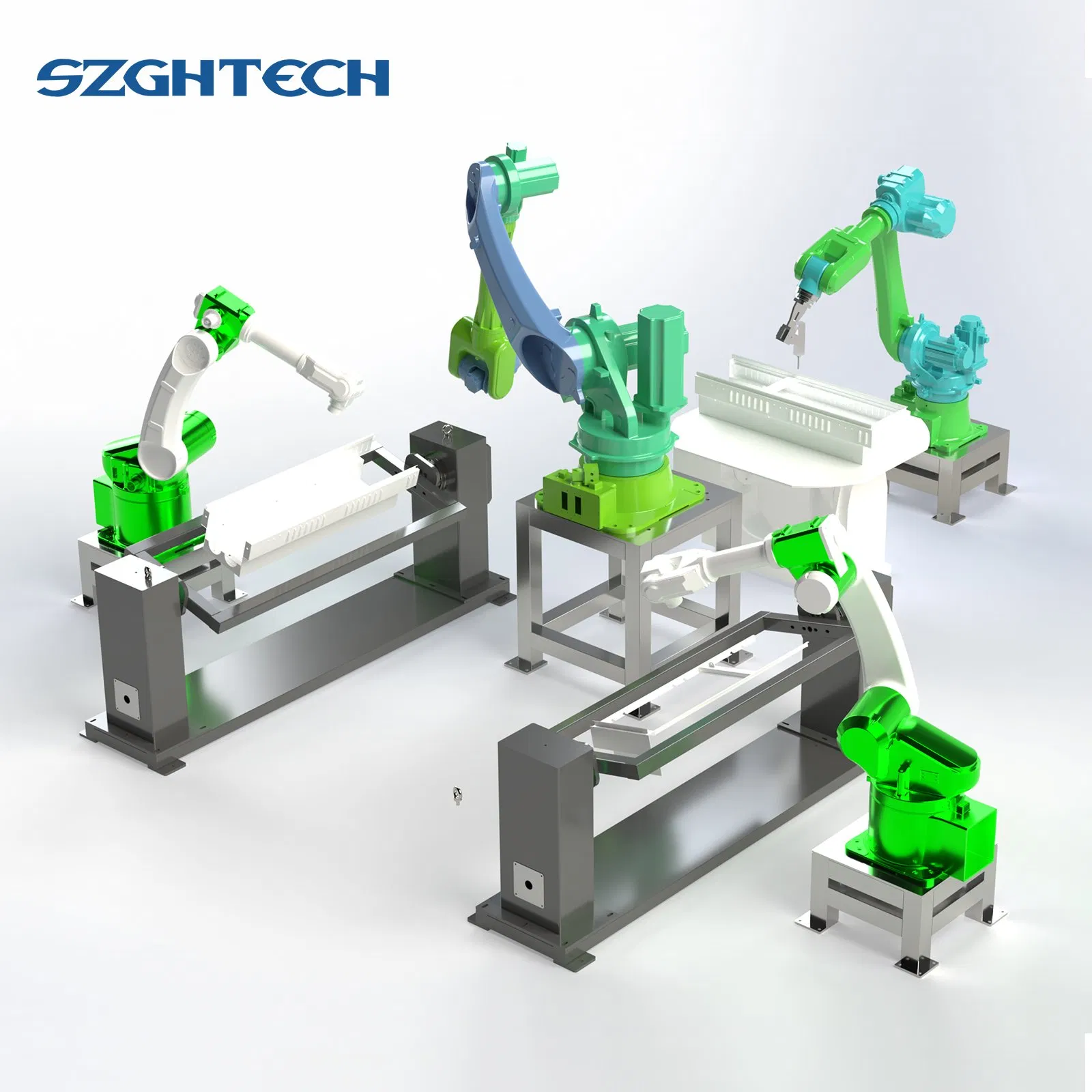

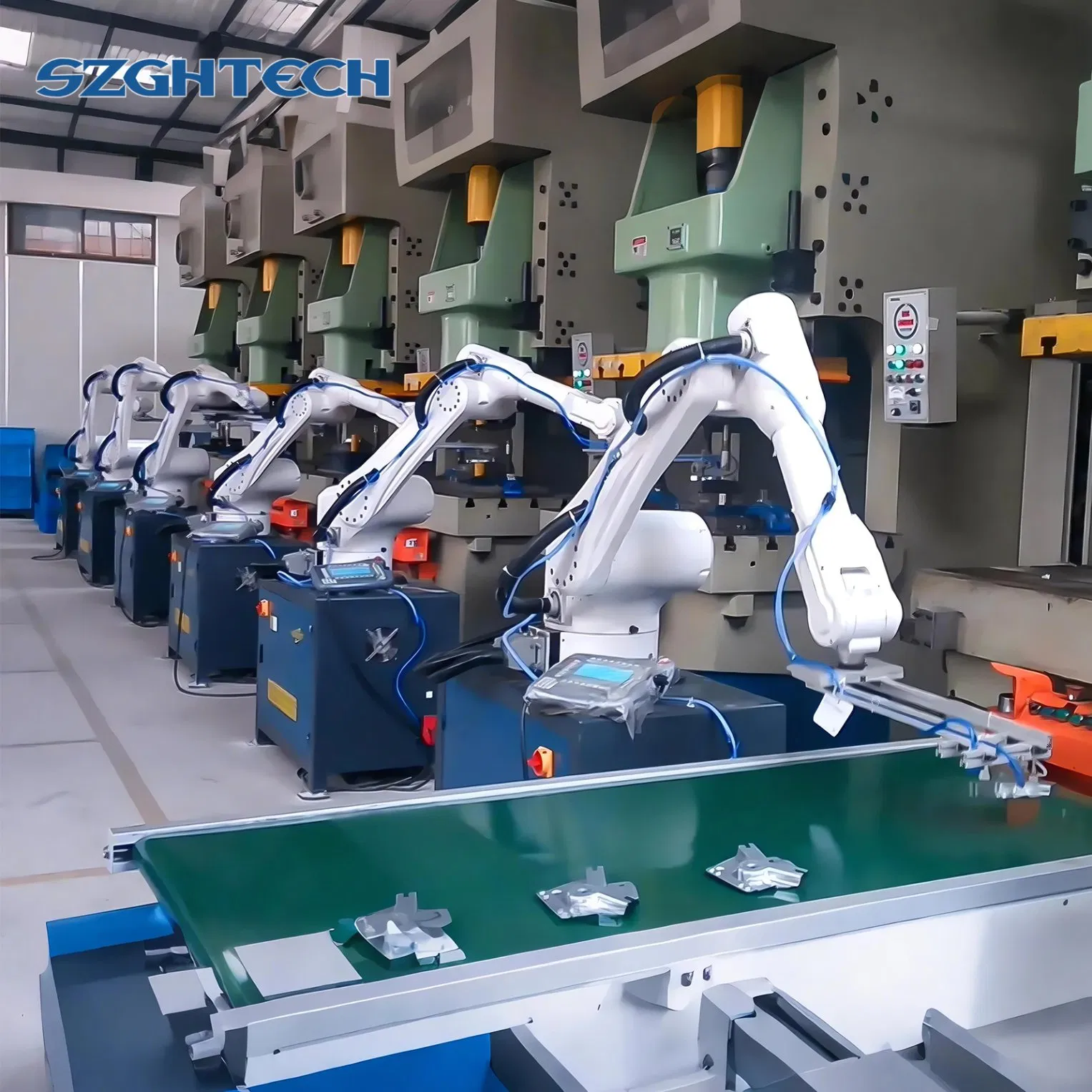

Robot Application
❓ Frequently Asked Questions
What is the expertise of the technical team?
We have independent technical teams with over 10 years of technical and overseas sales experience in CNC total solutions and robotic arms.
How is product quality guaranteed?
We always finish a professional pre-full testing by our engineers and conduct a final 100% inspection before shipment.
What types of industrial robots are available?
We provide industrial robot arms for welding, painting, spraying, material handling, pick and place, grinding, and other customized solutions.
What are the advantages of choosing your robotic solutions?
We provide suitable package solutions, high-quality technical support, customized designs, and competitive quotations based on reliable business principles.
What delivery and payment terms are accepted?
We accept various delivery terms including FOB, CFR, CIF, EXW, DDP, and DDU. Payments can be made via T/T, L/C, Credit Card, PayPal, or Western Union in multiple currencies like USD, EUR, and CNY.
Which languages do your systems support?
Our systems support English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Italian, and many others.
