| Model NO. | SZGH-B1500-C-4 | Drive Mode | Electric |
| Name Type | Handing Robot Arm | Axes | 4 Axes |
| Reaching | 1500mm | Payload | 10kg |
| Structure | Articulated | Repeatability | 0.02mm |
| Weight | 660kg | Mounting Type | Ground, Bracket, Ceiling |
| Certification | ISO, CE, RoHS | HS Code | 8479509090 |

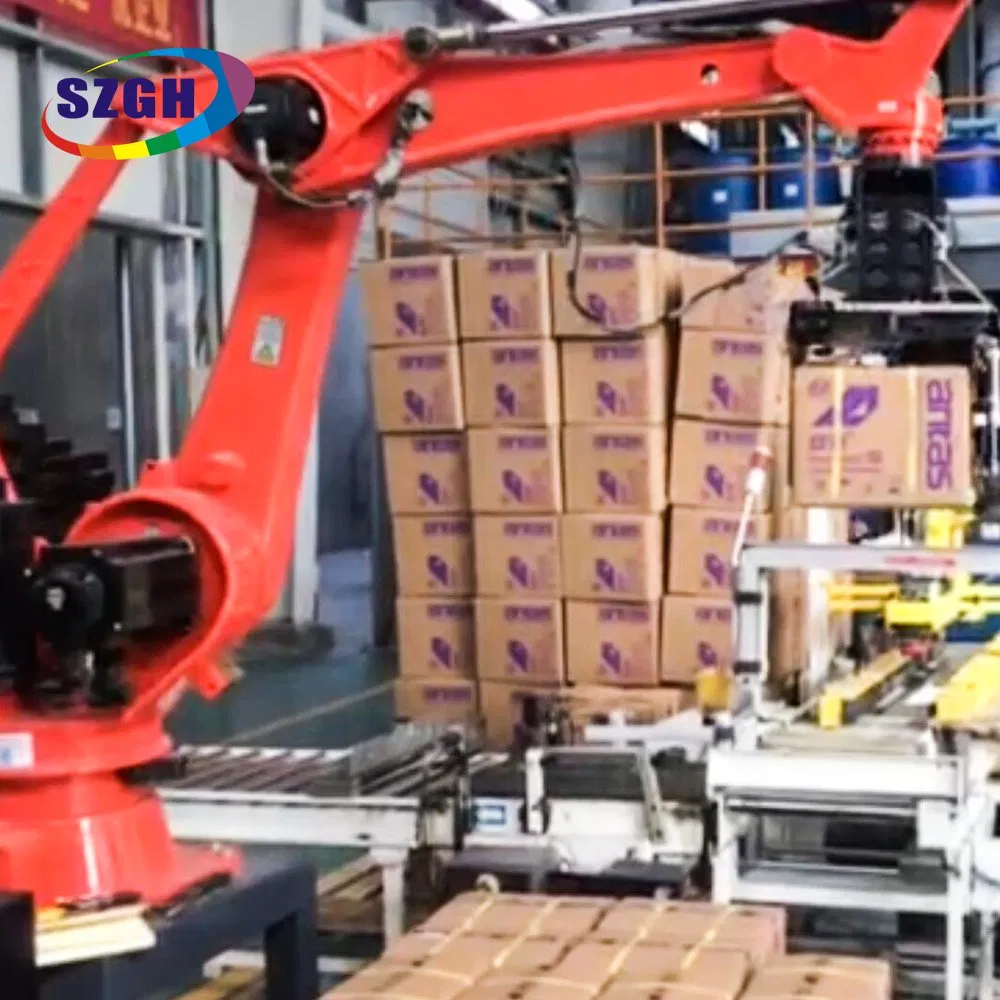

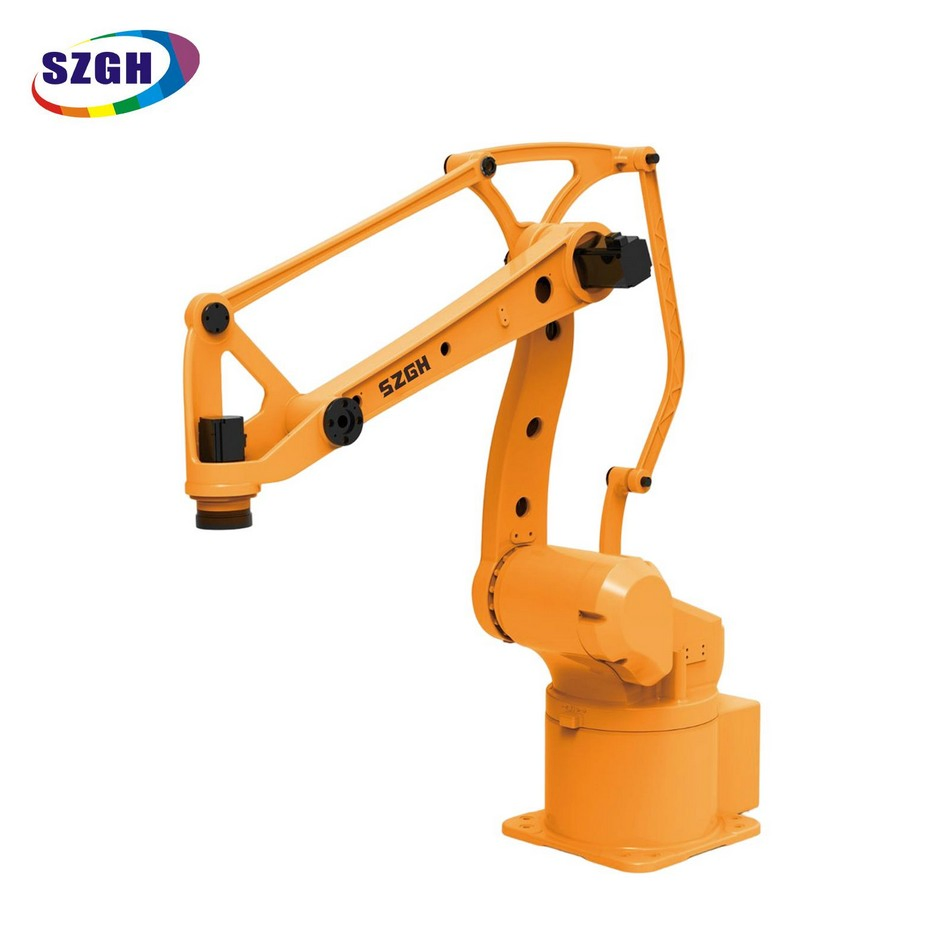

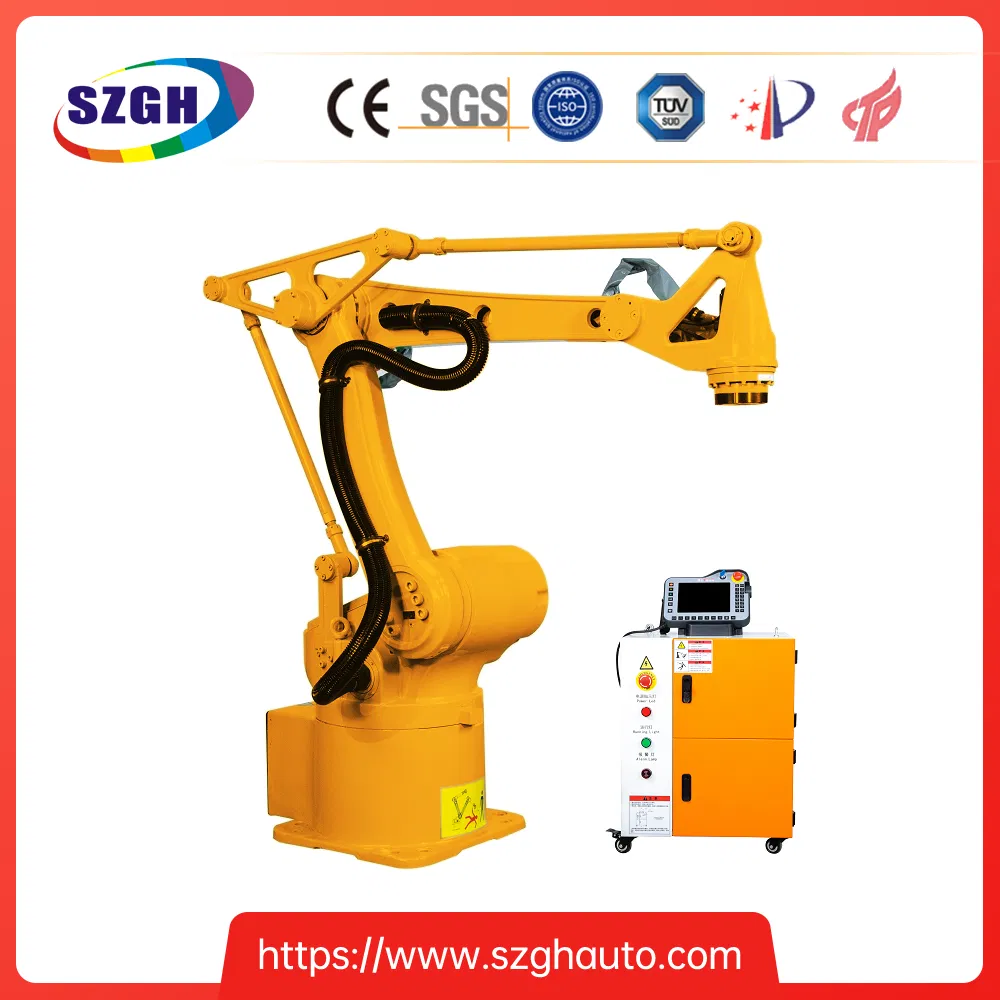

SZGH-G1500-C-4 robot is dedicated to handling tasks, designed for easy operation, high efficiency, and maximum safety.

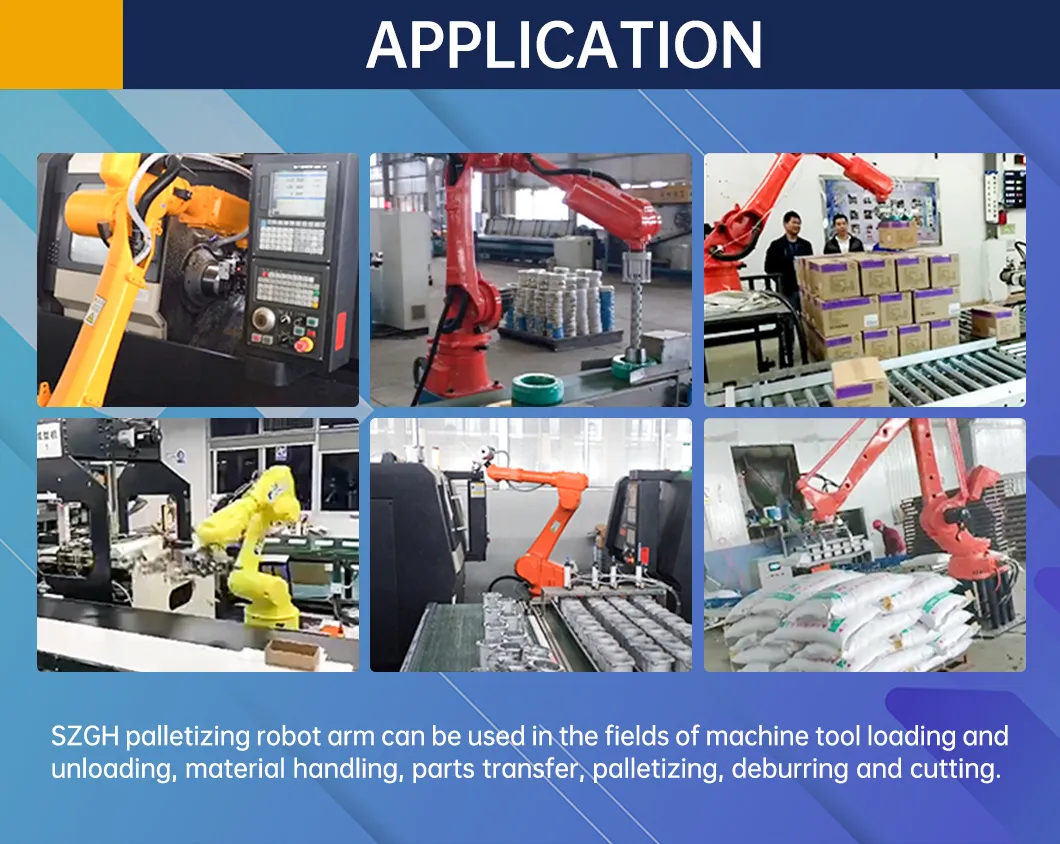

This series includes models for general purpose, welding, spraying, palletizing, grinding, and handling. All models are equipped with an intelligent robot control system. We offer customized robotic solutions including 9-axis linkage robots to meet specific industrial needs.

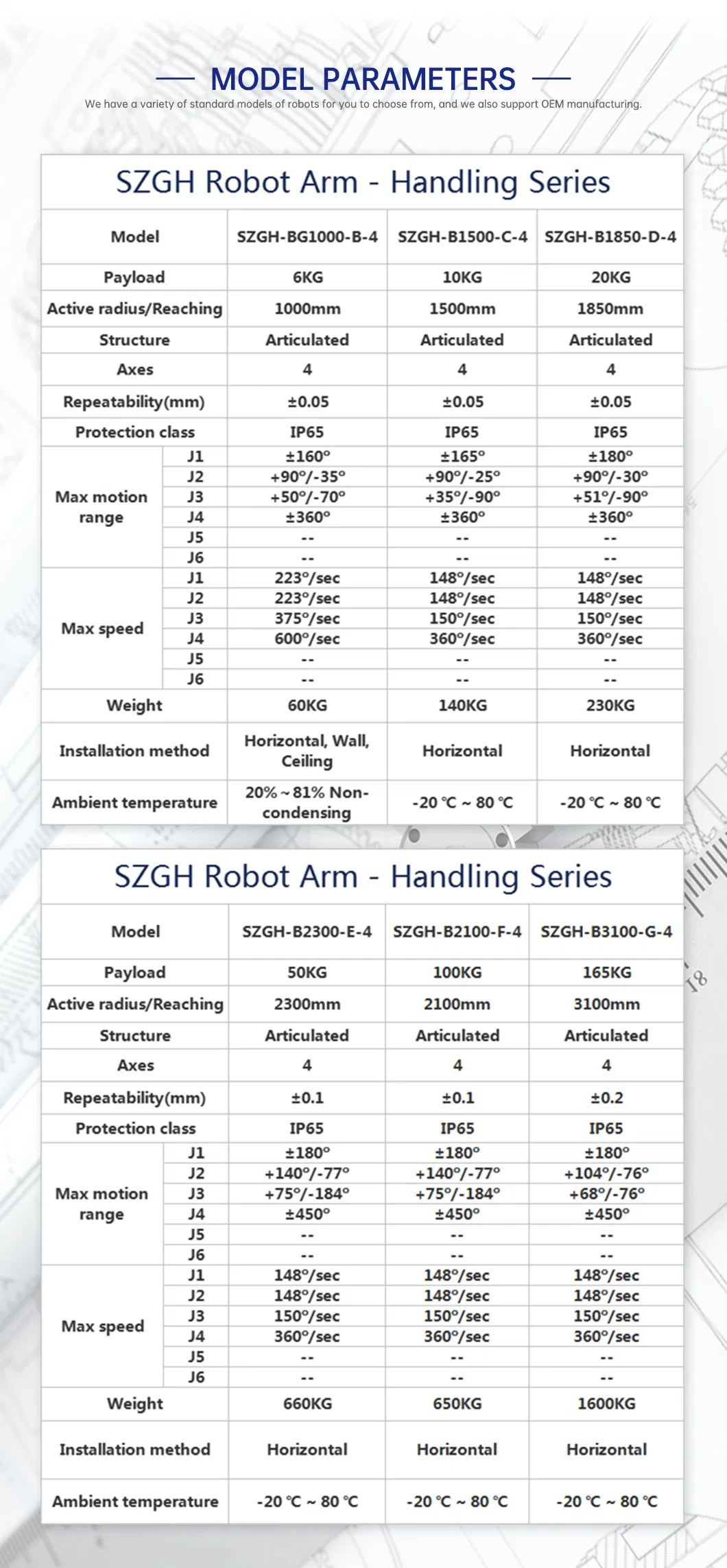

| Technical Specifications | |
|---|---|
| Payload | 10kg |
| Reach | 1500mm |
| Axes | 4 axes |
| Application | Handling |
| Special Service | Customizable standard colors and logo integration. |
| Warranty | 12 months |
| Storage | 2 GB |
| Teaching Box | Full keyboard + touch screen, safety/emergency switches. |
| Interface | Multiple encoder signals, Ethernet, Serial communication. |
| Programming | Online teaching, process programming, teaching by dragging. |
| Motion Functions | Point-to-point, linear, circular interpolation. |
| Anomaly Detection | Anti-collision, servo anomaly, emergency stop, safety maintenance. |
