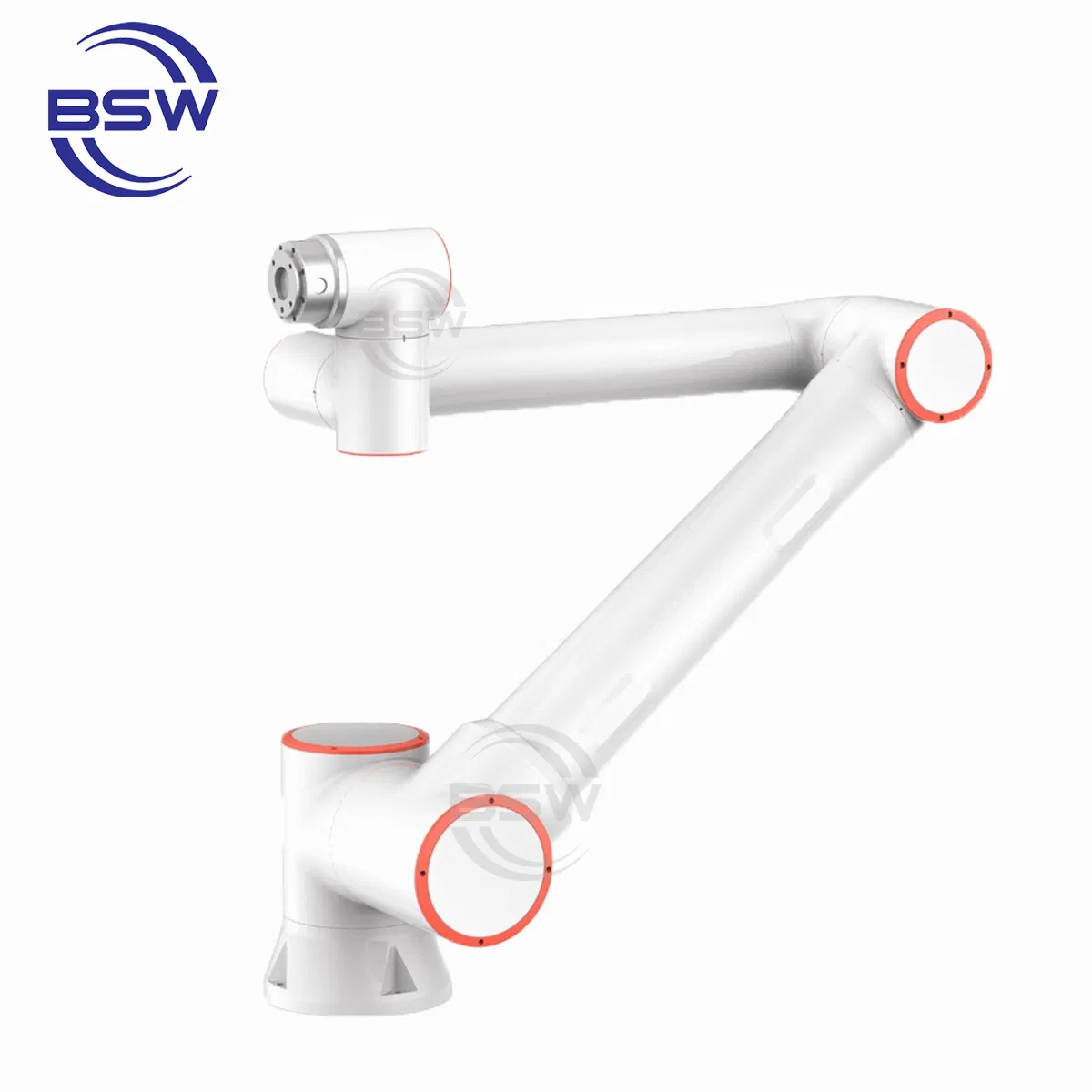

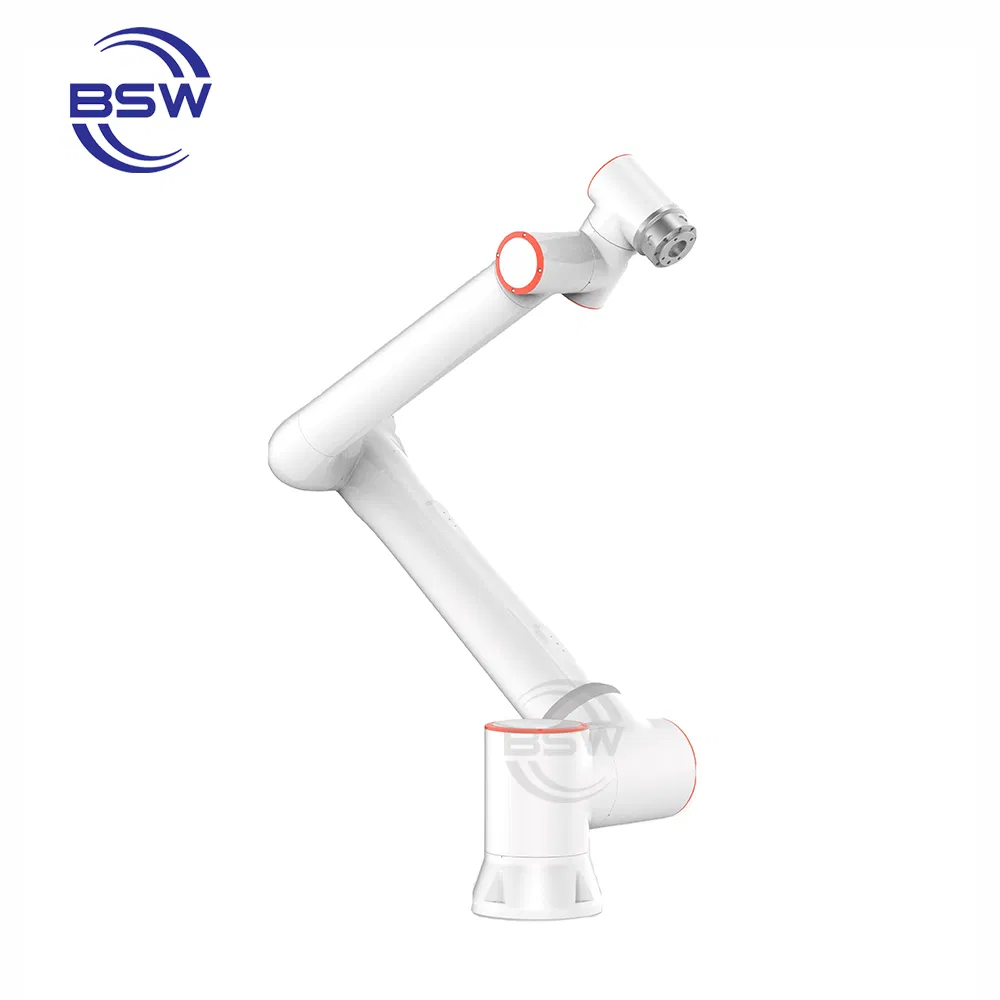

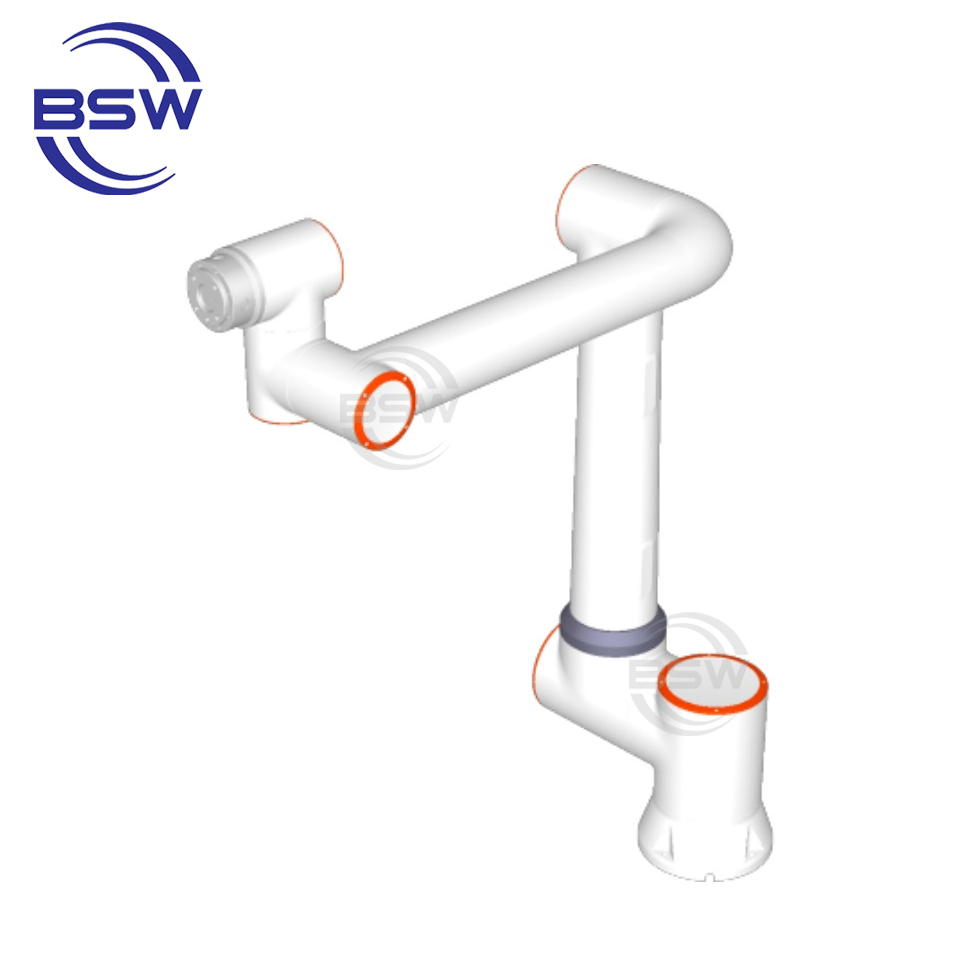

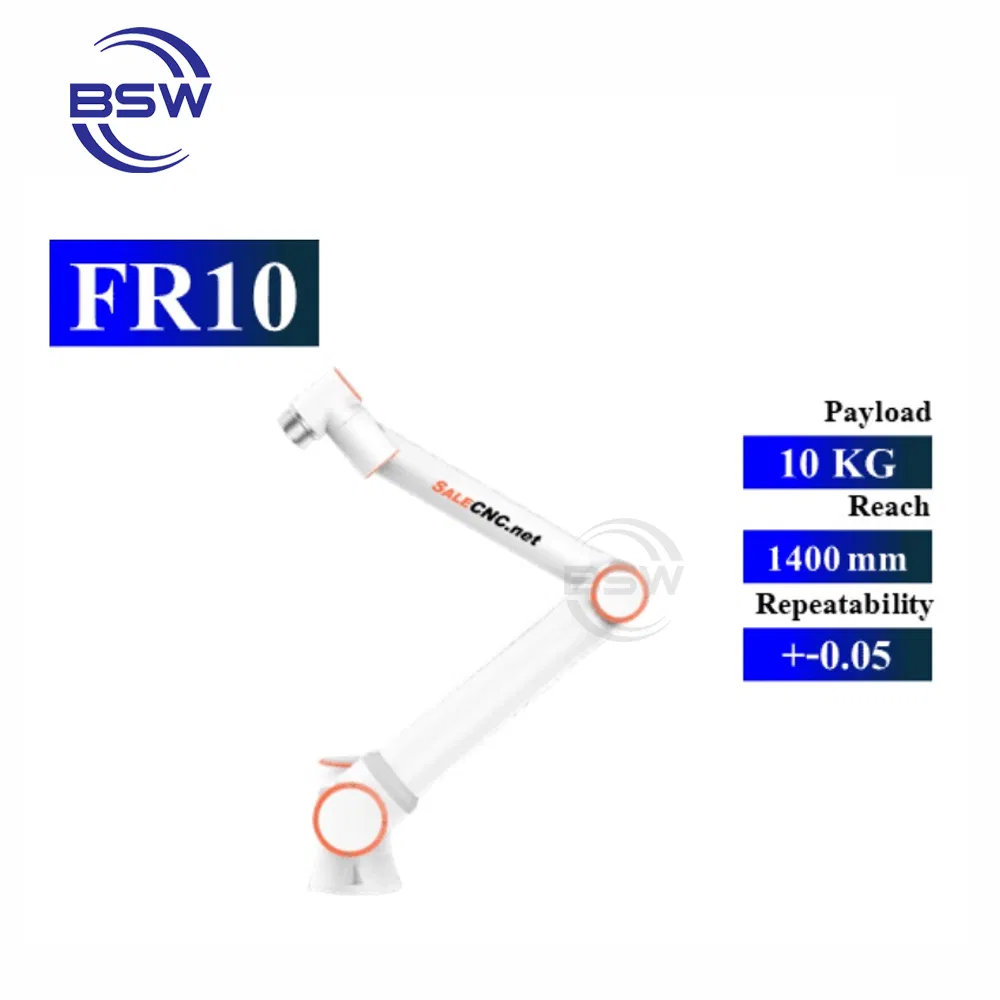

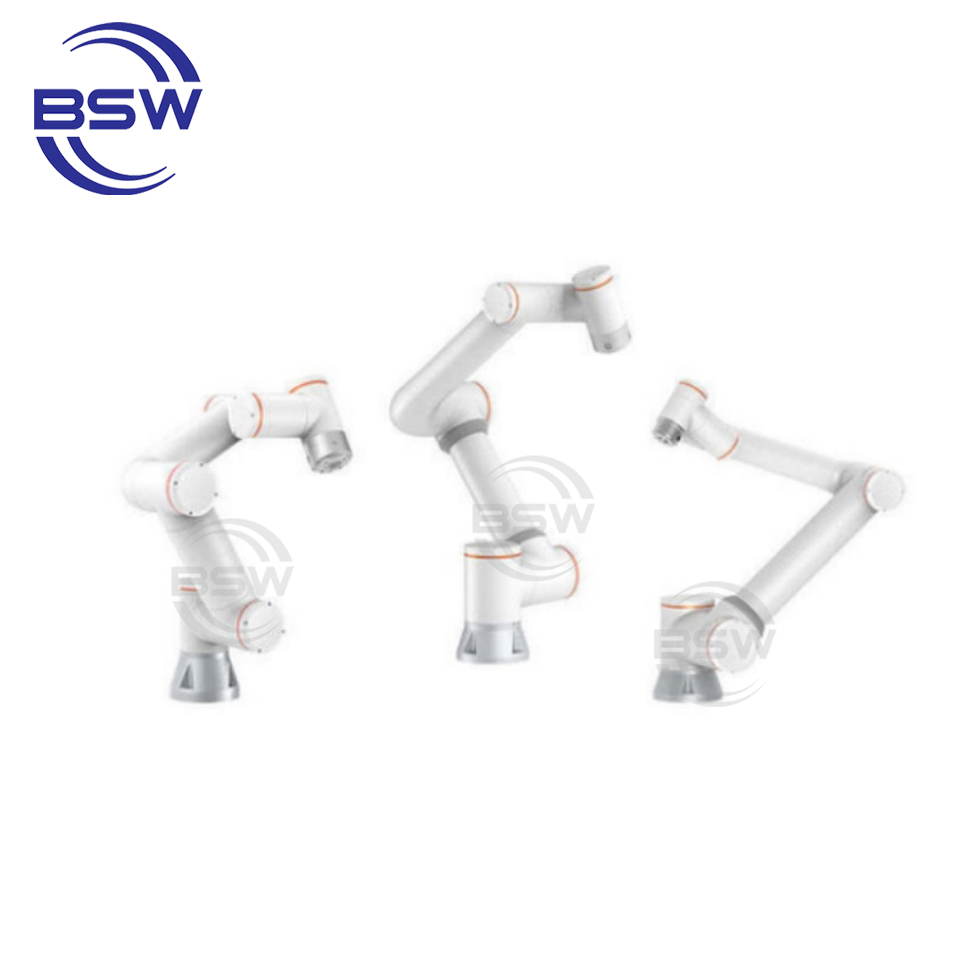

Multifunction Flexible Deployment Collaborative Robot 6-Axis Robot Arm for CNC Loading
Multifunction Flexible Deployment Collaborative Robot 6-Axis Robot Arm for CNC Loading
Multifunction Flexible Deployment Collaborative Robot 6-Axis Robot Arm for CNC Loading
Multifunction Flexible Deployment Collaborative Robot 6-Axis Robot Arm for CNC Loading
Multifunction Flexible Deployment Collaborative Robot 6-Axis Robot Arm for CNC Loading
1 / 5
Multifunction Flexible Deployment Collaborative Robot 6-Axis Robot Arm for CNC Loading
Multifunction Flexible Deployment Collaborative Robot 6-Axis Robot Arm for CNC Loading
Multifunction Flexible Deployment Collaborative Robot 6-Axis Robot Arm for CNC Loading
Multifunction Flexible Deployment Collaborative Robot 6-Axis Robot Arm for CNC Loading
Multifunction Flexible Deployment Collaborative Robot 6-Axis Robot Arm for CNC Loading

Multifunction Flexible Deployment Collaborative Robot 6-Axis Robot Arm for CNC Loading

Application: Assembly, Machine Tending, Packaging, Painting, Picking and Placing, Welding
Degrees of Freedom: 6-axis
Drive Mode: Mechanical
Send Inquiry

Product Description

Basic Information
Model NO.
FR-10
Payload Capacity
10 kg
Robot Type
6 Axis Articulated
Reach
1400mm
Weight
40 Kg
Power
294W
Voltage
220V
Materials
Aluminium, Steel
Operating Temp
0-45ºC
Origin
China
Collaborative Robot 6-Axis Robot Arm
Product Parameters
Feature Specification Performance
Model NumberFR10
Payload10kg
Reach1400mm
Degrees of Freedom6 rotating joints
1 Axis±175°±120°/s
2 Axis+85°/ -265°±120°/s
3 Axis±160°±180°/s
4 Axis+85°/ -265°±180°/s
5 Axis±175°±180°/s
6 Axis±175°±180°/s
Typical TCP Speed1.5m/s
IP ClassificationIP54
Noise<65db
Footprint190mm
Product Display

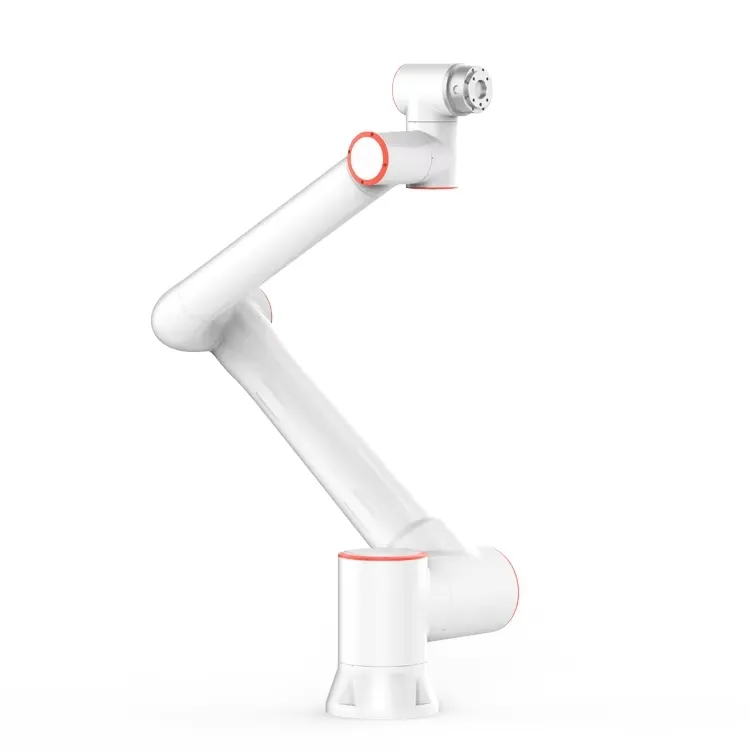

Robot Display

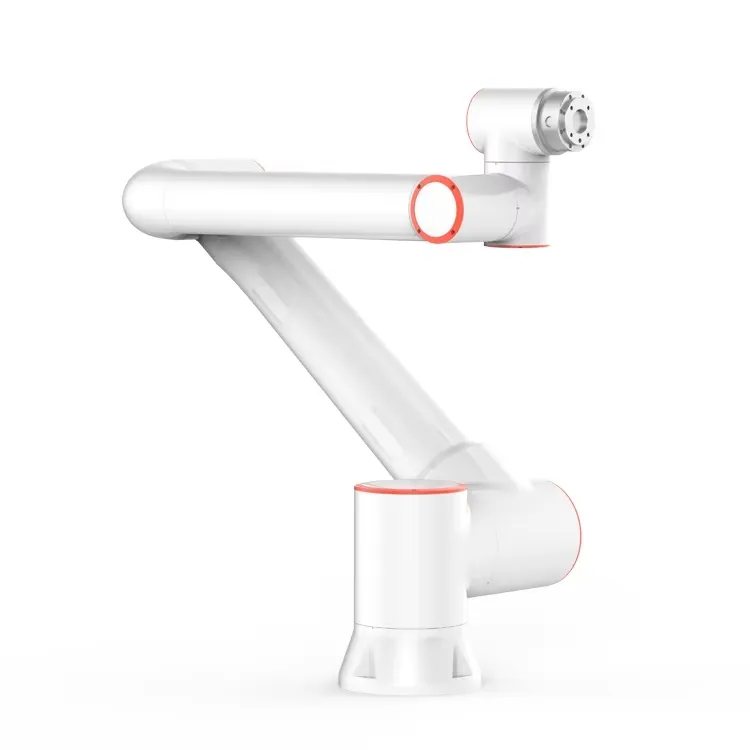

Robot Detail 1

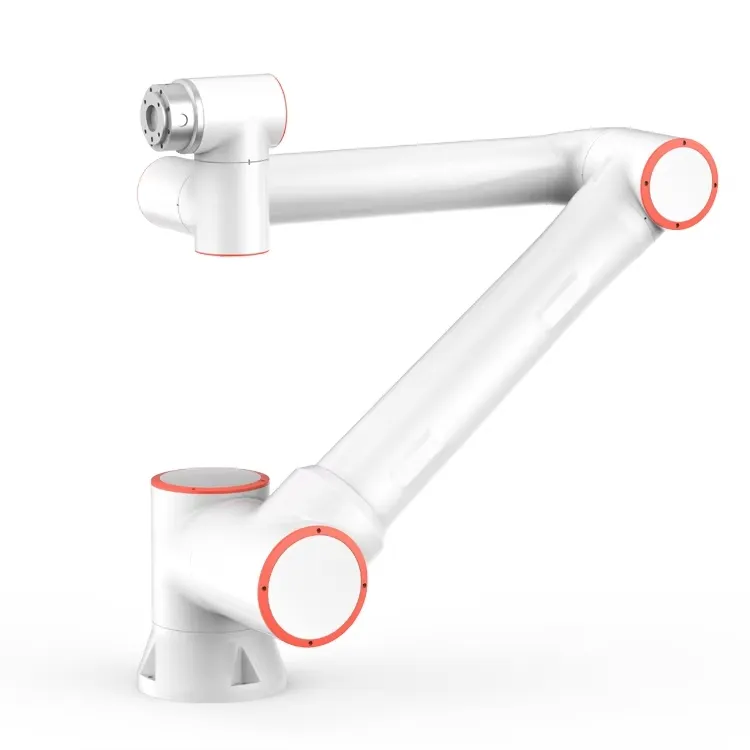

Robot Detail 2

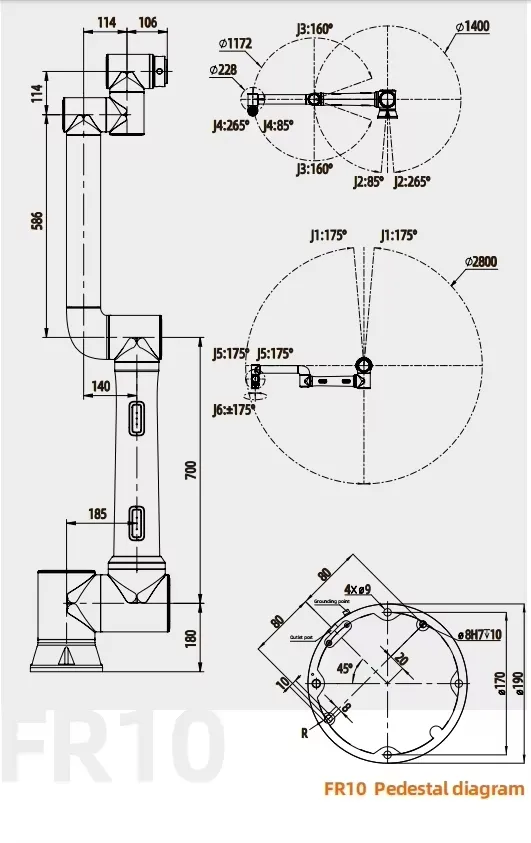

Robot Perspective

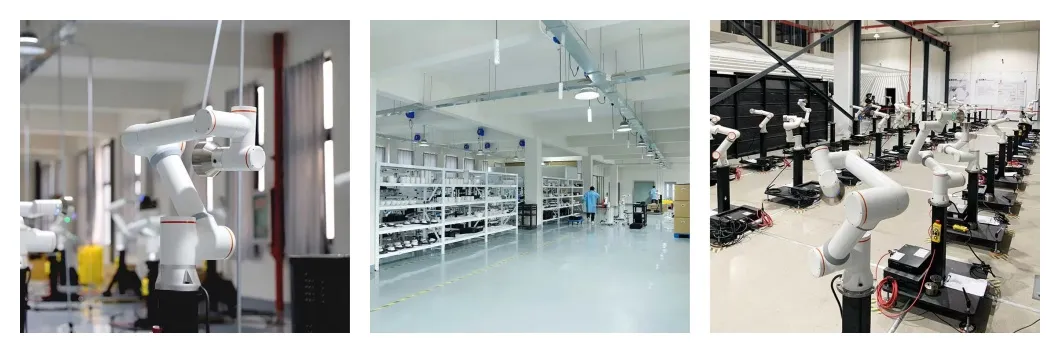

Feature 1
Feature 2
Feature 3
Product Application

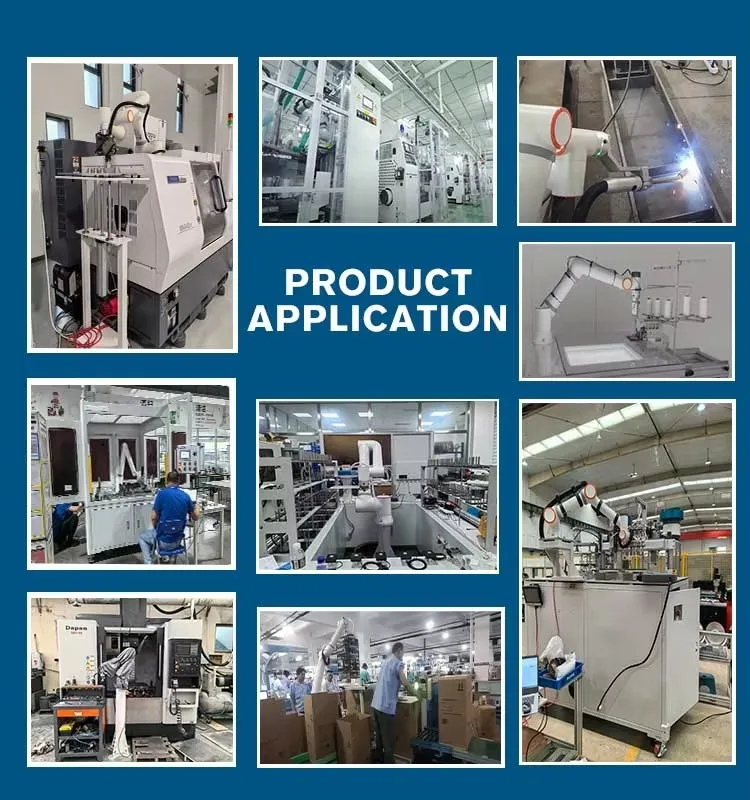

Application Scenarios
Certifications
Certificates
Certificates Banner
Packaging & Shipping
Package Size: 137.00cm * 62.00cm * 73.00cm
Gross Weight: 50.000kg
Shipping 1
Shipping 2
Shipping 3
Frequently Asked Questions
What is the focus of the collaborative robot manufacturer?
We are a collaborative robot company that prioritizes independent research and development of all core components. Our facilities include multiple large production bases and a specialized R&D center.
What is the warranty period for the 6-axis robot arm?
The product comes with a comprehensive 12-month warranty.
Why should customers choose this robotic solution?
We offer excellent quality products, highly competitive pricing, and support from a professional technical team.
How is the quality of the robots guaranteed?
We ensure quality through a pre-production sample before mass production and a strict final inspection of every unit before shipment.
What delivery and payment services are provided?
We accept various delivery terms including FOB and EXW. Accepted payment methods include T/T and Western Union, primarily in USD.
What communication languages are supported?
Our team is proficient in English and Chinese to serve a wide range of international clients.
