Basic Information
Model NO.:SPC4
Drive Mode:Mechanical
Structure:Articulated
Mounting Type:Ground, Bracket, Ceiling
Repeatability:0.05mm
Condition:New
Certification:ISO, CE, SGS
Warranty:12 Months
Transport Package:Wooden Package
Origin:China
Product Features

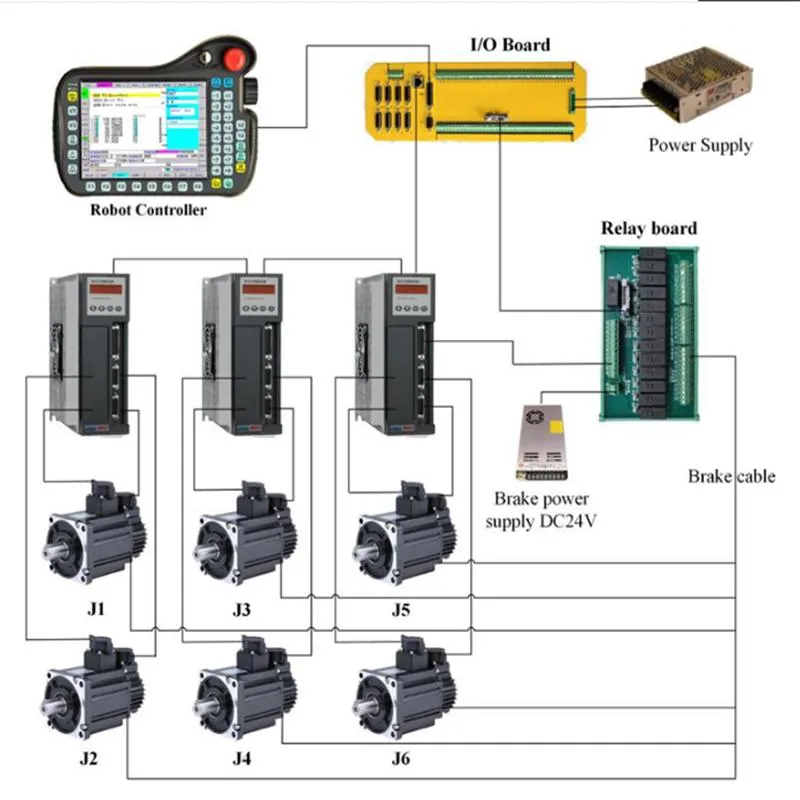

✓Support up to 12-axis control, realizes the control of external axes (traveling axes and positioner).
✓Structural optimization algorithm suitable for the body control of various types of structure.
✓Open structure for synchronization of international technology and extension of functions.
✓Software PLC functions facilitate logic control. Process functions make programming easy.
✓Modular setting of functions suitable for diverse applications with integrated safety modules.
✓Improved computer bus connection ensures high reliability and practicability for absolute servo.

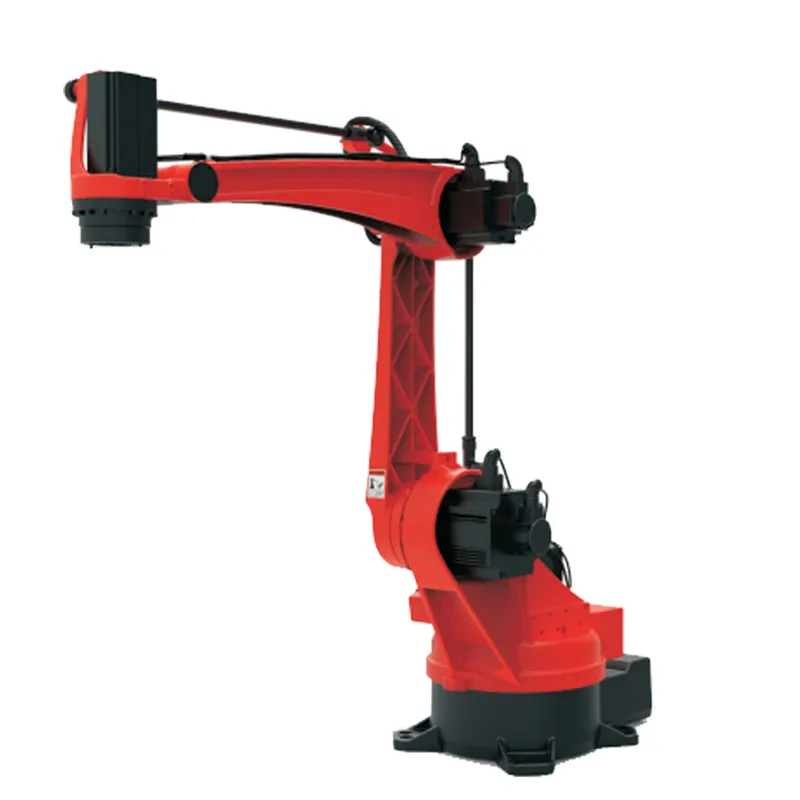

Arm span: 1500mm | Repeat accuracy: ±0.05mm | Max Load: 10KG | Net Weight: 130KG
Technical Specifications
| Part |
Axis |
Range |
Max Speed |
| Main Arm | J1 | ±165° | 163°/s |
| J2 | -95°/+70° | 148°/s |
| J3 | -85°/+75° | 223°/S |
| Wrist | J4 | ±180° | 250°/s |
| J5 | ±115° | 270°/s |
| J6 | ±360° | 337°/s |

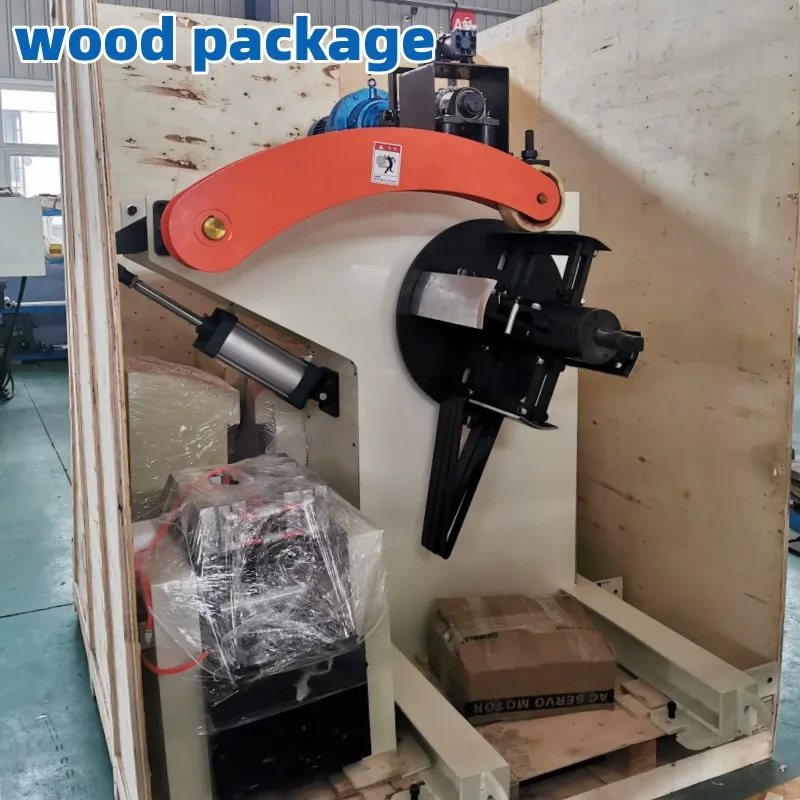

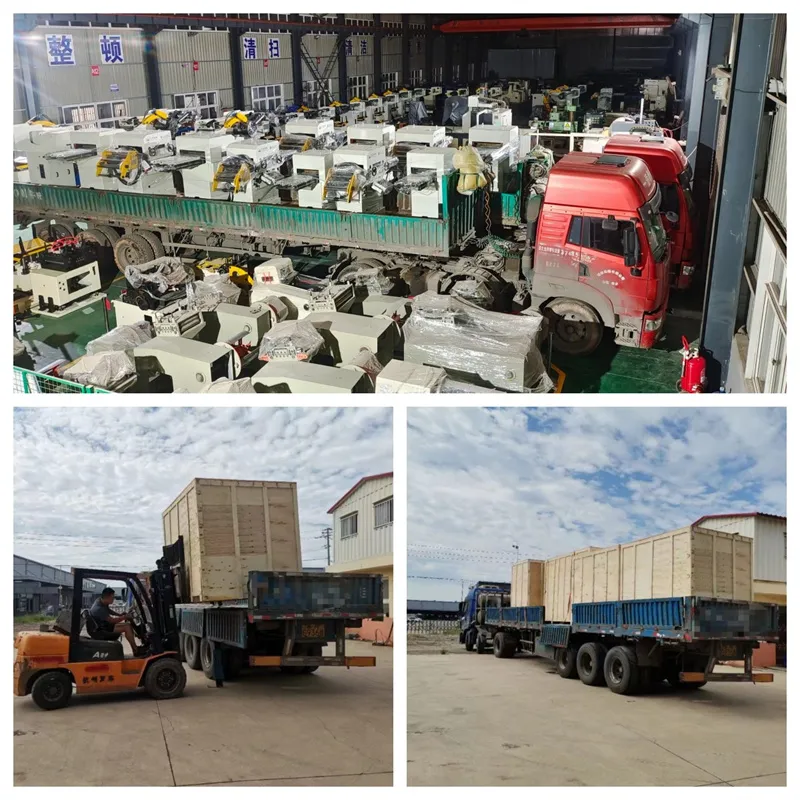

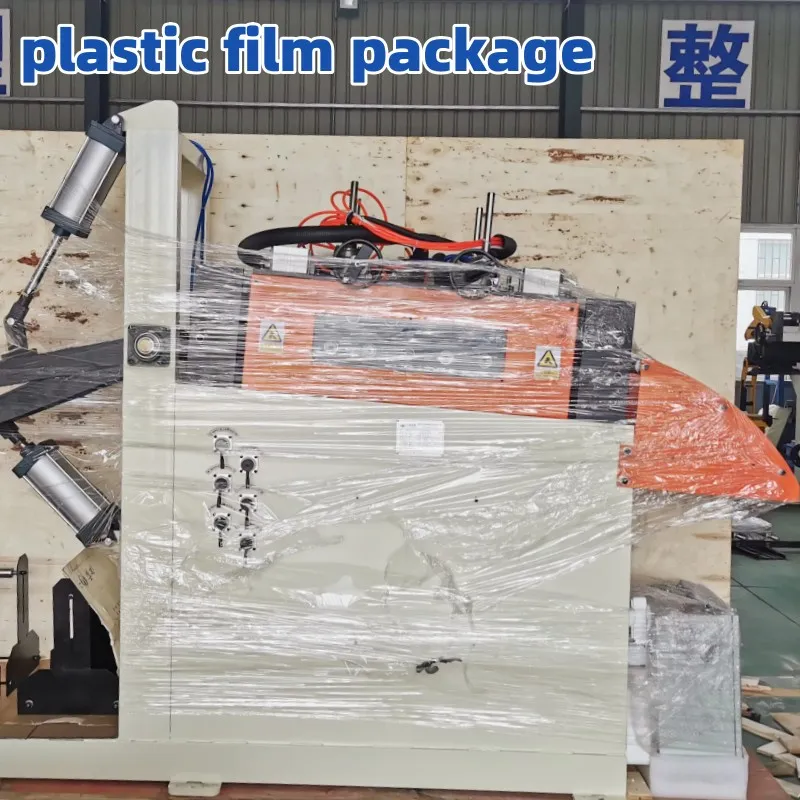

Packaging & Shipping
Package Size:50.00cm * 50.00cm * 40.00cm
Gross Weight:120.000kg
Frequently Asked Questions
Are you a factory or trading company?
We are a factory which has been producing stamping automation machines for more than 20 years.
What is the delivery time?
Standard machines take 25 to 30 working days after payment. Compact coil feed lines or full metal stamping lines require 30-70 workdays depending on specifications and production schedules.
Do you accept OEM or ODM orders?
Yes, we warmly welcome customers to pursue OEM and ODM collaborations in our factory.
What is the warranty period for your machines?
The standard warranty period is 12 months. This can be extended based on specific project requirements.
What after-sales service do you provide?
For standard machines, we provide remote guidance for installation and debugging. For complex systems and complete lines, we can arrange engineers to travel overseas for on-site installation and operator training.
What information is needed for a quotation?
Please provide: 1. Coil thickness (min-max); 2. Coil Inner/Outer diameter; 3. Material type; 4. Max coil weight; 5. Required production capacity per day/month.
